MJ243 Double head horizontal Spindle moulder wood flooring moulder for tenoning and trimming

Product Overview

Description

Introduction of MJ243 Double head horizontal Spindle moulder wood flooring moulder for tenoning and trimming

Double-end cutting milling saw machine is a multi-functional production equipment, which can be used for precision sawing and milling of both ends of solid wood and artificial board, as well as for plate finishing, tenon processing, back slot and groove processing.

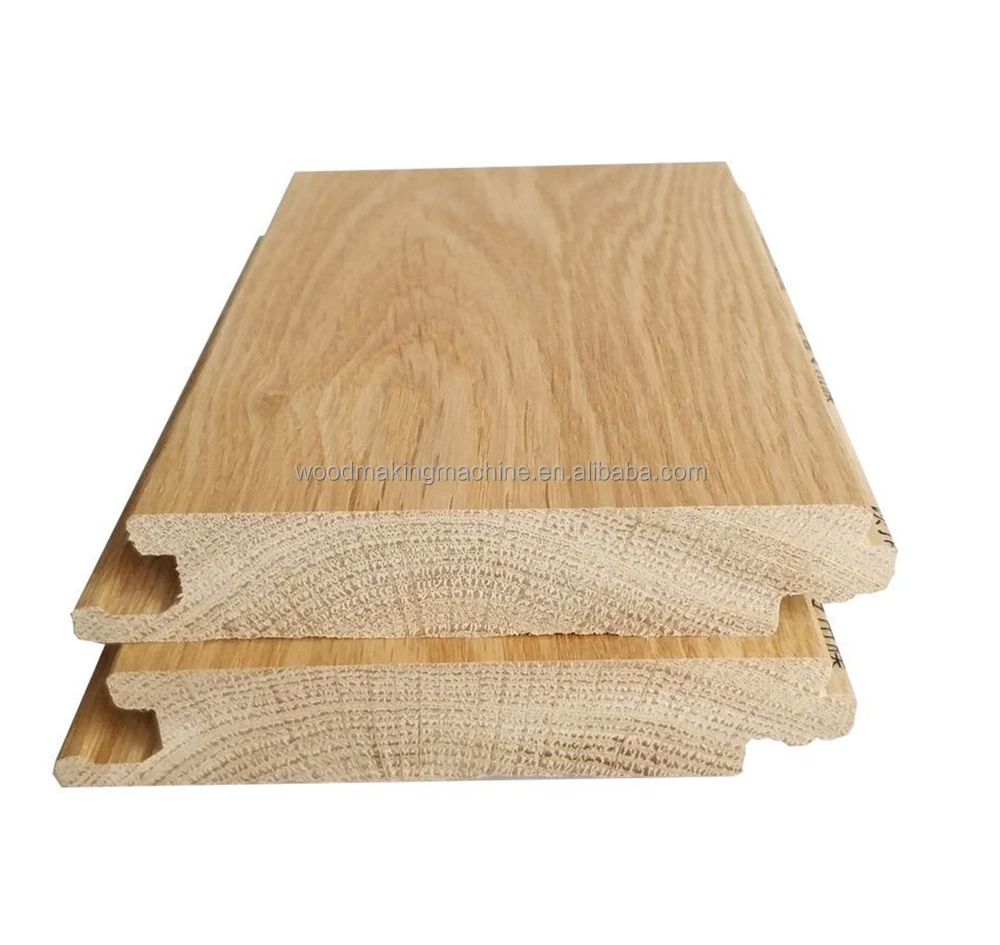

In actual production, double-end milling is suitable for double-end flush and milling processing of solid wood doors, tenoning processing of wood floors, and double-end precision cutting of panel furniture.



Double-end milling machines are widely used in large furniture and wood floor processing enterprises with high processing accuracy and high production efficiency.







Parameter of MJ243 Double head horizontal Spindle moulder wood flooring moulder for tenoning and trimming

Model	MJX234A Double-end adjustable trimming saw(angle adjustable)	MJX234B Double-end end trimming saw upper and lower saw with vertical shaft milling saw (angle adjustable)	MJX234C Double-end end trimming saw upper and lower saw with vertical shaft milling saw (double guide )
Processing width(mm)	450	450	450
Processing length(mm)	300~1200/1600/2400	300~1200/1600/2400	700~1200/1600/2400
tenoner depth(mm)	60	60	60
Motor power	4kw(2.2kw *2)	12.8kw(4KW+2.2kw*4 )	16.8kw(4kw*2+2.2kw *4)
Beam length(mm)	2000	2000	3200
Circular saw size(mm)	305*25.4/30	305*25.4/30	305*25.4/30
Processing thickness(mm)	100	100	100
Spindle speed(RPM)	2840	2840	2840
Saw blade tilting angle	45degree	45degree	45degree
Dimension(mm)	2500*1700*1300	2500*1700*1300	3500*1700*1300
Weight(kg)	390	390	500

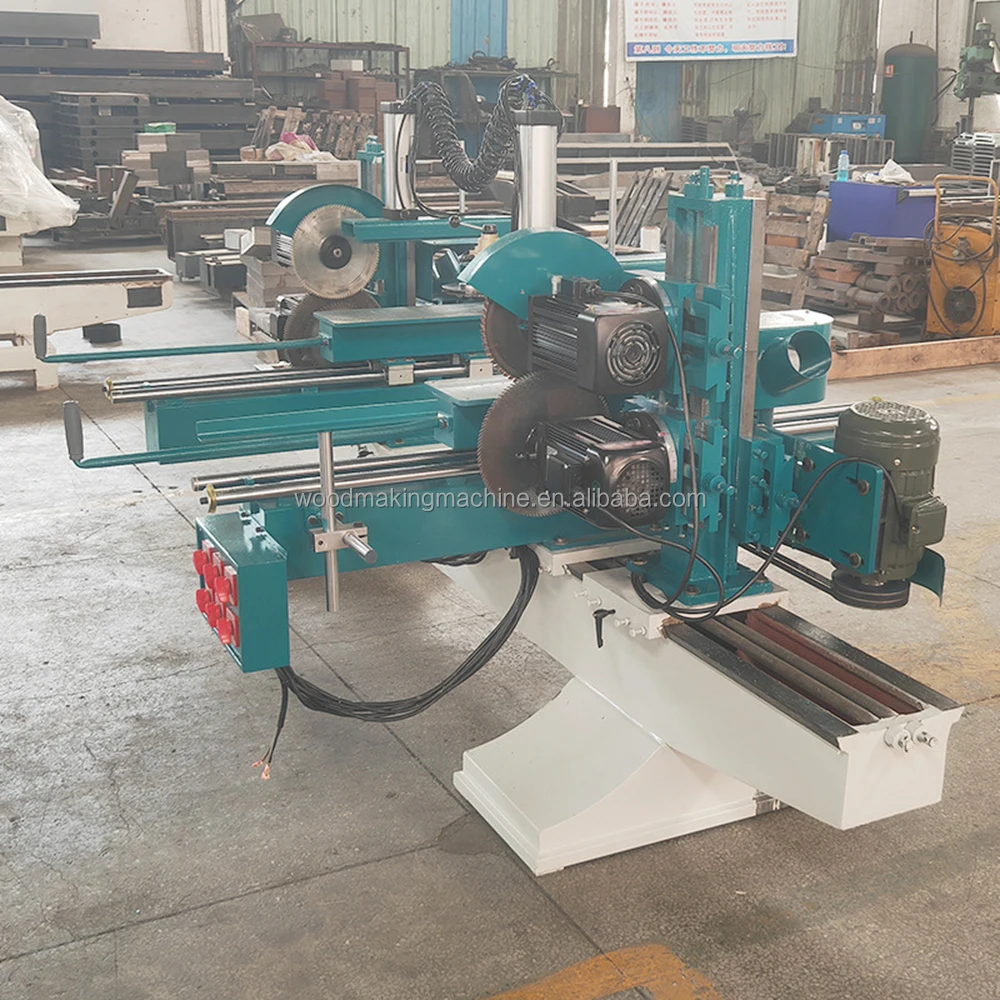

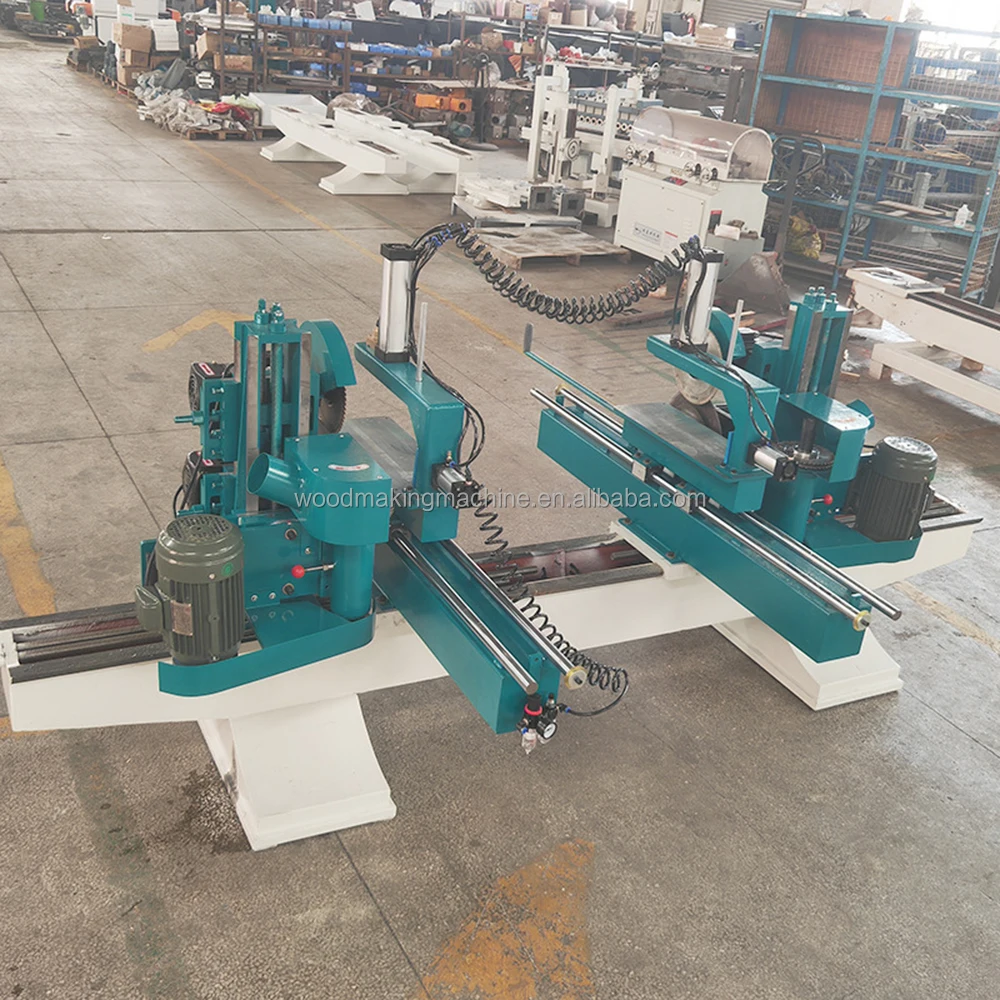

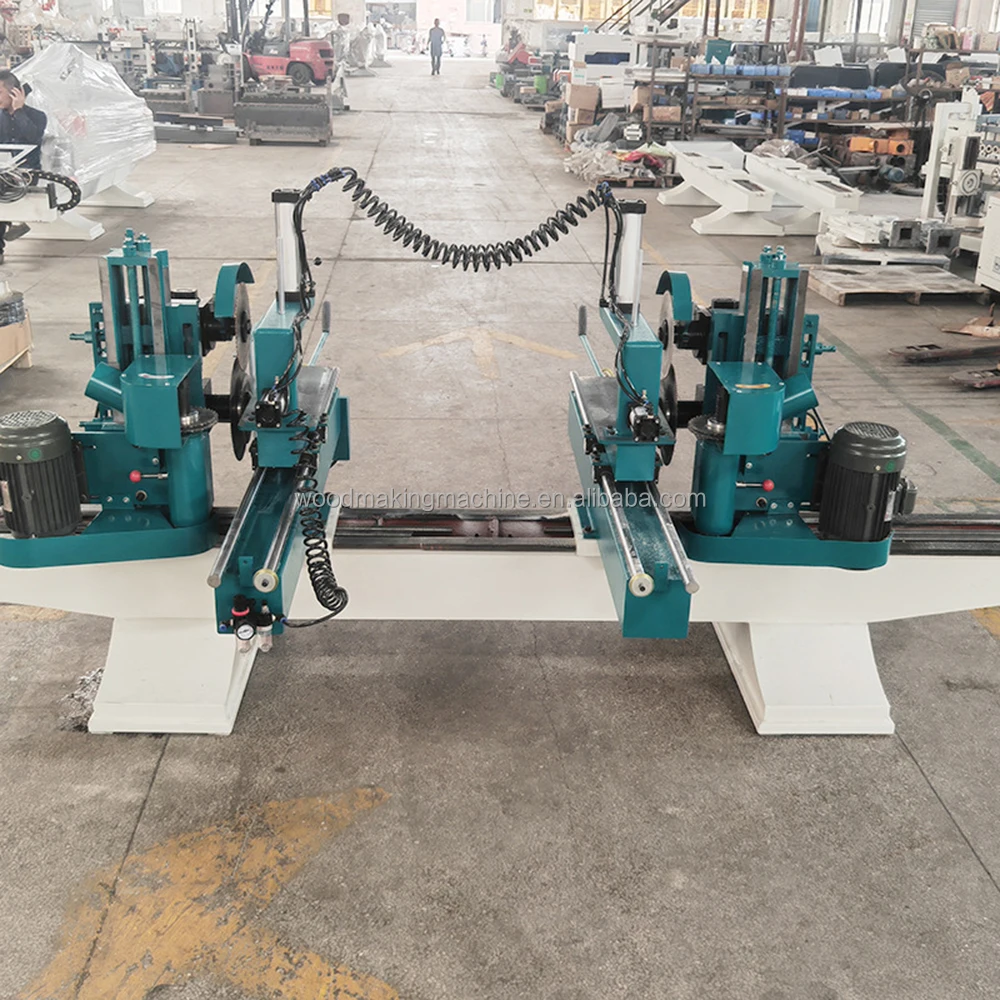

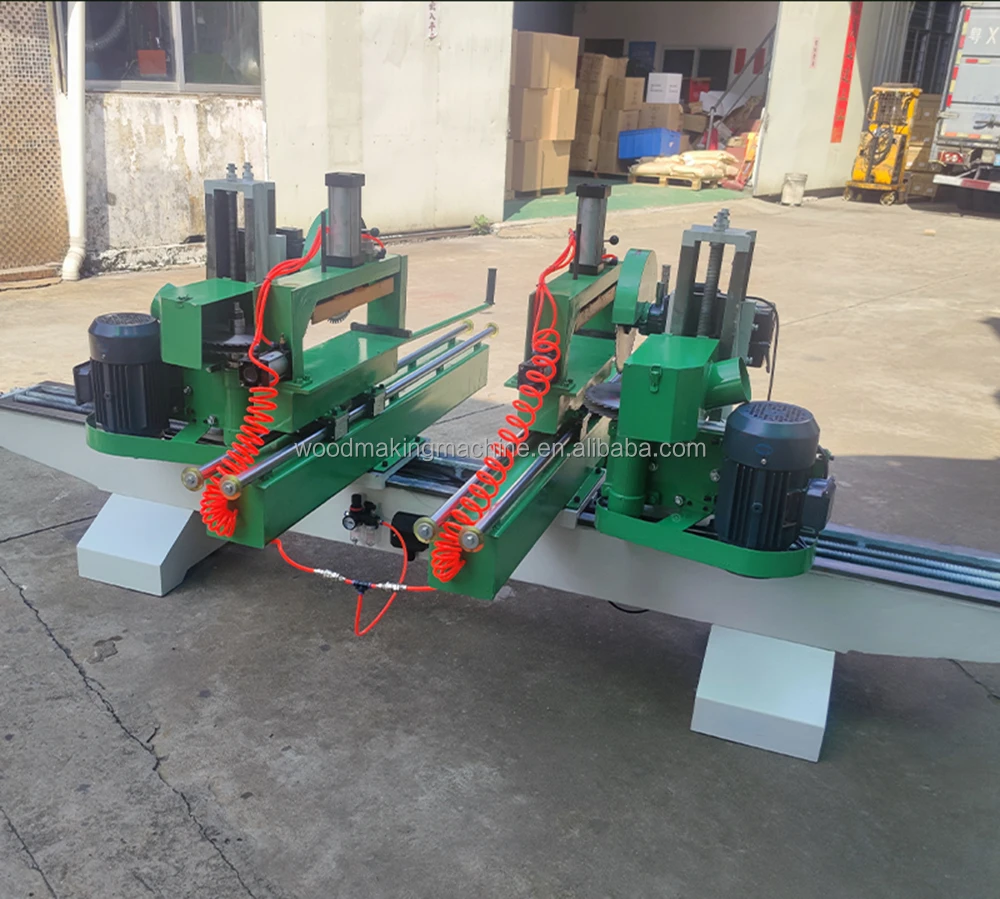

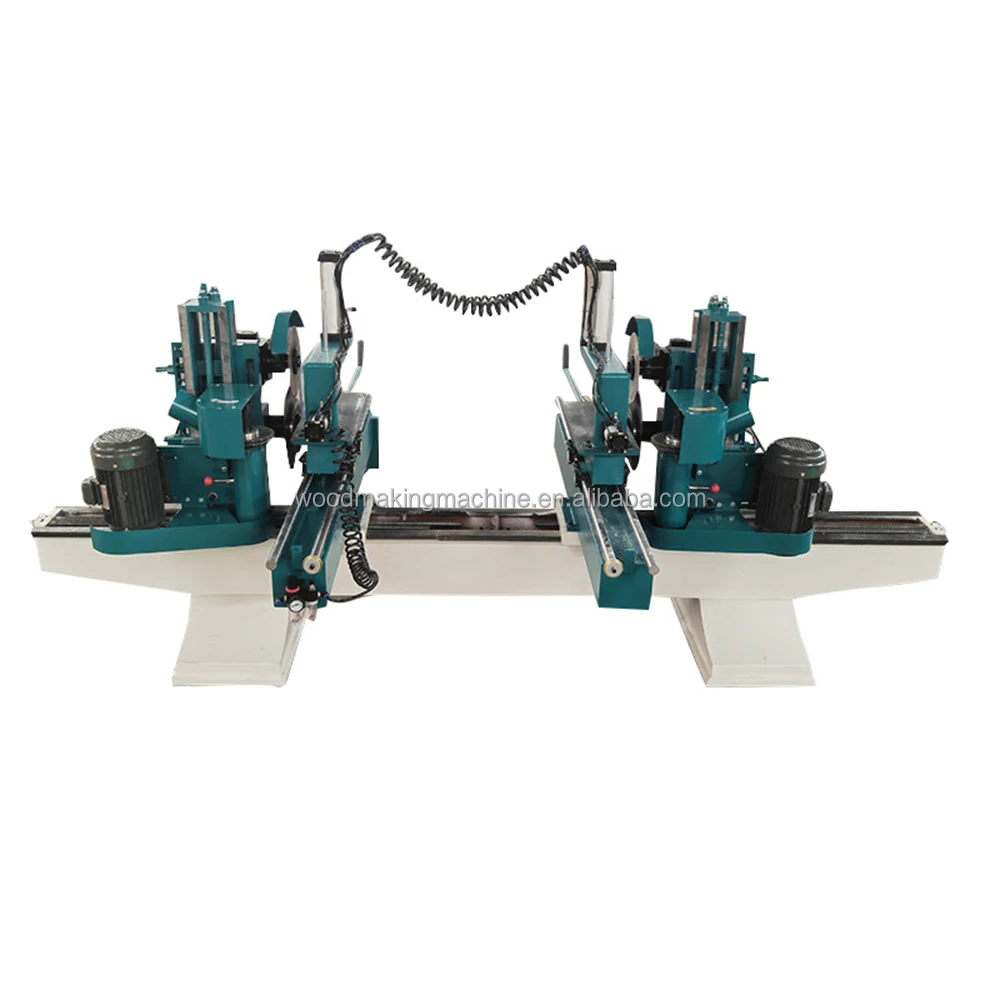

Photo of MJ243 Double head horizontal Spindle moulder wood flooring moulder for tenoning and trimming

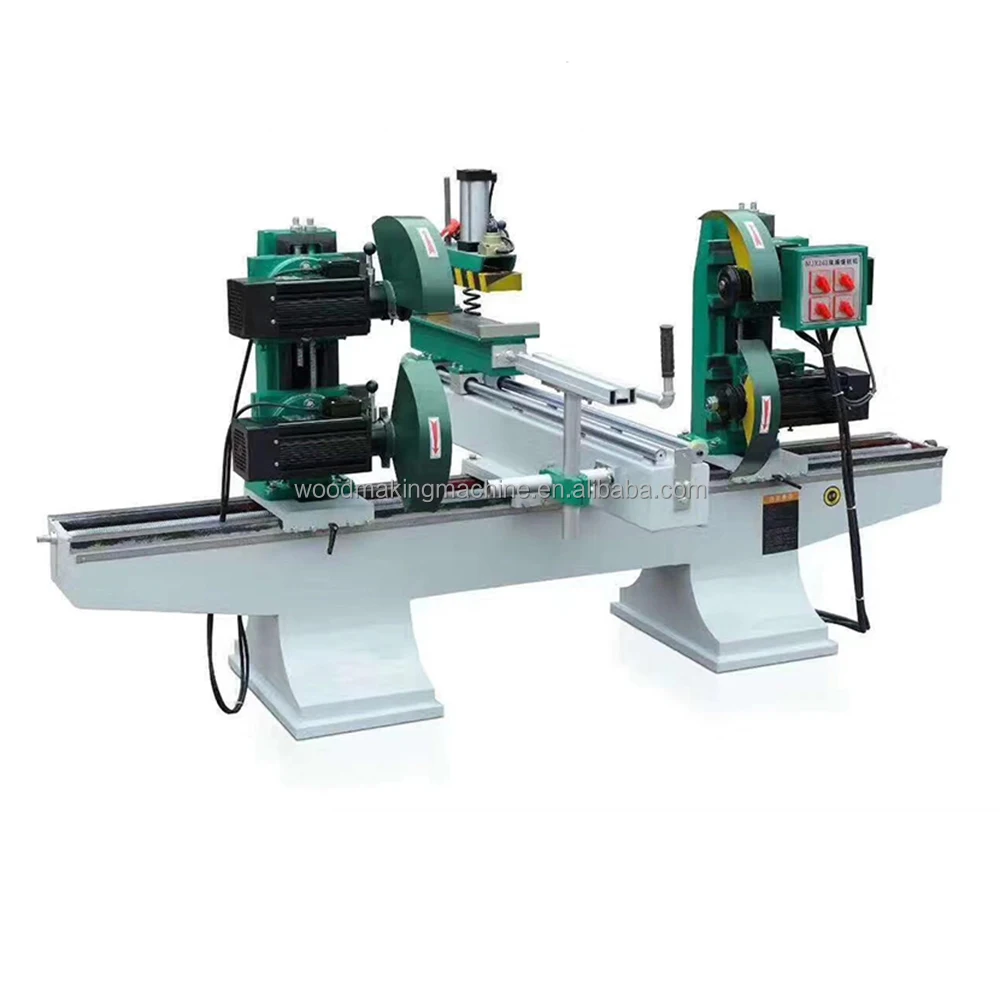

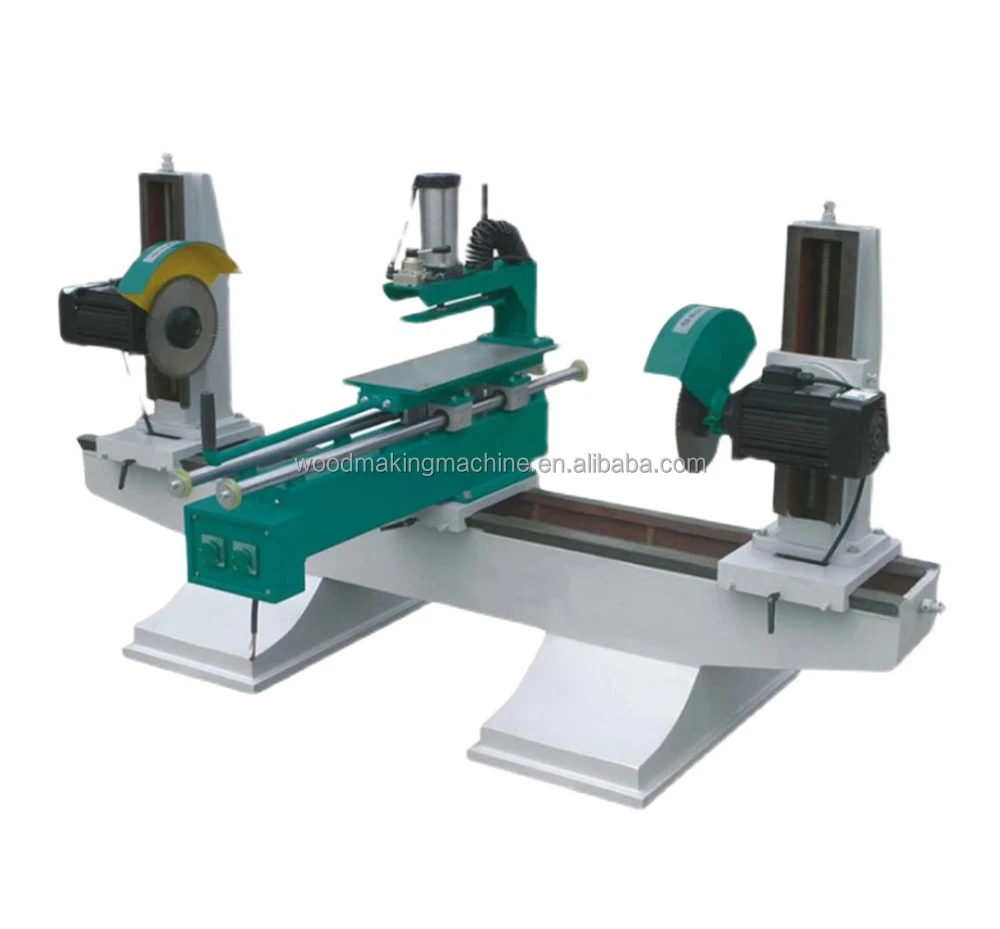

MJX243A

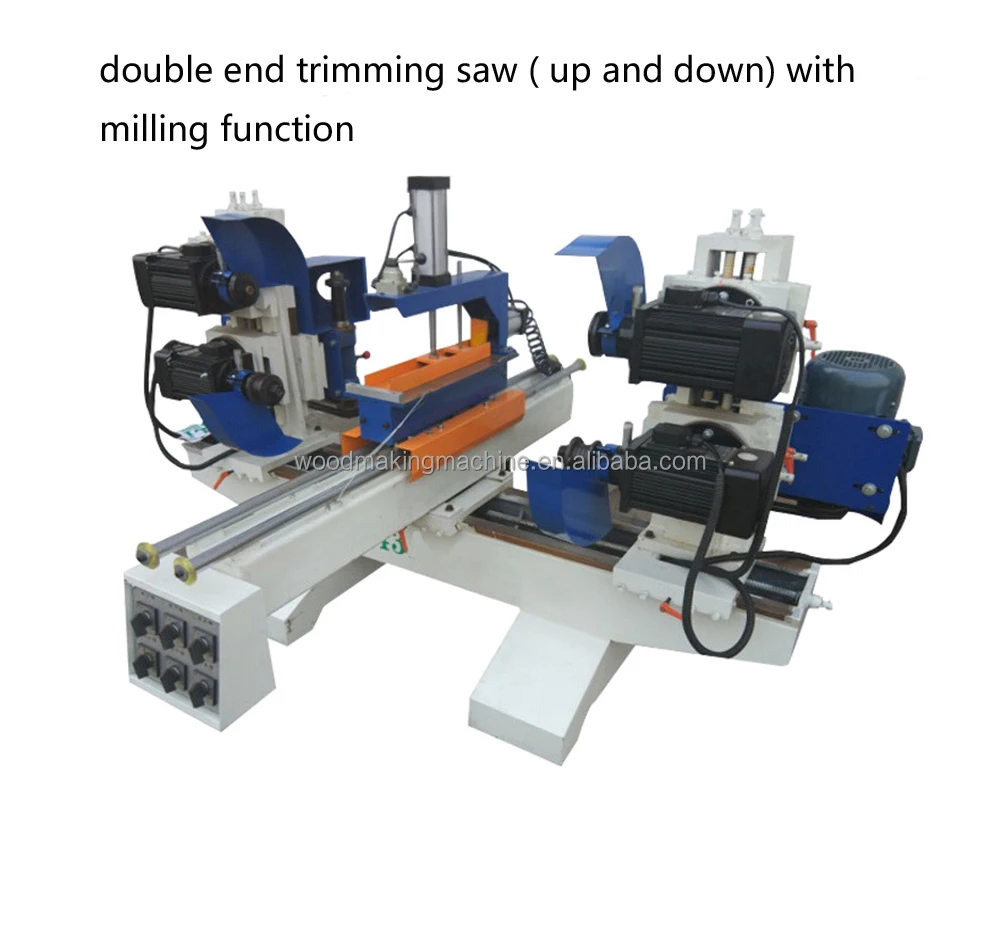

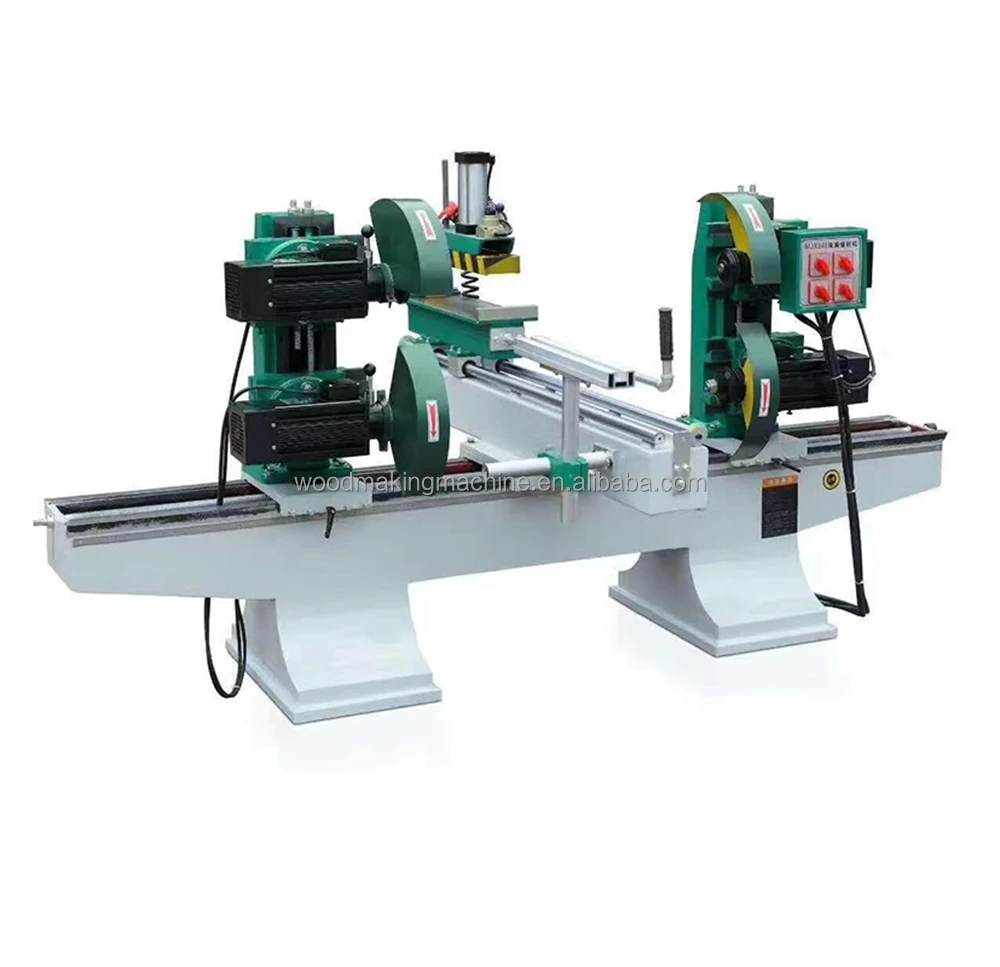

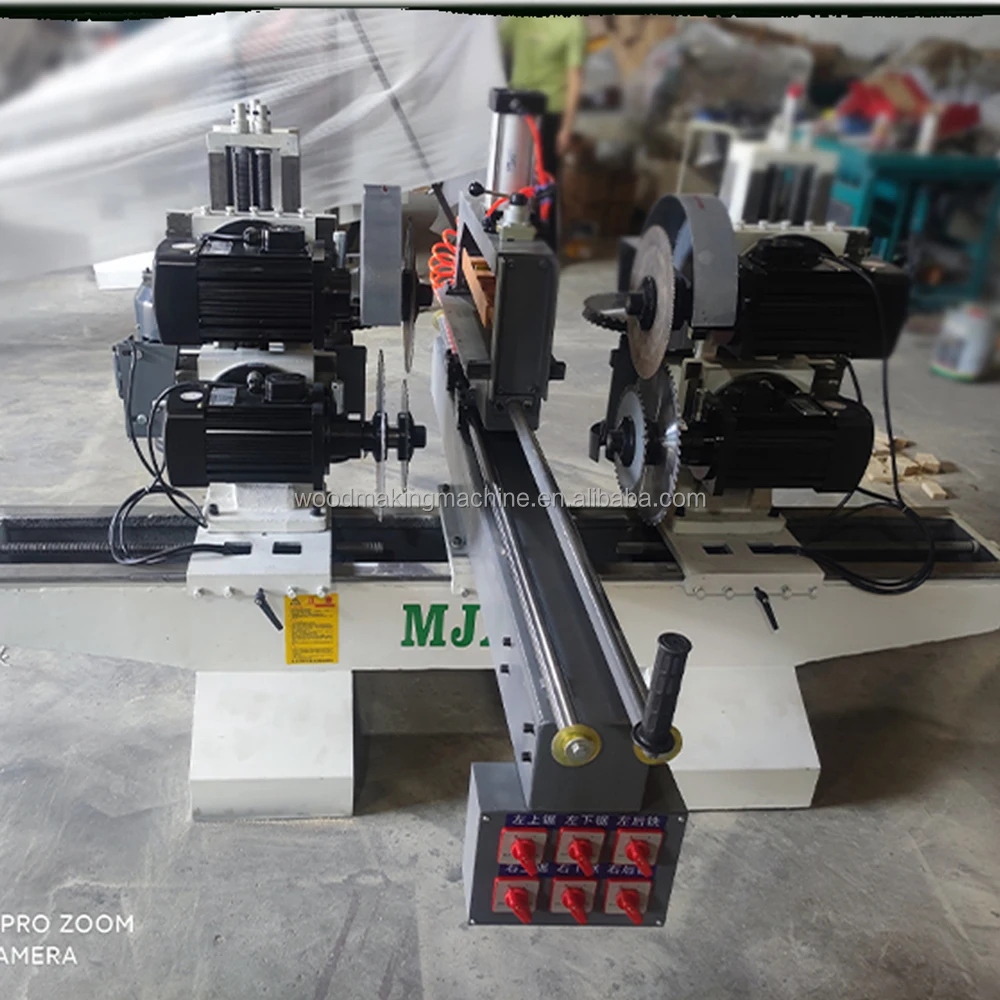

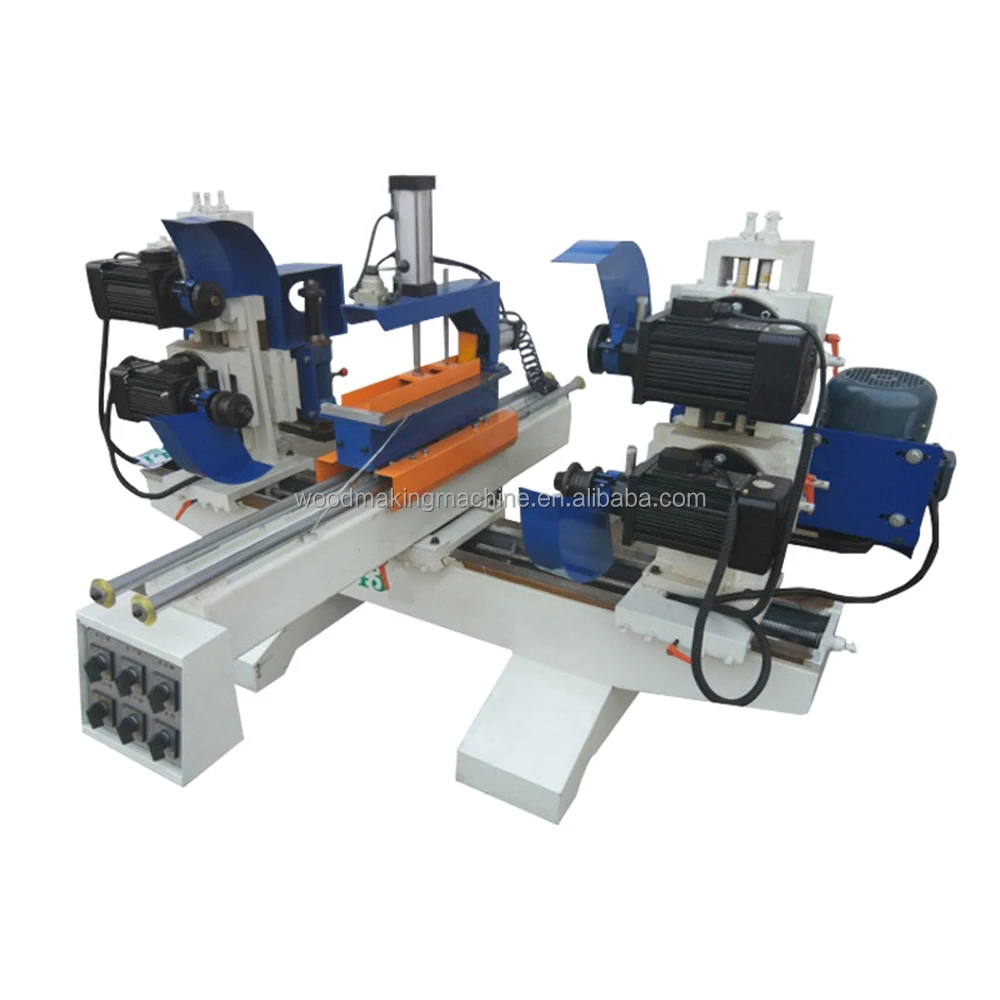

MJ243B

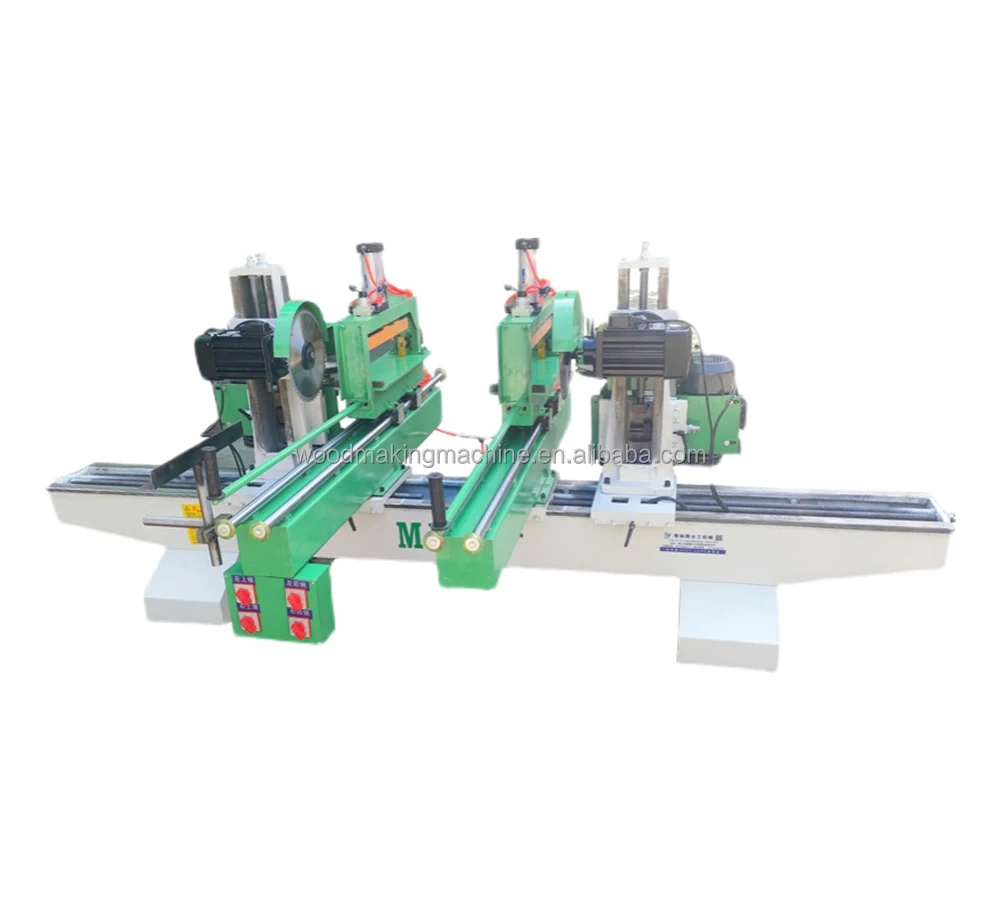

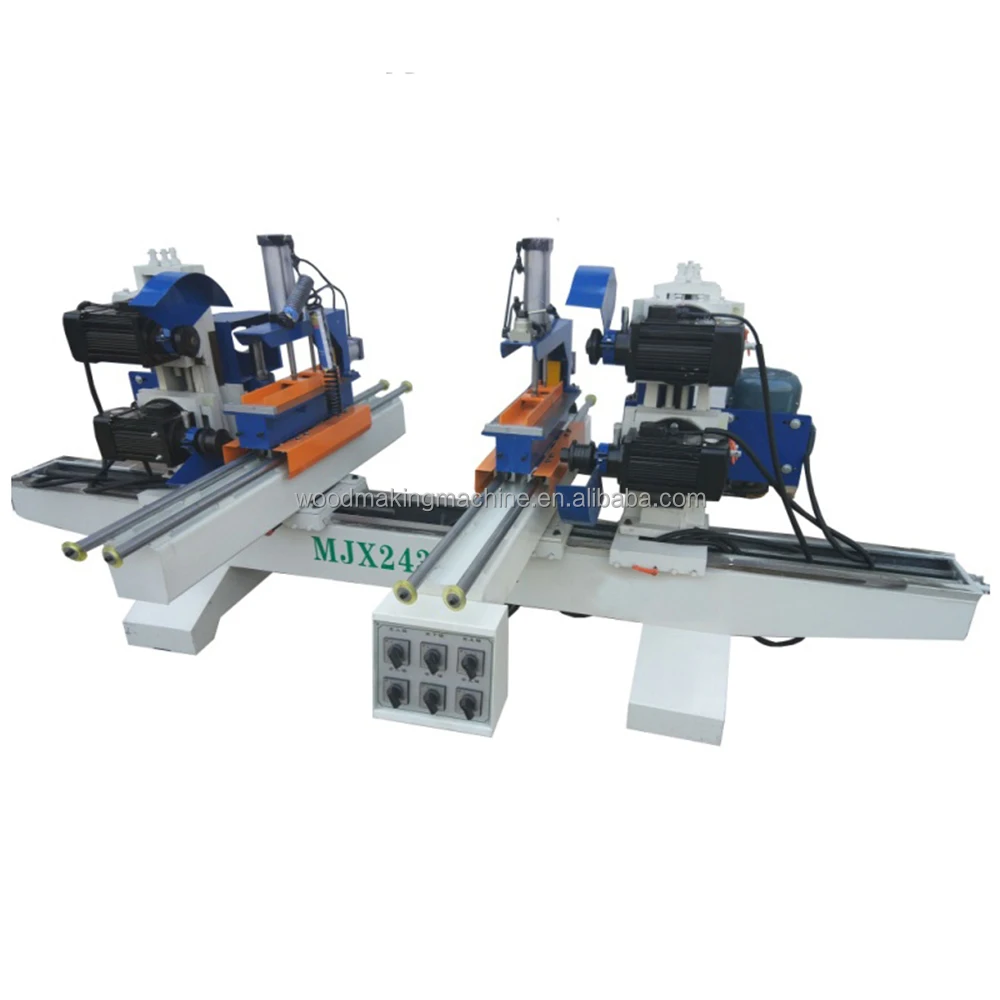

MJ243C

FAQ

1. Package:

Our workers will make sure your machine clean before package.

We will add stretchy film for the whole machine and spare parts for delicate protection.

 export standard strong Wooden box case package.

2. Guarantee:

Machine motor warranty for one year, electrical parts for 3 months under normal using and maintenance, more than warranty time,you will get the cost price for accessories, You will also get technical support and service all the time.

Motor damage or man-made damage caused by mismatching of operating voltage is not covered by the warranty. Please check whether the voltage matches when using.

3. Technical support:

Technical support by Phone, Email ,Wechat, WhatsApp and Skype,24 hours online.

We provide English version manual.

4. After sales services:

Our machine is installed and tested well before delivery. You can operation the machine immediately after received machine.

If you don't know how to use the machine,we will offer you free training until you can use machine freely.And If there is still have any question, please contact us by Email, Skype, Phone and Trademanager online service at any time.
