Tobee Effluent Handling
$12,600

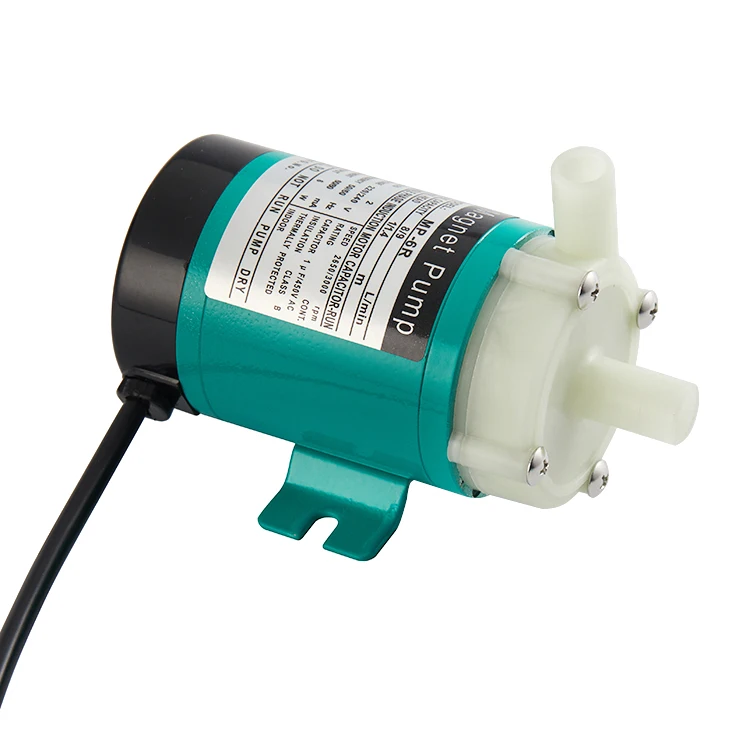

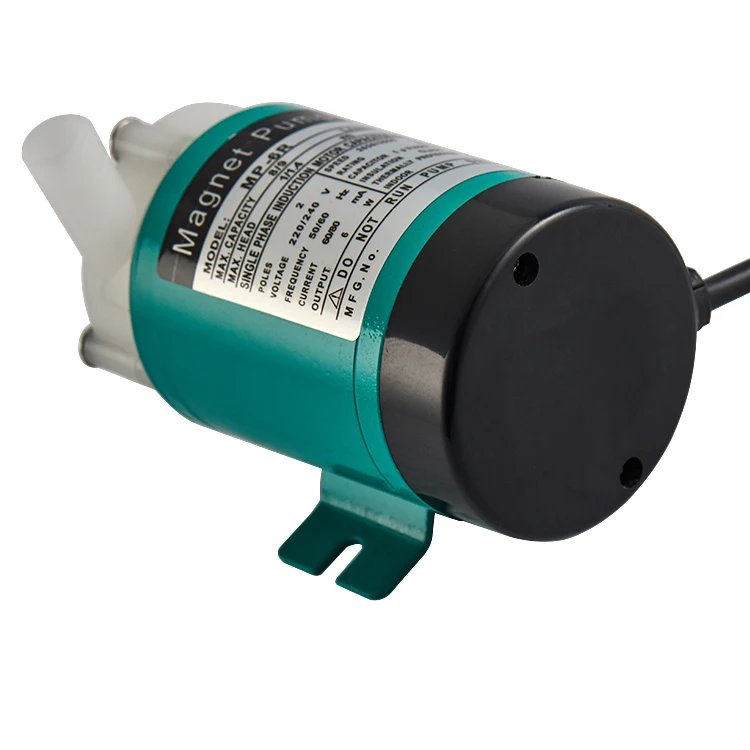

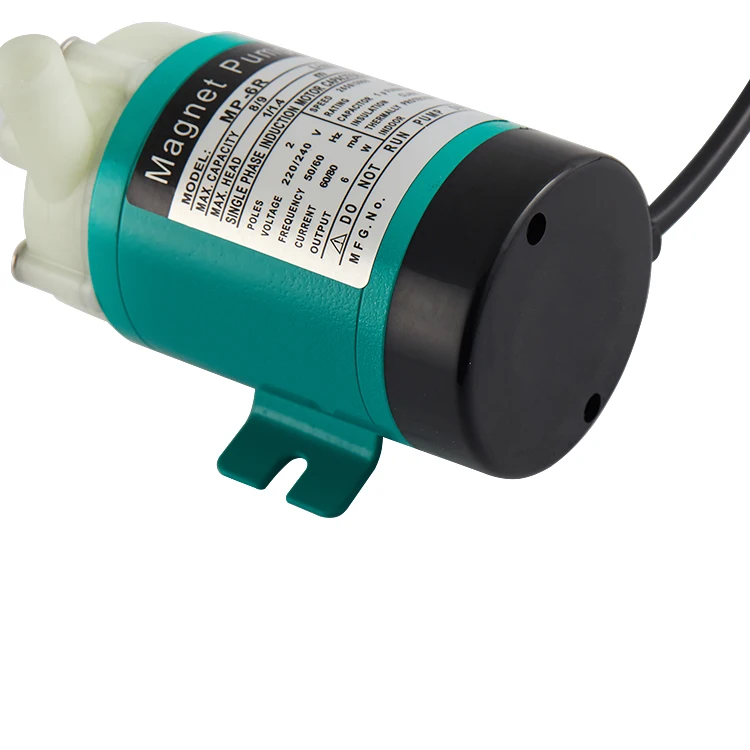

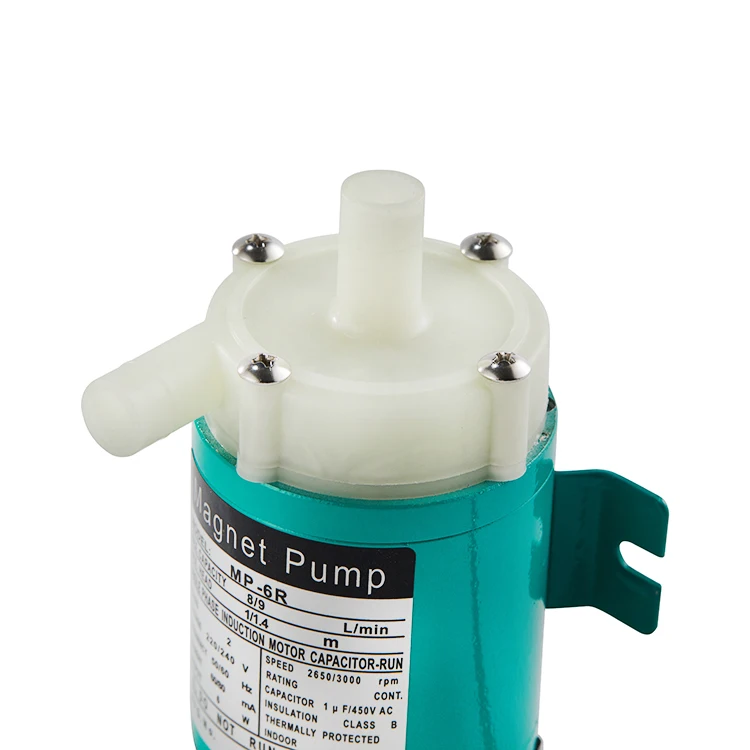

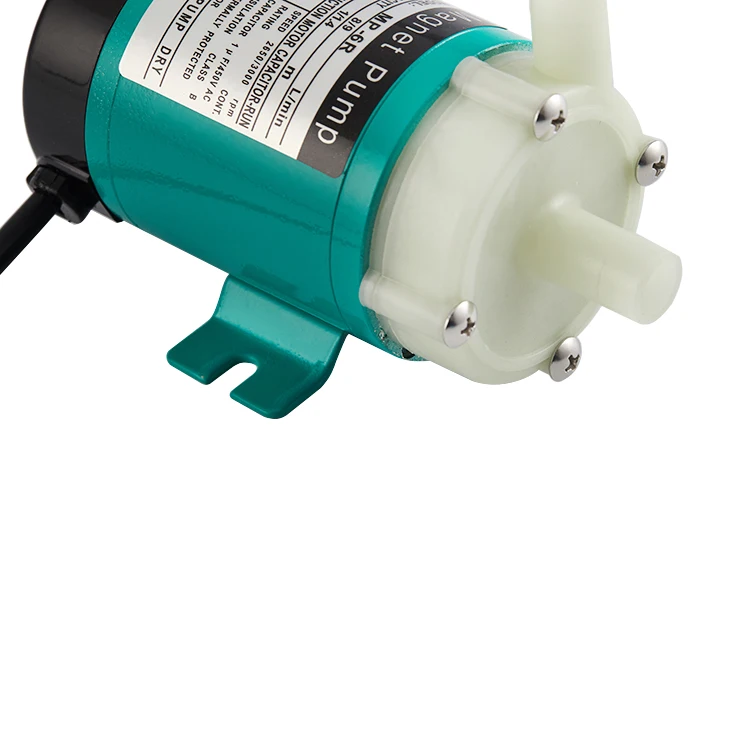

220VAC mini magnetic pumps magnet water electric pumps motor low flow chemical transfer pump MP 6R Pvdf Chemical resistance
- Category: >>>
- Supplier: Wenzhou Haoquan Pump Co. Ltd.Wenzhou Ltd.
Share on (1600753022544):
Product Overview
Description
Model | Magnetic Pump MP-6R |
Material | 304 stainless steel + Glass fiber reinforce polypropylene+ Alumina Ceramic+Sr Ferrite+ Fluoride rubber(FKM) or Ternary ethylenepropylene rubber(EDM) |
Size | 129.5*74*83mm |
Interface | Tube interface Inter-outlet 14mm |
Max. Head | 1.0/1.4m |
Max. Capacity | 8/9 (L/min) |
Output | 6w |
Work Temperature | 0℃~80℃(32F~176F) |
Applications | 1. Magentic drive circulation pump is full-sealed pump,for motor connecting shaft and impeller are separately equipped with magnetic materials,they attract each other and coupled. 2. It is unnecessary to fit with traditional shaft seal and complete-ness sealed constitutive water pump.Avoids defects of pollution after corrosion caused by liquid leakage,and that still adopts special ceramics as shaft bearing,characterizing strong resistance for abrasion and corrosion. 3. It's advanced performance and quality is the optimum liquid transport pump on the industrial equipments. |
Features | 1. This pump is full-sealed structure, avoids liquid leakage. 2. High working temperature, the maximum working temperature is 140℃ 3. Allow long-time working. 4. This pump is not a self-priming pump, it cannot suction itself. When starting to run the pump, the pump head must be filled with liquid, so that the impeller will work normally to transfer. Do not empty transport. It is forbidden to run dry, running dry will cause the motor and impeller damaged. |

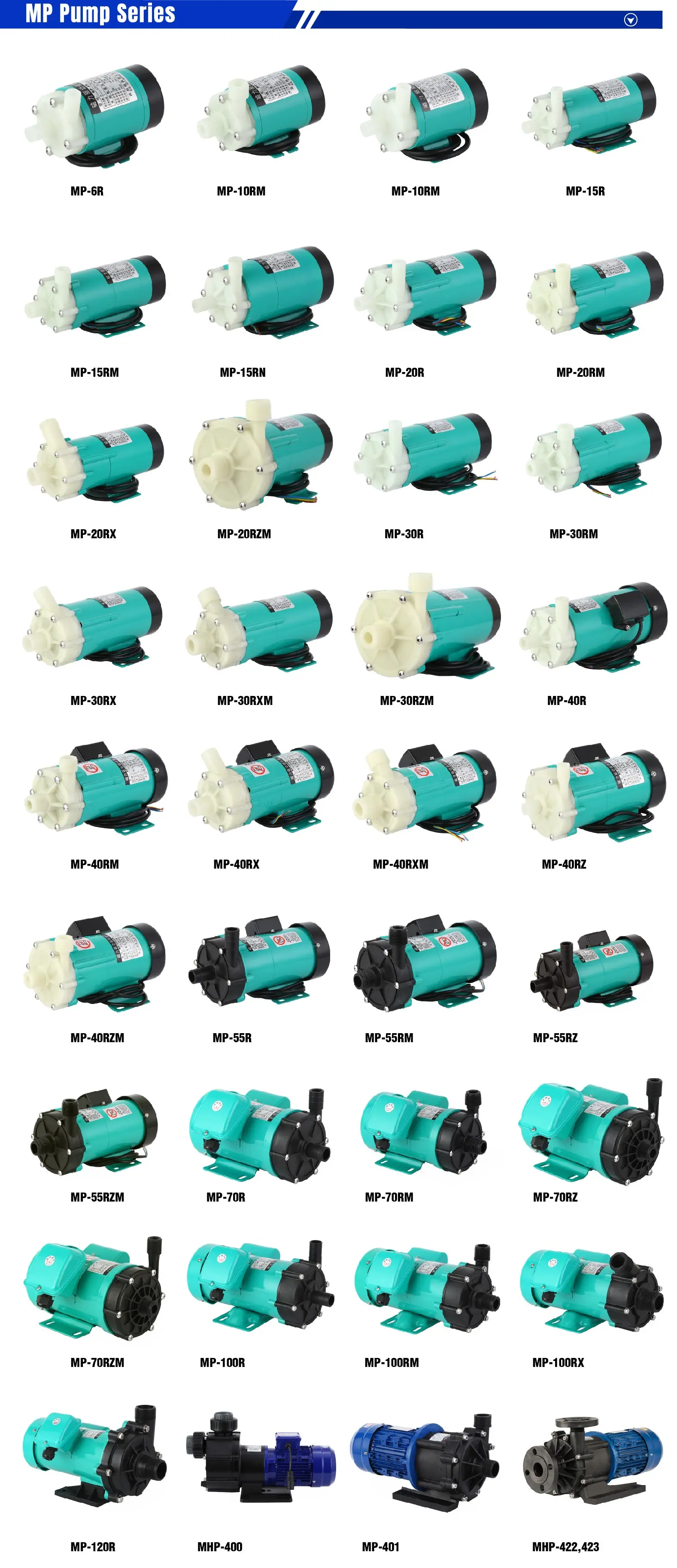

Product Show
Model | Tube interface(mm) | Spiral interface(inch) | Max.Capacity | Max.Head | Power | Voltage | ||||||||||
Entrance | outlet | Entrance and exit | Live pipe | 50/60Hz (L/min) | (m) | 50/60Hz (w) | (v) | |||||||||
MP-6R(M) | 14 | 14 | G 1/2 | G 1/2 | 8/9 | 1/1.4 | 6 | 110/220 | ||||||||
MP-10R(M) | 14 | 14 | G 1/2 | G 1/2 | 11/12 | 1.5/2.1 | 6 | 110/220 | ||||||||
MP-15R(M) | 16 | 16 | G 1/2 | G 1/2 | 16/19 | 2.7/3.4 | 10 | 110/220 | ||||||||
MP-15RN | 16 | 16 | - | - | 16/19 | 2.7/3.4 | 10 | 220 | ||||||||
MP-20R(M) | 18 | 18 | G1/2 | G1/2 | 27/32 | 3.1/4.3 | 15 | 110/220 | ||||||||
MP-20RX | 26 | 26 | - | - | 46/52 | 1.8/2.5 | 15 | 110/220 | ||||||||
MP-20RZ(M) | 18 | 18 | G 3/4 | G 3/4 | 10/11 | 4.6/6.9 | 15 | 110/220 | ||||||||
MP-30R(M) | 20 | 20 | G 3/4 | G 3/4 | 33/38 | 3.8/5.4 | 25 | 110/220 | ||||||||
MP-30RZ(M) | 18 | 18 | G 3/4 | G 3/4 | 15/17 | 8/11 | 25 | 110/220 | ||||||||
MP-30RX(M) | 26 | 26 | G 1 | G 1 | 62/72 | 2.9/4.1 | 25 | 110/220 | ||||||||
MP-40R(M) | 20 | 20 | G 3/4 | G 3/4 | 45/52 | 4.6/6.5 | 65 | 110/220 | ||||||||
MP-40RX(M) | 26 | 26 | G 1 | G 1 | 75/85 | 3.3/4.7 | 65 | 110/220 | ||||||||
MP-40RZ(M) | 18 | 18 | G 3/4 | G 3/4 | 22/28 | 10/13.5 | 65 | 110/220 | ||||||||
MP-55R(M) | 26 | 26 | G 1 | G 1 | 60/70 | 5.6/8.2 | 90 | 220/380 | ||||||||
MP-55RZ(M) | 26 | 26 | G 1 | G 1 | 25/28 | 10/14 | 90 | 220/380 | ||||||||
MP-70R(M) | 26 | 26 | G 1 | G 1 | 86/97 | 6.7/9.7 | 150/180 | 220/380 | ||||||||
MP-70RZM | 20 | 20 | G 3/4 | G 3/4 | 40/43 | 14.3/20.3 | 150/180 | 220/380 | ||||||||
MP-100R(M) | 26 | 26 | G 1 | G 1 | 120/130 | 8.6/11.6 | 250/265 | 220/380 | ||||||||
MP-100RX | - | - | G 1(1/4) | G 1(1/4) | 170 | 9 | 250 | 220/380 | ||||||||
MP-120R | - | - | G 1(1/2) | G 1(1/2) | 220 | 10.5 | 370 | 220/380 | ||||||||
MPH-400 | - | - | G 1(1/2) | G 1(1/2) | 260 | 12.5 | 400 | 220/380 | ||||||||
MPH-401 | - | - | G 1(1/2) | G 1(1/2) | 330 | 18 | 750 | 380 | ||||||||
MPH-422 | - | - | G 2 | G 1(1/2) | 400 | 23 | 1500 | 380 | ||||||||
MPH-423 | - | - | G 2 | G 1(1/2) | 500 | 24 | 2200 | 380 | ||||||||
MPH-425 | - | - | G 2 | G 1(1/2) | 600 | 29 | 3000 | 380 | ||||||||
Contact with our sales for product catalog | ||||||||||||||||
R represents standard type(Tube connection) RM represents Thread connection | ||||||||||||||||
RZ represents higher head type RX represents High flow type | ||||||||||||||||
N represents revised type, detailed parameter refer to table above or consult with our sales | ||||||||||||||||
Q1: What is Wenzhou HaoQuan PUMPS CO.,LTD.
A: We are the professional Manufacturer & Exporter of Magnetic circulating pump, Bellows metering pump, High pressure diaphragm pump since 2015Q2: Whether you can help us do shipment combine?
A: If there are above 50% goods order from us ,we can free to help you in combine shipment from SHENZHEN and give customers in one-stop service. Besides we cooperated with big transport company many years, we can help u get the cheapest shipping cost by Express/ Air / Sea. Moreover, we can also help Russia clients do clean customs and shipping cost lower than 3usd/kg.
Q3: Can you seek similar items which are not available on your website?
A: Yes ,we can ,we also provide service for EBAY and AMAZON customers and help them doing professional outside package
Q4: Can you help us design our OEM package?
A: Yes ,we can ,we have professional designer to help customer to do this action if you haven’t any other strict demands for package design ,we would like to help you in it, but you’d better give us some your LOGO files or some files need to attach (the file should be very clear and can be edited)
Q5: Why choose Wenzhou HaoQuan PUMPS CO.,LTD.?
A: We are professional series pump factory from china, we could make sure high quality and competitive price. OEM/ODM service is what we are good at following industrial trend, our catalog will be updated regularly .We will becoming the eyes of customers in China, we will recommend suitable and new arrival to customer in regular time.
Q6. What is your payment terms?
A: We can accept pay via T/T bank charge, Paypal, Western Union.
Q7: What's the competitive advantage of our products?
A: We have got CE ROHS certification, and we are manufacturer rather a trade company so that we can promise the quality.
Why choose us?
-------Good products will bring your happy experience for series pump .
Plesae feel free to tell us if you any questions or suggestions, we will reply you within 24h.
