Carbon steel hot dip galvanized heat exchange corrugated tube closed circuit type cooling tower price
- Category: >>>
- Supplier: Luoyang Gaohua Environmental Cooling Technology Co. Ltd.
Share on (1600753884643):
Product Overview
Description
Products Description
SLT Series Closed Cooling Tower
SLT series closed cooling tower uses heat exchange tube bundles and PVC fins for compound heat exchange, which increases the spray water cooling process, suitable for operating in clean air environment, and is widely used in food freezing and refrigeration, central air conditioning and other systems.
Product details

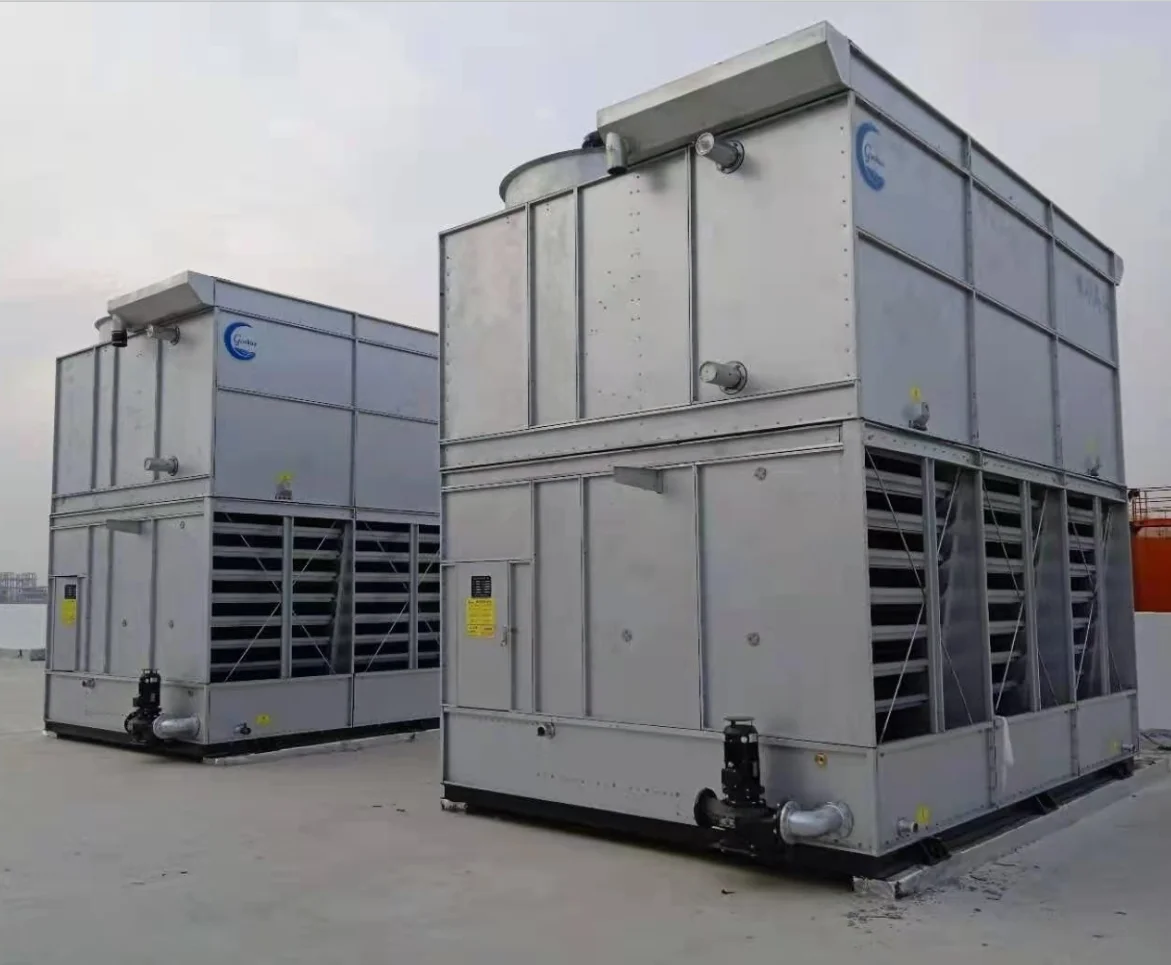

SLT Series Closed Cooling Tower
SLT series closed cooling tower belongs to induced draft cross-flow condenser. During working operation, the dry cool air inlet through wide louvers on one side of the condenser, passes through the spray water, cooling coil and the filler, becomes hot and humid air, and is finally discharged into atmosphere by the fan on the top. During this process, a part of heat from the fluids inside the closed loop is transferred efficiently, and removed continuously. The cooling medium is not in contact with the outside during the cooling process, ensuring the cleanliness of the cooling medium and greatly improving the service life of the cooled host device.
Cooling tower Model | Water flow m3/h | Fan Power kw | Air Volume m3/h | Pump Power kw | Pump Flow m3/h | Net Weight kg | Height mm |
SLT100 | 100 | 1.1 | 15000 | 0.75 | 25 | 1430 | 3206 |
SLT200 | 202 | 1.5 | 18500 | 0.75 | 25 | 1910 | 3706 |
SLT370 | 370 | 4.0 | 55000 | 1.1 | 50 | 2628 | 4049 |
SLT400 | 400 | 5.5 | 60000 | 1.1 | 50 | 2643 | 4049 |
SLT450 | 450 | 5.5 | 60000 | 1.1 | 50 | 2889 | 4309 |
SLT500 | 500 | 7.5 | 75000 | 1.1 | 50 | 2908 | 4314 |
SLT570 | 575 | 4.0*2 | 55000*2 | 2.2 | 50 | 3687 | 4064 |
SLT660 | 667 | 5.5*2 | 60000*2 | 2.2 | 100 | 3727 | 4064 |
SLT740 | 740 | 5.5*2 | 60000*2 | 2.2 | 100 | 4093 | 4314 |
SLT830 | 830 | 7.5*2 | 65000*2 | 2.2 | 100 | 4113 | 4314 |
SLT1020 | 1020 | 5.5*5 | 78000*2 | 2.2*2 | 100*2 | 5700 | 4788 |
SLT1100 | 1100 | 7.5*2 | 90000*2 | 2.2*2 | 100*2 | 5739 | 4788 |
SLT1240 | 1240 | 5.5*2 | 78000*2 | 2.2*2 | 100*2 | 6194 | 5038 |
SLT1400 | 1400 | 7.5*2 | 90000*2 | 2.2*2 | 100*2 | 6813 | 5088 |
SLT1600 | 1610 | 7.5*2 | 90000*2 | 2.2*2 | 100*2 | 8597 | 5588 |
SLT2000 | 2000 | 7.5*3 | 100000*3 | 3*2 | 120*2 | 9620 | 4883 |
SLT2200 | 2200 | 11*3 | 120000*3 | 3*2 | 120*2 | 9695 | 4883 |
SLT2500 | 2500 | 11*3 | 120000*3 | 3*2 | 120*2 | 10429 | 7542 |
SLT3000 | 3000 | 5.5*4 | 90000*4 | 3*2 | 120*2 | 13095 | 4923 |
SLT3780 | 3780 | 11*4 | 120000*4 | 4*2 | 120*2 | 14423 | 5298 |
Circulating Water Pump
1. Large flow, low head, low power
2. German mechanical seal
3. High-quality motor
2. German mechanical seal
3. High-quality motor
Axial Fan
1. hollow aluminum alloy impeller
2. Direct connection,ow wind resistance, large air volume, low noise, good performance and high efficiency
3. IP 55
2. Direct connection,ow wind resistance, large air volume, low noise, good performance and high efficiency
3. IP 55
PVC Fill
1. High temperature resistance, good flame retardancy
2. Low drag coefficient
3. Anti-aging, anti-ultraviolet
2. Low drag coefficient
3. Anti-aging, anti-ultraviolet
Water Distribution System
1. large flow rate, no clogging nozzle
2. Uniform spraying, high heat transfer coefficient
2. Uniform spraying, high heat transfer coefficient
3. Thread connection, easy disassembly and cleaning
Drift Eliminator
1. Polyvinyl chloride (PVC)
2. Impervious to rot, decay, and biological attack
3. Assembled in easy to handle sections
2. Impervious to rot, decay, and biological attack
3. Assembled in easy to handle sections
Finned Tube
1. Made of aluminum, steel or hot-dip galvanized steel.
2. High heat transfer efficiency
3. Simple maintenance and long service life
2. High heat transfer efficiency
3. Simple maintenance and long service life

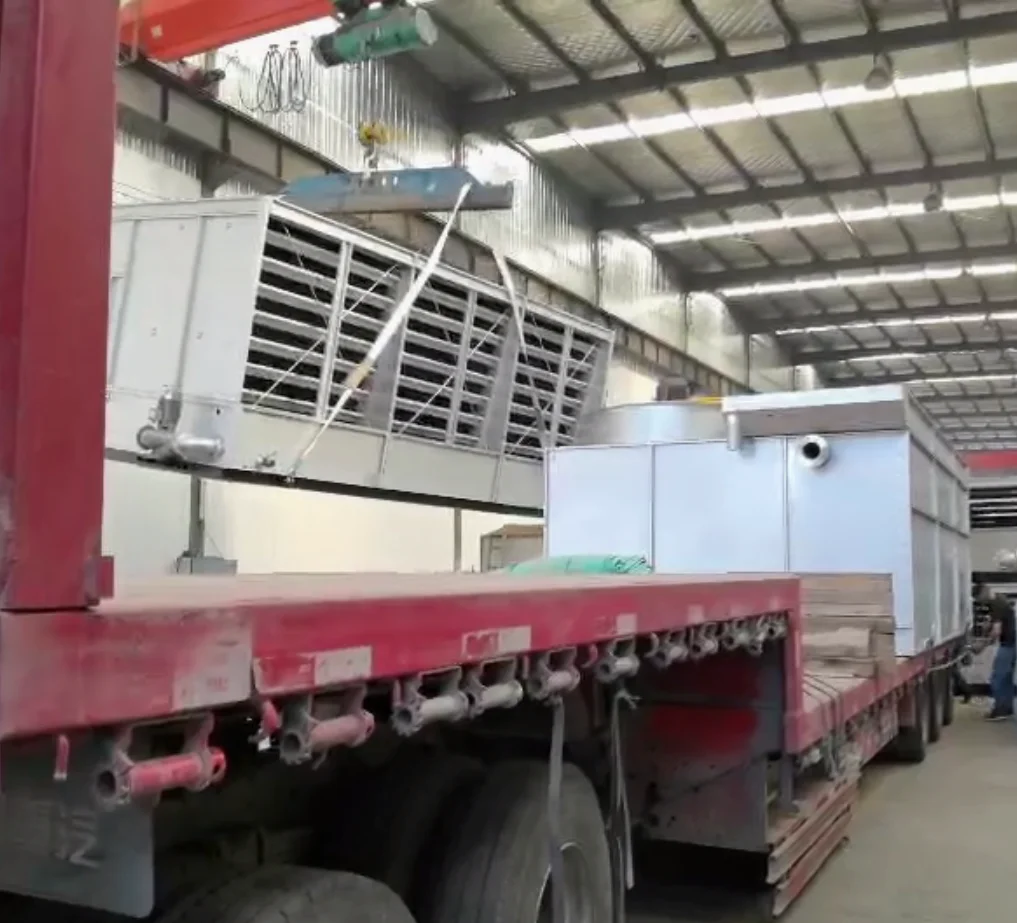

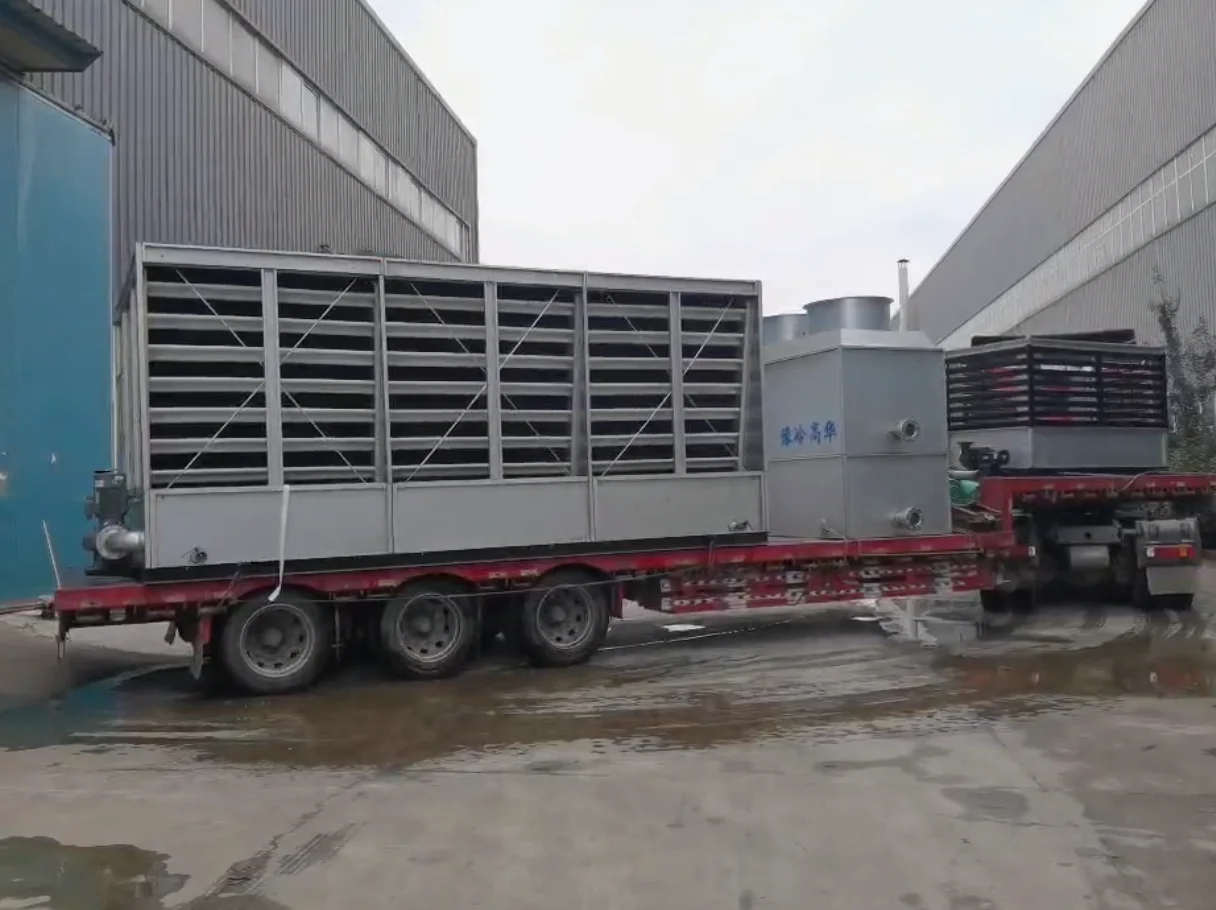

Packaging & Delivery
About us
Company profile
LY Gaohua is a professional design & manufacturer of cooling tower in China. Our main products are evaporative condenser, closed cooling tower, air cooled heat exchanger, "air cooling + evaporative cooling" composite closed cooling system, anti-white mist efficient cooling system, etc. The products are be used in power, chemical, metallurgy, petrochemical, coal chemical, air condition, food refrigeration industries and so on. We covers an area of 13,500m2 and hold certificates of ISO. Our products are popular in domestic and international markets.
Certifications

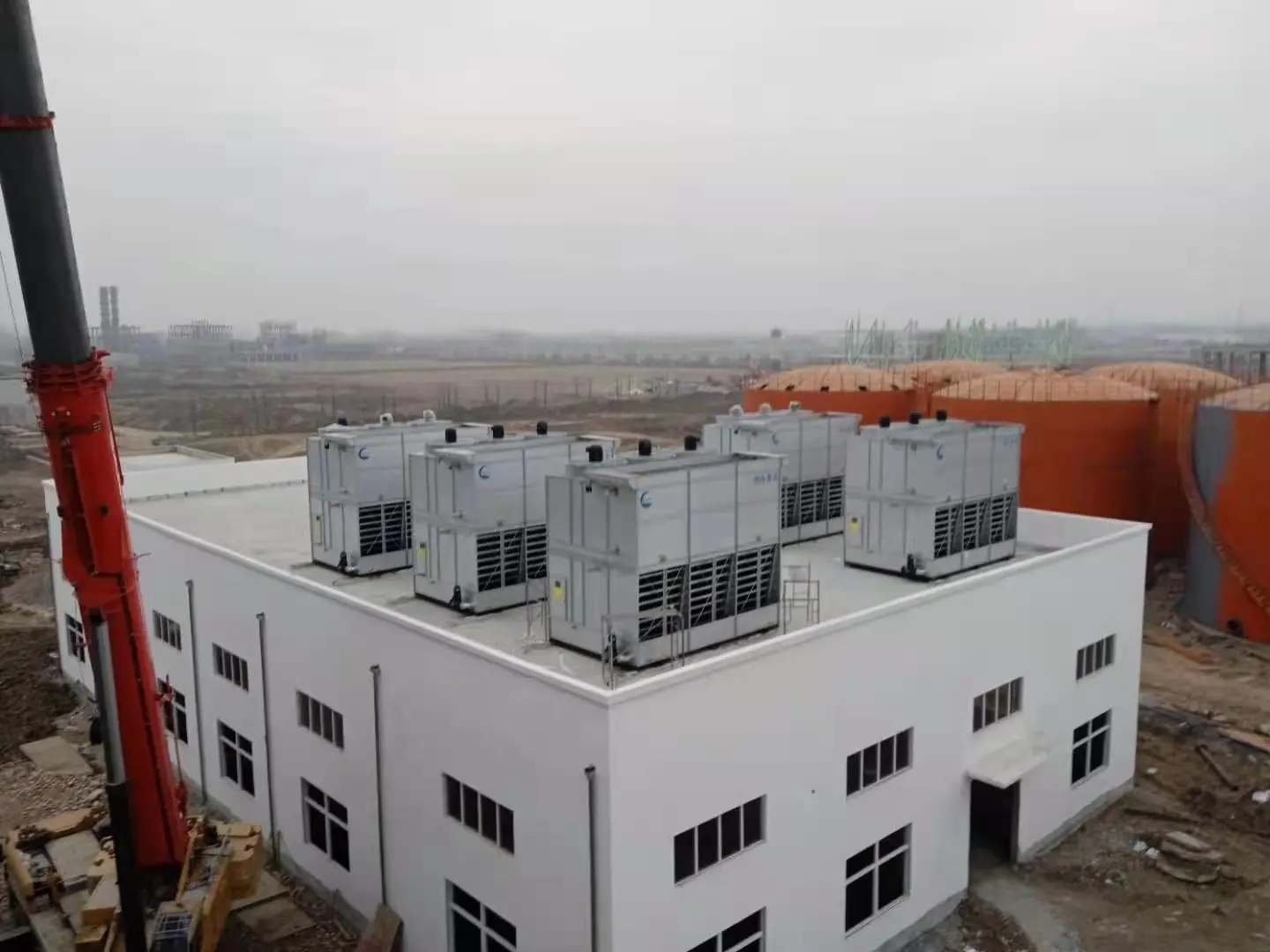

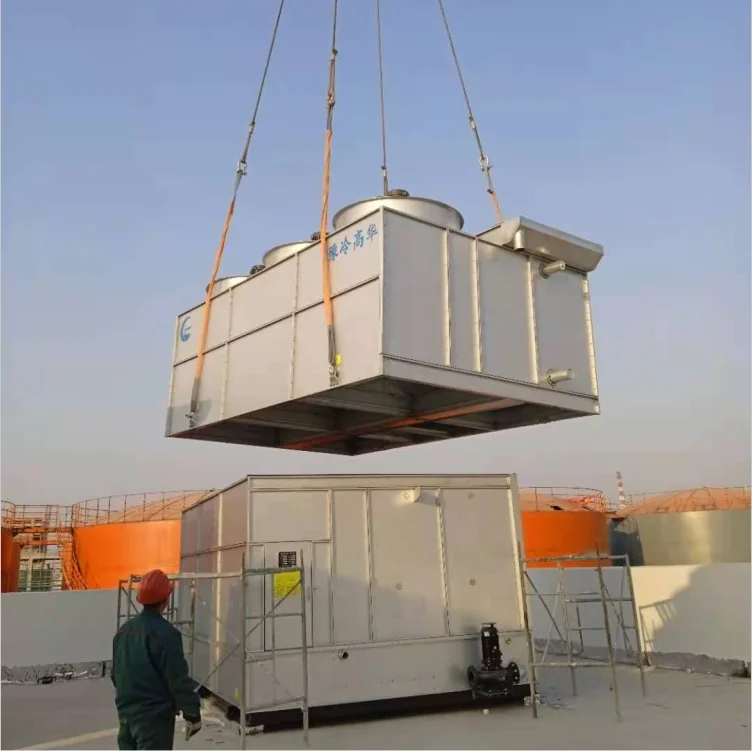

Project cases
FAQ
1.What technical parameters you need provide to get a quotation quicky?
(1).Flow rate;
(2). Inlet/Outlet temperature;
(3).Wet bulb temperature;
(4). Working Fluid;
(5).Other data.
2.How long is the warranty period? How long is the product life?
The closed cooling tower is warranty period is 2 year, and the evaporative condenser working life is 15 years.
3.How long is the delivery time?
2.How long is the warranty period? How long is the product life?
The closed cooling tower is warranty period is 2 year, and the evaporative condenser working life is 15 years.
3.How long is the delivery time?
Usually, the delivery time is 45 days after receiving the advanced payment and drawing confirmation.
4.How to contact us directly?
Email: Sales@ghcooling.com
Tel: +86 18848963680 (Whatsapp/skype/Wechat)
Email: Sales@ghcooling.com
Tel: +86 18848963680 (Whatsapp/skype/Wechat)
