Semi Automatic Non Woven Bag Screen Printing Machine paper cup screen printing machine
- Category: >>>
- Supplier: Ruian Koten Machinery Co. Ltd.
Share on (1600753962840):
Product Overview
Description
Product Description
Introduction

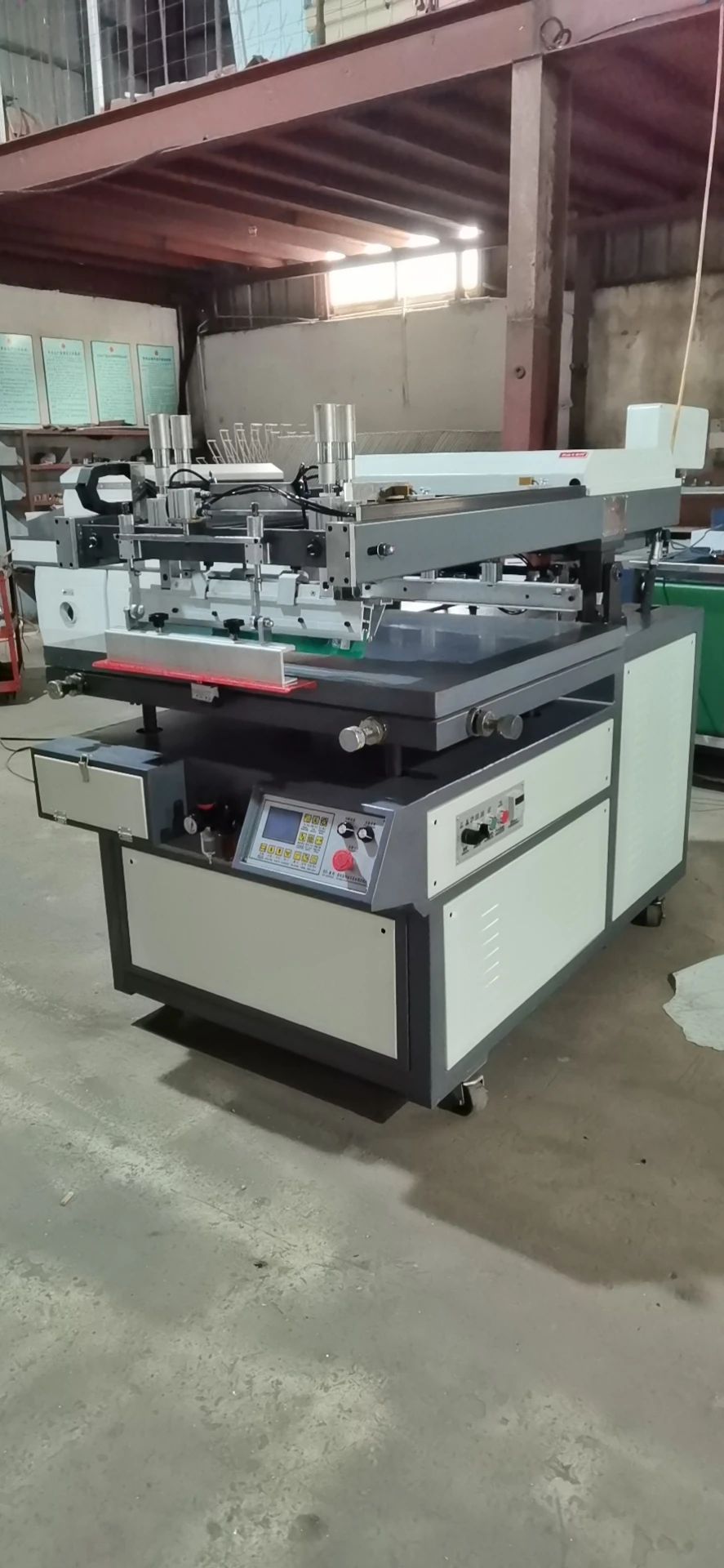

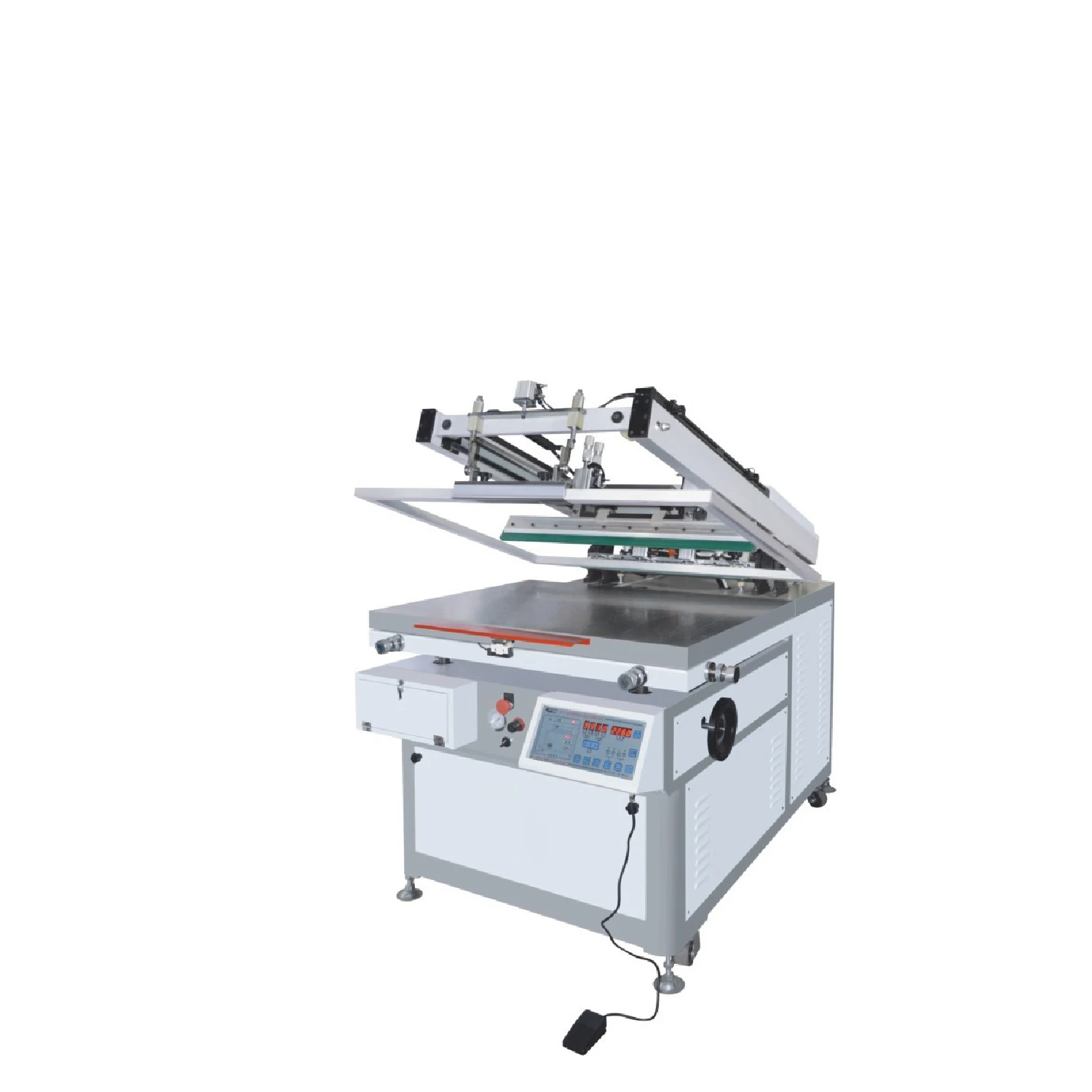

JB-PYC series horizontal-lift half-tone printing machine is a kind of semiautomatic plane half-tone printing machine. The machine
can be used for screen-printing of many plane bodies, such as paper, plastic, glass, ceramics, metal, textile and leather, etc.
Lifting and lowering of the printing arm of this machine is vertical, therefore, in case of half-tone printing, presence of screen
wire and consistency of aberration are improved; In case of spot printing, stability and uniformity of inking are enhanced; Fine
adjustment and lock of the worktable is independent of each other, so positioning error caused by lock of the worktable can be
controlled; Height and pressure of the printing blade and ink-returning blade can be step less-regulated separately, which
improves printing quality and service life of half-tone; Printing travel and half-tone fixing mechanism can be fast adjusted,
which is suitable for printing area with different size.
can be used for screen-printing of many plane bodies, such as paper, plastic, glass, ceramics, metal, textile and leather, etc.
Lifting and lowering of the printing arm of this machine is vertical, therefore, in case of half-tone printing, presence of screen
wire and consistency of aberration are improved; In case of spot printing, stability and uniformity of inking are enhanced; Fine
adjustment and lock of the worktable is independent of each other, so positioning error caused by lock of the worktable can be
controlled; Height and pressure of the printing blade and ink-returning blade can be step less-regulated separately, which
improves printing quality and service life of half-tone; Printing travel and half-tone fixing mechanism can be fast adjusted,
which is suitable for printing area with different size.

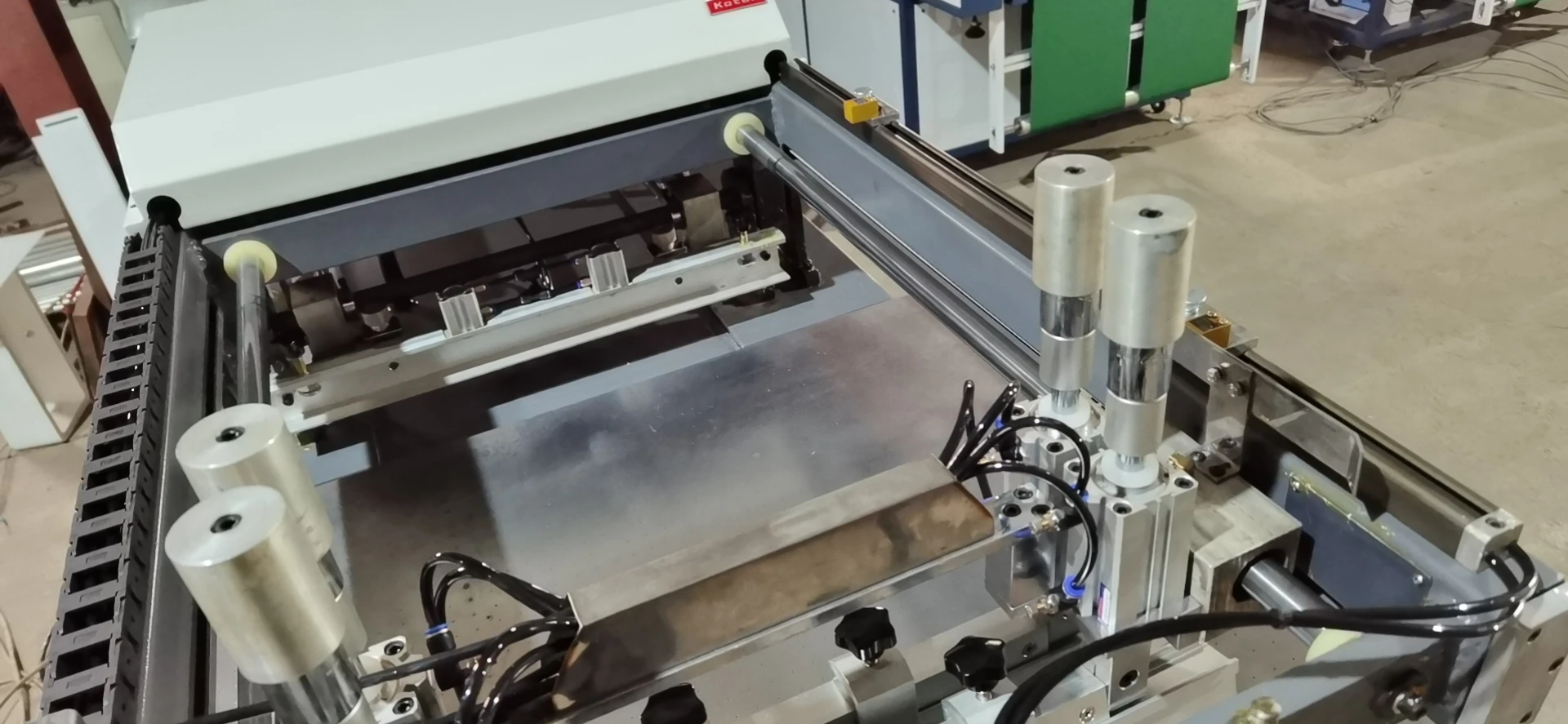

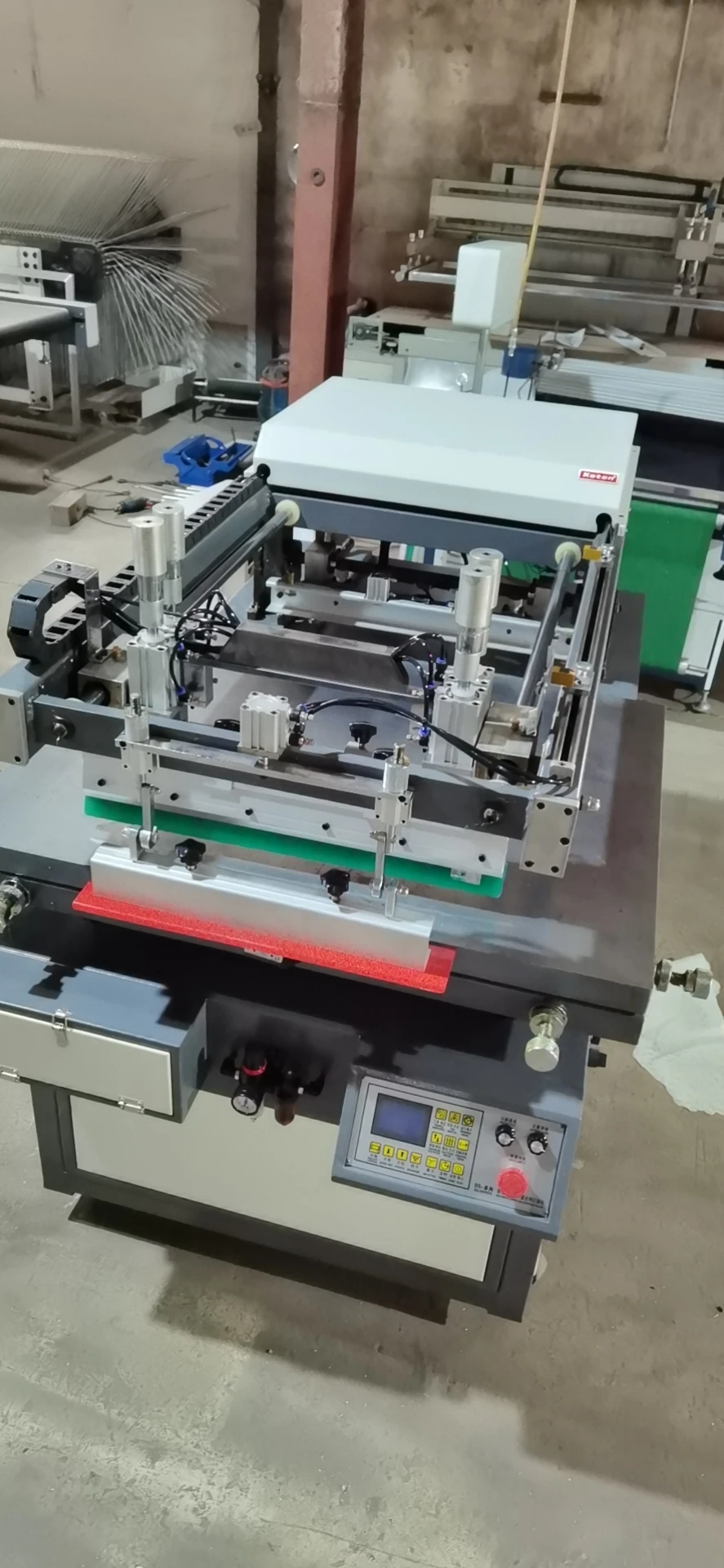

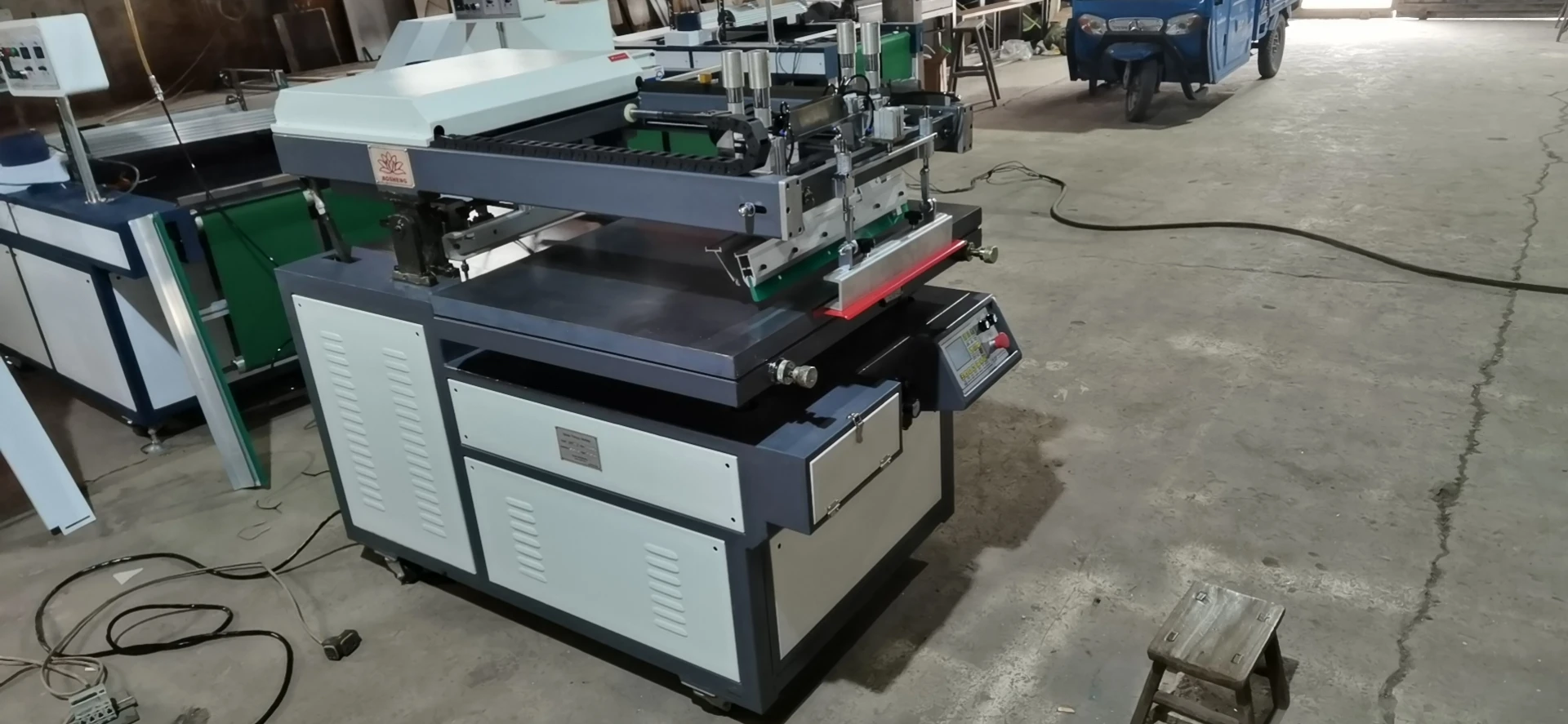

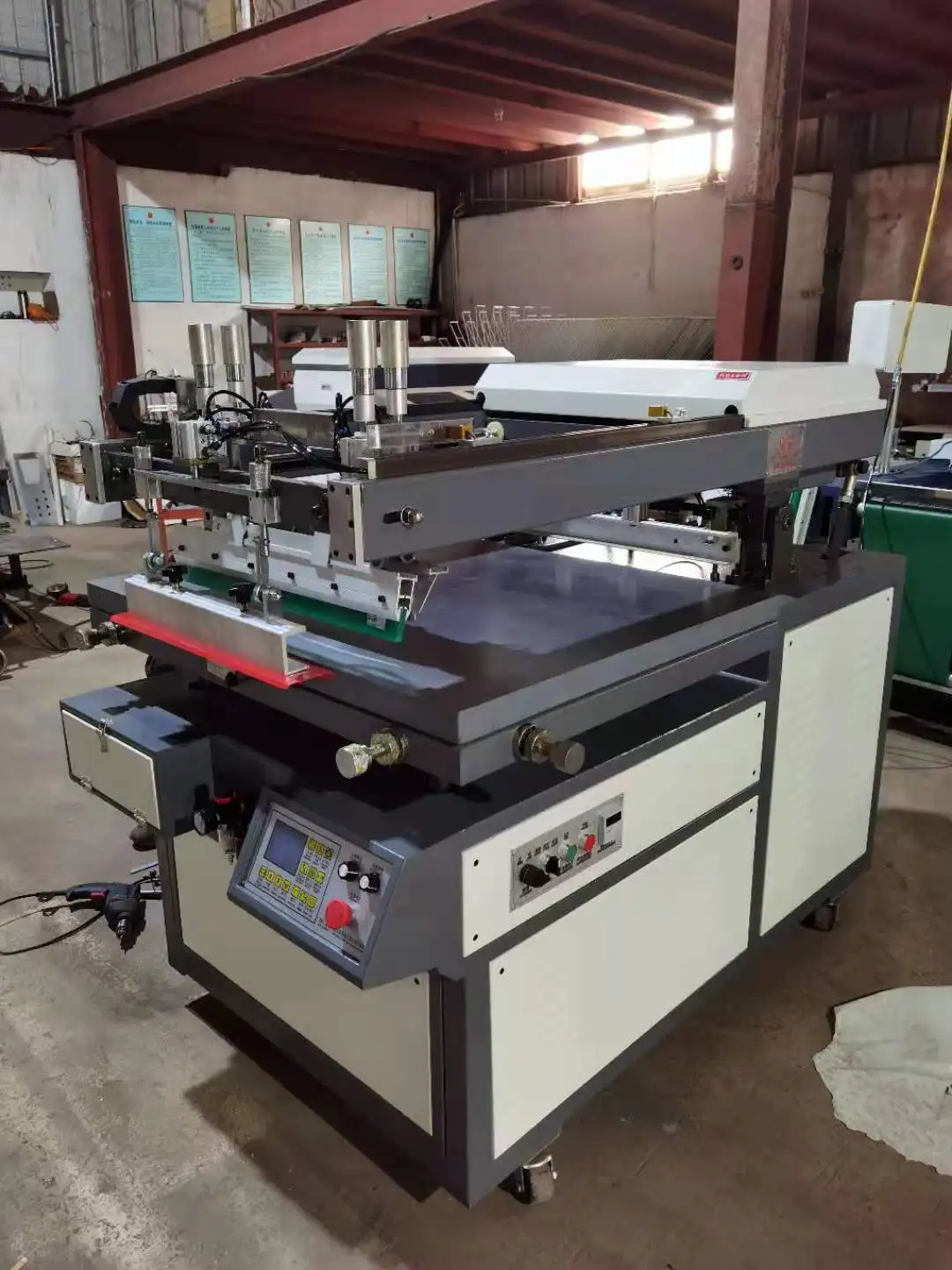

Details Images
Main Parameters
Model | JB-PY4060 | JB-PY5070S | JB-PY6090S |
Max. printing acreage | 400x600mm | 500x700mm | 900x600mm |
Print station acreage | 600x700mm | 600x900mm | 1100x700mm |
Max.size of frame | 700x850 | 750x1100 | 1200x900 |
Voltage | 380V/50HZ | 380V/50HZ | 380V/50HZ |
Printing speed | 1300t/h | 1200t/h | 1200t/h |
Dimensions of machine | 1500x780x1300mm | 1300x1120x1700mm | 1500x1200x1700mm |
Printing Motor | 0.75kw | 0.75kw | 1.1kw |
singkang motor | 0.75kw | 0.75kw | 0.75kw |
Blower Power | 0.75kw | 0.75kw | 0.75kw |
Total Power | 2.25kw | 2.3kw | 2.7kw |
Configuration list
