mexico bathroom 1000 liter solar water heater system pressures solar water heater
- Category: Solar Water Heaters >>>
- Supplier: Zhejiang,Dingxin,Electric,Appliance,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
System Description

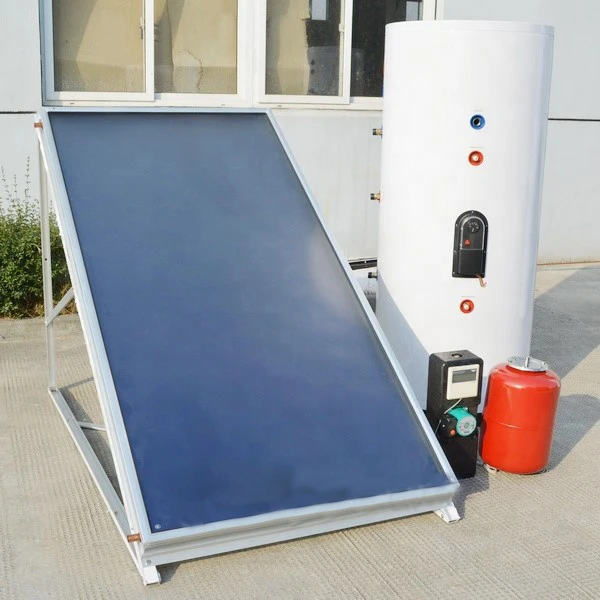

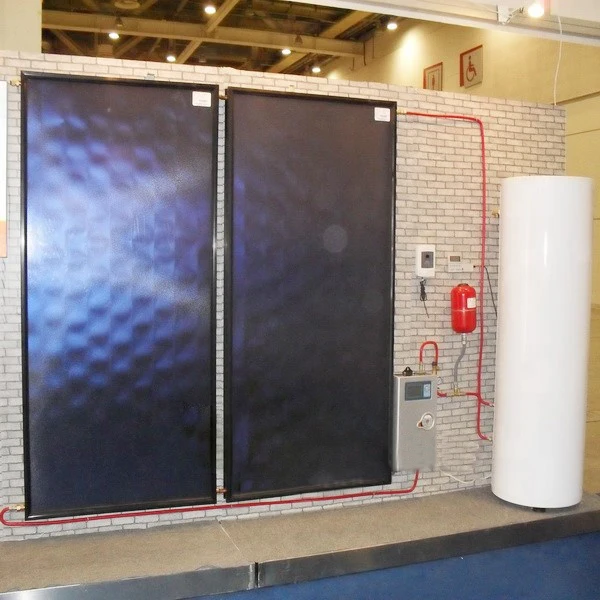

Vision VF series split pressurized solar water heater incorporates a number of flat plate collectors, pressurized water tank, pump station and accessories. It is specially designed for villa buildings. The solar collector may be installed either on house roof or balcony while water tank may be placed anywhere inside house.
Working Principle
The flat plate collector absorbs solar energy and the heat is transferred to water tank through pump circulation; When the temperature difference between collector and tank reaches the set value, the controller starts the circulation pump automatically for heat exchange;

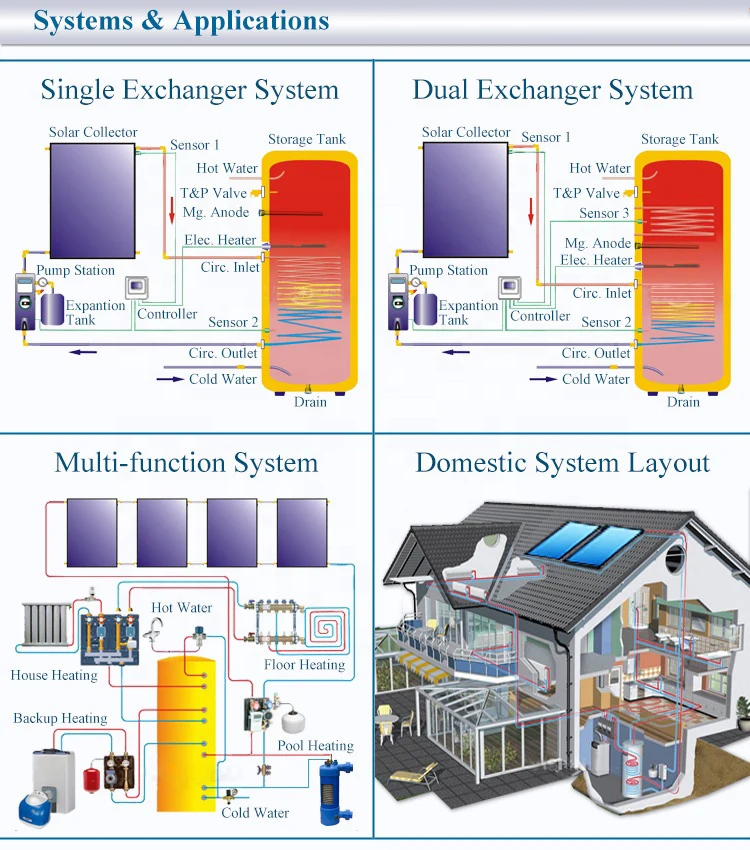

Usually an internal coil is pre-installed in storage tank as heat exchanger, a heat-transfer liquid circulates through flat panel to tank coil for heat exchange between the closed loop and main tank water, and an additional tank coil could be used to form a closed circulation loop for room or floor or pool heating.
there are many different configurations possible; the choice of design will depend on the purpose of the system, climate, space limitations and many other factors.
Main Features
Reliable and stable performance with daily efficiency more than 54%
Roof or balcony mounted collector and in-house situated storage tank
High efficiency flat panel for fast and indirect solar water heating
Multifunction tank for water and room and pool heating
Compatible with electric or gas heating devices
Working all year round even in frozen winter
Super anti-freezing performance for -40°C
Designed for 25 years working life
Vision VF series split pressurized solar water heater incorporates a number of flat plate collectors, pressurized water tank, pump station and accessories. It is specially designed for villa buildings. The solar collector may be installed either on house roof or balcony while water tank may be placed anywhere inside house.
Working Principle
The flat plate collector absorbs solar energy and the heat is transferred to water tank through pump circulation; When the temperature difference between collector and tank reaches the set value, the controller starts the circulation pump automatically for heat exchange;
Usually an internal coil is pre-installed in storage tank as heat exchanger, a heat-transfer liquid circulates through flat panel to tank coil for heat exchange between the closed loop and main tank water, and an additional tank coil could be used to form a closed circulation loop for room or floor or pool heating.
there are many different configurations possible; the choice of design will depend on the purpose of the system, climate, space limitations and many other factors.
Main Features
Reliable and stable performance with daily efficiency more than 54%
Roof or balcony mounted collector and in-house situated storage tank
High efficiency flat panel for fast and indirect solar water heating
Multifunction tank for water and room and pool heating
Compatible with electric or gas heating devices
Working all year round even in frozen winter
Super anti-freezing performance for -40°C
Designed for 25 years working life
Flat Plate Solar Collector | Glazing | Low iron tempered glass 3.2 MM | |||||||||
Absorber | Blue Titanium coated aluminum plate | ||||||||||
Header | TP2 copper pipe size Φ22*0.8 MM | ||||||||||
Riser | TP2 copper pipe size Φ8*0.6 MM | ||||||||||
Insulation | High-density fiber glass back & sides | ||||||||||
Casing | Anodized aluminum alloy frame | ||||||||||

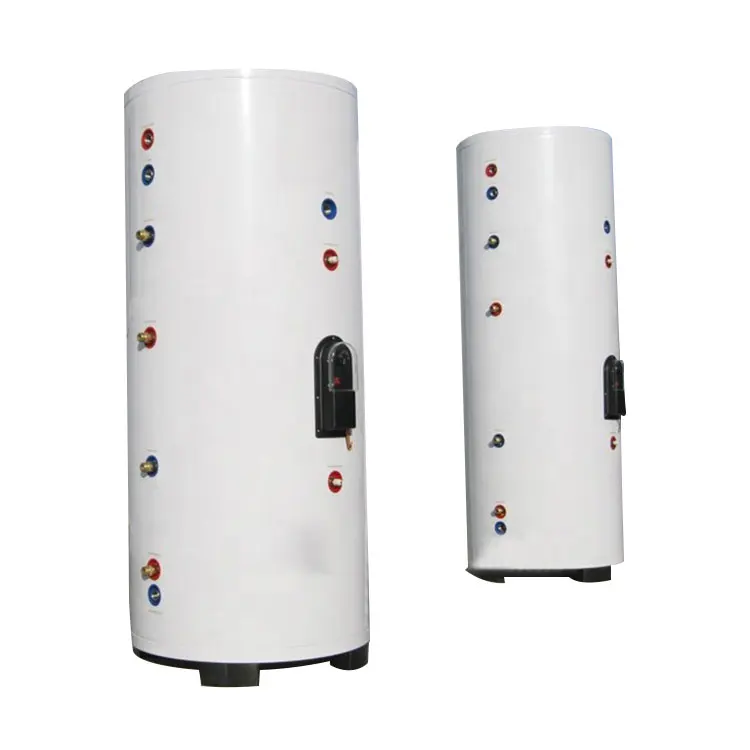

Pressurized Water Tank | Inner tank | Food-grade stainless steel SUS304-2B / SUS316 | |||||||||
Exchanger | Copper / Stainless coil firmly fixed in storage tank | ||||||||||
Insulation | High-density PU foam with 80 hours heat preservation | ||||||||||
Tank shell | Painted color steel ( stainless steel shell is available ) | ||||||||||
Accessories | Electrical heater, Magnesium anode, T/P valve, Check valve | ||||||||||
Pump Station | Including solar controller, circulation pump, expansion tank, safety valves & fittings | ||||||||||
Collector Angle | 0 ~ 90° | ||||||||||
Anti-freezing | - 40 °C | ||||||||||
Working Pressure | 6.0 Bar | ||||||||||
Model | Flat Plate Solar Collector | Tank Capacity | Backup Electric | Loading Sets | |||||||
Panel Qty | Panel Size | 20GP | 40HQ | ||||||||
VF1-T100 | 1 PC | 2000*1060*80 MM | 100 L | 1500 W | 45 | 110 | |||||
VF1-T150 | 1 PC | 2000*1060*80 MM | 150 L | 1500 W | 38 | 93 | |||||
VF2-T200 | 2 PCS | 2000*1060*80 MM | 200 L | 1500 W | 30 | 73 | |||||
VF2-T250 | 2 PCS | 2000*1060*80 MM | 250 L | 1500 W | 24 | 58 | |||||
VF2-T300 | 2 PCS | 2000*1060*80 MM | 300 L | 1500 W | 22 | 53 | |||||
VF2-T400 | 3 PCS | 2000*1060*80 MM | 400 L | 3000 W | 17 | 41 | |||||
VF2-T500 | 4 PCS | 2000*1060*80 MM | 500 L | 3000 W | 13 | 33 | |||||
VF2-T600 | 4 PCS | 2000*1060*80 MM | 600 L | 3000 W | 12 | 30 | |||||
VF2-T700 | 5 PCS | 2000*1060*80 MM | 700 L | 3000 W | 9 | 21 | |||||
VF2-T800 | 6 PCS | 2000*1060*80 MM | 800 L | 3000 W | 8 | 19 | |||||
VF2-T1000 | 8 PCS | 2000*1060*80 MM | 1000 L | 3000 W | 7 | 16 | |||||
Specification
Company Profile

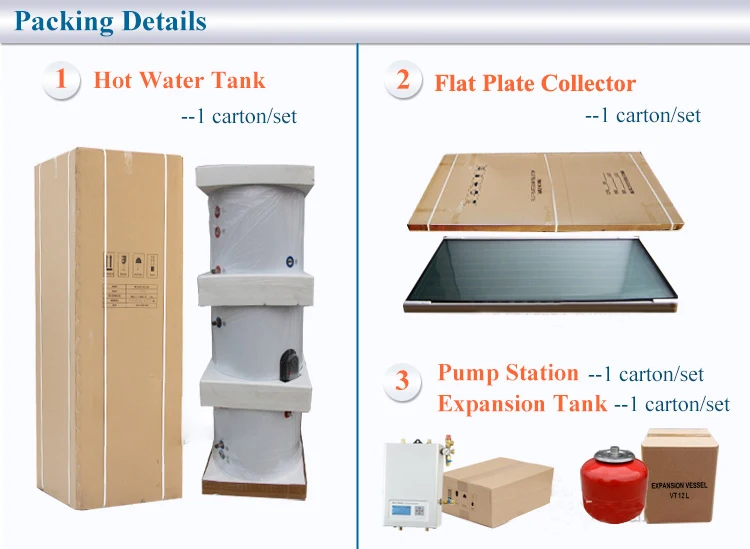

Packing & Delivery
FAQ
Q: Is your company a trading company or a factory ?
A: We are a professional factory manufacturing electric water heaters.
Q: Where is your company ?
A: Our company quarter is located in Shengzhou,shaoxing China.But plant in both Zhejiang and Guangdong.
Q: What certification do you have ?
A: CE, CB, ROHS, and CCC.
Q: What is your sample policy ?
A: Sample and freight is paid temporarily and will be returned back to you based on your normal order.
Q: Can I have my own brand on product ?
A: Yes, that's ok.
Q: How about delivery time ?
A:Normal order within 30 days, trial order within 15 days, sample order within 7 days.
Q:What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons.
Q:What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery or 70% irrevocable L/C at sight.
We'll show you the photos of the products and packages before you pay the balance.
Q:Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
A: We are a professional factory manufacturing electric water heaters.
Q: Where is your company ?
A: Our company quarter is located in Shengzhou,shaoxing China.But plant in both Zhejiang and Guangdong.
Q: What certification do you have ?
A: CE, CB, ROHS, and CCC.
Q: What is your sample policy ?
A: Sample and freight is paid temporarily and will be returned back to you based on your normal order.
Q: Can I have my own brand on product ?
A: Yes, that's ok.
Q: How about delivery time ?
A:Normal order within 30 days, trial order within 15 days, sample order within 7 days.
Q:What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons.
Q:What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery or 70% irrevocable L/C at sight.
We'll show you the photos of the products and packages before you pay the balance.
Q:Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
