Water Bottle Printing Machine Expiry Date Batch Number Coding Machine or Nylon PE Vacuum Bags PET Film Date Printer for PA PE
- Category: >>>
- Supplier: Wuhan Ugotit Technology Co. Ltd.
Share on (1600754020249):
Product Overview
Description
Product Description
Portable Water Bottle Printing Machine Expiry Date Batch Number Coding Machine Date Printer for PA PE or Nylon PE Vacuum Bags PET film

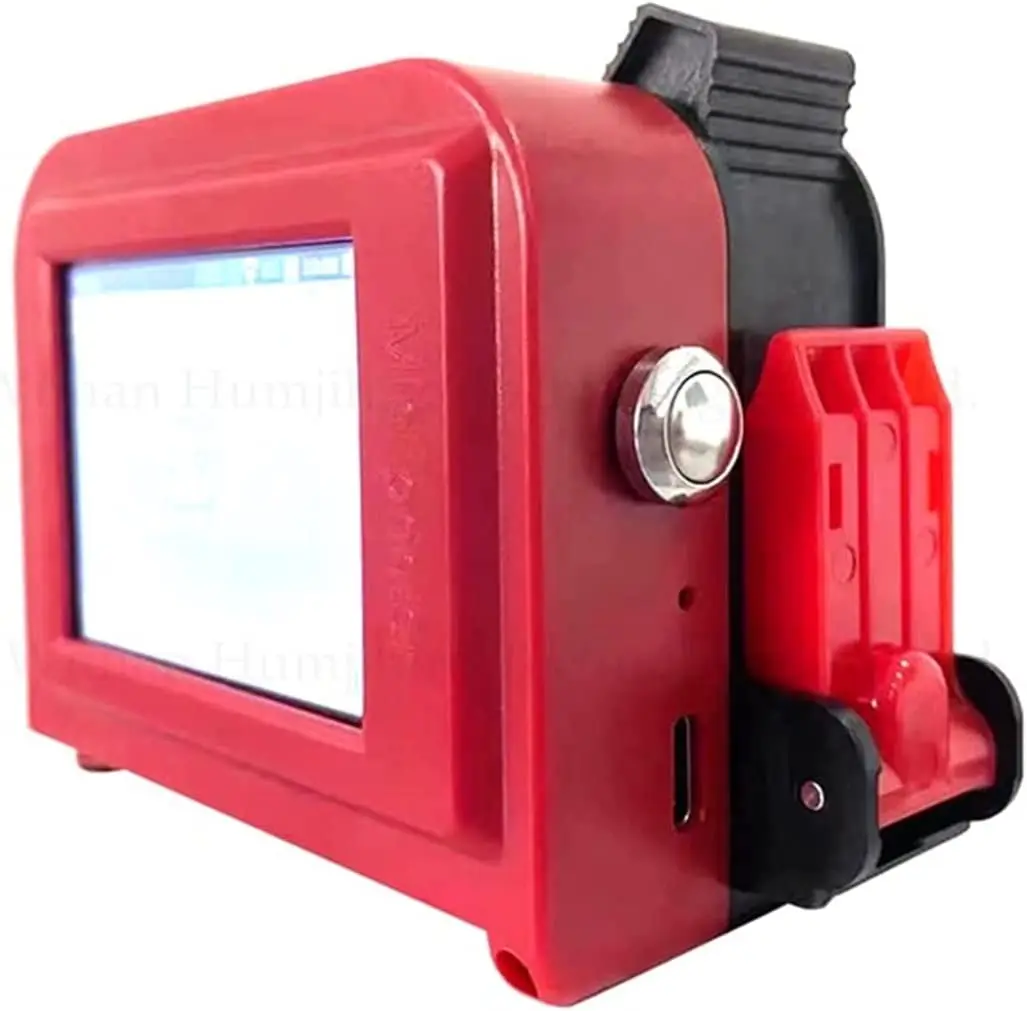

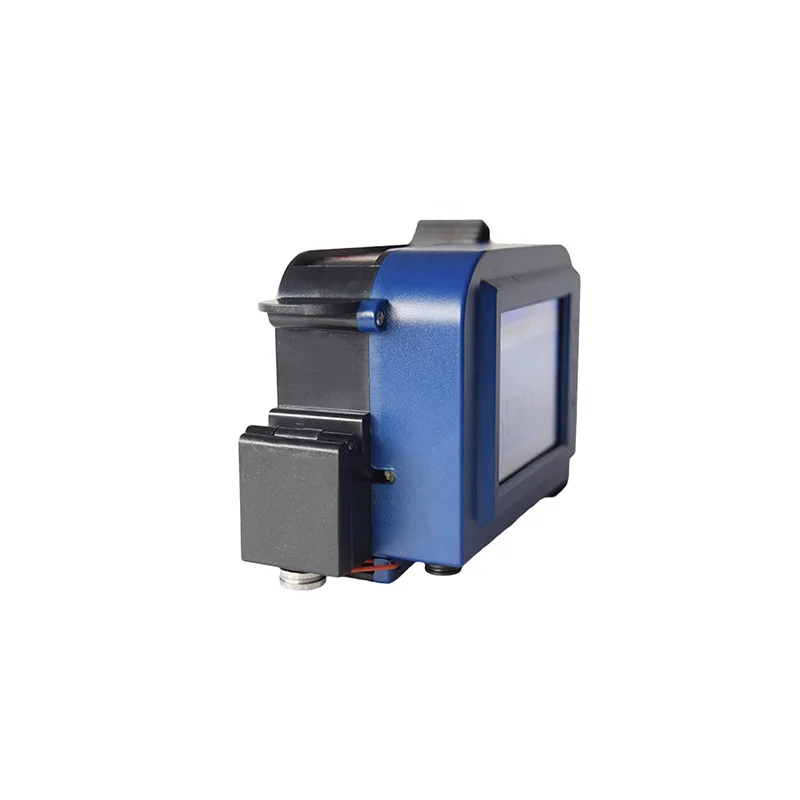

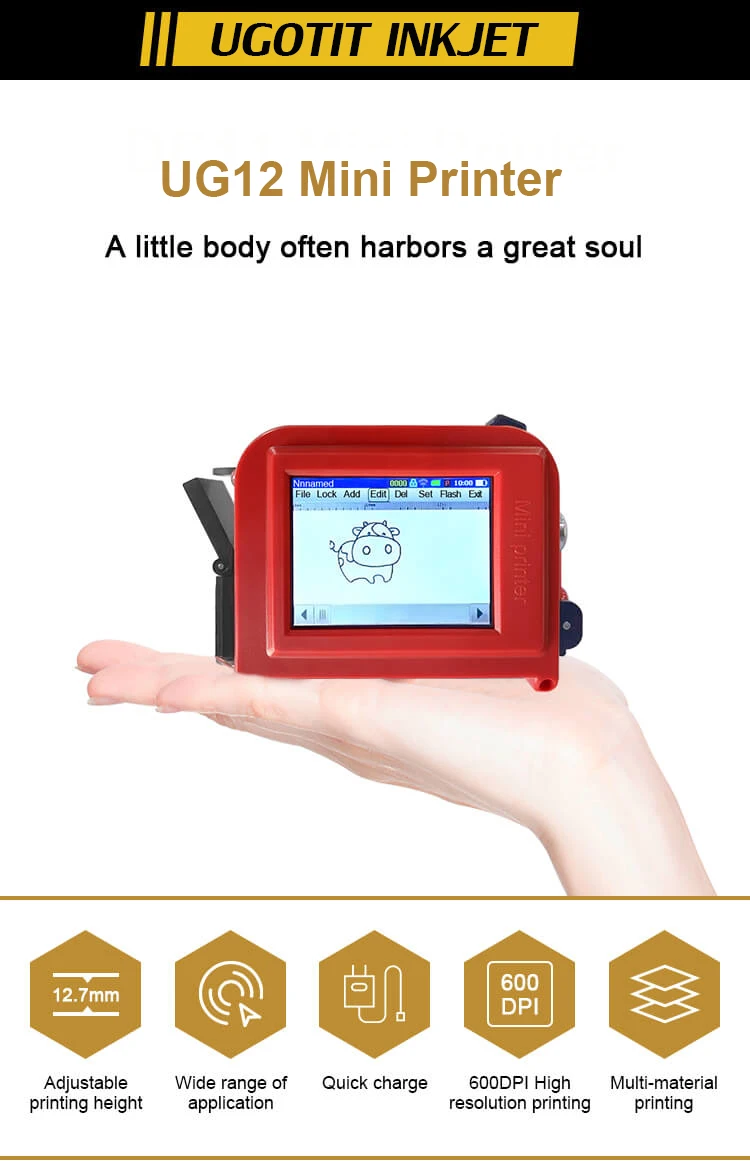

Mini hand-held inkjet printer
This machine is TIJ2.5 inkjet technology and specially designed for packaging and printing.
Mini can print text,numbers,serial number,dates,pictures,variable data QR code and bar code,in is easy to carton,plastic products(PP,PET,HDPE),
pipe,cable,metal and so on.
Mini can recognize water based and solvent ink automatically to match different ink parameters to ensure perfect printing effect.

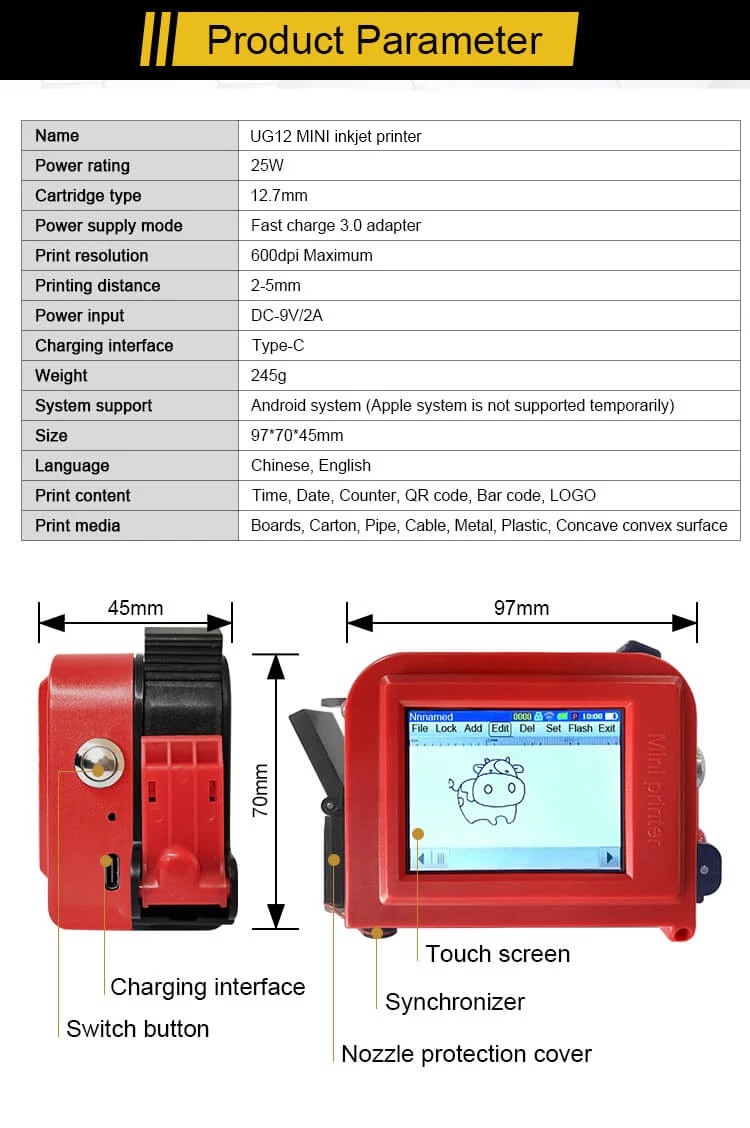

Technical Parameters:
Quick Details:
Model | MINI12-Pro |
Dimension | 100*45*75mm |
Net weight | 245g |
Printing direction | adjusted within 360 degree, meet all kinds of production needs |
Character type | high-definition printing character, dot matrix font, Simplified, Traditional Chinese and English |
Print Features | |
Function | Handheld print |
Printing pictures | Pictures(BMP Monochrome single bitmap format)can be uploaded through USB disk |
Printing accuracy | 300DPI 400DPI 600DPI |
Printing height | 2mm-12.7mm |
Print code | bar code, QR Code |
Printing distance | 1-10mm Mechanical Adjustment (the best distance between the nozzle and printed object is 2-5mm) |
Print serial number | 0~9 |
Automatic print | date, time, batch number shift and serial number, etc |
Storage | external USB save the information transfer in a free way |
Message length | 2000 characters for each message, no limitation on length |
Ink type | Quick-dry environmental ink, water-based ink and oily ink |
Ink color | black, white, red, blue, yellow, green, invisible |
Ink volume | 42ml(usually can print 300,000 characters) |
External interface | USB,Photoelectric interface, can directly insert a USB disk to upload information |

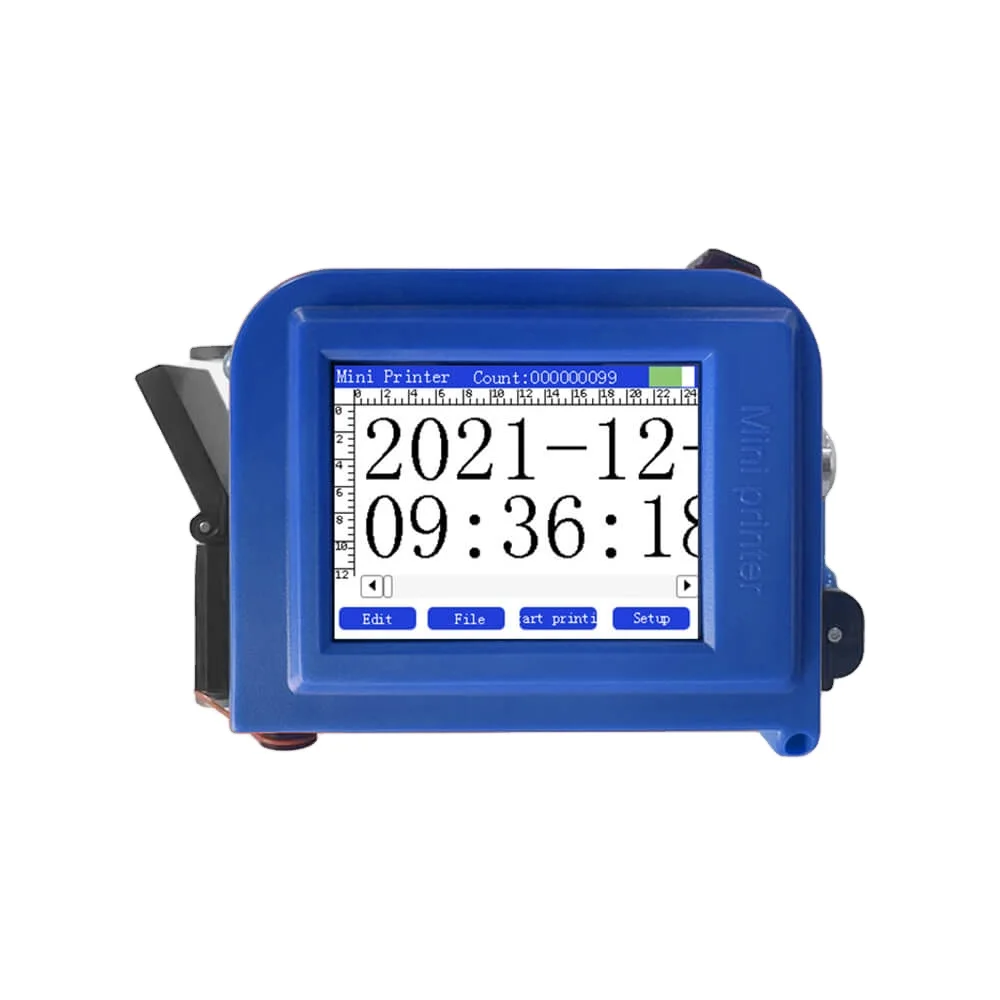

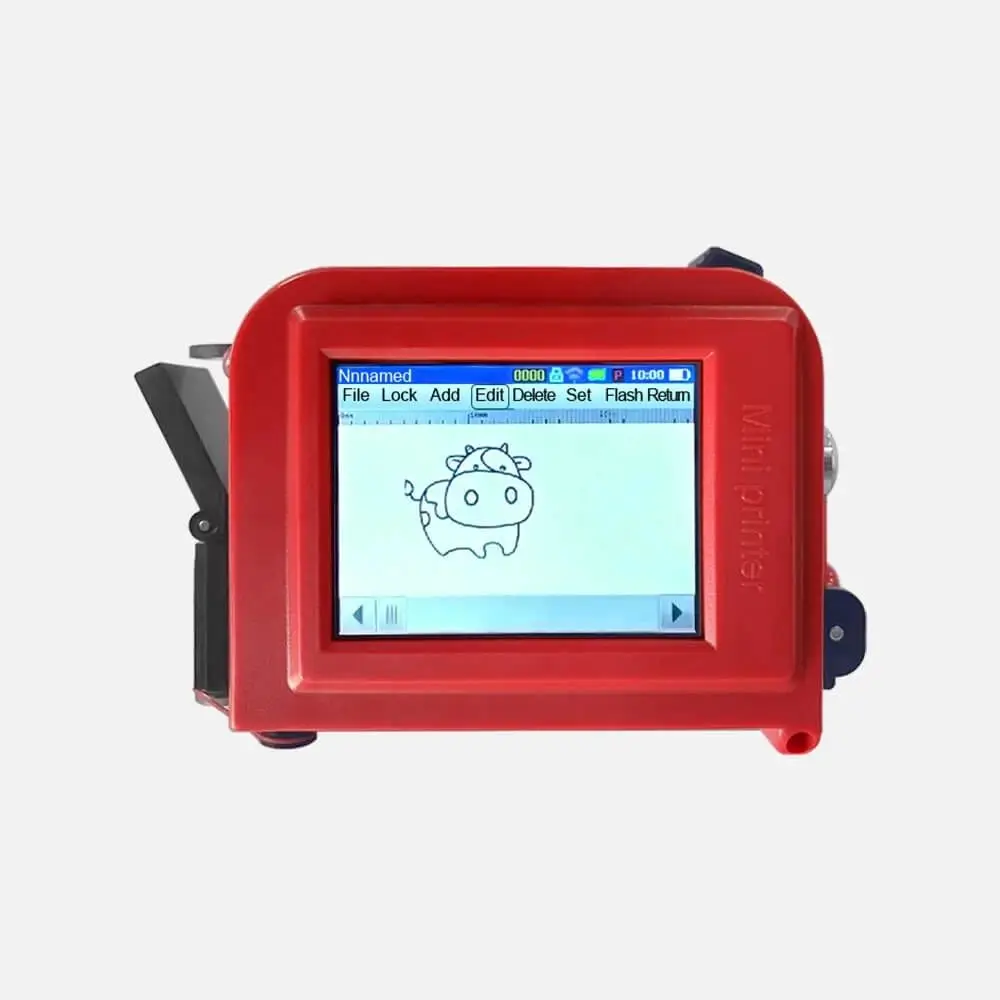

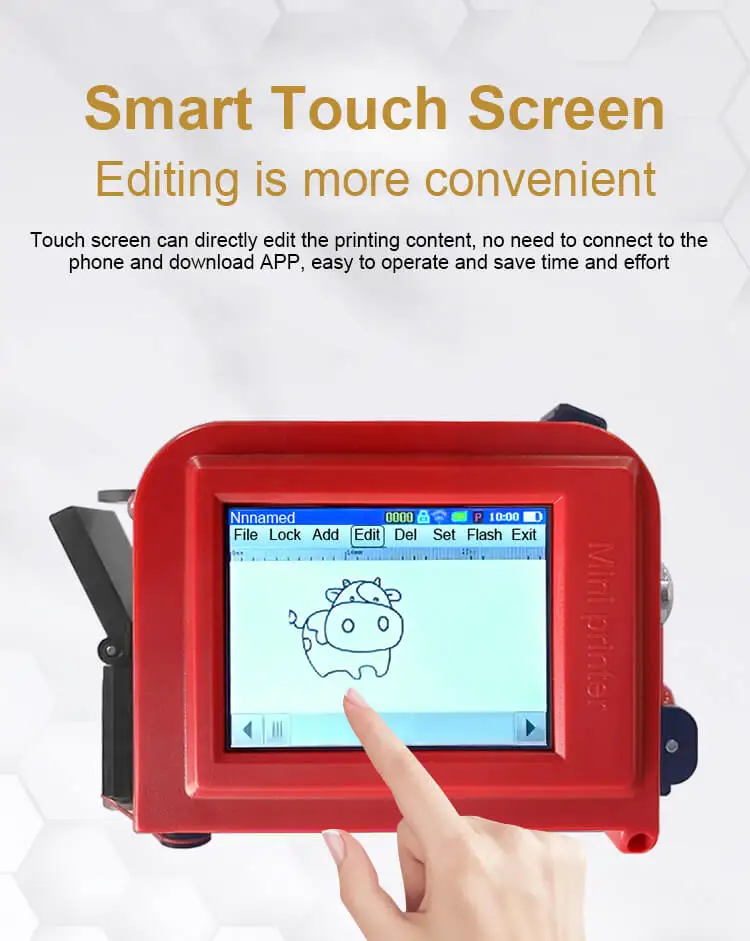

Control panel | touch-screen (can connect wireless mouse) |
Power consumption | the average power consumption is lower than 5W |
Working environment | Temperature:0 - 38 degree; Humidity: 10% - 80% |
Printing material | board, carton, stone, pipe, cable, metal, plastic product, electronic, the fiber board, light steel keel, aluminum foil |
Q&A
Q: How high can I print the font?
A: The print font height is 2-12.7mm, and the length is not limited.

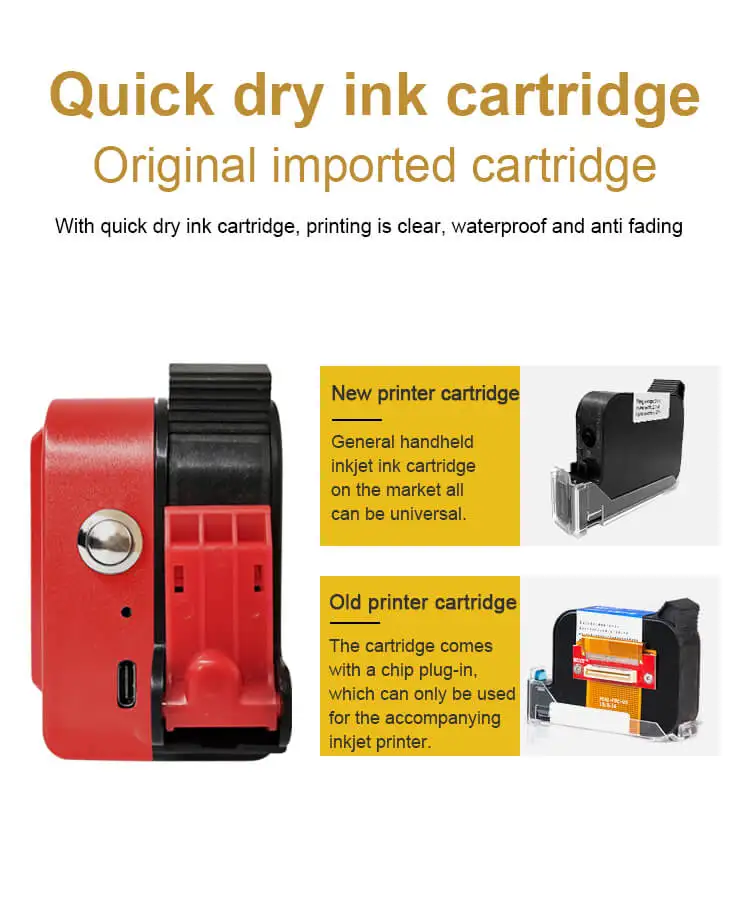

Q: How to install the ink cartridge?
A: The ink cartridge is installed and the machine is turned off. Open the cover of the ink cartridge and align the ink jet port of the ink cartridge with the print surface. Install it up and lock the cartridge. Remove the ink cartridge from the machine after use and cover the ink cartridge with the cover.
Q: After the ink cartridge is used up, can it be added quickly?
A: Yes, our original ink cartridges are available for sale. If you need more ink cartridges, you can visit our store.
Q: How long does it take to dry the ink?
A: Generally 3S is needed, but for some glasses, printing on plastic may require 5-6S.
Q: What is the print distance of the machine?
A: The distance of the print from the nozzle is 2-5 mm
Q: The font is not clear when printed, and the ink is blurred.
A: It is not necessary to pressurize the inkjet machine when printing. It is only necessary to place the inkjet machine on the plane to be printed, and then the inkjet printer does not need to move the ink.
Q: Can the font size be adjusted? Do I need to print LOGO to achieve it?
A: The font size can be adjusted. Print LOGO can use the U disk to insert pictures. Image pixels must not exceed 150*150. Monochrome images, pictures in bmp format.
Q: When I print, I need to print the QR code, text, time, and logo at the same time. Can it be achieved?
A: Yes. These can all be achieved.
more information please do not hesitate to contact our Team.Package & Shipping
