DTH Hole Digging Rig Borehole Drill Rigs Drilling Boring Machine for Rock
- Category: >>>
- Supplier: Henan Leagoo Electro-Mechanical Co. ltd.
Share on (1600754033214):
Product Overview
Description
Product Description

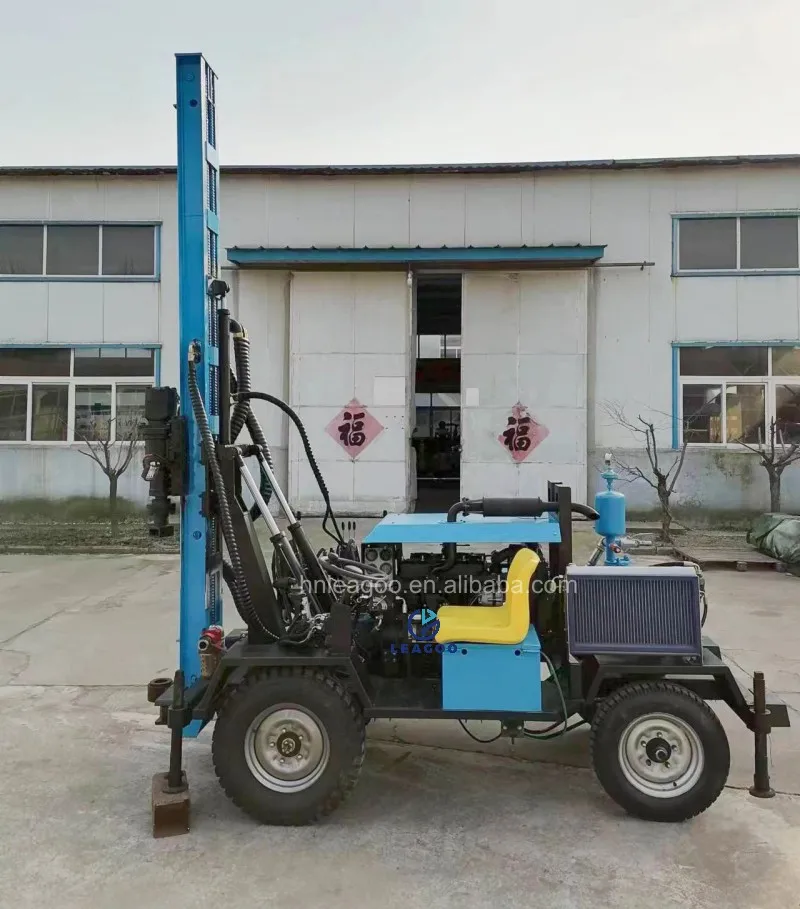

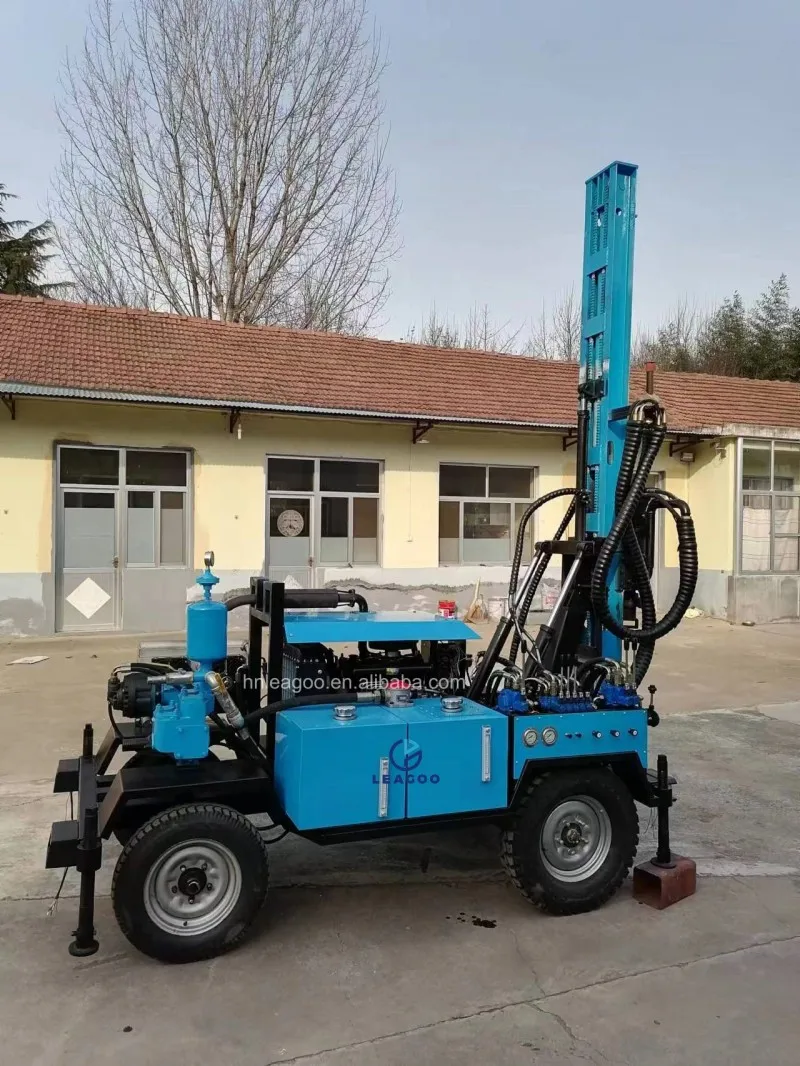

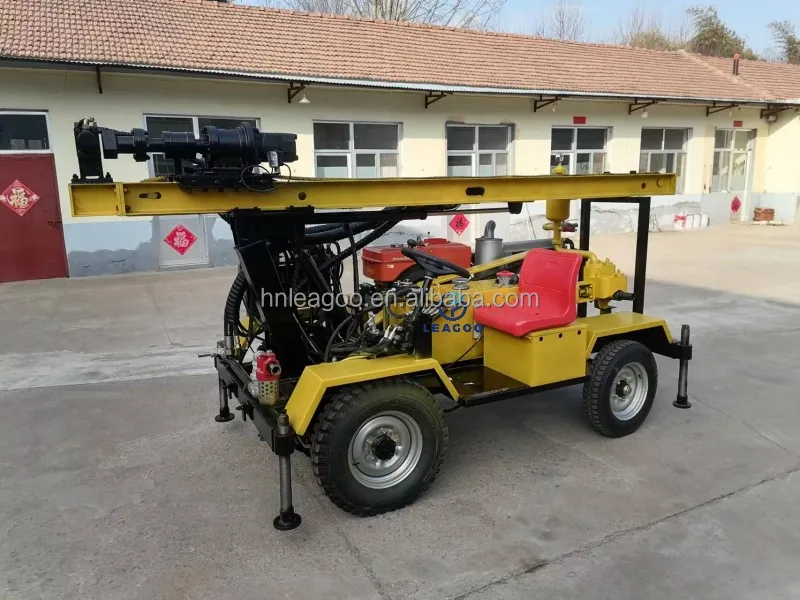

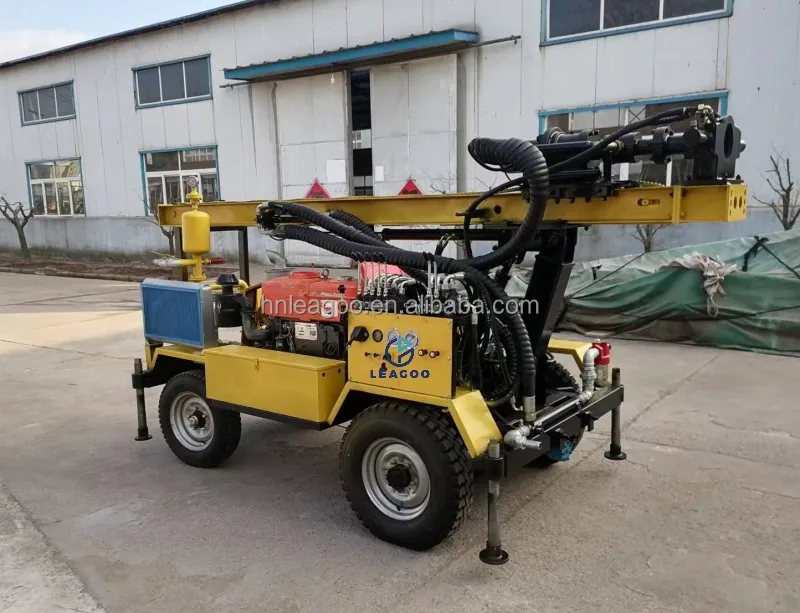

LGQ-100ZT DTH Hole Digging Rig Borehole Drill Rigs Drilling Boring Machine for Hard Rocks
1. Air compressor drilling rig is a kind of light weight, high efficiency and multi-function drilling equipment, it is suitable for drilling water wells, agricultural irrigation well, geothermal air-conditioning hole and other uses, especially for water engineering in mountainous and rock areas.
2. LGQ series drilling rig solves the problems to drill hard rocks, gravel, pebble stratum,which can work efficiently under all kinds of geological structure.
3. Self-propelled, could drive it directly, conveniently for short transportation.
4. Diesel engine is Single cylinder, 4-cylinder type could be customized.
5. Working with mud pump and air compressor.
Technical Parameter
100m DTH Hole Digging Rig Borehole Drill Rigs Drilling Boring Machine
Item | Parameter |
Drilling caliber | 100m |
Max. drilling depth | 105-150mm |
Diameter of drill pipe | Φ60 Φ76 |
Gas consumption | 15-18 m³/min |
DTH Hammer | DHD340/DHD350 |
Power | 35HP/2200rpm |
Ground clearance | 240mm |
System pressure | 20Mpa |
Walking speed | 0-20 Km/h |
Leg cylinder stroke | 600 mm |
Propulsion | 3.0 ton |
Lifting force | 5.0 ton |
Speed of spindle | 0-150rpm |
Rotary torque | 1200N.m |
Weight | 1300 Kg |
Dimension | 3000×1550×2000mm |
Contact Information
Sales Manager : Debbie Liu
Mobile /Whatsapp: +86-13213019085
Email: debbieliu888 @163.com
Offering 100m-2000m drilling rigs , borehole measuring instruments and solar pumps, please contact me for more details !
