Sony IMX179 8MP Cmos Color Sensor UVC Free Driver Autofocus USB Interface Embedded Industry Camera Module 4K With Microphone
- Category: >>>
- Supplier: Shenzhen City Haozhou Technology Co. Ltd
Share on (1600754044684):
Product Overview
Description

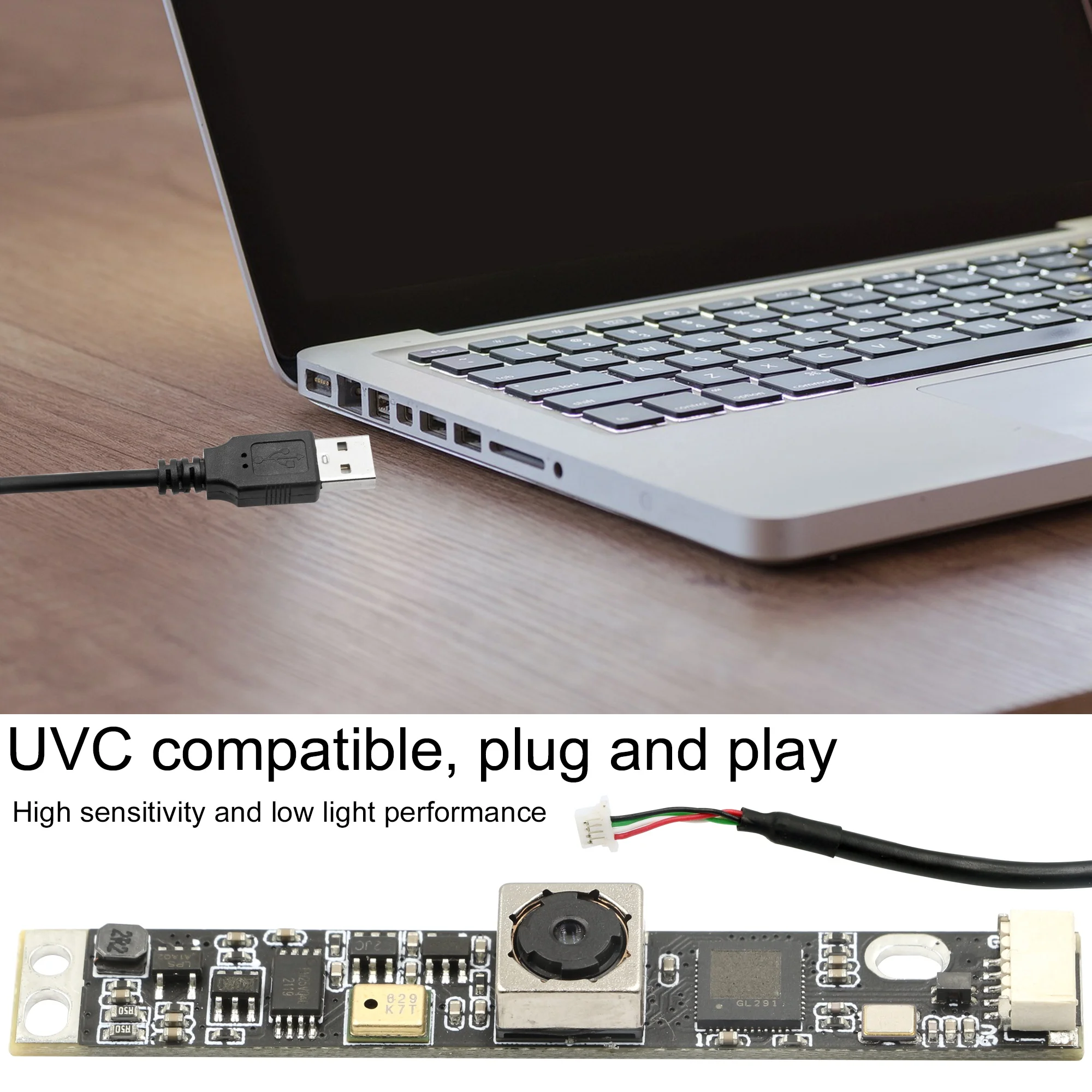

This camera is based on 8MP IMX179 USB Camera Module. The max resolution&frame rate is 3264(H)×2448(V)@30fps. Besides, we have equiped the camera with Auto Focus Lens. HAOZHOU has developed and designed this camera based on SONY IMX179 sensor. haozhou team is committed to creating more convenient and more efficient camera solutions. We have expanded the using scope of the sensor, enabling the camera to realize your various projects. The camera is equiped with a 68°(H) autofocus lens, allowing you to use it for more applications. It is compatible with Windows, Linux, Android and MAC and no additional drivers required. If you have any other requirements, please communicate with our sales team, we look forward to further cooperation with you.
Module No. | HZ-IMX179 AF S1.0 | |

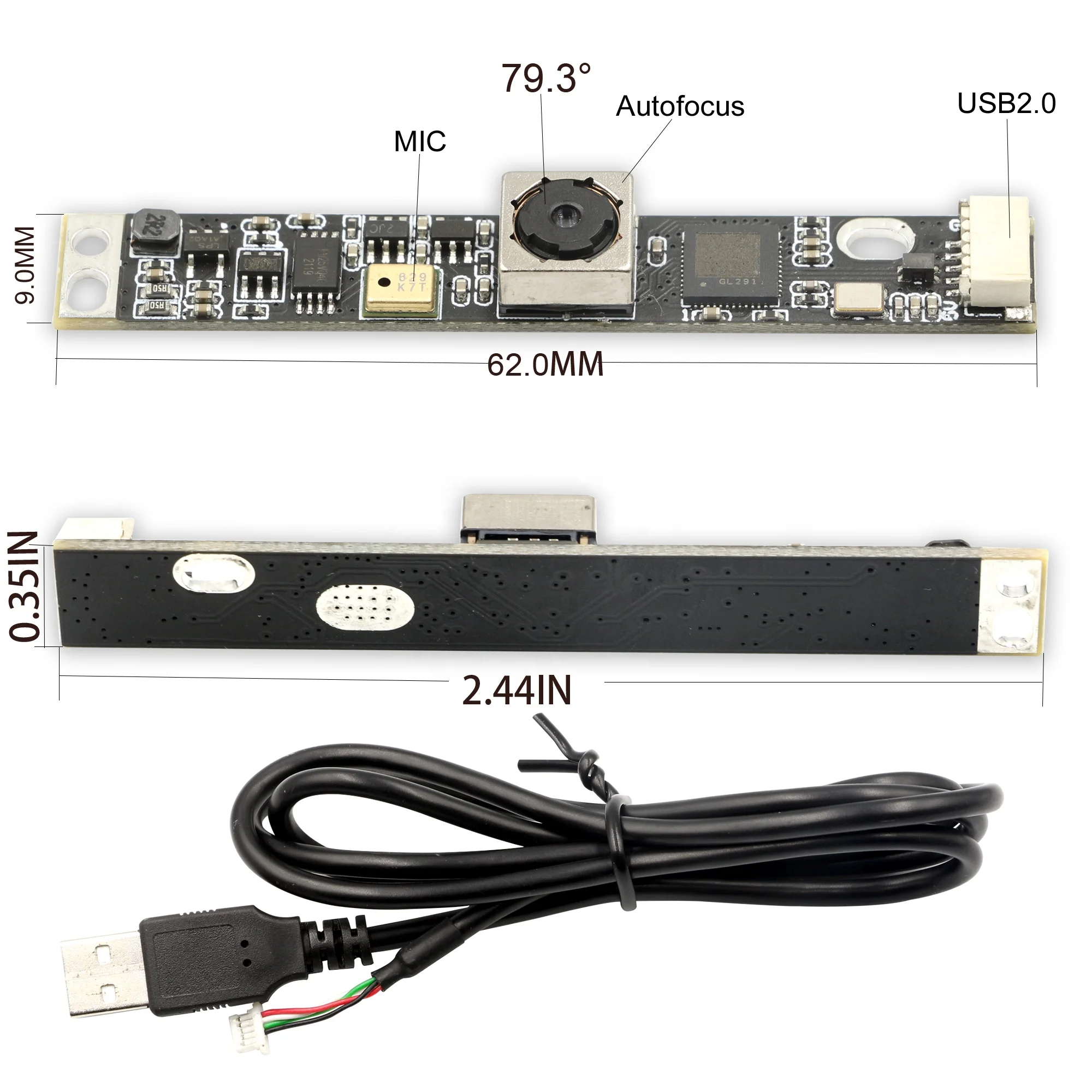

Module Size | 62*9mm | |
Object distance | 15CM-130CM | |
Resolution | 1100LW/PH (Center) | |
Focus | Auto or Fixed are available | |
Interface | USB 2.0 | |
Voltage | 5V | |
Temperature (Operation) | -30°C to 70°C | |
Temperature (Stable Image) | 0°C to 50°C | |
Assembly technique | SMT (ROSH) | |
PCB printing ink | Black | |
Operating system request | Windows 2000 ,Windows XP/ 7 / 8 /10 /Linux or OS with UVC Driver | |
Package | Anti-electrostatic tray | |
Sensor Type | ||
Sensor No. | IMX179 | |
Sercor Type | 1/3.2” | |
Active Array Size | 3264*2448;2592*1944;1920*1080;1080*720 | |
Pixel Size | 1.4μm x1.4μm | |
Maximum Image Transfer Rate | 3264*2448P/30fps/15fps | |
Dynamic Range | 66DB | |

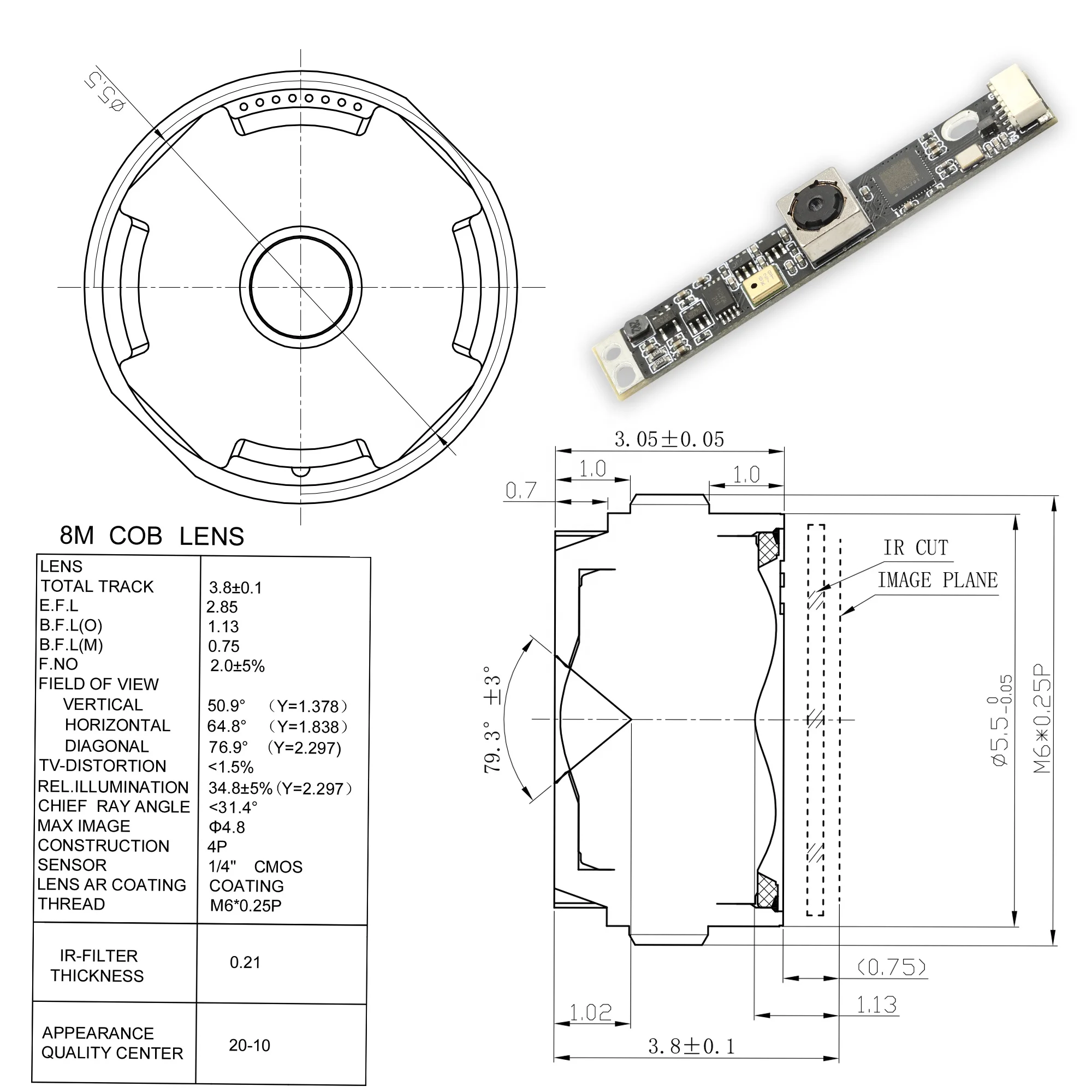

LENS | ||
Lens Type | 5P | |
Data Format | YUY/MJPG | |
Image Circle | CSP | |
FOV | D=76° | |
IR Filter | 0.81mm | |
Mount | M5*P0.5mm | |
DSP Type | ||
AGC/AEC/Whiter balance | <1.0% | |
Output Formats | >48% | |
Fixed Pattern Noise | 650±10nm | |
Functions and Features
◆ CMOS active pixel type dots
◆ 2-wire serial communication circuit on chip
◆ CSI2 serial data output
◆ High sensitivity, low dark current, no smear
◆ Excellent anti-blooming characteristics
◆ Variable-speed shutter function (1H units)
◆ R, G, B primary color pigment mosaic filters on chip
◆ CMOS image sensor
◆ Image size : Diagonal 5.7 mm (Type 1/3.2)
◆ Total number of pixels : 3288 (H) × 2512 (V) approx. 8.26M pixels
◆ Number of effective pixels : 3280 (H) × 2464 (V) approx. 8.08M pixels
◆ Chip size : 6.18 mm (H) × 5.85 mm (V)
◆ Unit cell size : 1.4μm (H) × 1.4μm (V)
◆ CMOS active pixel type dots
◆ 2-wire serial communication circuit on chip
◆ CSI2 serial data output
◆ High sensitivity, low dark current, no smear
◆ Excellent anti-blooming characteristics
◆ Variable-speed shutter function (1H units)
◆ R, G, B primary color pigment mosaic filters on chip
◆ CMOS image sensor
◆ Image size : Diagonal 5.7 mm (Type 1/3.2)
◆ Total number of pixels : 3288 (H) × 2512 (V) approx. 8.26M pixels
◆ Number of effective pixels : 3280 (H) × 2464 (V) approx. 8.08M pixels
◆ Chip size : 6.18 mm (H) × 5.85 mm (V)
◆ Unit cell size : 1.4μm (H) × 1.4μm (V)
