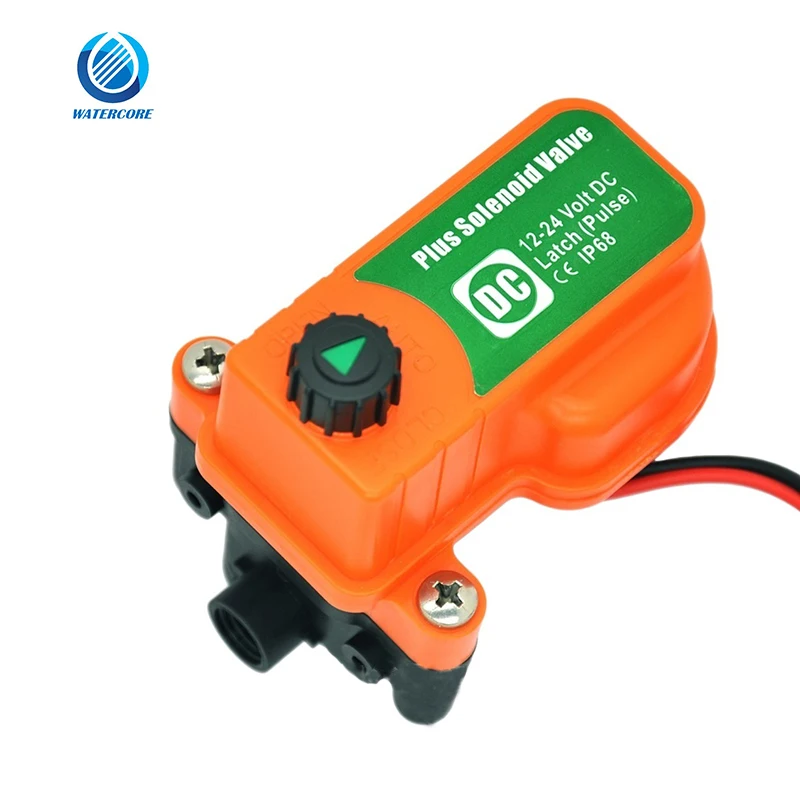

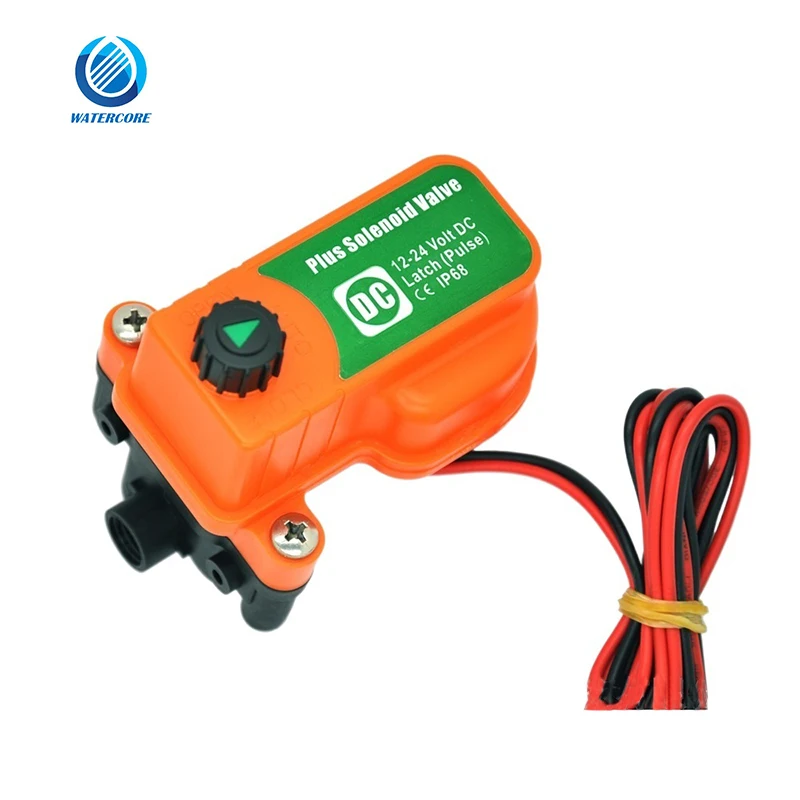

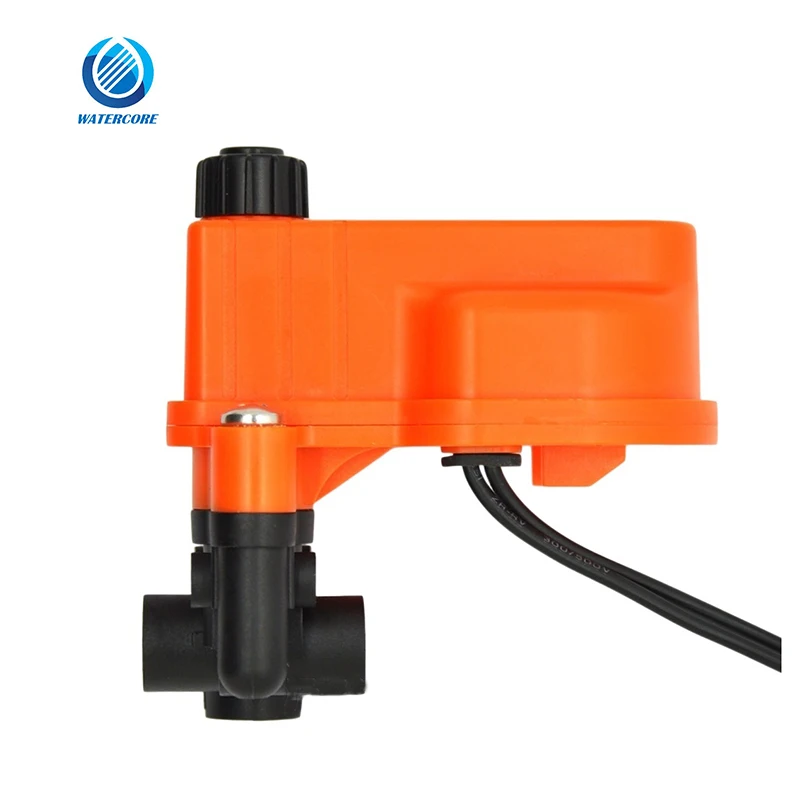

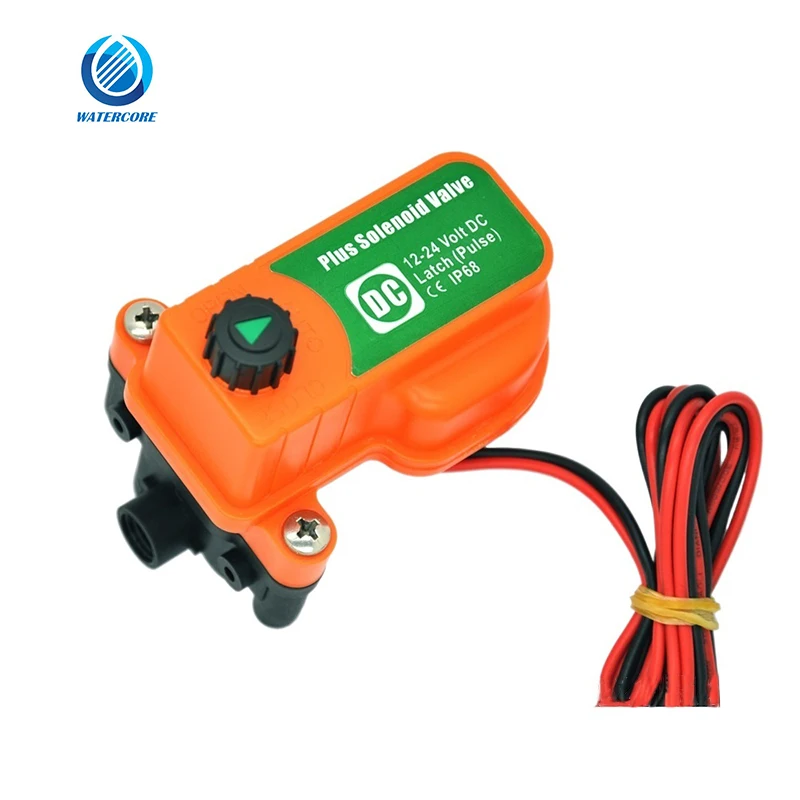

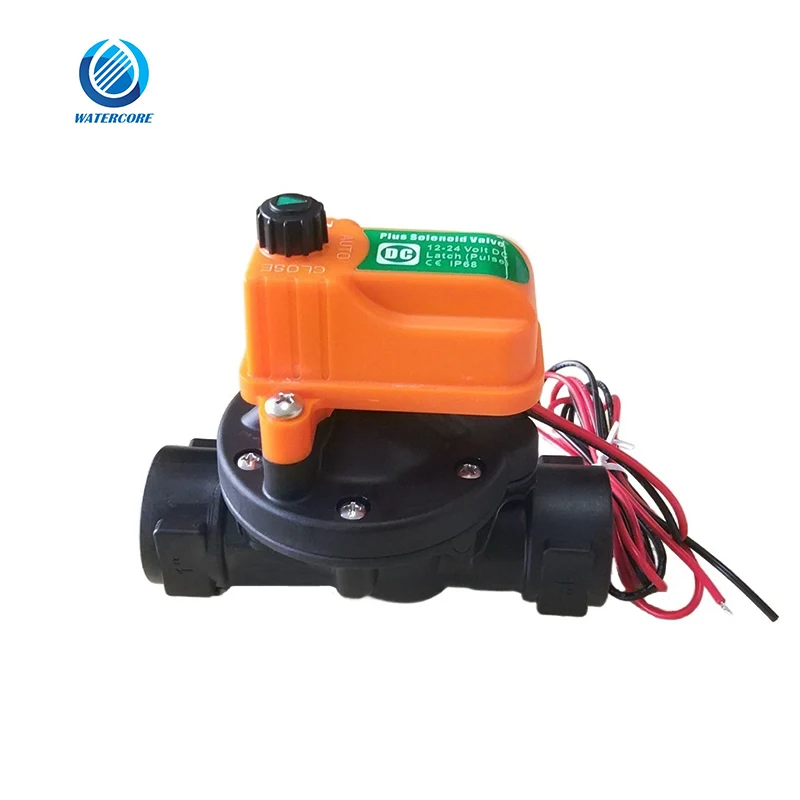

Plus Solenoid Valve With Stand 12VDC Latching (Pulse) for Automatic Farm Garden Drip Irrigation System
- Category: >>>
- Supplier: Yangling Watercore Building Materials Co. Ltd.
Share on (1600754045472):
Product Overview
Description
Product Description

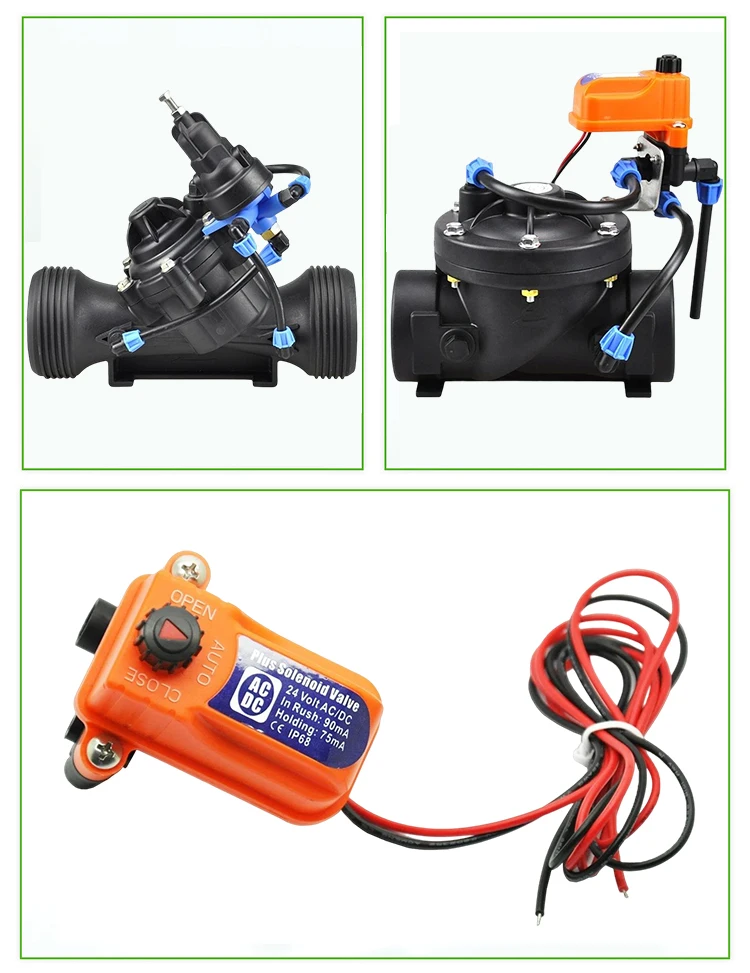

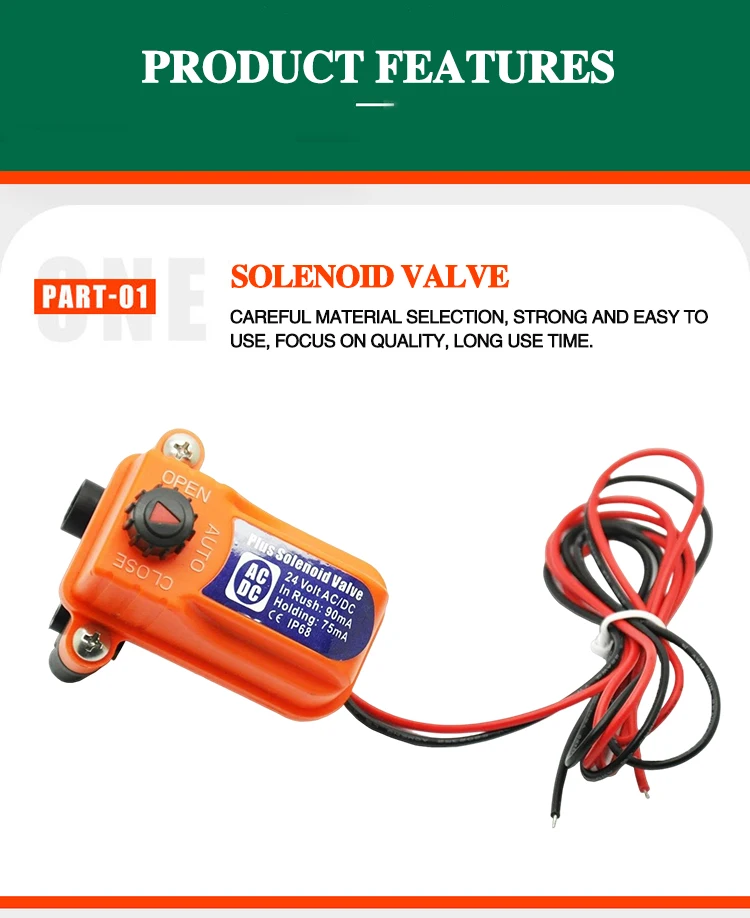

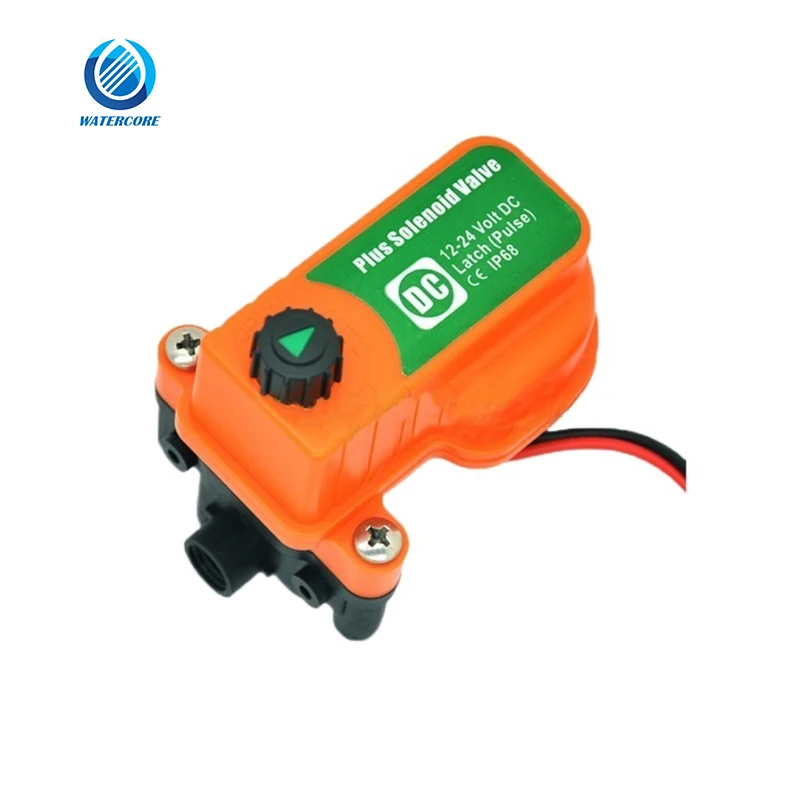

Solenoid Valve(Motor Type)
Advantages:
1.This Solenoid can be fifitted with the common controllers for automatic irrigation system.
2.Actuator motor designed for converting electric to hydraulic command which is essential part for Hydraulic controlling valve.
3.Three version AC (DC) and DC Latching available, AC and DC version is 2 in 1.
4.NC (Normally Closed) and NO (Normally Open) two modes available for selection.
5.Designed with diaphragmin inside which makes controlling main part separate from water passageways for long service life.
6.Width water passageways designed for short reaction of controlling valve and anti-clogging.
7.Manual controlling knob for CLOSE-AUTO-OPEN operation.
8.3-way hydraulic base can be fifitting for the Hydraulic controlling with 3 position 2 way.
9.Very low energy consumption for long distance control with long wire.
1.This Solenoid can be fifitted with the common controllers for automatic irrigation system.
2.Actuator motor designed for converting electric to hydraulic command which is essential part for Hydraulic controlling valve.
3.Three version AC (DC) and DC Latching available, AC and DC version is 2 in 1.
4.NC (Normally Closed) and NO (Normally Open) two modes available for selection.
5.Designed with diaphragmin inside which makes controlling main part separate from water passageways for long service life.
6.Width water passageways designed for short reaction of controlling valve and anti-clogging.
7.Manual controlling knob for CLOSE-AUTO-OPEN operation.
8.3-way hydraulic base can be fifitting for the Hydraulic controlling with 3 position 2 way.
9.Very low energy consumption for long distance control with long wire.
Technical Data:
1.With 100cm Wires
2.Filtration: Min. 80 mesh
3.Pressure range: 0-10bar (0-140 psi)
4.Hydraulic ports connecting: 1/8" BSP
5.Max. flfluid temperature: 60℃ (140 ℉ )
2.Filtration: Min. 80 mesh
3.Pressure range: 0-10bar (0-140 psi)
4.Hydraulic ports connecting: 1/8" BSP
5.Max. flfluid temperature: 60℃ (140 ℉ )
6.Max. ambient temperature: 60℃ (140 ℉ )
7.DC Latching version: Voltage 12-40V, Pulse width: 80-500ms

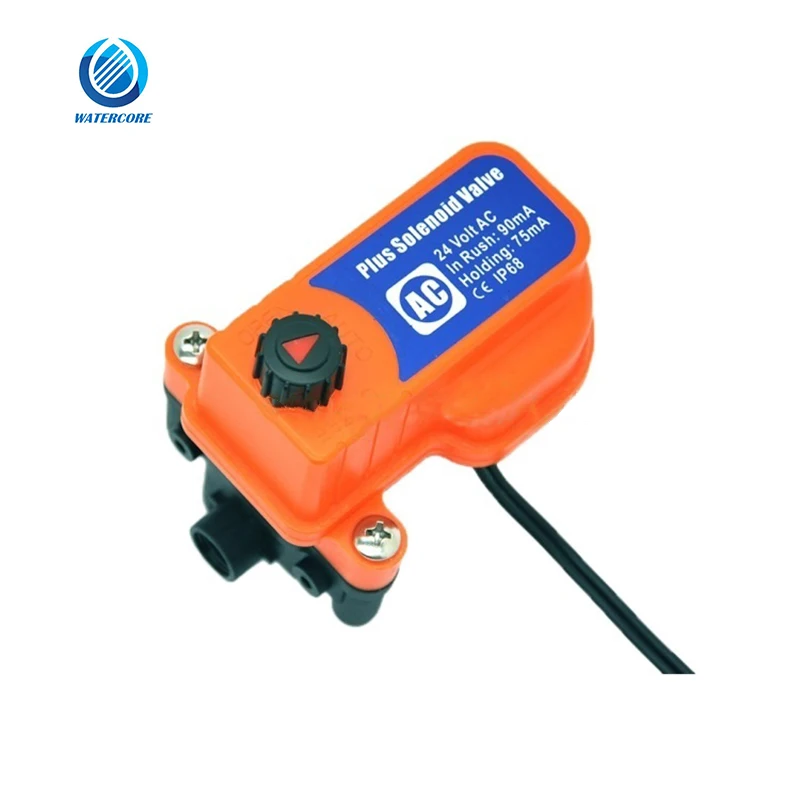

8.AC (DC) version: Voltage 24V (15-30V), Current Inrush 90mA, Holding 75mA
9.DC Latching version has red (positive) wire and black (negative) wire
7.DC Latching version: Voltage 12-40V, Pulse width: 80-500ms
8.AC (DC) version: Voltage 24V (15-30V), Current Inrush 90mA, Holding 75mA
9.DC Latching version has red (positive) wire and black (negative) wire
Specification
Description： | ||
Name of product | Plus Solenoid Valve With Stand, 12VDC Latching (Pulse) | |
Type | Drip Irrigation | |
Season | All-Season | |
Material | Plastic | |
Usage | Farm Garden Agriculture | |
Color | Orange, Black or customized | |
Connection | Thread | |
Working Pressure | 0-10Bar | |
Certification | ISO9001:2008 | |
Product display
Microsprinkler irrigation system connects directly to your garden hose or faucet outlet.Easily installed and perfect for
germinating seeds, landscape areas, home gardens, and horticultural applications. Durable and reliable with excellent distribution uniformity. 360 Degree coverage and a low discharge rate make these ideal for large areas.
germinating seeds, landscape areas, home gardens, and horticultural applications. Durable and reliable with excellent distribution uniformity. 360 Degree coverage and a low discharge rate make these ideal for large areas.

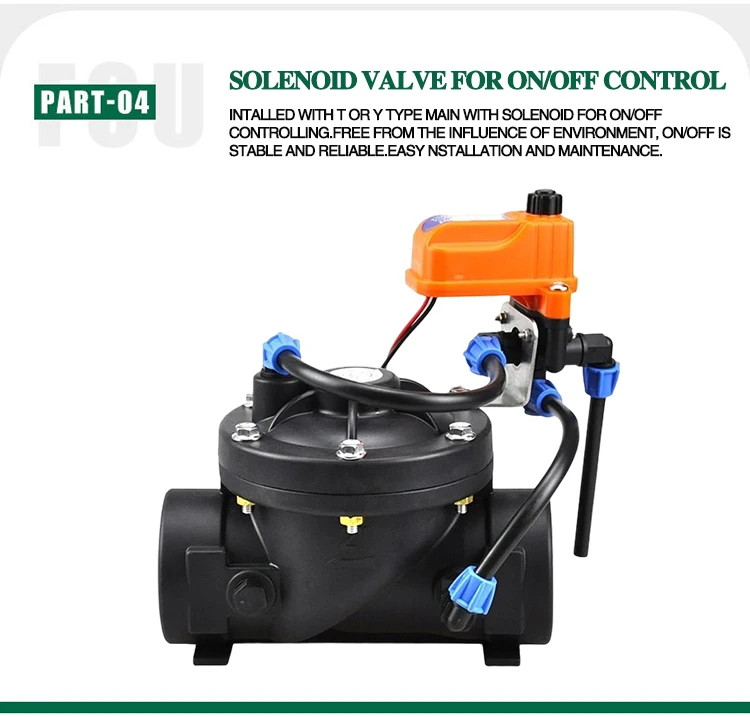

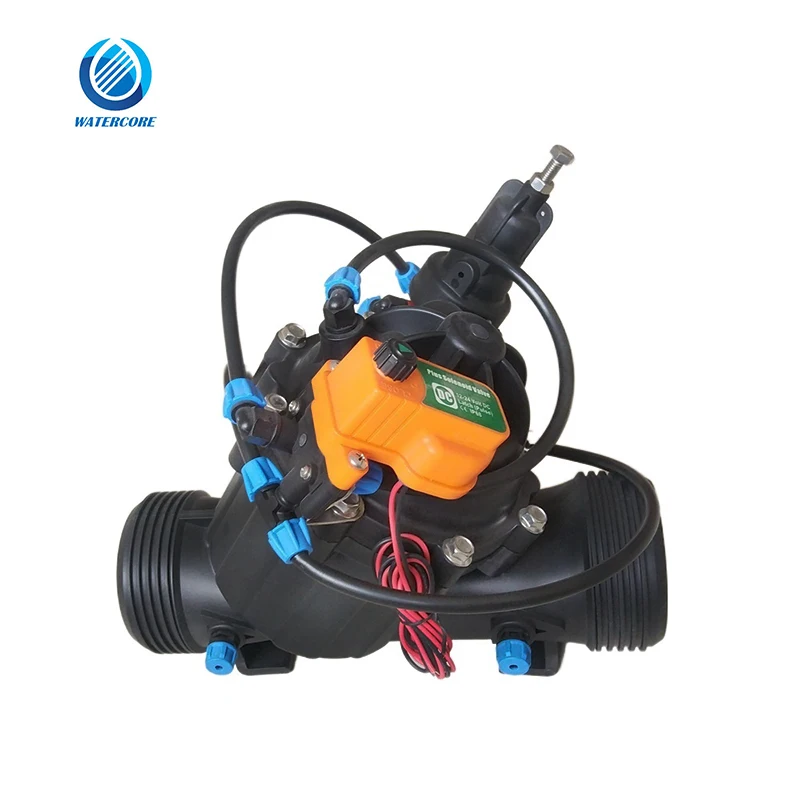

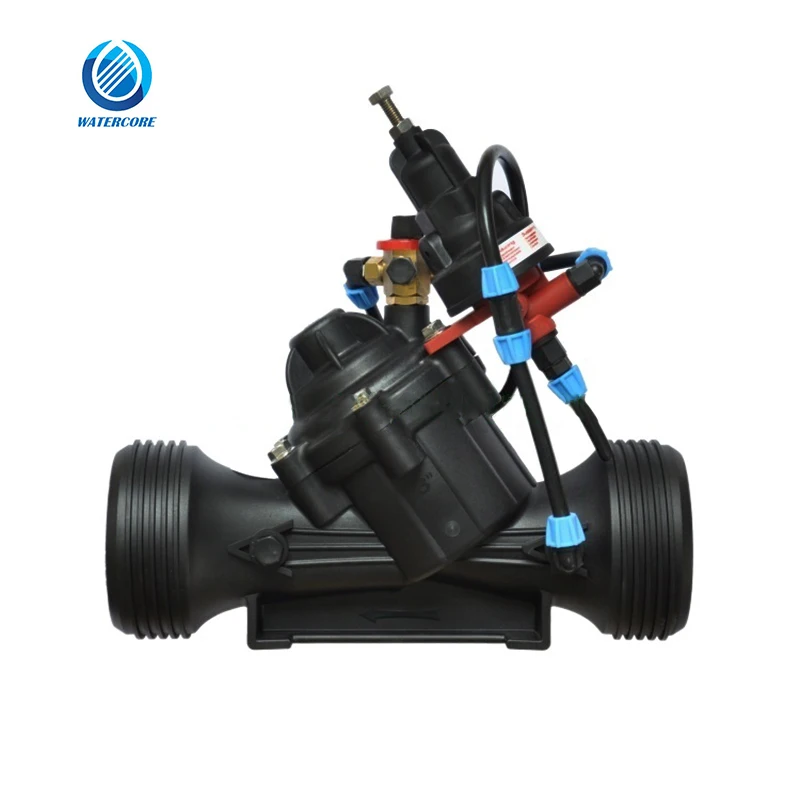

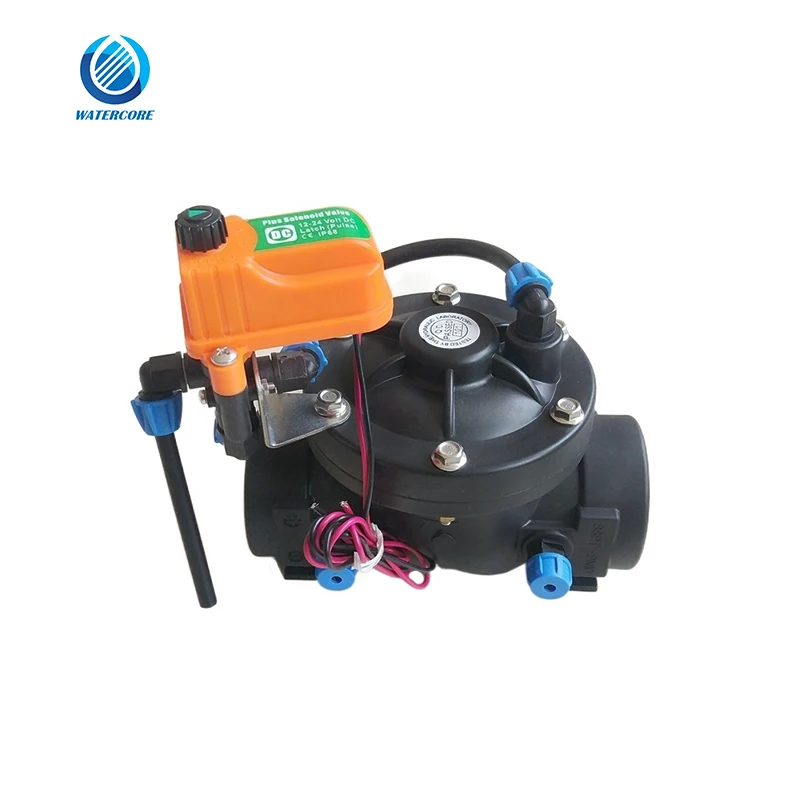

Actuator motor designed for converting electric to hydraulic command which is essential part for Hydraulic controlling valve. Suitable for all kinds of irrigation automatic control system.
