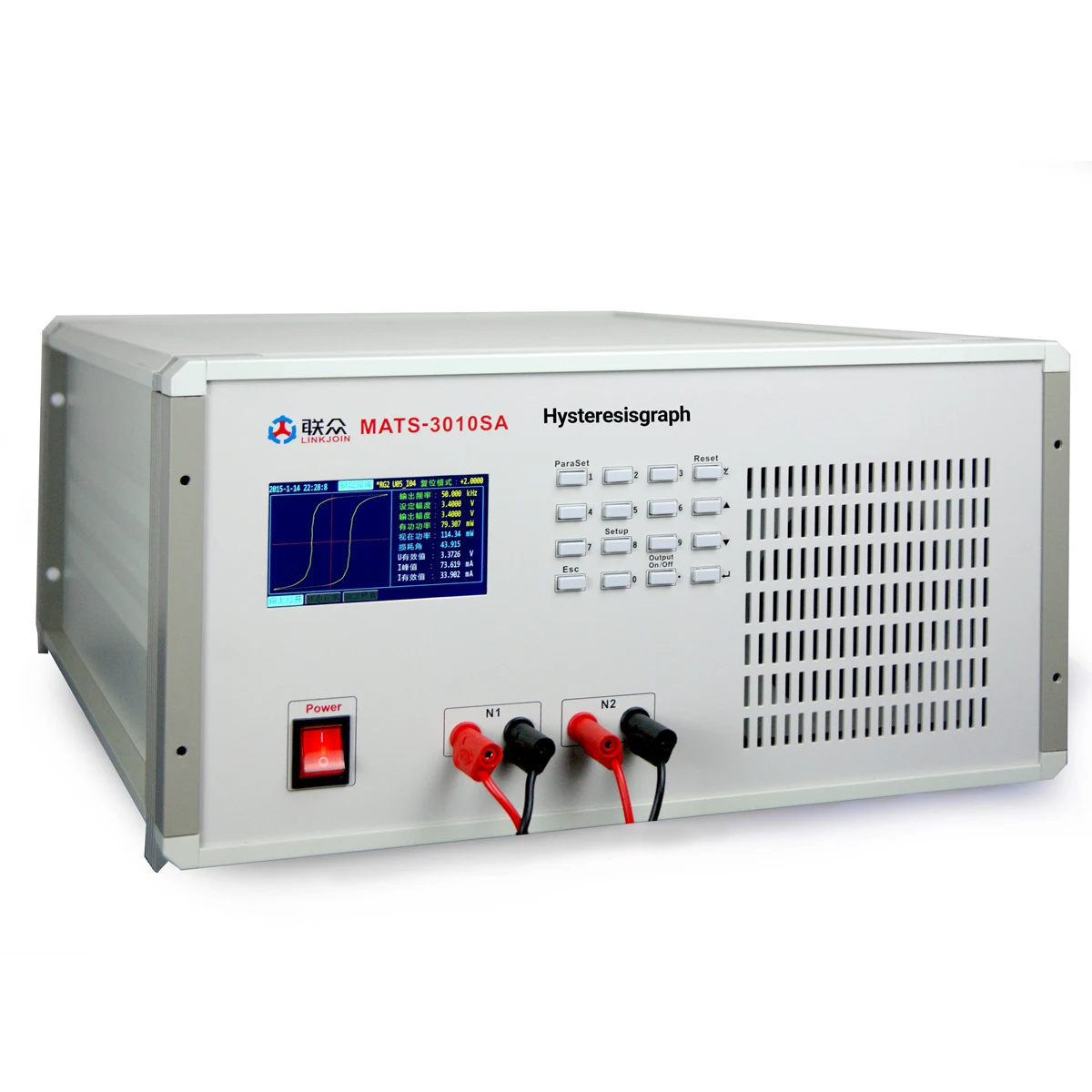

MATS-3100SA Hysteresisgraph can automatically measure the AC magnetic parameters of Fe-Si-Al, Fe-Al, soft ferrite, permalloy, amorphous/nanocrystalline and silicon steel under the frequency of 1kHz~300kHz (continuous frequency), the measured parameters are: Ps, Bm, Hm, Ss, μa, δ, Br and Hc, and can calculate μ′, μ″, μL, μR, Q and AL under certain conditions.

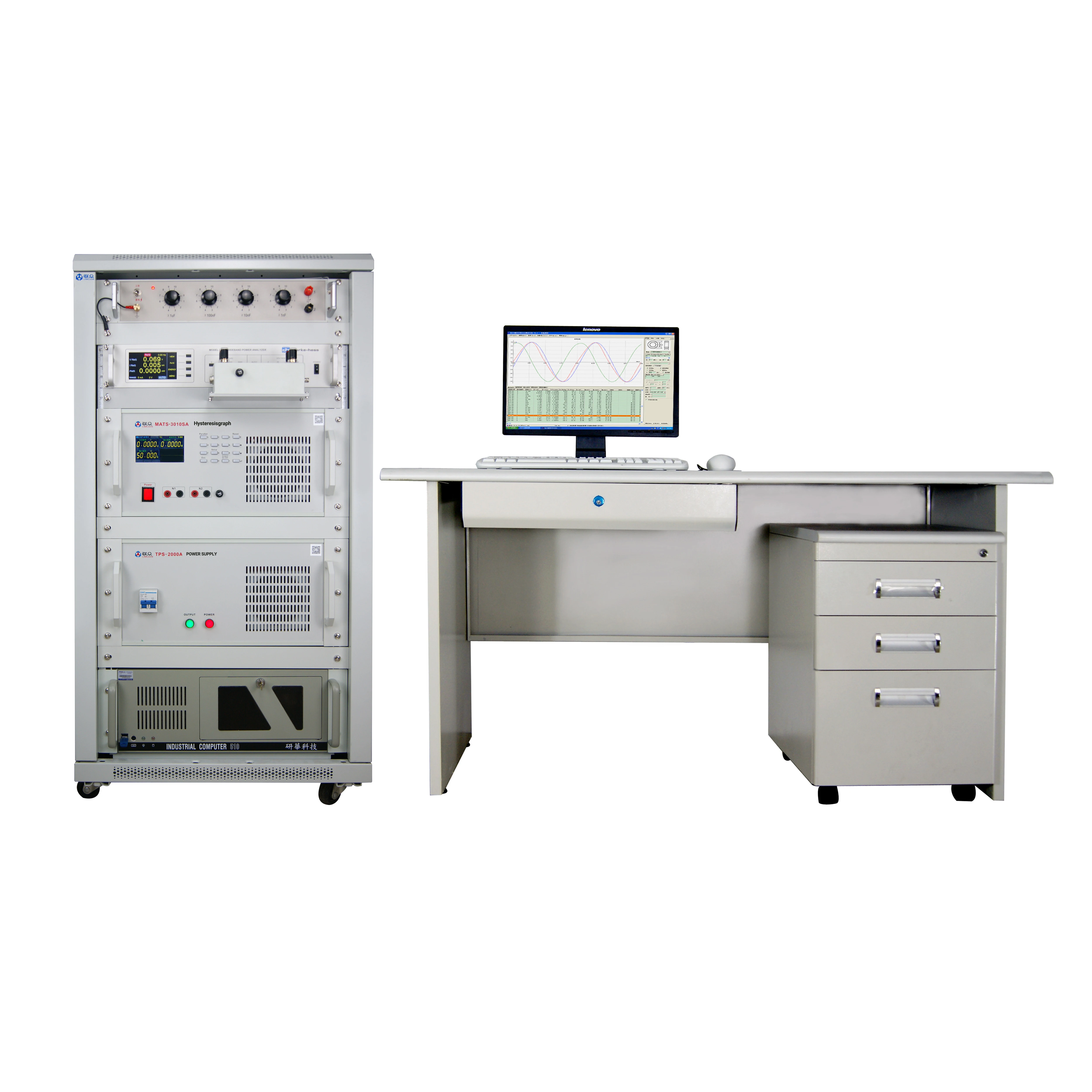

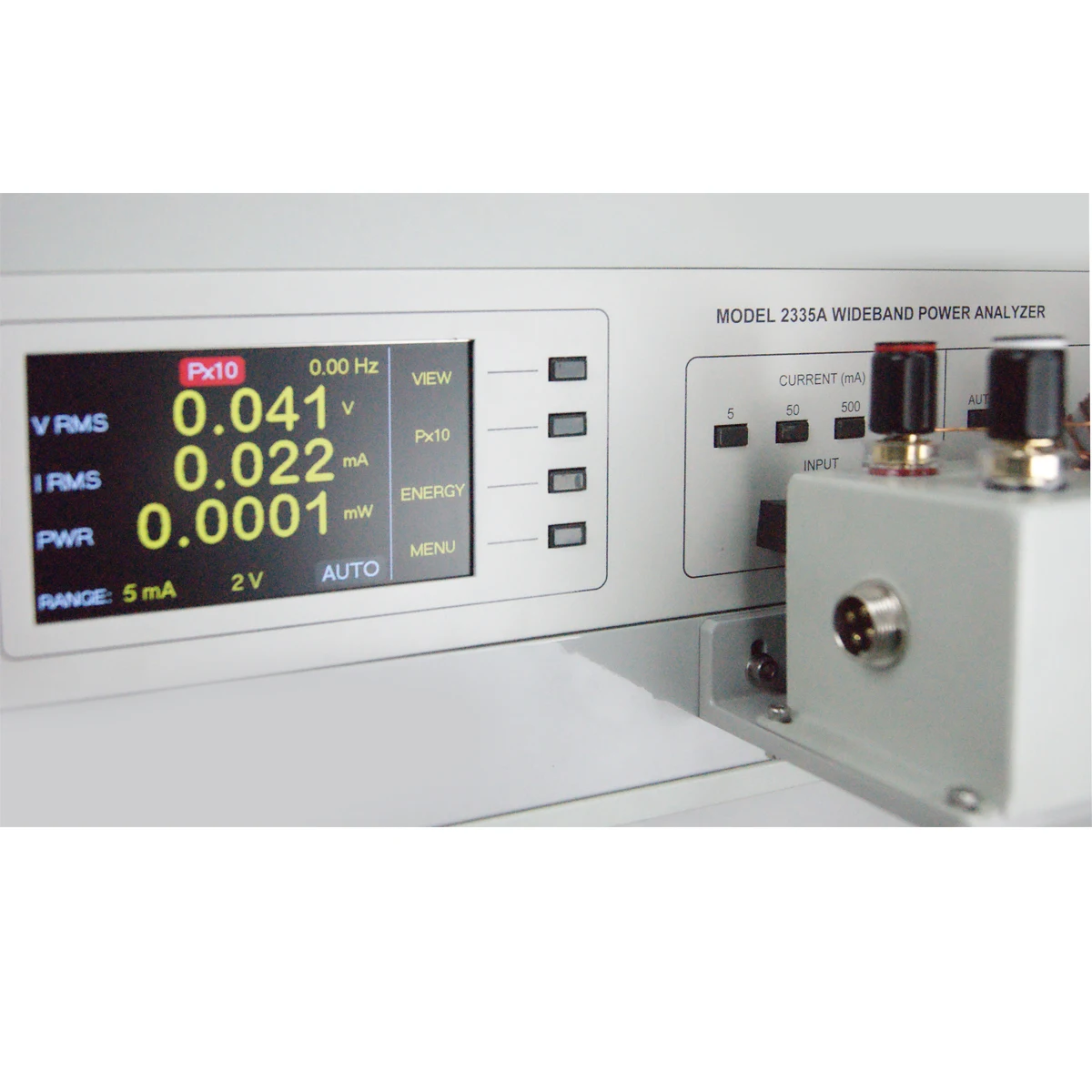

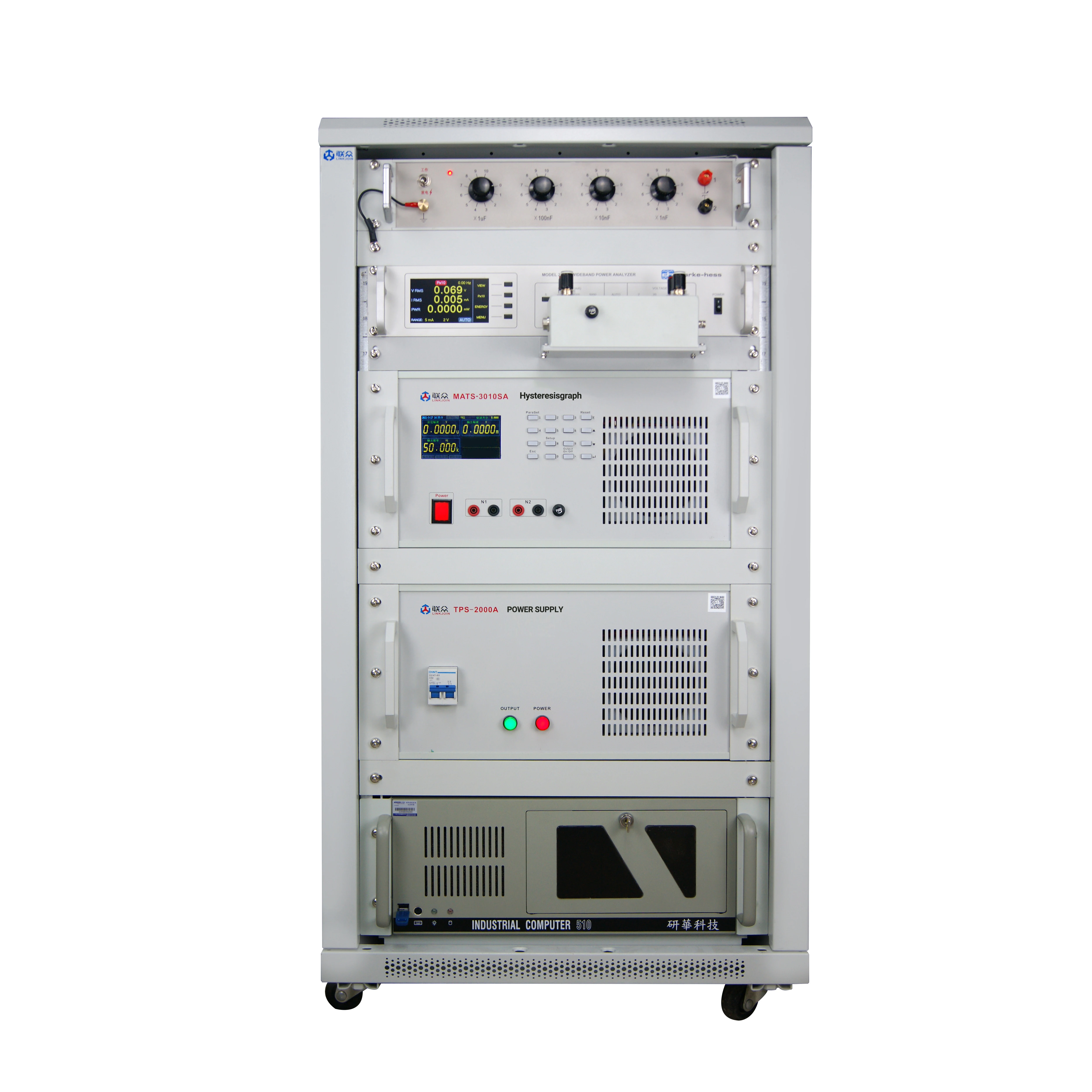

The test system is composed of industry computer, TPS series broadband program control power supply and LZ series power analyzer. It is equipped with MATS magnet automatic magnetic test system V7.0 -- SMTest soft magnetic dynamic measurement software, which can realize a variety of complex magnetic characteristics testing and data management.

1. Adopt digital power supply and standard power meter which are controlled by computer and the whole measure process can be finished automatically.

2.  Digital programmable power supply has the function of change ranges automatically, and can automatically match the output range and sampling range according to the material characteristics, effectively improve the safety of equipment and measurement accuracy.

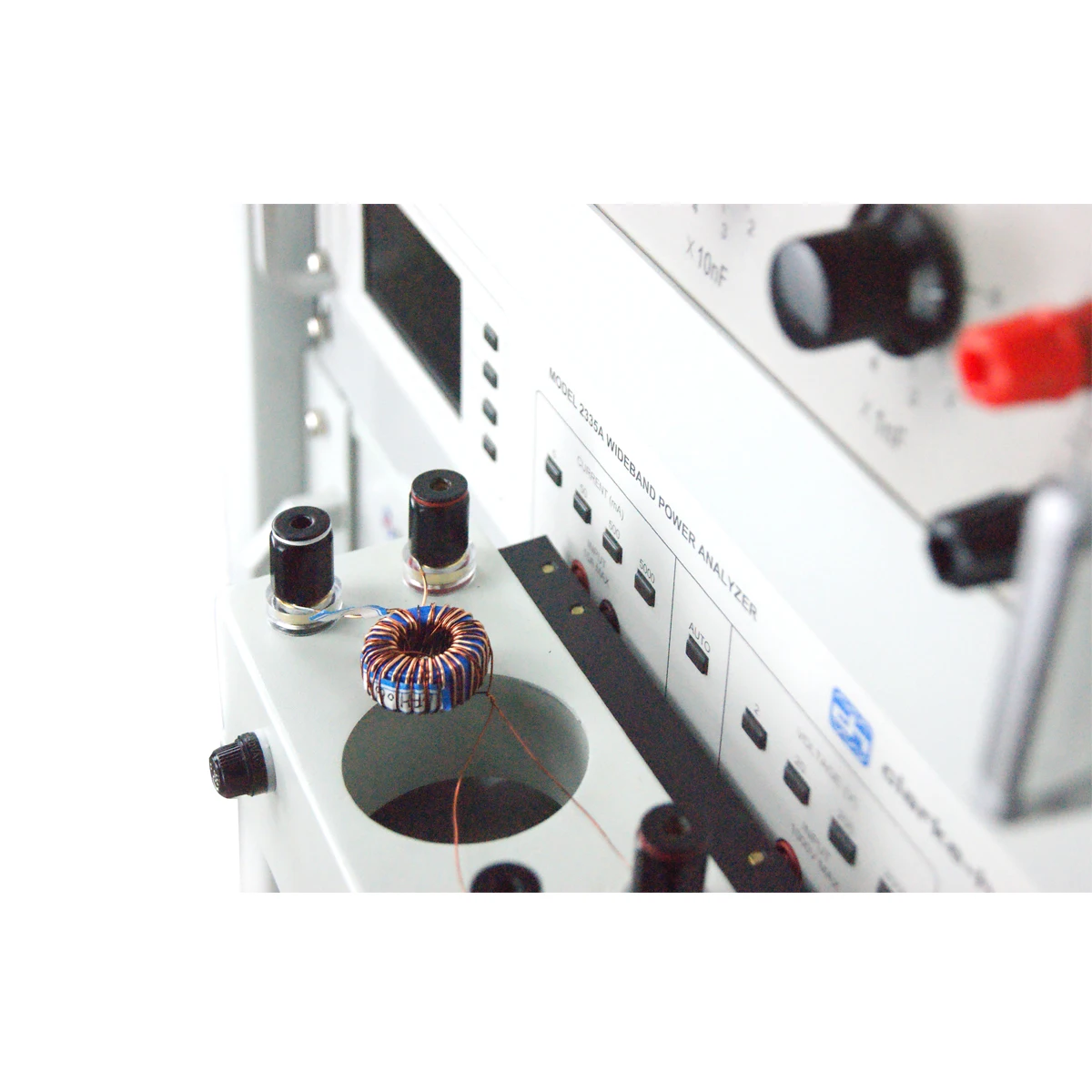

3. Test samples with closed magnetic circuit and can be directly winded and measured on sample. The sample, magnetizing coil (N1) and measuring coil (N2) together to form the no-load transformer.

4. Magnetizing coil circuit serial with the current of standard power meter, and get the magnetic field peak by reading the current peak value of power meter.

5. Connect the measure coil to the voltage input port of standard power meter, calculate the peak value of magnetic flux density by reading the voltage effective value of the power meter.
