Stainless steel glass spider fittings 316 material glass spider fittings 250mm
- Category: >>>
- Supplier: Taizhou Yashun Stainless Steel Co. Ltd.
Share on (1600754132352):
Product Overview
Description
Product Overview
stainless steel spider fittings
We are a factory that produce the stainless steel spider fittings.We have many types spiders and fin spiders for option.
In general, we sell very well for 100mm,120mm,150mm,160mm,170mm,200mm,210mm,220mm,250mm,300mm .We have a lot for stock for these spiders.We also have many types fin spiders. The sizes is 200mm,210mm,220mm,250mm. Welcome to send me your inquiry for the spider fittings !
PRODUCT SPECIFICATIONS
304 material composition
Material Chemical Analysis
(C):≤0.08% (Si):≤1.00% (Mn):≤2.00%
(P):≤0.045% (S):≤0.030% (Cr):17.0--18..5%
(Ni):≥8
(C):≤0.08% (Si):≤1.00% (Mn):≤2.00%
(P):≤0.045% (S):≤0.030% (Cr):17.0--18..5%
(Ni):≥8
316 material composition
Material Chemical Analysis
(C):≤0.08% (Si):≤1.00% (Mn):≤2.00%
(P):≤0.045% (S):≤0.030% (Cr):16.0--18.0%
(Ni):10.0-14.0% (S):2.00-3.00%
(C):≤0.08% (Si):≤1.00% (Mn):≤2.00%
(P):≤0.045% (S):≤0.030% (Cr):16.0--18.0%
(Ni):10.0-14.0% (S):2.00-3.00%
Composition | C | Si | Mn | P | S | Cr | Ni | Mo | ||||
304 | 0.078 | 0.85 | 1.12 | 0.023 | 0.028 | 18.07 | 8.02 | |||||
316 | 0.078 | 0.67 | 1.10 | 0.010 | 0.020 | 16.687 | 10.29 | 2.01 | ||||
Load | Axial Load | 12.8KN | Radial Load | 6.8KN | ||||||||

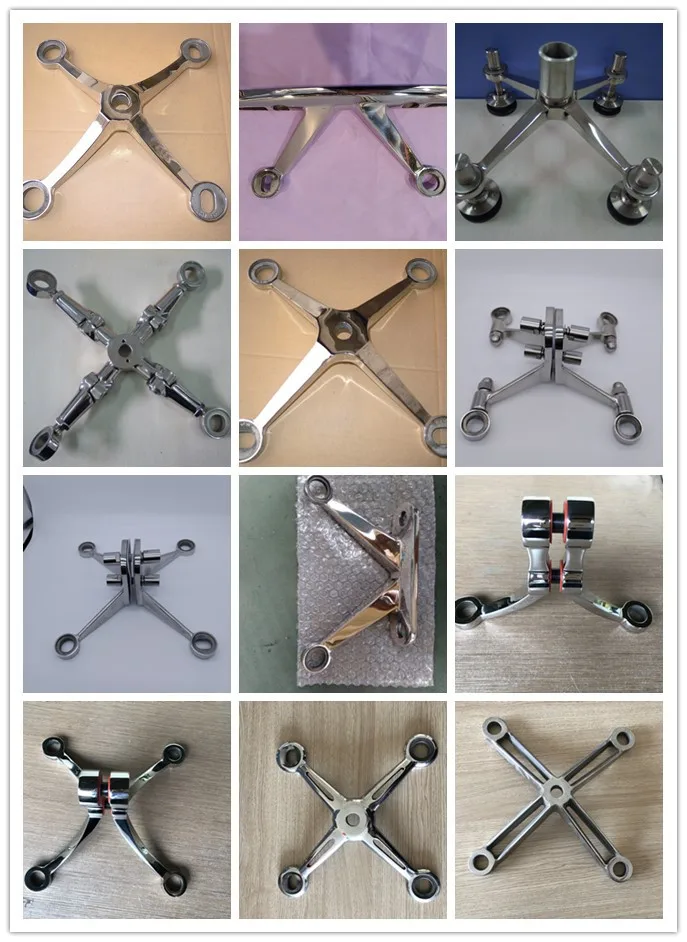

250mm size spider has six types: 4 legs,3 legs, 2 legs 180°，2 legs 90°。1 leg short and 1 leg long .Please check the following photos:
four legs
3 legs
2 legs 180°
2 legs 90°
1 leg short
.
1 leg long
Material testing
This machine will be used for testing the material composition.
All our products will be tested before we send the goods .
Production process
Wax mould making
Wax mould
sand blast
get rid of wax
Shell waiting pouring liquid steel
Burning the steel into liquid steel
Unpolished spider
.Finish the polishing
Package
Successful Project
Project in Thailand
Project in India
Project in Russia
