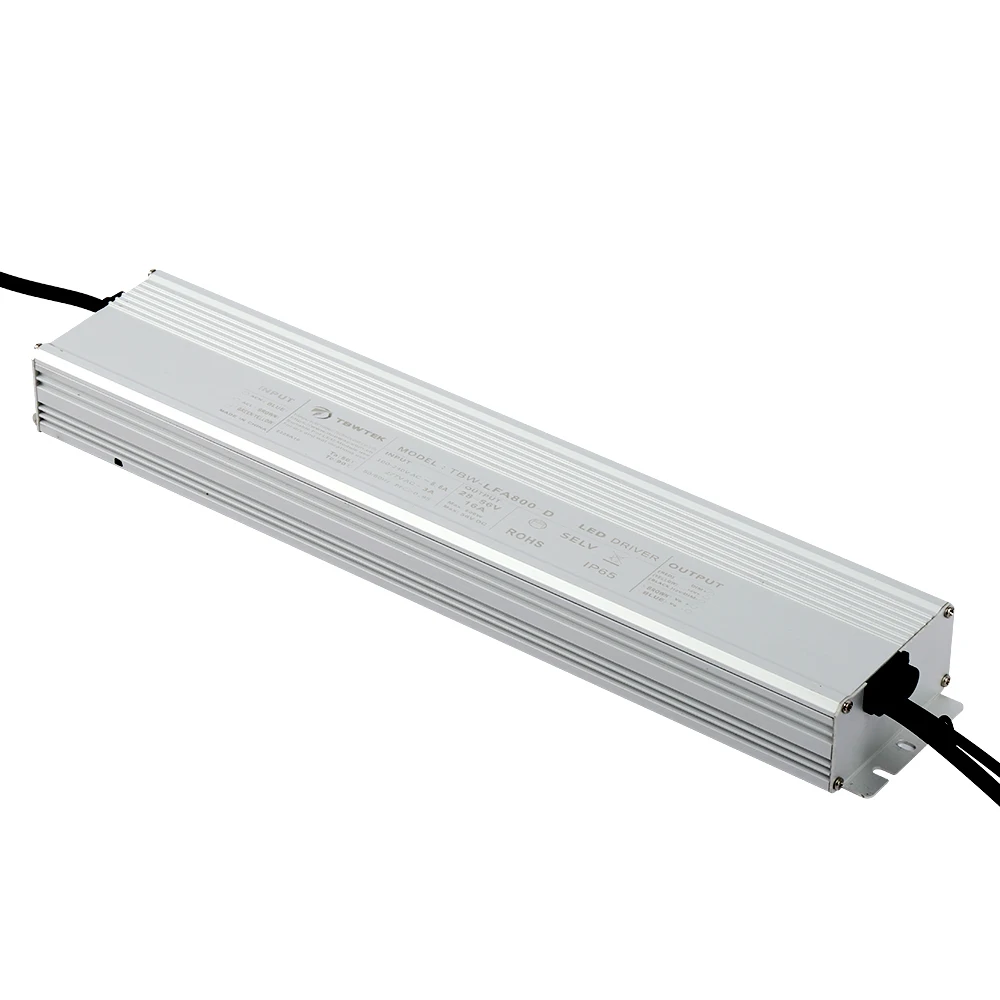

800W AC 110V 277V to DC 36V Transformer 5 in 1 Dimming 0 10V PWM/Potentiometer Waterproof IP67 Led Switching Power Supply
- Category: >>>
- Supplier: Shenzhen,Topway,Electronic,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Recommended UL Series LED Power Supply
Especially For LED Plant Grow Lights
Product Paramenters
Item | 800W LED Switch Power Supply Driver |
Brand | TBWTEK |
Type Name | TBW-LFA800W |
Input Voltage | 100-277V |
Output Type | Single |
Output Power | 800w |
Output Voltage | 40-56V |
Output Current | 14-20A |
Size | 440*90*45MM |
Gross Weight | 3.1KG |
Efficiency | 93% |
PFC | ≥0.95 |
Output Frequency | 50/60Hz |
Certificated | UL/CE/RoHS/SAA/ENEC/FCC/EMC/CCC |
Application | Street lamps, projection lights, high bar lights, court lights, plant grow lights |
Warranty | 5 years |
Waterproof Grade | IP67,IP65 |
Protection | Over-heat, over-load, short-circuit & open-circuit |
Test | 100% Full Load Burn-in Test Over 4 Hours |
Work temperature | -40℃ ~ + 50℃ |
Storage temperature | -40℃ ~ + 90℃ |
Relative Operation Humidity | 10%RH~90%RH |
Relative Storage Humidity | 5%RH~95%RH |
Shell Material | Aluminum |
MOQ | 1 Piece |
Dimming | PWM/0-10V/Resistance |
Service | OEM/ODM |
Features:
* Built-in ventilation for heat dissipation, strong wind can effectively control the temperature rise.

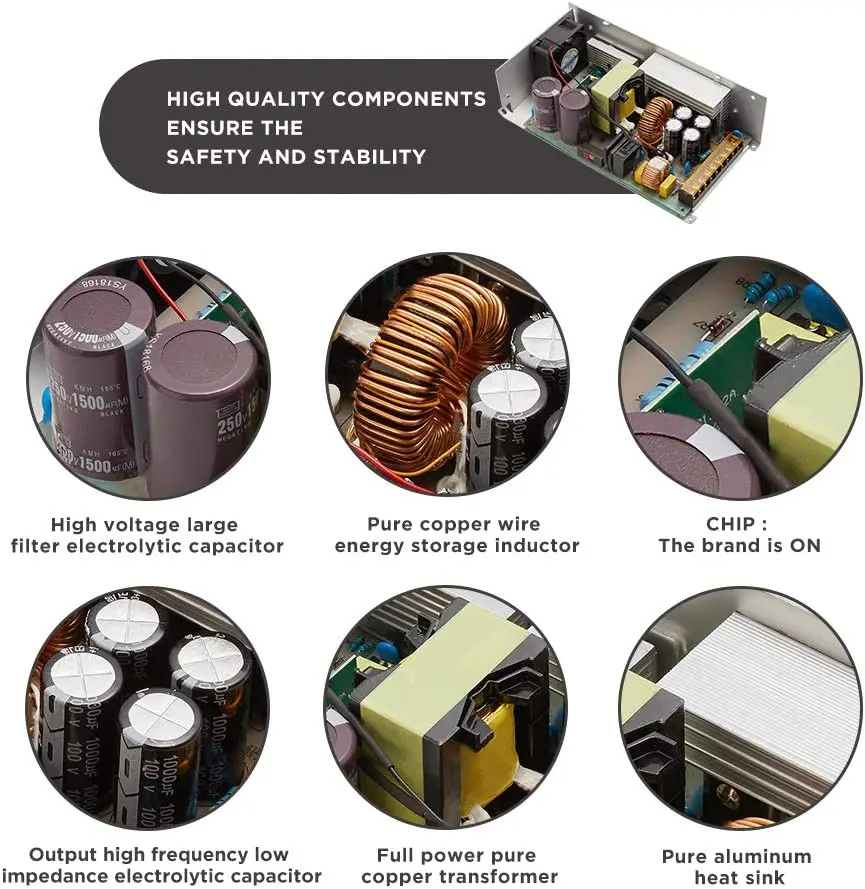

* 100% Brand new electronic components,Full power transformer,High capacity capacitance.
* Multiple protection functions,Can resume normal operation after troubleshooting.Ensures the Safety of Using This Power Supply.
* High quality Switch Power Supply,100% full load burn-in test.Cooling by free air convection. Widely used in Industrial
automation, LED display, Grow Plant Light etc.
Product Model | Output Voltage(V) | Output Current(A) | Output Power(W) | Effffciency |
TBW-LFA251 | 28-56 | 0.4-0.8 | 25 | 88.0% |
TBW-LFA351 | 28-56 | 0.6-0.95 | 35 | 88.0% |
TBW-LFA501 | 28-56 | 0.8-1.5 | 50 | 89.0% |
TBW-LFA601 | 28-56 | 1-1.8 | 60 | 89.0% |
TBW-LFA801 | 28-56 | 1.5-2.3 | 80 | 89.0% |
TBW-LFA100 | 28-56 | 1.5-2.5 | 100 | 90.0% |
TBW-LFA120 | 28-56 | 2.2-3.6 | 120 | 90.0% |
TBW-LFA150 | 28-56 | 2.1-4.2 | 150 | 91.5% |
TBW-LFA200 | 28-56 | 3.0-5.6 | 200 | 92.0% |
TBW-LFA240 | 28-56 | 3.5-6.7 | 240 | 92.5% |
TBW-LFA320 | 28-56 | 5.0-7.5 | 320 | 92.5% |
TBW-LFA400 | 28-56 | 5.0-8.9 | 400 | 93% |
TBW-LFA650 | 40-56 | 11.6-18 | 650 | 94.5% |
TBW-LFA730 | 40-56 | 12.8-18 | 730 | 95% |
TBW-LFA800 | 40-56 | 14-20 | 800 | 95% |
TBW-LFA1000 | 40-56 | 14-20 | 1000 | 95% |
Production Line
Company Profile
Shenzhen Topway Electronic Technology Co., Ltd. was founded in 2009, specializing in R & D, production and customization of various digital power supply, intelligent high-power power supply.After ten years of development, it has grown into a nationalhigh-tech enterprise integrating high-end product research and development, intelligent manufacturing, sales and service, from the research and development and trade at the beginning of its establishment.
Companies with advanced and efficient management as the guarantee, cutting-edge research and development technology as backing, supported by advanced production and inspection technology, is committed to UV LED curing equipment, animals and plants grow lighting, industrial automation equipment, new energy, 5G communications, LED lighting, electrical power, rail transport,shipbuilding, aerospace and medical industries provide professional, personalized custom power supply solutions, to help customersimprove production efficiency and energy efficiency.All power supplies CAN support WIFI, Bluetooth Mesh, power carrier, 2.4G,0-10V, PWM dimming, 485 communication, CAN communication.
In order to further ensure product quality, to meet the needs of global customers, the company strictly in accordance with thelatest ISO9001:2015 quality management system, the products are in line with CCC, CE, GS, UL, ETL, FCC, PSE and other related power product certification, products are sold to Europe, the United States, India, Japan, Canada, Australia and other countries.
Companies with advanced and efficient management as the guarantee, cutting-edge research and development technology as backing, supported by advanced production and inspection technology, is committed to UV LED curing equipment, animals and plants grow lighting, industrial automation equipment, new energy, 5G communications, LED lighting, electrical power, rail transport,shipbuilding, aerospace and medical industries provide professional, personalized custom power supply solutions, to help customersimprove production efficiency and energy efficiency.All power supplies CAN support WIFI, Bluetooth Mesh, power carrier, 2.4G,0-10V, PWM dimming, 485 communication, CAN communication.
In order to further ensure product quality, to meet the needs of global customers, the company strictly in accordance with thelatest ISO9001:2015 quality management system, the products are in line with CCC, CE, GS, UL, ETL, FCC, PSE and other related power product certification, products are sold to Europe, the United States, India, Japan, Canada, Australia and other countries.
Certifications
Product packaging
Why Choose Us
1. What we sell is 100% Certificated Power Supply;
2. Small quantity orders acceptable;
3. We will choose the most suitable shipping way for you and inform you the cost advance, decision will be made by you;
4. We have larger stocks and this support us can make a very prompt shipping;
5. To assure you the maximum comfort and satisfaction, we accept pay via T/T, Paypal, Western Union;
6. Price could be negotiated for more and large quantity;
7. Your enquiry will be quickly responsed, we will choose the most suitable products and quote the most competitive price for you
2. Small quantity orders acceptable;
3. We will choose the most suitable shipping way for you and inform you the cost advance, decision will be made by you;
4. We have larger stocks and this support us can make a very prompt shipping;
5. To assure you the maximum comfort and satisfaction, we accept pay via T/T, Paypal, Western Union;
6. Price could be negotiated for more and large quantity;
7. Your enquiry will be quickly responsed, we will choose the most suitable products and quote the most competitive price for you
FAQ
Q1. Are you manufacturer or trade company ?
A1: We are the real manufacturer focus on switch powersupply and led driver
Q2:What is the warranty for your products ?
A2:5 years. After steady cooperations, we can support LIFETIME WARRANTY, the failed parts can be replaced with the next order.
Q3:Does your company accept OEM&ODM?
A3:Yes, we support OEM/ODM, with 12 years experienceof R&D to serve you.
Q4:Is it OK to print my logo on led driver & lightproduct and use my own package and trade mark?
A4:Yes. Normally we offer white inner box and cartonbox. Use your own design is ok. Please inform us.
Q5:Can I get a sample?
A5:Sure, If you need sample, pls tell me your spec needor tell me your led light info, then i will recommend you.
Q6:What's your leadtime ?
A6: The delivery time is 1 to 15days, which depends onyour quantity.
A1: We are the real manufacturer focus on switch powersupply and led driver
Q2:What is the warranty for your products ?
A2:5 years. After steady cooperations, we can support LIFETIME WARRANTY, the failed parts can be replaced with the next order.
Q3:Does your company accept OEM&ODM?
A3:Yes, we support OEM/ODM, with 12 years experienceof R&D to serve you.
Q4:Is it OK to print my logo on led driver & lightproduct and use my own package and trade mark?
A4:Yes. Normally we offer white inner box and cartonbox. Use your own design is ok. Please inform us.
Q5:Can I get a sample?
A5:Sure, If you need sample, pls tell me your spec needor tell me your led light info, then i will recommend you.
Q6:What's your leadtime ?
A6: The delivery time is 1 to 15days, which depends onyour quantity.
