Waveshare 4.2Inch E Paper E Ink EPD Display Module 400*300 Resolution SPI Interface
- Category: >>>
- Supplier: Shenzhen Kuongshun Electronic Business Department
Share on (1600754346073):
Product Overview
Description
Products Description

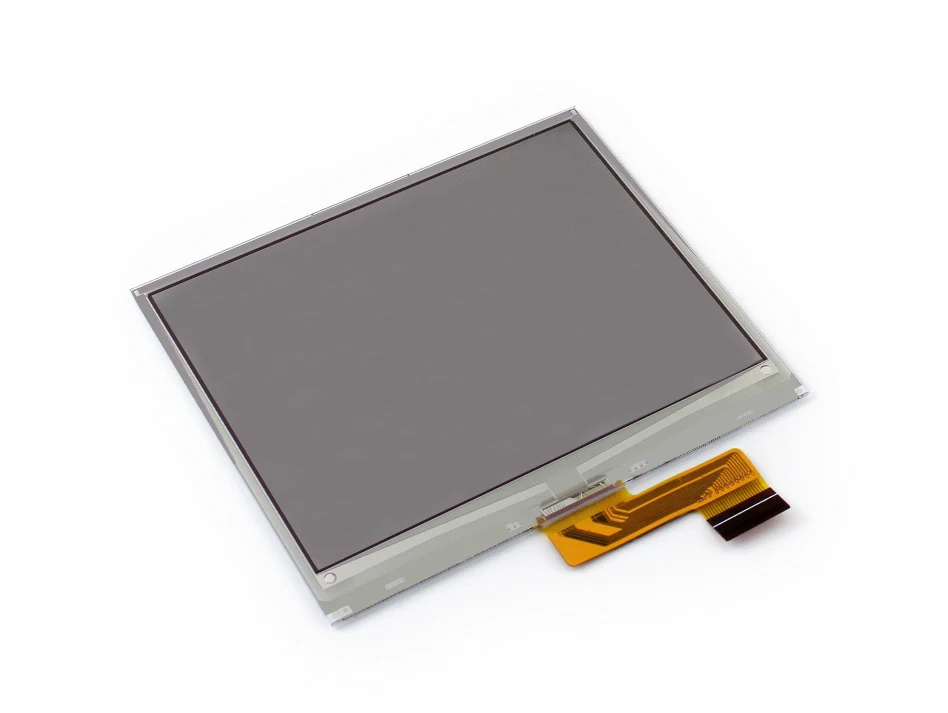

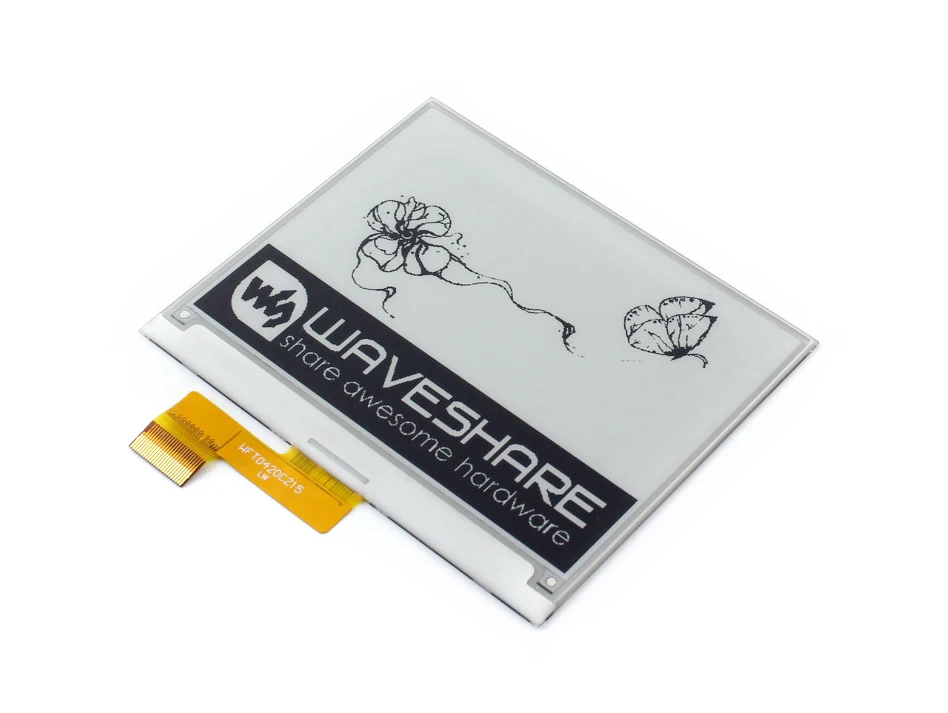

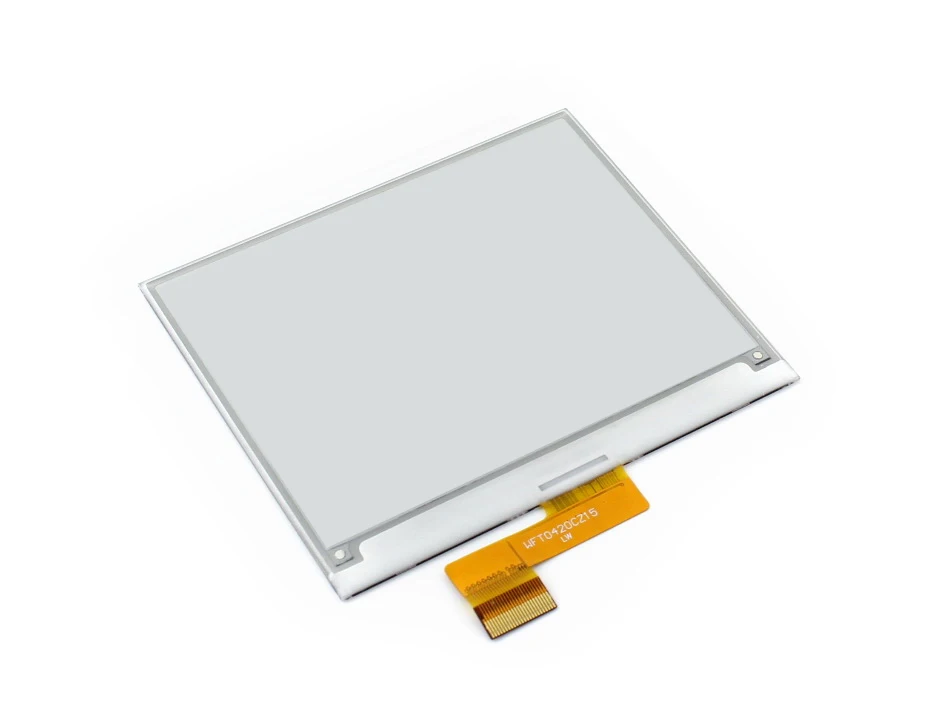

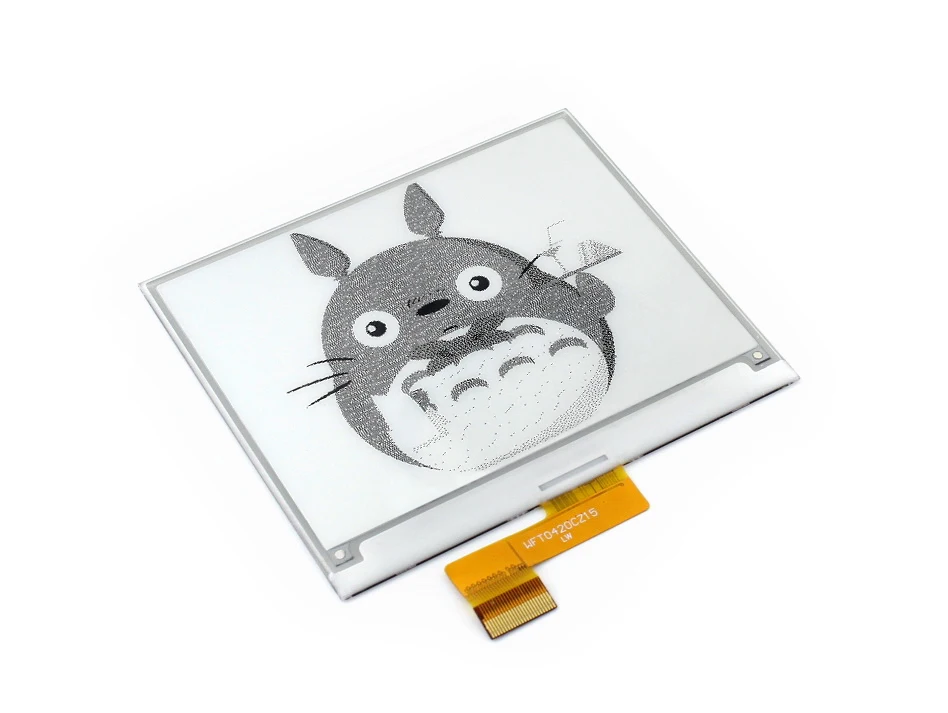

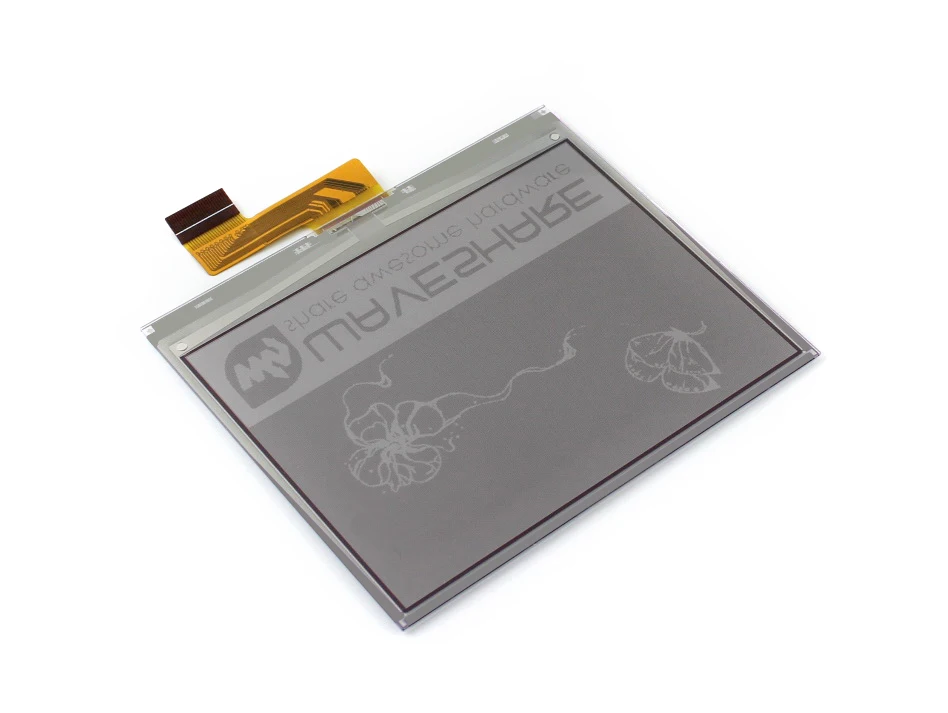

Waveshare 4.2Inch E-Paper E-Ink EPD Display Module 400*300 Resolution SPI Interface
Overview
This is an E-Ink raw display, 4.2inch, 400x300 resolution, with embedded controller, communicating via SPI interface.
Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
Features
* No backlight, keeps displaying last content for a long time even when power down
* Ultra low power consumption, basically power is only required for refreshing
Specifications
* Operating voltage: 3.3V
* Interface: 3-wire SPI, 4-wire SPI
* Outline dimension: 90.1mm × 77.0mm × 1.18mm
* Display size: 84.8mm × 63.6mm
* Dot pitch: 0.212 × 0.212
* Resolution: 400 × 300
* Display color: black, white
* Grey scale: 4
* Full refresh time: 4s
* Refresh power: 26.4mW(typ.)
* Standby power: <0.017mW
* Viewing angle: >170°
PACKAGE CONTENT
Weight: 0.017 kg
4.2inch e-Paper x1
This is an E-Ink raw display, 4.2inch, 400x300 resolution, with embedded controller, communicating via SPI interface.
Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
Features
* No backlight, keeps displaying last content for a long time even when power down
* Ultra low power consumption, basically power is only required for refreshing
Specifications
* Operating voltage: 3.3V
* Interface: 3-wire SPI, 4-wire SPI
* Outline dimension: 90.1mm × 77.0mm × 1.18mm
* Display size: 84.8mm × 63.6mm
* Dot pitch: 0.212 × 0.212
* Resolution: 400 × 300
* Display color: black, white
* Grey scale: 4
* Full refresh time: 4s
* Refresh power: 26.4mW(typ.)
* Standby power: <0.017mW
* Viewing angle: >170°
PACKAGE CONTENT
Weight: 0.017 kg
4.2inch e-Paper x1
