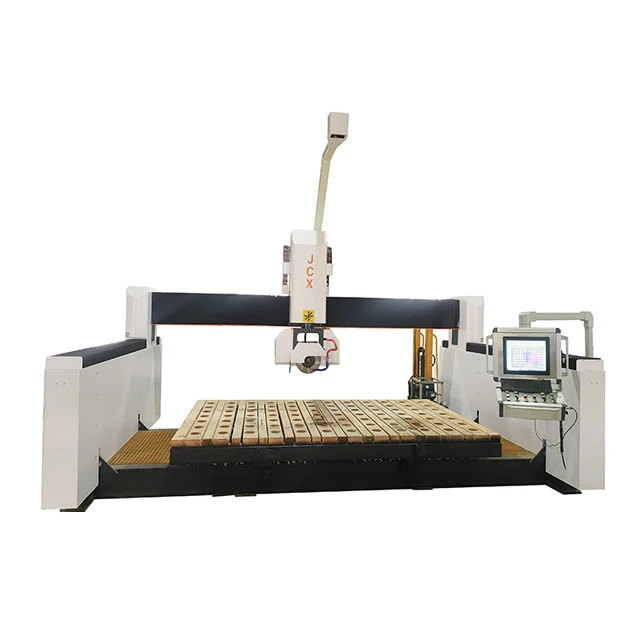

Jcxstone 5 Axis CNC Router Stone waterjet stone machinery bridge saw stone cutting machine
- Category: >>>
- Supplier: Beijing,Yandiao,Cnc,Machine,Co.,Ltd.
Share on:
Product Overview
Description
X-axis travel | Width 3200mm |
Y- axis travel | Length 2000mm |
Blade diameter | 600mm |
Bed frame | Seamless welding ,aging treatment, five faces milling machine processing |
Surface treatment | High temperature spray to prevent paint from falling off |
Cutting thickness | within 50mm |
Transmission mode | High wear resistant widened square rail + X,Y axis gear rack , Z axis ball screw |
Transmission mode | High wear resistant widened square rail + imported high precision ball screw |
Driving mode | High precision servo control |
Cutting motor | Saw + tools , waterproof and high temperature resistant |
Motor | water comes out from the center of the motor |
Cutting speed | 1-2500mm/min （based on thickness of material） |
Cutting efficiency | 8 hours can cut 300 square meters of stone products with 400mm blade diameter |
Motor power | 18KW（also can be customized ） |
Control system | Upgrade the latest five axis system(poly3+cad) |
Programming mode | Modify data directly in operating system |
Platform rotation angle | 0-85 degrees |
Head rotation angel | 0-360 degrees |
Head tilt angel | Any angel within 0-90 degrees |
Engravable head length | 10-13cm |
Vacuum manipulation | With vacuum manipulation function |
Table | Hydraulic, thickened wooden table ，add universal wheel |
Oiling method | Automatic oiling and lubrication |
Tools box | One saw blade, wrench, wearing parts |
Dimensions | L 5250mm, W3230mm, H 2530mm |
Weight | 3500kg |
PS: All the working area and specifications can be customized according to your requests.
