HSR R series Original CNC Machine Linear Bearing and Linear Rail Motion Guide ways HSR15R/HSR20R/HSR25R/HSR30R/HSR35R/HSR45R
- Category: >>>
- Supplier: Tianjin Tengqi International Trade Co. Ltd.
Share on (1600754532142):
Product Overview
Description
Linear Guide Description
Linear Guide Description
The Linear Motion Guide is our main product, incorporating a part with a linear rolling motion into practical usage. It realizes the development of high-precision, high-rigidity, energy-saving, high-speed machines with long service lives.Use of a ball cage eliminates friction between balls, and achieves low noise, acceptable running sound, long-term maintenance-free operation, and superbly high speed response.
Linear Guide Features
1. Heavy load, high rigidity
2. Practically a global standard size
3. Superb capability of absorbing mounting error
4. Stainless steel type also available as standard
2. Practically a global standard size
3. Superb capability of absorbing mounting error
4. Stainless steel type also available as standard
5. Ideal Four Raceway, Circular-Arc Groove, Two-Point Contact Structure
6. Superb error-absorbing capability with the DF design
7. Accuracy Averaging Effect by Absorbing Mounting Surface Error
8. Large Permissible Load and High Rigidity
9. Low Friction Coefficient
6. Superb error-absorbing capability with the DF design
7. Accuracy Averaging Effect by Absorbing Mounting Surface Error
8. Large Permissible Load and High Rigidity
9. Low Friction Coefficient
Linear Guide Major Applications
1.Machining center
2.NC lathe
3.XYZ axes of heavy cutting machine tools
4.Grinding head feeding axis of grinding machines
5.Components requiring a heavy moment and high accuracy
5.Components requiring a heavy moment and high accuracy
6.NC milling machine
7.Horizontal milling machine
8.Gantry five axis milling machine
9.Z axis of electric discharge machines
10.Wire-cut electric discharge machine
11.Car elevator
12.Food-related machine
13.Testing machine
14.Vehicle doors
15.Printed circuit board drilling machine
16.ATC
17.Construction equipment
18.Shield machine
Linear Guide Data

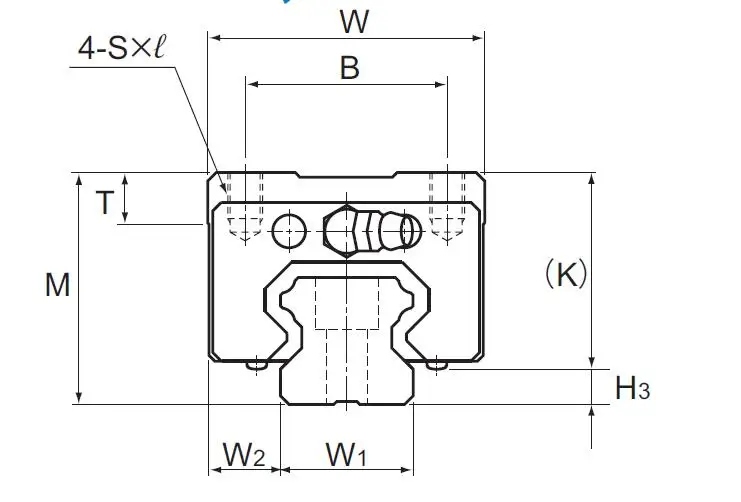

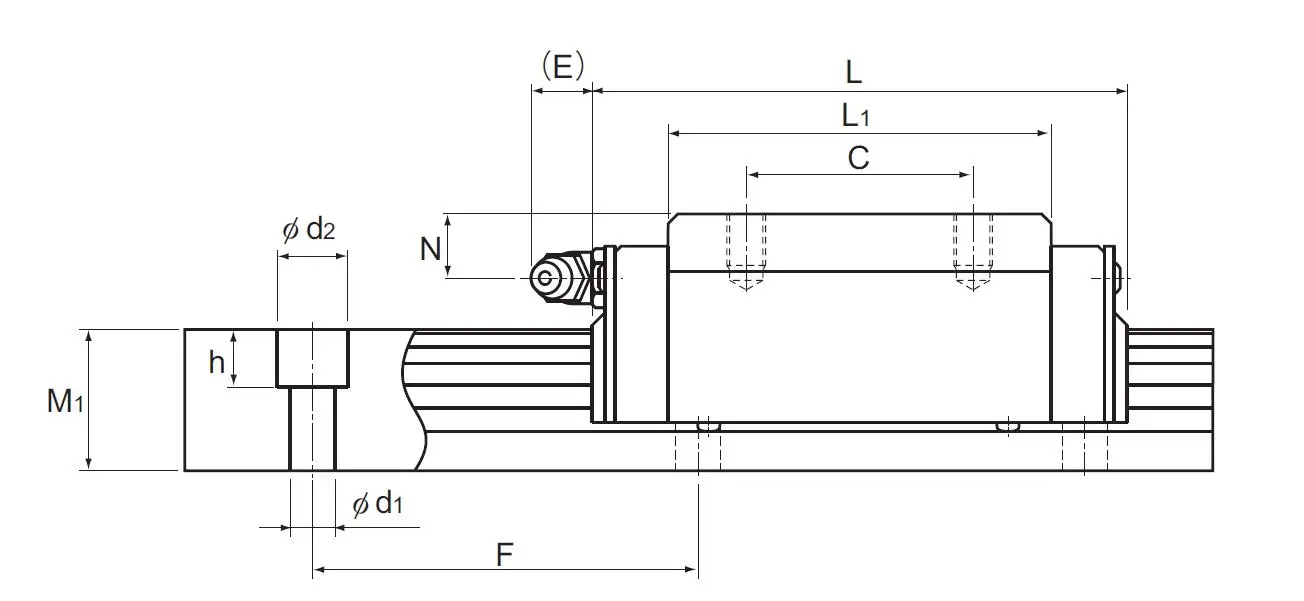

Model code | Height | Width | Length | B | C | Rail Width | Pitch |
HSR15R | 28 | 34 | 56.6 | 26 | 26 | 15 | 60 |
HSR20R | 30 | 44 | 74 | 32 | 36 | 20 | 60 |
HSR25R | 36 | 48 | 83.1 | 35 | 35 | 23 | 60 |
HSR30R | 45 | 60 | 98 | 40 | 40 | 28 | 80 |
HSR35R | 55 | 70 | 109.4 | 50 | 50 | 34 | 80 |
HSR45R | 70 | 86 | 139 | 60 | 60 | 45 | 105 |
HSR55R | 80 | 100 | 163 | 75 | 75 | 53 | 120 |
HSR65R | 90 | 126 | 186 | 76 | 70 | 63 | 150 |
HSR85R | 110 | 156 | 245.6 | 100 | 80 | 85 | 180 |
HSR20LR | 30 | 44 | 90 | 32 | 50 | 20 | 60 |
HSR25LR | 40 | 48 | 102.2 | 35 | 50 | 23 | 60 |
HSR30LR | 45 | 60 | 120.6 | 40 | 60 | 28 | 80 |
HSR35LR | 55 | 70 | 134.8 | 50 | 72 | 34 | 80 |
HSR45LR | 70 | 86 | 170.8 | 60 | 80 | 45 | 105 |
HSR55LR | 80 | 100 | 201.1 | 75 | 95 | 53 | 120 |
HSR65LR | 90 | 126 | 245.5 | 76 | 120 | 63 | 150 |
HSR85LR | 110 | 156 | 303 | 100 | 140 | 85 | 180 |
