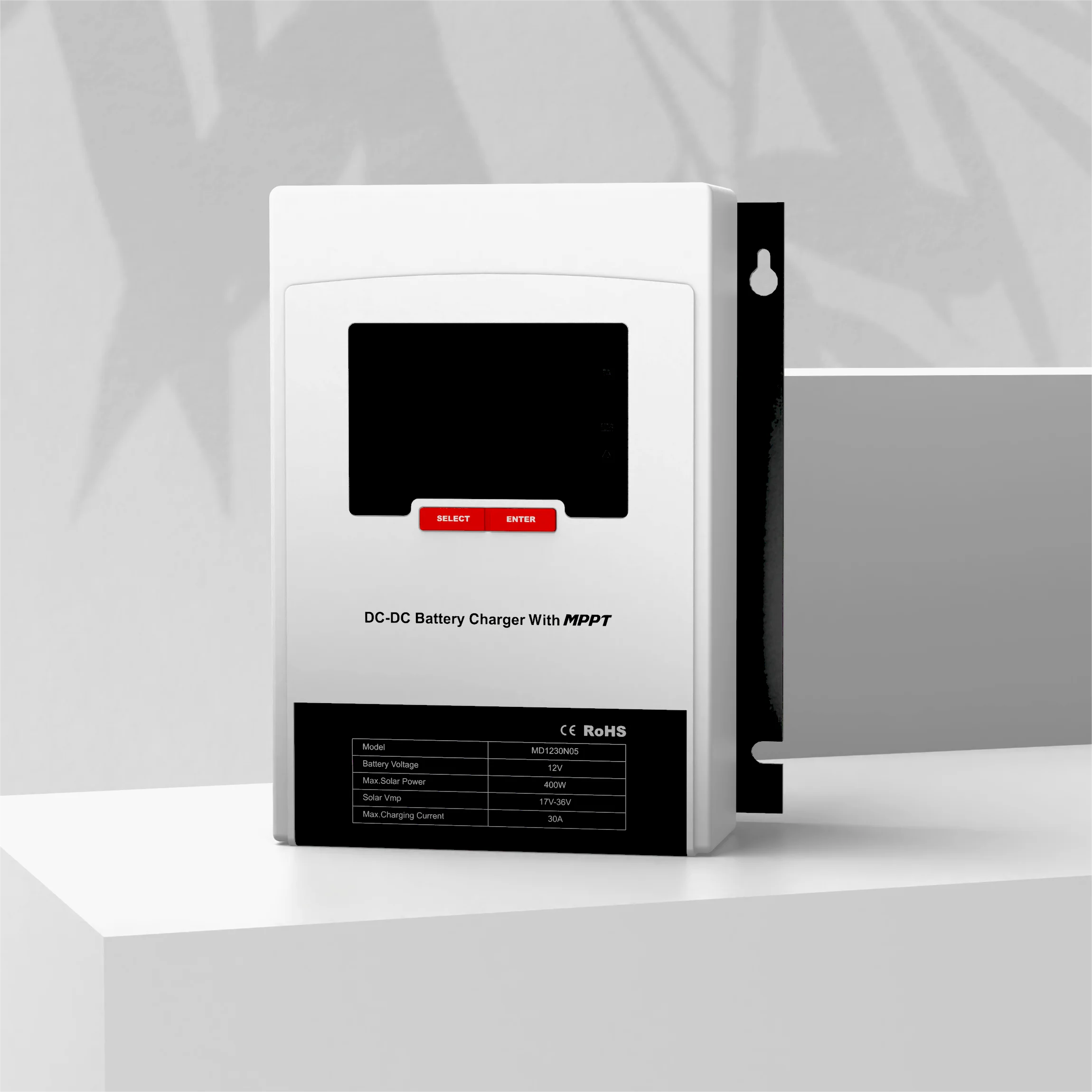

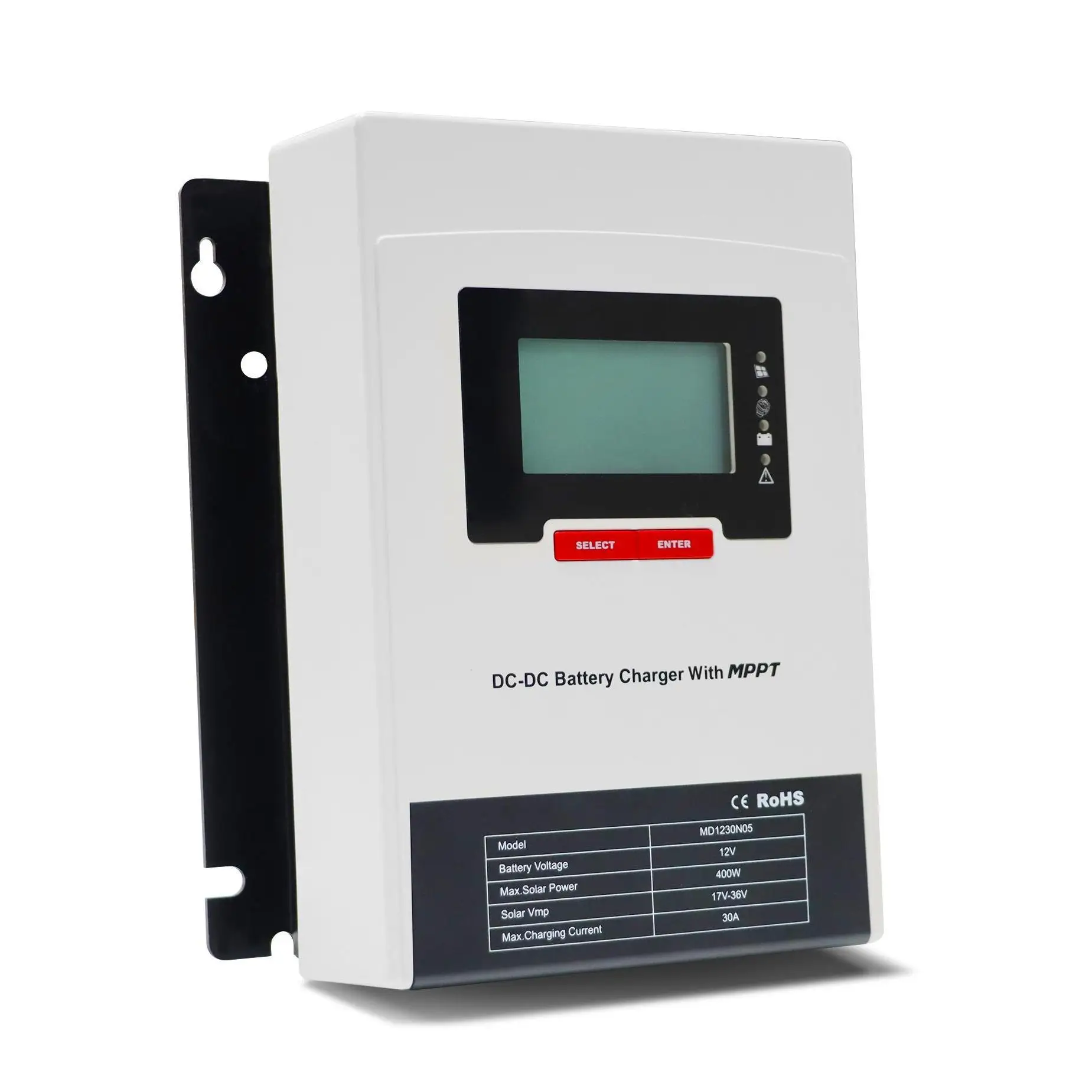

SRNE Wholesale Price 12V 24V Auto adapt Backlight LCD 180V 48V Battery Charger 60 Amp MPPT 60A Solar Charge Controller
- Category: >>>
- Supplier: Srne Solar Co. Ltd.
Share on (1600754621225):
Product Overview
Description

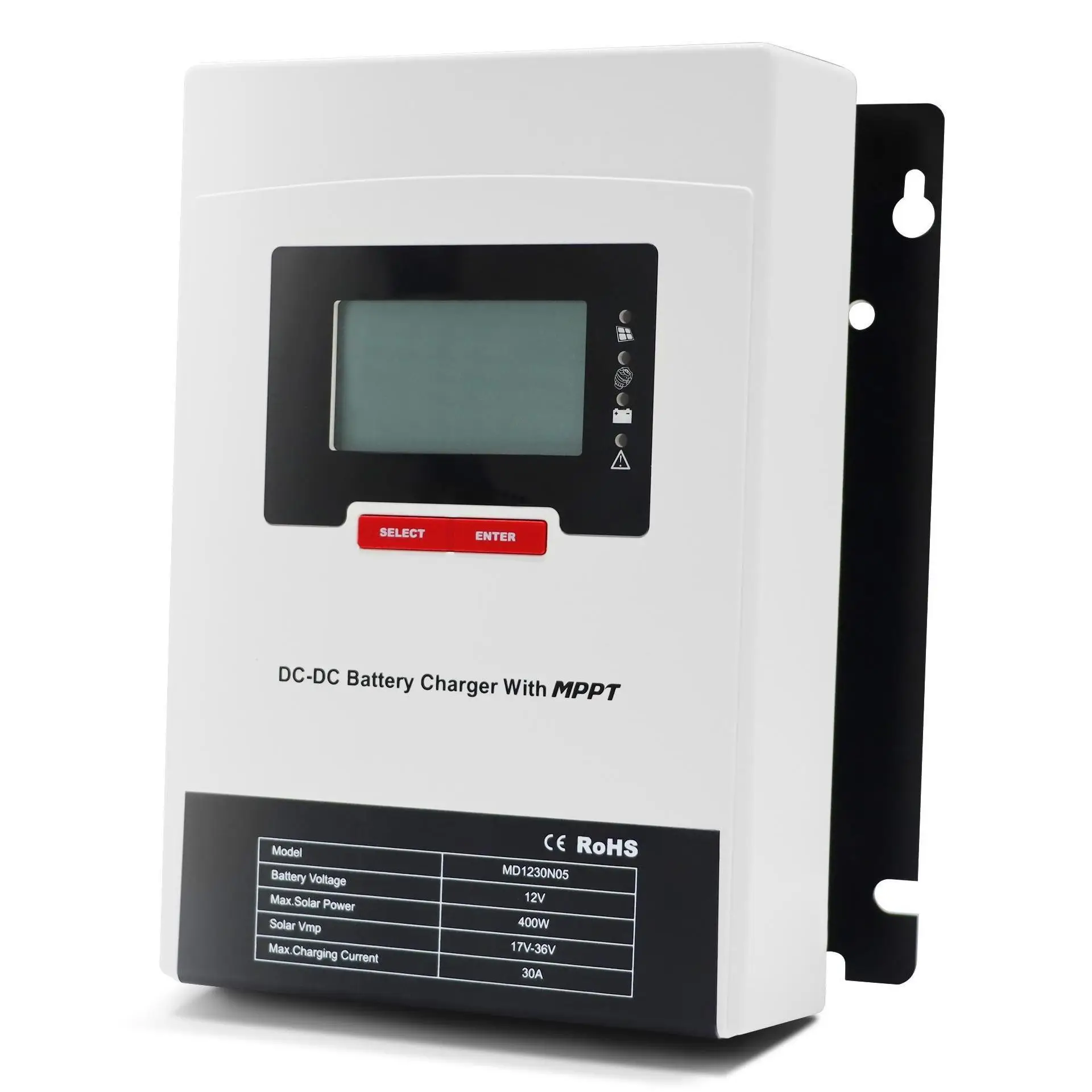

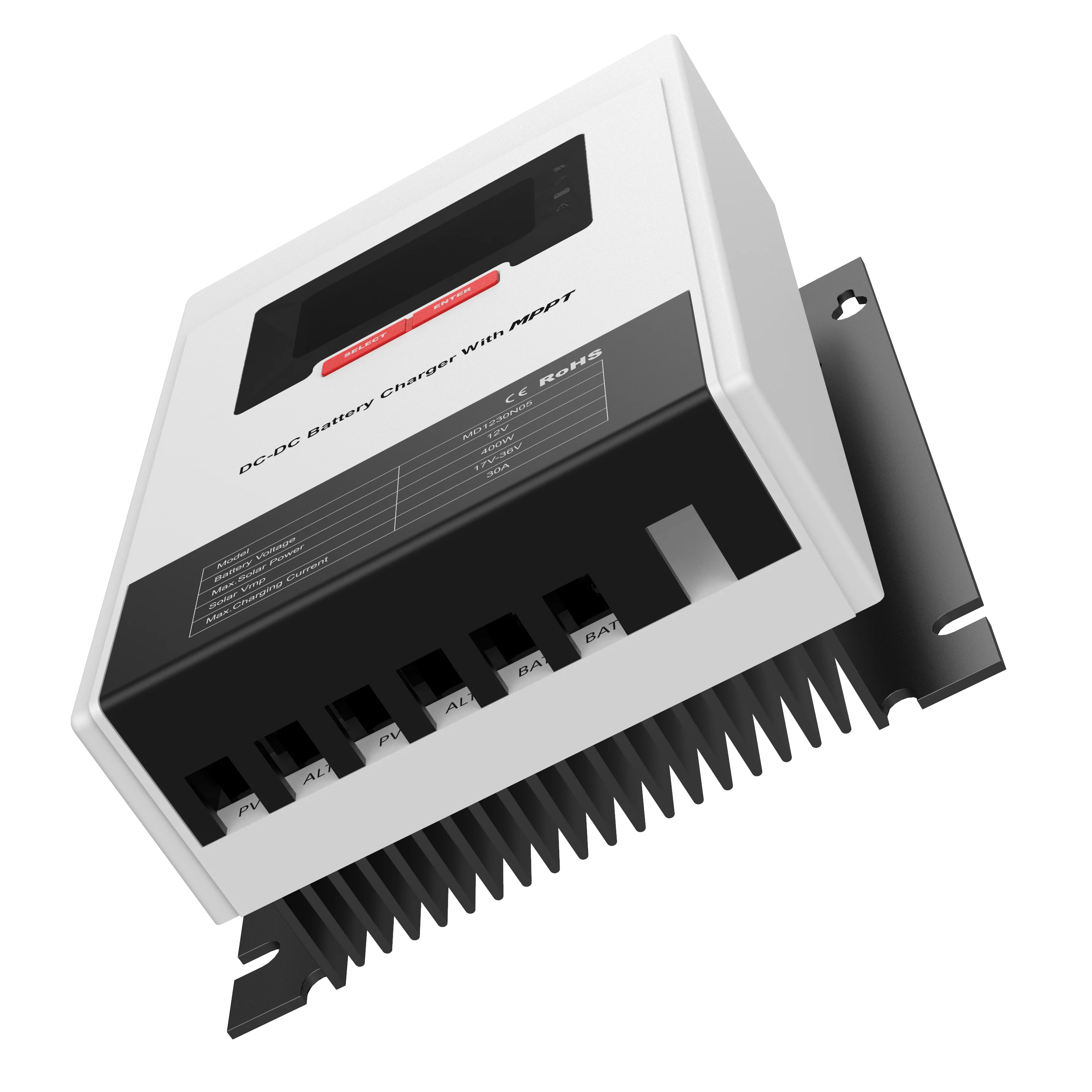

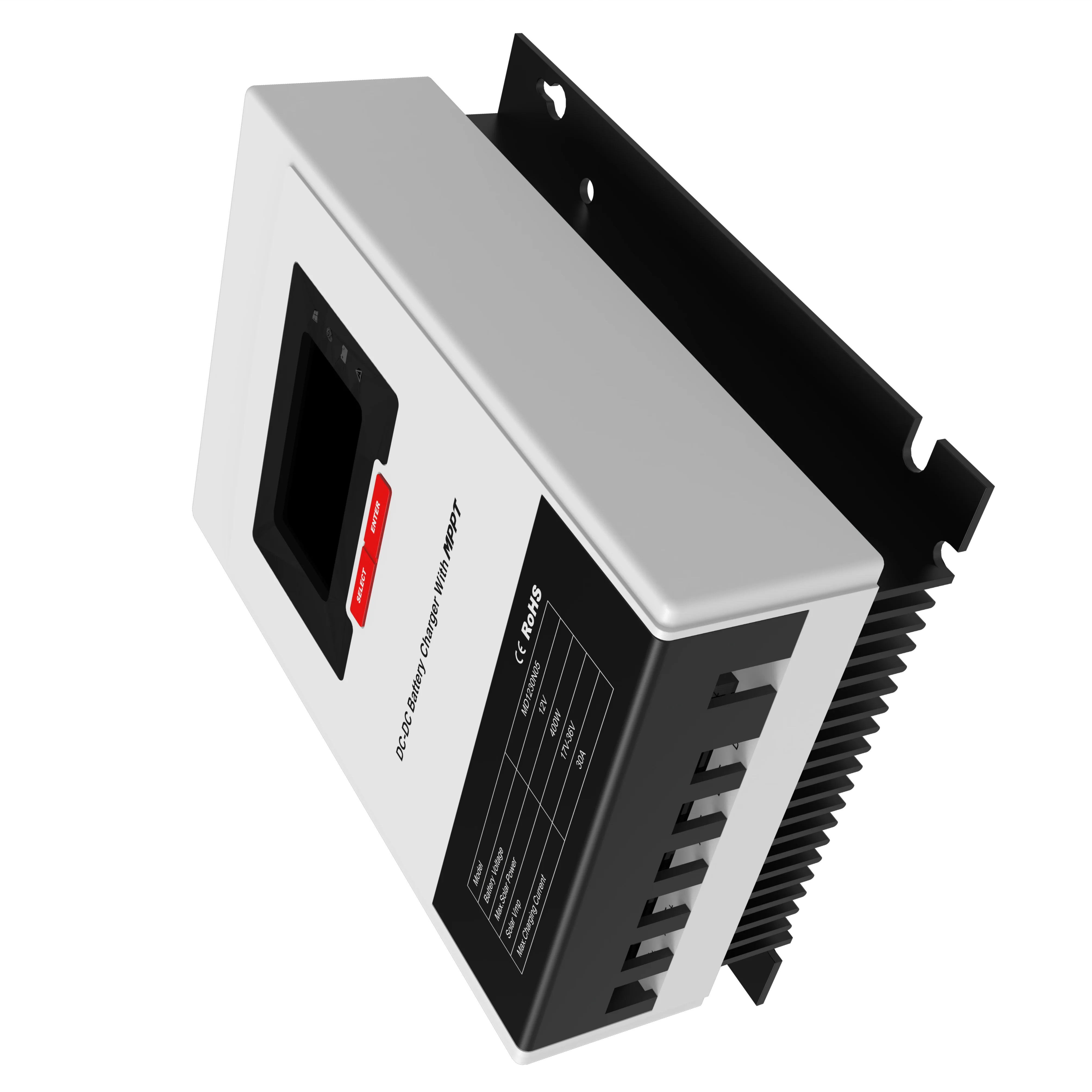

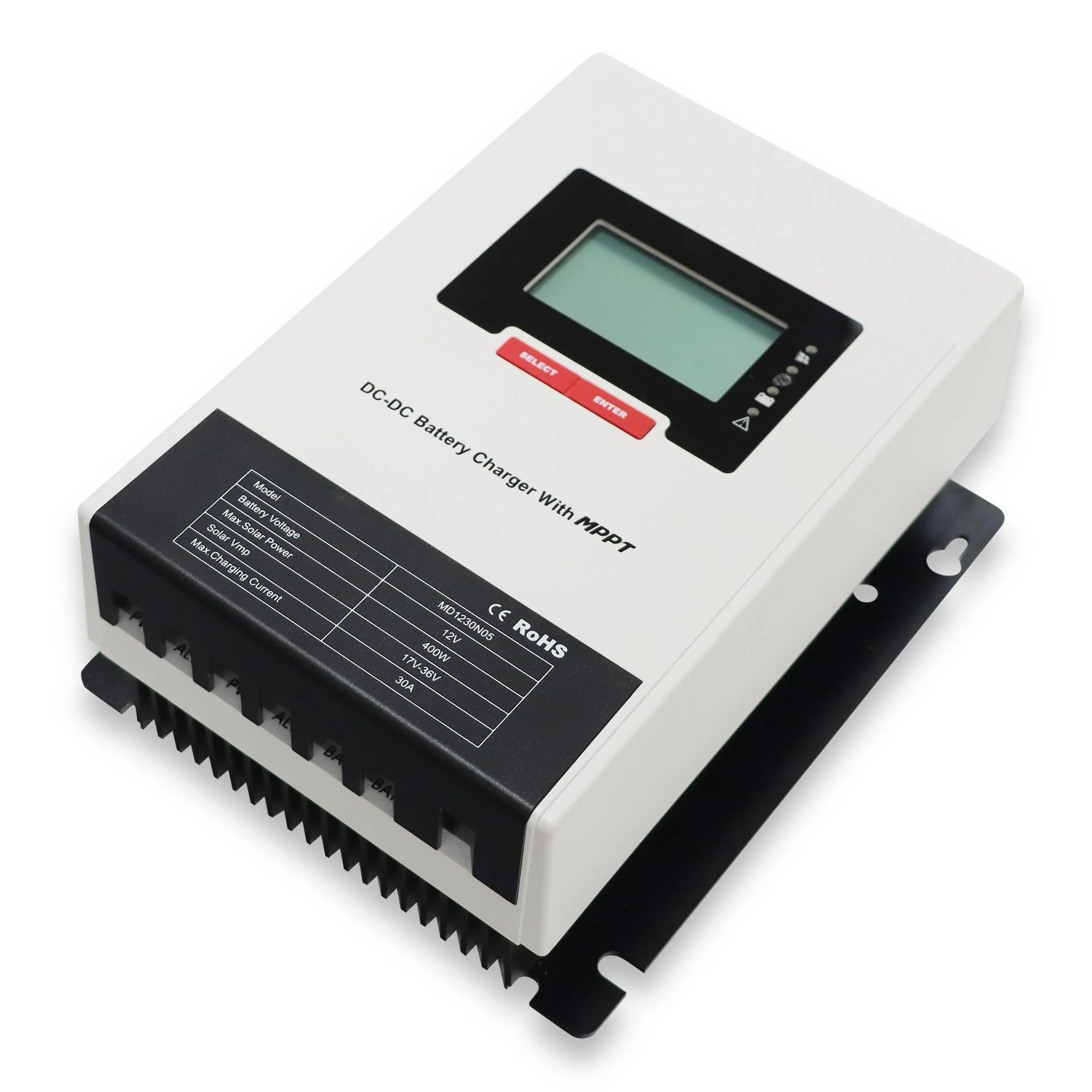

SRNE DC DC MPPT Solar Charge Controller 30a 50a for 12V battery MD1250N05
Product Description
• PowerCatcher maximum power point tracking technology allows the controller to track the maximum power point of solar panels even in a complex environment. Compared with the traditional MPPT tracking technology, it boasts faster response speed and higher tracking efficiency.
• A built-in maximum power point tracking (MPPT) algorithm can significantly increase energy utilization efficiency of the photovoltaic system, which is about 15% to 20% higher than traditional PWM charging.
• It provides an active charging voltage regulation feature. At battery open circuit or lithium battery BMS overcharge protection, the controller battery terminal will output the rated charging voltage value.
• MPPT tracking efficiency is up to 99.9%.
• Due to an advanced digital power technology, the circuit energy conversion efficiency is as high as 98%.
• Available in multiple battery types and support charging procedures of various types of batteries such as lithium battery, colloidal battery, sealed battery, vented battery, lithium battery, etc.
• A current-limited charging mode is available. When the power of solar panel is too large and the charging current is higher than the rated valve, the controller automatically reduces the charging power
so that the solar panel can operate at the rated charging current.
• Support automatic identification of lead-acid battery voltage.
• External LCD screen or BT module can be connected for viewing of equipment operating data and status, and modification of controller parameters is supported.
• Support standard Modbus protocol to meet communication needs in different occasions.
• Built-in over-temperature protection mechanism ensures that when temperature exceeds the set value of the device, the charging current decreases linearly with the temperature, thereby reducing the temperature rise of controller and avoiding high temperature damage.
• Temperature compensation and automatic adjustment of charge and discharge parameters help to improve battery life.
• Solar panel short circuit protection, battery open circuit protection and TVS lightening protection etc.
• A built-in maximum power point tracking (MPPT) algorithm can significantly increase energy utilization efficiency of the photovoltaic system, which is about 15% to 20% higher than traditional PWM charging.
• It provides an active charging voltage regulation feature. At battery open circuit or lithium battery BMS overcharge protection, the controller battery terminal will output the rated charging voltage value.
• MPPT tracking efficiency is up to 99.9%.
• Due to an advanced digital power technology, the circuit energy conversion efficiency is as high as 98%.
• Available in multiple battery types and support charging procedures of various types of batteries such as lithium battery, colloidal battery, sealed battery, vented battery, lithium battery, etc.
• A current-limited charging mode is available. When the power of solar panel is too large and the charging current is higher than the rated valve, the controller automatically reduces the charging power
so that the solar panel can operate at the rated charging current.
• Support automatic identification of lead-acid battery voltage.
• External LCD screen or BT module can be connected for viewing of equipment operating data and status, and modification of controller parameters is supported.
• Support standard Modbus protocol to meet communication needs in different occasions.
• Built-in over-temperature protection mechanism ensures that when temperature exceeds the set value of the device, the charging current decreases linearly with the temperature, thereby reducing the temperature rise of controller and avoiding high temperature damage.
• Temperature compensation and automatic adjustment of charge and discharge parameters help to improve battery life.
• Solar panel short circuit protection, battery open circuit protection and TVS lightening protection etc.
Data sheet
Parameter | Value | |
Model | MD1230N05 | MD1250N05 |
Rated Battery voltage | 12V | |
Battery voltage | 9-17Vdc | |
Max. solar input voltage | 55Vdc | |
Max. solar input power | 400W | 700W |
Max. mppt charging current | 30A | 50A |
Max.Alternator Charging Current | 35A | 60A |
MPPT Charging Mode | Buck | |
Alternator Charging Mode |
Buck,Boost,Buck-Boost | |
Embedded Interfaces |
TTL,Remote Switch | |
External Modules | BT (with APP) | |
Protection degree | IP32 | |
Weight | 2.08 Kg | 2.14Kg |
CERTIFICATION | IEC62109,CE,ROHS | |
Product dimensions | 221*175.8*82.4mm | |

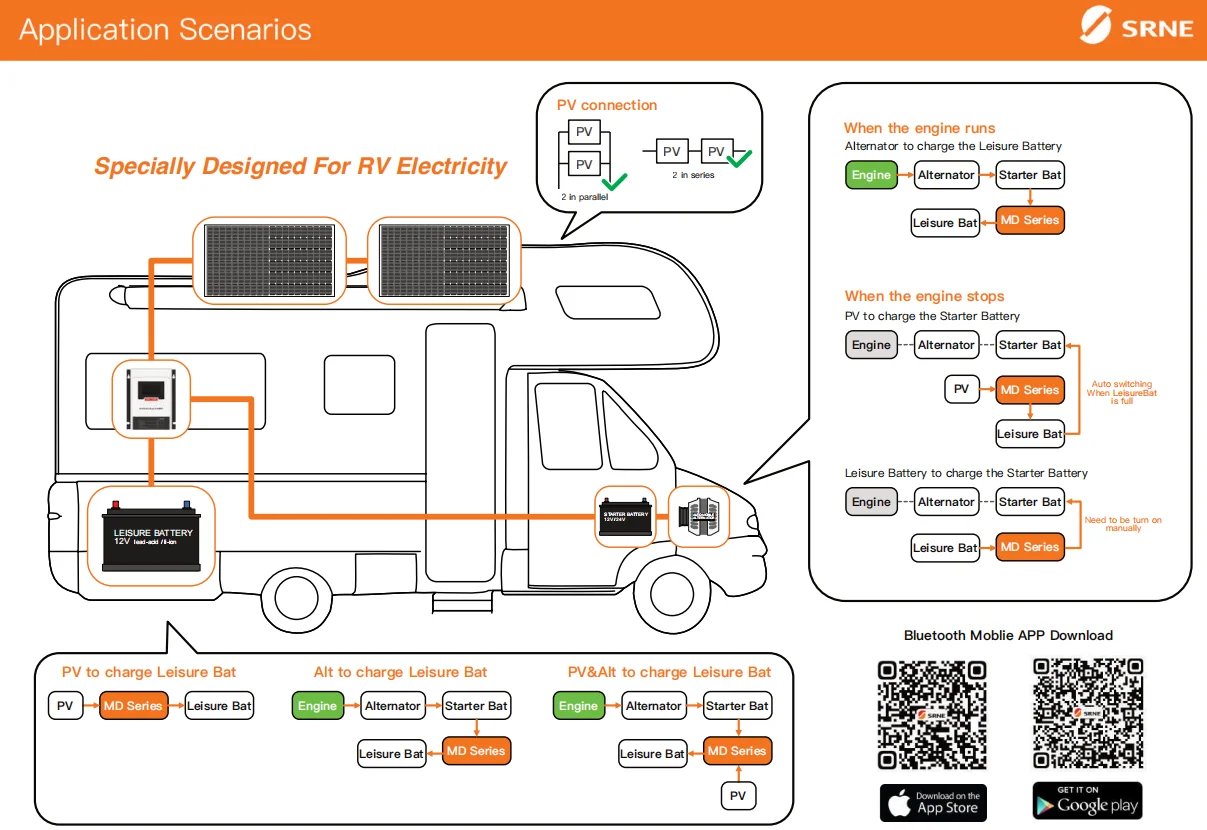

Applications
