Dynamic DWS [D-(Dimension), W-(Weight), S-(Scanning)] is a new automatic data collection device. Dynamic DWS provides volume measurement, weighing and code reading data in one, and is an efficient device for scanning and weighing volume measurement of express mail barcode and collecting and archiving physical images when receiving and dispatching mail from outlets.
Product features:
1. High time efficiency, high cost performance, scanning speed up to 5000 pieces/hour, operation efficiency greatly improved.
2. High precision, strong anti-interference ability, high barcode recognition rate, fast transmission speed, and strong system stability.
3. Self-developed software, safe and reliable, easy maintenance, can be docked with major express system.
4. Simple operation, easy to move, occupy small space, sturdy and durable.
5. Can be docked to the assembly line, only use on the pieces, do not need to pick up the pieces, reduce manual work labor intensity.
2. High precision, strong anti-interference ability, high barcode recognition rate, fast transmission speed, and strong system stability.
3. Self-developed software, safe and reliable, easy maintenance, can be docked with major express system.
4. Simple operation, easy to move, occupy small space, sturdy and durable.
5. Can be docked to the assembly line, only use on the pieces, do not need to pick up the pieces, reduce manual work labor intensity.
Product Paramenters
Items | Reference | |
Main functions | 1D/2D code scanning(six-sides scanning); weighting &volume measurement; | |
Package type | paper box; soft package; nylon bag; plastic bag; hard wooden box,.etc. | |
Scanning size | Mim. 50*50*20mm----Max. 800*800*800mm(L*W*H) | |
Rating power | ≤3.5KW | |
Working voltage | 220V/380V~50HZ | |
Temperature | 0~50℃ | |
Fix Capability | 2600--3600 Ps/hour | |
Code identify accuracy | 99.9% | |
Weighing range | 20g~100kg | |
Weighing accuracy | ±20g | |
Remarks | ||
Equipment size | 1660*1100*2600mm (L*W*H) | |
Application software | Senad DWS software | |
Support systerm | windows 7/10 or above; 32/64 bits | |
Software interface | HTTP; TCP; 485; | |
Product Details
__________
__________
__________

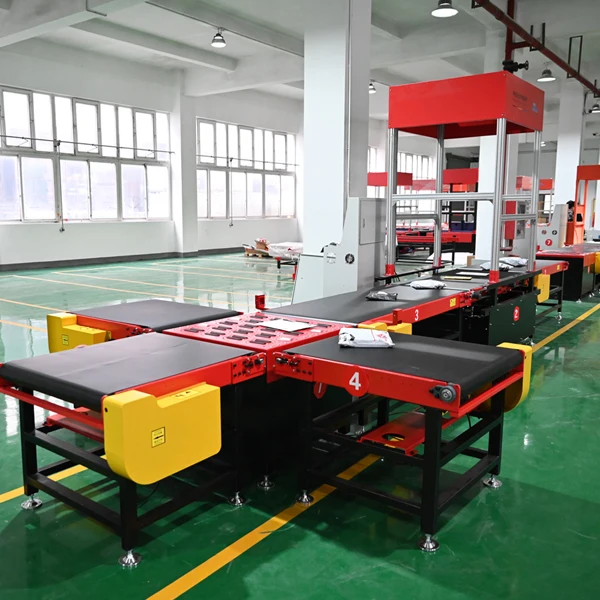

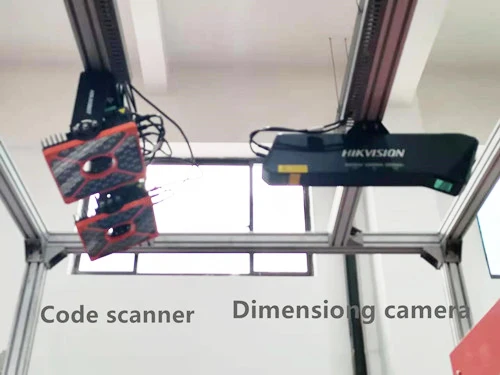

It can realize automatic weighing,high precision dynamiccode reading,volume measurement information integration,and can automatically load goods
__________

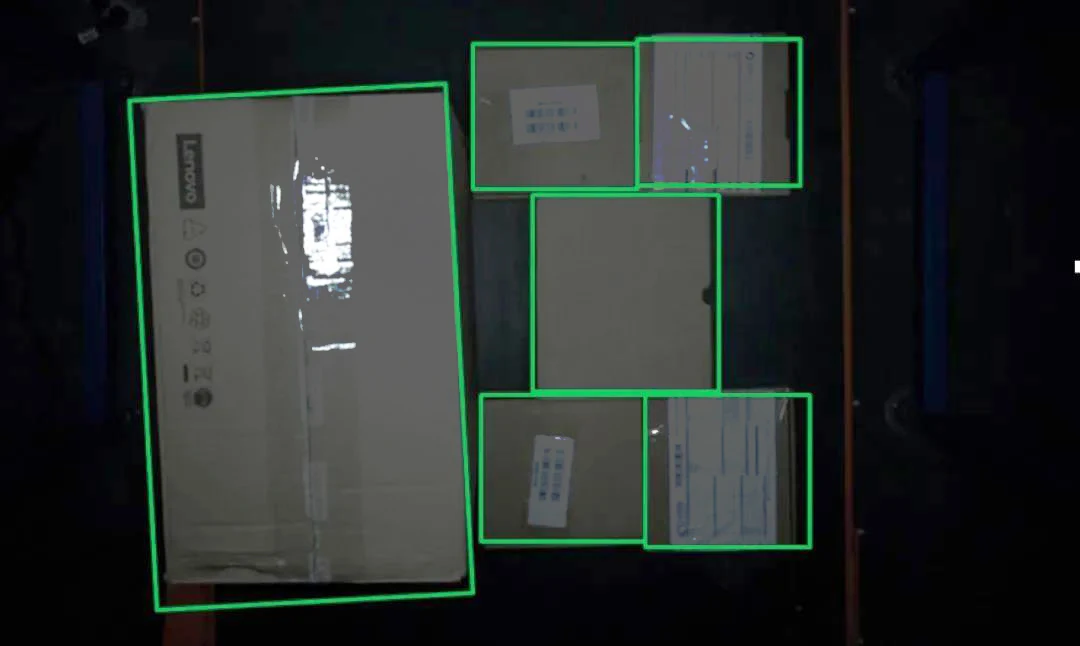

The operation interface displays the size, weight and bar code information, the language can be customized, docking with the customer system, and automatically outputting the form information
Application
Recommend Products
OUR Service
Our services
__________
1. Assemble and debug before delivery
2. Respond within 24 hours and proceed to deal with the problem.
3. 1 year free repair service (no-human damage only).
4. Overall warehousing solution provided
2. Respond within 24 hours and proceed to deal with the problem.
3. 1 year free repair service (no-human damage only).
4. Overall warehousing solution provided
Why Choose Us
◆ High-tech manufacturer with research and design capacity
◆ Concentrated on DWS equipments and sorting warehousing system overall solution
◆ Related software and system are with patents
◆ Stable and mature suppling system
◆ Young active sales and engineers for instant services(16-20hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Top quality sense, customers' requests come first
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, maintenane not affect production
◆ Concentrated on DWS equipments and sorting warehousing system overall solution
◆ Related software and system are with patents
◆ Stable and mature suppling system
◆ Young active sales and engineers for instant services(16-20hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Top quality sense, customers' requests come first
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, maintenane not affect production
About Us
welcome to visit us
Senad Robot(Shanghai)Co.,LTD.
Founded in 2012,sanade is a national high-tech enterprise,with machine vision technology as the core,through deep learning algorithm,image processing algorithm,pattern recognition algorithm,video analysis algorithm,arm/FPGA/DSP embedded software and hardware development .industrial visual positioning .visual tracking,visual detection,multi-sensor information fusion and other technical means,in the field of smart logistics,we have found a suitable application scenario of machine vision to realize “machine generation”reduce costs and increase efficiency for enterprises ,and empower the smart logistics industry.Continue R&；D and innovation in the fields of smart factory and smart storage,so that the logistics industry and manufacturing industry all over the world can enjoy the achievements of Chinese science and technology!
Our Factory
Development history
Our Certifications
Partners
Packaging & Delivery
FAQ
1. Are you a trade company or manufacturing company?
We are a manufacturing company.
2. What's your advantage?
We have strong capacity both in hardware designing and software development. We are capable of tailoring our products to meet different customers' requirements.
3. What is the service?
7 days 24 hours on line service, Remote video.
4. Warranty of the machine?
One year warranty except the consuming spare parts.
5. What is your payment terms
Normally TT, LC and Alibaba.
6. Where does your company located?
Both our company and factory are located in Shanghai.
We are a manufacturing company.
2. What's your advantage?
We have strong capacity both in hardware designing and software development. We are capable of tailoring our products to meet different customers' requirements.
3. What is the service?
7 days 24 hours on line service, Remote video.
4. Warranty of the machine?
One year warranty except the consuming spare parts.
5. What is your payment terms
Normally TT, LC and Alibaba.
6. Where does your company located?
Both our company and factory are located in Shanghai.
