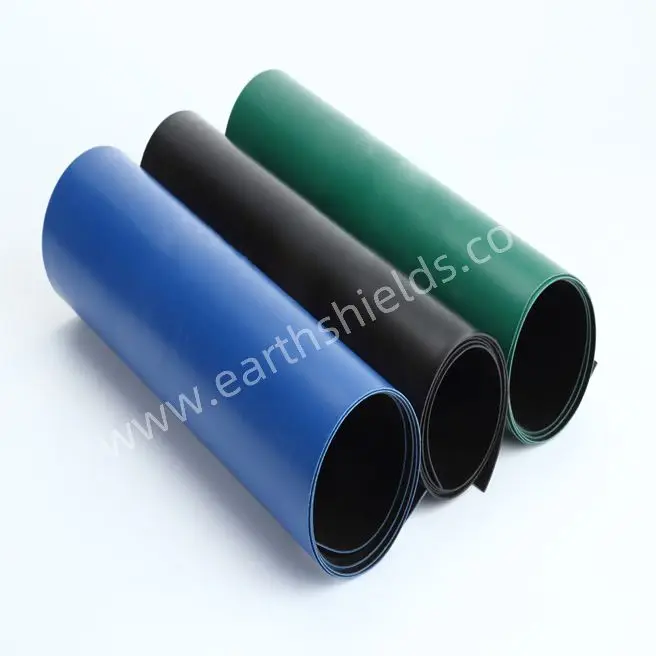

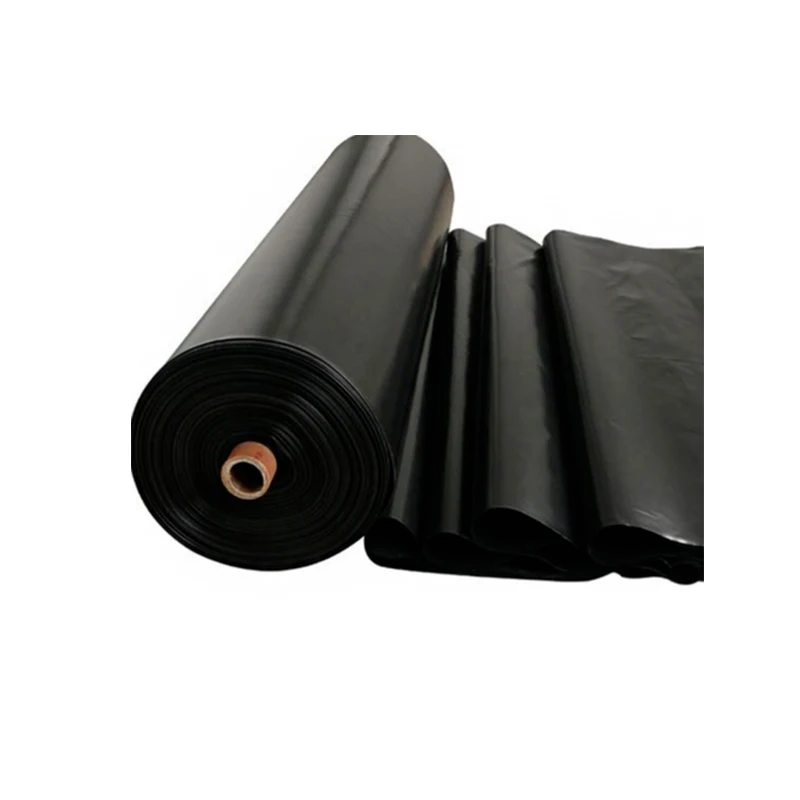

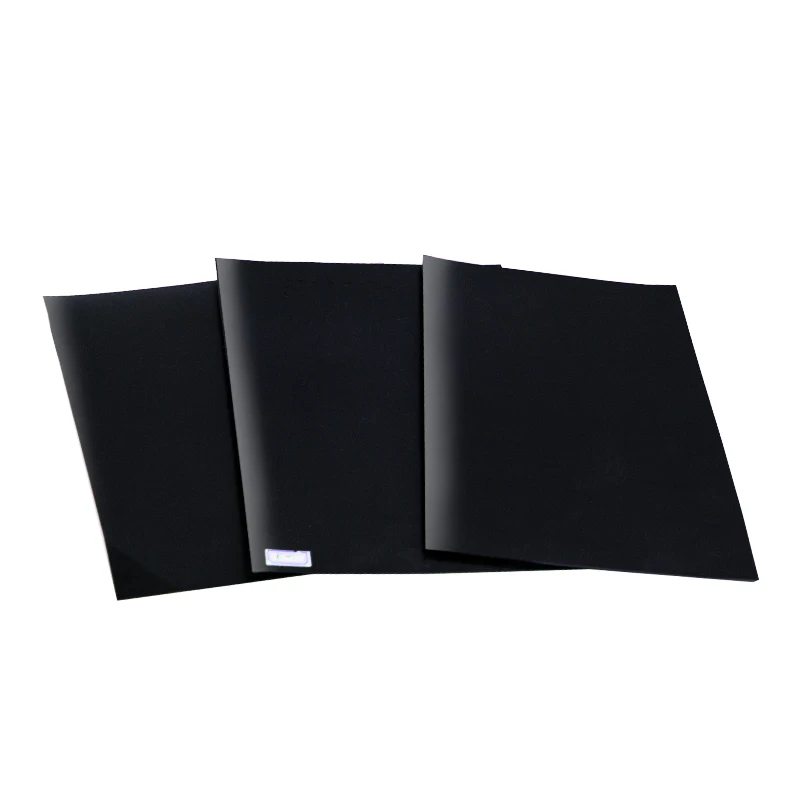

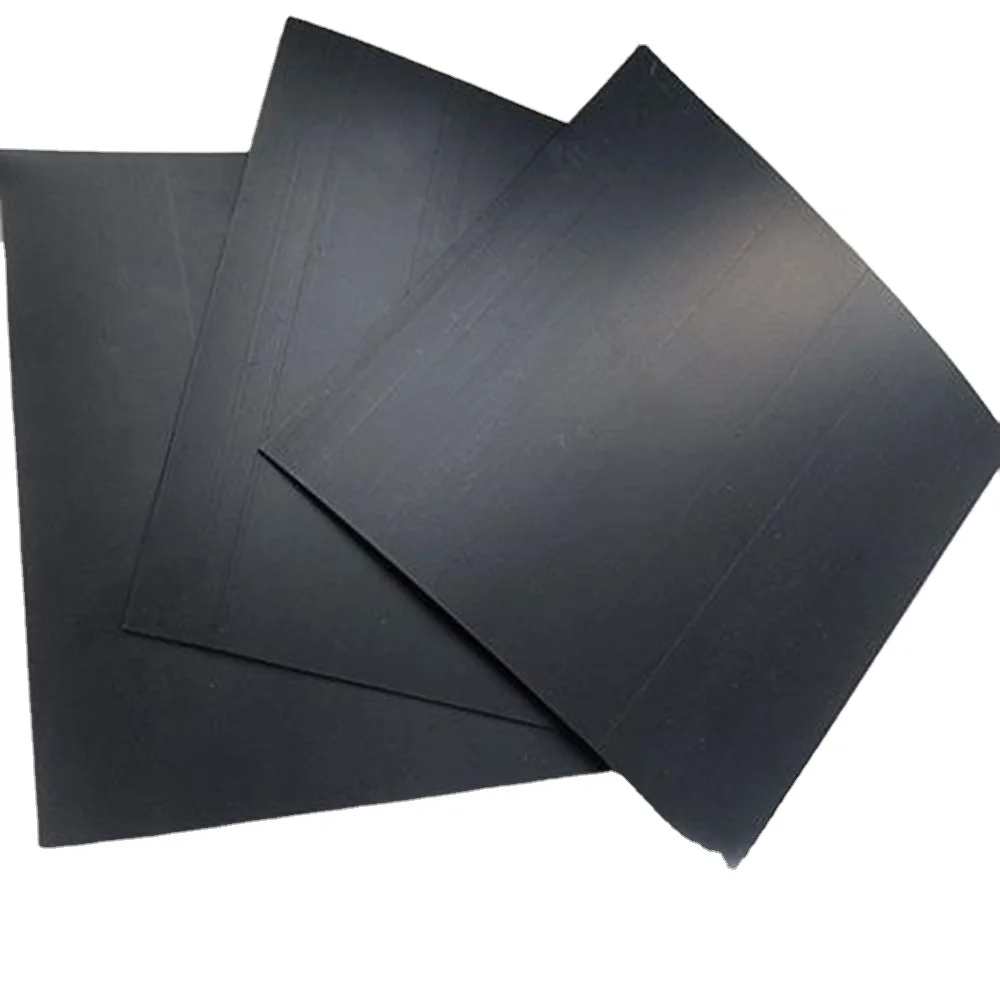

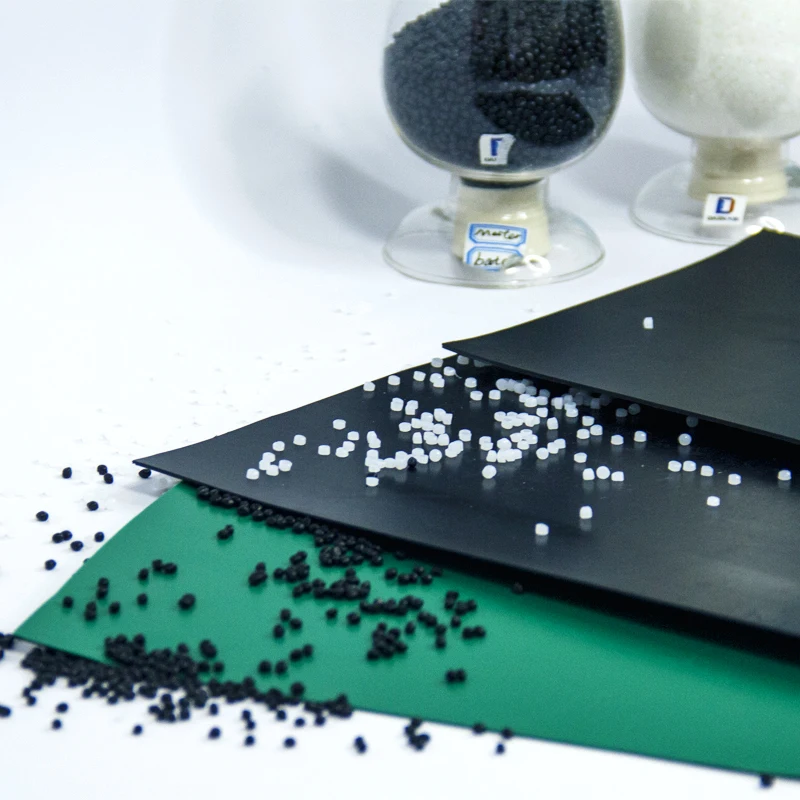

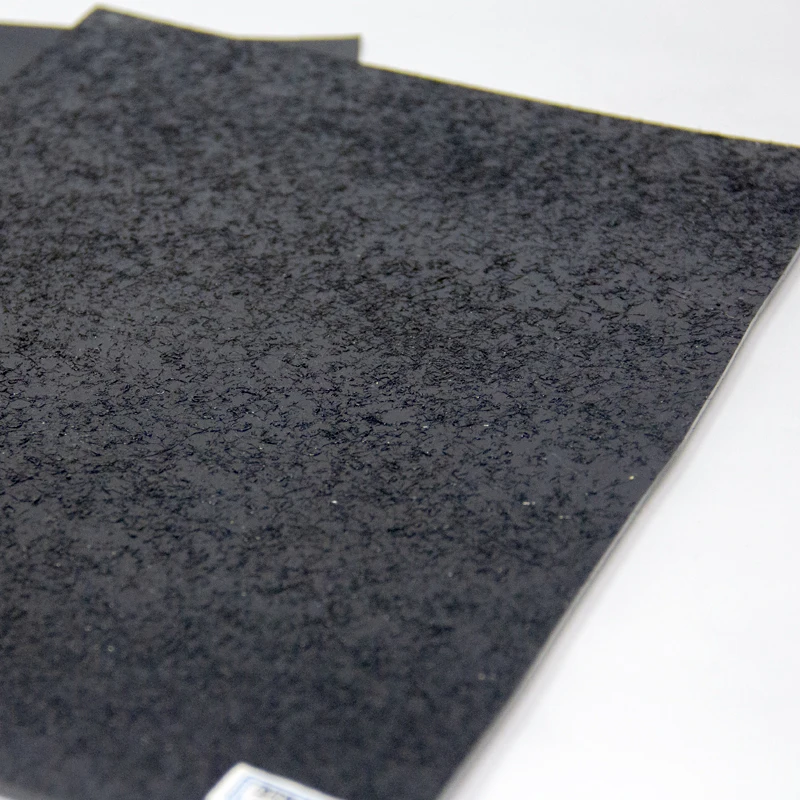

Black Smooth Waterproof Polyethylene Pond liner HDPE Geomembrane
- Category: Earthwork Products >>>
- Supplier: Shandong Dajin Geosynthetics Co. Ltd.
Share on (1600755181545):
Product Overview
Description
Product Description
Geomembrane
HDPE geomembrane, known as "high density polyethylene film", has excellent resistance to environmental stress cracking, low temperature, aging and corrosion resistance, as well as a wide temperature range (-70 to +80) and a long service life (100 years). Geomembrane is a continuous film-like sheet produced from virgin resin and is a waterproof barrier type material with polymer as the basic raw material. It contains polyethylene, carbon black .
Function
Its main mechanism is to use the impermeability of plastic film to isolate the leakage channel of the earth dam, and its large tensile strength and elongation rate to withstand the water pressure and adapt to the deformation of the dam body; while the non-woven fabric is also a polymer short fiber chemical material, through needle punching or hot bonding forming, has a high tensile strength and elongation, it combines with the plastic film, not only increases the tensile strength and puncture resistance of the plastic film, but also because of the The rough surface of nonwoven fabric increases the friction coefficient of the contact surface, which is conducive to the stability of composite geomembrane and protective layer. At the same time, they have good erosion resistance to bacteria and chemical action, and are not afraid of acid, alkali and salt erosion, and have long service life when used in the case of light avoidance.
Product Features
---Complete specification of width and thickness .
---Excellent environmental stress cracking resistance and excellent chemical corrosion resistance.
--- Excellent chemical corrosion resistance.
--- Excellent chemical corrosion resistance.
---Large temperature range and long service life.
---Used in landfills, tailings storage sites, channel impermeability, dam impermeability and subway projects, etc.
---Used in landfills, tailings storage sites, channel impermeability, dam impermeability and subway projects, etc.
Product details
Items | 0.3mm | 0.5mm | 0.75mm | 1.0mm | 1.25mm | 1.5mm | 2.0mm | 2.5mm | 3.0mm | ||||||||
Density, g/cm3 | ≥0.94 | ||||||||||||||||
Yield strength, N/mm | ≥4 | ≥7 | ≥10 | ≥13 | ≥16 | ≥20 | ≥26 | ≥33 | ≥40 | ||||||||
Break strength, N/mm | ≥6 | ≥10 | ≥15 | ≥20 | ≥25 | ≥30 | ≥40 | ≥50 | ≥60 | ||||||||
Yield elongation,% | ≥11 | ||||||||||||||||
Break elongation,% | ≥600 | ||||||||||||||||
Tear Resistance(min.ave.),N | ≥34 | ≥56 | ≥84 | ≥115 | ≥140 | ≥170 | ≥225 | ≥280 | ≥340 | ||||||||
Puncture resistance,N | ≥72 | ≥120 | ≥180 | ≥240 | ≥300 | ≥360 | ≥480 | ≥600 | ≥720 | ||||||||
Carbon black content(range),% | 2.0-3.0 | ||||||||||||||||
Carbon black dispersion | 1or2 | ||||||||||||||||
Standard Oxidation Induction Time(OIT),min | ≥60 | ||||||||||||||||
Impact Cold Crack at - 70°C | Pass | ||||||||||||||||
Water vapor permeability, g.cm/cm2 .s.Pa | ≤1.0×10-13 | ||||||||||||||||
Dimensional Stability,% | ±2 | ||||||||||||||||
Product Application
Water dam
River, lake and reservoir dams impermeability, reinforcement, aqueduct impermeability, solid breaking, etc.
Fish ponds
Artificial lakes, ponds, pond substrates for golf courses, slope protection, etc.
Canals
Lining of oil storage tanks, chemical reaction tanks and sedimentation tanks in chemical plants, refineries and gas stations.
Mining
Washing ponds, heap leaching ponds, ash heap plants, dissolution ponds, sedimentation ponds, the low-sedimentation impermeability, etc.
Round Ponds
Impermeability of reservoirs, drinking water ponds, water storage ponds, irrigation systems.

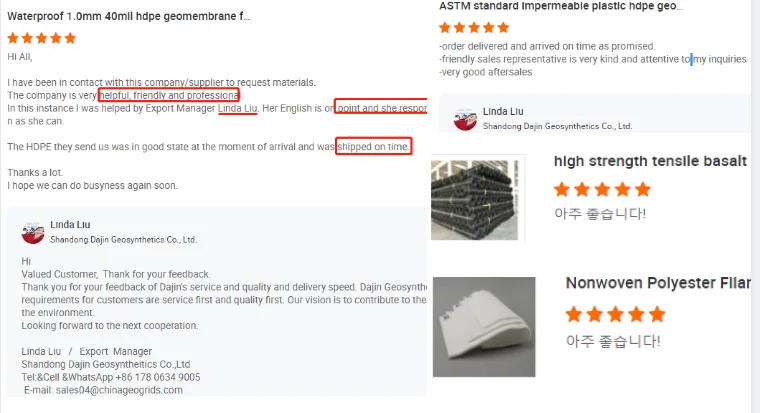

Customers' Feedback
Certification
Our Company

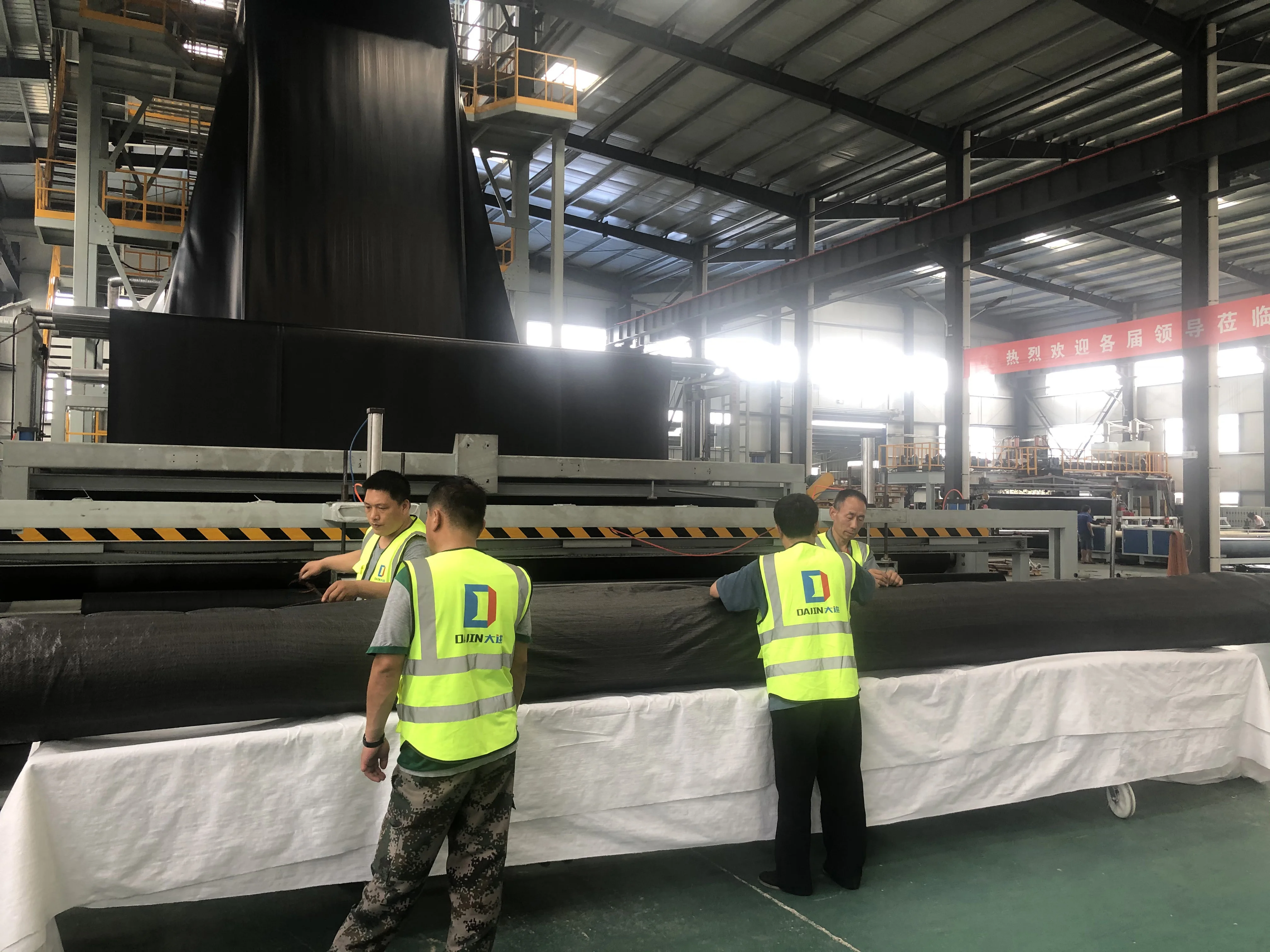

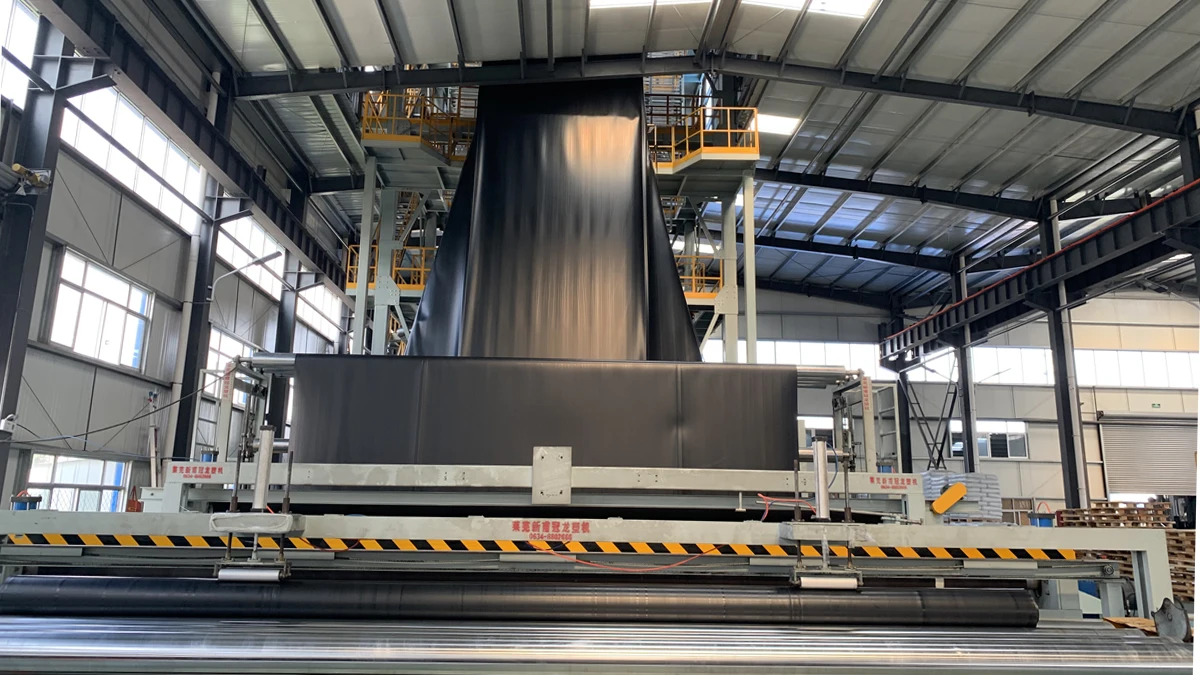

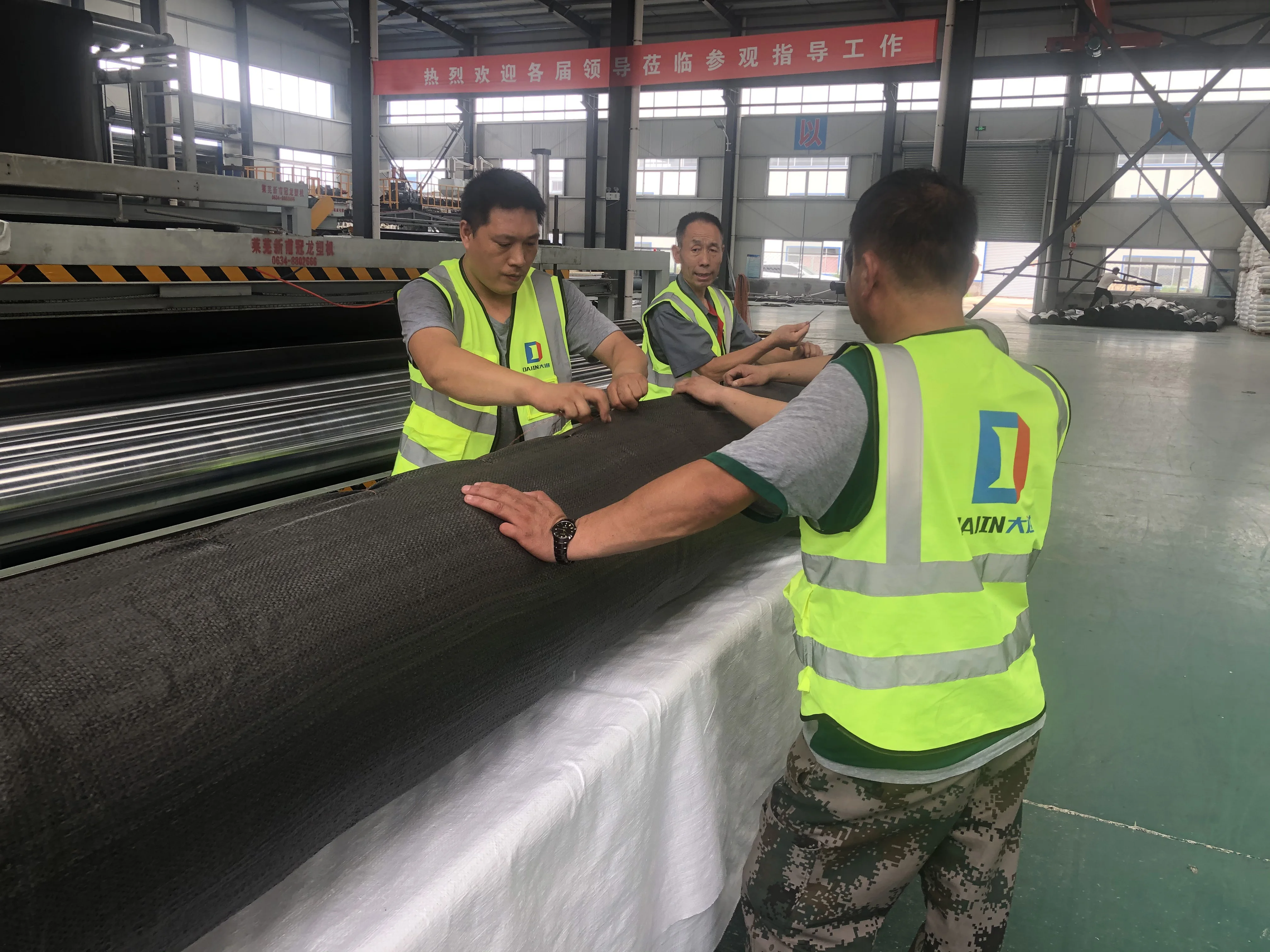

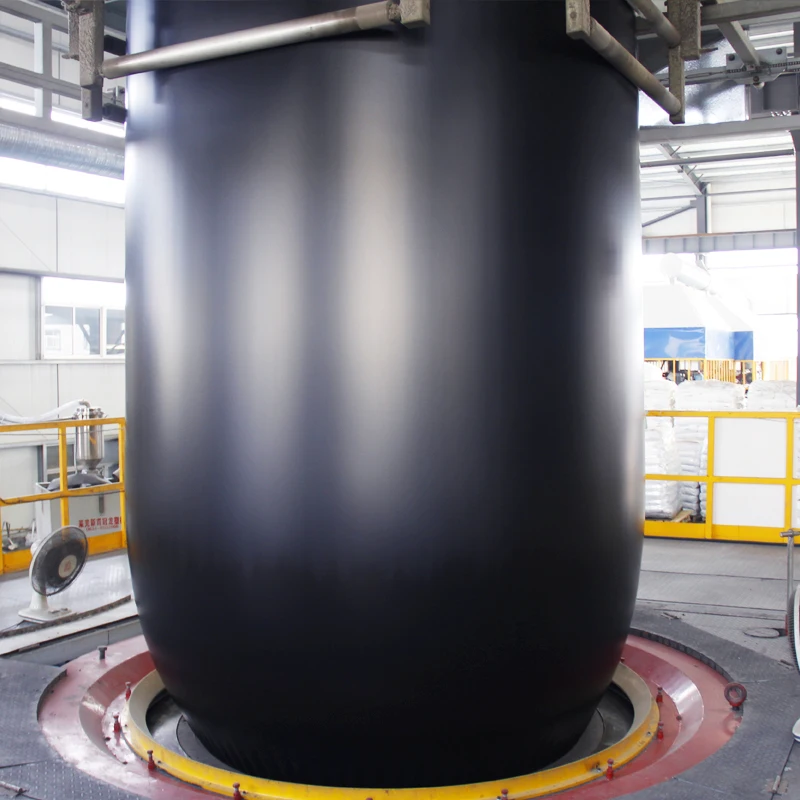

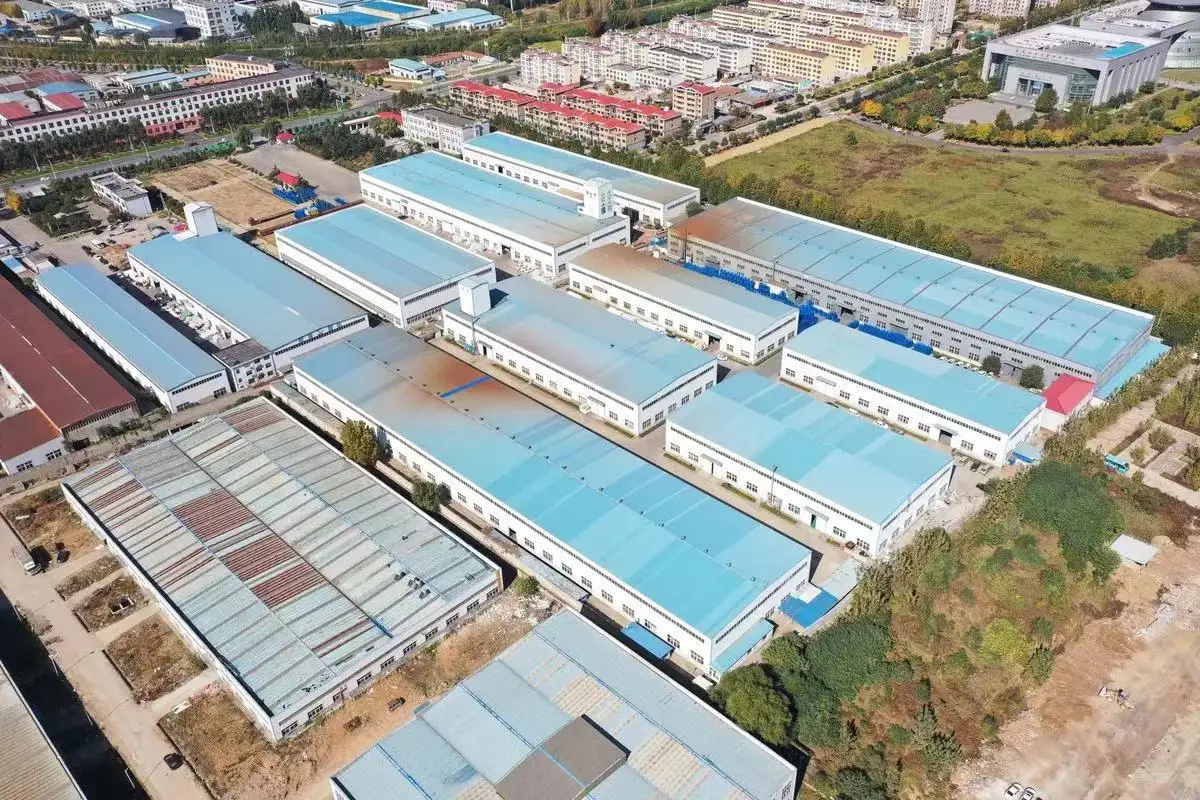

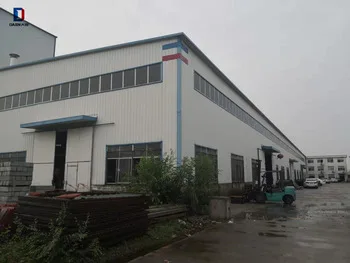

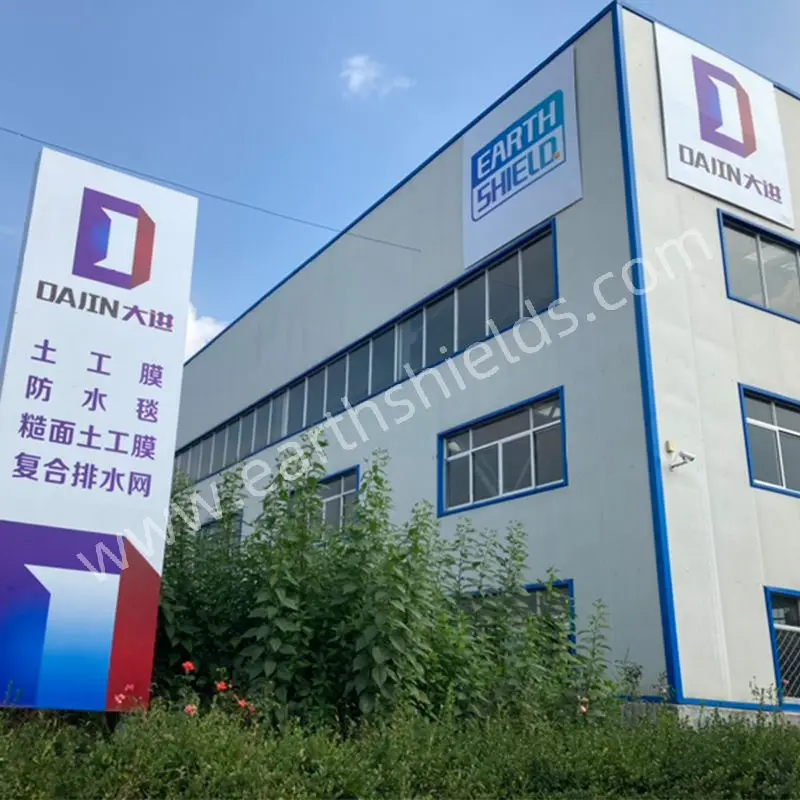

We Are Factories
Our own factory is located in Shandong, China, with a factory area of several thousand square meters. The manufacturing machinery and technology are at the international leading level, with more than 200 outstanding workers with advanced manufacturing experience.
FAQ
Q: Are you trading company or manufacturer?
A: We are manufacturer.
Q: Do you provid samples? Is it free or extra?
A: Yes, we can offer the sample for free Charge but do not pay the coSt of freight.
Q: What about delivery time?
A: According to your Quantity. Generally speaking, if in stock, the delivery time is 5-10 days, or if not in stock, the delivery
time is 10-15 days.
time is 10-15 days.
Q: What is your terms of payment ?
A: Payment<=500USD, 100% in advance. Payment>=500OUSD, 30% T/T in advance, 70% balance before shipment.
Q: Is the Pond Liner virgin material, or recycled?

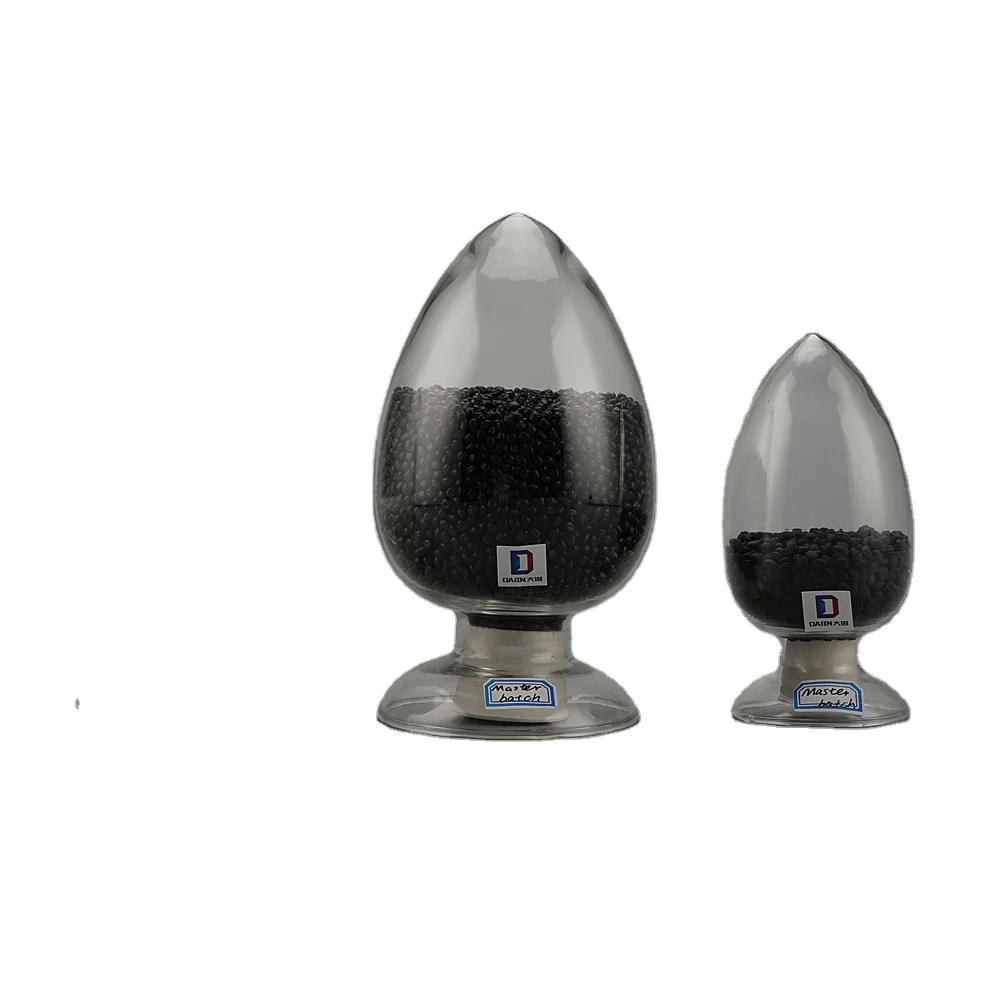

A. Virgin Material. The polyethylene geomembrane is made of high-quality polyethylene virgin resin, the main component
is 97.5% polyethylene, 25% carbon black.
is 97.5% polyethylene, 25% carbon black.
Q: Can I customized?
A:Yes, it can be customized for your specific needs.
