Hydraulic Plate Vulcanizer Press Machine Lab Rubber Small Flat Vulcanizer Molding Test Equipment DH FV 01
- Category: >>>
- Supplier: Guangdong Hongtuo Instrument Technology Co. Ltd.
Share on (1600755288124):
Product Overview
Description

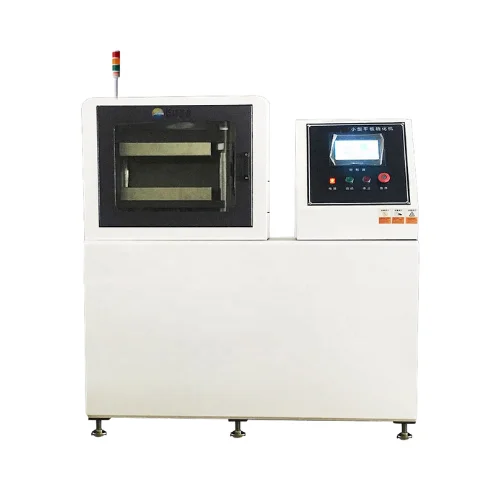

Hydraulic Plate Vulcanizer Press Machine Lab Rubber Small Flat Vulcanizer Molding Test Equipment DH-FV-01
Introduction
This series of flat vulcanizing machines are used in the main equipment for pressing and forming various rubber model products and non-model products. They can also be used to suppress all kinds of thermosetting plastics and foaming rubber and plastic products. With independent power mechanism and electrical system, centralized control with buttons. The working pressure and heating temperature can be adjusted within a certain range. This model is divided into manual and semi-automatic.
Specification
Capacity | 5-30ton (adjustable) |
Temperature range | normal temperature ~ 250 ° C |
Temperature accuracy | ± 0.5 ° C |
Temperature controller | PLC touch screen |
Temperature control mode | PLC touch screen |
Heating | electric heating tube heating |
Working mode | electric heating. Heating method: electric heating. |
Heating time | about 15min from room temperature to 160 °C (heating speed adjustable) |
Timer | PLC display, 0.01S ~ 999min ~ 999hr (adjustable) |
Hot plate | 350 × 350mm (specially treated high hardness steel plate) electric heating water cooling. |
Exhaust function | low pressure automatic exhaust one minute 3 to 10 times adjustable |
Hydraulic system | proportional hydraulic flow closed loop control system, GPY oil pump (made in Japan) drives high-performance electro-hydraulic with high-precision non-resistance cylinder piston to perform equal-rate control mode (stroke height can be set independently) with automatic pressure Compensation function, pressurization time can be preset, load force is strong, lifting is stable, automatic pressurization, pressure holding, pressure relief |
Cylinder stroke | Max 300mm |
Cylinder speed | 11mm / s |
Pressure table | 0 ~ 200kg / sq.cm |
Volume | (W × D × H) 1400 × 750 × 1460 mm |
Power | 3 ∮, AC220V, 15A |
Weight | about 350kg |

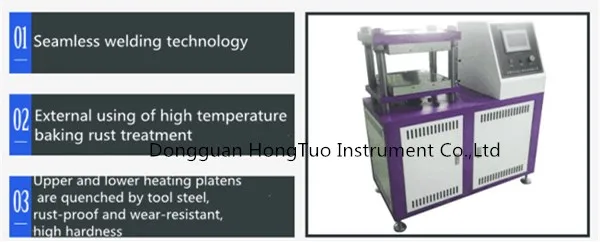

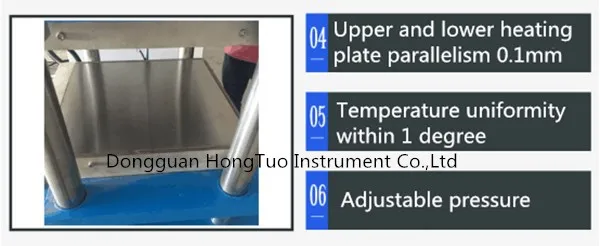

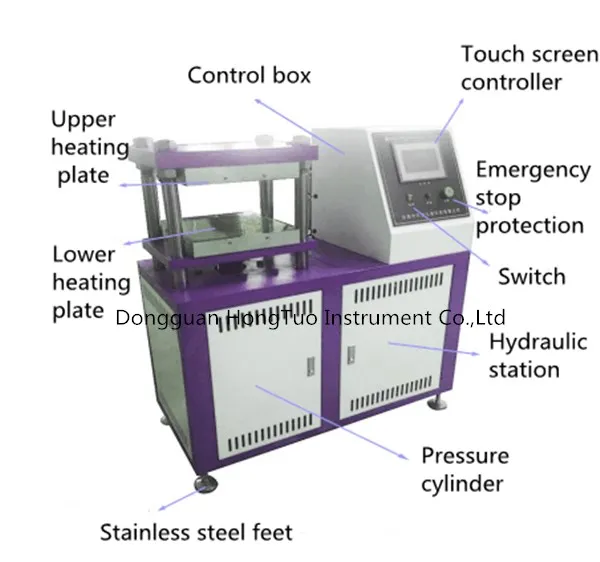

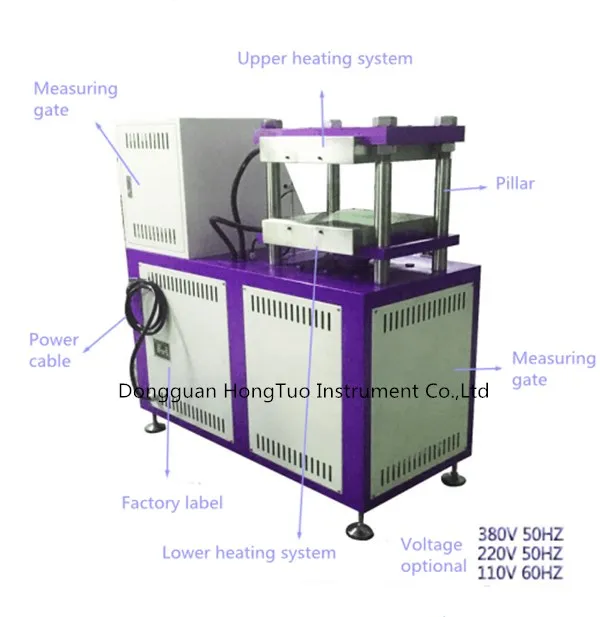

Details Images
Product Packaging
Company Profile
We, Dongguan Hongtuo Instrument Co., Ltd, a China based company, are pleased to introduce ourselves as a notable testing equipments and machines manufacturer.Our company was established in the year 2000 with two primarily motto, which includes complete client satisfaction and to reach top-most position in the international market. The exceptional quality of our products like Gold Tester,Gold Testing Machine,Density Meter,Universal Tensile Testing Machine,Climatic Chamber,Melt Flow Index Tester,Charpy Impact Testing Machine,Tap Density Tester,Abrasion Tester,Ultrasonic Flaw Detector,Surface Roughness Tester and other Laboratory Testing Equipment, etc. is our company's USP.
Certifications
