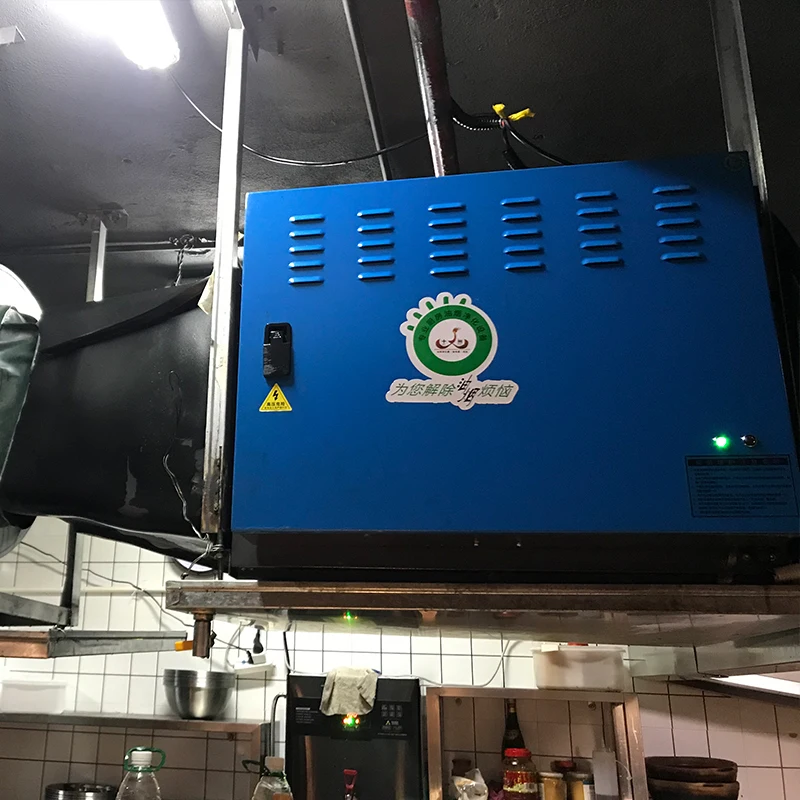

Grease and Smoke Removal Equipment Electrostatic Smoke Precipitator ESP Filter for Kitchen Emissions Control
- Category: >>>
- Supplier: Nanning Juwei Electromechanical Technology Co. Ltd.
Share on (1600755322796):
Product Overview
Description
Product description
What is the electrostatic precipitator (esp)?
China juwei electrostatic air cleaner is a filtration device that removes fine particles such as oil, fume, lampblack, dust and smoke,which caused by cooking & grilling & lasering & hot-heating...etc. Using the force of high voltage electric field, charged the particles to positive and negative potential, then they will be collected by the negative/ positive collectors, turn dirty air into clean air. After tested, our machine can take away up to 98% of particles.
China juwei electrostatic air cleaner is a filtration device that removes fine particles such as oil, fume, lampblack, dust and smoke,which caused by cooking & grilling & lasering & hot-heating...etc. Using the force of high voltage electric field, charged the particles to positive and negative potential, then they will be collected by the negative/ positive collectors, turn dirty air into clean air. After tested, our machine can take away up to 98% of particles.
Features
● High efficiency purification, 95% oil smoke removal rate.● Low energy consumption, low noise.
● Convenient maintenance, low operating costs.
● Be stable, multiple safety protection (equipped with open door and power off device).
● Easy and quick installation.
● Green environmental protection, no secondary pollution.
● Good sealing.
● 100% factory inspection.
● Low minimum MOQ for business.

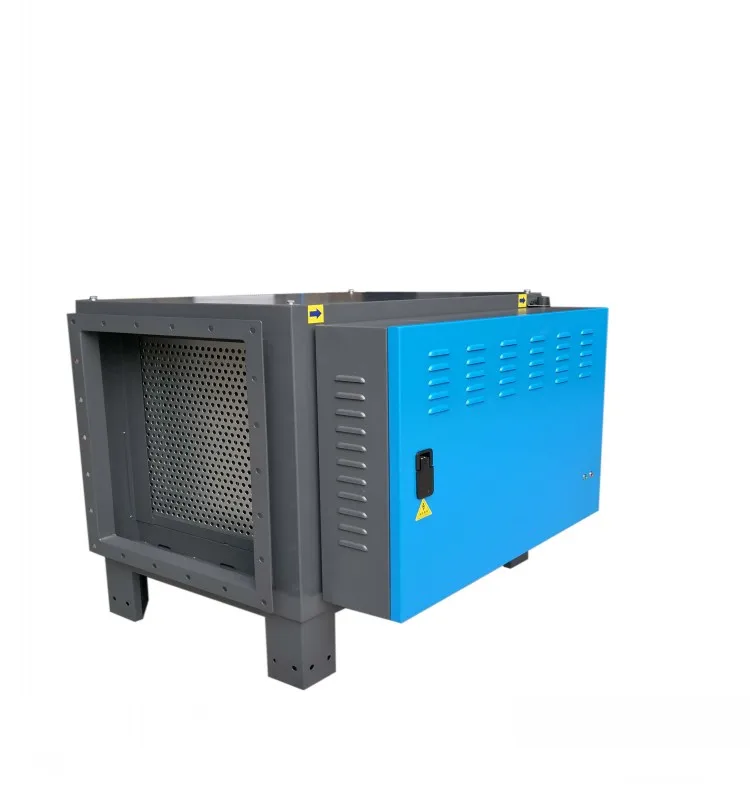

Product parameters of ESP JW60 | ||
Model | JW60 | |
Air volume | 6000 m³/h | |
Dimension(L*W*H) | 823*664*732mm | |
Flange Size(A*B) | 392*463mm | |
Electric filed | 2pcs | |
Input voltage | 220V/50Hz | |
Power | 300W | |
Efficiency | 96% | |
Cabinet material | carbon steel with powder coated finish | |
Electric filed material | Anti-corrosion aviation aluminum alloy sheet | |
Contaminated air is drawn by the fan through a washable metal mesh pre-filter which traps large dust particles. The remaining particles, some as small as 0.01 microns, pass into a strong electrical field (ionizing section) where the particles receives an electrical charge. The charged particles then pass into a collector plate section made up of a series of equally spaced parallel plates. Each alternative plate is charged with the same polarity as the particles, which repel, while the interleaving plates are grounded, which attract and collect the contaminants. The contaminants are held in these plates until they are washed away. JUWEI electrostatic air cleaners are able to trap both wet and dry particles.
Size information
Model No. | Air volume (m3/h) | Filtration efficiency | Power rate(W) | Size(mm) | Flange size(mm) |
JW40 | 4000 | 96% | 200 | 543*856*732 | 584*463 |
JW60 | 6000 | 96% | 300 | 823*664*732 | 392*463 |
JW80 | 8000 | 96% | 300 | 823*856*732 | 584*463 |
JW120 | 2000 | 96% | 600 | 986*1173*732 | 901*463 |
JW160 (horizontal) | 16000 | 96% | 600 | 986*1558*732 | 1285*463 |
JW160 (vertical) | 16000 | 96% | 600 | 986*856*1302 | 584*1033 |
JW200 | 20000 | 96% | 1200 | 986*1077*1302 | 805*1033 |
JW240 | 24000 | 96% | 1200 | 986*1174*1302 | 901*1033 |
JW280 | 28000 | 96% | 1200 | 986*1366*1302 | 1093*1033 |
JW320 | 32000 | 96% | 1200 | 986*1558*1302 | 1285*1033 |
JW480 | 48000 | 96% | 576 | 1550*996*1844 | 1276*1584 |
Details Images
High-voltage
Voltage is an important element, it should be as high as possible. To ensure the maximum particle ionisation and capture
efficiency, both of our ioniser and collector cell use very high voltage.
efficiency, both of our ioniser and collector cell use very high voltage.
Maximum ionised grease and smoke particles as they travel over ionising electrodes, so they can be trapped when travel through the
parallel plates of the collector cell.
parallel plates of the collector cell.
There's a cooling fan below the control box, which to cool down temperature, avoid breakdown.
The inlet and outlet are covered with honeycomb mesh to prevent foreign bodies from entering, and the purification effect is more obvious
Compare

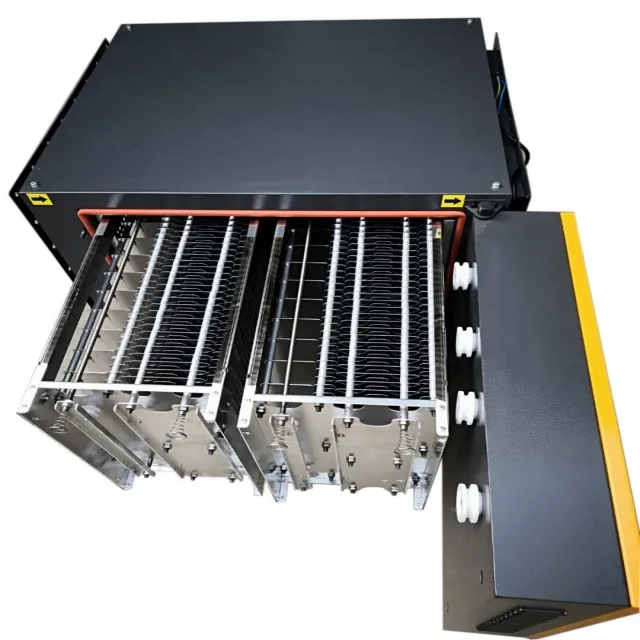

Plate structure purifier
1. The collection section consists of many parallel plates, resistant to dirt and easy to clean
2.small size,save cost
3.low power consumption,power saving
3.low power consumption,power saving
Honeycomb structure purifier
1. Easy to accumulate oil, high maintenance costs
2. large in size, Additional logistics costs, freight charges and so on
3. more power consumption
3. more power consumption
Company Profile
Company Introduction
Juwei Machinery and Electricity Technology Co., Ltd was established in 2012, located in Kede hardware machine and electric city of Nanning, Guangxi, China.

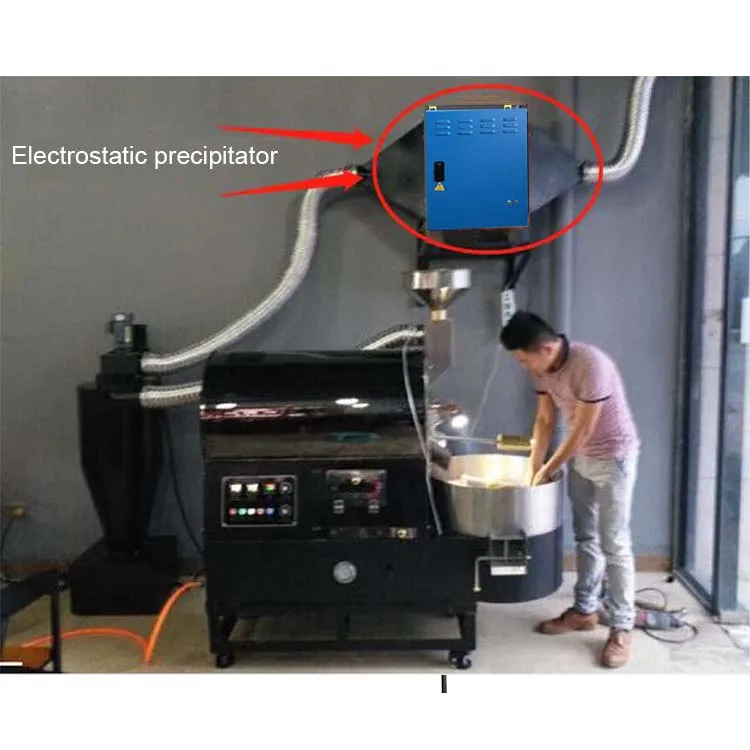

We are professionally specialized in manufacturing and exporting many kinds of electrostatic precipitator (ESP), air blowers and exhaust hoods for kitchen, restaurant, hotel, CBD, factory, industrial cutting machine plant, coffee bean roasting machine plant, CNC processing factory and so on.
With professional R&D and high-end machine equipment, we can offer customers with high quality, high efficiency and durability products, and committed to provide customers with reasonable and efficient purification program, accept OEM & ODM. Up to now, our products have been exported to over 35 countries and won customers' praise.

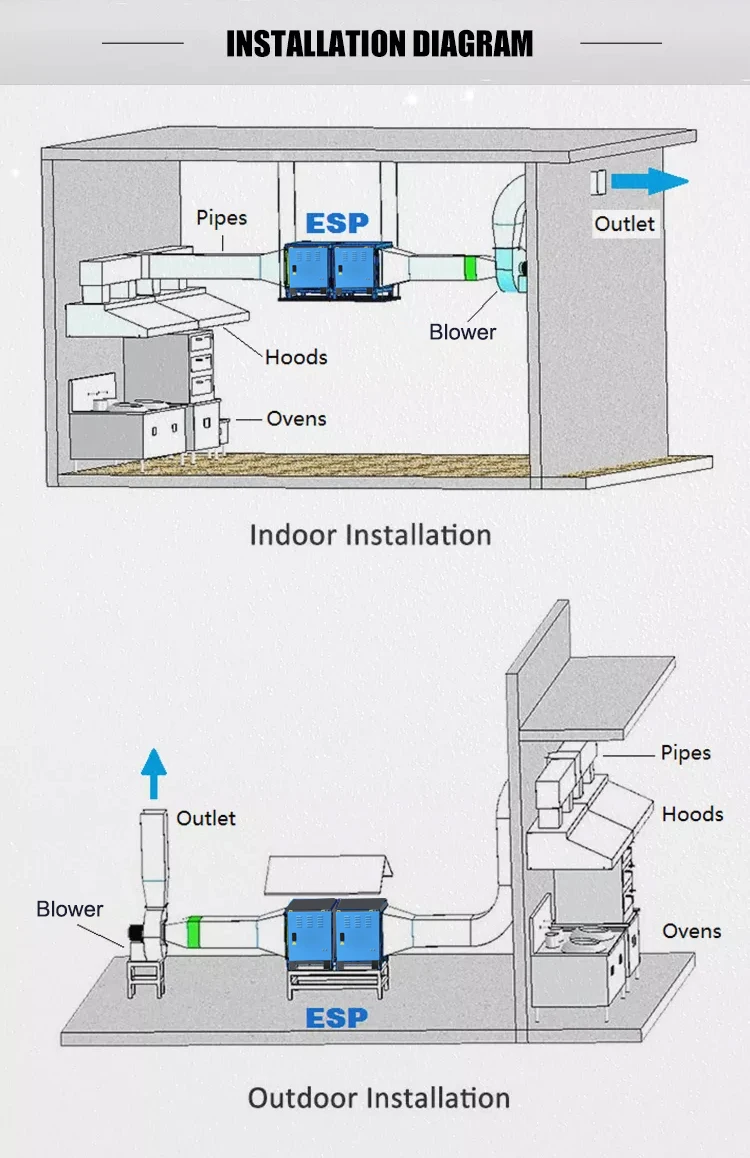

Application &Installation
The ESP cleaner should be installed before exhaust fan

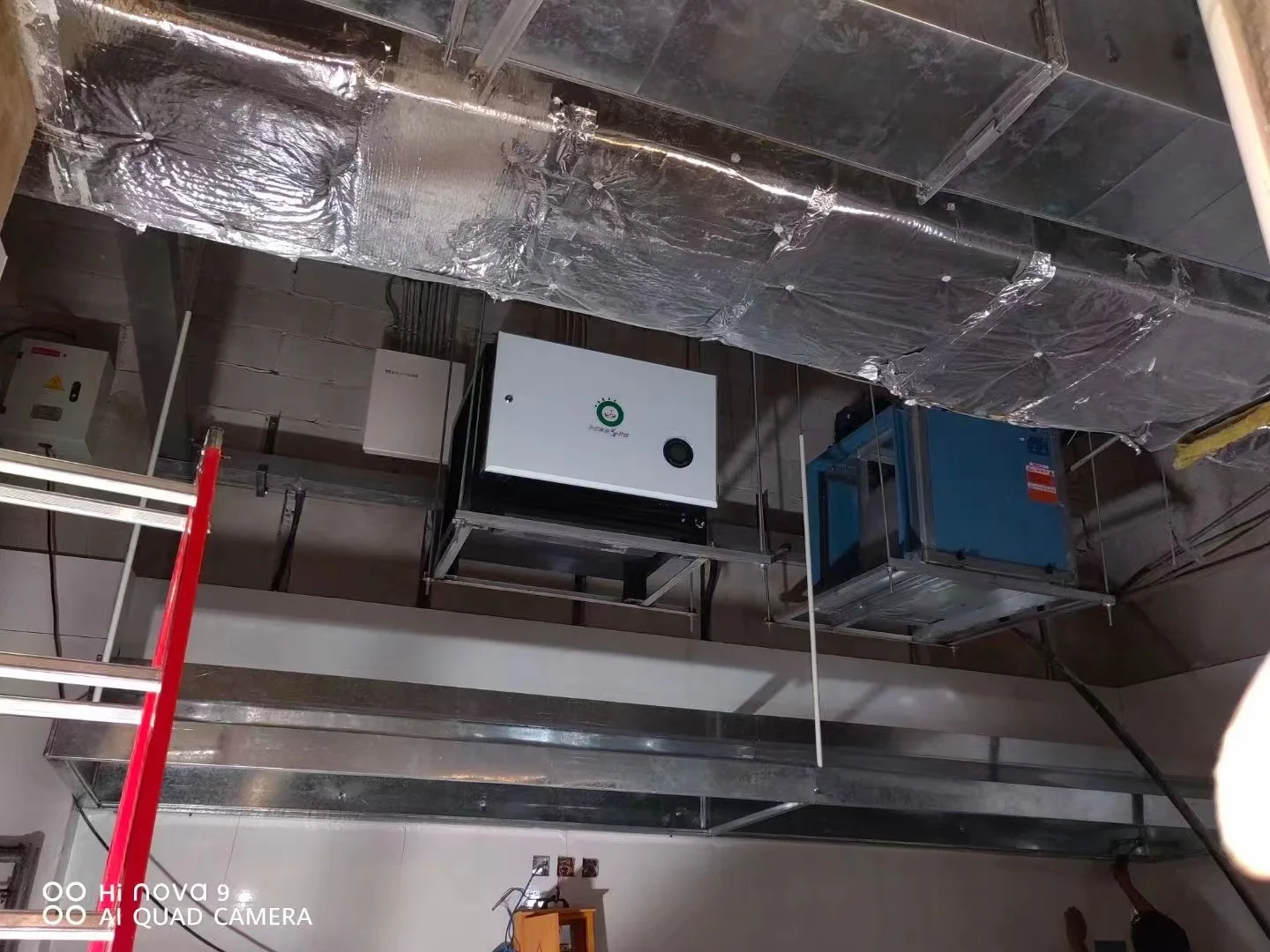

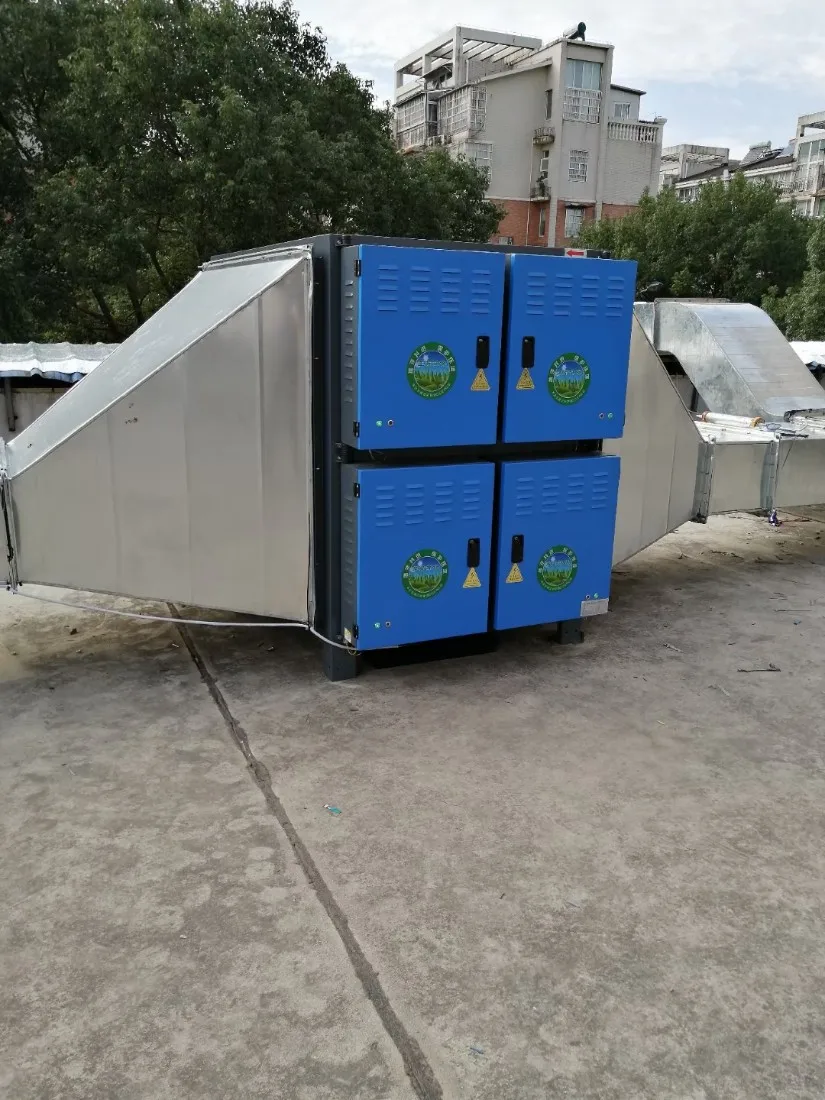

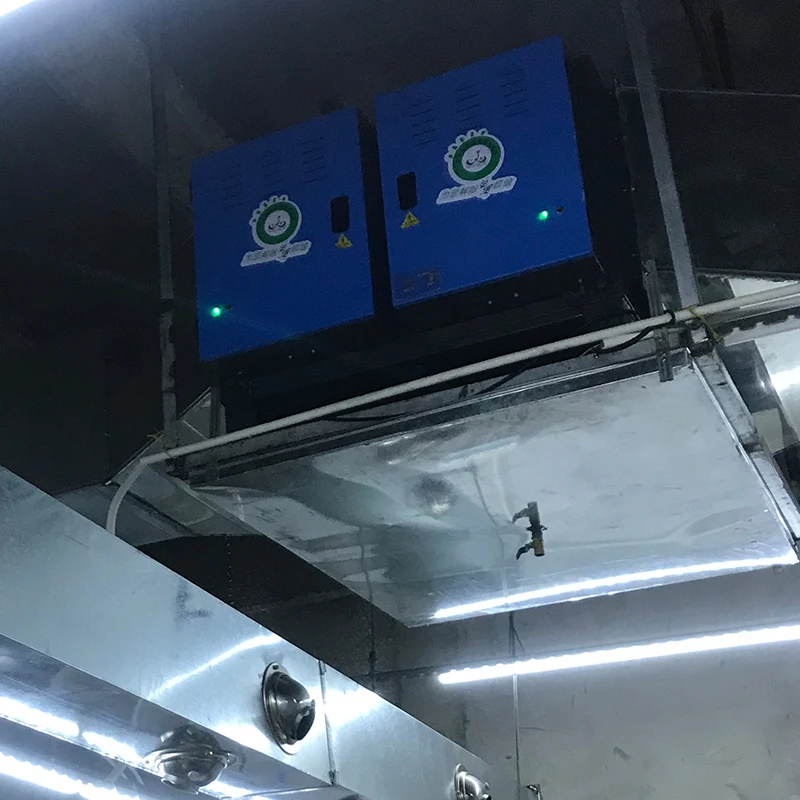

Our machine is typical application include commercial kitchen exhausts, supermarkets, hotels, schools, Air Handling Units (AHUs), factories, workshops, CNC machine shops and many other premises.
