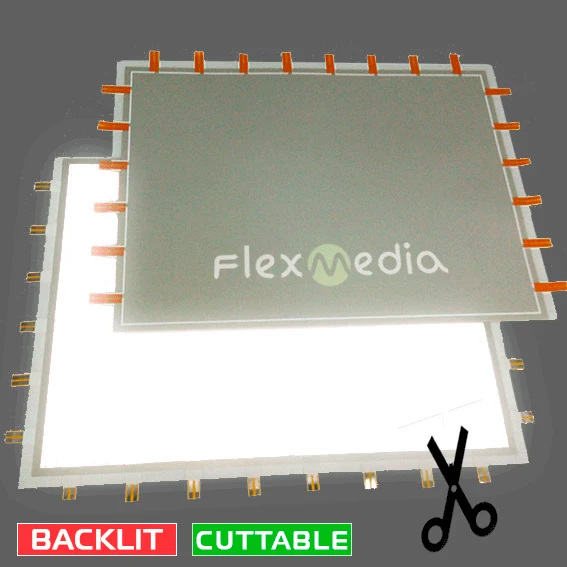

factory supply high brightness electroluminescent sheet EL panel high quality
- Category: >>>
- Supplier: Zhuhai Flexmedia Co. Ltd.
Share on (1600755327652):
Product Overview
Description
Specification
EL luminescence
Electroluminescent panels are paper thin panels that illuminate when an electrical current is applied to the panel. A print
overlay (clear graphics layer) is laminated on top of the Phosphor layer, which is sandwiched between conductors. When an electrical current is applied to the relevant segment, the Phosphor crystals charge and emit light, which would then illuminate the printed overlay. The Electroluminescent panel is connected to an inverter which would control which segments to illuminate and at different intervals, in order to create fantastic eye-catching animations even in bright ambient lighting conditions.
overlay (clear graphics layer) is laminated on top of the Phosphor layer, which is sandwiched between conductors. When an electrical current is applied to the relevant segment, the Phosphor crystals charge and emit light, which would then illuminate the printed overlay. The Electroluminescent panel is connected to an inverter which would control which segments to illuminate and at different intervals, in order to create fantastic eye-catching animations even in bright ambient lighting conditions.
Model Number | El sheet |
Place of Origin | China |
Brand Name | Flexmedia |
el panel sizes | A0/A1/A2/A3/A4/A5/A6,100X200cm ,10x10cm ,or custom |
Input voltage | DC1.5V/5V/12V/24V,AC110V/220V |
Functions | cuttable /adjust brightness /adjust speed |
accessory | El sheet /cable/program build-in inverter/ connectors /adapter(Not necessary) |
Thickness | 0.2-0.8mm |
power consume | 0.008W/cm2 |

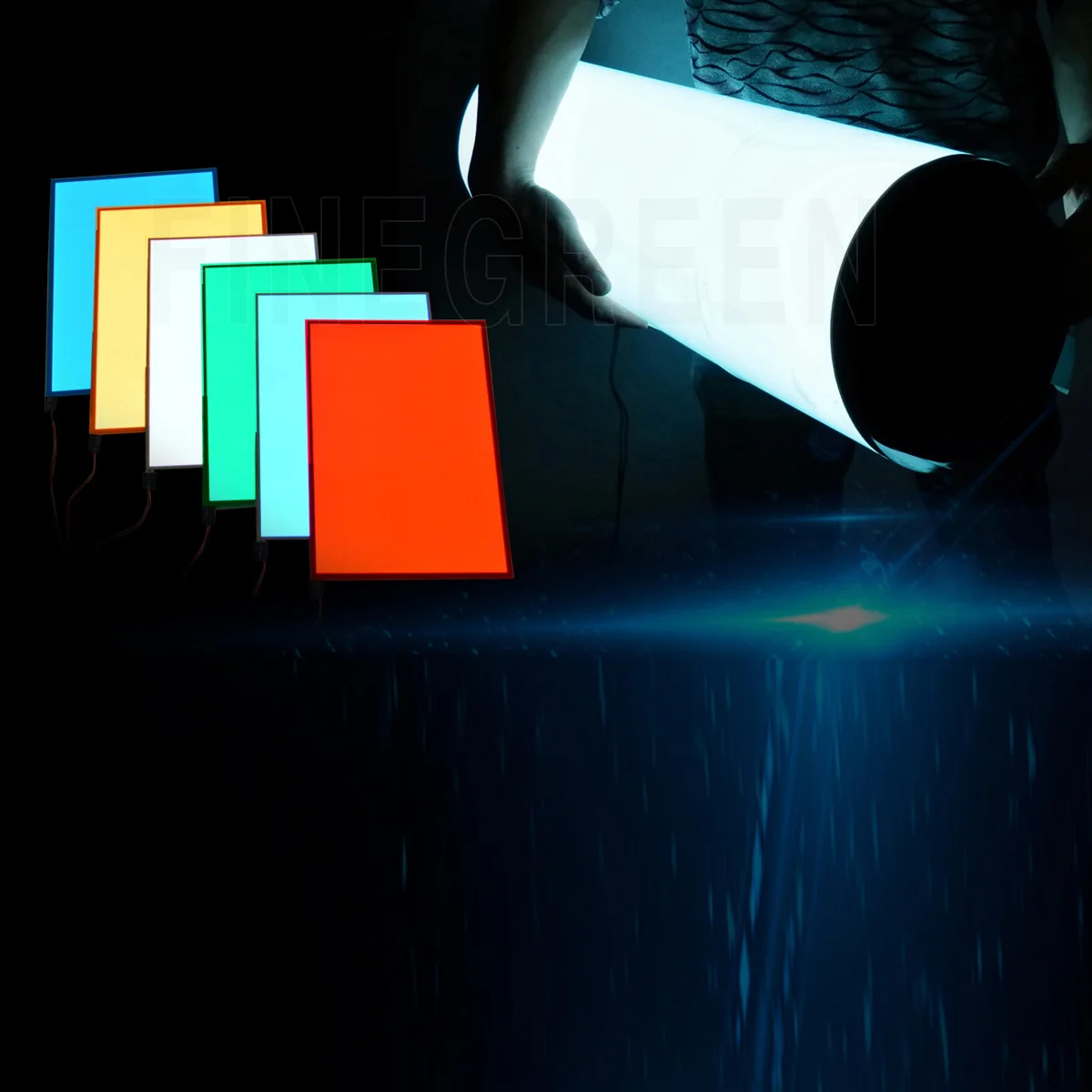

Color options | Red/White/Green/Blue/Purple/Tiffany/Pink/Yellow/Fluorescent green/Orange |
Connection | EL sheet +flexible cable+inverter +power supply |
certifications | CE/RoHS /UL |

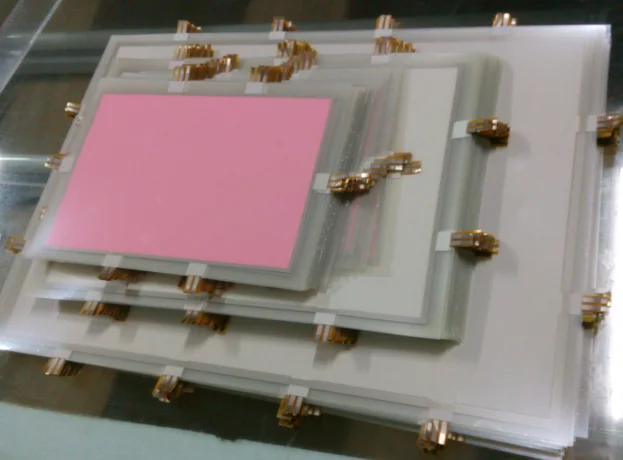

EL sheet usage
EL sheet is a thin luminous product ,the thin is 0.2-0.8mm ,as thin as a paper .
That is flexible material ,widely used at public or exhibition .can be fold and can be cut arbitrary.
The luminous surface can be put up KT board/PVC board /Acrylic board /aluminium alloy board .and can be decorate
with frame ,can be worked as light box.
270 degree fold
Thickness is 0.2-0.8mm
Water proof
Long time use time
can be cut in different sharp
Multi terminal available

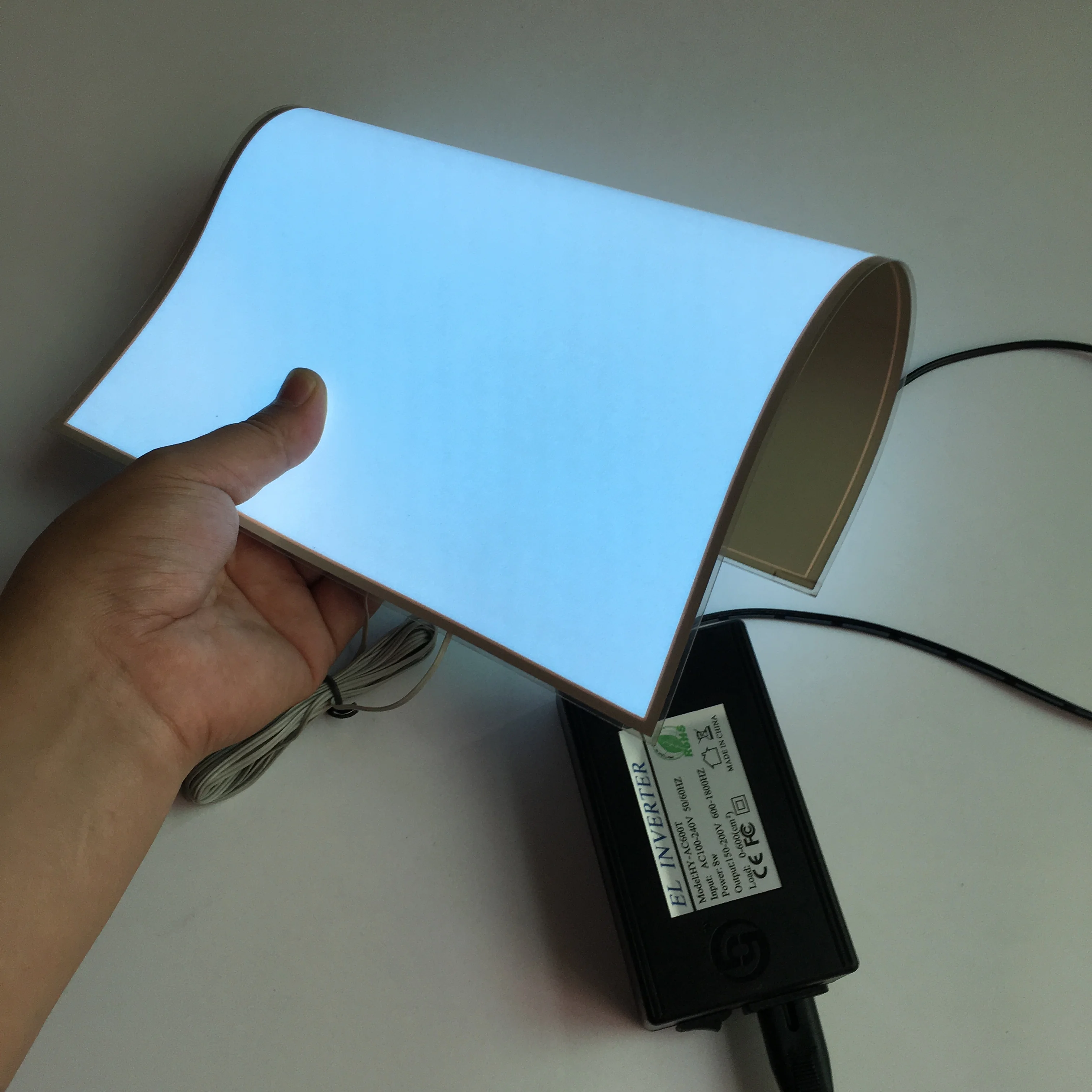

How to connect
EL sheet with flexible cable connect to inverter .
The inverter maybe directly connect to the battery box.
Or connect to a inverter which connect to DC output power supply.
How to operate the El sheet
There are build-in programs inverter or battery box can achieve turn on/ turn off/speed up/speed down /brightness up/brightness down functions .
Switch on inverter
Button on battery box

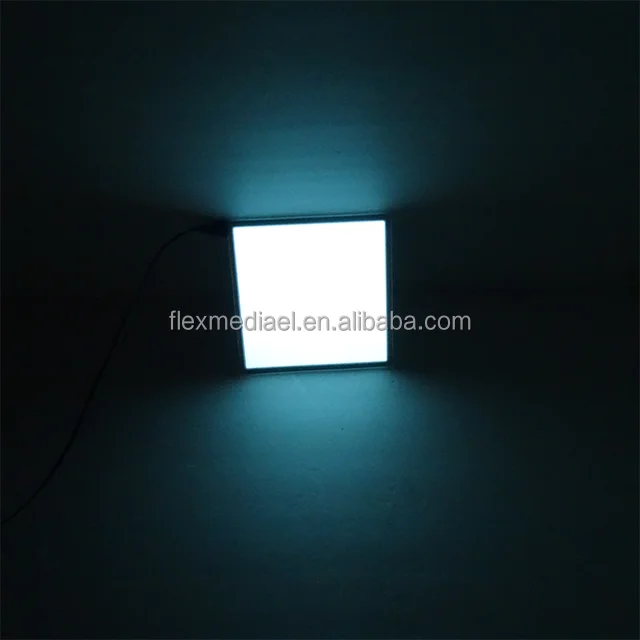

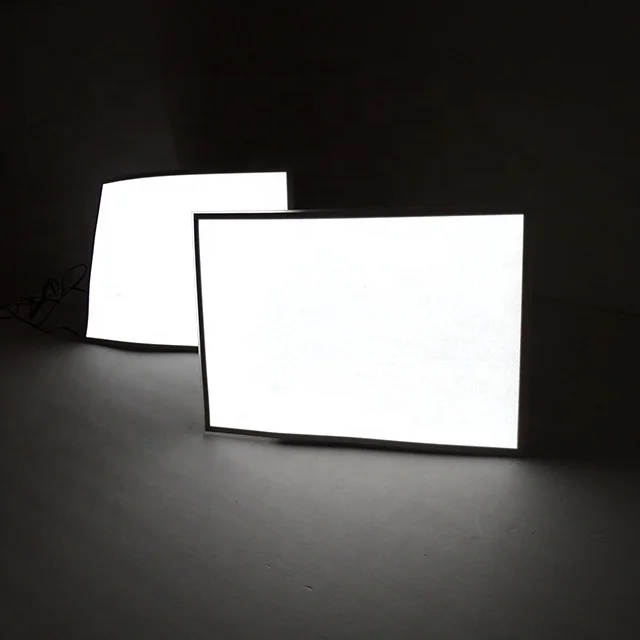

Shooting when the light is on
EL cold light film can be applied to clothes, pants, shoes, hats, bags, glasses, watches and other related products, as well as birthday, wedding, festivals, anniversaries, celebrations and other greeting cards, gifts, so as to win the appreciation of friends and others around.
Gif dynamic effect of EL cold light film
We are also developing other products. Cool film backlight advertising luminous poster luminous double-sided at the same time luminous, as long as you have pictures, we can make you like the style
About FlexMedia brand
FlexMedia developed exceed 16 years ,customers covers worldwide and have exceed 128 agents.
And can satisfy all country's quality standard.
Exceed 100 patents
ISO qualification
UL /CE /RoHS /FMC certifications
National High-Tech Enterprise

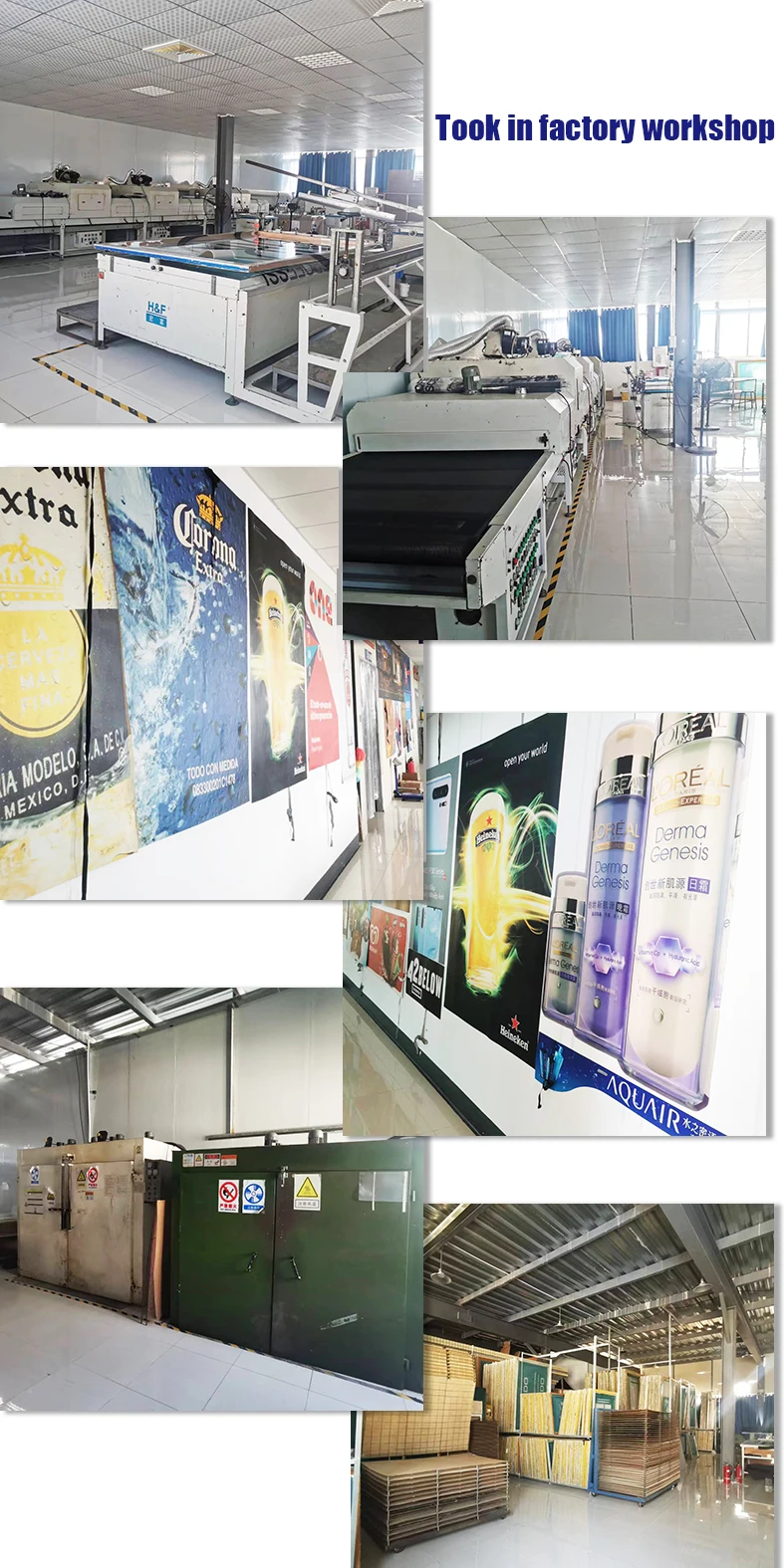

Company introduction
Flexmmedia source from USA who is an international enterprise own FlexMedia brand since 2005.Base on electroluminescence technology we develope, design, product and sales series of EL prodcuts, such as EL poster,EL panel ,EL car sticker ,EL adavertisement,EL T-short ,EL mask ,EL drivers and other EL accessories.
Have rich and mature production experience in EL products.Obtained kinds of certifications such as ISO certifications,UL ,CE, ROHS and Ford FMC qualifications,served 128 agents around the world. and obtained exceed 100 appearance and utility patents.
All employees of FlexMedia are looking for cooperation with you win-win future.
Have rich and mature production experience in EL products.Obtained kinds of certifications such as ISO certifications,UL ,CE, ROHS and Ford FMC qualifications,served 128 agents around the world. and obtained exceed 100 appearance and utility patents.
All employees of FlexMedia are looking for cooperation with you win-win future.
