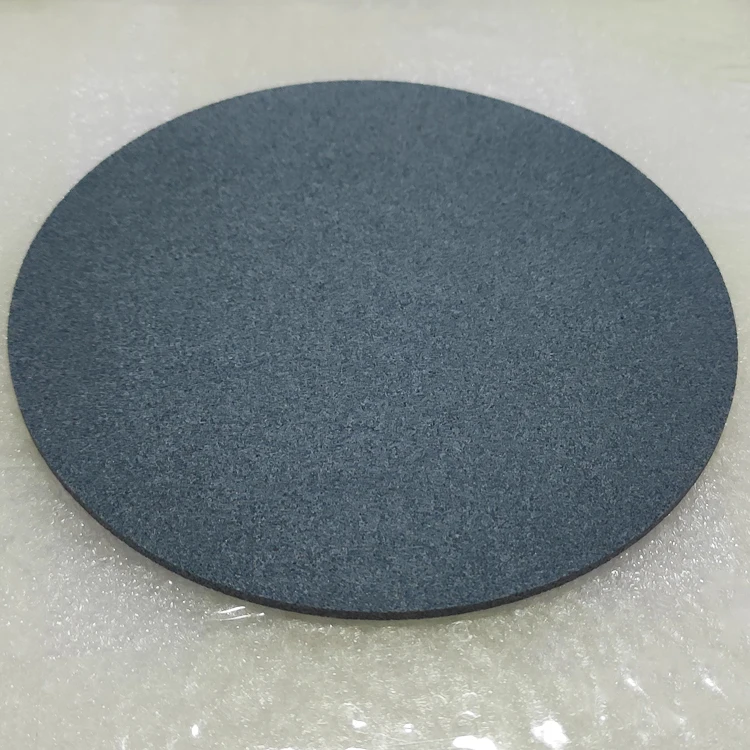

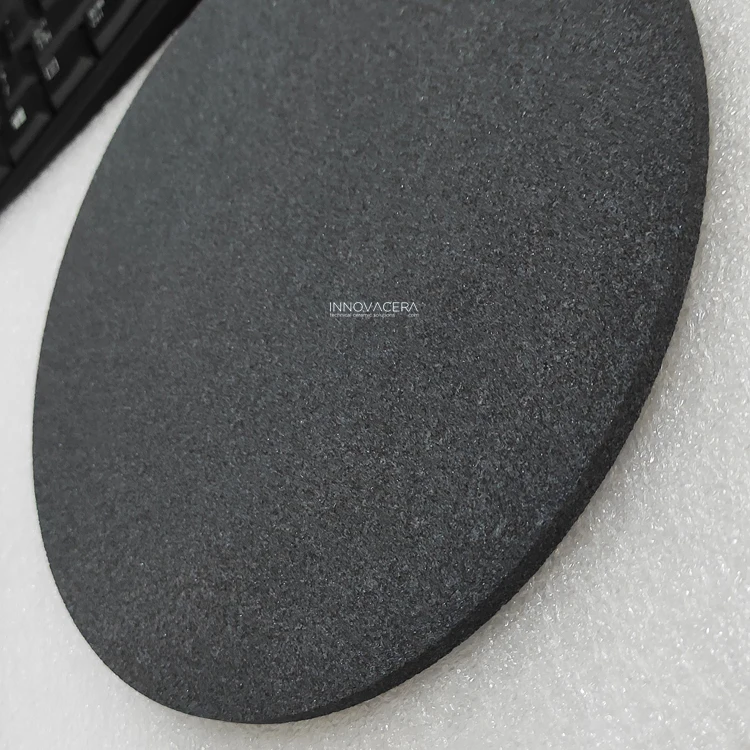

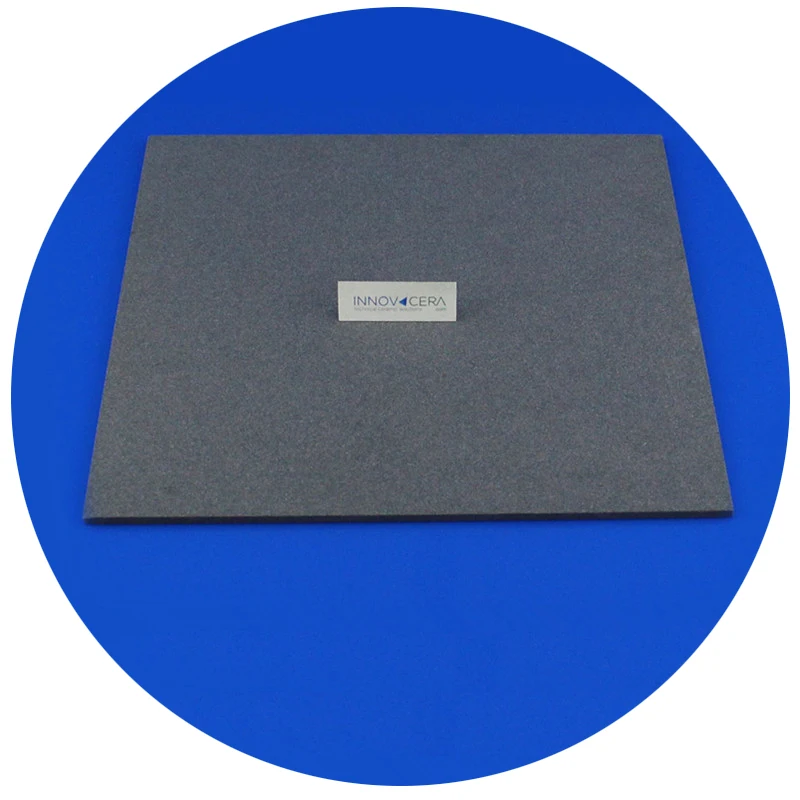

SiC Silicon Carbide Porous Ceramic Disc Plate for Wastewater Purification
- Category: >>>
- Supplier: Xiamen Innovacera Advanced Materials Co. Ltd.
Share on (1600755364201):
Product Overview
Description
Product Description
The porous ceramic discs are made of the orthopedic (alumina, silicon carbide, etc.)blended amount of binder, pore forming agent,resist rare earth,after high temperaturesintering to different shapes,sizes.The strong, uniform porous ceramic has 40-50% open porosity with a tortuous pore structure and is available in pore sizes ranging from 1 to 100 microns.

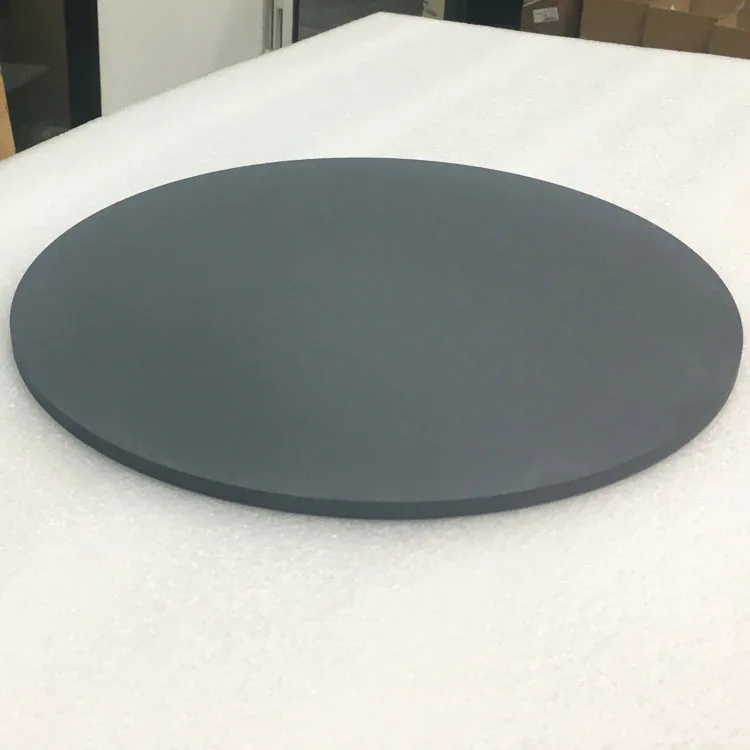

>>> Regular aluminum oxide porous ceramic for chuck table is available in 10, 15, 30, 50, 60 and 100 micron pore sizes.Regular porous ceramic disc is5,6,8,12inch.

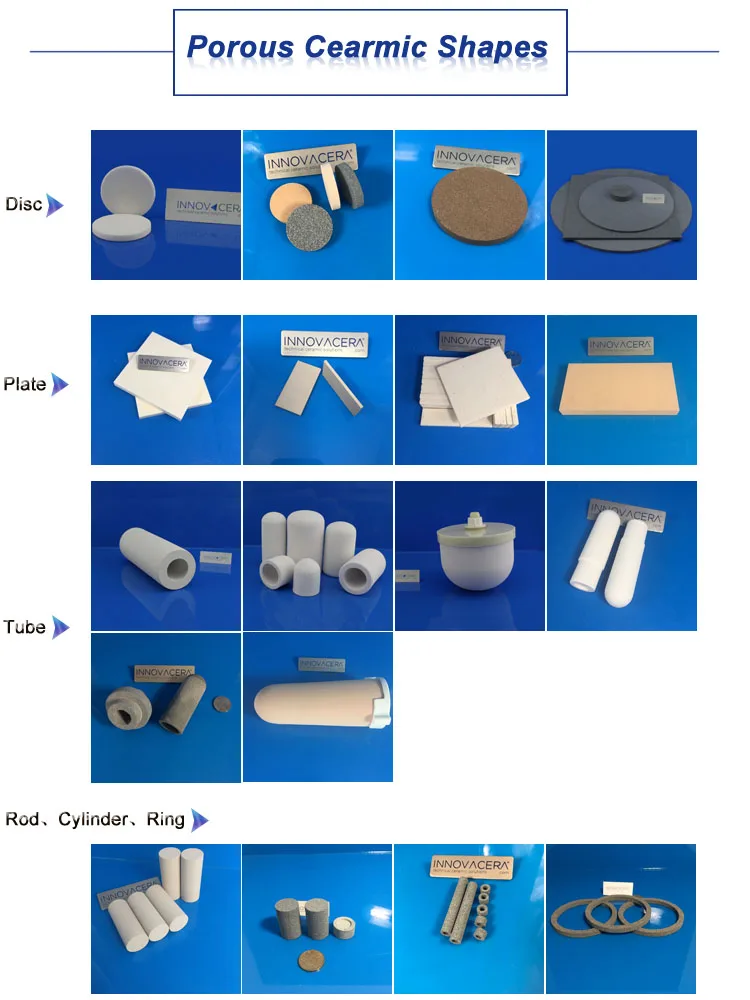

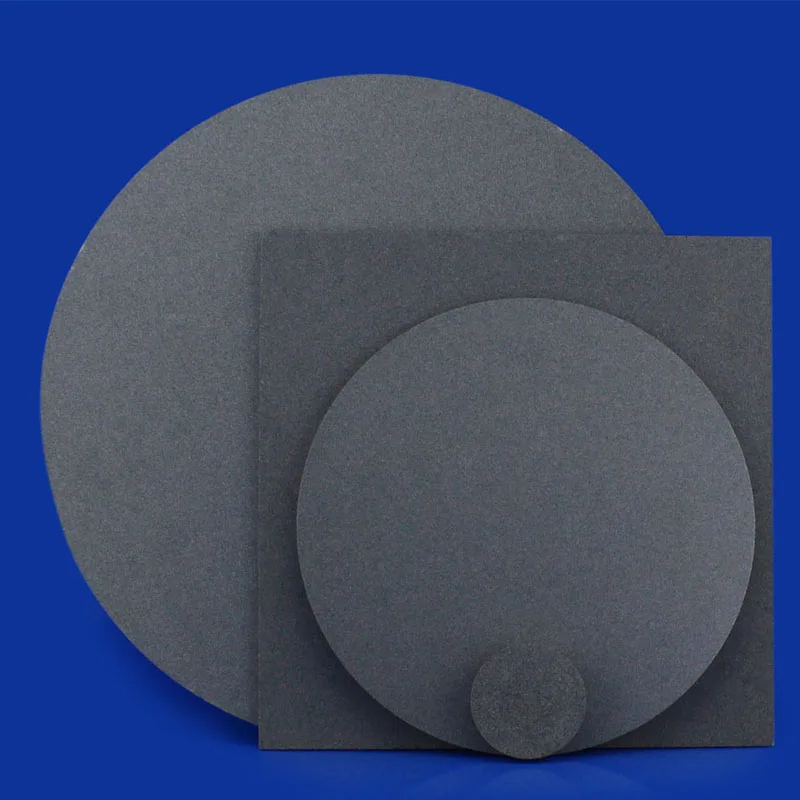

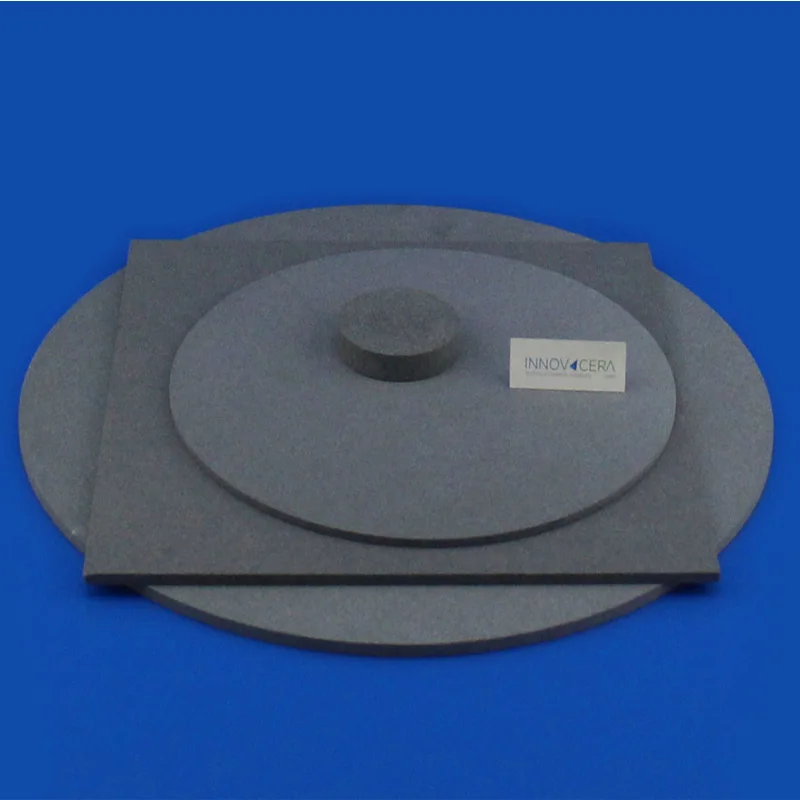

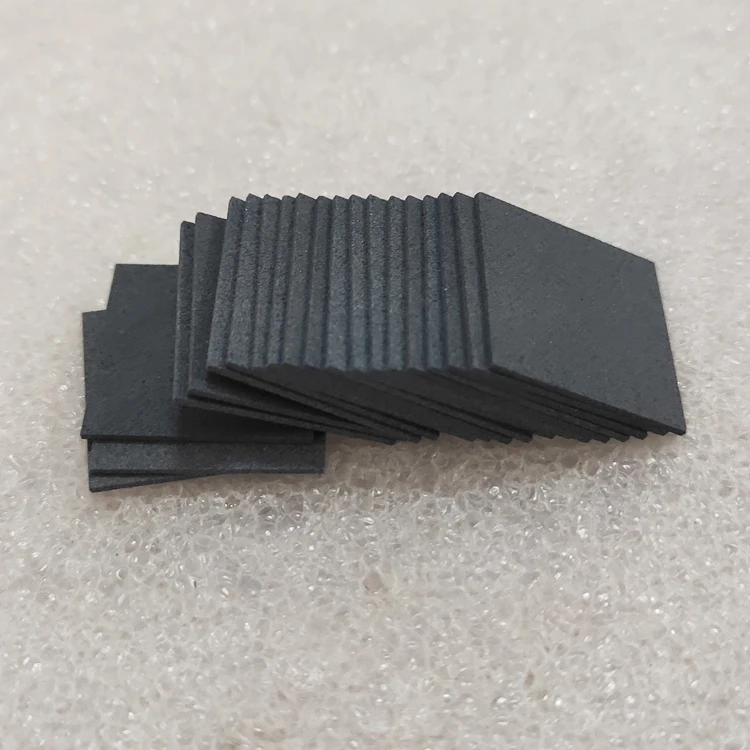

>>> Shape:Disc and Square Plate is available for us.
>>> Porous Ceramics have a wide range of uses in manufacturing across industries such as medical, mining, oil & gas exploration,alternative energy, emissions control, metal refinement, chemical processing, pharmaceutical, printing, wine making and other industries.
Brand Name | INNOVACERA |
Product name | Alumina Ceramic Filtering Tube |
Processing Service | Bending, Welding, Cutting, Punching, Decoiling, Moulding |
Color | White;Grey;Brown |
Shape | Round |
Size | Customized |
Usage | Filter |
Porosity | 33-50% |
Pore Size | 1-100um |
Filtration Fineness | 0.1-100um |
Max Working Temperature | 1900℃ |
Compressive strength | 20-100Mpa |
Properties
TEM | UNIT | VALUE |
Al2O3 | wt% | ≥80 |
SiO2 | wt% | 16-18 |
Density | g/cm3 | 2.3—2.5 |
Hardness (HRA) | HRA ≥ | 50 |
Flexural Strength | MPa ≥ | 40 |
Compressive Strength | ≥ | 600 |
Porosity | % | 40 |
Pore Size | um | 30, 50 and 60 |
Operating Pressure | MPa ≤ | 10 |
Acid Resistance | mg/cm2 ≤ | 10 |
Alkali Resistance | mg/cm2 ≤ | 20 |
Application
* Semiconductor vacuum chuck table
* Humidifier
* Filters for gases and liquids
* Gas burners
* Water Filtration for heavy metal ions (Cr, Ni etc)
* Micro-bubble diffusers
. Suspension platform
. Laser cutting
. PCB
. Phone panel
. Aquaculture water treatment
. Refined chip: carbon dioxide supply for waterweed
* Humidifier
* Filters for gases and liquids
* Gas burners
* Water Filtration for heavy metal ions (Cr, Ni etc)
* Micro-bubble diffusers
. Suspension platform
. Laser cutting
. PCB
. Phone panel
. Aquaculture water treatment
. Refined chip: carbon dioxide supply for waterweed
