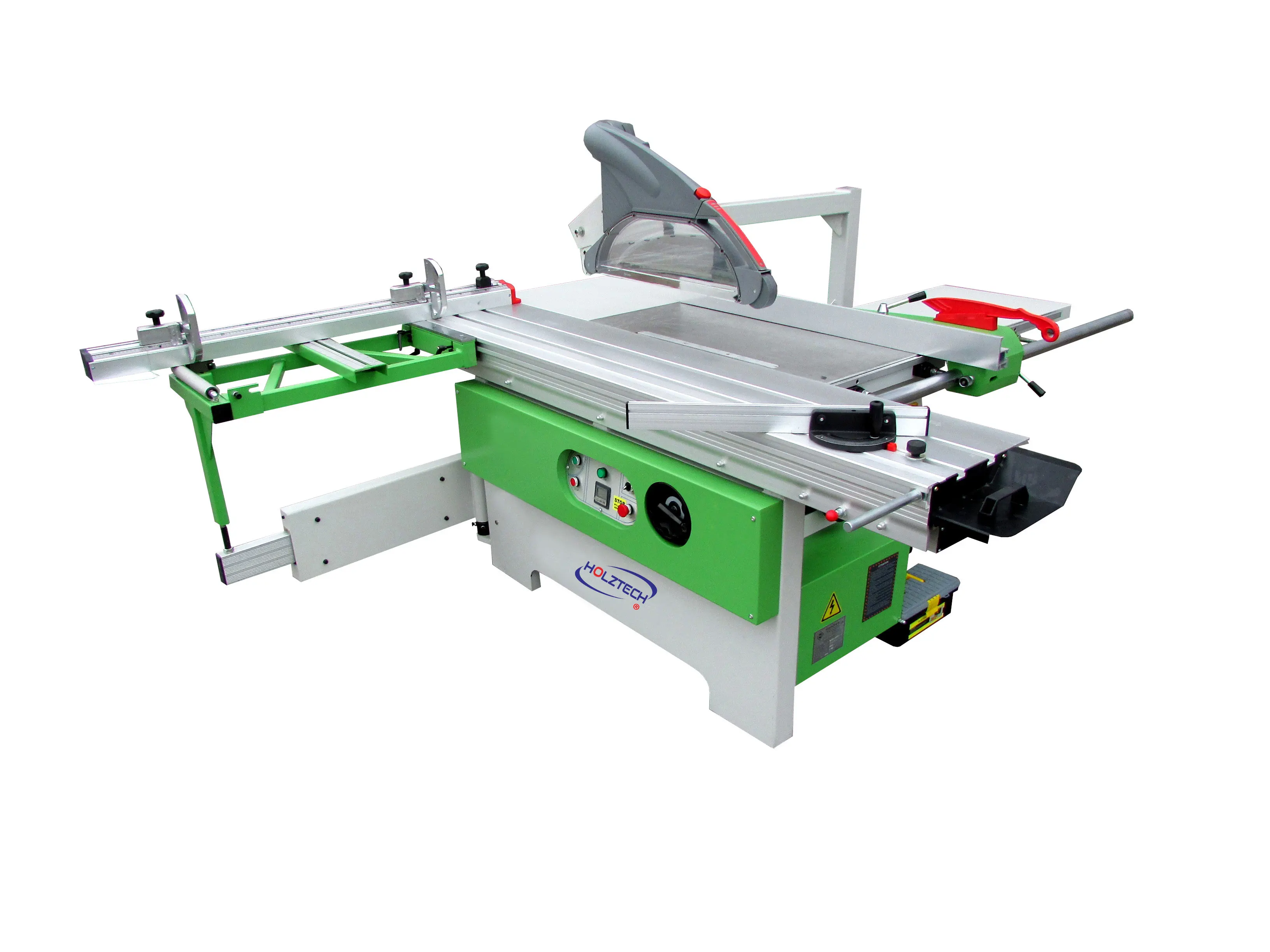

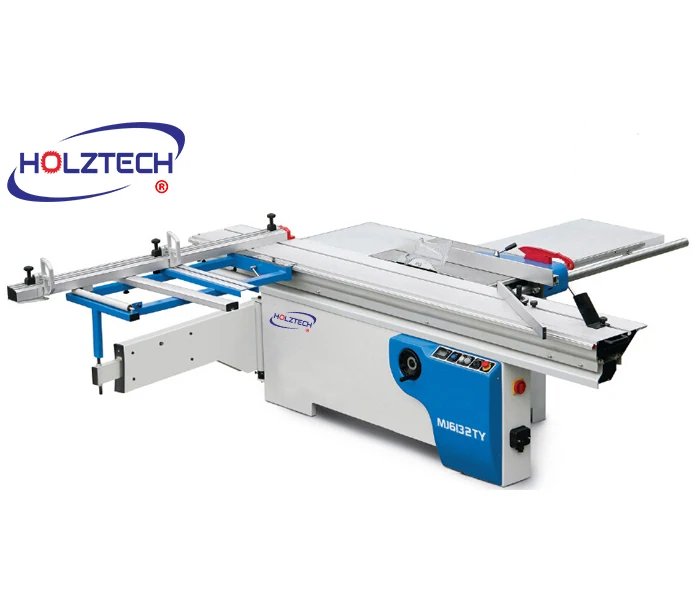

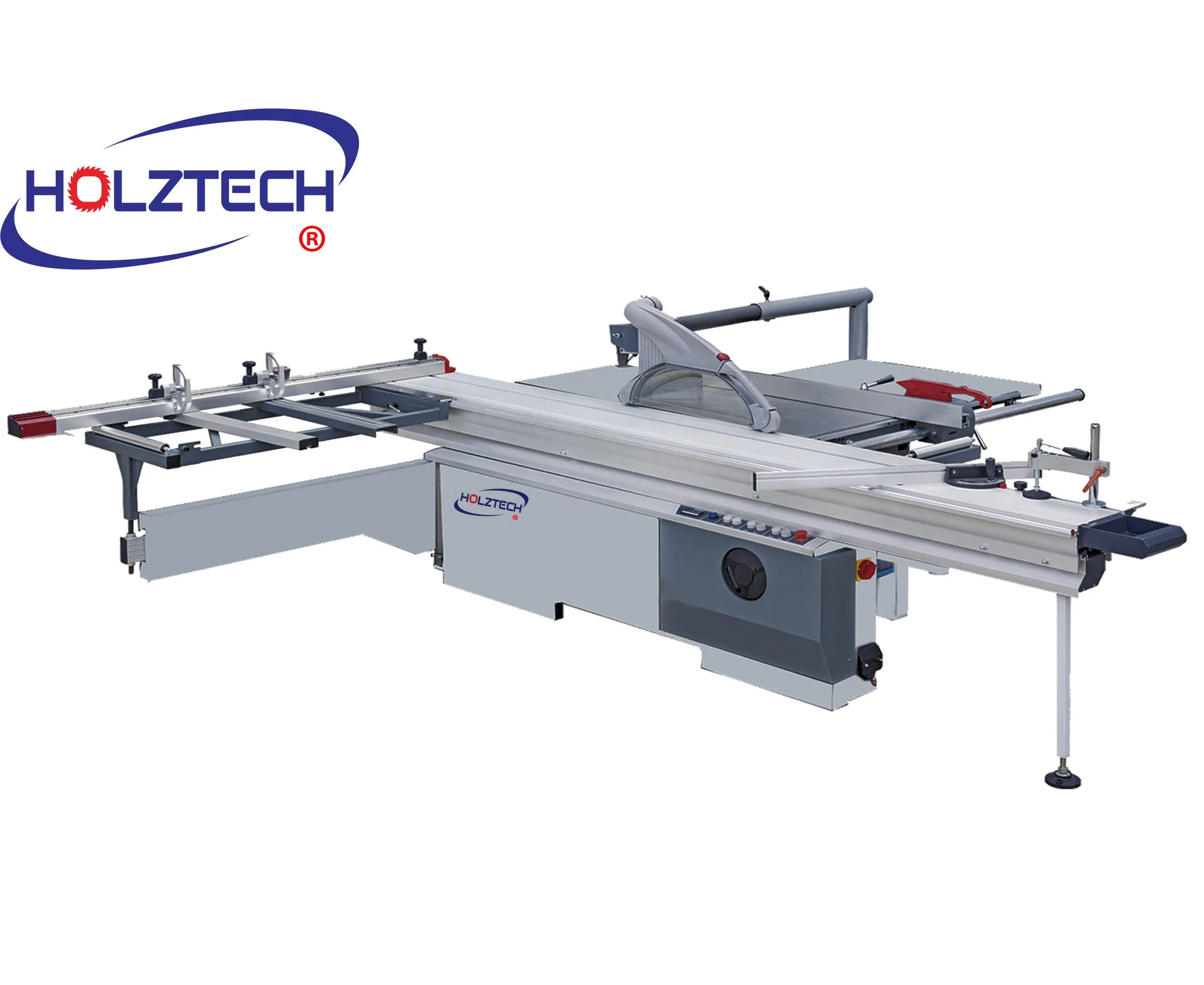

MJ6132 Altendorf Woodworking 45 Degree Precision Sliding Table Saw Panel Saw Portable Cutting Saw Machine HOLZTECH
- Category: >>>
- Supplier: Qingdao Holztech Machinery Co. Ltd.
Share on (1600755368409):
Product Overview
Description
Technical Specifications
Table Size | 3200*385mm(optional) |
Main Blade Diameter | 300*30mm |
Scoring Blade Diameter | 120*20mm |
Rip Cut Capacity | 1300mm |
Cross Cut Capacity | 3200mm |
Max. Cutting Depth | 80mm@90°, 57mm@45° |
Saw Body Length | 2000mm |
Main Blade Speed | 4000/6000rpm |
Scoring Blade Speed | 8500rpm |
Motor Power | 5.5+1.1kw |
Net Weight | 950kgs |
Details Images
Cast Parts with Our Logo HOLZTECH
Machine Body Milled by CNC Machining Center
Machine body is milled by CNC milling center to keep the table carriage seat on the same plane
Table carriage seat on the same plane after milling
Machine bodies waiting for milling
Parts with Good Quality
SKF bearings

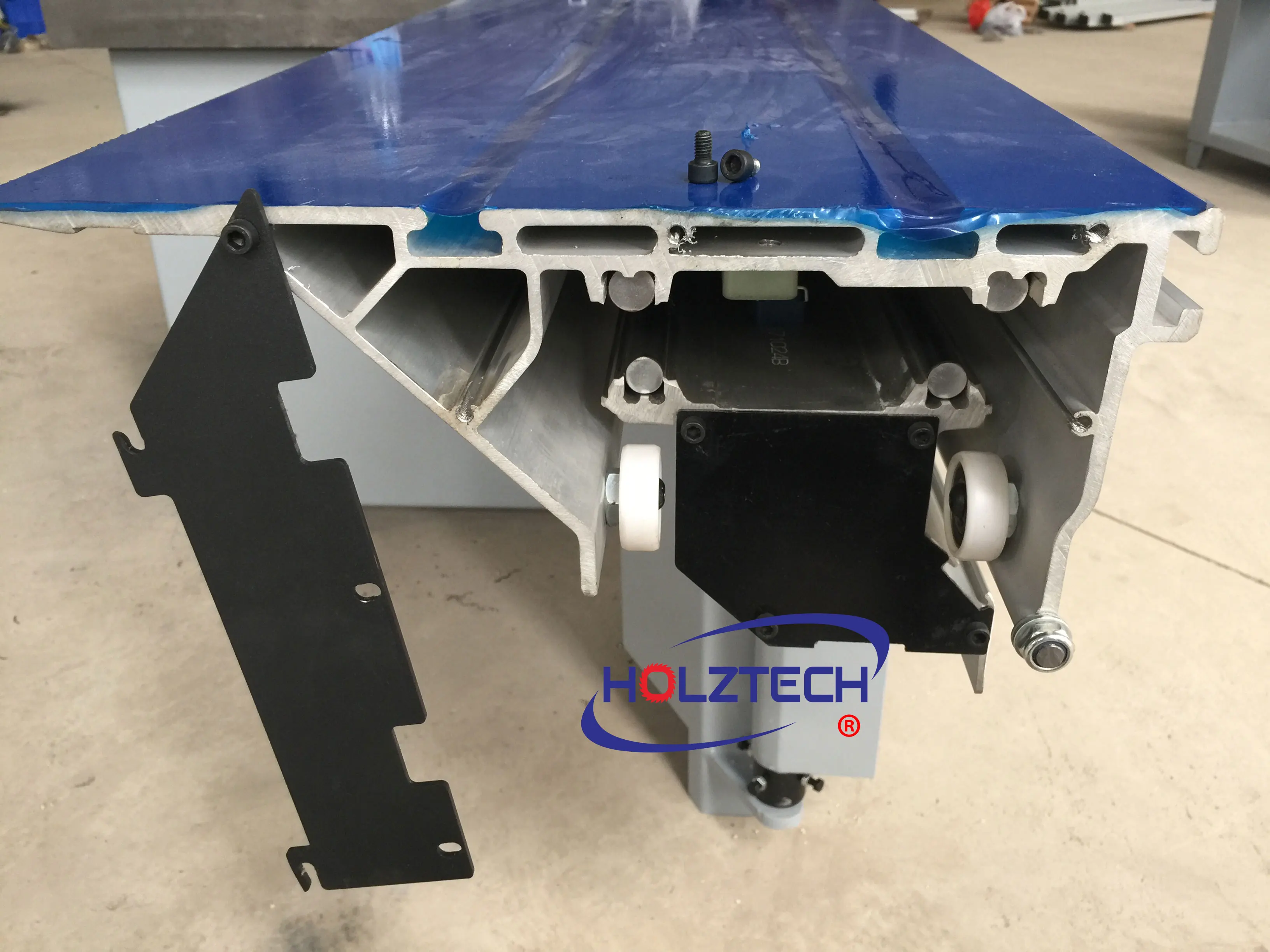

Altendorf carriage with double layers
Copper wire motor with standard power 5.5kw and 1.1kw
Chrome-plating treatment on all steel parts to avoid rust
Special riving knife which can move together with the saw blade
Multi groove belt pulleys instead of V-belt pulleys, to run smoothly with low noise.
Pulleys after correcting to reduce running vibration.
Microcomputer Measuring System to correct the pulley accuracy less than 0.3 g.mm/kg.
Electrostatic powder spraying to improve coating corrosion resistant capacity higher and smoother.
Assembly Room
Packaging & Shipping
