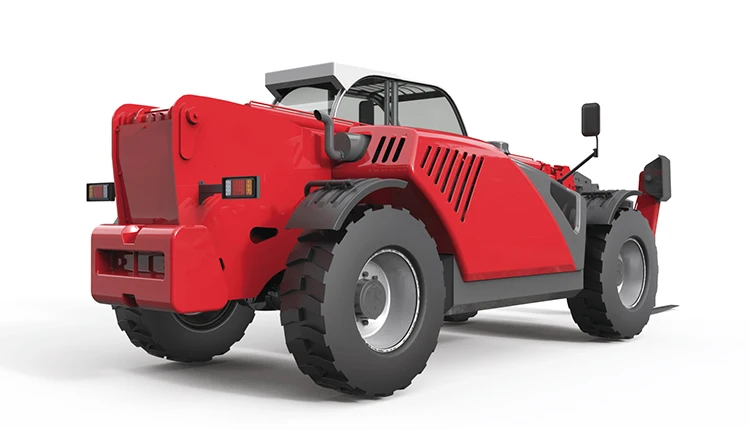

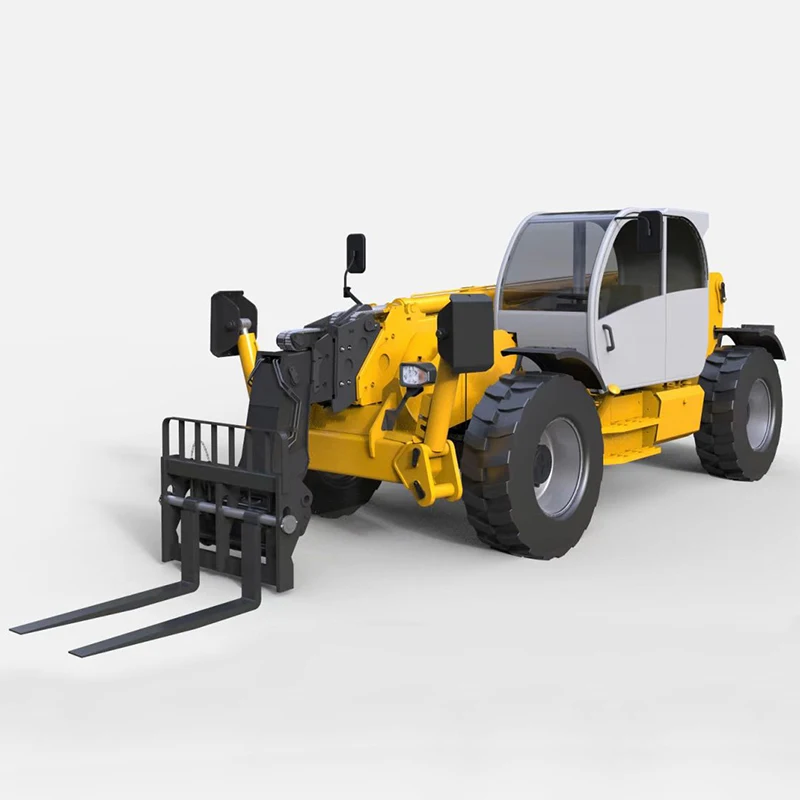

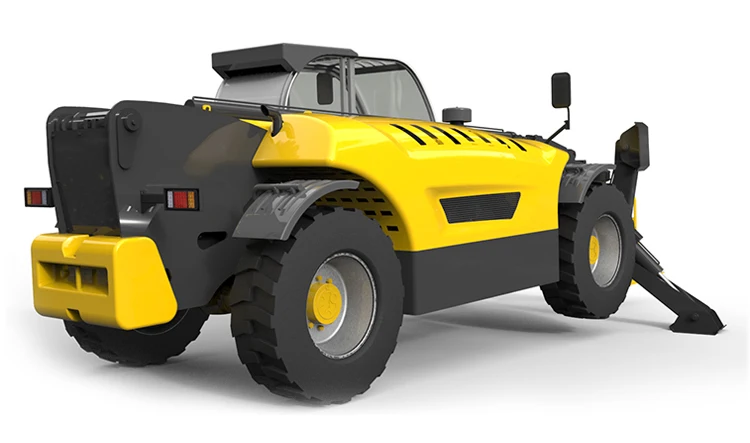

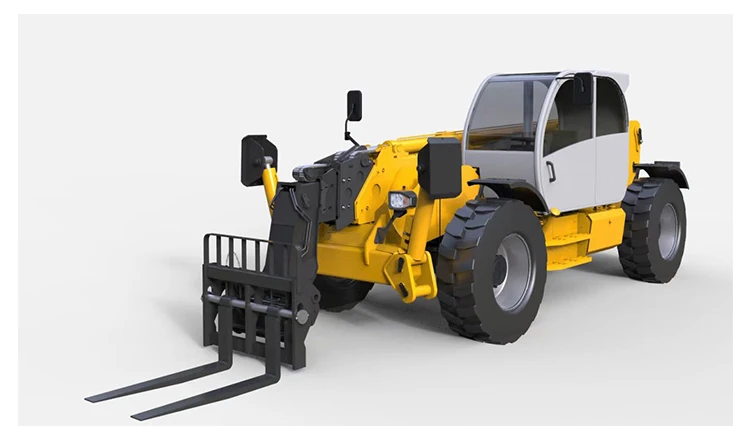

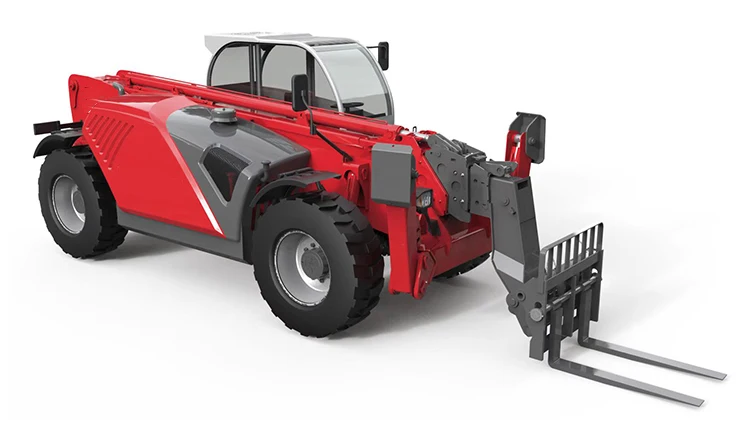

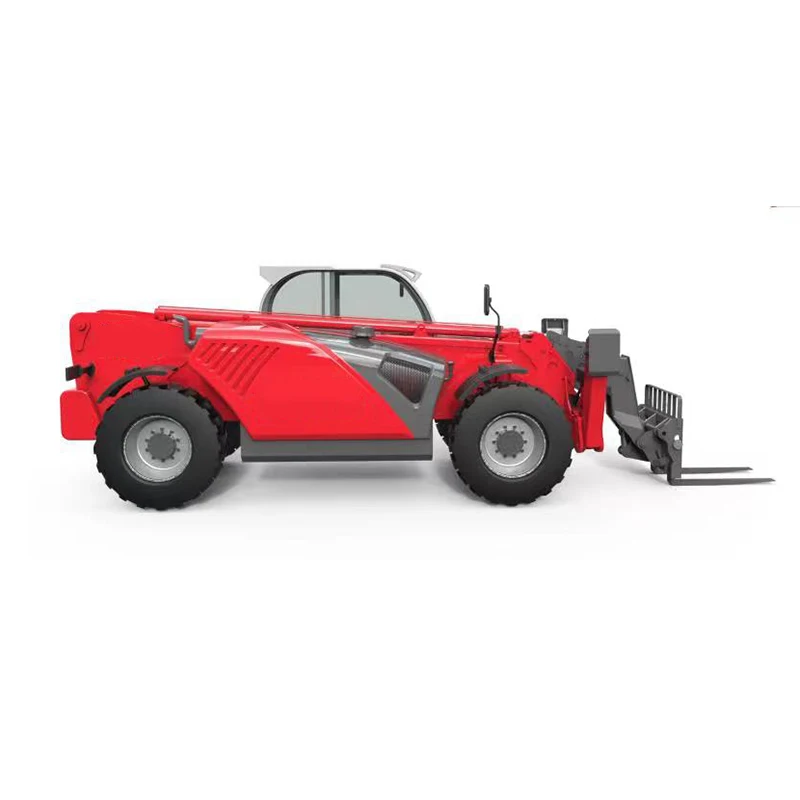

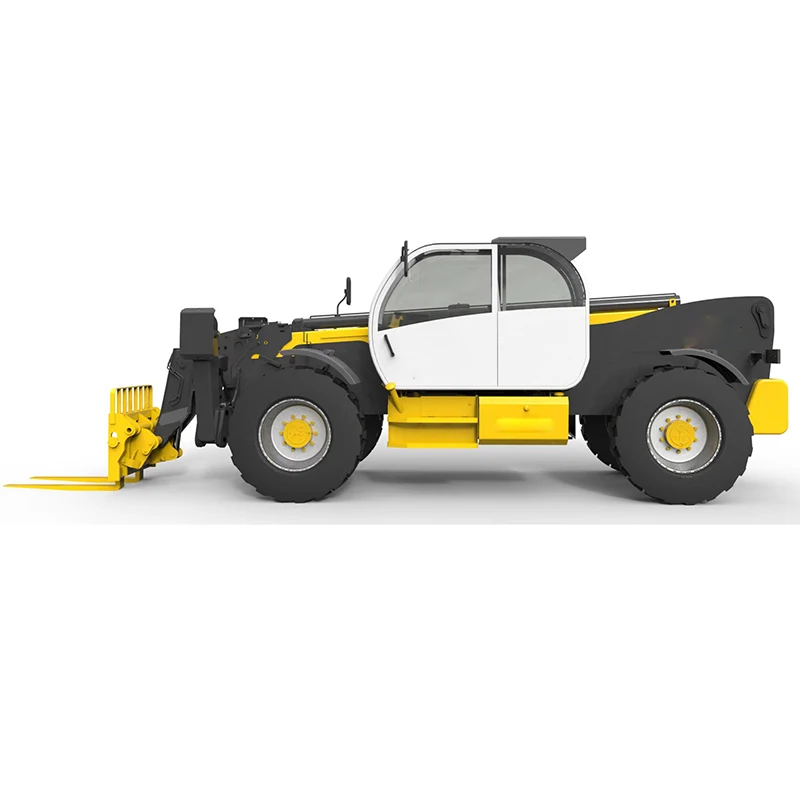

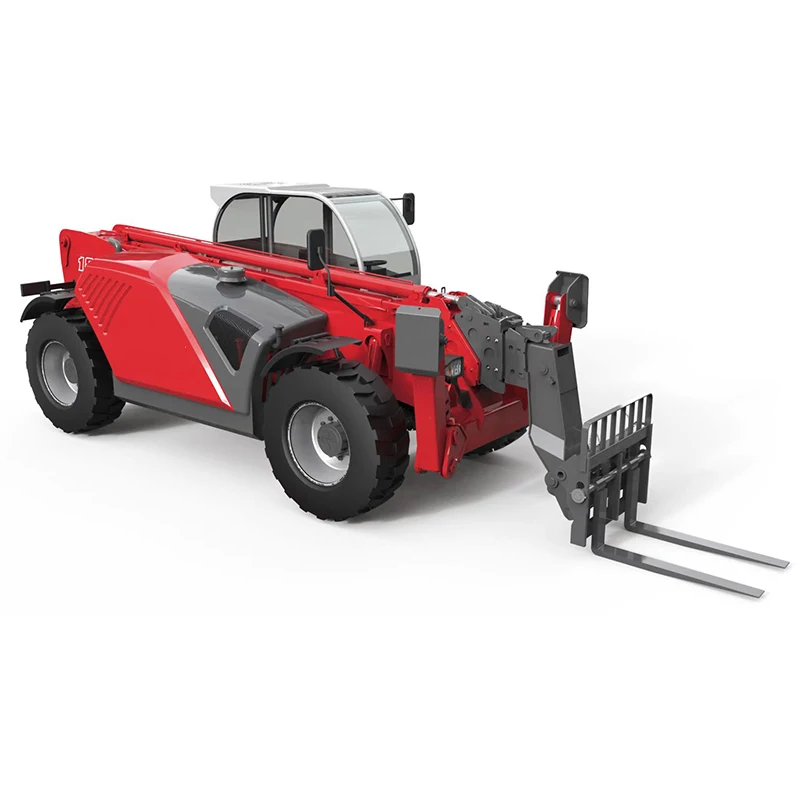

PANDA 4 Ton 17m Manufacturer Articulated Hydraulic Mini Agricultural Telehandler Price
- Category: >>>
- Supplier: Shandong Panda Construction Machinery Co. Ltd.
Share on (1600755375124):
Product Overview
Description
Product information
Compact structure, flexible operation, stable lifting, automatic leveling, high net load index, accurate fork transportation;
Cummins engine, low noise, low emission, strong power and large torque reserve;
Cummins engine, low noise, low emission, strong power and large torque reserve;
Full hydraulic wet braking system, stable and reliable braking, to ensure driving safety;
Equipped with a torque limit system to meet the needs of extreme working conditions and ensure operational safety;
Equipped with a torque limit system to meet the needs of extreme working conditions and ensure operational safety;
The fork leveling adopts the automatic flow compensation technology to realize the automatic control of the fork level during the luffing process of the boom to ensure the stability and safety of the high-position fork lift;

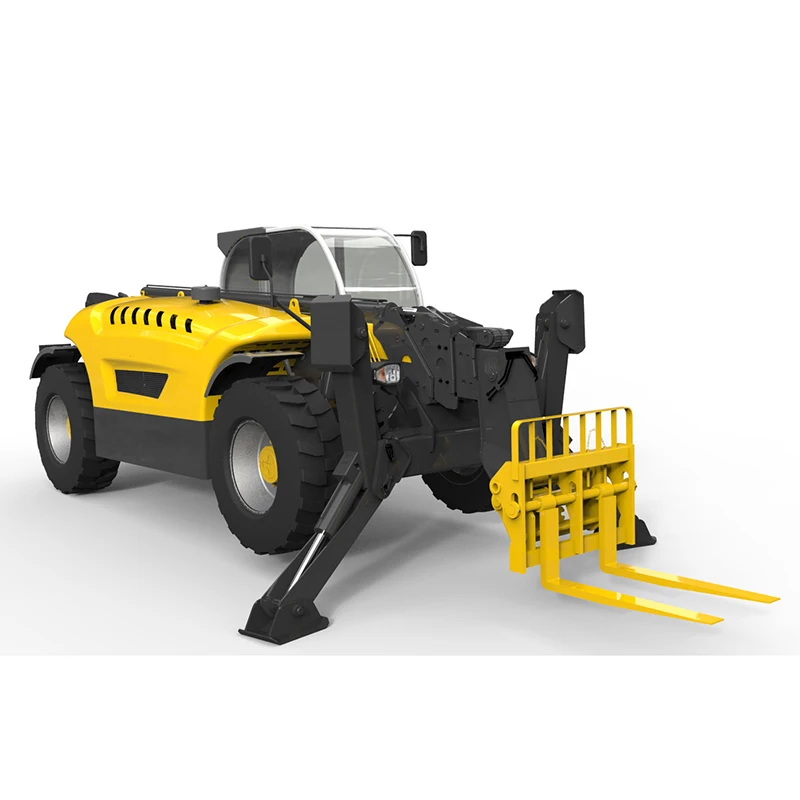

It has the function of horizontal leveling of the frame, and has strong site adaptability to meet the needs of complex working conditions;
Four-wheel drive, with two-wheel steering, four-wheel steering and crab steering mode, strong off-road capability, suitable for different work situations;
It has the function of horizontal leveling of the frame, and has strong site adaptability to meet the needs of complex working conditions;
Four-wheel drive, with two-wheel steering, four-wheel steering and crab steering mode, strong off-road capability, suitable for different work situations;
Adopt fully electronically controlled gearbox and axle, compact structure and high transmission efficiency;
Advanced human-computer interaction system, instrument monitoring and alarm system are fully functional and easy to operate;
It can be equipped with various tools such as high-altitude platforms and buckets to meet the individual needs of users.
Advanced human-computer interaction system, instrument monitoring and alarm system are fully functional and easy to operate;
It can be equipped with various tools such as high-altitude platforms and buckets to meet the individual needs of users.
Product parameters
Rated load | kg | 4000 | ||
Maximum lift height | mm | 17550 | ||
Maximum reach | mm | 13080 | ||
Main traction force | KN | ≥70 | ||
Minimum ground clearance | mm | 420 | ||
Overall dimensions of the whole machine (length × width × height) | mm | 6970×2430×2550 | ||
Overall width (with hydraulic outriggers fully open) | mm | 3800 | ||
Wheelbase | mm | 3670 | ||
Wheelbase | mm | 1990 | ||
Rear wheel center to rear | mm | 1240 | ||
Turning radius (outer wheel) | mm | ≤4500 | ||
Maximum travel speed | km/h | 30 | ||
Tire | / | 440/80-24 | ||
Steering mode | / | 4 Wheel Drive, 3 Steering Modes Front Wheel Steering, Crab Steering, Four Wheel Steering | ||
Transfer method | / | Torque converter drive | ||
Service brake | / | Oil-immersed multi-disc hydraulic brake [disc brake] | ||
Parking brake | / | Negative braking | ||
Empty weight (with forks) | kg | 13500 | ||
Engine | Model | / | Cummins 4BT3.9-C 100 | |
Power | kw/r/min | 74/2200 | ||
Number of gears (forward/reverse) | / | 4/4 | ||
Reverse gear | / | Electromagnetic | ||
Working equipment | Lift | s | 18 | |
Decline | 13 | |||
Outreach | 17 | |||
Retracted | 16 | |||
Tipping up (filling) | 5 | |||
Tipping down (unloading) | 4 | |||
Standard Fork (LxWxD) | mm | 1200 x 125 x 50 | ||
Control | / | JSM multifunctional centralized handle | ||
Frame leveling | / | [Overload Protection System] | ||
Packing & Delivery
About us
FAQ
How long will your price be valid?
we are an honest and friendly supplier, providing value to our customers is our working philosophy. We are not greedy businessmen. Normally, our offer is valid for 6 months. We will only consider changing the price if the RMB appreciates substantially and the factory notifies us of the price increase of raw materials.
Which payment terms can you accept?
Normally we can work on T/T payment.
30% down payment is required in advance, and a 70% balance shall be paid before shipment.
What logistics ways you can work for shipment?
We can ship construction machinery with various transportation tools.
(1) For 80% of our shipment, the machine will go by sea, to all main continents such as Africa, South America, Middle East, Oceania, Southeast Asia, etc., either by container or RoRo/Bulk shipment.
(2) For inland neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Kyrgyzstan, Tajikistan, Uzbekistan, Turkmenistan, etc., we can send machines by road or railway.
(3) For light spare parts in urgent demand, we can send them by international courier services, such as DHL, TNT, USP, or FedEx.
we are an honest and friendly supplier, providing value to our customers is our working philosophy. We are not greedy businessmen. Normally, our offer is valid for 6 months. We will only consider changing the price if the RMB appreciates substantially and the factory notifies us of the price increase of raw materials.
Which payment terms can you accept?
Normally we can work on T/T payment.
30% down payment is required in advance, and a 70% balance shall be paid before shipment.
What logistics ways you can work for shipment?
We can ship construction machinery with various transportation tools.
(1) For 80% of our shipment, the machine will go by sea, to all main continents such as Africa, South America, Middle East, Oceania, Southeast Asia, etc., either by container or RoRo/Bulk shipment.
(2) For inland neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Kyrgyzstan, Tajikistan, Uzbekistan, Turkmenistan, etc., we can send machines by road or railway.
(3) For light spare parts in urgent demand, we can send them by international courier services, such as DHL, TNT, USP, or FedEx.
