Custom Size VIPPAI Four Side Sealing Single Alcohol Prep Pad Swabs Manufacturing Machine With GMS
- Category: Wet Wipe Making Machines >>>
- Supplier: Wenzhou,Weipai,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Machine Feature
VPD-250D High Speed Right Angle Single Wet Wipes Machine
1. VPD-250D adopts Japan Yaskawa servo motor and Yaskawa Motion Controller. It is more intelligent and accurate, and also improve the productivity. The speed is 100-150 bags/min.
2. Adjustable mould can produce many sizes of wet wipes, it can make (40-140) *(40-110) mm(L*W). 3. When outputting finished wipes, single pack or double pack can be chosen at will.(（only need to replace the dotted line knife part）)
4. Non-woven fabrics can be folded according to different types. Up to 10 vertical folds and 4 horizontal folds, which can be freely folded by unfolding the width and length of the non-woven fabric.
5. Twice heat sealing to avoid liquid leakage.
6. Using right angle knife is more cost-effective, which is less cost and high productivity.
7. The edging form of package bag can be “-”or “v”.
8. Machine and all main electrical parts strictly passes CE standard.
9. Glass cover to ensure safe and clean operation.
Successful Case
Product Application
Bag Type: 4 Side Seal Right Angle
Power: 8.8KW
Product Size: (40-140) *(40-110) mm(L*W)

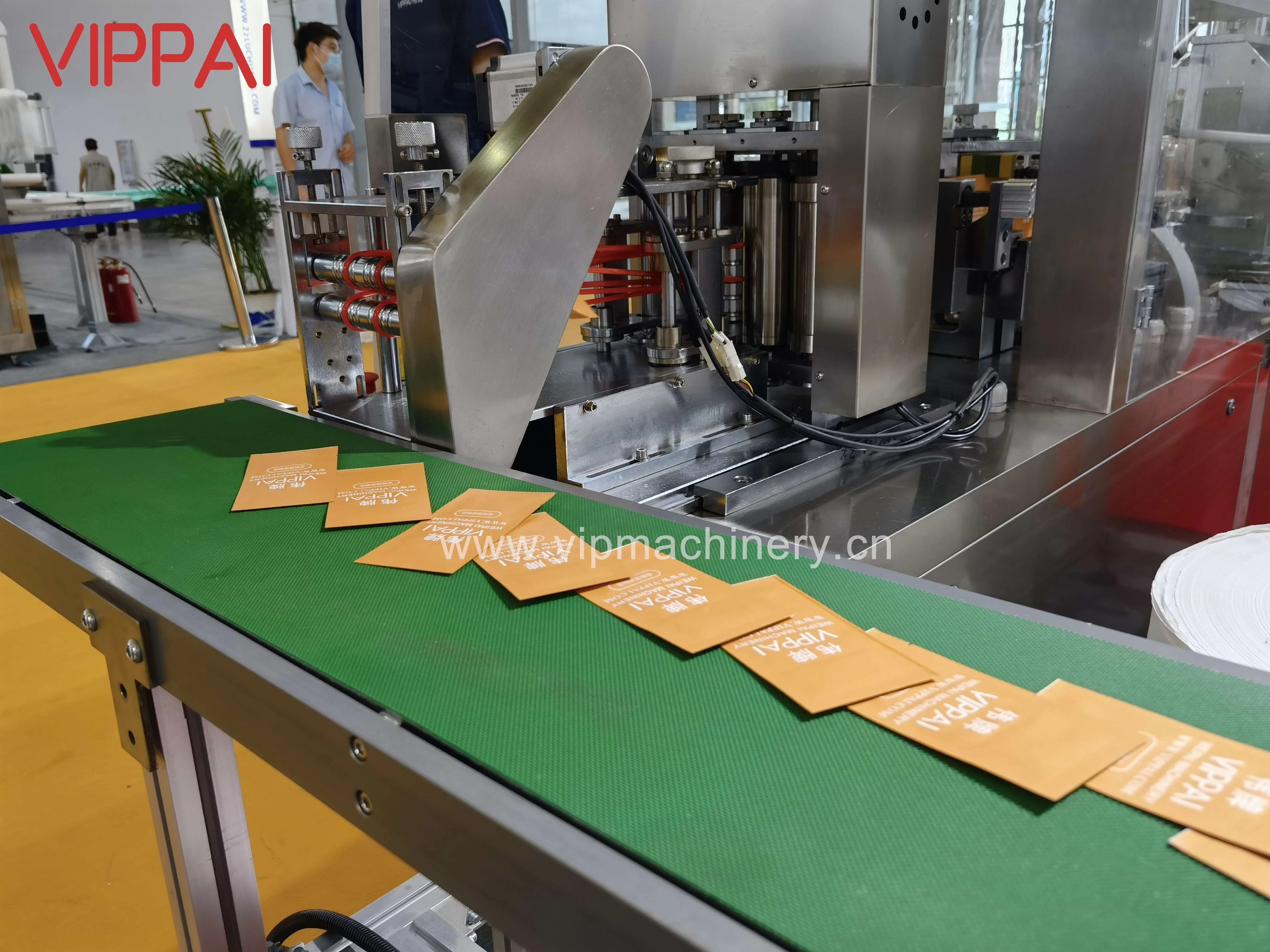

VPD-250D is the high speed single sachet wet wipes/tissue machine making right angle package bag. The speed can reach at 100-150 bags/min.
Products application: disinfectant wipes, alcohol pads/swabs, glass lens wipes, feminine care wipes, male delay wipes, makeup remover wipes and so on.
This machine produces one piece four-side seal wipes that is portable. The right angle device is more cost-effective than the rounded corner device.
Products application: disinfectant wipes, alcohol pads/swabs, glass lens wipes, feminine care wipes, male delay wipes, makeup remover wipes and so on.
This machine produces one piece four-side seal wipes that is portable. The right angle device is more cost-effective than the rounded corner device.
Product Description
Model | VPD 250D | ||||||
Packing Form | horizontal four side sealing with right angle knife | ||||||
Packing Material | PET/AL/PE, PET/AL/PE, Paper/ PE/AL/PE, PET/PE, BOPP/PE/AL/PE, PET/AL/NY/PE | ||||||
Inner Material | 30-80g/m2 air laid paper, nonwoven, spun lace nonwoven fabric etc | ||||||
Packing Size | L: 40-140 MM, W: 40-110 MM | ||||||
Packing Speed | 100-150 BAGS/MIN | ||||||
Folding Way | max 10 folding vertical and 4 folding horizontal | ||||||
Liquid Adding Range | 0-5 ML(according to product) | ||||||
Power Supply | single phase-two wire 220 V 50/60 HZ /three phase four wires 380 V 50/60Hz | ||||||
Total Power | 8.8 KW | ||||||
Air Supply | air pressure 0.6-1.0 MPA, air consumption 300-500 L/MIN | ||||||
Machine Noise | ≤80 db(a) | ||||||
Overall Dimension | 3300*2200*1600 MM | ||||||
Weight | 1100 KG | ||||||
Part Name: Color Code Tracking System
Brand: Japan PanasonicFold the packing film in half and use the photo eyes to detect the color mark to ensure the precise packing.

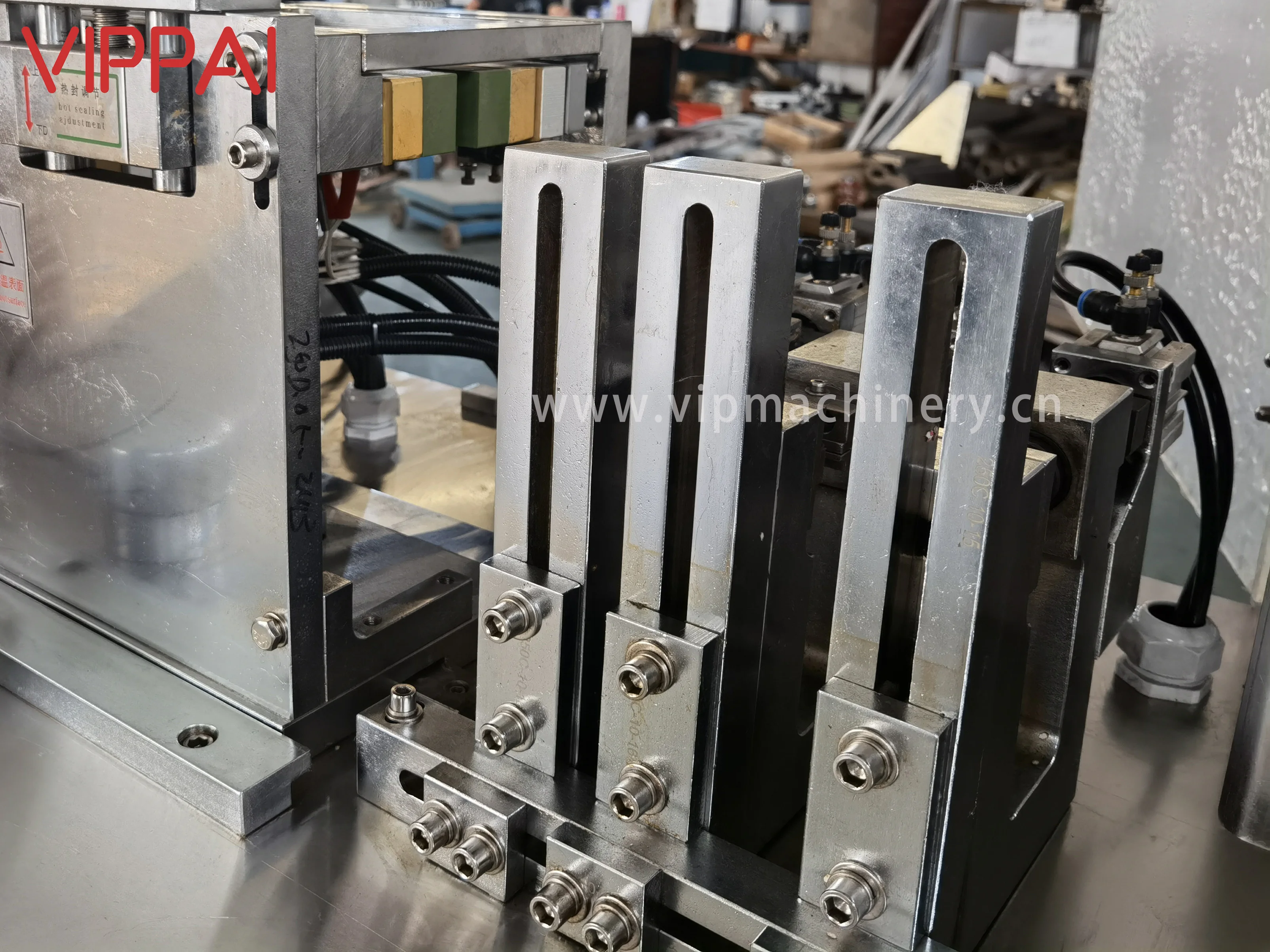

Part Name: Non-woven Folding Shelf
Place the non-woven fabric, the maximum is 10-fold vertical and 4-fold horizontal folding.It can be folded according to customers requirement.

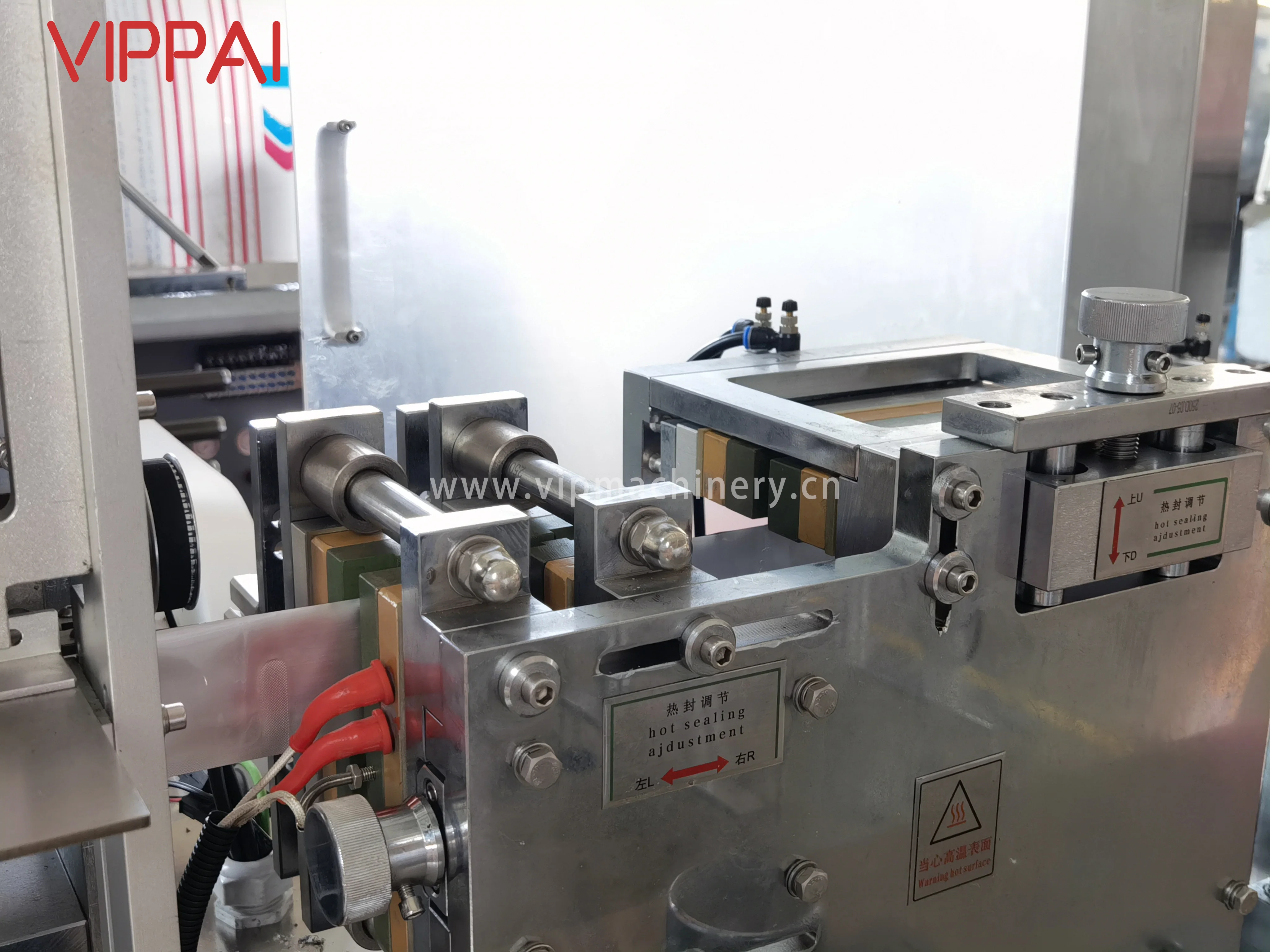

Adopt four-side sealing design, adjustable mold.
The mold coated with Teflon, it is anti-stick also protects the mold mesh and prolongs the service life.
The mold coated with Teflon, it is anti-stick also protects the mold mesh and prolongs the service life.
Part Name: Printing Date Numbers and Easy Tear System
The users can change the steel letters to control the date and codes print on the products the tear mouth have two types for select 'V' or ''-“.
It cuts the right angle package bag and intelligent mechanical manipulator for wet wipe output control.
The pneumatic pump ensures the high precision when adding the essence.
About Us
Wenzhou WEIPAI Machinery Co.,ltd has specialized in Packaging Machinery Industry since 2003.
During 19 years development, we became a leading brand, having a group of senior technical team. Our main products are Wet Wipes Packing Machine, Swab Packing Machine, Face Mask Making Machine, Cartoning Machine, Bagging Machine and so on. Our machines are suitable for Pharmaceutical, Foods, Cosmetics, Health Care Industries.
In addition, we have researched and achieved lots of national technical patents:
for example: A packaging bag slitting and discharging device
Mask Corner Conveying Mechanism
A folding device
During 19 years development, we became a leading brand, having a group of senior technical team. Our main products are Wet Wipes Packing Machine, Swab Packing Machine, Face Mask Making Machine, Cartoning Machine, Bagging Machine and so on. Our machines are suitable for Pharmaceutical, Foods, Cosmetics, Health Care Industries.
In addition, we have researched and achieved lots of national technical patents:
for example: A packaging bag slitting and discharging device
Mask Corner Conveying Mechanism
A folding device
A traction device
No displacement hollow placement conveyor and so on.
Meanwhile, we are cooperating with global famous manufacturers such as SAMSUNG, KFC, LF BEAUTY, and having further relationship with suppliers Siemens, Taiwan Weinview, Delta, Japan Yaskawa and so on. Our machines are sold well among Western Europe, Middle East, Southeast Asia and other more than 20 countries and regions.
No displacement hollow placement conveyor and so on.
Meanwhile, we are cooperating with global famous manufacturers such as SAMSUNG, KFC, LF BEAUTY, and having further relationship with suppliers Siemens, Taiwan Weinview, Delta, Japan Yaskawa and so on. Our machines are sold well among Western Europe, Middle East, Southeast Asia and other more than 20 countries and regions.
Exhibition
Certifications
After-sales Service
VIPPAI not only sales customers one machine, but our professional service and technical support.
1. When the machine is delivered, we will provide videos of the installation and operation of the machine, to make sure customers use machine as soon as possible.
2. All electrical parts of our machines have a one-year warranty, and we will replace them if
they fail.
3. When your machine fails, our engineers will provide professional online after-sales service to help you solve the problem.
they fail.
3. When your machine fails, our engineers will provide professional online after-sales service to help you solve the problem.
4. If the problem cannot be solved online, we will arrange an engineer to repair it.
