JX-ZXFSH-F1-4T
2 ways plastic junction pa6 small box waterproof
- Category: >>>
- Supplier: Yueqing Jixiang Connector Co. Ltd.
Share on (1600755689079):
Product Overview
Description

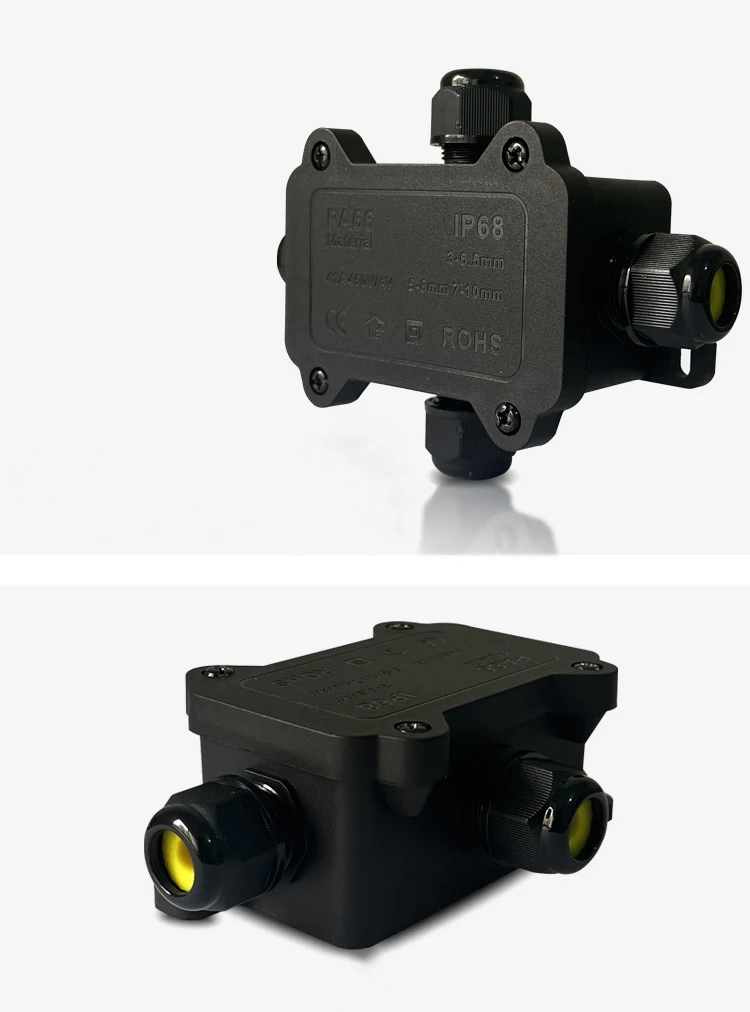

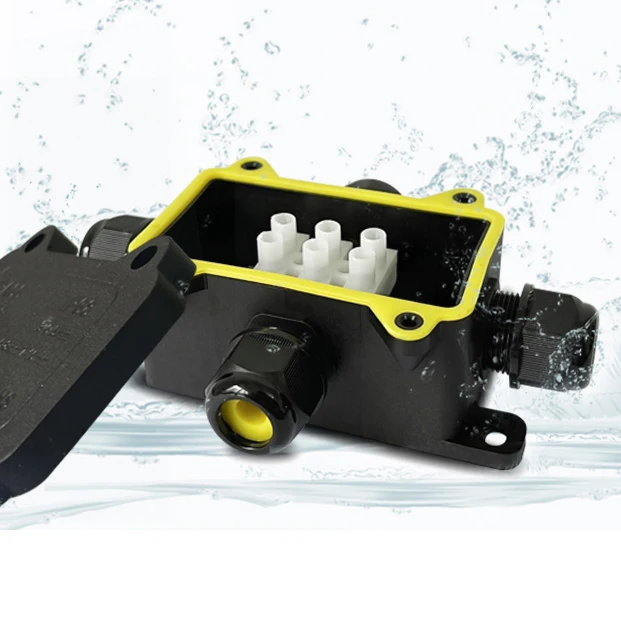

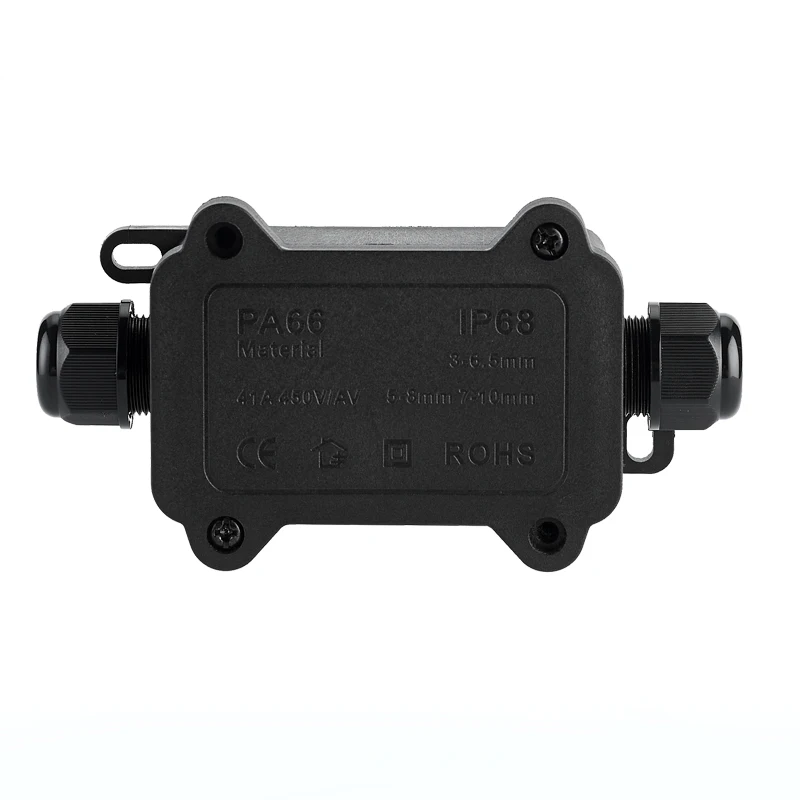

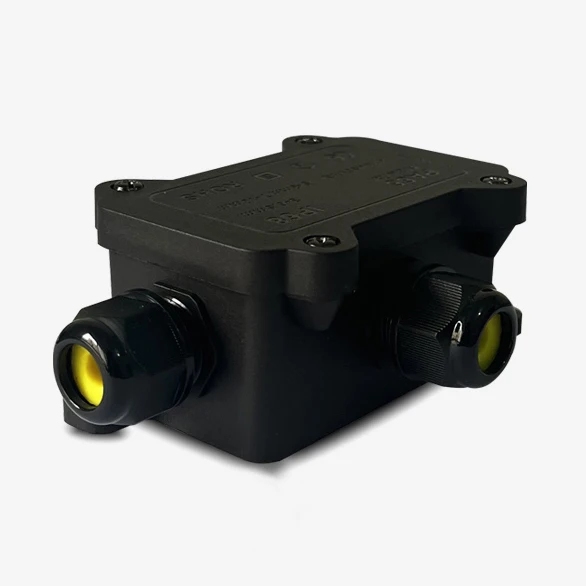

Waterproof Junction Box
Product Description
JX-ZXFSH-F1-2T | Order code | MN-01 | MN-02 | MN-03 |
| 2T | 2 Ways | 2 Ways | 2 Ways | |
| Locking range | 3-6.5mm | 5-8mm | 7-10mm | |
| Unit weight(g) | 70 | 69.6 | 69 | |
| Protection rate: | IP68 | |||
| Temperature resistance | -40°C to 105°C | |||
| Storing temperature | Normal temperature | |||
| Main material | PA6 nylon | |||
| Connecting method | by screwing nuts | |||
| Conductor material | 59.1 brass | |||
| Cable square | 0.5-2.5mm2 | |||
| Voltage resistance | 1500v | |||
| Ampere/ voltage | 24A/450V | |||
| Flame standard grade | UL-94VO | |||
| Package | 144pcs / carton ; Carton size: 49*35*23cm | |||
JX-ZXFSH-F1-3T | Order code | MN-05 | MN-06 | MN-07 |
| 3T | 3 Ways | 3 Ways | 3 Ways | |
| Locking range | 3-6.5mm | 5-8mm | 7-10mm | |
| Unit weight(g) | 76 | 75.2 | 74.4 | |
| Protection rate: | IP68 | |||
| Temperature resistance | -40°C to 105°C | |||
| Storing temperature | Normal temperature | |||
| Main material | PA6 nylon | |||
| Connecting method | by screwing nuts | |||
| Conductor material | 59.1 brass | |||
| Cable square | 0.5-2.5mm2 | |||
| Voltage resistance | 1500v | |||
| Ampere/ voltage | 24A/450V | |||
| Flame standard grade | UL-94VO | |||
| Package | 126pcs / carton ; Carton size: 49*35*23cm | |||
| Order code | MN-08 | MN-09 | MN-10 |
| 4T | 4 Ways | 4 Ways | 4 Ways | |
| Locking range | 3-6.5mm | 5-8mm | 7-10mm | |
| Unit weight(g) | 77.2 | 76.4 | 75.2 | |
| Protection rate: | IP68 | |||
| Temperature resistance | -40°C to 105°C | |||
| Storing temperature | Normal temperature | |||
| Main material | PA6 nylon | |||
| Connecting method | by screwing nuts | |||
| Conductor material | 59.1 brass | |||
| Cable square | 0.5-2.5mm2 | |||
| Voltage resistance | 1500v | |||
| Ampere/ voltage | 24A/450V | |||
| Flame standard grade | UL-94VO | |||
| Package | 108pcs / carton ; Carton size: 49*35*23cm | |||
