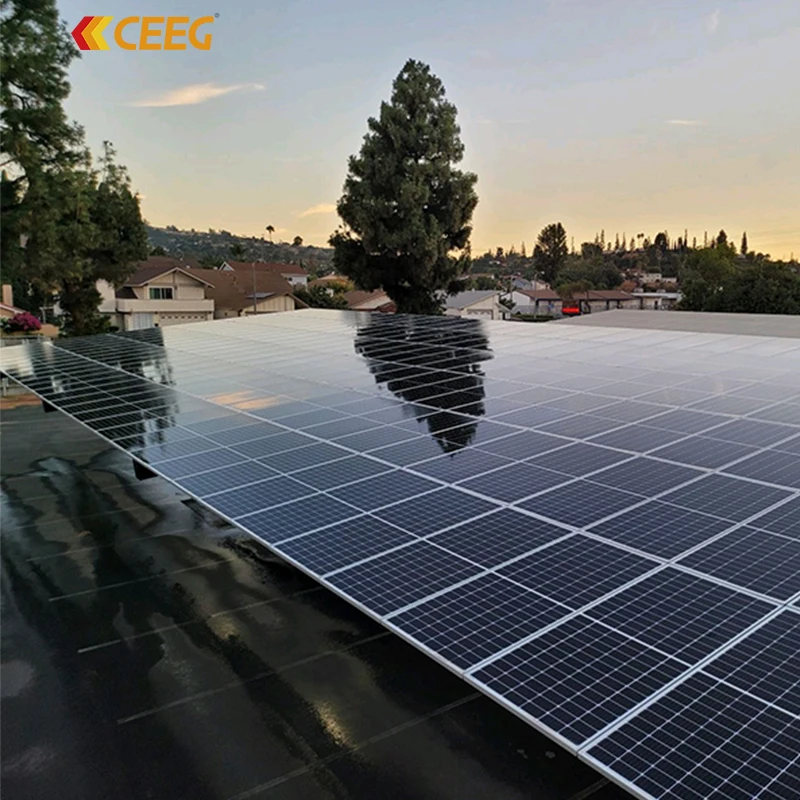

Photovolta solar cell solar energi panel factori 10bb 545w 550w 555w mono pannello solare
Photovolta solar cell solar energi panel factori 10bb 545w 550w 555w mono pannello solare
Photovolta solar cell solar energi panel factori 10bb 545w 550w 555w mono pannello solare
Photovolta solar cell solar energi panel factori 10bb 545w 550w 555w mono pannello solare
Photovolta solar cell solar energi panel factori 10bb 545w 550w 555w mono pannello solare

Photovolta solar cell solar energi panel factori 10bb 545w 550w 555w mono pannello solare

Share on (1600755760331):


Price:$0.24 - $0.26

Quantity:


Product Overview

Description



Product Description








Model
CHCI-3.6K-5.12kWh
CHCI-3.6K-10.24kWh
CHCI-5.0K-5.12kWh
CHCI-5.0K-10.24kWh
CHCI-6.0K-5.12kWh
CHCI-6.0K-10.24kWh
PV Input
Absolute max Voltage (V)
600
MPPT Voltage Range (V)
100...550
Max. DC Input Power (W)
4800
6650
8000
Start-up Voltage (V)
90
Rated Operating Voltage (V
360
Max. Input Current (A)
12.5/12.5
Isc PV (A)
18/18
NO. of MPP Trackers
2
NO. of Strings per MPP Tracker
Battery
Battery Capacity
LiFeP04 5.12kWh/10.24kWh
Nominal Battery Voltage (V)
204.8/409.6
Battery Voltage Range (V)
160...227.2/320...454.4
Max. Charge/Discharge Current (A)
25/25
AC Input/Output
Max. Apparent Power to Grid (VA)
3600
5000
6000
Rated Power (W)
3600
5000
6000
Max. Apparent Power from Grid (VA)
7200
10000
12000
Rated Voltage (V)
220/230/240
Rated Frequency (Hz)
50/60
Rated AC Current to Grid (A)
15.6
21.7
26.1
Rated AC Current from Grid (A)
31.2
43.4
52.2
Rated AC Current from Grid (A)
31.2
43.4
52.2
Displacement Power Factor
1（-0.8…+0.8 adjustable)
THDi
＜3%
EPS Output (With Battery)
Max. Output Power (W)
3600
5000
6000
Rated Apparent Power (VA)
4320
6000
7200
Rated Voltage (V)
230(±2%）
Norminal Frequency (Hz)
50/60(±0.2%）
Rated Output Current (a.c.A)
18.8
26.1
31.3
Switch time (ms)
＜10
THDv @Linear Load (%)
＜2
Efficiency
PV Max Eficiency (%)
97.6
PV Europe Efficiency (%)
97
PV Max. MPPT Efficiency (%)
99.9
Battery Discharge Efficiency (%)
96.7
Protection
Over/Under voltage protection
YES
DC isolation protection
YES
Over current protection
YES
DC injection monitoring
YES
Residual current detection
YES
Anti- islanding protection
YES
Over load protection
YES
Battery Input reverse polarity protection
YES
Surge protection
YES
PV reverse polarity protection
YES
Over heat protection
YES
General Data
Dimension (W/D/H)(mm)
550*233*1125
550*233*1750
Dimension of Packing (W/D/H)(mm)
655*302*1390
655*302*2085
Net weight (kg)
68
115
Gross weight (kg)
78
130
Operation Temp (℃）
﹣10…+55
Relative Humidity (%)
0~95
Altitude(m)
≤3000
Ingress Protection
IP65
Cooling
Natural
Inverter Topology
Non-isolated
Human Interface
LED/APP
BMS Communication Interface
RS485/CAN
Meter Communication Interface
RS485
Noise Emission (dB)
＜25
Standby Power Consumption (w)
＜5

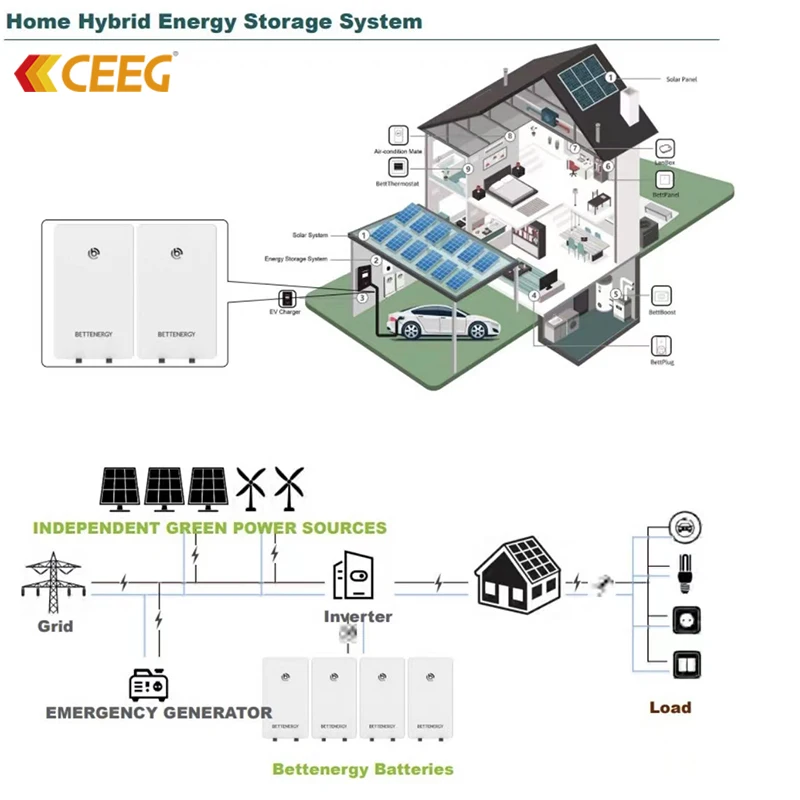

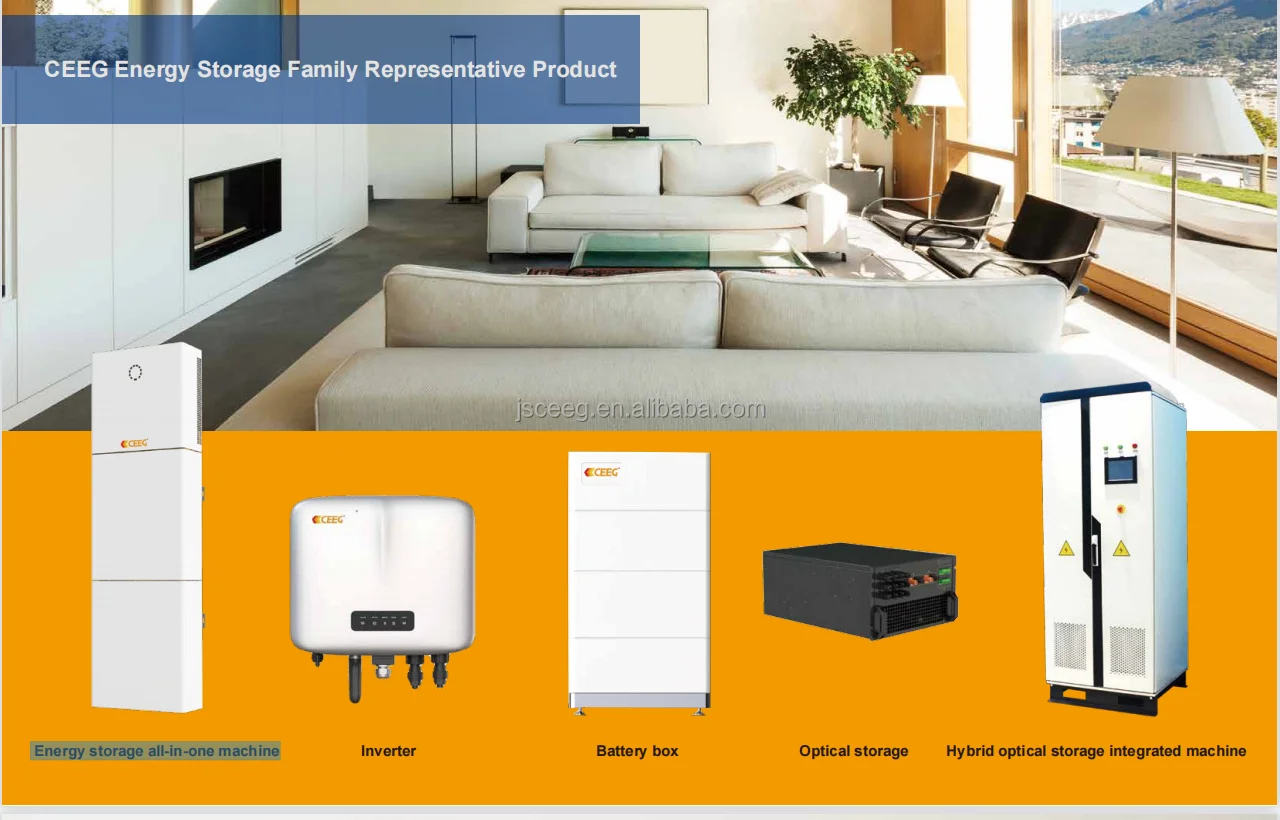

SOTRAGE SYSTERM
High integration, independent research and development, exquisite materials and high cost performance.
We accept customization and OEM.

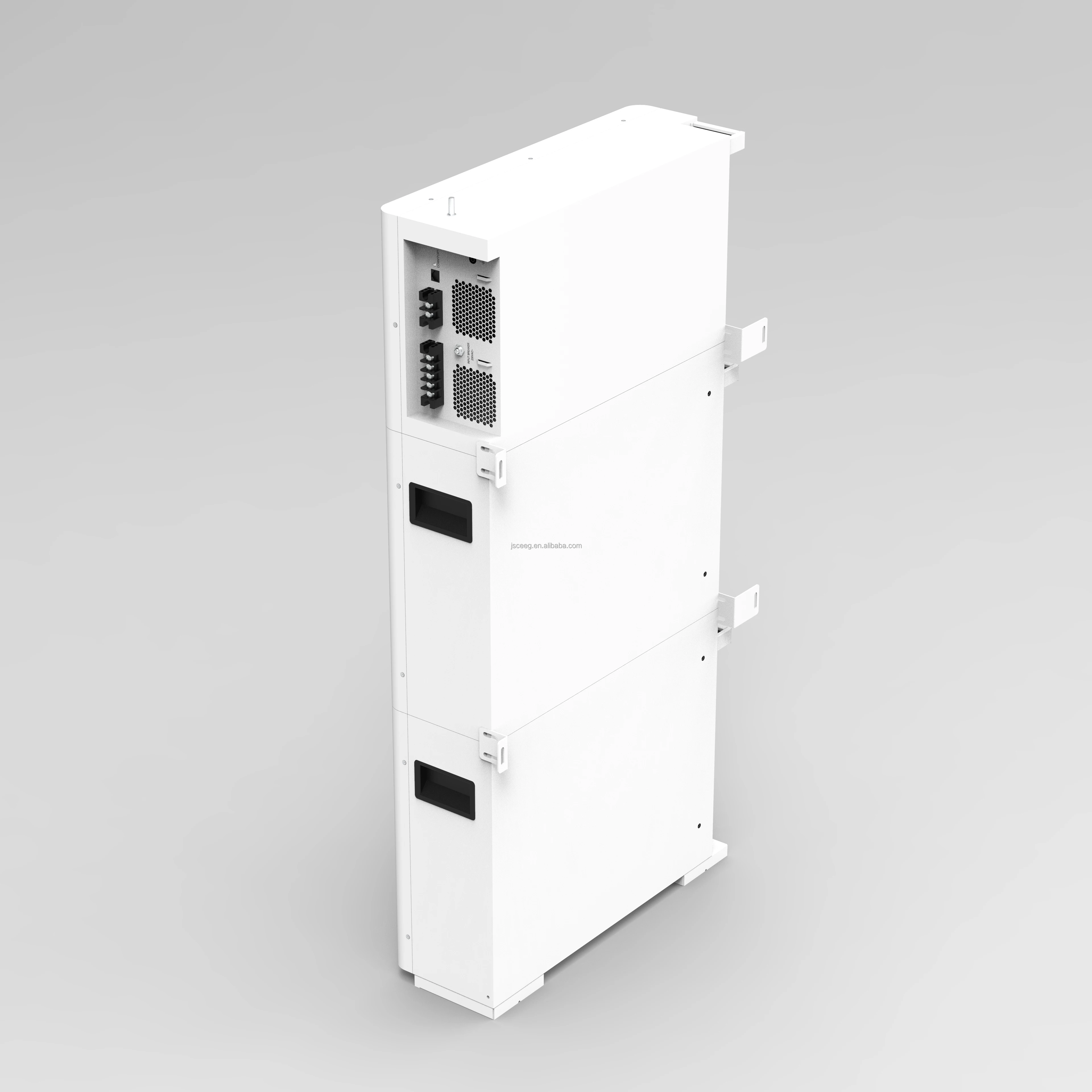

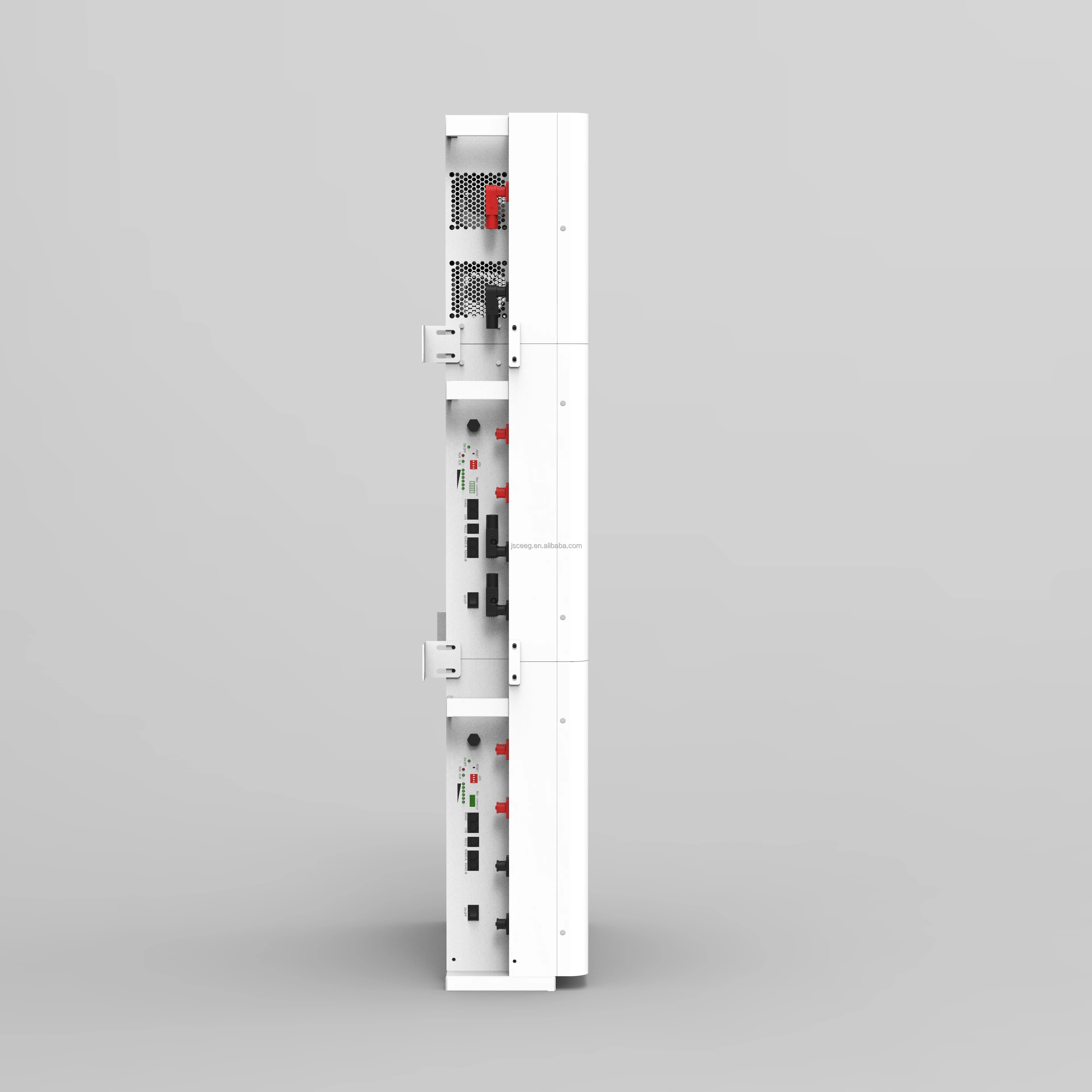

Detailed Images




Related Products

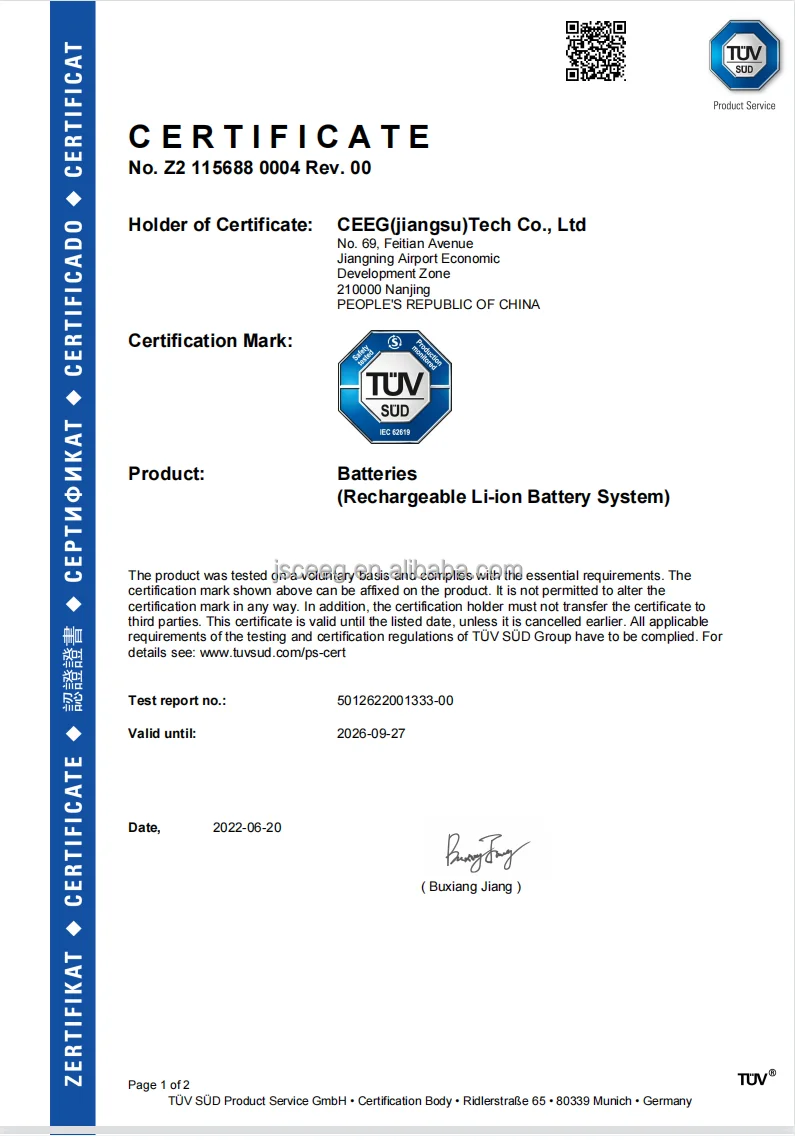

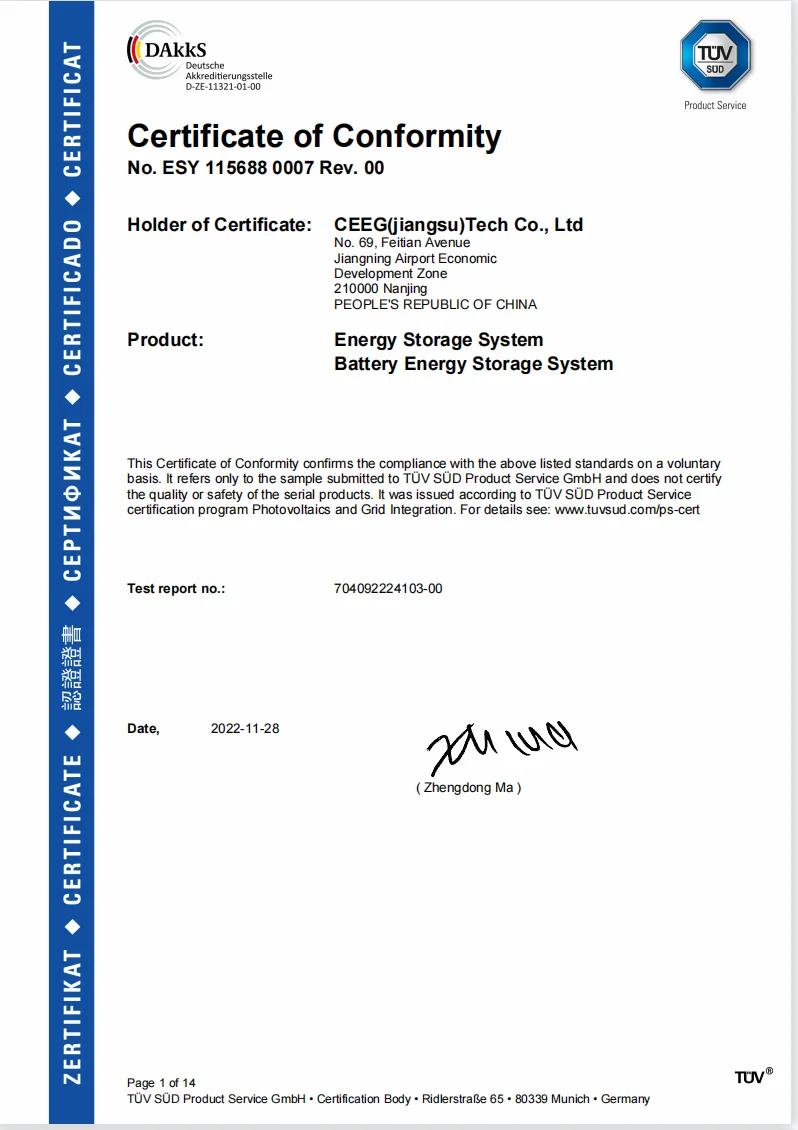

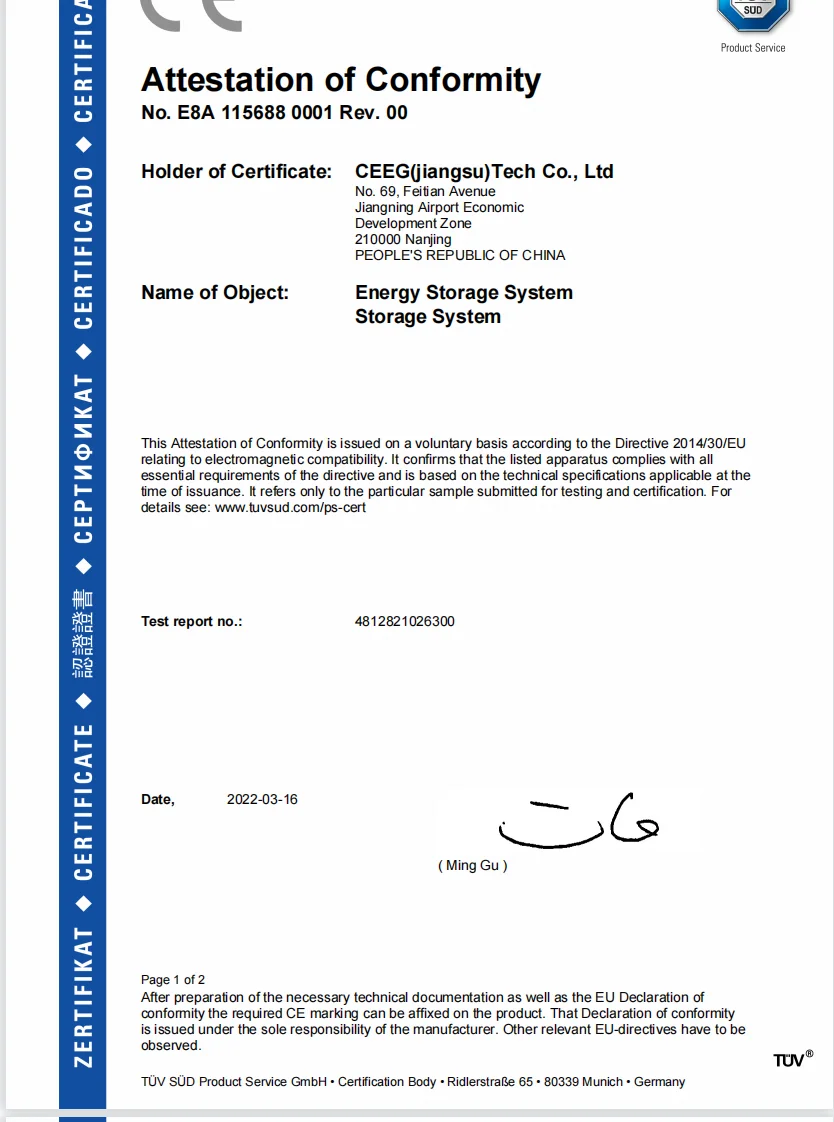

Certificate
