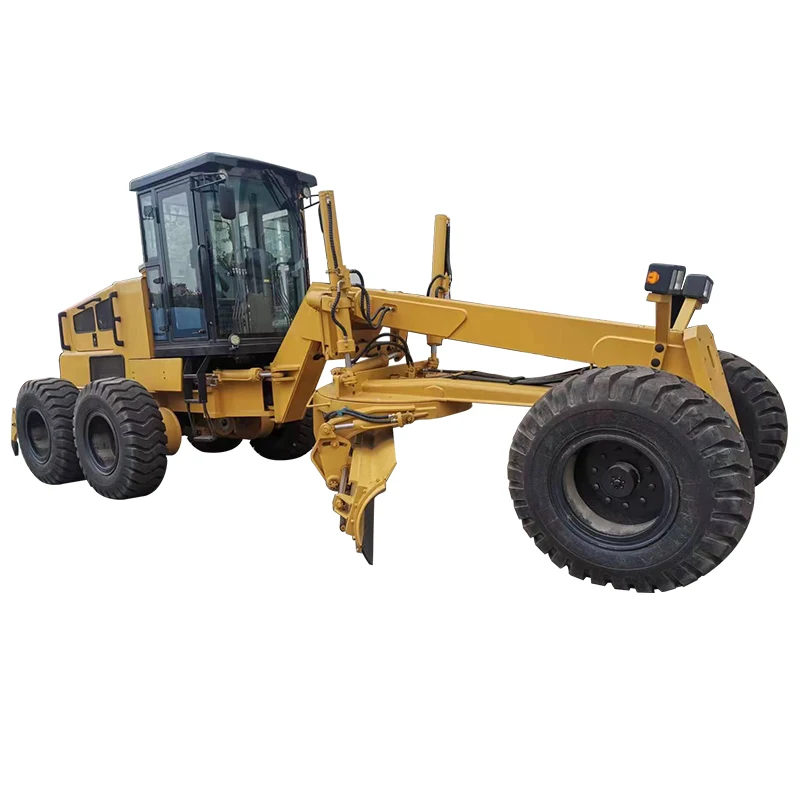

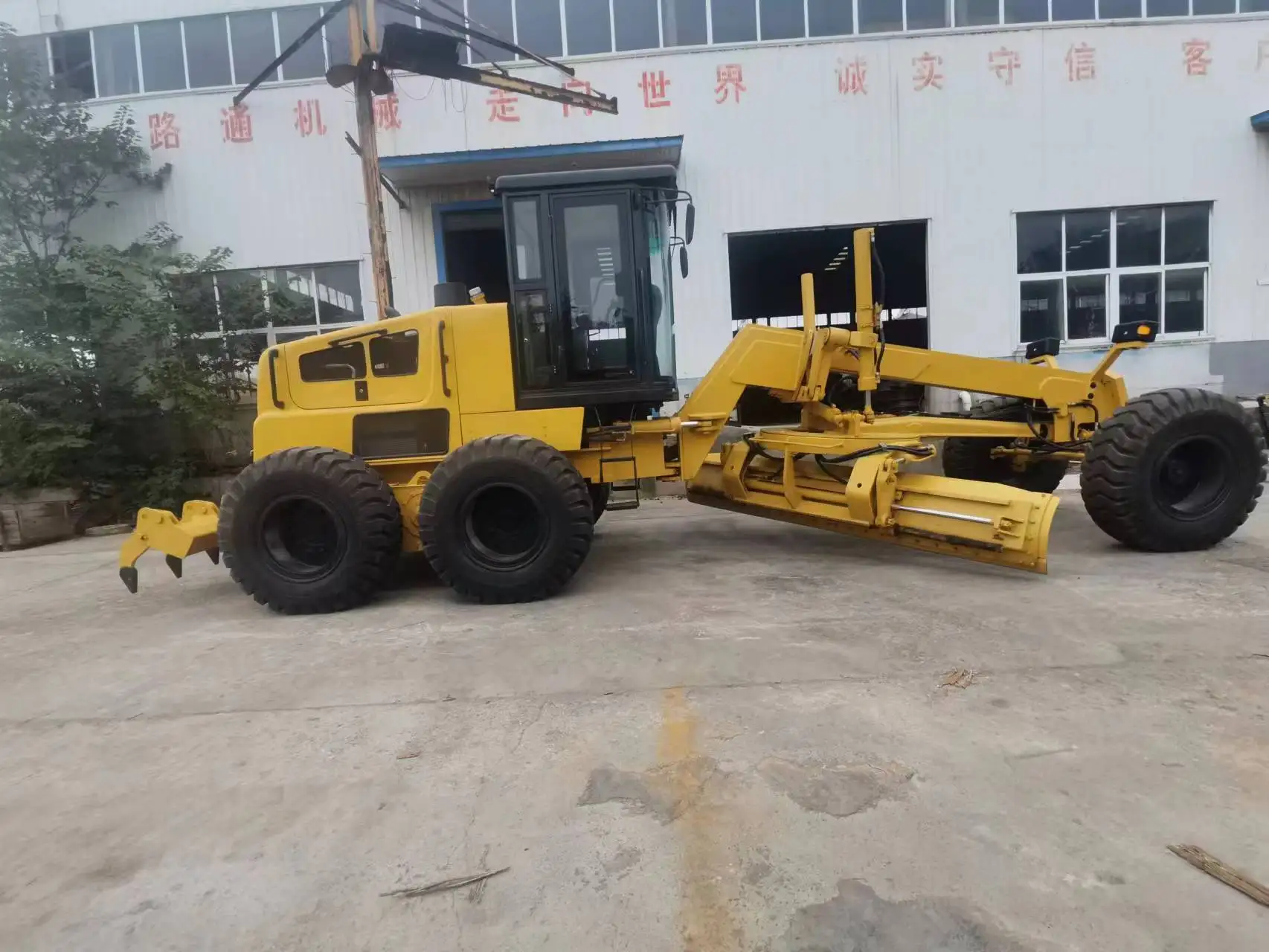

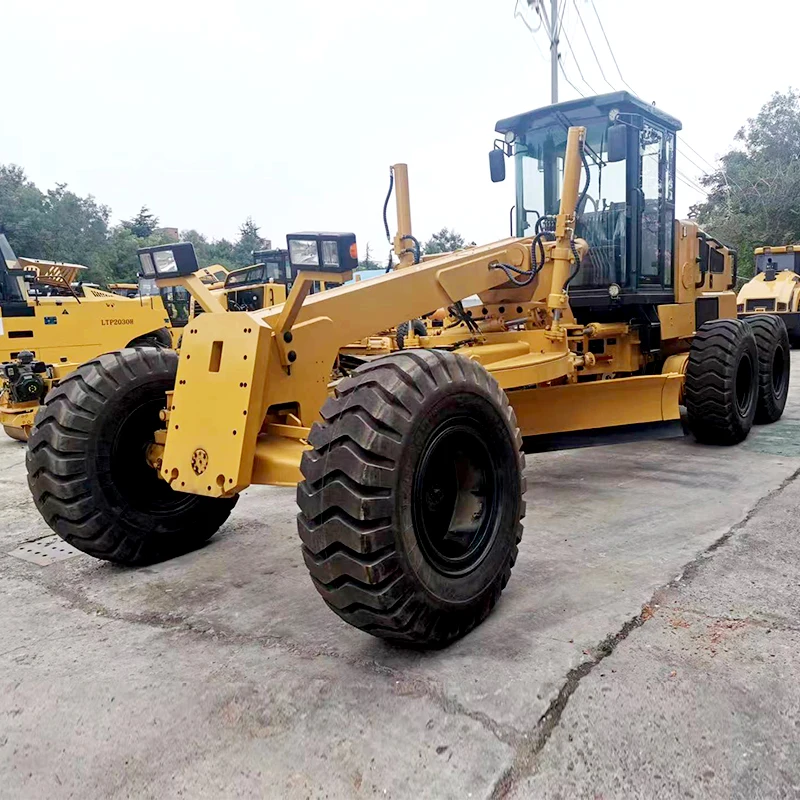

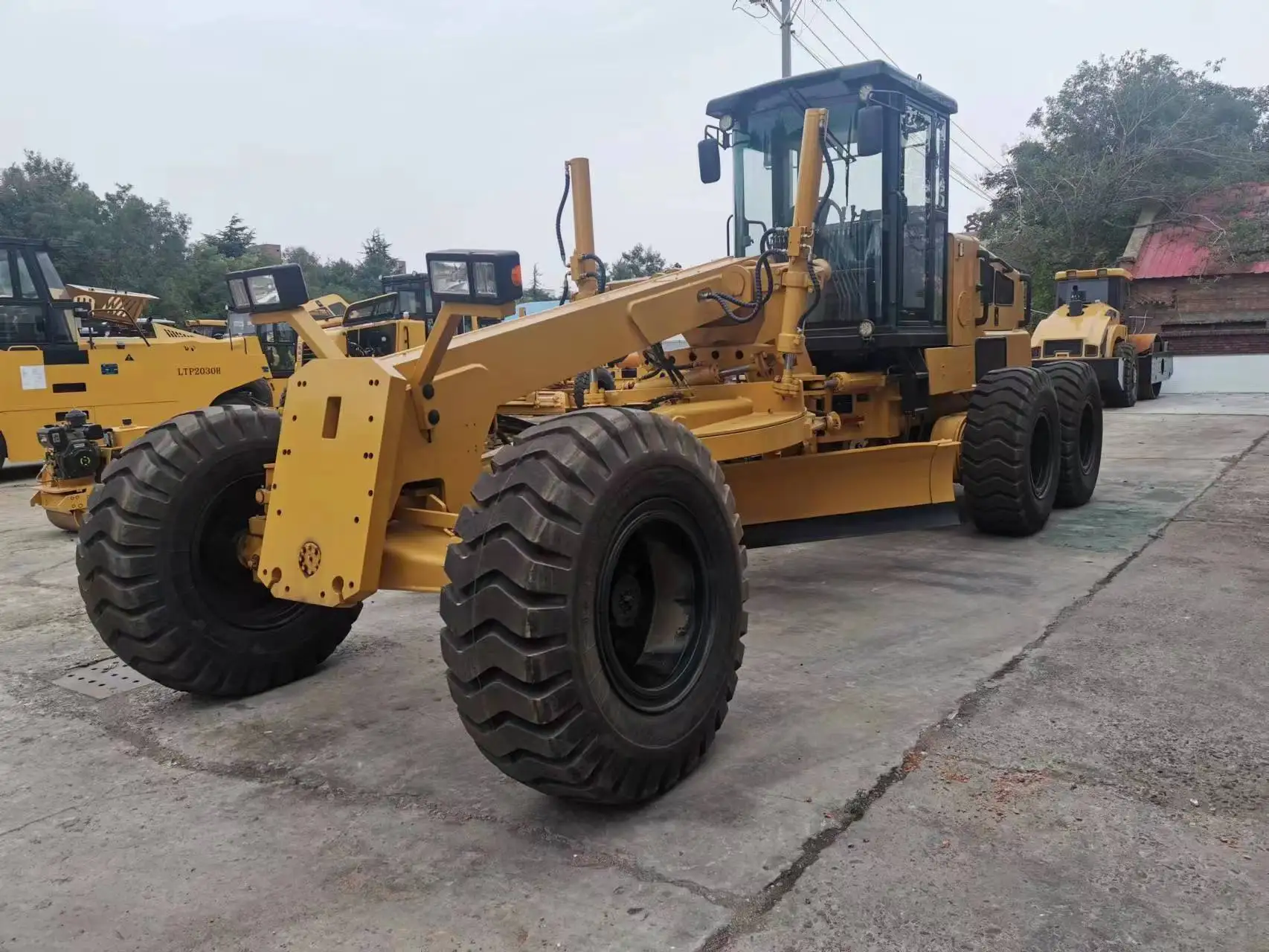

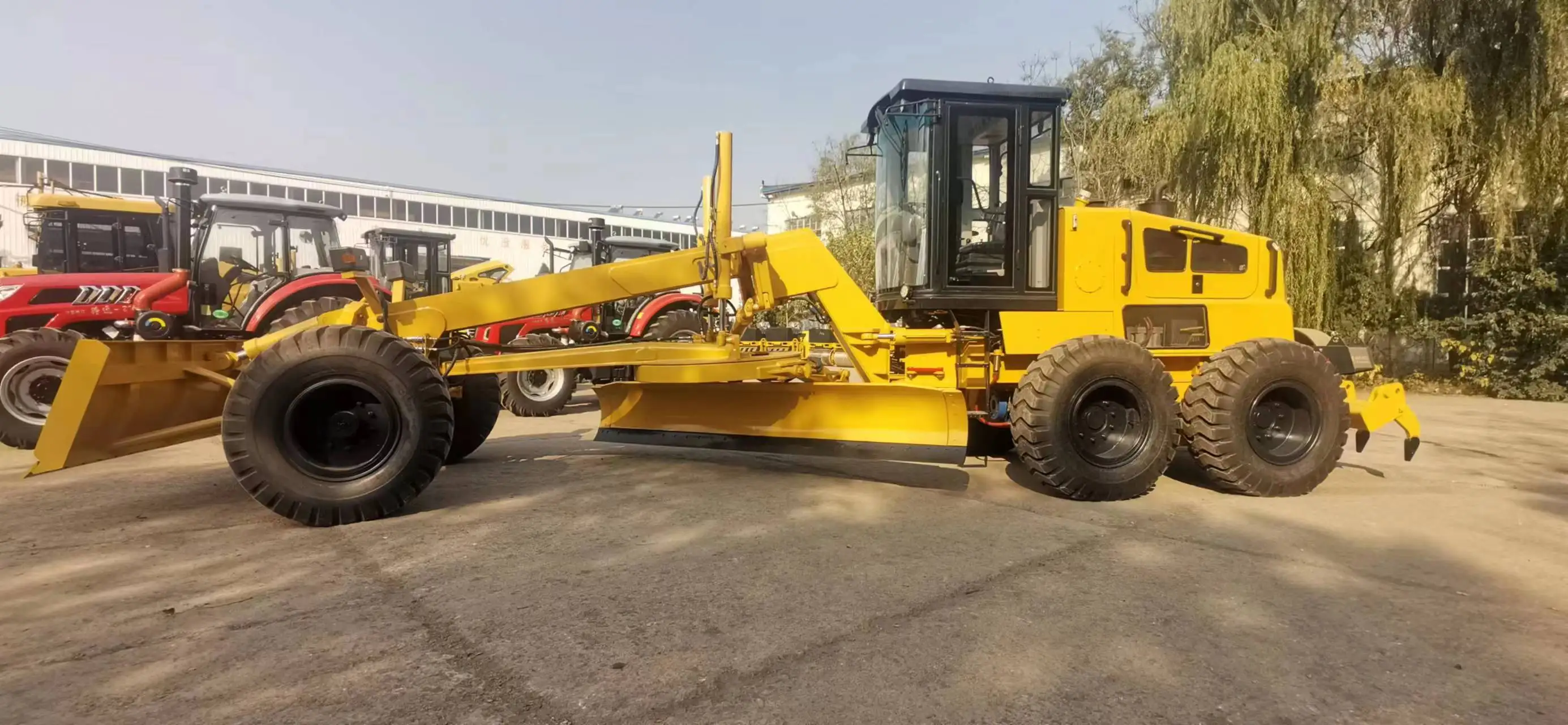

100HP Mini used Motor grader With Blade/Ripper For Sale
- Category: >>>
- Supplier: Shandong Wonway Machinery Co. Ltd.
Share on (1600755785435):
Product Overview
Description
Products Description
What can our motor grader do for you?
We can go to the United States and Europe to sell, our products through CE certification, core components in line with European and American standards, you can use in your country, we can meet any needs of your model and tonnage, can better meet your work needs. If the parts are damaged, we will provide new parts free of charge.
Details
In response to the demands of severe working conditions in earthwork projects, this motor grader is a high power grader under standardized mass production with the application of domestic leading production processes and technologies frame.
Advantage:
▲Power configuration is Cummins or Shanghai Diesel Engine inter-cooling supercharged diesel engine with strong power and reliable performance.
▲Torque converter and power-shift gearbox introduced from GERMANY ZF inc. are integrated together Six forward gears and three backward gears meet various requirements during machine’s working and transporting.
▲Driving axle with integrated free-wheel anti-slip differential and strong roller chain drive tandem case, Boxed oscillated steering front axle with leaned wheels.
▲Popular working mechanism with pendulum-arm connecting rod structure,Standard equipped free-maintenance rolling-plarecircle device. Double cylinders of the blade tip control can adjust the cutting angle depending on soil quality.
▲Power configuration is Cummins or Shanghai Diesel Engine inter-cooling supercharged diesel engine with strong power and reliable performance.
▲Torque converter and power-shift gearbox introduced from GERMANY ZF inc. are integrated together Six forward gears and three backward gears meet various requirements during machine’s working and transporting.
▲Driving axle with integrated free-wheel anti-slip differential and strong roller chain drive tandem case, Boxed oscillated steering front axle with leaned wheels.
▲Popular working mechanism with pendulum-arm connecting rod structure,Standard equipped free-maintenance rolling-plarecircle device. Double cylinders of the blade tip control can adjust the cutting angle depending on soil quality.
MODEL | WY165C | WY180C | WY220C | |
Operating mass | 15000 | 16000 | 16900 | Kg |
Front axle load | 4150 | 5150 | 5820 | Kg |
Rear axle load | 10850 | 10850 | 11080 | Kg |
Max forward speed | 40.4 | 36/38.2 | 36.8 | Km/h |
Max backward speed | 25.7 | 25/24.5 | 24.8 | Km/h |
Speed gear number | F6/R3 | F6/R3 | F6/R3 | |
Turning radius | 7500 | 7800 | 7800 | mm |
Hydraulic system pressure | 18 | 18 | 18 | Mpa |
Blade lengt × height | 3660×610 | 3965×610 | 3965×610 | mm |
Front wheel track | 2150 | 2150 | 2150 | mm |
Rear wheel track | 2255 | 2255 | 2255 | mm |
wheelbase | 5347 | 5647 | 5647 | mm |
Engine model | 6BTA5.9 | 6BTA5.9 | 6CTA8.3 | mm |
Engine power | 125 | 132 | 158 | kW |
Overall dimensions | 8305×2695×3420 | 8605×2695×3420 | 8605×2695×3420 | mm |
Company Profile

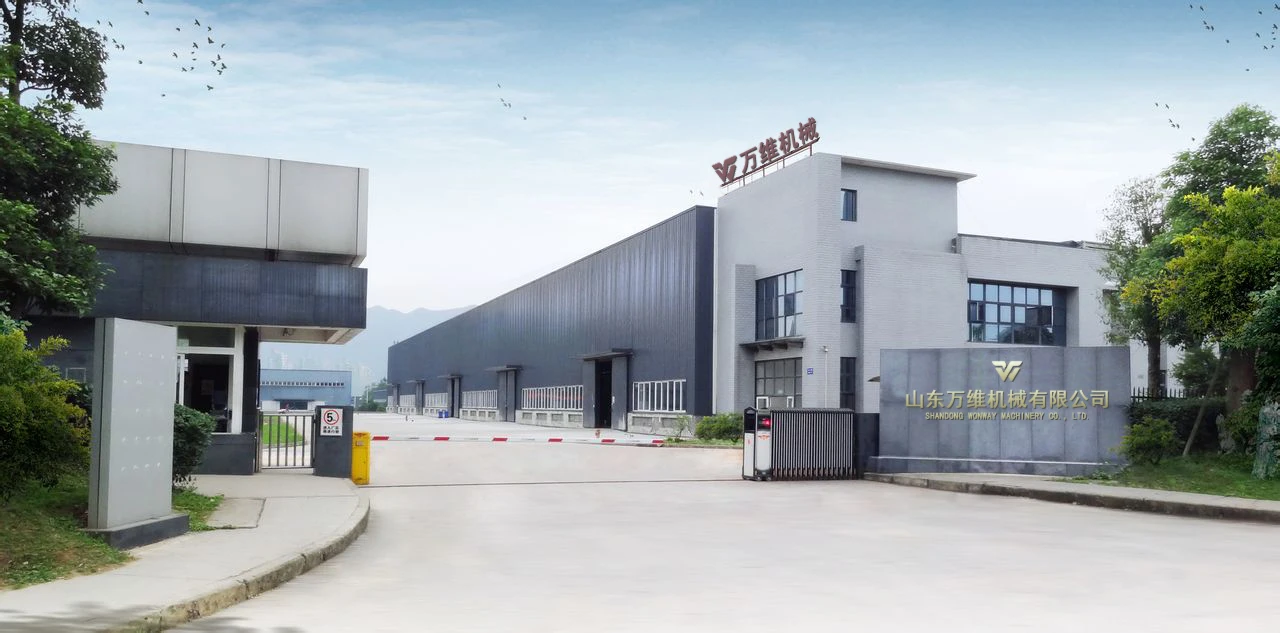

Shandong Wonway Engineering Machinery Co., Ltd. is a professional manufacturer and trading company which specializing in the R&D and sales of road equipment and engineering pavement machinery in China. The company local in Jining, Shandong Province. Since its establishment, the company has been specialized in producing and selling more than 50 different machines. The main products covers mini excavators, road rollers, concrete leveling machines, cutting machines, milling machines, power trowels, engineering lighting vehicles , backhoe loader ,forklift, snow cleaners and ect. All our machines have passed ISO9001: 2015 China Quality Management System Certification.And most of them have passed the European CE certification.
