YTO Weichai tractor, Lovol agricultural four wheel four wheel drive tractor
- Category: >>>
- Supplier: Jiangsu,Jitian,International,Trade,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Detailed parameters
MODEL | UNIT | TD1204 | ||
IMENSIONS OF TRACTOR | TYPE | / | DRIVE TYPE (4x4) | |
kW | kW | 88.2 | ||
DIMENSION (LxWxH) | mm | 4535x2100x3060 | ||
WHEEL BASE | mm | 2385 | ||
MIN.GROUND CLEARANCE | mm | 420 | ||
WEIGHT | kg | 4560 | ||
TREAD | mm | FRONT TREAD:1620(1620 ~ 1970)ADJUSTABLE REAR TREAD:1620(1620 ~ 1950)ADJUSTABLE | ||
MATCHED POWER | CLUTH TYPE | / | DRY-TYPE,DOUBLE-ACTING | |
ENGINE | / | YUNNEI 4 CYLINDER | ||
RATED SPEED | r/min | 2300 | ||
WORKING PORTING | GEAR | / | 16F+8R | |
PTO TYPE | / | 8 PIN、①38、ITYPE(OPTION: 21 PIN) | ||
PTO RATED POWER | kW | >75 | ||
PTO SPEED | r/min | 760/1000、760/850 | ||

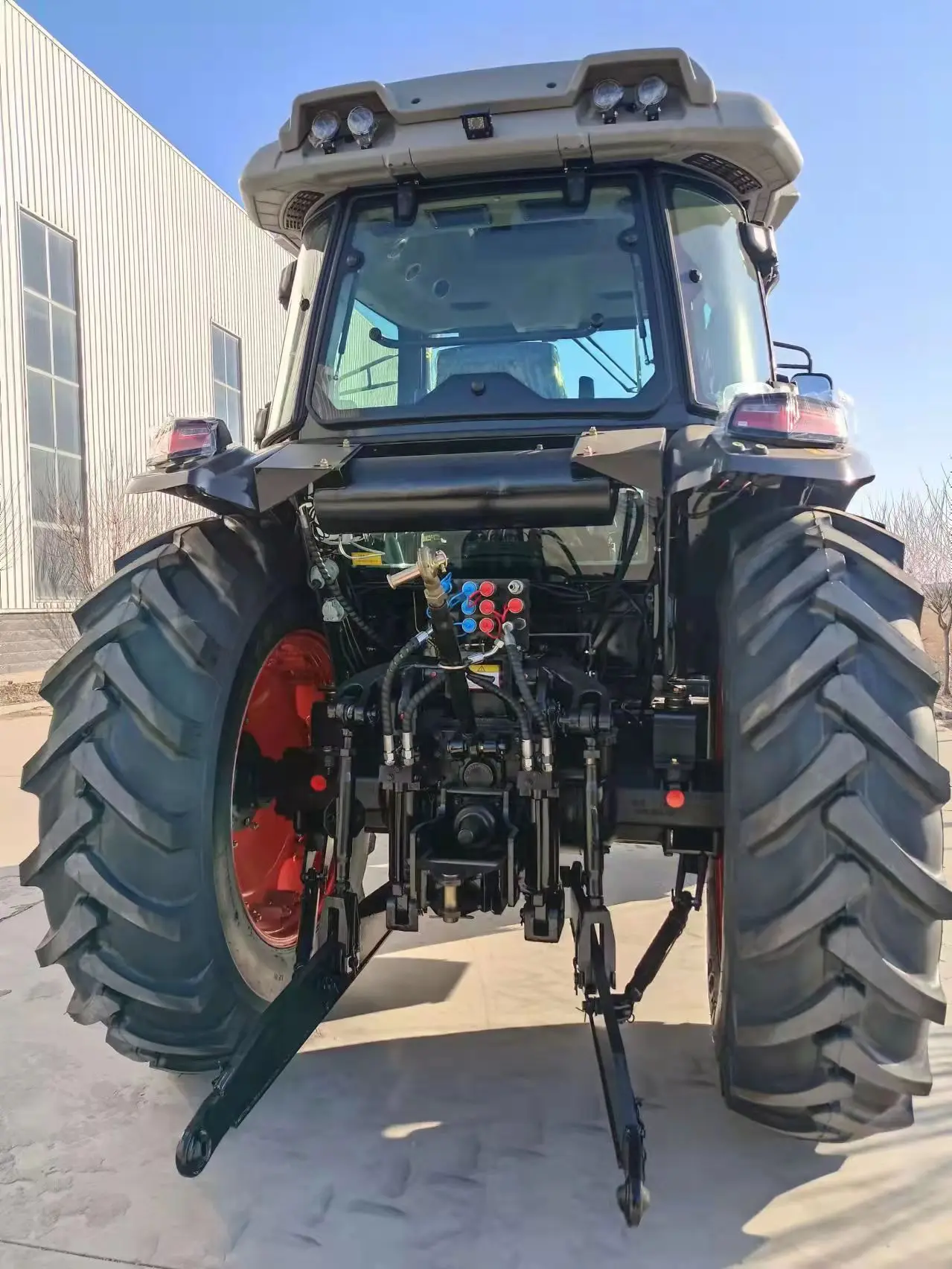

HYDRUALIC SYSTEM | THREE POINT LINKAGE | / | REAR, THREE-POINT SUSPENSION ,CAT2 | |
HYDRUALIC OUTPUT | / | 2-WAY VALVE | ||
HYDRUALIC ADJUSTMENT MODE | / | FORCED HYDRUALIC SIYSTEM, POSITION CONTROL ,FLOATING CONTROL | ||
MAX.LIFTING FORCE AT FRAME CENTER | kN | >21.2 | ||
TYRE TYPE | NORM TYRE SIZE (FRONT/TEAR) | / | 13.6-24/16.9-38 | |
OPTIONAL TYRE (I) | / | 12.4-24/16.9-34 | ||
OTHER OPTIONS | WARM CABIN | / | OPTIONAL | |
AIR CABIN | / | OPTIONAL | ||

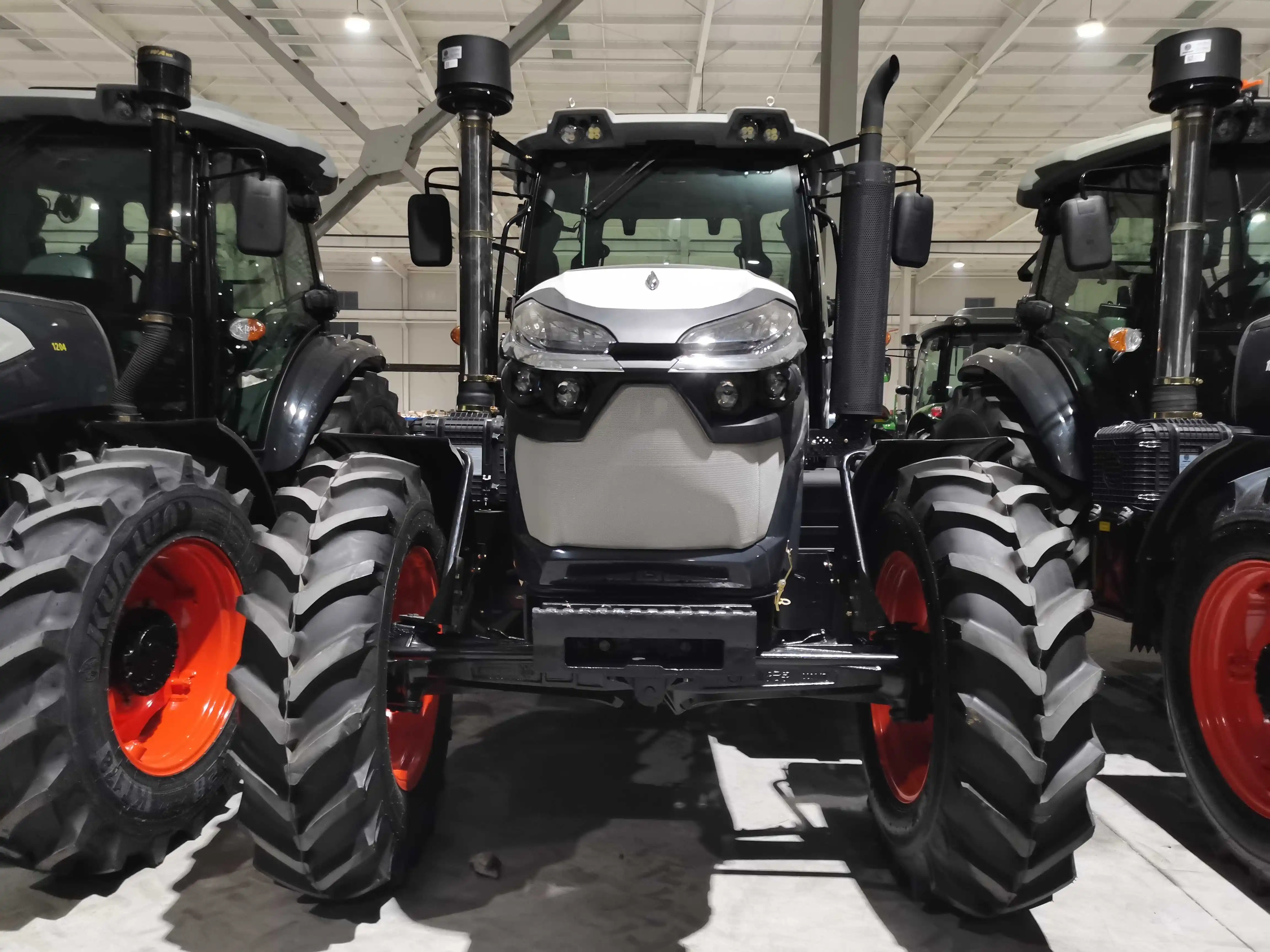

Details Images
Luxurious and comfortable cabin
* Air conditioner and sunroof window
* Build-design to prevent dust from entering inside the cabin
* Doors opening wide for easy entry and exit
* Adjustable steering wheel
* Standard AM/FM/USB/AUX radio
* Sun visor
* Air conditioner and sunroof window
* Build-design to prevent dust from entering inside the cabin
* Doors opening wide for easy entry and exit
* Adjustable steering wheel
* Standard AM/FM/USB/AUX radio
* Sun visor
Robust and reliable engine
* 3-or 4-cylinder engine
* Synchronized gearbox for smoother operation
* High torque engine designed for reliability and power
* Rigid, high-strength cylinders to perform the most labour-intensive tasks
* High torque reserve
* High pressure lubrication system
* 3-or 4-cylinder engine
* Synchronized gearbox for smoother operation
* High torque engine designed for reliability and power
* Rigid, high-strength cylinders to perform the most labour-intensive tasks
* High torque reserve
* High pressure lubrication system

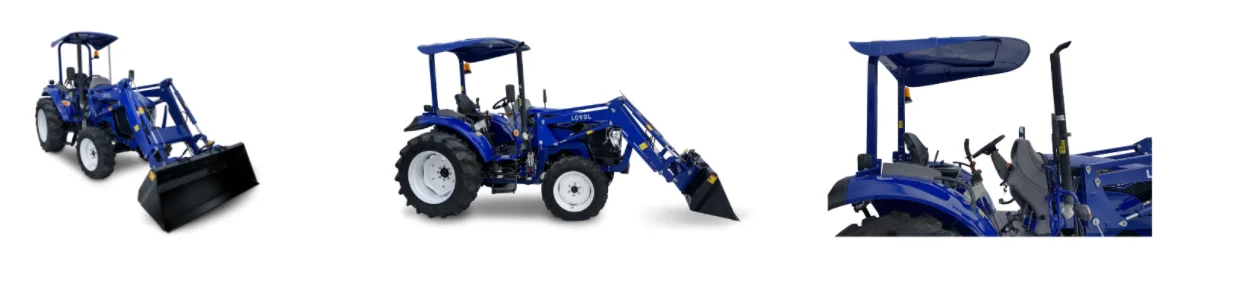

All our models are also offered without cab
TRACTORS SPECIFICATIONS
8+8 or 12+12 synchronized gearbox
Reliable,high performance front axle
Strong, durable rear axle
Strong, durable rear axle
Ergonomic interior cabin
Proven Doosan engine
READY FOR ALL TYPES OF WORKS
Company Profile
Equipped with a number of process equipment to ensure the assembly quality of the whole machine
50 meters long gearbox, rear axle load line
The 120-meter final assembly line ensures the production capacity and meets the production needs in peak season.
3000 square meters parts and accessories area
Full range of tractor accessoriesSpecializing in the production of tractor steel rims, large, medium and super large tractor steel rims, and automobile wheels, with a complete variety.
Excellent tire supplier, meeting various models and requirements
Packing & Delivery
FAQ
Q1. What is the advantage about your company?
A1. Our company has professional team and professional production line.
Q2. Why should I choose your products?
A2. Our products are high quality and low price.
Q3. The logo and the color can be customized?
A3. Yes, we welcome you to sample custom.
Q4. Any other good service your company can provide?
A4. Yes,we can provide good after-sale and fast delivery.
A1. Our company has professional team and professional production line.
Q2. Why should I choose your products?
A2. Our products are high quality and low price.
Q3. The logo and the color can be customized?
A3. Yes, we welcome you to sample custom.
Q4. Any other good service your company can provide?
A4. Yes,we can provide good after-sale and fast delivery.
