Product Overview
Description
Product Overview

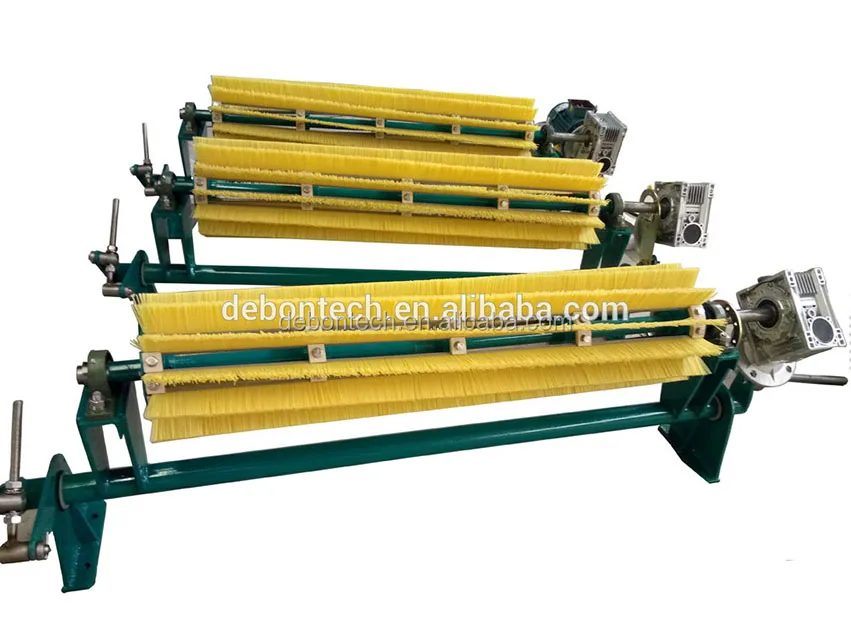

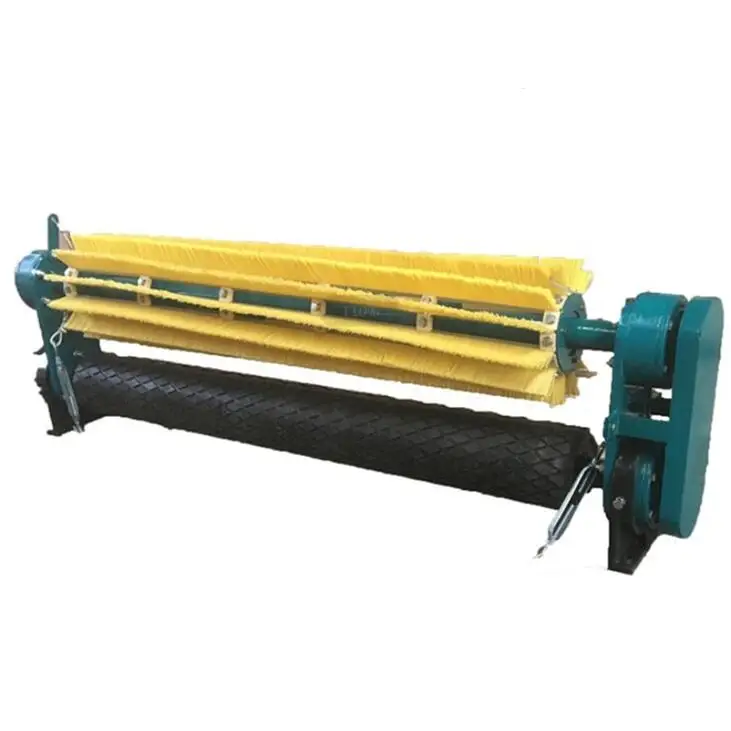

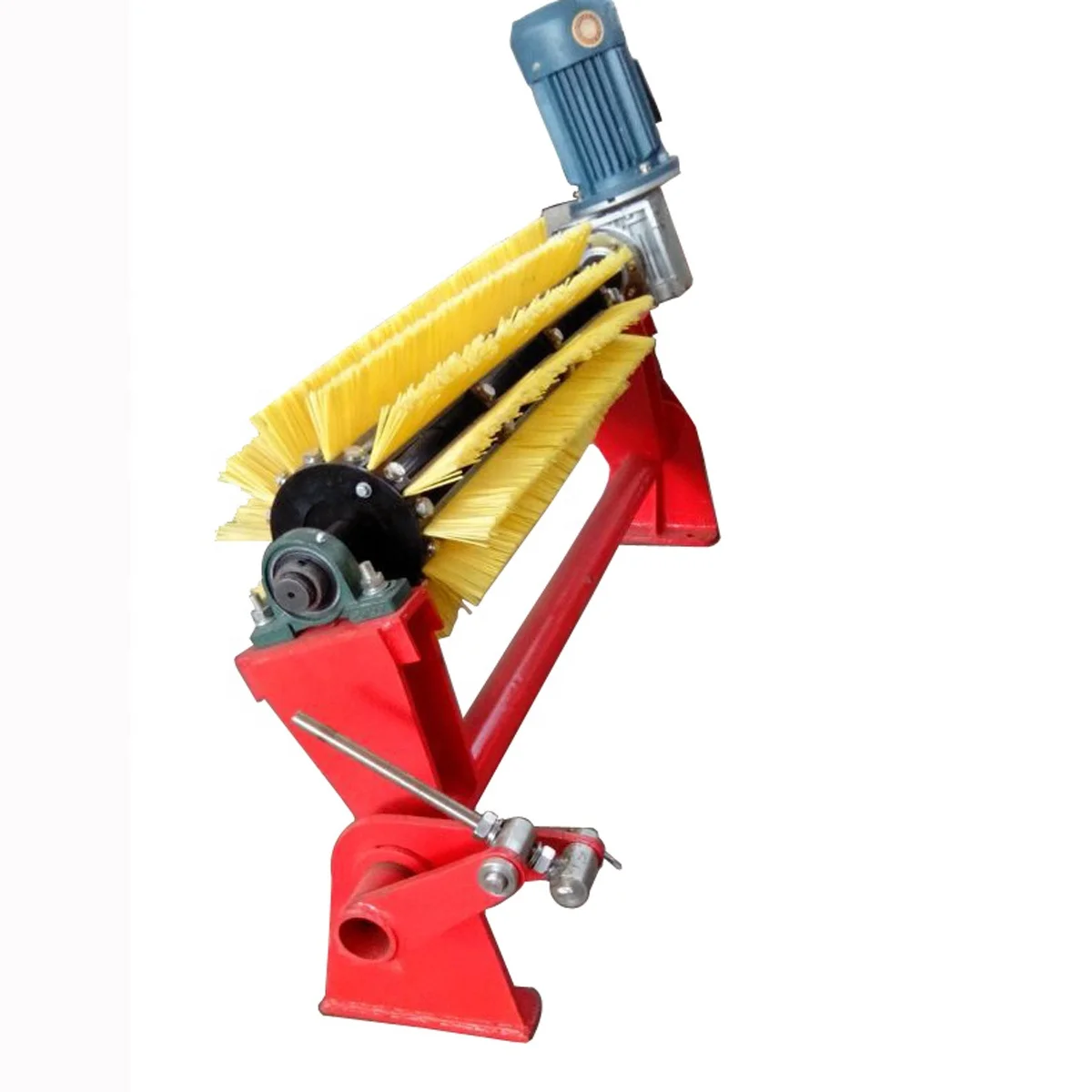

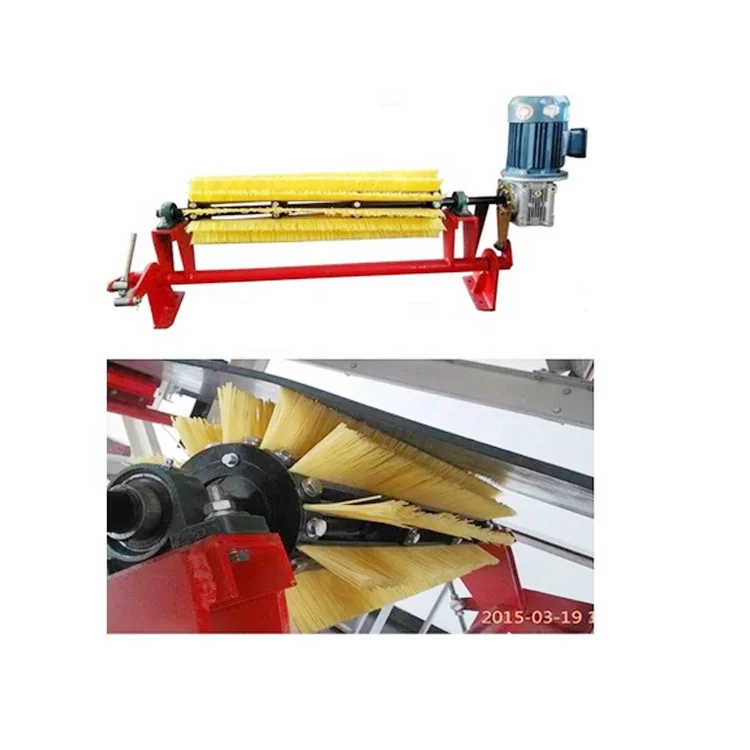

High wear resistance Coal mining motorized brush belt cleaner for conveyor system
DB-XQ-I is a motorized electric brush Cleaner, the brush conveyor belt cleaners are installed under the return belt of the
conveyor.

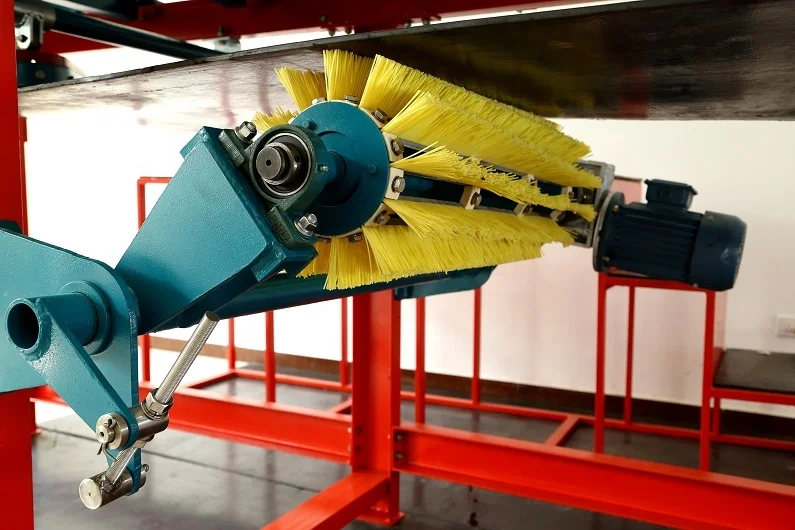

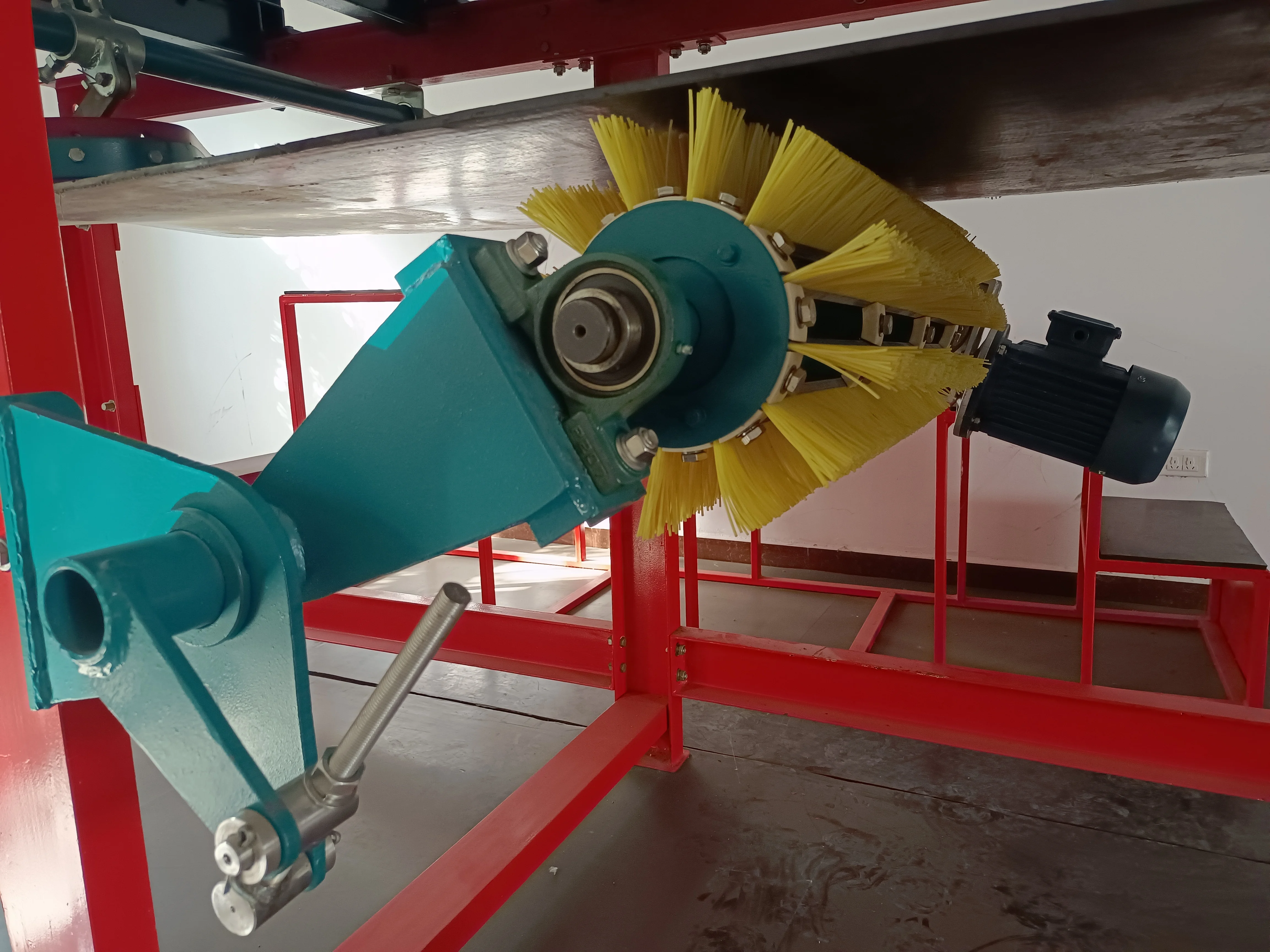

It has cylindrical nylon brush and tips of the brush touch the belt surface gently. The rotating brush turns in the opposite
direction of the belt. Therefore, it brushes away the sticky materials into the funnel.
conveyor.
It has cylindrical nylon brush and tips of the brush touch the belt surface gently. The rotating brush turns in the opposite
direction of the belt. Therefore, it brushes away the sticky materials into the funnel.
Application
1. Belt Width:500~2000(mm)
2. Material humidity:≤5%
3. Applicable for ribbed, plain, grooved or chevron conveyor belts.
4. Working temperature: -40~90 C
5. Suit for all kinds of belt speed
6. Handled material: dry and fine material
apply to Aggregate, sand and gravel, pulp/paper, wood chips, cement, coal, scrap metal, chevron/cleated belts.
2. Material humidity:≤5%
3. Applicable for ribbed, plain, grooved or chevron conveyor belts.
4. Working temperature: -40~90 C
5. Suit for all kinds of belt speed
6. Handled material: dry and fine material
apply to Aggregate, sand and gravel, pulp/paper, wood chips, cement, coal, scrap metal, chevron/cleated belts.
FEATURES AT A GLANCE
* Brush bristles are replaceable, just replace brush bristles not whole brush rollers when they're worn out.
* Adjustable device to easily adjust brush-to-belt as bristles wear.
* Custom voltage and power of motor and reducer.
* Uniquely nylon66 brush bristles-aids in reducing material buidup and clogging
* Works on mechanically spliced or vulcanized belts
* Maximum cleaning- spins opposite the belt direction for optimal cleaning
* Adjustable device to easily adjust brush-to-belt as bristles wear.
* Custom voltage and power of motor and reducer.
* Uniquely nylon66 brush bristles-aids in reducing material buidup and clogging
* Works on mechanically spliced or vulcanized belts
* Maximum cleaning- spins opposite the belt direction for optimal cleaning
PRODUCT SPECIFICATIONS
Type | Bandwidth | L1 | L2 |
DB-XQ-I-50 | 500 | 500 | 850 |
DB-XQ-I-65 | 650 | 650 | 1000 |
DB-XQ-I-80 | 800 | 800 | 1300 |
DB-XQ-I-100 | 1000 | 1000 | 1500 |
DB-XQ-I-120 | 1200 | 1200 | 1700 |
DB-XQ-I-140 | 1400 | 1400 | 2100 |

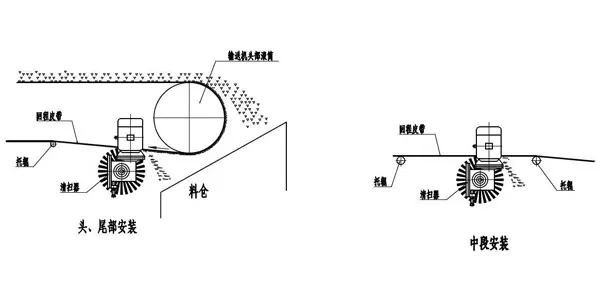

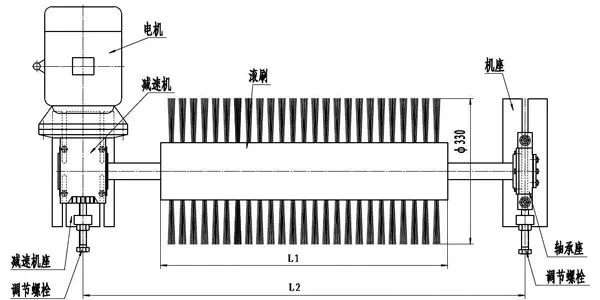

DRAWING

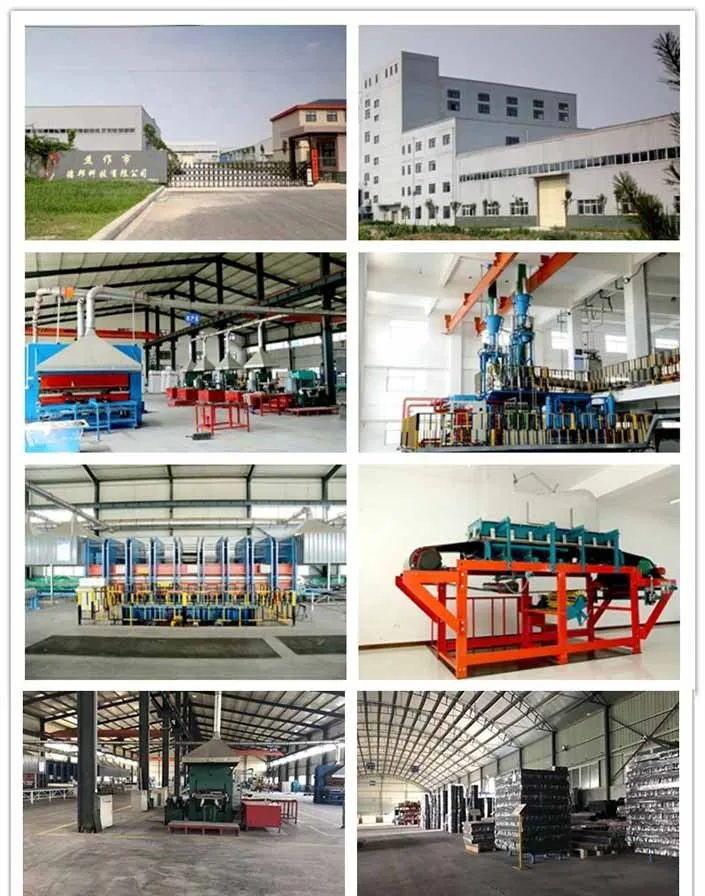

Company Information
Jiaozuo Debon Technology Co., Ltd, its former factory is Jiaozuo Zhuoer Machinery Manufacturing Co., Ltd, founded in 2001, is a
factory and specialized in polyurethane and rubber products, wear resistant liner and other conveyor accessories for material
handling equipment. The company has advanced production line and testing equipment for rubber, polyurethane and ceramic products, etc. We are able to
produce wear liners and provide different wear solutions according to different applications and requirements.
√Over 15 years experience
√Strict QC/QA makes sure high quality and consistency
√Innovation and Reliability, Excellent quality and Service
factory and specialized in polyurethane and rubber products, wear resistant liner and other conveyor accessories for material
handling equipment. The company has advanced production line and testing equipment for rubber, polyurethane and ceramic products, etc. We are able to
produce wear liners and provide different wear solutions according to different applications and requirements.
√Over 15 years experience
√Strict QC/QA makes sure high quality and consistency
√Innovation and Reliability, Excellent quality and Service
SALES AND SERVICE NETWORK
FAQ
Q: Are you a trading company or manufacturer ?
A: We are a manufacturer that have about 20 years production experience.
Q: Can i get a sample for testing ? How do it charged ?
A: Yes, sample is free of charge, but we don't bear the Express costs.
Q: Do you provide guarantee of your products during a certain time?
A: Yes, all our products provides guarantees according to industry standards.
Q: Do you have foreign experience for your products?
A: Yes, all the products we manufactured have exported to USA,France,Australia,Russia,UK, etc.
A: We are a manufacturer that have about 20 years production experience.
Q: Can i get a sample for testing ? How do it charged ?
A: Yes, sample is free of charge, but we don't bear the Express costs.
Q: Do you provide guarantee of your products during a certain time?
A: Yes, all our products provides guarantees according to industry standards.
Q: Do you have foreign experience for your products?
A: Yes, all the products we manufactured have exported to USA,France,Australia,Russia,UK, etc.
Further information, send us inquiry please. We welcome you to visit our factory all the time.
