Manufacturer OEM Wholesale Cable PP Filling Rope Filler Yarn Raw Materials for Electric Cable Production
- Category: >>>
- Supplier: Wuxi Henglong Cable Material Co. Ltd.
Share on (1600755868426):
Product Overview
Description
Products Description

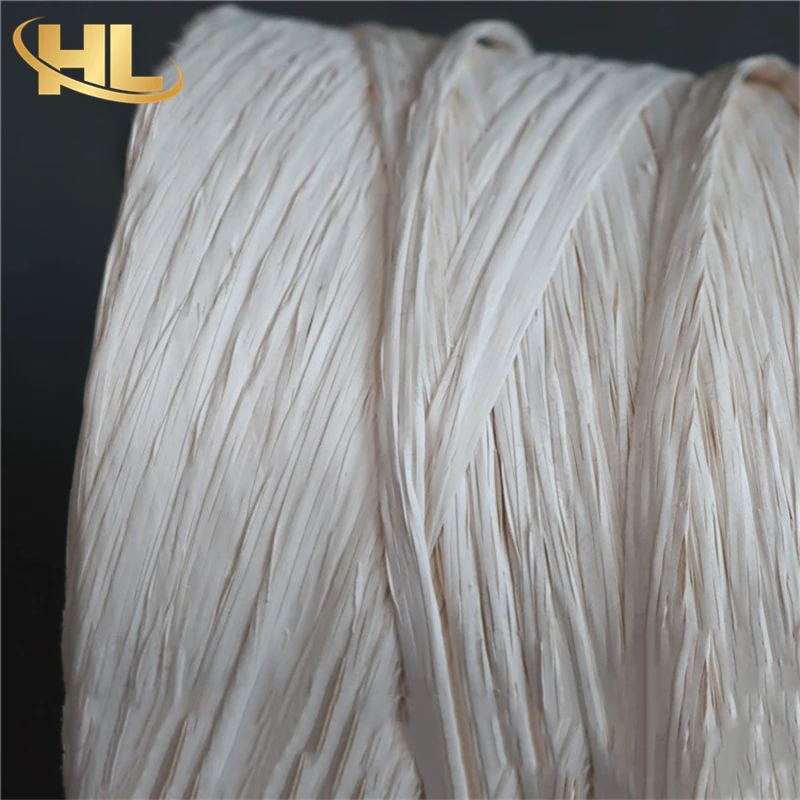

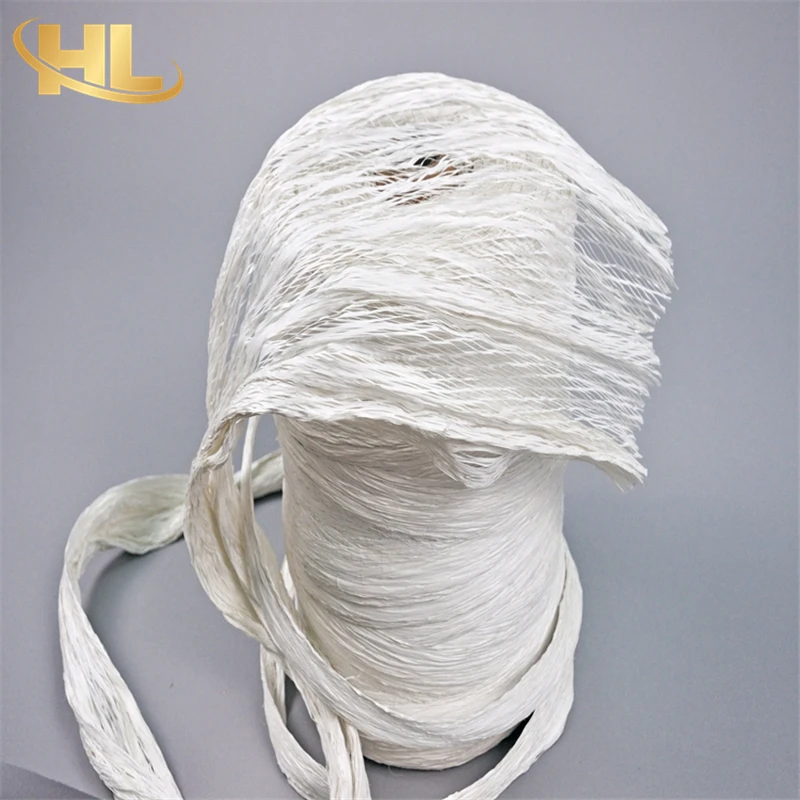

Polypropylene ( PP ) Fibrillated Filling Twine & Rope
A comprehensive range of high quality twines are available and they are suitable for various cables' production.
In order to achieve such high quality, our twine is manufactured with an emphasis on the fibrillation which is crucial to achieve a high performing twine.
In order to achieve such high quality, our twine is manufactured with an emphasis on the fibrillation which is crucial to achieve a high performing twine.
Fibrillation is achieved during the manufacturing process by passing the extruded tape through a fibrillation roller before being converted into a twisted twine. This process brings softness and flexibility to the twine.

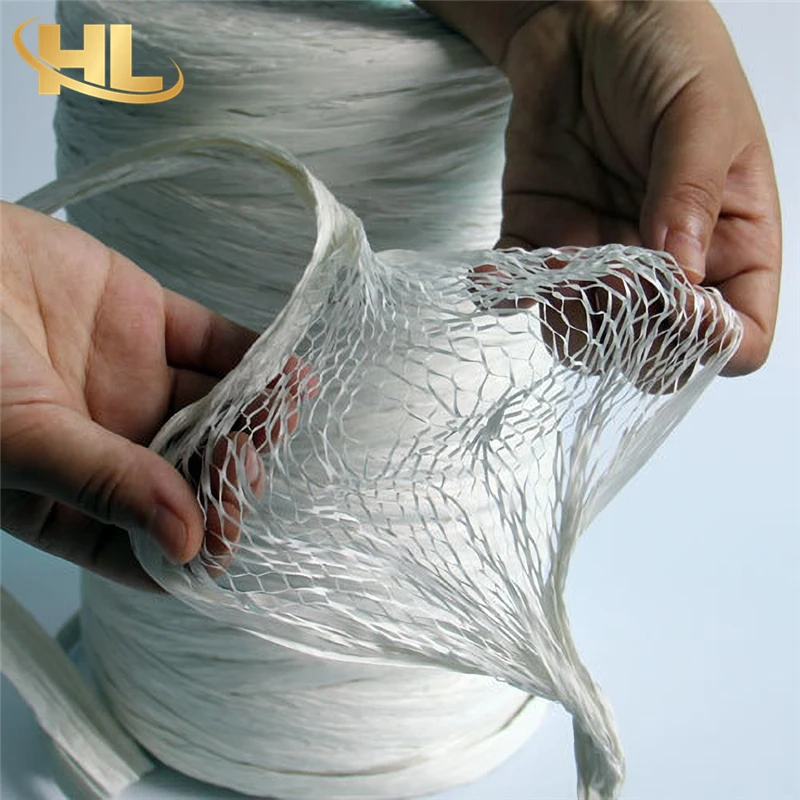

Manufacturers who only stripe the twine cannot reach the same level of soft ness or flexibility. Fibrillated twine can be recognised by the mesh like appearance that can be seen when the twine is stretched. All our twine is thoroughly tested.
We also add various materials in the formula to adapt to cables for various purposes. The product white, dry, clean, soft and uniform thickness.
Item(mm) | Polypropylene ( PP ) Fibrillated Filling Twine & Rope ( Non-twist ) | ||||||||||||||
Specifications(mm) | 30 | 60 | 90 | 120 | 160 | 180 | 270 | 360 | |||||||
Membrane Width Error(mm) | ±3.0 | ±5.0 | ±6.0 | ||||||||||||
Thickness(mm) | 0.08 | ||||||||||||||
Thickness of the Error(mm) | 0.01 | ||||||||||||||
After Nian Corresponding Diameter(mm) | 2.0 | 2.0 | 4.0 | 4.5 | 5.0 | 5.5 | 6.0 | 7.0 | |||||||
The Diameter Tolerance(mm) | ±0.3 | ±0.4 | ±0.6 | ±0.6 | ±0.6 | ±0.7 | ±0.7 | ±0.7 | |||||||
Twist(Individual/200mm) | Customized according to customer requirements | ||||||||||||||
Properties | Breaking Strength(Flame Retardant)( ≥N) | Elongation(≤) | Unit Weight(Flame Retardant)(g/m) | Oxygen Index(%) | Corresponding Value(mm) |
30 | 49(50) | 15 | ≤1.03 | ≥28 | 2.0±0.3 |
60 | 63(100) | 20 | ≤2.02(1.70) | 3.0±0.4 | |
90 | 95(150) | 20 | ≤2.90(2.55) | 4.0±0.6 | |
120 | 127(200) | 25 | ≤3.86(3.4) | 4.5±0.6 | |
160 | 158(200) | 25 | ≤4.64(4.38) | 5.0±0.6 | |
180 | 191(200) | 25 | ≤5.42(4.96) | 5.5±0.7 | |
270 | 220(200) | 30 | ≤8.44(7.60) | 6.0±0.7 | |
360 | 220(200) | 30 | ≤11.5 | 7.0±0.7 |

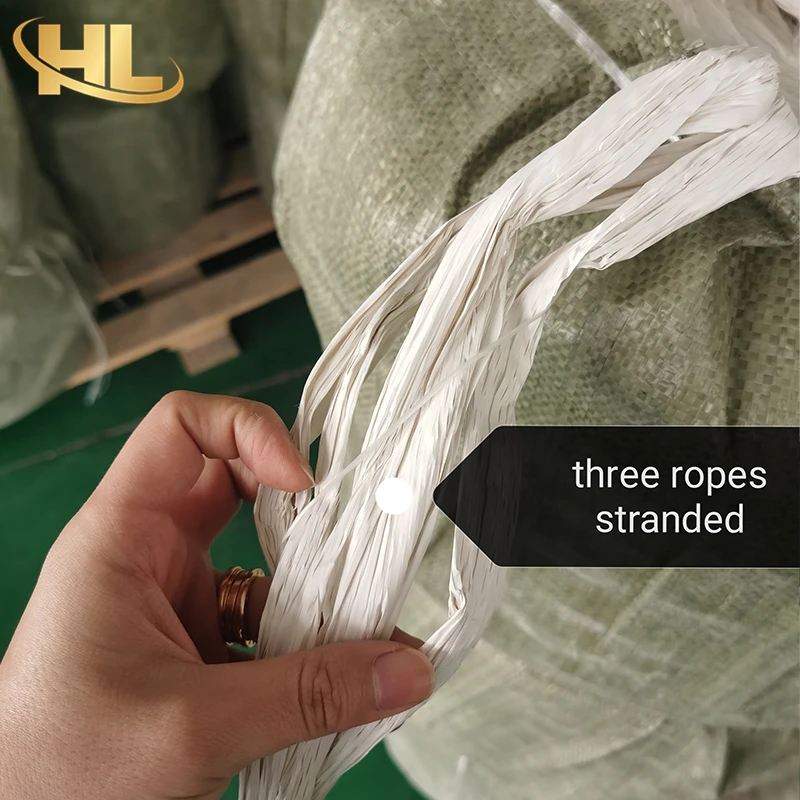

Item(mm) | Polypropylene ( PP ) Fibrillated Filling Twine & Rope ( Stranded ) | ||||
Fill the Rope Specifications | Diameter | Quality of Unit Length （Flame Retardant is Not More Than） | Twist | ||
mm | mm | g/m | a/200mm | ||
ø8 | 8±0.5 | 31.5（28） | 3.0-3.5 | ||
ø10 | 10±0.6 | 42.5（39） | |||
ø12 | 12±0.6 | 54（48） | |||
ø15 | 15±0.8 | 77（75） | |||
ø18 | 18±1.0 | 110（108） | |||
ø20 | 20±1.0 | 153（147） | |||
ø24 | 24±1.5 | 205（200） | |||
Features & Benefits
◆ Customize the Breaking Strength According to Your Needs
◆ Applicable to All Kinds of Cable Production
◆ Slippage and Flexibility
◆ Mechanic Fibrillation
◆ Superior Uniformity
◆ Dry, Clean, Soft and Uniform Thickness

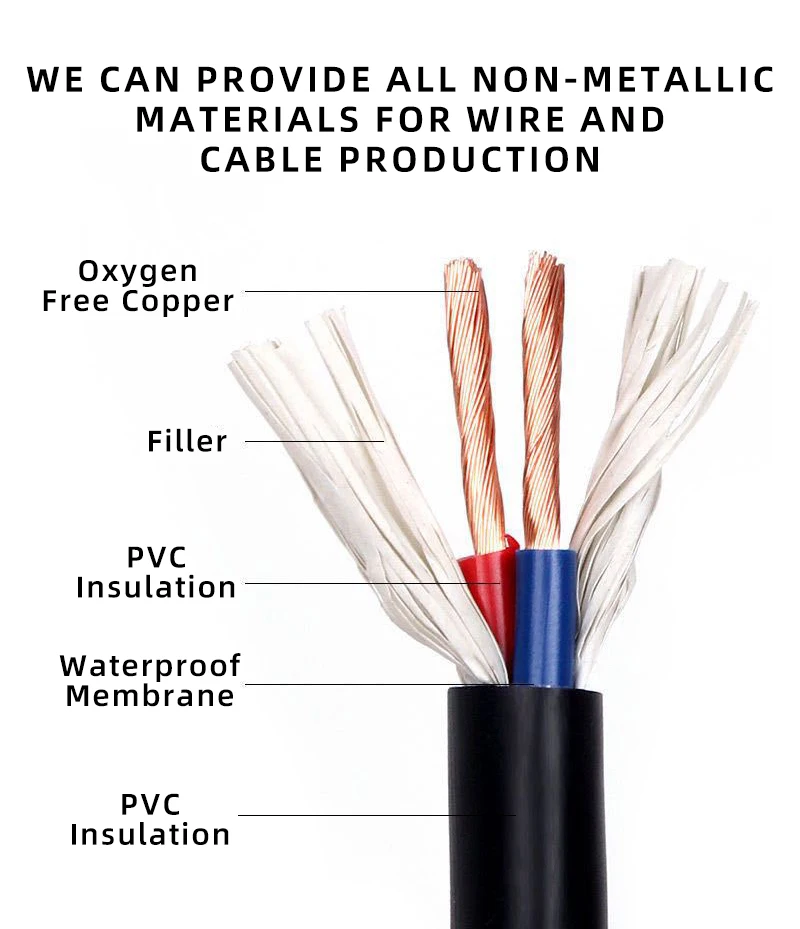

Product Application

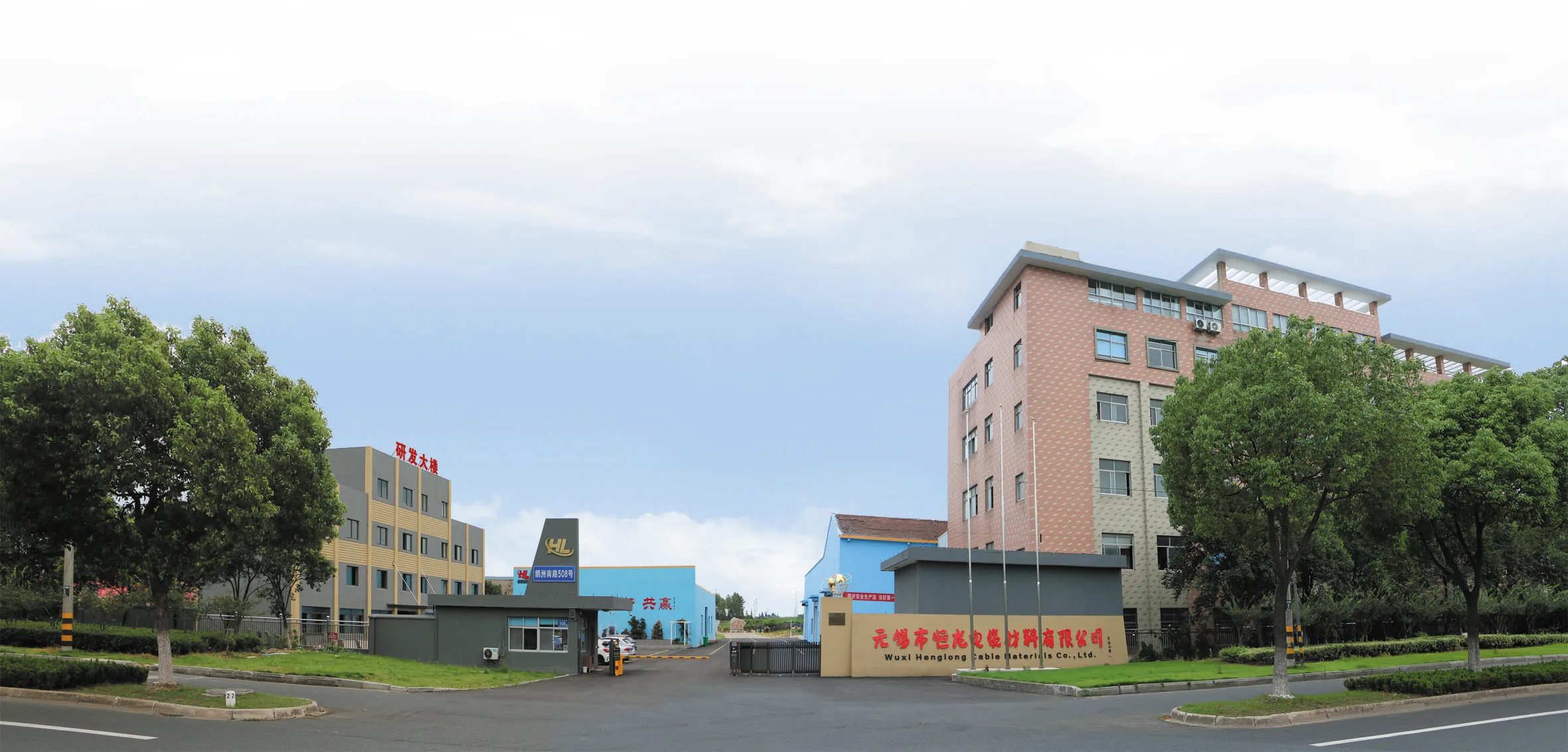

Company Profile
Pakcing & Delivery
Recommend Products
VR
FAQ
1. Who are we?
We are a professional plastic product manufacturer founded in 1990, company covers an area of 150000 square meters. The products are sold all over the world, recognized and used for a long time by more than 100 well-known enterprises.
2. What can you buy from us?
We have been deeply engaged in the plastic industry for 30+ years. You can customize plastic ropes and plastic strips with good quality and low price here, such as baler twines, agricultural greenhouse ropes, cable filling ropes, cable wrapping tapes, etc.
3. Why should you buy from us not from other suppliers?
We have been awarded and recognized by the Chinese government for many times. Our R&D strength and production capacity in the field of plastic products in China are very strong. The company has more than 28 patent certificates, cooperates with Nanjing University in developing new products, and has more than 60 advanced production equipment and more than 30 test equipment. The product has obtained RoHS and REACH certification.
4. How can we guarantee quality?
We have a perfect quality management system and obtained certification.
We will produce samples for your confirmation before mass production.
Always final Inspection before shipment.
5. What services can we provide?
Accepted Delivery Terms: FOB, CIF, EXW, DDP, DDU.
Accepted Payment Currency: USD, EUR, CNY.
Accepted Payment Type: T/T, L/C, Western Union, Escrow.
All products have quality assurance, support detection and certification.
Other services are negotiable.
