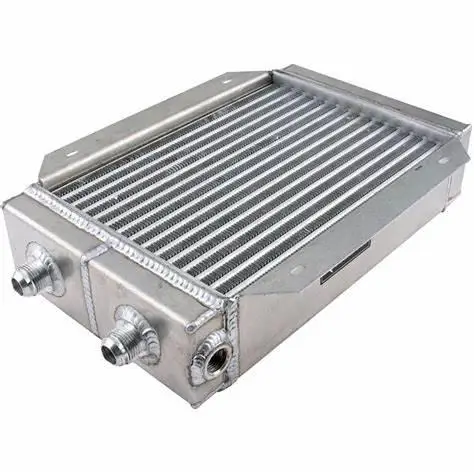

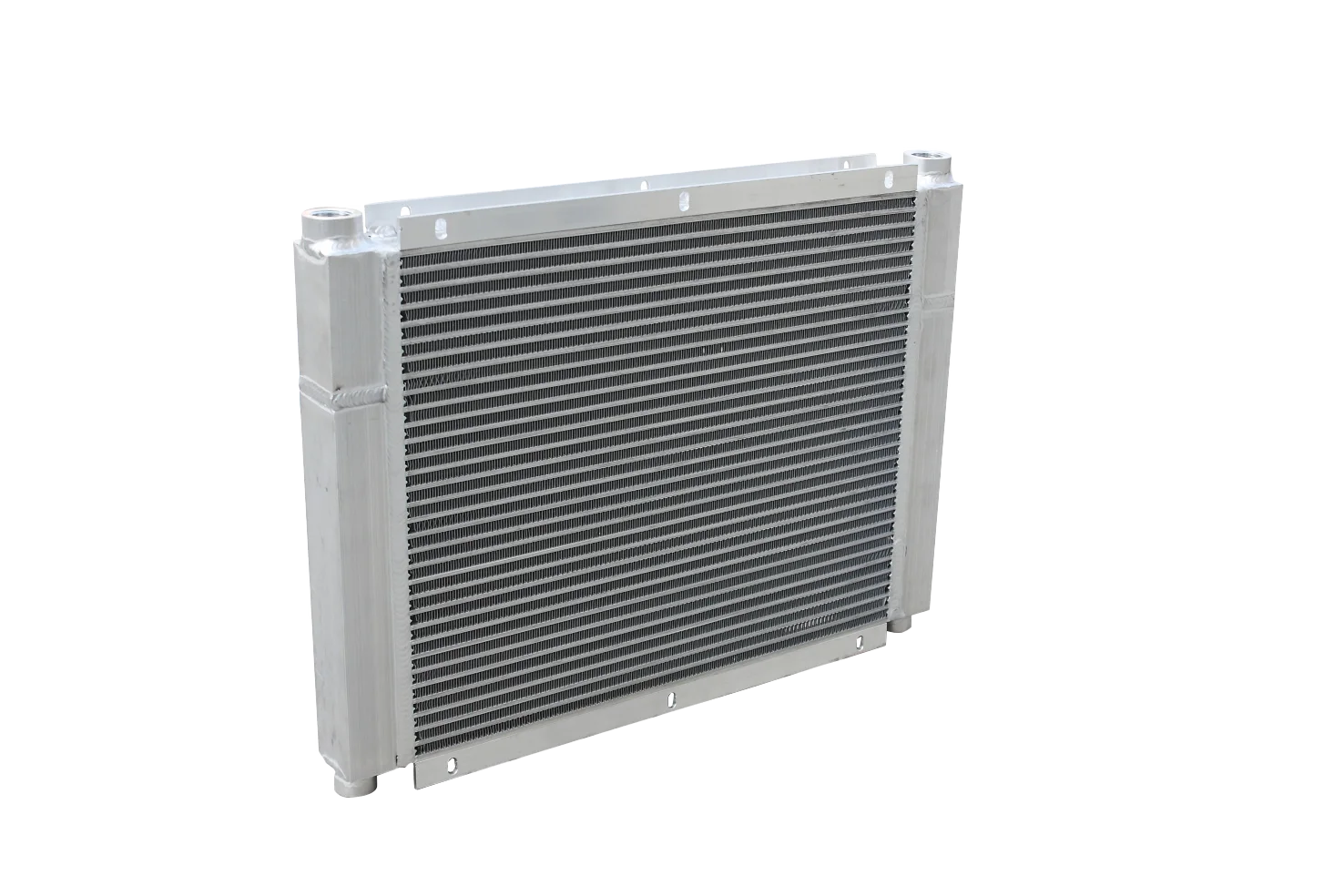

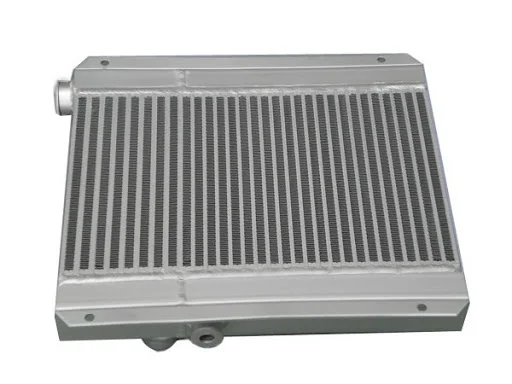

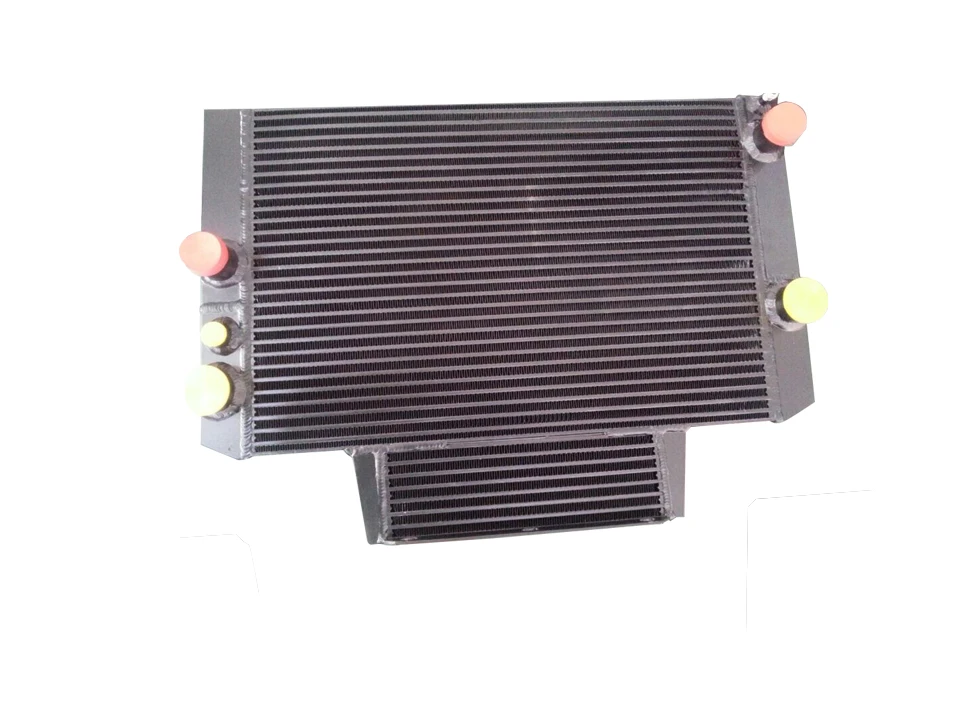

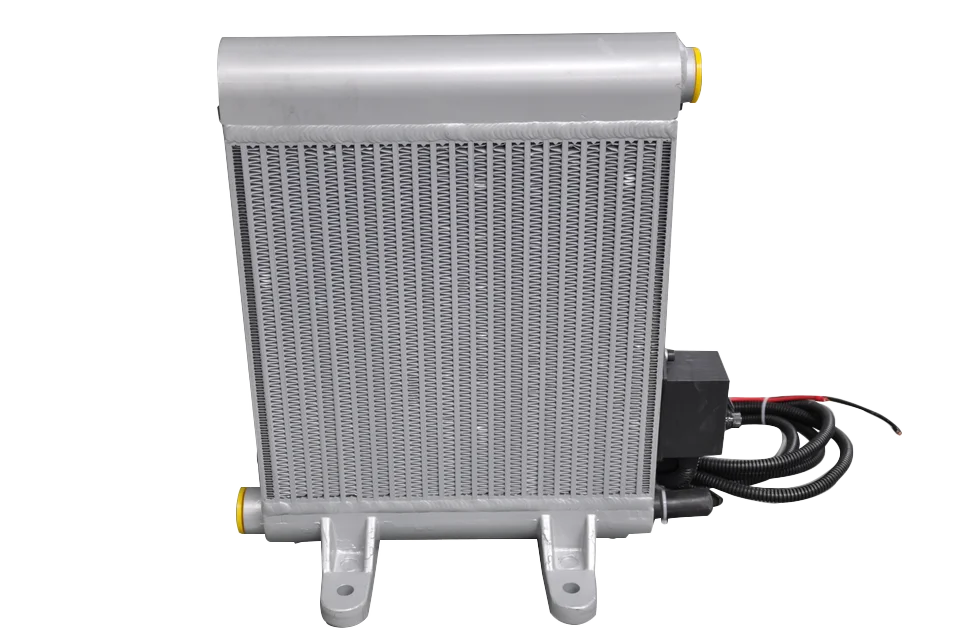

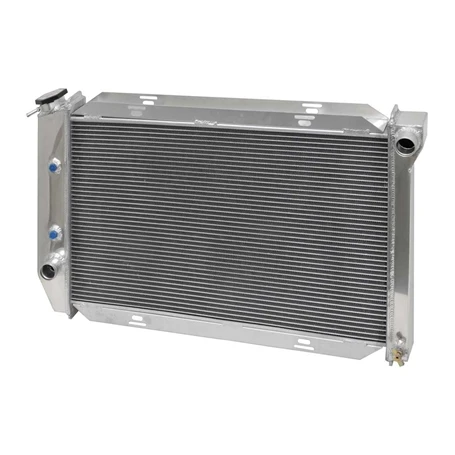

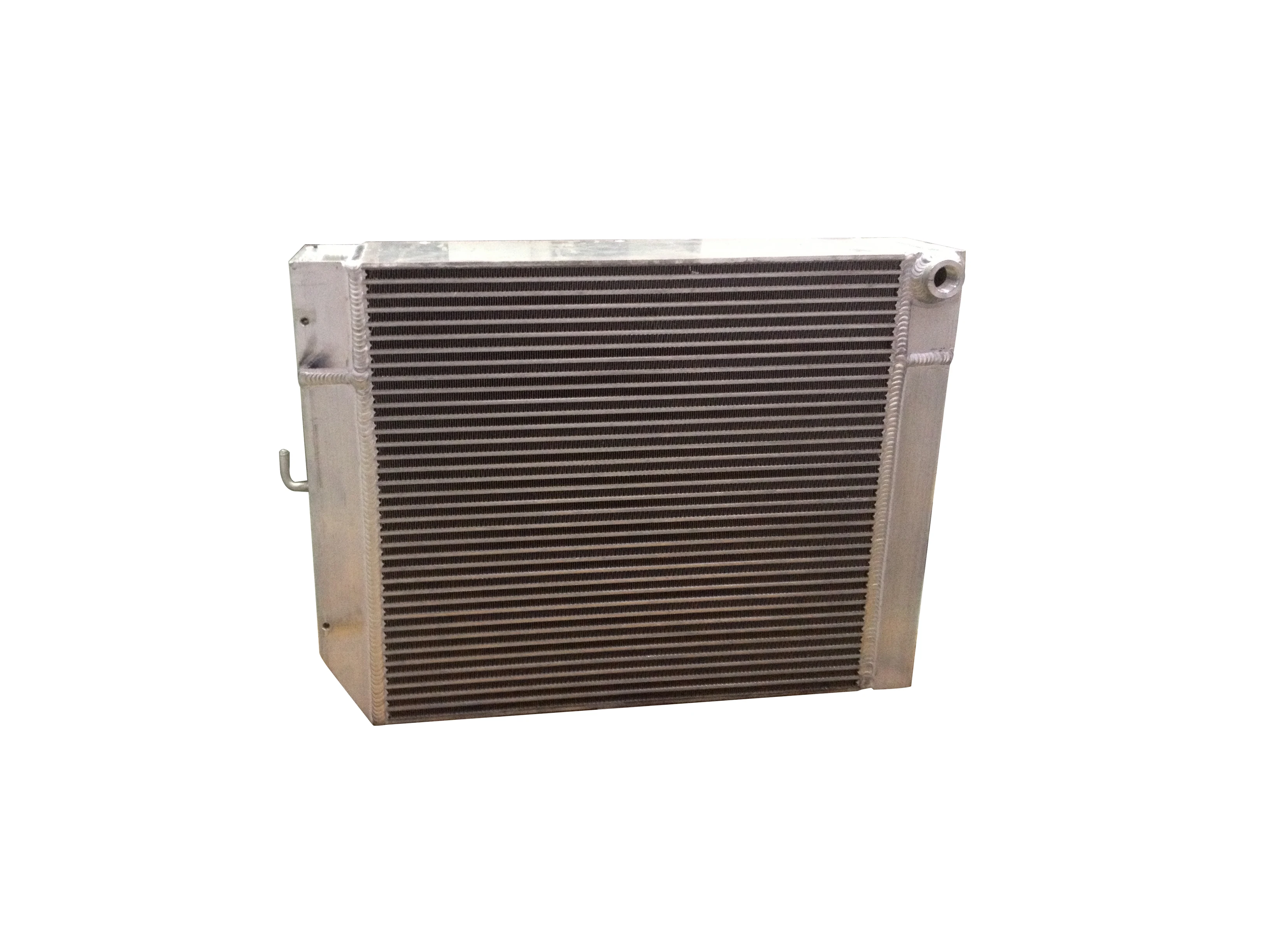

Air to air heat exchanger engine cooling system aluminum air cooled
- Category: >>>
- Supplier: Nanjing Mstirling Technology Co. Limited
Share on (1600755896087):
Product Overview
Description
Product Description
NO. | ITEM | CONTENT DESCRIPTION | ||||

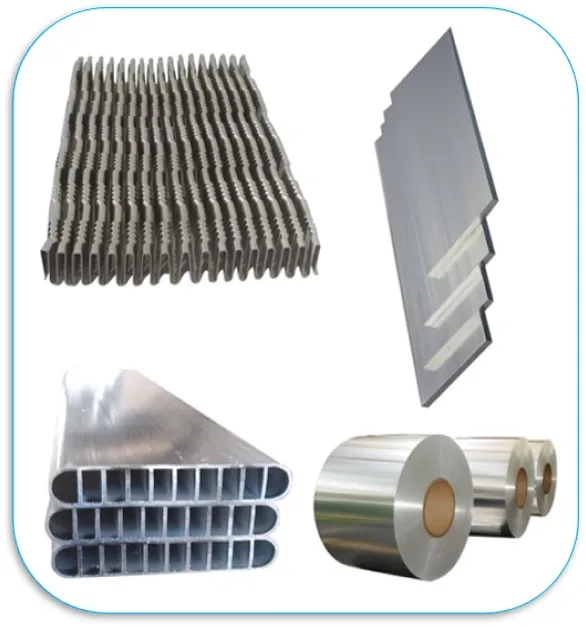

1 | Material | Aluminum alloy, AA3003 is commonly used | ||||
2 | Outer Dimension Limit | Outer Dimension Limit | ||||
3 | Production Technique | Vacuum brazing and arc welding | ||||
4 | Outer Dimension Limit | Max. 4000*4000*1000mm L*W*H | ||||
5 | Working Pressure | Max 2Mpa | ||||
6 | Thermal capacity | 50 Kw | ||||
7 | Gas flow rate | 1 kg/s | ||||
8 | Inlet temperature | 100 ℃ | ||||
9 | Outlet temperature | 50 ℃ | ||||
10 | Cold air inlet / outlet temperature | 50 ℃ / 61 ℃ | ||||
11 | Cold air flow rate | 4.5 kg/s | ||||
Related Products

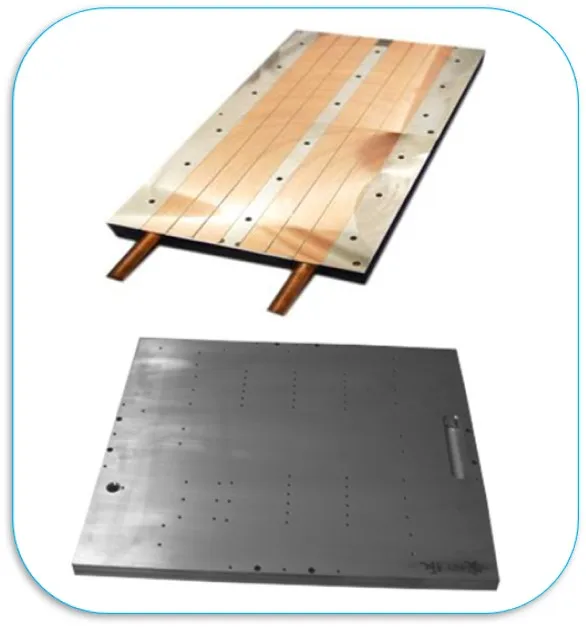

LIQUID COLD PLATE HEAT EXCHANGER

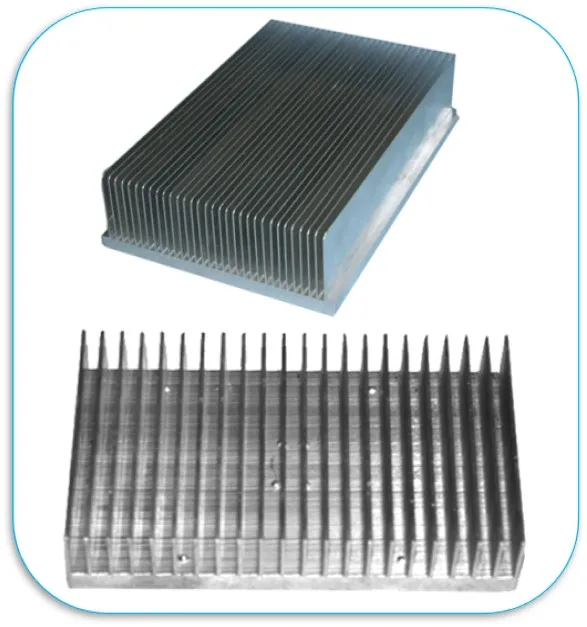

HEAT SINK HEAT EXCHANGER MATERIAL
Company Profile

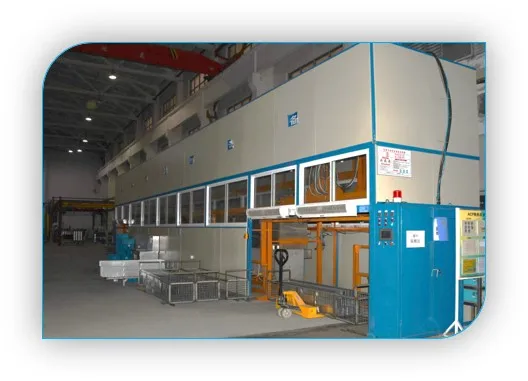

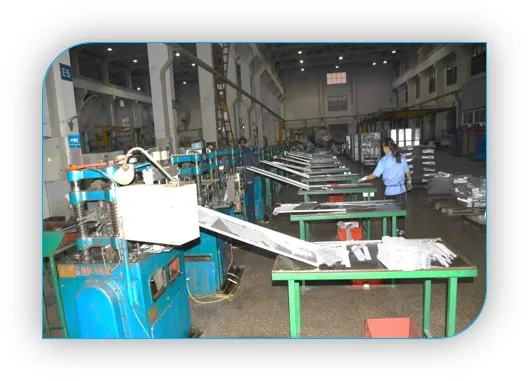

Mstirling’s main process capabilities includes:

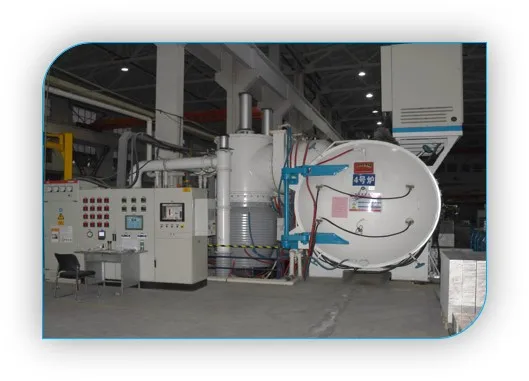

☞ Vacuum brazing

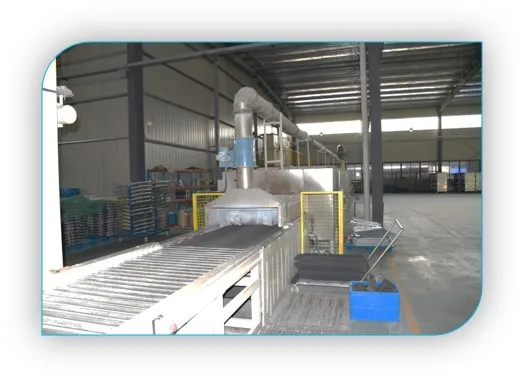

☞ Control atmosphere brazing
☞ Welding

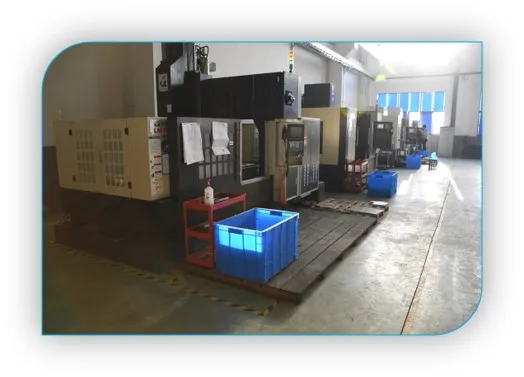

☞ CNC machining
☞ Aluminum extrusion
☞ Aluminum die casting
☞ Sheet metal fabrication
☞ Surface finish
☞ Assembly & packing
☞ Other Custom fabrication services motorcycle oil cooler
Quality Assurance
☛ Quality aspects are comprehensively involved from design stage, design of process, tools & fixtures and packing must fit DFM (Design For Manufacturing) concept;
☛Lean six sigma tools are widely used at Metalli to minimize process variations and guarantee consistent quality by implementation of continuous improvement;
☛Our advanced laboratory testing equipment in house provide us sufficient test data and verify quality characters and reliability.
☛Our advanced laboratory testing equipment in house provide us sufficient test data and verify quality characters and reliability.

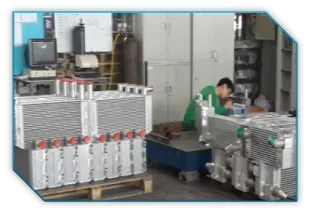

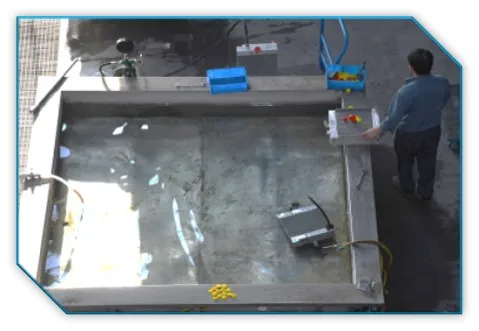

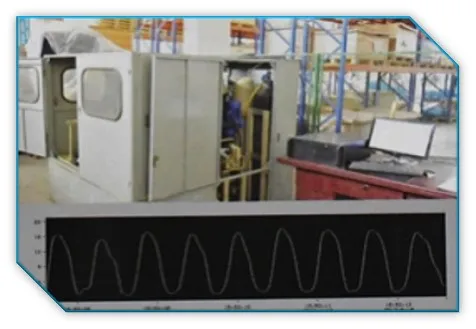

Visual & Dimensions Inspection Pressure Cycling TestWater Leak Detection Test

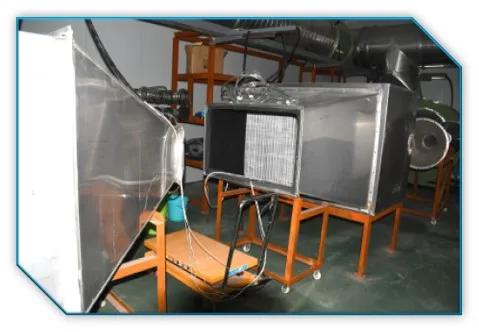

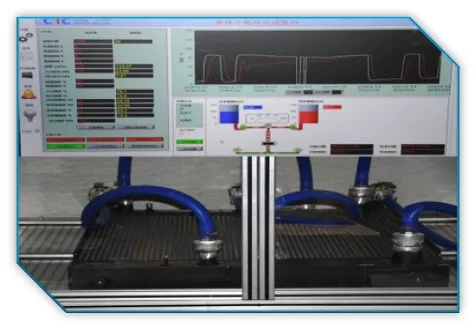

Helium Leak Deteciton Test Wind Tunnel Test Thermal shock Test

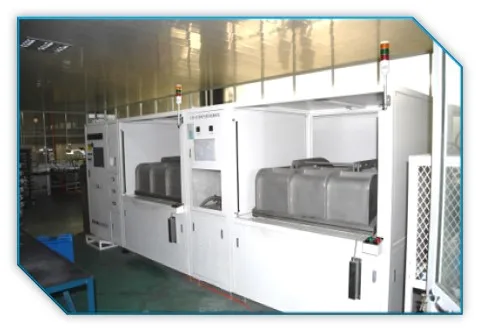

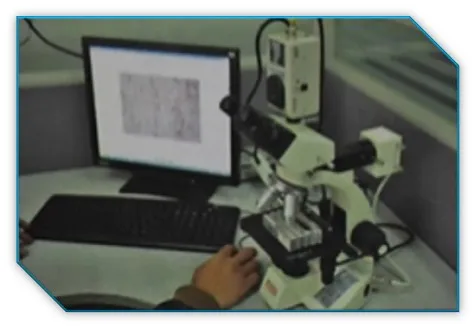

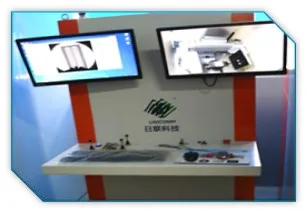

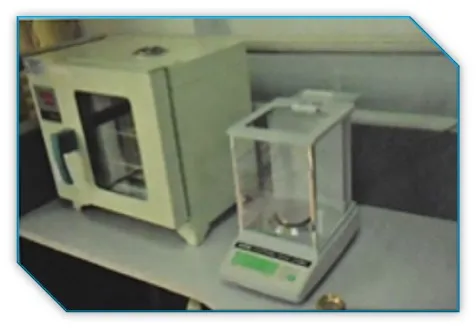

Brazing Quality Analysis Cleanness Test X-Ray Test
Design & Engineering
How to design one good plate-fin heat exchanger?
☛Mstirling designers,engineering engineers work closely with production engineers,quality engineers and source engineers to ensure
our solutions meet DFM and are optmized;
☛Simulation softwares are fluently used by Metalli's engineers to analyze and improve your products' structure and design.
☛Mstirling designers,engineering engineers work closely with production engineers,quality engineers and source engineers to ensure
our solutions meet DFM and are optmized;
☛Simulation softwares are fluently used by Metalli's engineers to analyze and improve your products' structure and design.
Customer and We
Putting the customer first is the starting point and the key to our success
☛We translate their needs into business solutions.
☛We work closely with our customers and listen to customer's voices clearly to ensure their needs are clearly understood and transferred into our actions efficiently.

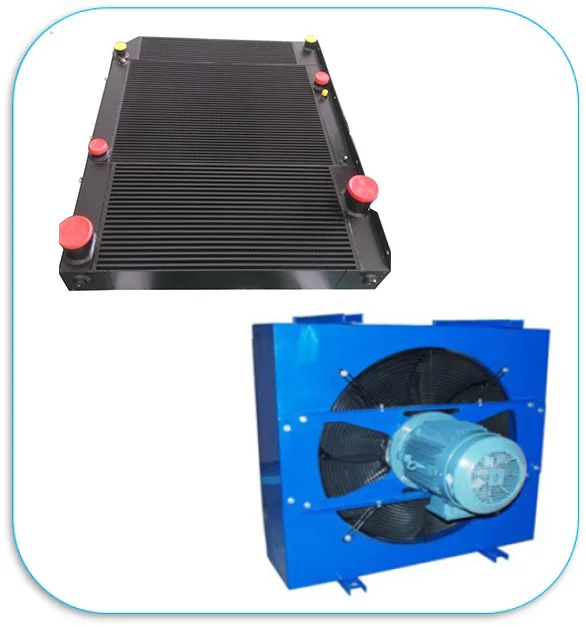

Product Application

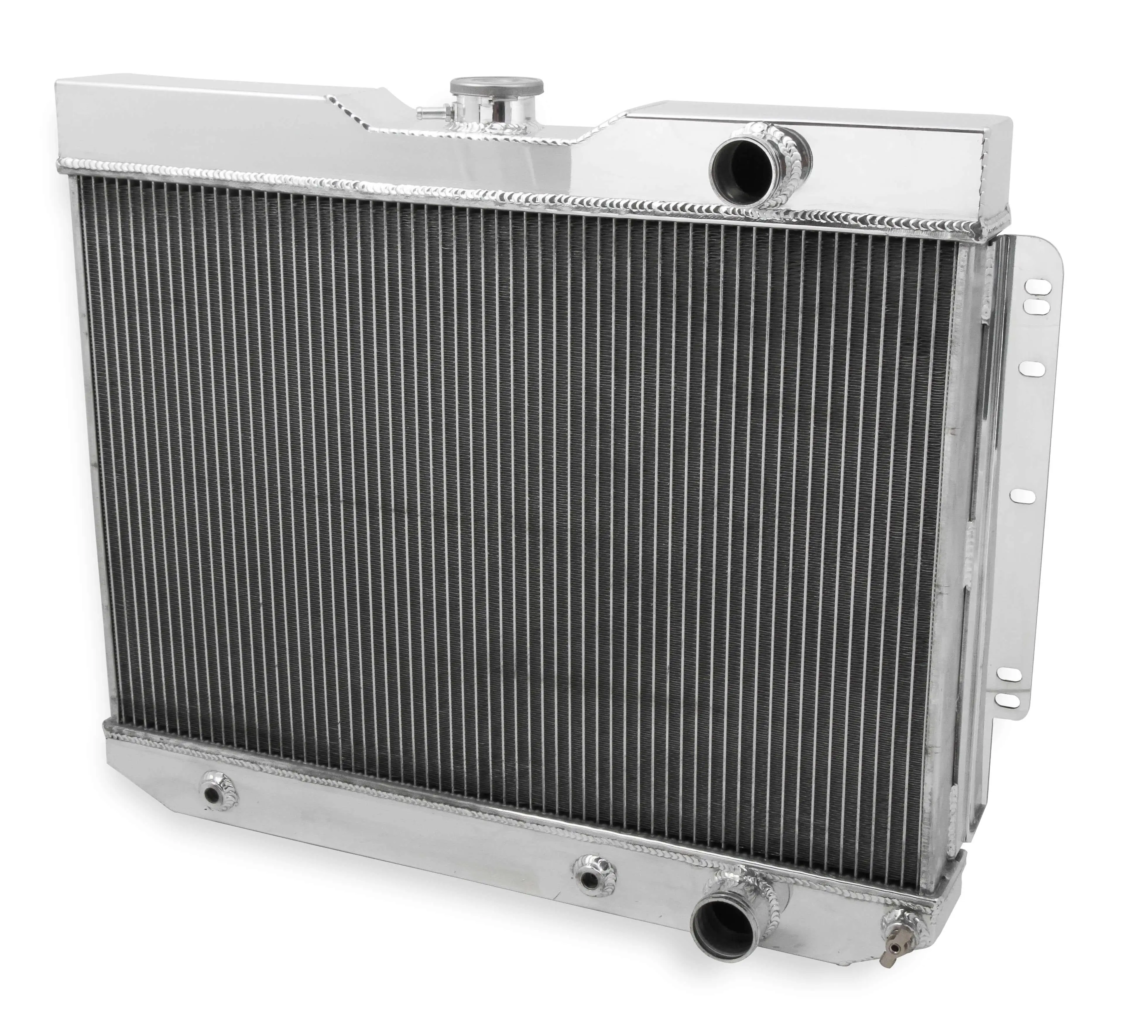

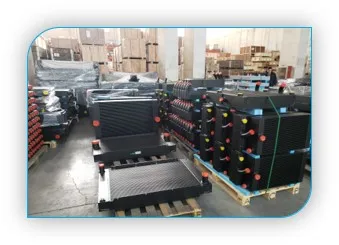

Mstirling provides multiple plate fin heat exchangers. Such as oil cooler, water radiator, air cooler, intercooler,air/oil
combin-cooler for air compressors , pre-cooled heat exchanger for refrigerated air dryer, hydraulic oil Coolers,air separator,
condenser, evaporator, radiator with fan motor with many kinds of fins, wavy-fin, serrated-fin(offset-fin), plain-fin,
louvered-fin, perforated-fin .etc.
combin-cooler for air compressors , pre-cooled heat exchanger for refrigerated air dryer, hydraulic oil Coolers,air separator,
condenser, evaporator, radiator with fan motor with many kinds of fins, wavy-fin, serrated-fin(offset-fin), plain-fin,
louvered-fin, perforated-fin .etc.
