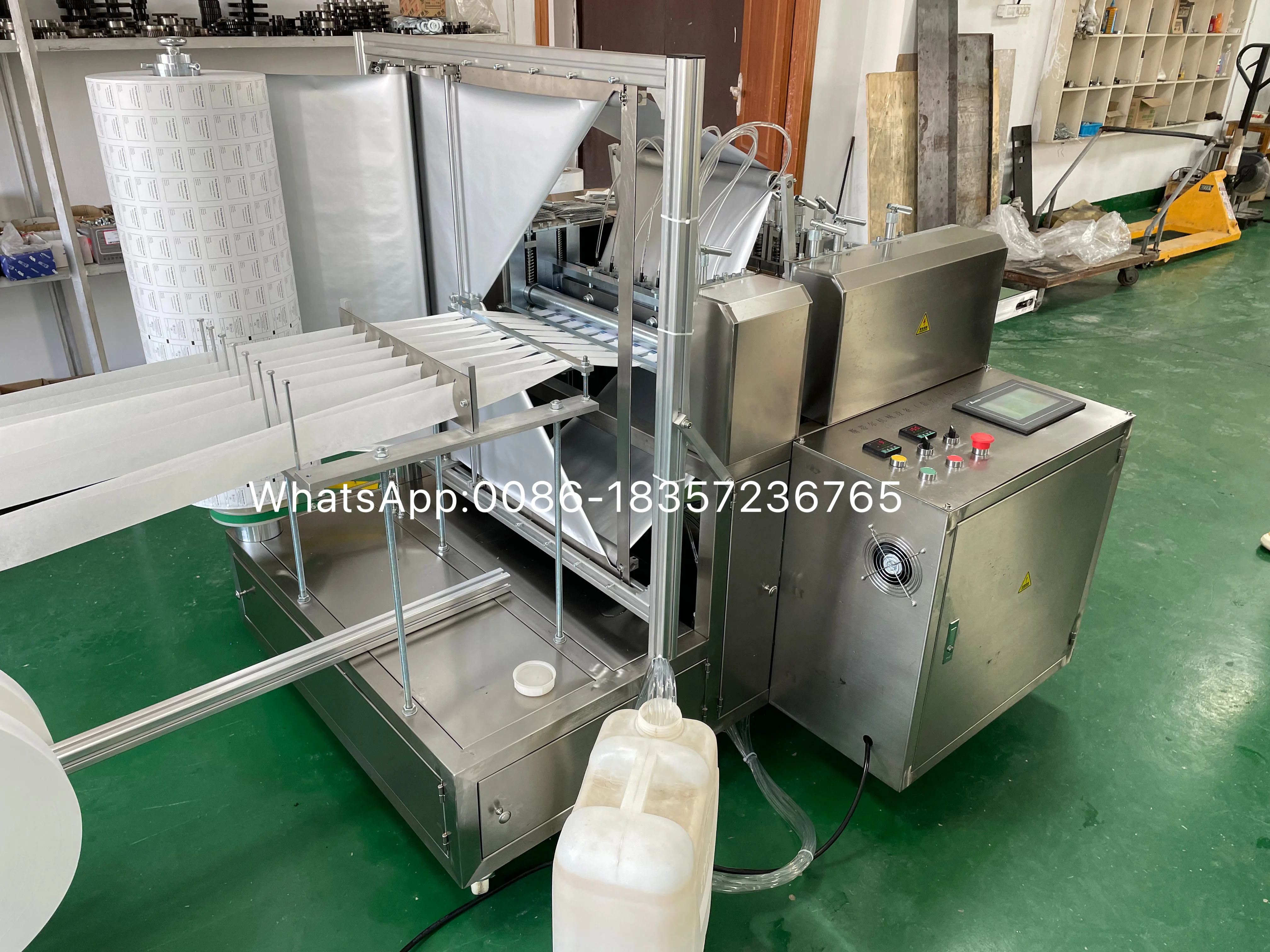

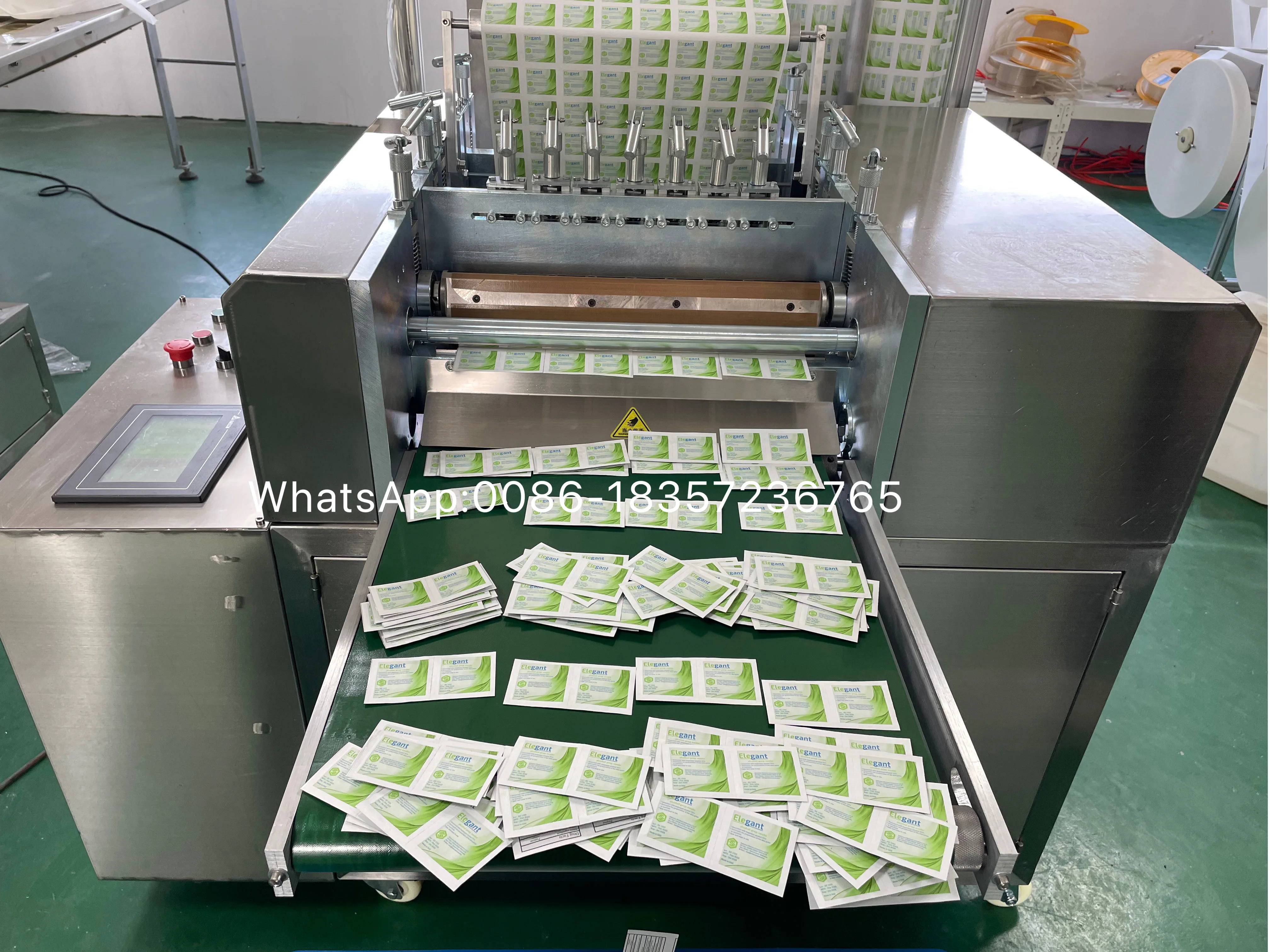

Высокая скорость х8 автоматический проспиртованный тампон Pad, делая машину

Share on (1600755926258):


Price:8 700,00 $ - 8 800,00 $

Quantity:


Product Overview

Description



Product Description

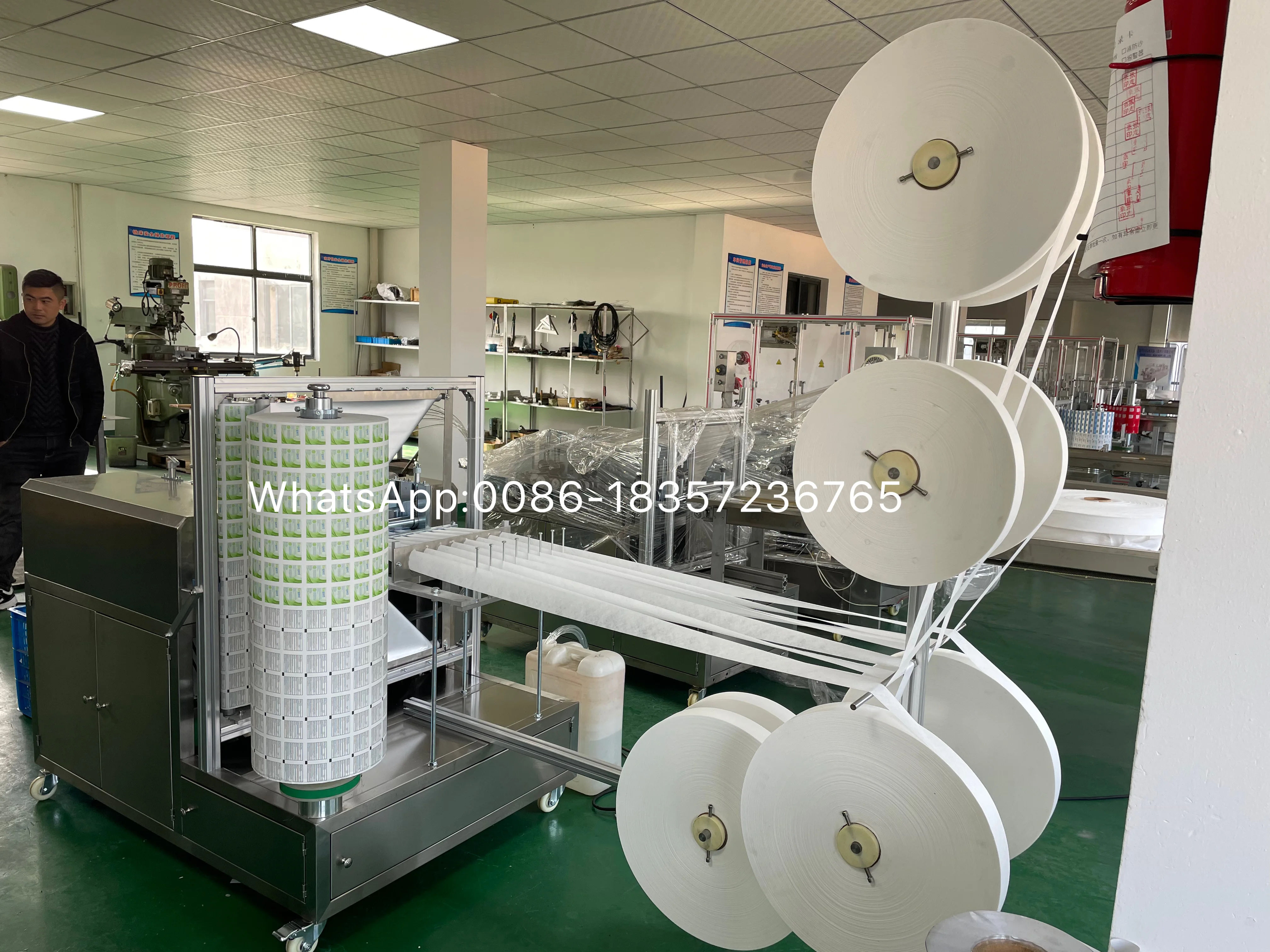

High Speed 8 Lane Automatic Alcohol Swab Pad Making Machine





This machine is a professional equipment for producing alcohol packs

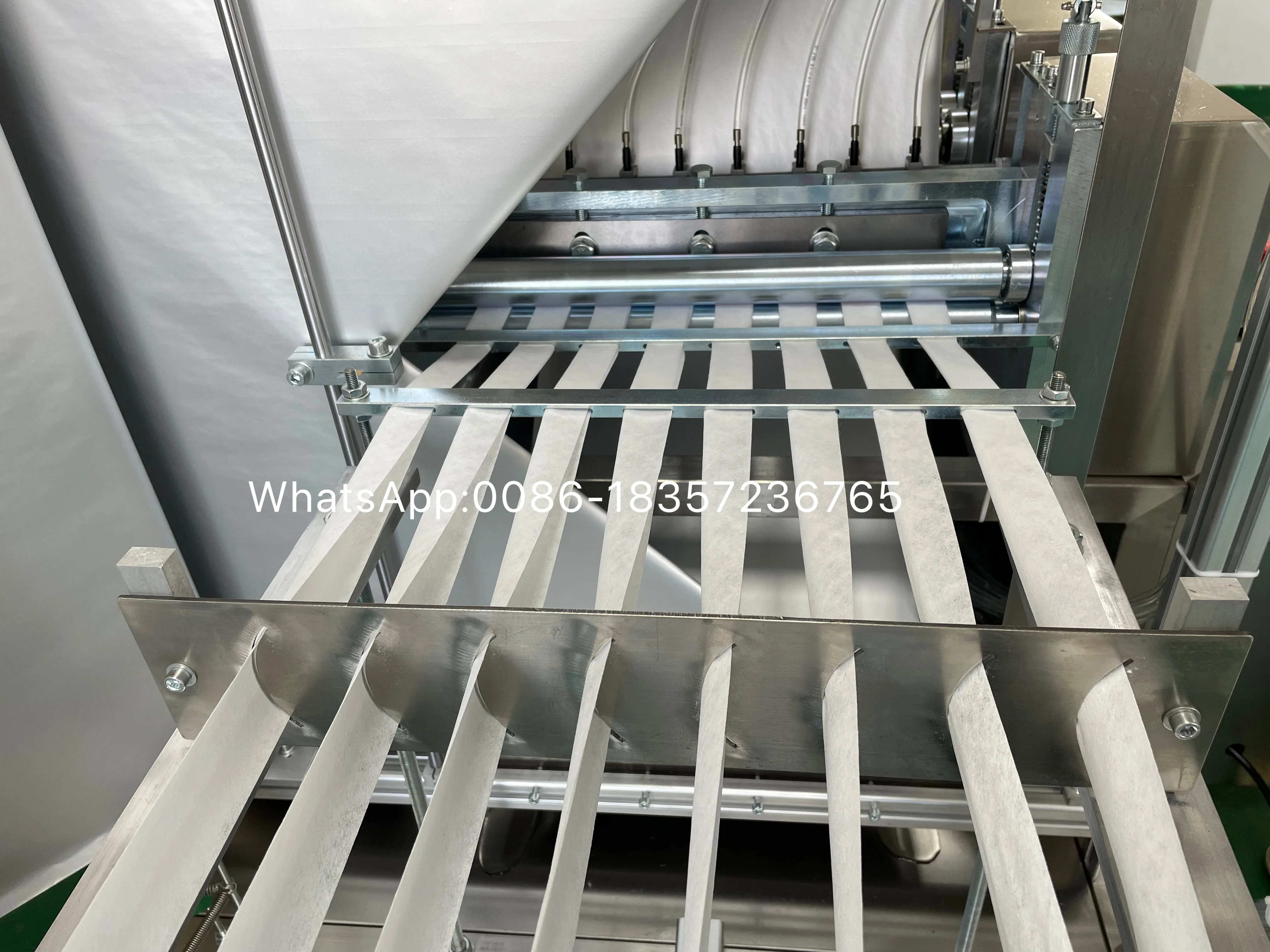

1. Unique design, the roll of non-woven fabric can be folded longitudinally, cut and added with alcohol and automatically put into the outer packaging bag.


2. Packaging progress and drip volume can be adjusted.


3. The outer bag is a four-side sealing bag type, with a uniquely designed bag finalized bag shaping system, and the finished bag is beautiful and flat.


4. It can automatically complete non-woven folding, cutting, filling, bag making, sealing, dripping, pre-selection counting, cutting, and finished product output.

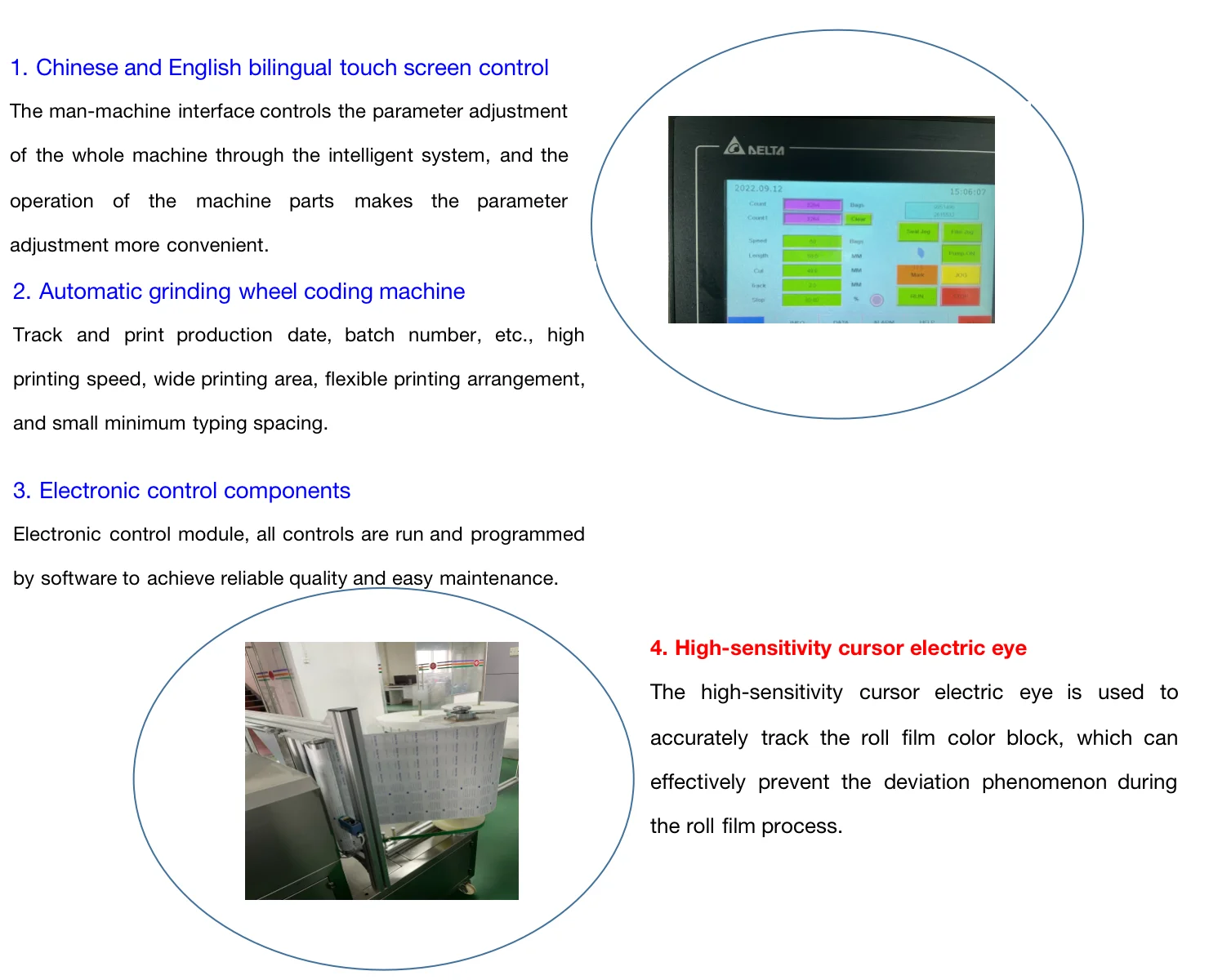

2022-10-06 19.58.05.png

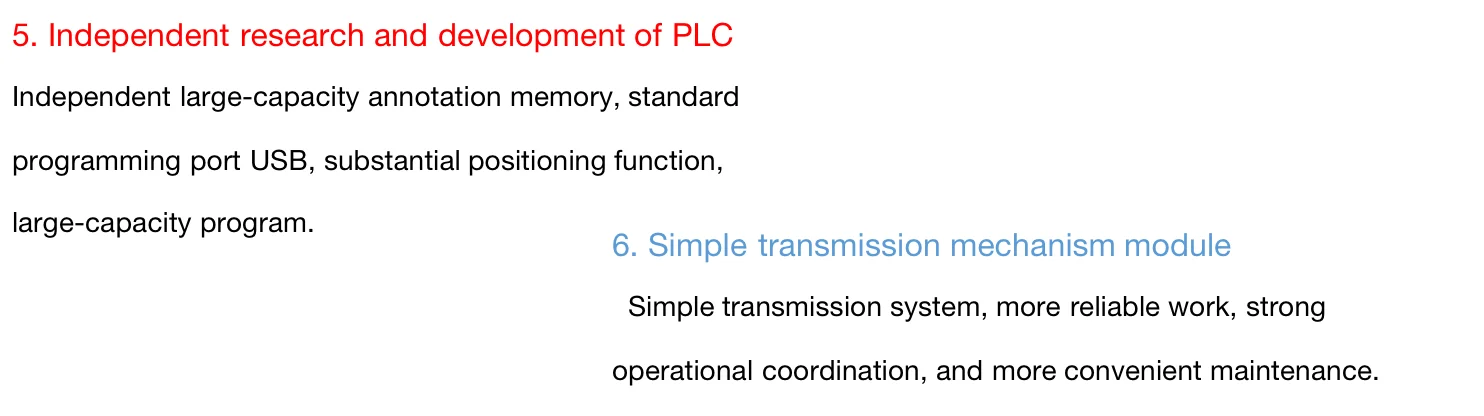

2022-10-07 11.18.40.png


 1 Output 8 Automatic Alcohol Swab Pad Making MachineAlcohol Swab Machine.JPG

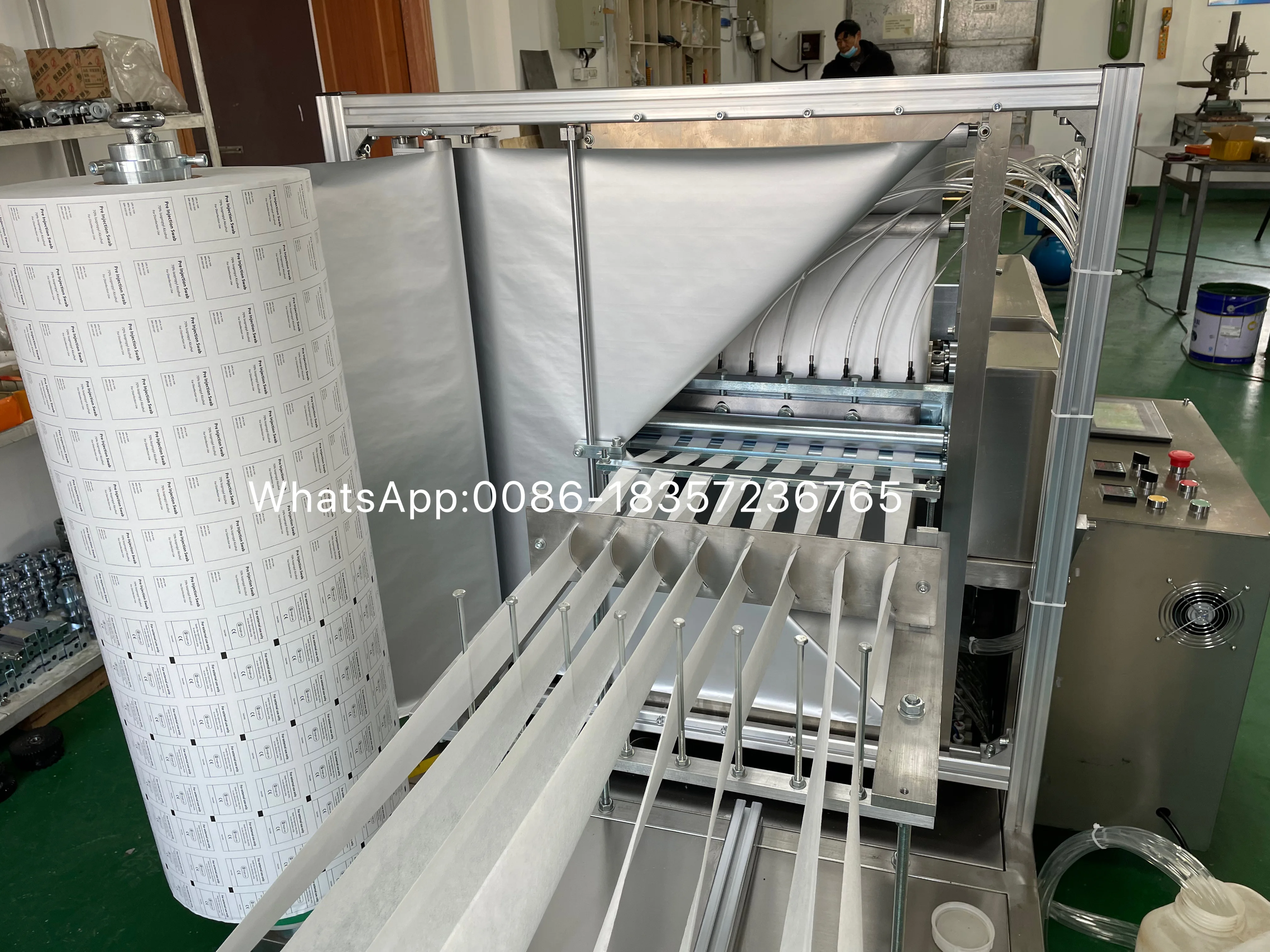

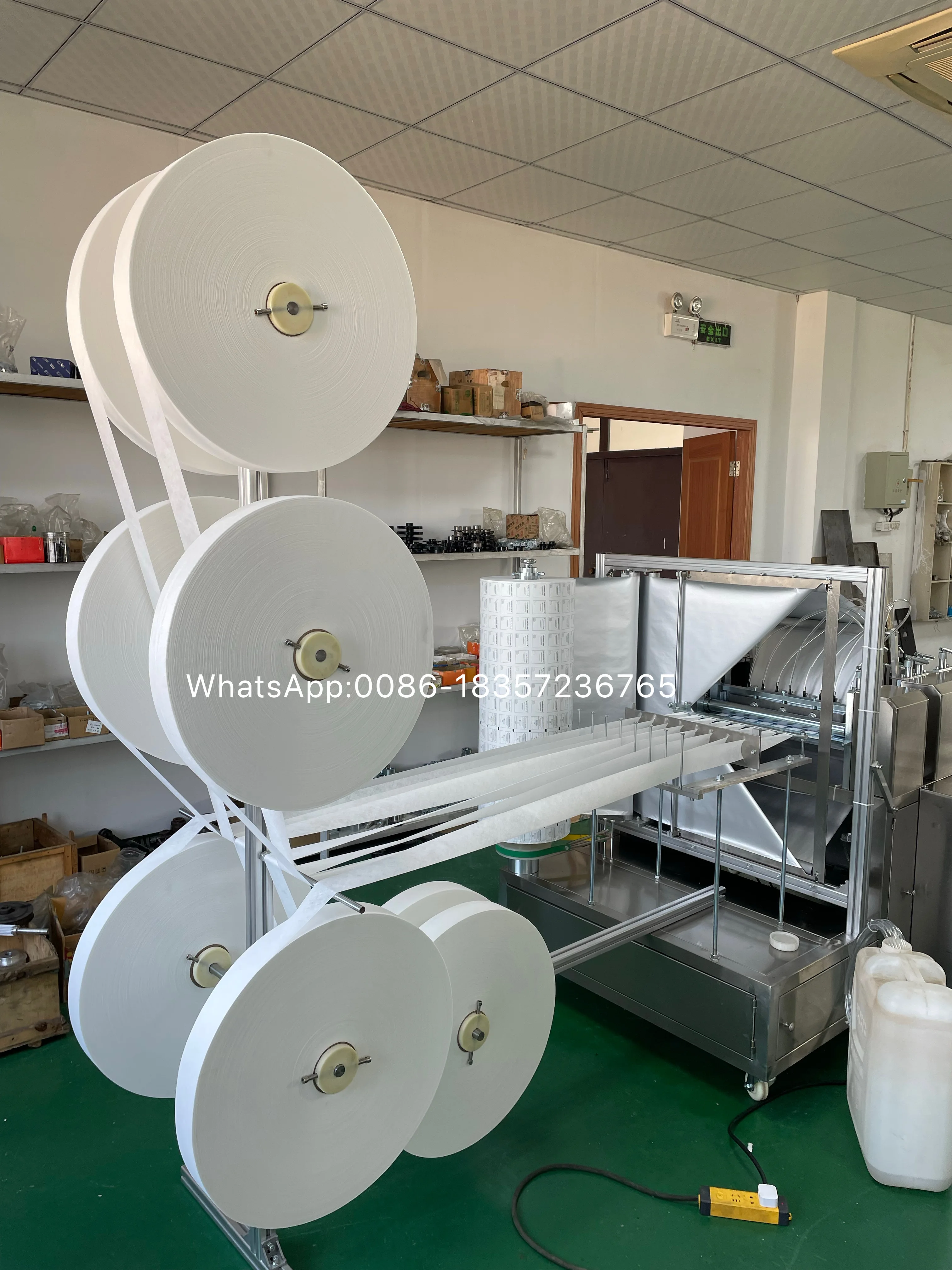

8 lane alcohol swab.JPGAlcoholPadMaking.JPGAlcoholPadPack.JPG


The outer bag is a four-side sealing bag type, with a uniquely designed bag finalized bag shaping system, and the finished bag is beautiful and flat.





Packaging progress and drip volume can be adjusted.

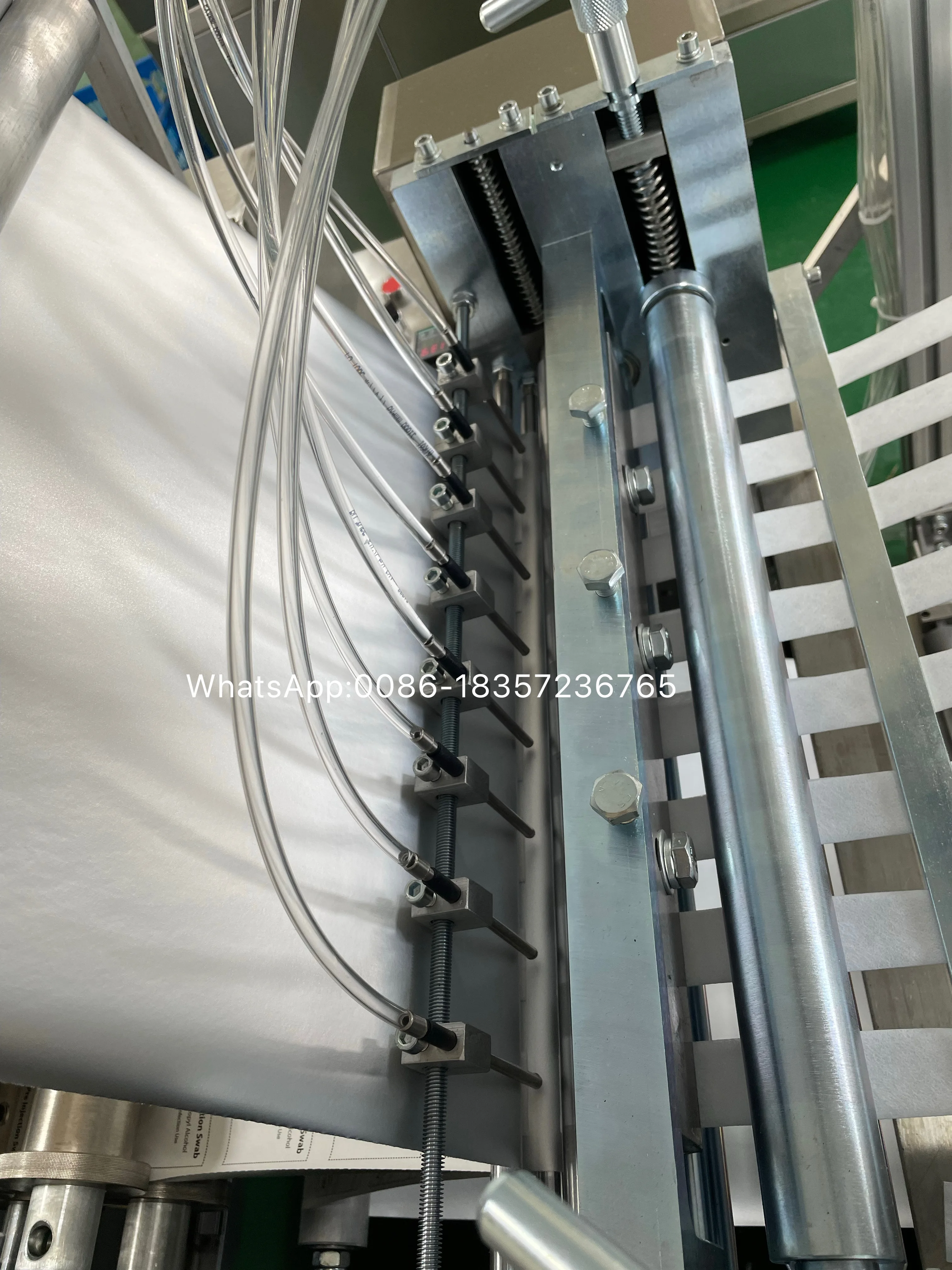

 Prep Pad.JPG

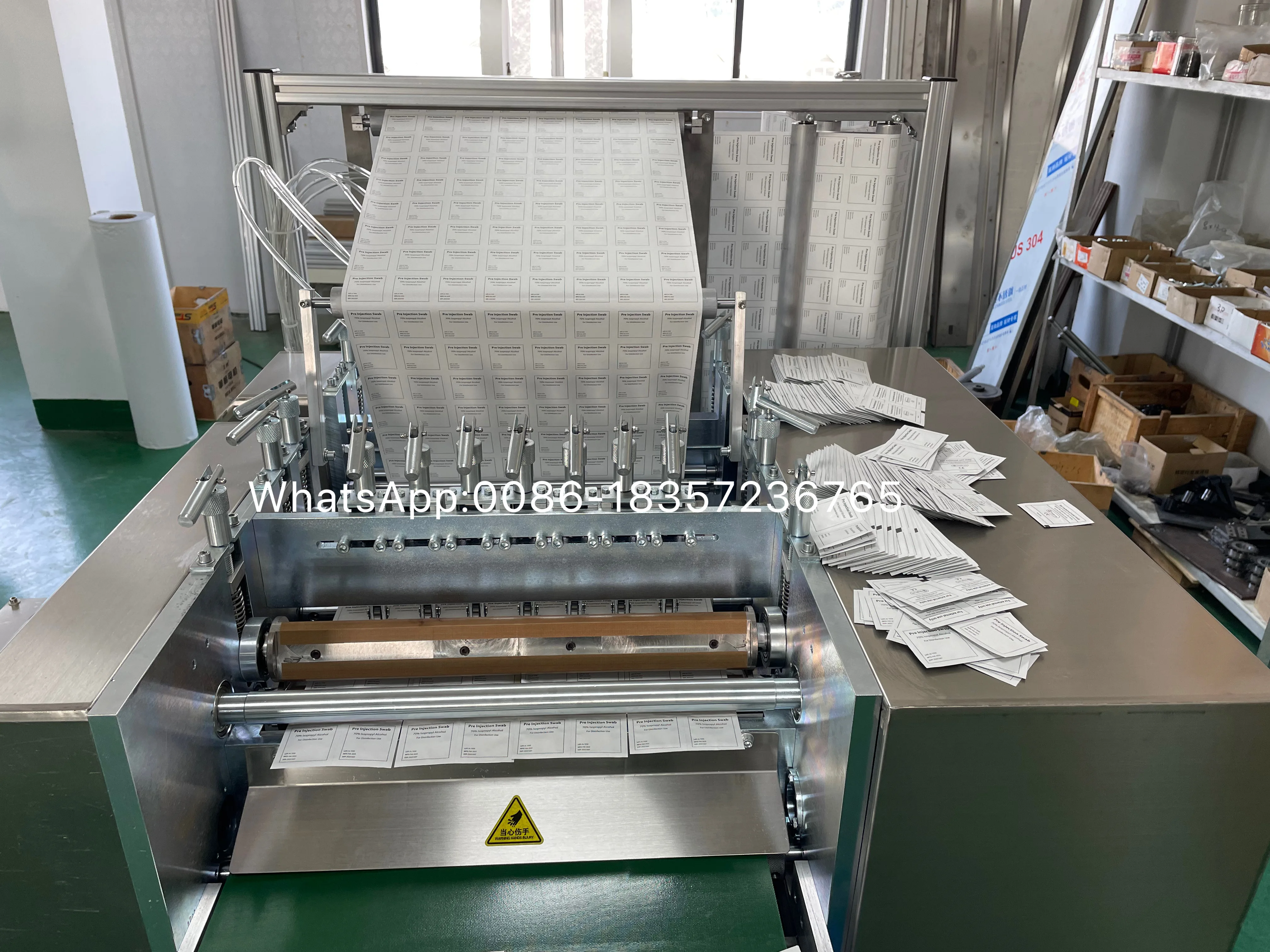

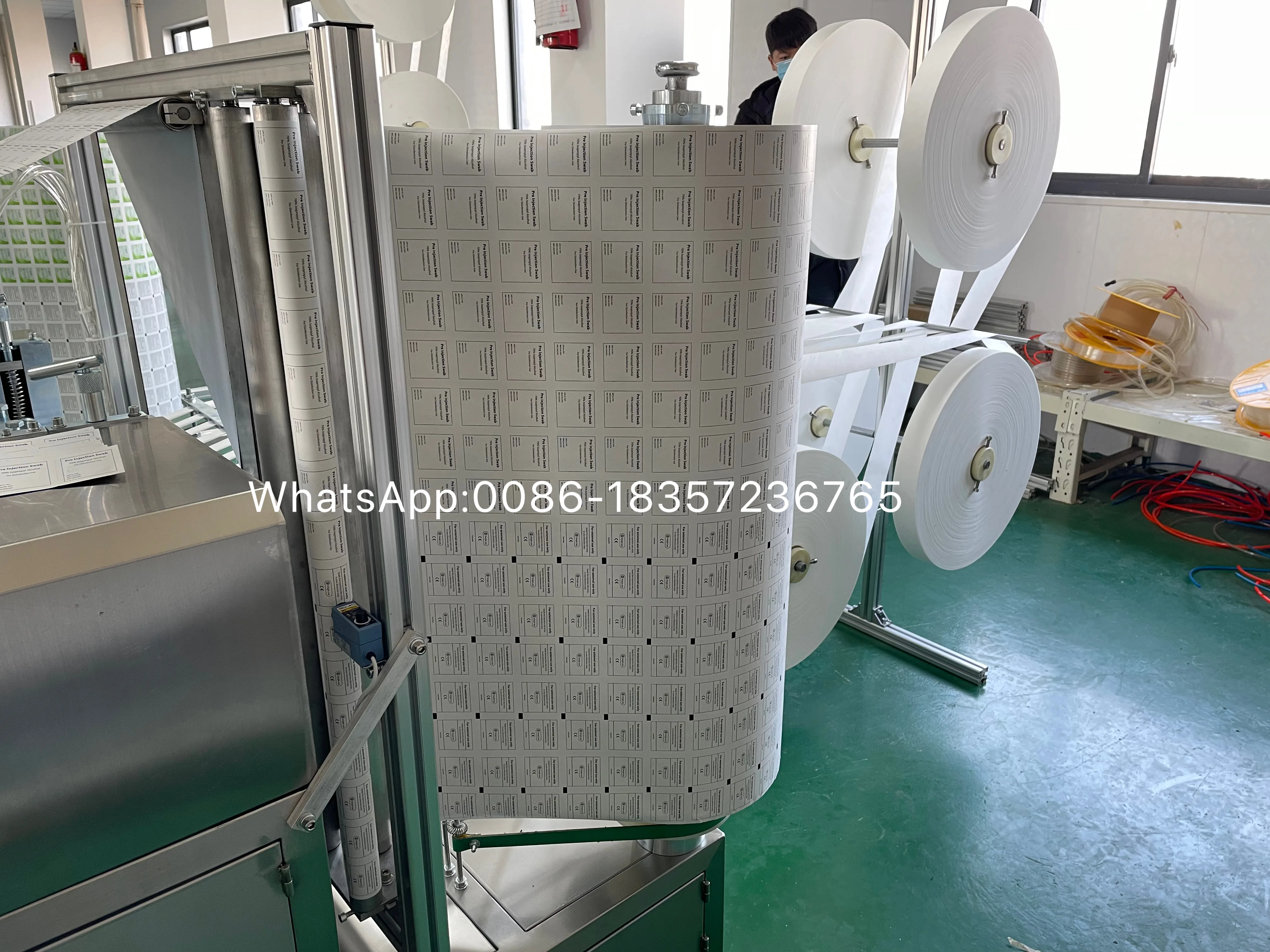

 Cotton Swab.JPGpad packaging.JPG











Detailed Images


 JL-S280 Fully-automatic Alcohol Swab Machine

































































Alcohol swab open size   30x60mm.
Alcohol swab folded size  30x30mm.
Folding way  half folding, 2plys.
Bag size  L 50 x W 50mm.
Production capacity  36000-48000pcs/hour.
Packing film material 73-110gsm, paper laminated aluminum film
Packing film Specification diameter≤350mm,width 400mm ,
Paper core diameter76.2mm (3 inch)
Suit non-woven material 30-60gsm non-woven spunlace.
Non-woven spunlace specification diameter≤600mm, width 60mm.
Paper core diameter76.2mm (3 inch)
Power220v,50hz,single phase, heating 3kw, motor,etc 1kw
Machine weight  Net weight 550kg. gross weight 620kg.
Machine dimension  3500x 1500 x 2100mm(LxWxH)
Wooden case packing size  2100x 1550x 1500mm (LxWxH)




We have 1 output 4,1 output 6, 1 output 8 alcohol pad swabs making machine. Our factory can also provide non-woven fabric and packaging film.









Advantages


 1 Man-machine interface, parameter setting is convenient and quick.


2. Fault self-diagnosis function, the fault is clear at a glance.


3. High-sensitivity photoelectric eye color mark tracking, digital input of sealing and cutting position, making the sealing and cutting position more accurate.


4. Temperature independent PID control, better adapt to various packaging materials.


5. Positioning stop function, no sticking to the knife, no waste of film.


6. The transmission system is simple, the work is more reliable, and the maintenance is more convenient.


7. All controls are realized by software, which is convenient for function adjustment and technical upgrade, and never falls behind.





Packaging & Shipping

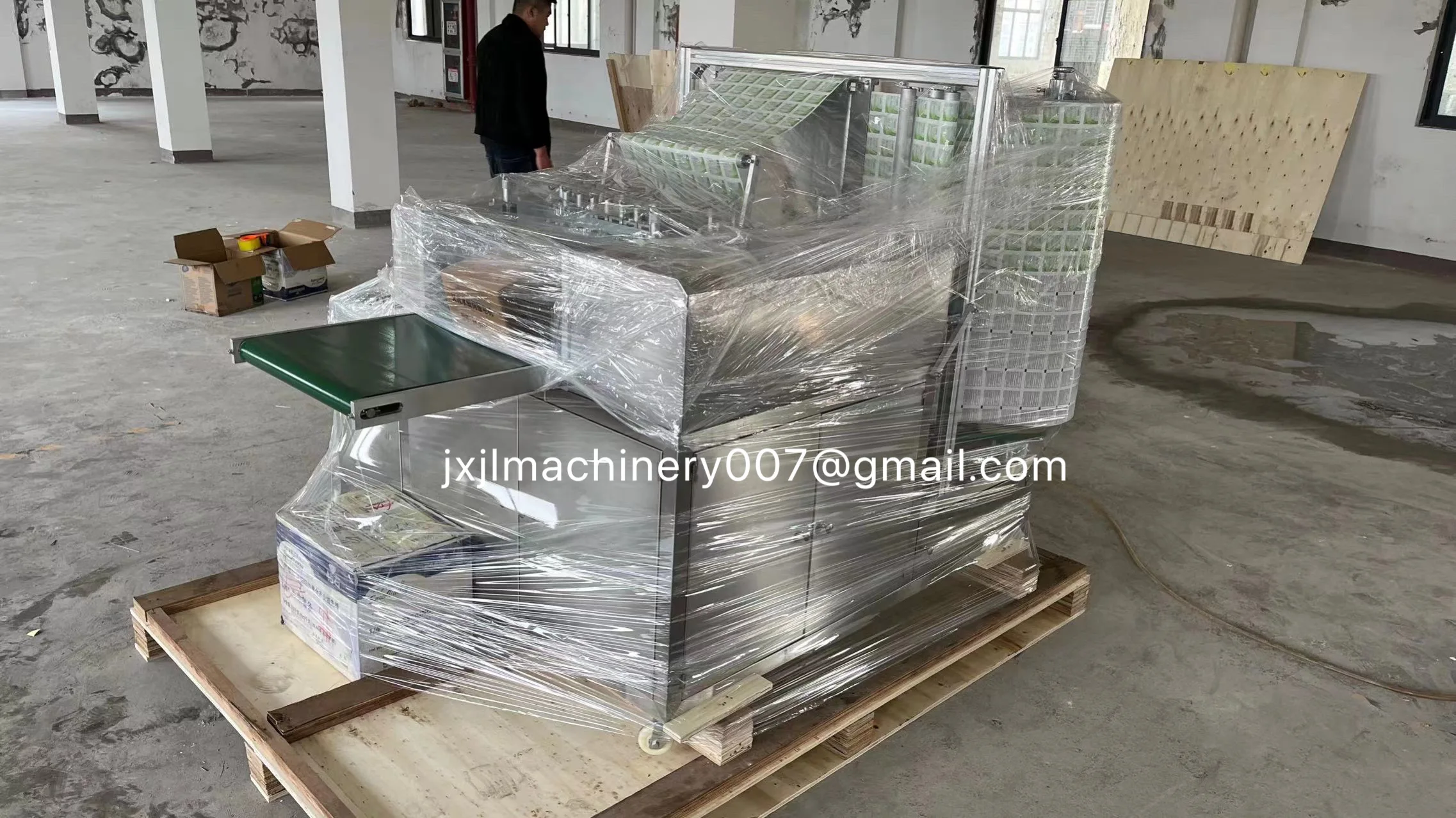

 .JPG2.JPGpreppad.JPGAlcoholPacking .JPG

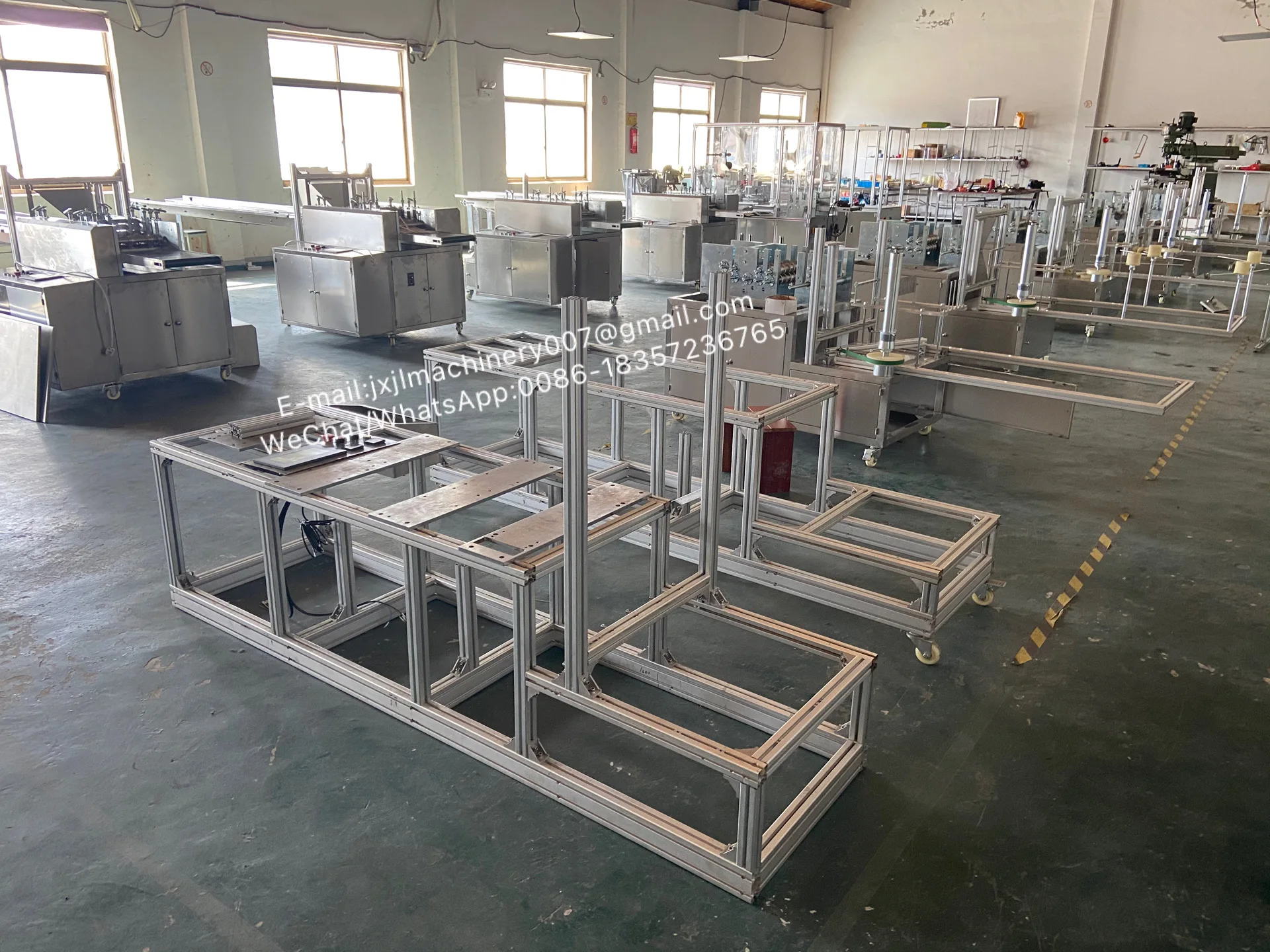

Company Information


Our company specialized in design, development, manufacturing and sales for the integration of professional company. Our company has built a strange operation management team by combining domestic and oversea advanced technology with mature scientific management experience. We produce Playing cards making machine, playing cards box & cellophane packing machine, hydraulic die cutting machine, paper cutting machine, etc. The machinery and equipment produced by our company have obtained professional quality certification such as CE certification, and are exported to many countries, North America, Russia, EU countries, South America, Mexico, Middle East, United Arab Emirates, South Korea, Japan, Southeast Asia, Thailand, Singapore, Indonesia, Malaysia, Vietnam, etc.


 The company specialized in the production level, the integrity of business ideas adhering to the“strength, high quality, good service, integrity” for the purpose of service to all customers. We sincerely welcome our friends who come from home and oversea to visit our factory, sincere cooperation for creating a better future.

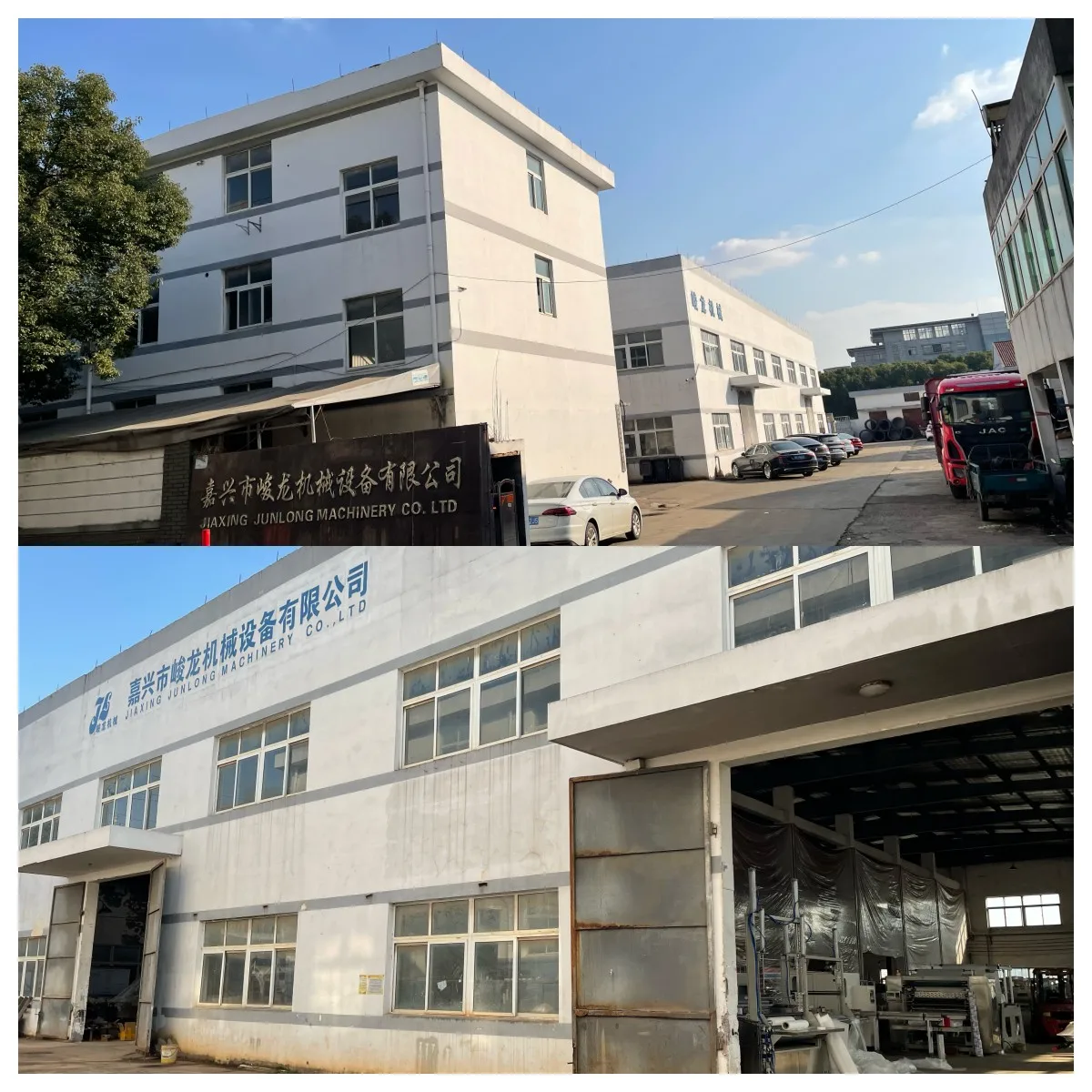

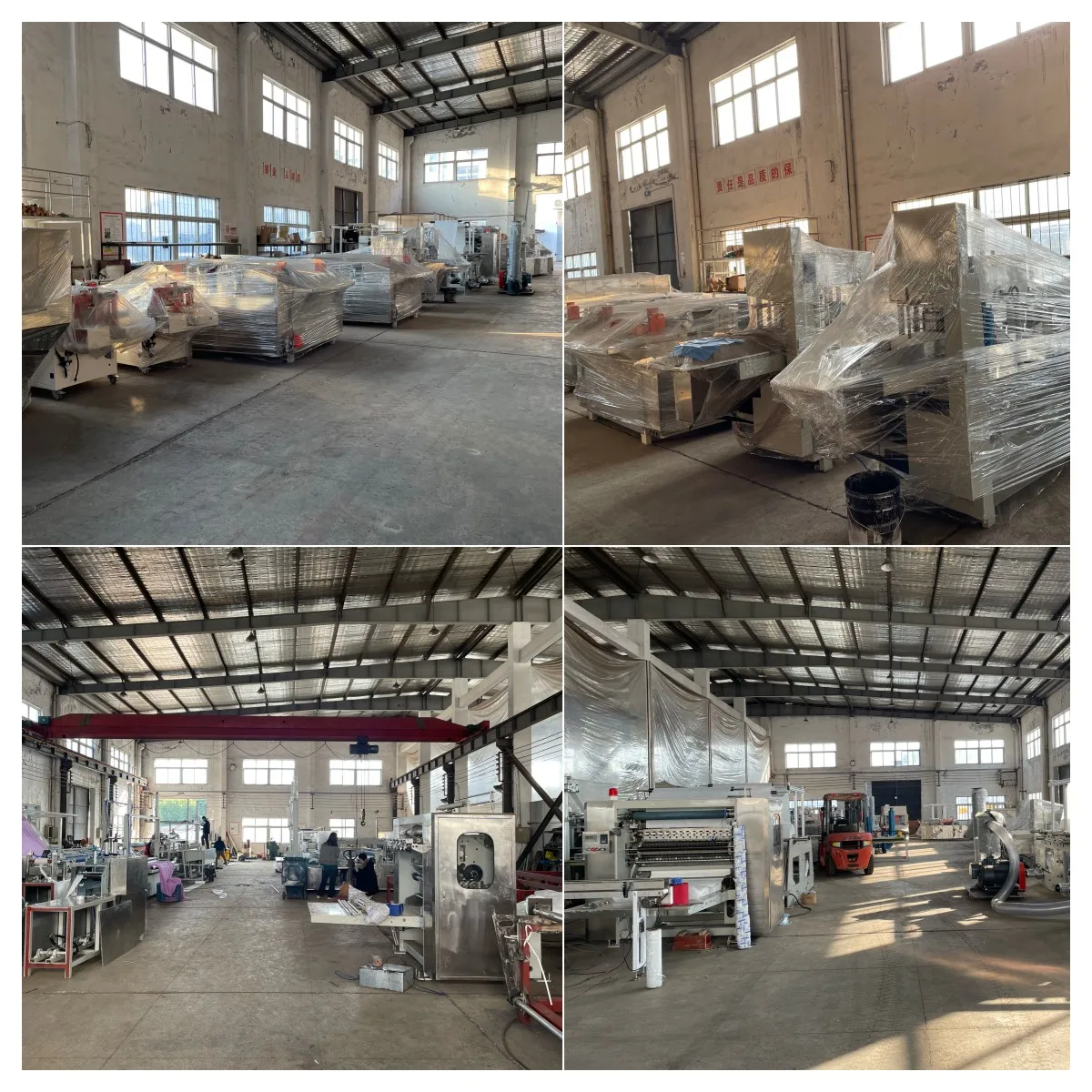

jiaxing junlong.jpgworkshop.jpg





FAQ





Q: Are you manufacturer of trading company?


A: We are a manufacturer in Zhejiang, China. The factory has been established for more than 10 years and has professional production technology and sales capabilities.





Q:  What is your terms of payment?


A:T/T 30% as deposit, and 70% before delivery.





Q: What is your payment term?


A: We usually accept T/T as the main payment term, and other payments can also be negotiated.





Q: Quality problems?


A: If there is any quality problem or question, we could offer technical support or return service.





Q: What is the Loading Port?
A:Ningbo port&Shanghai port.
