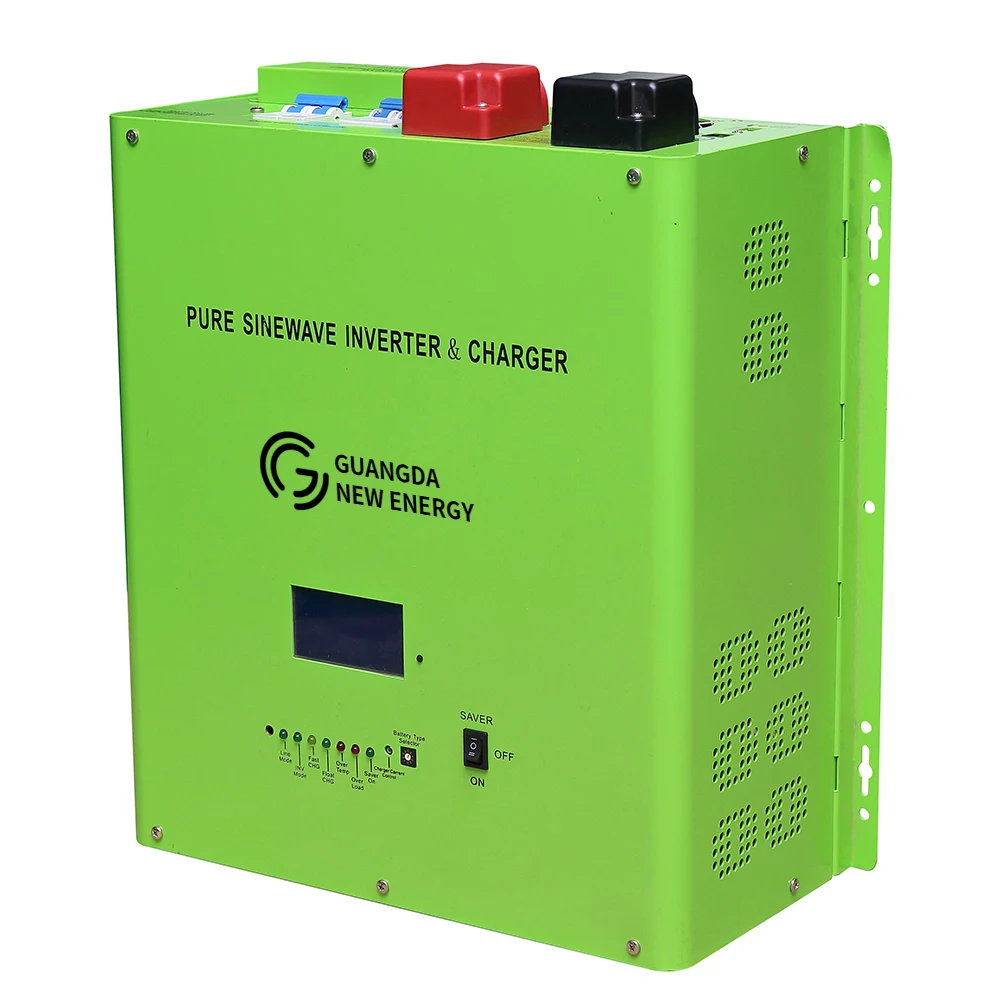

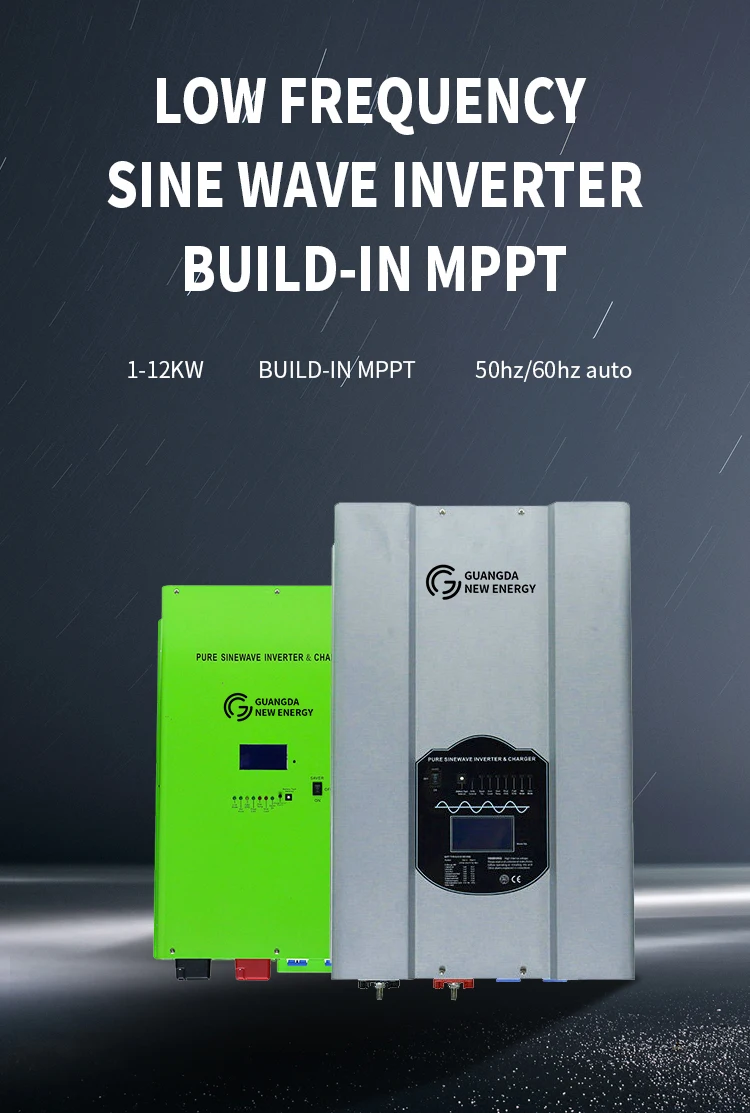

72v 6000w 7000w 8 kw pure sine wave inverter hybrid inverter 48v
- Category: Solar Energy Products >>>
- Supplier: Anhui,Guangda,New,Energy,Co.,Ltd.
Share on:
Product Overview
Description
Model | 1KW | 2KW | 3KW | 4KW | 5KW | 6KW | 8KW | 10KW | 12KW | ||||||||
Output voltage waveform | Pure sine wave (mains or generator) | ||||||||||||||||
Rated efficiency | >88%(Peak) | ||||||||||||||||
Online mode efficiency | >95% | ||||||||||||||||
Power factor | 0.9-1.0 | ||||||||||||||||
Rated output voltage | 100-110-120Vac / 220-230-240Vac | ||||||||||||||||
Output frequency | 50Hz ± 0.3Hz/60Hz ± 0.3Hz | ||||||||||||||||
Short circuit protection | Yes, protection after 1 second short circuit | ||||||||||||||||
Typical switching time | 10ms (maximum) | ||||||||||||||||
Total harmonic distortion | < 10% | ||||||||||||||||
Rated input voltage | 12.0Vdc / 24.0Vdc/ 48.0Vdc | 24.0Vdc / 48.0Vdc | 48.0Vdc/60.0Vdc/72.0Vdc | ||||||||||||||
Minimum starting voltage | 10.0Vdc / 10.5Vdc for 12Vdc Mode | ||||||||||||||||
*2 for 24Vdc,*4 for 48Vdc*5 | |||||||||||||||||
60VdcVdc *6 72Vdc | |||||||||||||||||
Low battery voltage alarm | 10.5Vdc / 11.0Vdc for 12Vdc Mode | ||||||||||||||||
Low voltage cut out | 10.0Vdc / 10.5Vdc for 12Vdc Mode | ||||||||||||||||
High voltage cutting | 16.0Vdc for 12Vdc Mode | ||||||||||||||||
Low voltage recovery | 15.5Vdc for 12Vdc Mode | ||||||||||||||||
The output voltage | Depends on battery type | ||||||||||||||||
Charging circuit breaker specifications | 15A | 20A | 30A | 40A | 40A | 40A | 50A | 80A | 80A | ||||||||
Maximum charging current | See detailed table | ||||||||||||||||
Starting voltage | 10.5-15.7Vdc for | *2 for 24Vdc, *4 for 48Vdc;*6 72Vdc | |||||||||||||||
12Vdc Mode | |||||||||||||||||
Overcharge protection shutdown point | more than the 15.8Vdc for 12Vdc Mode | ||||||||||||||||
Rated input voltage | 100-110-120Vac / 220-230-240Vac | ||||||||||||||||
Maximum input voltage | 150VAC For 120Vac LV Mode；300VAC For 230Vac HV Mode； | ||||||||||||||||
Rated input frequency | 50Hz or 60Hz | ||||||||||||||||
Low frequency cut out | 47±0.3Hz for 50Hz, 57±0.3Hz for 60Hz | ||||||||||||||||
High frequency cut out | 55±0.3Hz for 50Hz, 65±0.3Hz for 60Hz | ||||||||||||||||
Overload protection | yes | ||||||||||||||||
Output short circuit protection | yes | ||||||||||||||||
Maximum bypass current | 30Amp | 40Amp | 80Amp | ||||||||||||||

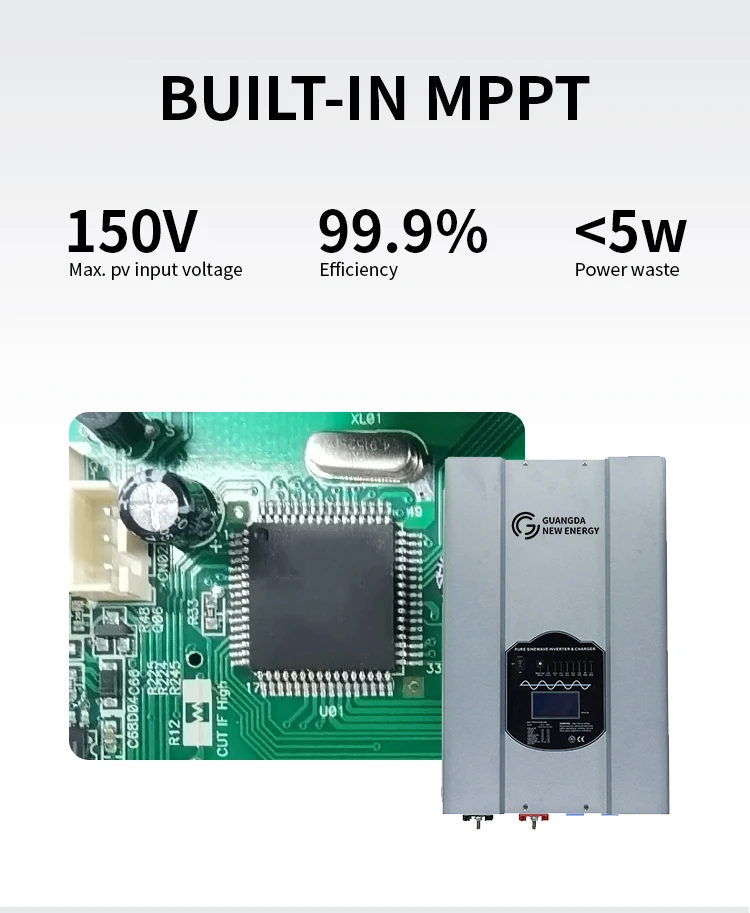

Solar system voltage | MPPT12V/24V/36V/48V automatic recognition | ||||||||||||||||
Open circuit voltage of photovoltaic panel | 18～150Vdc@12V 35～150Vdc@24V 60～150Vdc@48V | ||||||||||||||||
Rated charging current | 30A-120A (optional) | ||||||||||||||||
Charging efficiency | 97.60% | ||||||||||||||||
Rechargeable battery type | Valve-regulated lead-acid battery Gel battery Lithium battery | ||||||||||||||||
charging method | Four-stage charging: constant current charge, constant voltage charge, float charge, equal charge | ||||||||||||||||
safety protection | Solar panel short circuit protection, overcharge protection, over discharge protection, overload protection | ||||||||||||||||
Install | Wall mount | ||||||||||||||||
Inverter size (length * width * height) | 340*420*200mm | 425*375*200mm | 560*420*235mm | 655*490*240mm | |||||||||||||
Inverter shell size (length * width * height) | 415*440*300mm | 500*495*300mm | 660*470*310mm | 720*470*290mm | |||||||||||||
Net weight of inverter with solar rear KG | 16 | 20 | 26.5 | 31.5 | 33.5 | 37.5 | 56.5 | 58.5 | 61.5 | ||||||||
Package includes solar rear unit net weight KG | 19 | 29.5 | 38 | 40 | 44 | 63.5 | 66 | 68.5 | 70.5 | ||||||||

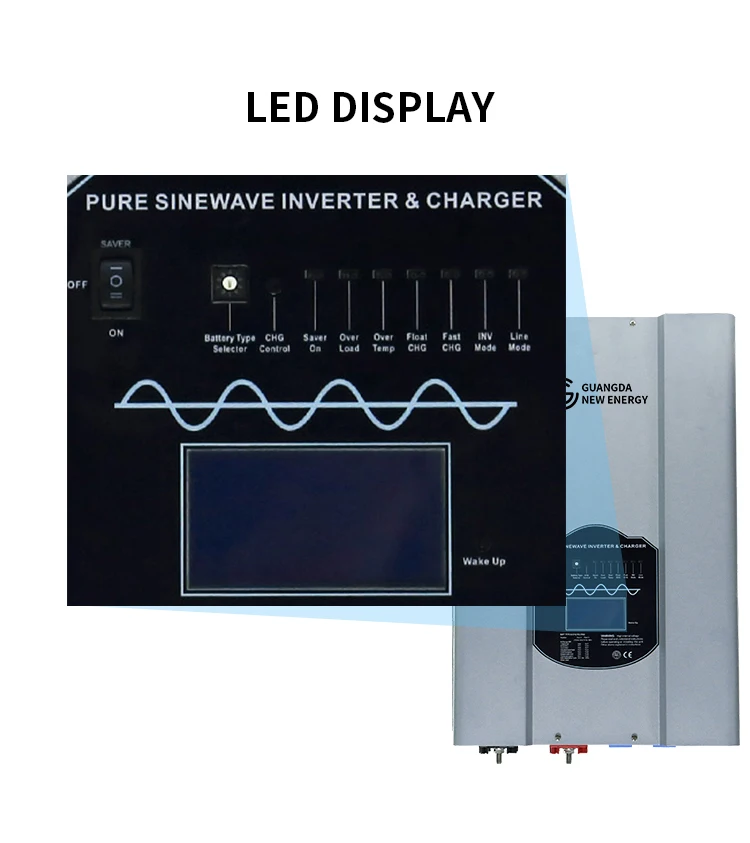

show | Status LEDs / Status LEDs+LCD | ||||||||||||||||
Standard warranty | 2 year | ||||||||||||||||
