Заводская поставка Luoyang HONB ZKLDF100 осевой угловой контактный шарикоподшипник для станков поворотные столы
- Category: Angular Contact Ball Bearings >>>
- Supplier: Luoyang,Hongyuan,Bearing,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Overview
ZKLDF100
ZKLDF axial angular contact ball bearings, can bear combined load, with high speed and low friction torque, at the same time it can ensure high rotary precision. Which can be applied to high speed rotary worktable, milling, grinding, honing head and precision measuring instruments.
FEATURES AT A GLANCE
LONG LIFE
HIGH ACCURACY
HIGH AXIAL AND RADIAL LOAD CAPACITY
HIGH TILT RIGIDITY
WITH MOUNTING HOLES
VERSATILITY
HIGH AXIAL AND RADIAL LOAD CAPACITY
HIGH TILT RIGIDITY
WITH MOUNTING HOLES
VERSATILITY
Right elevation
Left elevation
Front elevation
Product Paramenters
d | 100mm | Bore diameter | ||
D | 185mm | Outside diameter | ||
H | 38mm | Height | ||
nG | 5600rpm | Limiting speed | ||
Ca | 71,000N | Basic dynamic load rating, axial | ||
C0a | 265,000N | Basic static load rating, axial |

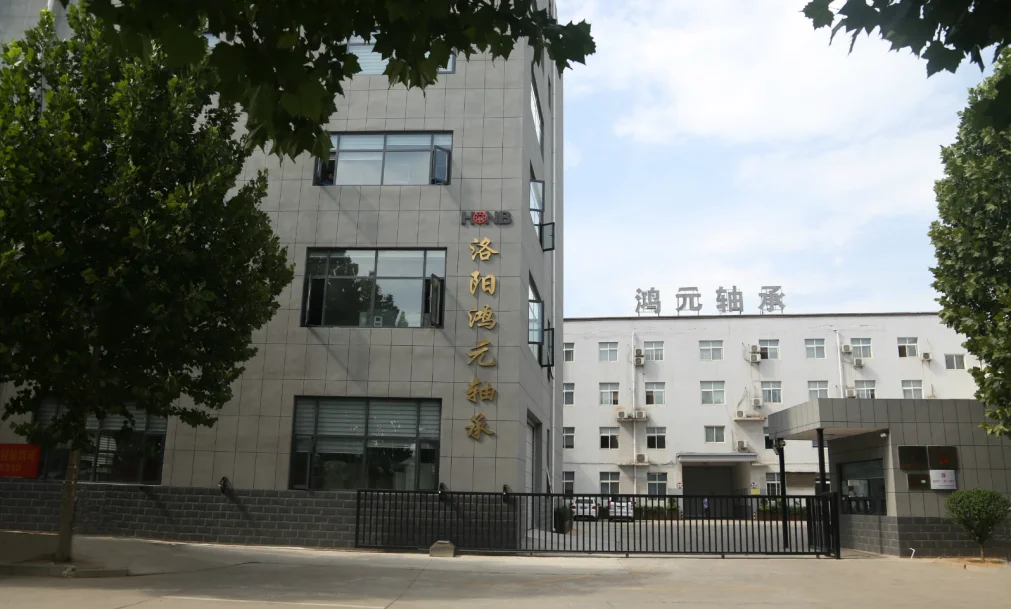

Company Profile
LUOYANG HONGYUAN BEARING TECHNOLOGY CO., LTD.
HONB was established in December 2005, located in the Luoyang Airport Industrial Cluster, with more than 500 employees. At
present, it has occupied 80% of YRT rotary table bearing market and precision cross roller bearing market in China, 90% of
domestic harmonic reducer bearing market, 50% of the products are exported to Europe, North America, India, South Korea, Taiwan
and other countries and regions.
present, it has occupied 80% of YRT rotary table bearing market and precision cross roller bearing market in China, 90% of
domestic harmonic reducer bearing market, 50% of the products are exported to Europe, North America, India, South Korea, Taiwan
and other countries and regions.
Products Description

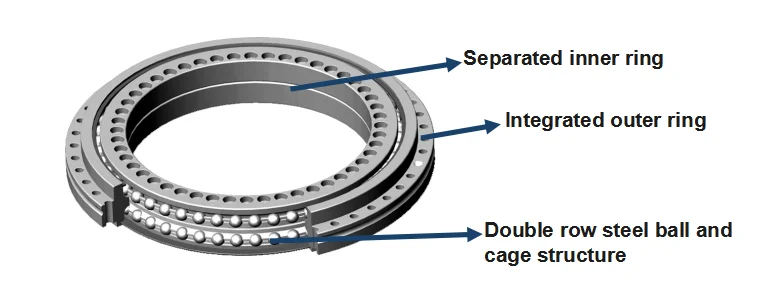

ZKLDF Series bearings are designed with 60°contact angle, two rows ball, and copper cage structure which has high rigidity, low friction torque characteristics and is suitable for applying in occasions with high speed, long term rotating, high precision, high rigidity requirements.
Product Paramenters
Model | Main dimension | Limited speed | Bearing friction torque | Weight | ||||
d | D | H | Grease (r/min) | Nm | ≈Kg | |||
ZKLDF100 | 100 | 185 | 38 | 2800 | 1.6 | 4.5 | ||
ZKLDF120 | 120 | 210 | 40 | 2400 | 2 | 6 | ||
ZKLDF150 | 150 | 240 | 40 | 2000 | 3 | 7.5 | ||
ZKLDF180 | 180 | 280 | 43 | 1600 | 4.5 | 11 | ||
ZKLDF200 | 200 | 300 | 45 | 1600 | 4.5 | 11 | ||
ZKLDF260 | 260 | 385 | 55 | 1200 | 7.5 | 22 | ||
ZKLDF325 | 325 | 450 | 60 | 1000 | 11 | 28 | ||
ZKLDF395 | 395 | 525 | 65 | 800 | 16 | 39 | ||
ZKLDF460 | 460 | 600 | 70 | 700 | 21 | 50 | ||
ZKLDF580 | 580 | 750 | 90 | 500 | 40 | 82 | ||
ZKLDF650 | 650 | 870 | 122 | 440 | 63 | 168 | ||

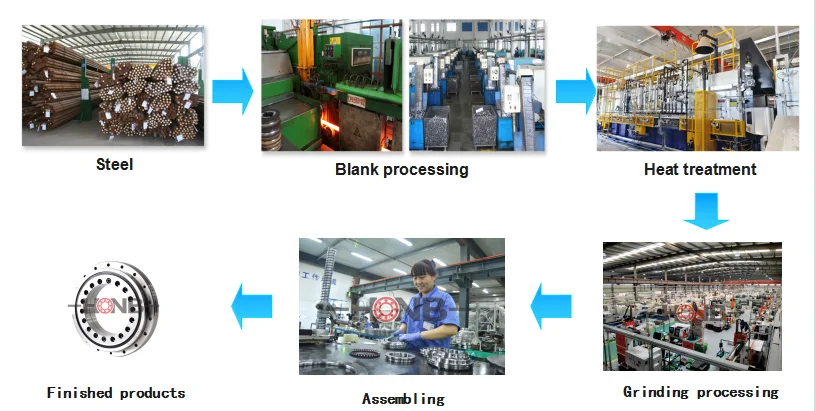

Manufacturing process
Packing & Shipping
1. Industrial Neutral Packing,Package as your requirements.
2. Small size Bearings:Plastic vacuum packaging bag+Paper Box/Neutral Carton
3.Large size Bearings:Plastic film+Brown paper+Roll tape+Wooden Box
2. Small size Bearings:Plastic vacuum packaging bag+Paper Box/Neutral Carton
3.Large size Bearings:Plastic film+Brown paper+Roll tape+Wooden Box

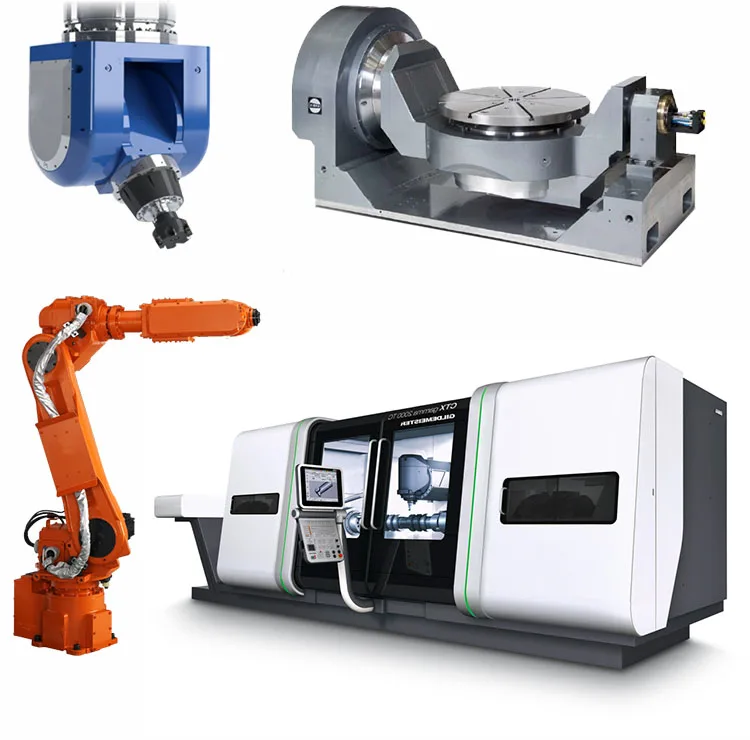

Application
