Product Overview

Description



Products Description

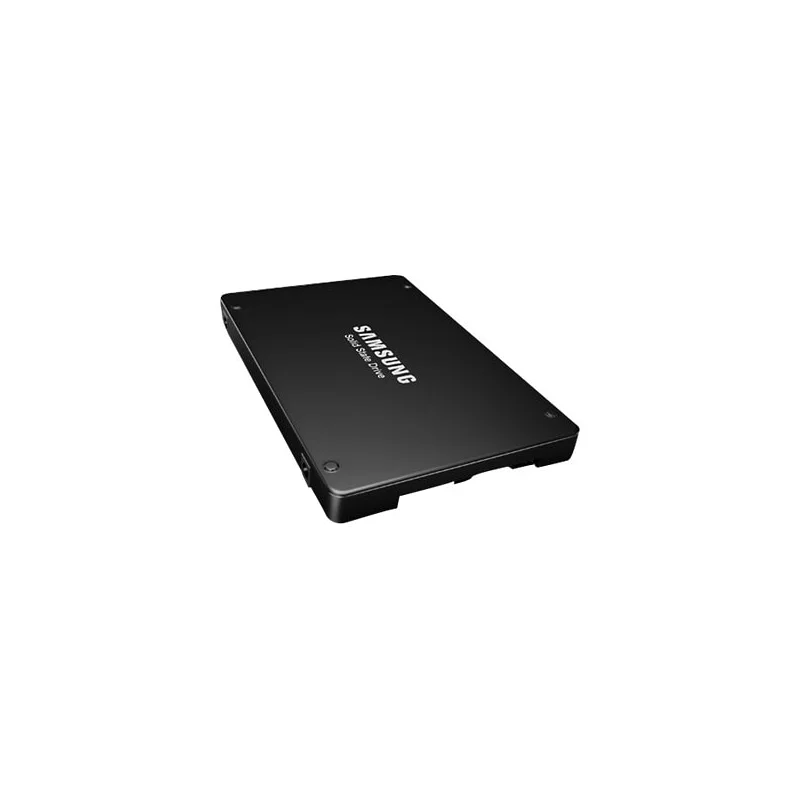

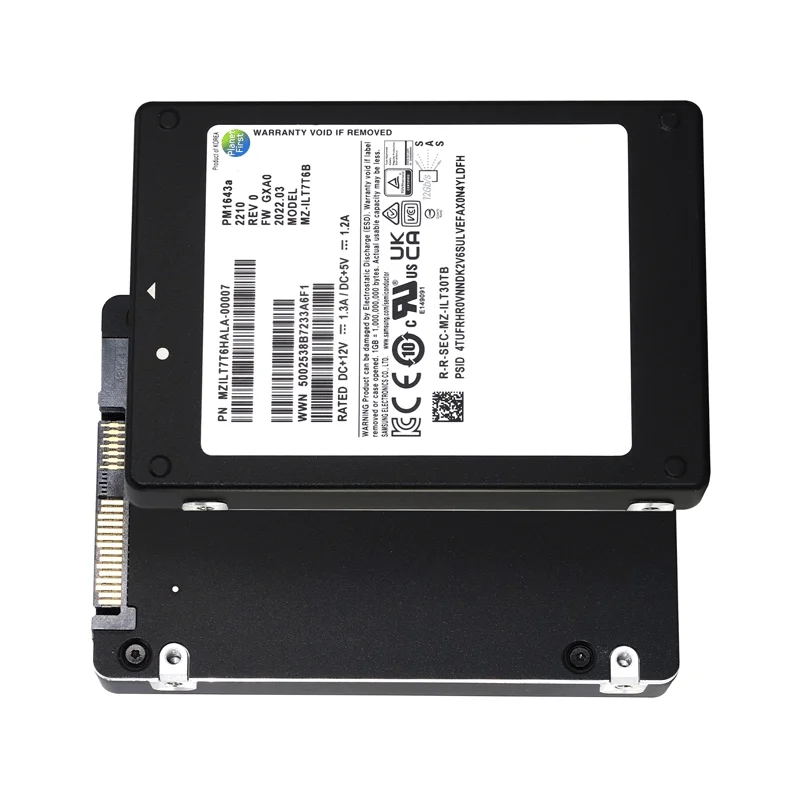

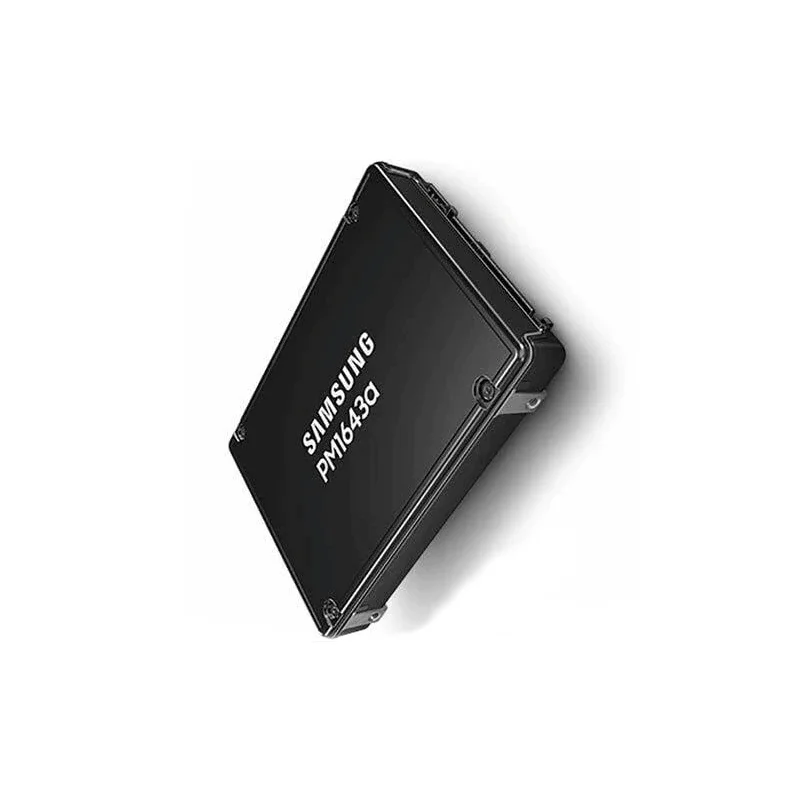

Samsung Enterprise SSD PM1643a
Usage
Application
Enterprise SSD, Data Center, Server
Interface
SAS 12.0 Gbps Interface
Hardware
Information
Capacity
960GB
1.92TB
3.84TB
7.68TB
15.36TB
30.72TB
Controller
Samsung in-house Controller
NAND Flash Memory
Samsung V-NAND TLC
Dimensions
100.20(L) x 69.85(W) x 14.80(H) mm
Form Factor
2.5 inch
Performance
(Up to.)
Sequential Read
 2,100 MB/s
 2,100 MB/s
 2,100 MB/s
 2,100 MB/s
 2,100 MB/s
 2,100 MB/s
Sequential Write
 1,000 MB/s
 1,800 MB/s
 2,000 MB/s
 2,000 MB/s
 1,800 MB/s
 1,700 MB/s
4KB Ran. Read (QD32)
380 KIOPS
 430 KIOPS
 450 KIOPS
400 KIOPS
400 KIOPS
400 KIOPS
4KB Ran. Write (QD32)
40  KIOPS
60  KIOPS
 90  KIOPS
 90  KIOPS
 65  KIOPS
 60 KIOPS
Power
Consumption
Idle
5.5W
5.5W
5.5W
5.5W
5.5W
5.5W
Reliability
Temp. Operating
0°C to 70°C
Temp. Non Operating
-40°C to 85°C
Humidity
5% to 95% non-condensing
Shock  Non Operating
1,500G, duration: 0.5ms, 3 axis
Vibration  Non Operating
20~2,000Hz, 20G
MTBF
2.0 million hours
Warranty
TBW
1,752TB
3,504TB
7,008TB
14,016TB
28,032TB
56,064TB
Period
5 year limited
Supporting
Features
TRIM (Required OS support), Garbage Collection, S.M.A.R.T
Data Security
AES 256-bit Full Disk Encryption, TCG/Opal V2.0, Encrypted Drive (IEEE1667)








Company Profile










Certifications


ISO9001:2015
ISO14001:2015
ISO14064


Exhibition


CES 2021
CES 2019
Supplier award


FAQ


Q: Where are your SSDs made?
A: Our SSDs are made in Taiwan.

Q: What are your qualifications as an OEM?
A: We have Tier-1 OEM qualifications world-wide.

Q: What kind of custom ASICs have you completed?
A: We have completed custom ASICs in SSD, USB, UFS, and eMMC.

Q: What are you investing in for the future?
A: We are investing in storage R&D, including 12nmFFC and beyond.

Q: What leading features do your products have?
A: Our products have several leading features, including MRAM interface capabilities and artificial intelligence security algorithms developed through a partnership with Cigent.
