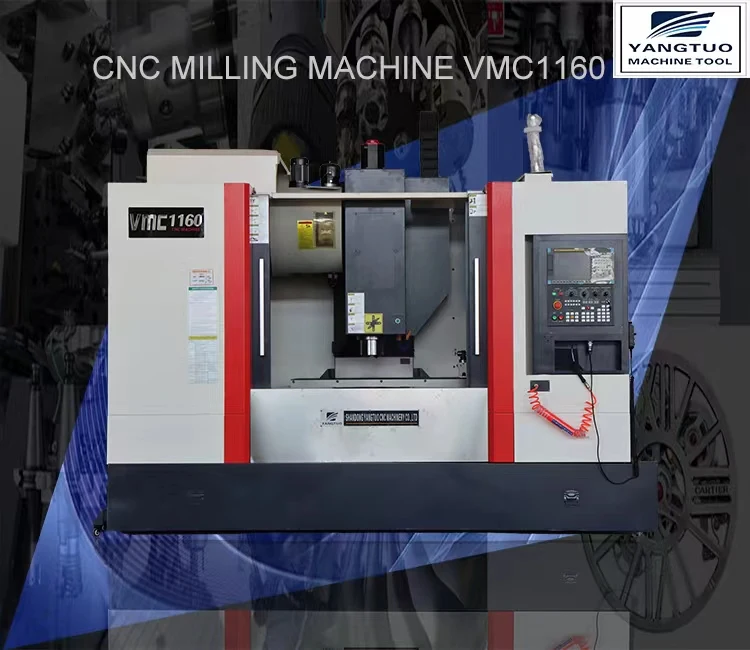

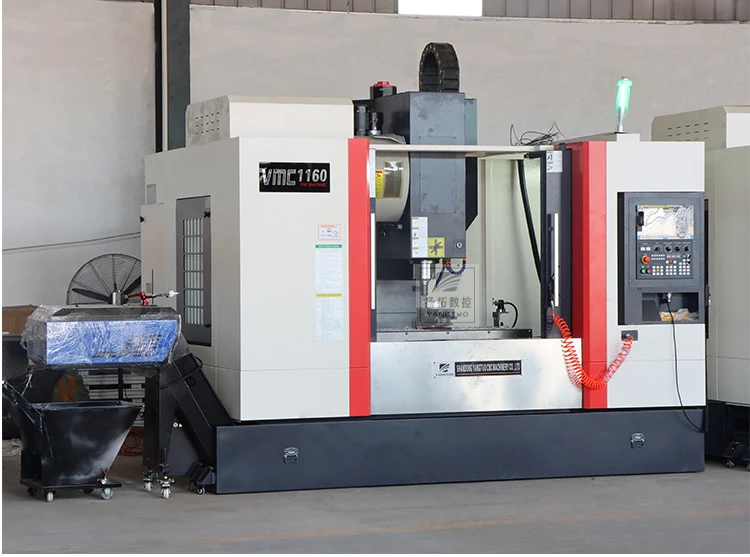

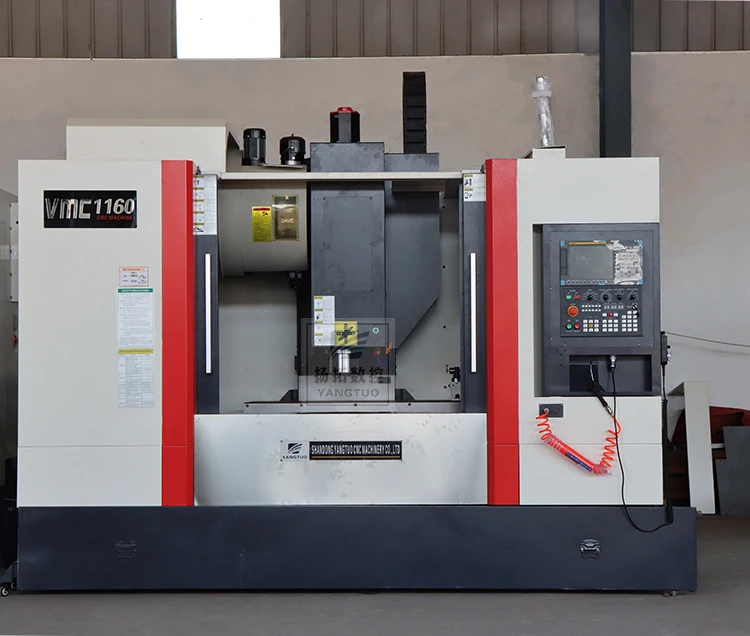

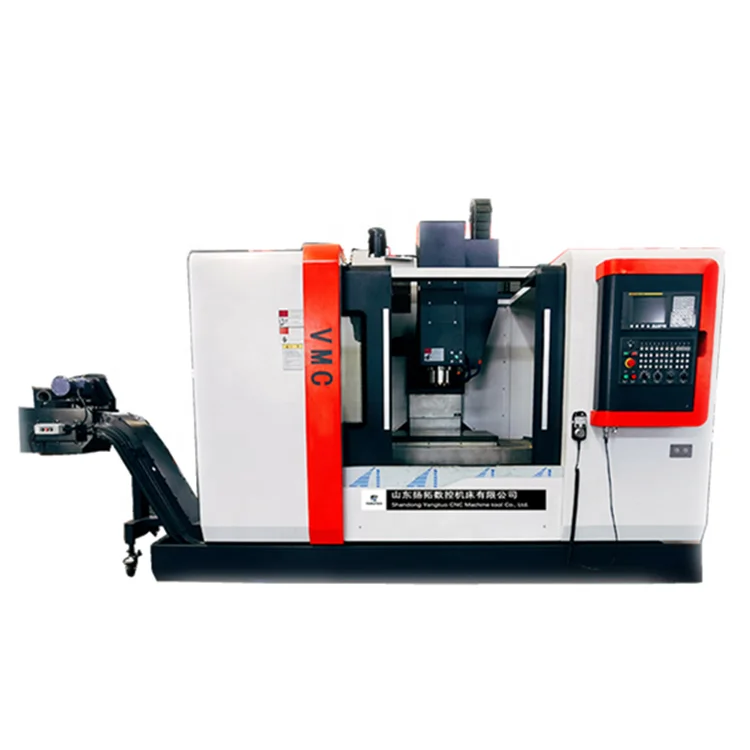

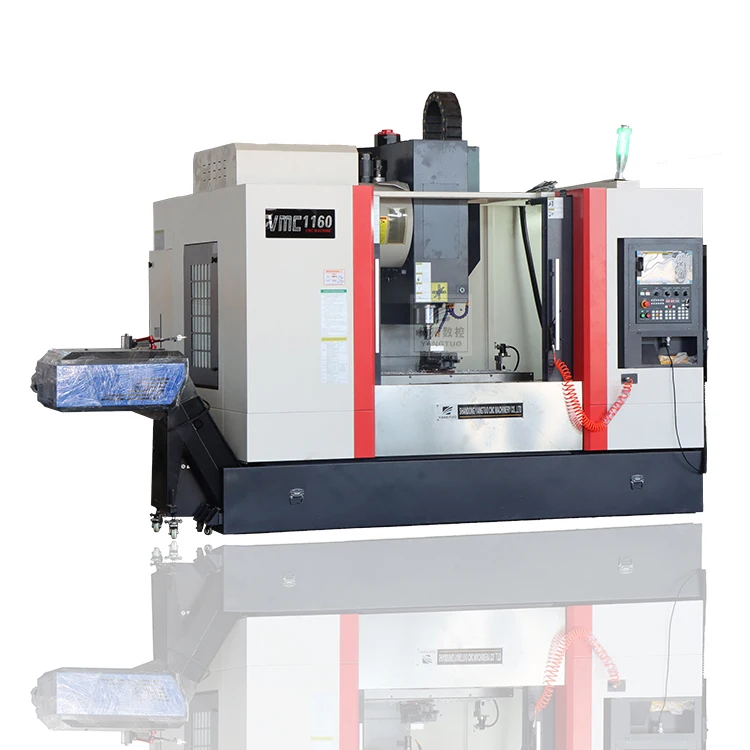

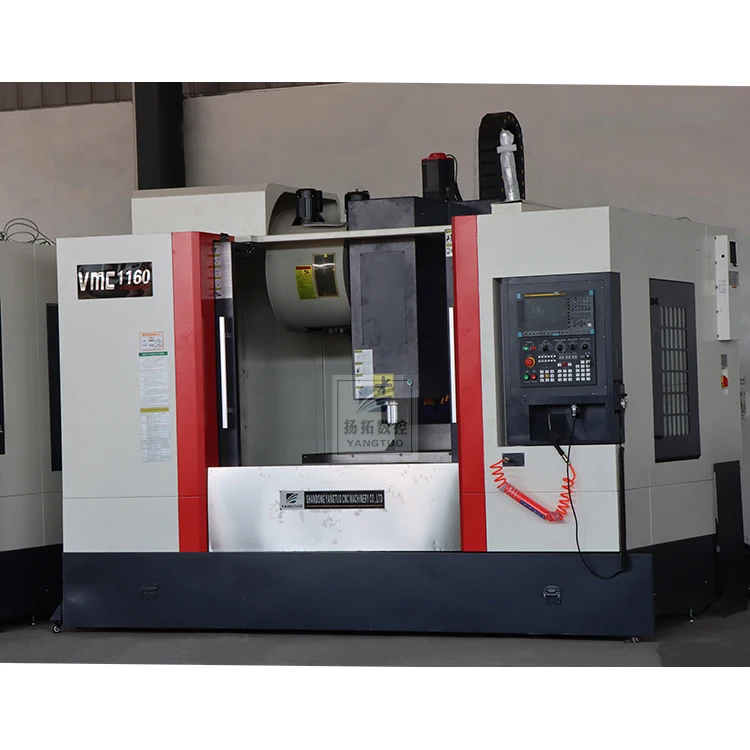

taiwan Precision CNC Milling Machine vmc 1160 CNC Vertical Machining Center
Vmc1160 vertical CNC machining center is suitable for producing metal product and parts in all shapes. It is widely used to produce the auto spare parts, medical treatment instrument and any kind of injection mould, blowing mould, die-casting mould, car LED mould, toy mould and precise mould and so on.
Specifications | Units | VMC1160 |
Table size | mm | 1200x600 |
X axis travel | mm | 1100 |
Y axis travel | mm | 600 |
Z axis travel | mm | 600 |
Max. worktable load | kg | 800 |
T slot(number-width-pitch) | 5-18x150 | |
Max. spindle speed | rpm | 8000(Optional:10000 ) |
Spindle taper | mm | BT40/150 |
Main motor power | kw | 11 |
X/Y/Z rapid traverse speed | m/min | 32/32/24 |
Cutting feed speed | mm/min | 1-8000 |
Guide rail type | Linear rail RGH45 | |
Distance from spindle axis to column surface | mm | 650 |
Distance between spindle nose and worktable surface | mm | 150-750 |
Positioning accuracy | mm | ±0.01 |
Repeat positioning accuracy | mm | ±0.005 |
Tool magazine | Arm 24 | |
Max.tool weight | kg | 15 |
Machine weight | kg | 7000 |

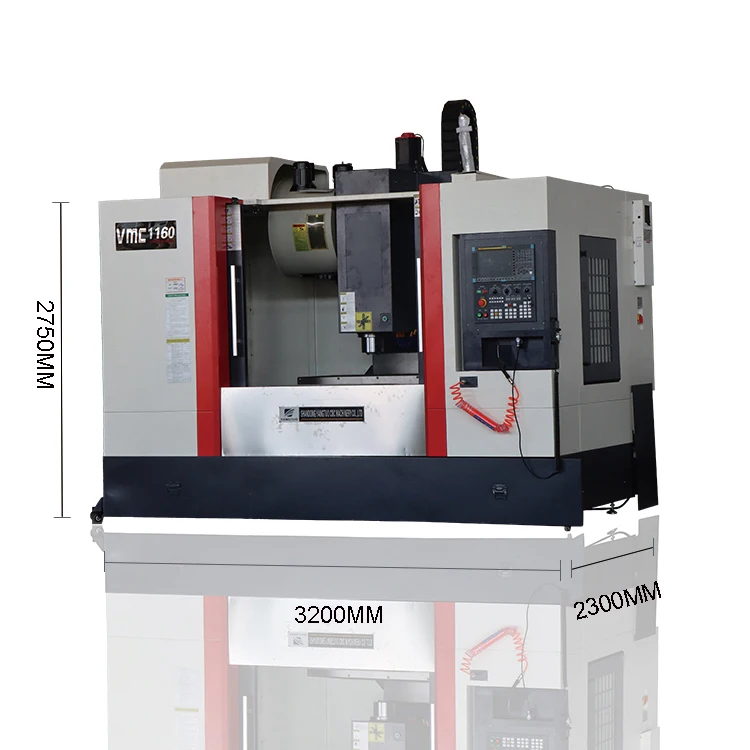

Overall dimension | mm | 3260*2450*2700mm |
Features:
High quality resin sand
Taiwan spindle
Taiwan ball screw and locking nut
Taiwan pressure cylinder
Taiwan linear railway
Japanese NSK bearing germany R+W coupling
Automatic lubrication system
Chip conveyor at optional
Application:
This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing requirement from rough
machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.
High quality resin sand

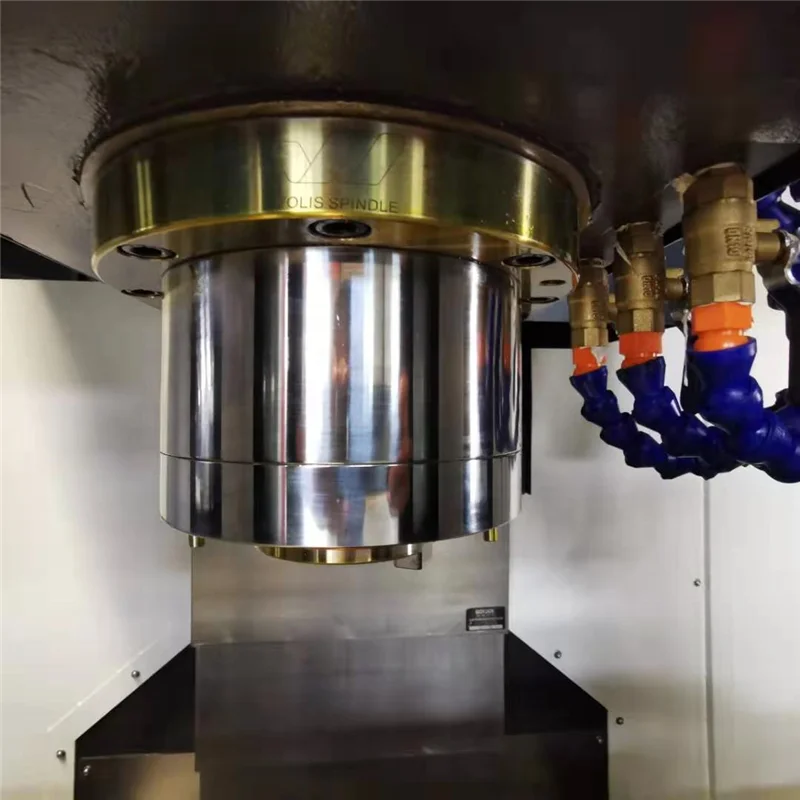

Taiwan spindle
Taiwan ball screw and locking nut
Taiwan pressure cylinder
Taiwan linear railway
Japanese NSK bearing germany R+W coupling
Automatic lubrication system
Chip conveyor at optional
Application:
This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing requirement from rough
machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.
