Product Overview
Description
The main performance characteristics：
Widening high stability bed

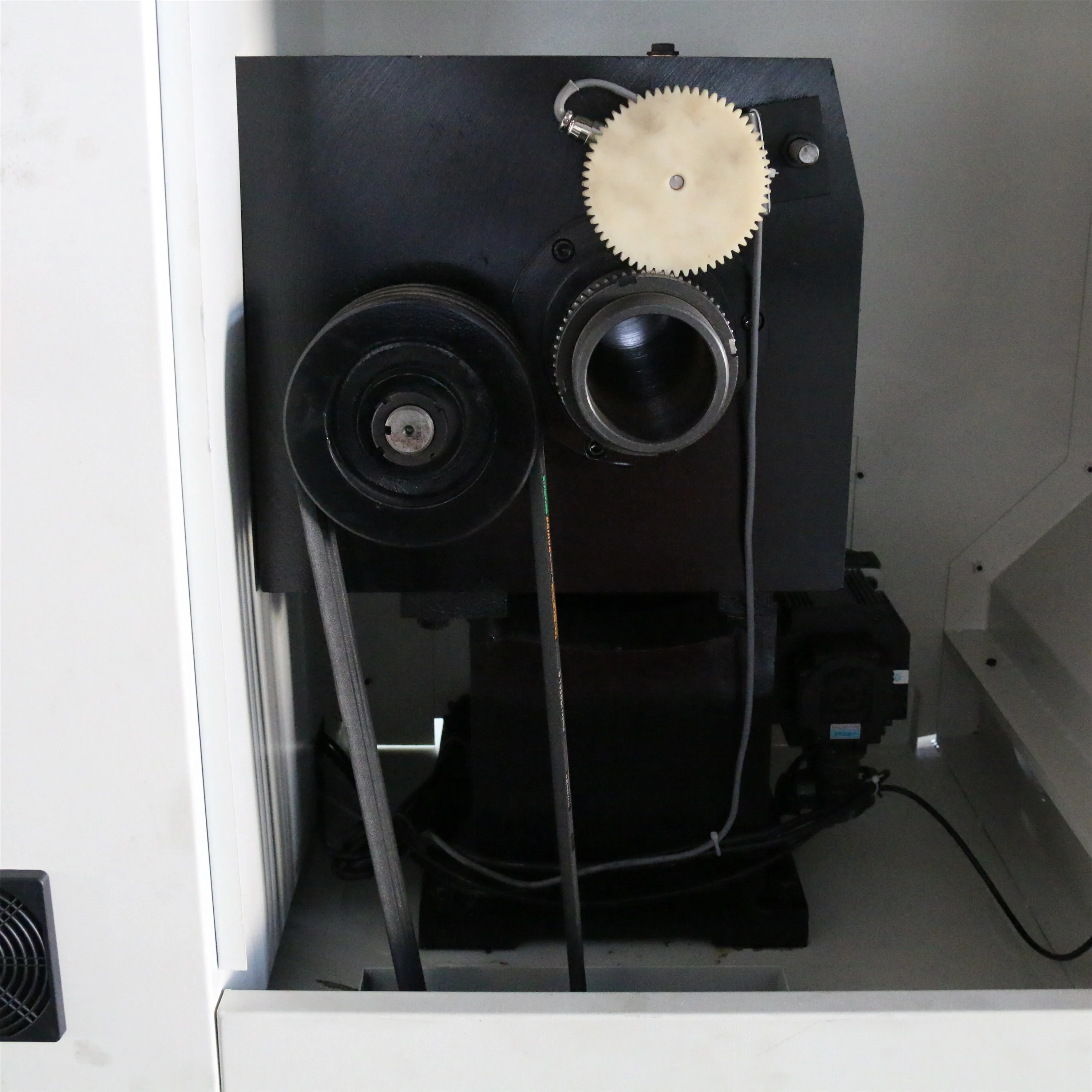

Two gear spindle speed,stepless in gear
Wider layor board
Intergrated automatic lubrication system
Application：
The machine is suitable to process all kinds of small and middle-sized shaft and plate workpiece,and could also turn various
threads ,circle arc ,circle cone ,inside and outside surface of revolved body .This machine is widely used in sanitary ,value
,electrical appliance ,instrument ,automobile ,motor cycle ,bearing and so on.
Widening high stability bed
Two gear spindle speed,stepless in gear
Wider layor board
Intergrated automatic lubrication system
Application：
The machine is suitable to process all kinds of small and middle-sized shaft and plate workpiece,and could also turn various
threads ,circle arc ,circle cone ,inside and outside surface of revolved body .This machine is widely used in sanitary ,value
,electrical appliance ,instrument ,automobile ,motor cycle ,bearing and so on.
SPECIFICATIONS | Units | CAK6140 CAK6140B CAK6140C | CAK6150 CAK6150B CAK6150C | CAK6161 CAK6161B CAK6161C | CAK6166 CAK6166B CAK6166C | CAK6180 CAK6180B CAK6180C | ||||
Swing over bed | mm | 400 | 500 | 610 | 660 | 800 | ||||
Swing over cross slide | mm | 180 | 280 | 350 | 380 | 520 | ||||
Distance between centers | mm | 750/1000/1500/2000/3000 | ||||||||
Spindle bore | mm | 52,(80 for B),[105 for C] | ||||||||
Spindle bore taper | - | MT6,(φ90 1:20 for B),[φ113 1:20 for C] | ||||||||
Spindle nose type | - | C6,(D8 for B),[D8 for C] | ||||||||
Spindle speed steps | - | Manual 3 steps (Optional: stepless) | ||||||||
Spindle speed range | rpm | 21-150,66-500,162-1500 (Optional: 100-1600 ) | ||||||||

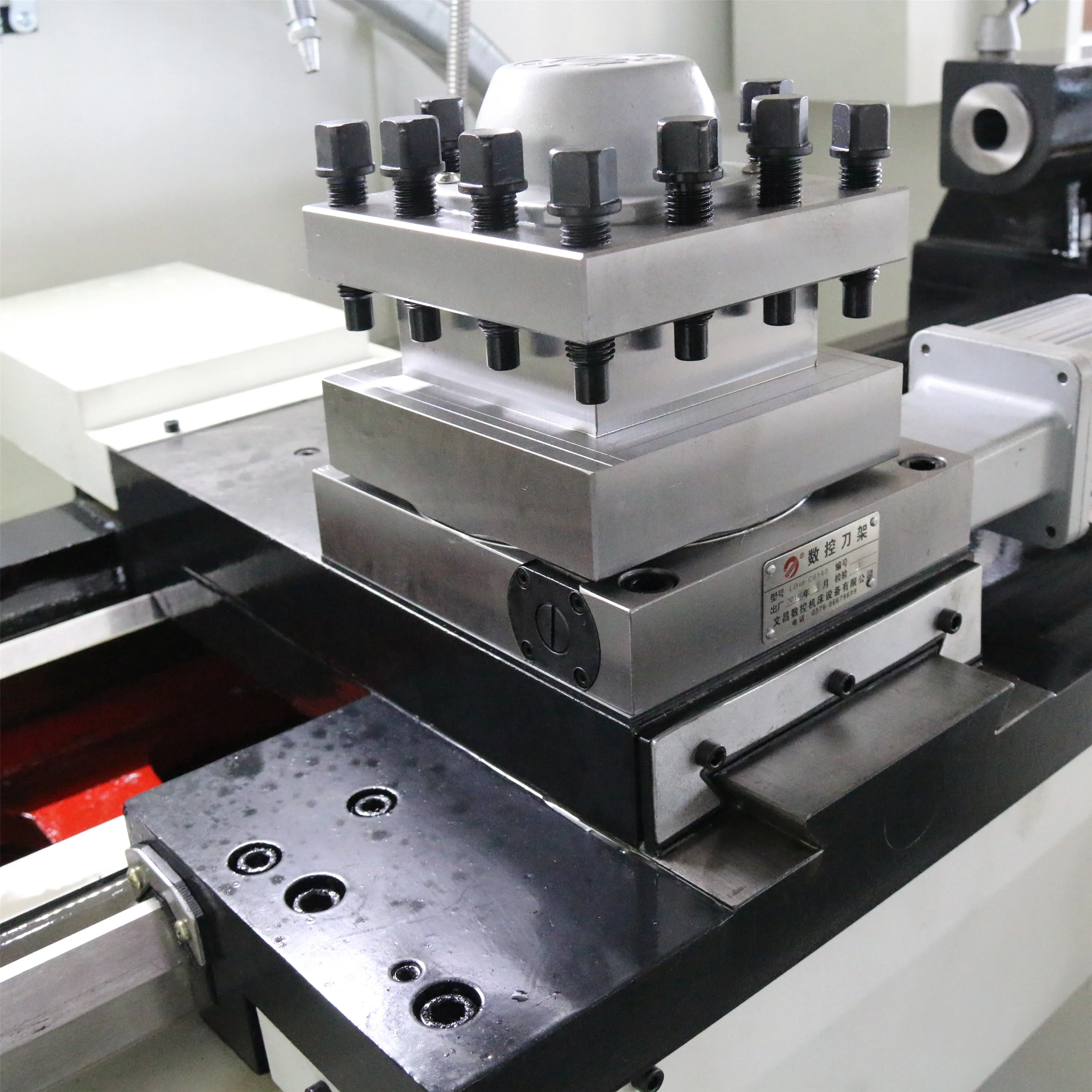

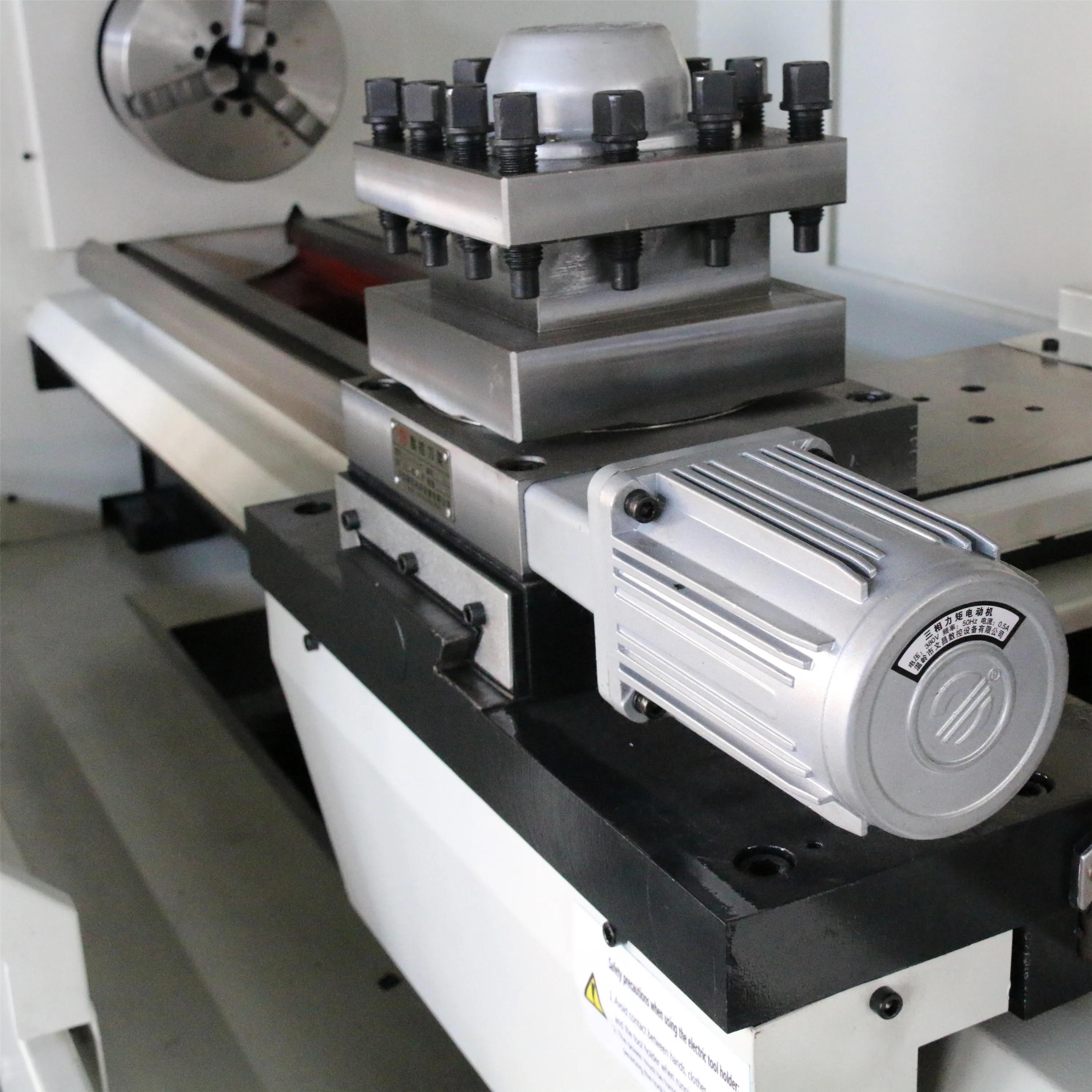

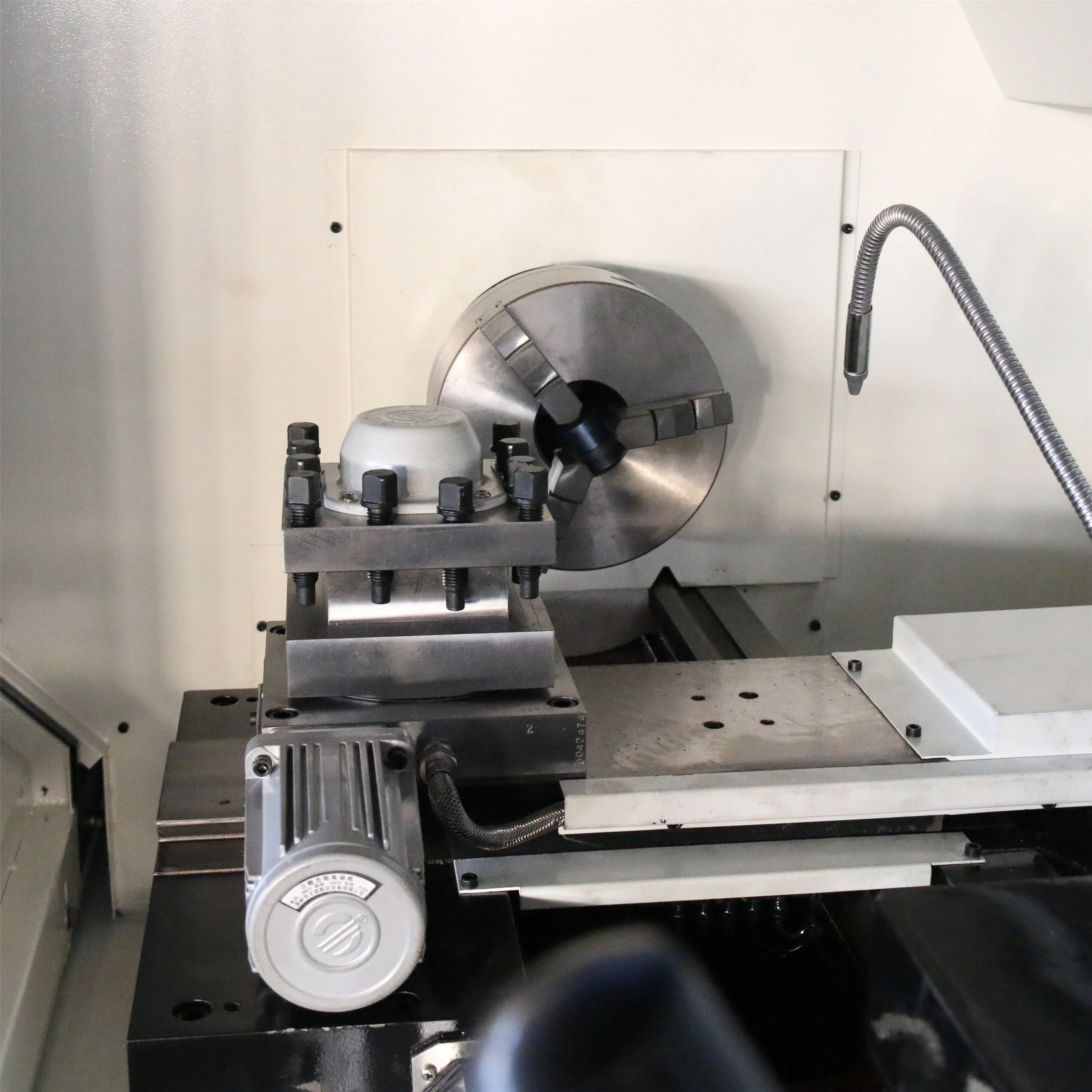

Turret/tool post | - | Electric 4 position | Electric 4 position | Electric 4 position | Electric 4 position | Electric 4 position | ||||
Tool size | mm | 25 x 25 | 25 x 25 | 25 x 25 | 25 x 25 | 25 x 25 | ||||
X axis travel | mm | 200 | 250 | 310 | 330 | 400 | ||||
Z axis travel | mm | 750/1000/1500/2000/3000 | ||||||||
X axis rapid traverse | mm/min | 6000 | 6000 | 6000 | 6000 | 6000 | ||||
Z axis rapid traverse | mm/min | 10000 | 10000 | 10000 | 10000 | 10000 | ||||
Tailstock quill diameter | mm | 75 | 75 | 75 | 75 | 75 | ||||
Tailstock quill taper | - | MT5 | MT5 | MT5 | MT5 | MT5 | ||||
Tailstock quill travel | mm | 150 | 150 | 150 | 150 | 150 | ||||
Main spindle motor | kw | 7.5 | 7.5 | 7.5 | 11 | 11 | ||||
Coolant pump motor | kw | 0.125 | 0.125 | 0.125 | 0.125 | 0.125 | ||||
Weight for 750 | kg | 2450 | 2500 | 2550 | 2650 | 2750 | ||||
Weight for 1000 | kg | 2550 | 2600 | 2650 | 2750 | 2850 | ||||
Weight for 1500 | kg | 2650 | 2700 | 2750 | 2850 | 2950 | ||||
Weight for 2000 | kg | 3050 | 3150 | 3250 | 3350 | 3450 | ||||
Weight for 3000 | kg | 3850 | 3950 | 4050 | 4150 | 4250 | ||||

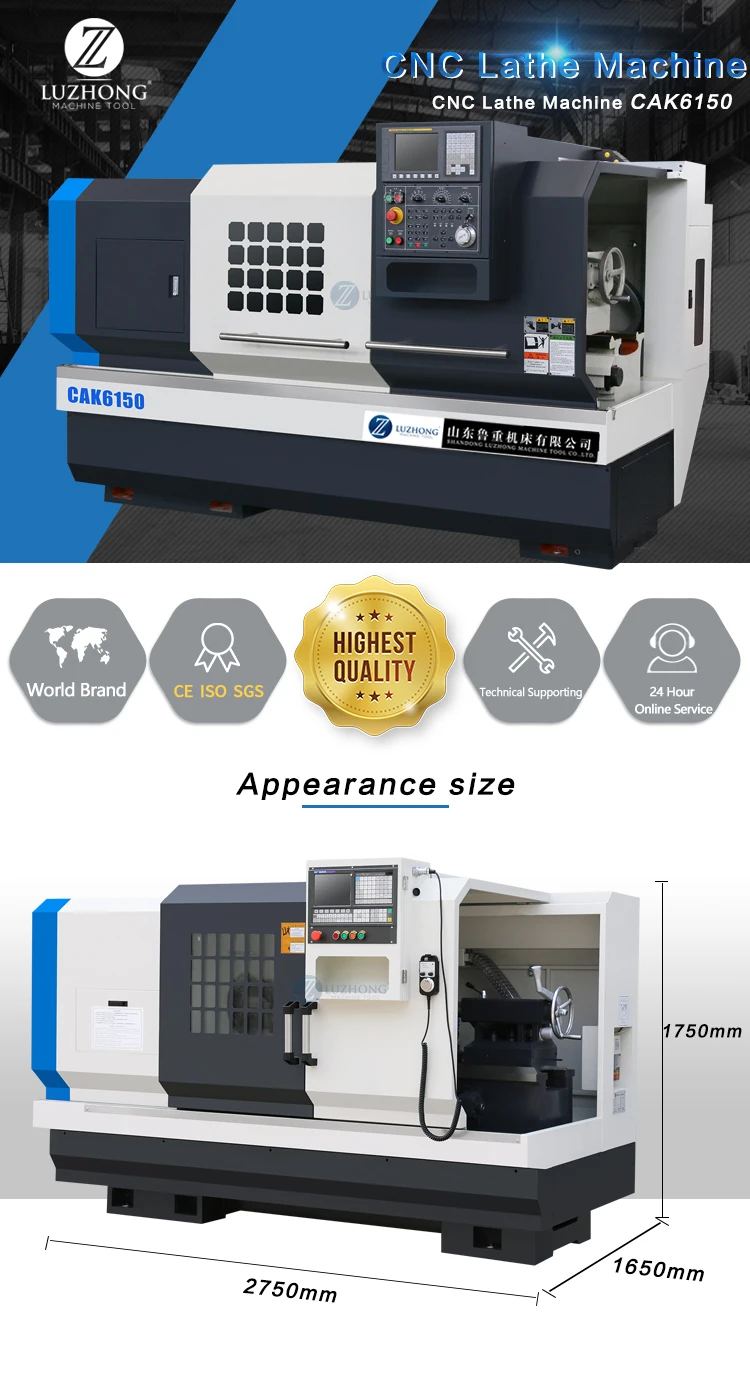

Dimension for 750 | mm | 2550x1650x1700 | 2550x1650x1750 | 2550x1700x1800 | 2550x1750x1850 | 2550x1750x1900 | ||||
Dimension for 1000 | mm | 2750x1650x1700 | 2750x1650x1750 | 2750x1700x1800 | 2750x1750x1850 | 2750x1750x1900 | ||||
Dimension for 1500 | mm | 3250x1650x1700 | 3250x1650x1750 | 3250x1700x1800 | 3250x1750x1850 | 3250x1750x1900 | ||||
Dimension for 2000 | mm | 3700x1650x1700 | 3700x1650x1750 | 3700x1700x1800 | 3700x1750x1850 | 3700x1750x1900 | ||||
Dimension for 3000 | mm | 4710x1650x1700 | 4710x1650x1750 | 4710x1700x1800 | 4710x1750x1850 | 4710x1750x1900 | ||||
