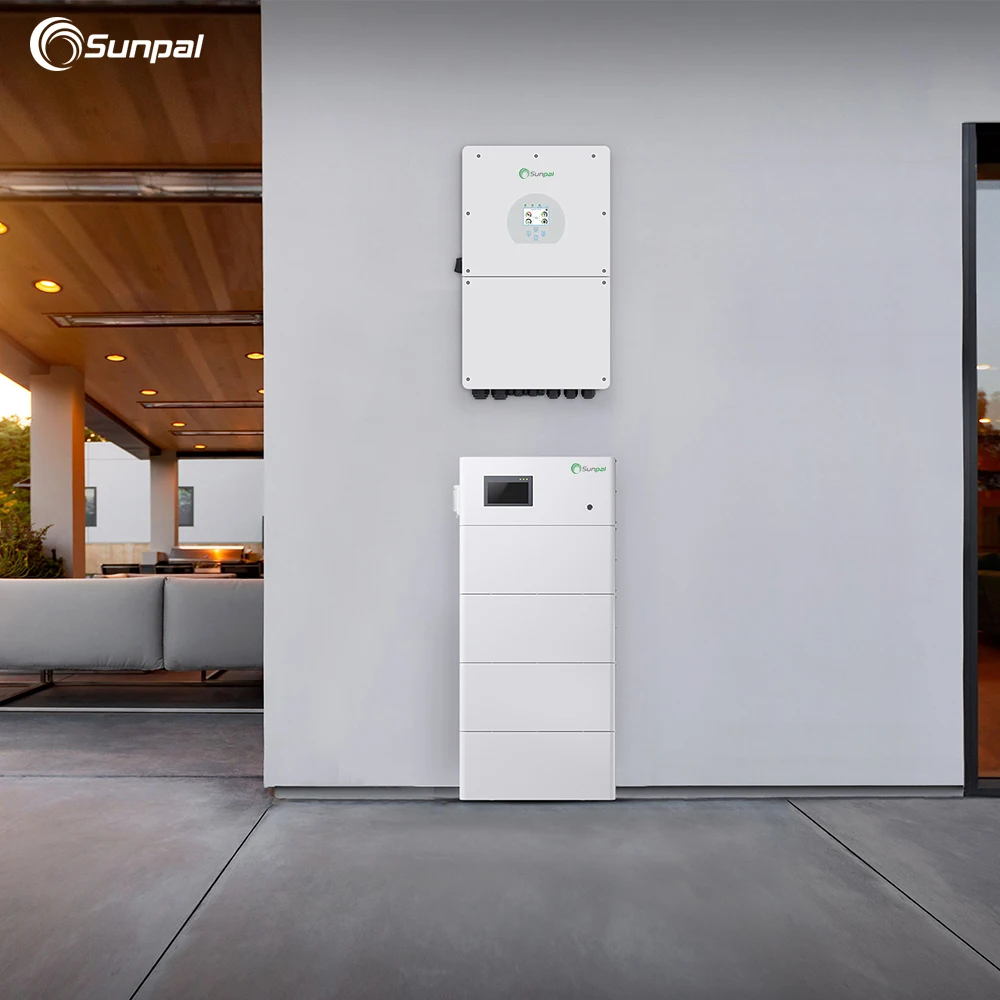

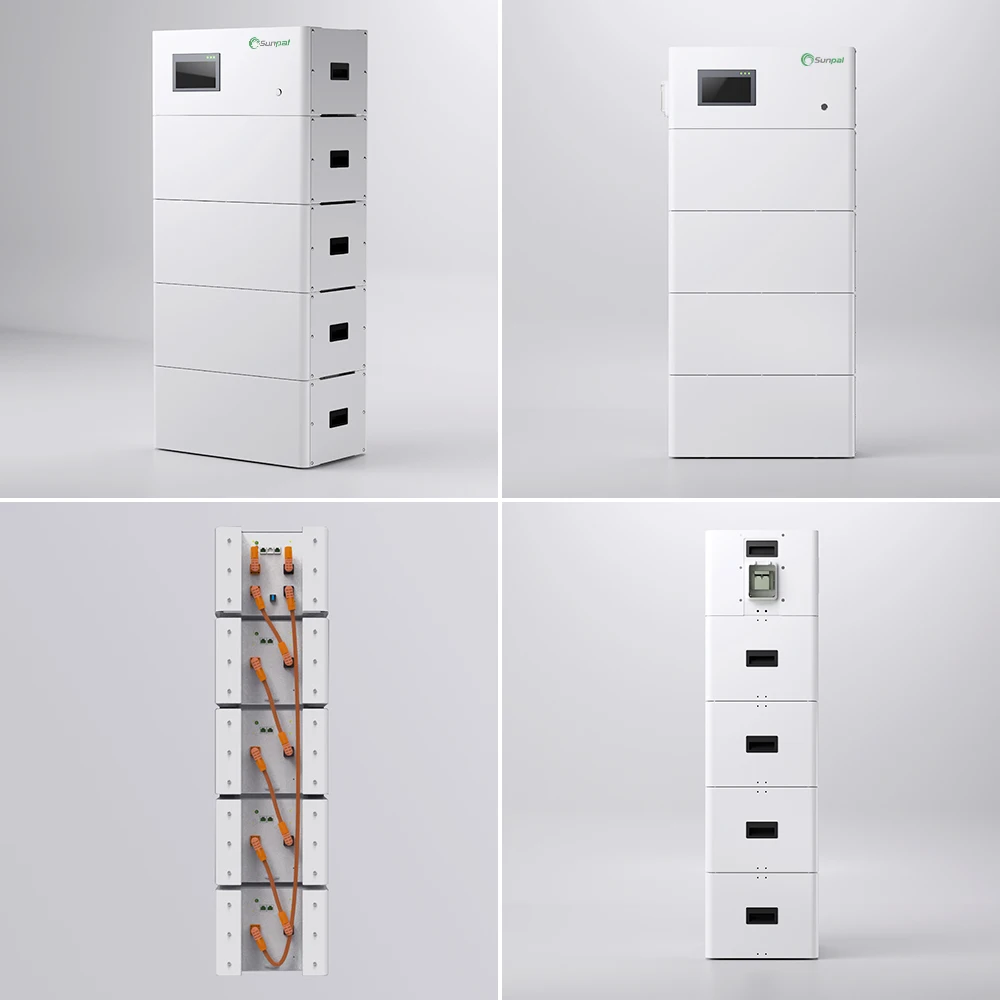

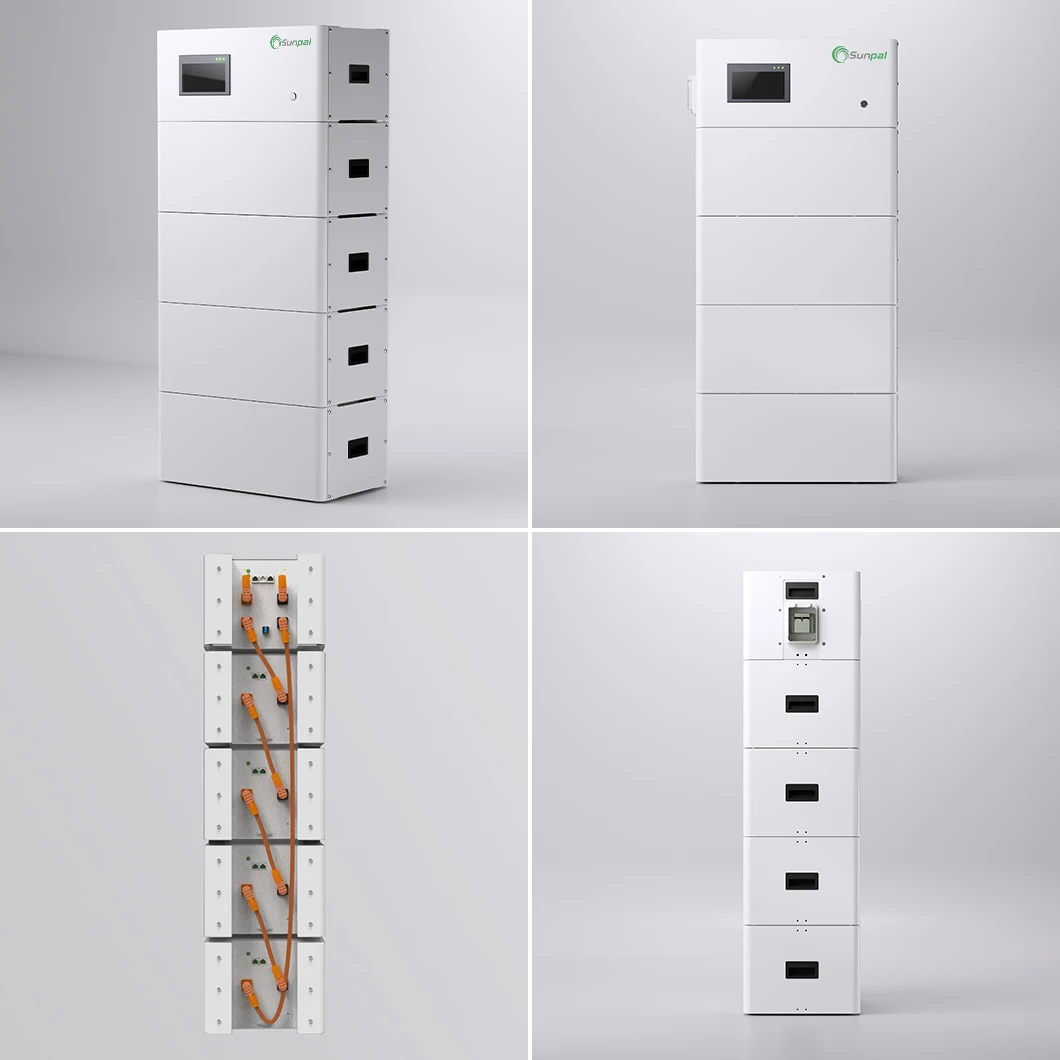

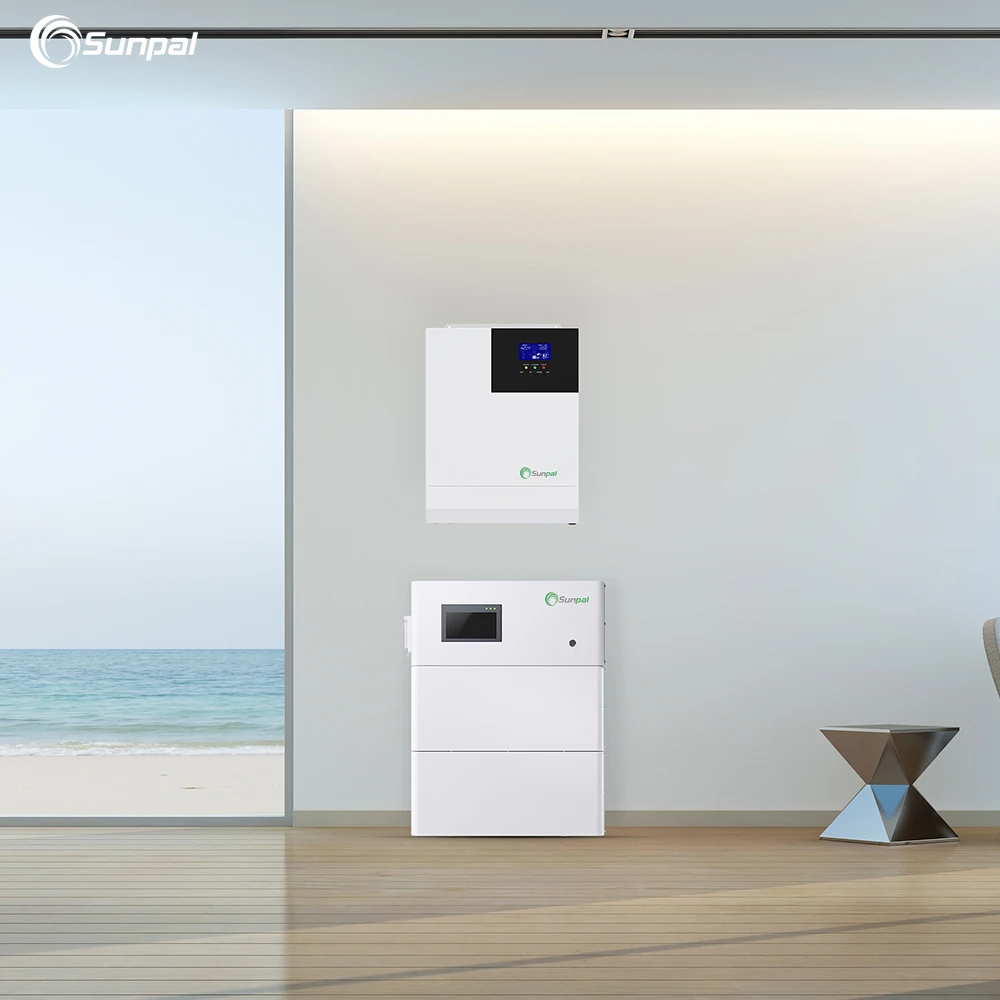

15Kwh 20kwh 30kwh 40kwh 50kwh Lithium Battery High Voltage Battery Storage System
15Kwh 20kwh 30kwh 40kwh 50kwh Lithium Battery High Voltage Battery Storage System
15Kwh 20kwh 30kwh 40kwh 50kwh Lithium Battery High Voltage Battery Storage System
15Kwh 20kwh 30kwh 40kwh 50kwh Lithium Battery High Voltage Battery Storage System
15Kwh 20kwh 30kwh 40kwh 50kwh Lithium Battery High Voltage Battery Storage System
15Kwh 20kwh 30kwh 40kwh 50kwh Lithium Battery High Voltage Battery Storage System
15Kwh 20kwh 30kwh 40kwh 50kwh Lithium Battery High Voltage Battery Storage System

15Kwh 20kwh 30kwh 40kwh 50kwh Lithium Battery High Voltage Battery Storage System

Share on (1600757802471):


Price:$698.00 - $1,989.00

Quantity:


Product Overview

Description





Product Description








Model
StackArk-2600
Capacity Energy
2.8kWh
Capacity Ah
55Ah
Suggested SOC
10-100%
Usable Capacity
2.6kWh
Nominal Voltage
51.2V
Operation Voltage
44.8V – 57.6V
Maximum Charging Current
35A
Maximum Discharging Current
50A
BMS
Robust Multi Point Monitoring BMS
Scalable
Yes, Maximum 15 Packs In Parallel, 2-8 Packs in Series
Life Cycling (0.5C 25℃)
6000 Cycles @ 0.5C
Warranty
10 Years
Operation Temperature
Chrage : 0 ~ 45℃, Dischrage : -20 ~ 45℃
Storage Temperature
-20 ~ 45℃
Net Weight
30kG
Dimensions (H x W x D)
480 x 280 x 210 mm
Certifications
MSDS, UN38.3, RoHS, IEC62619, CE
IP Grade
IP54
Communication
RS232, RS485, CAN (Compitable with most brand inverters in market)

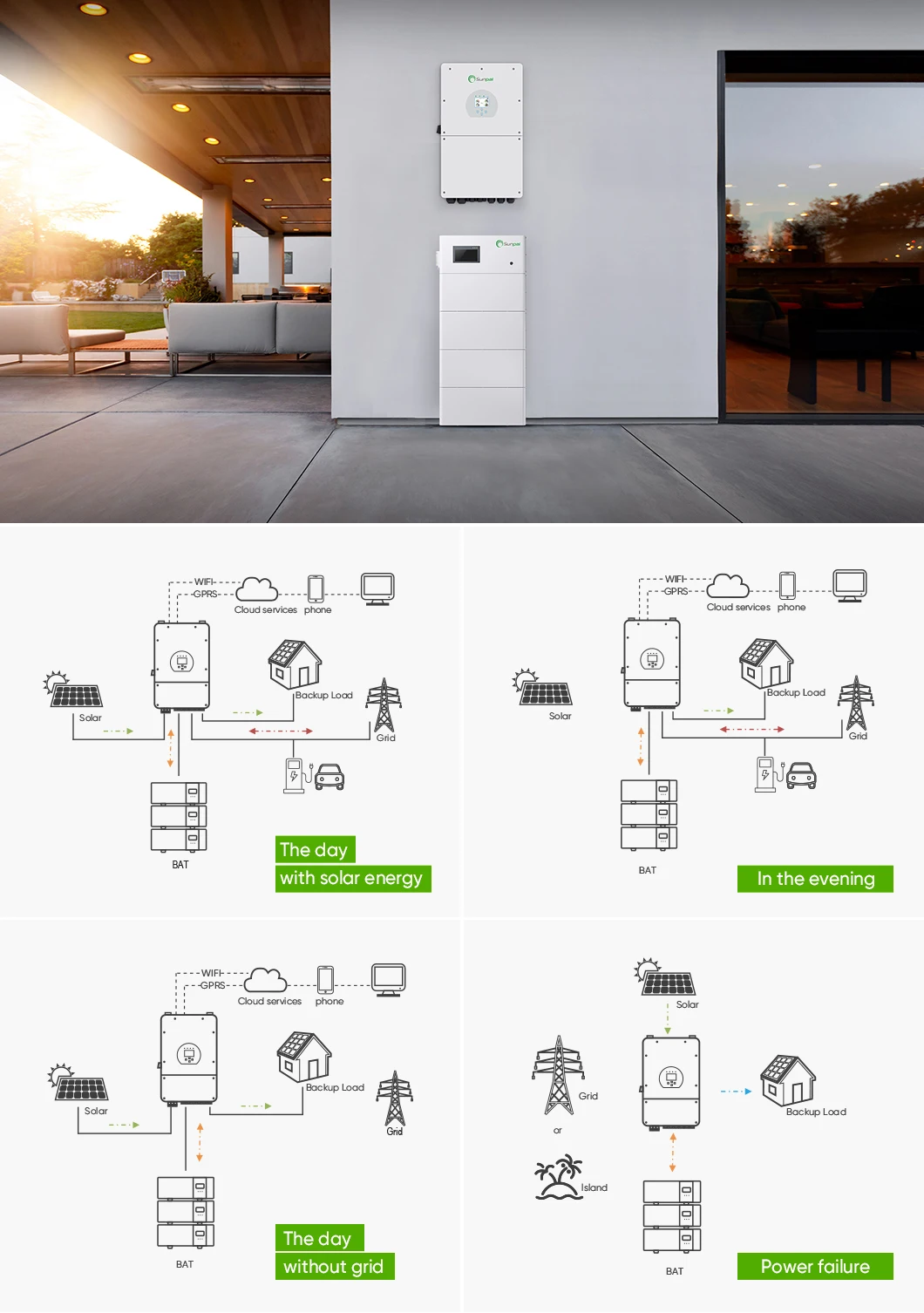

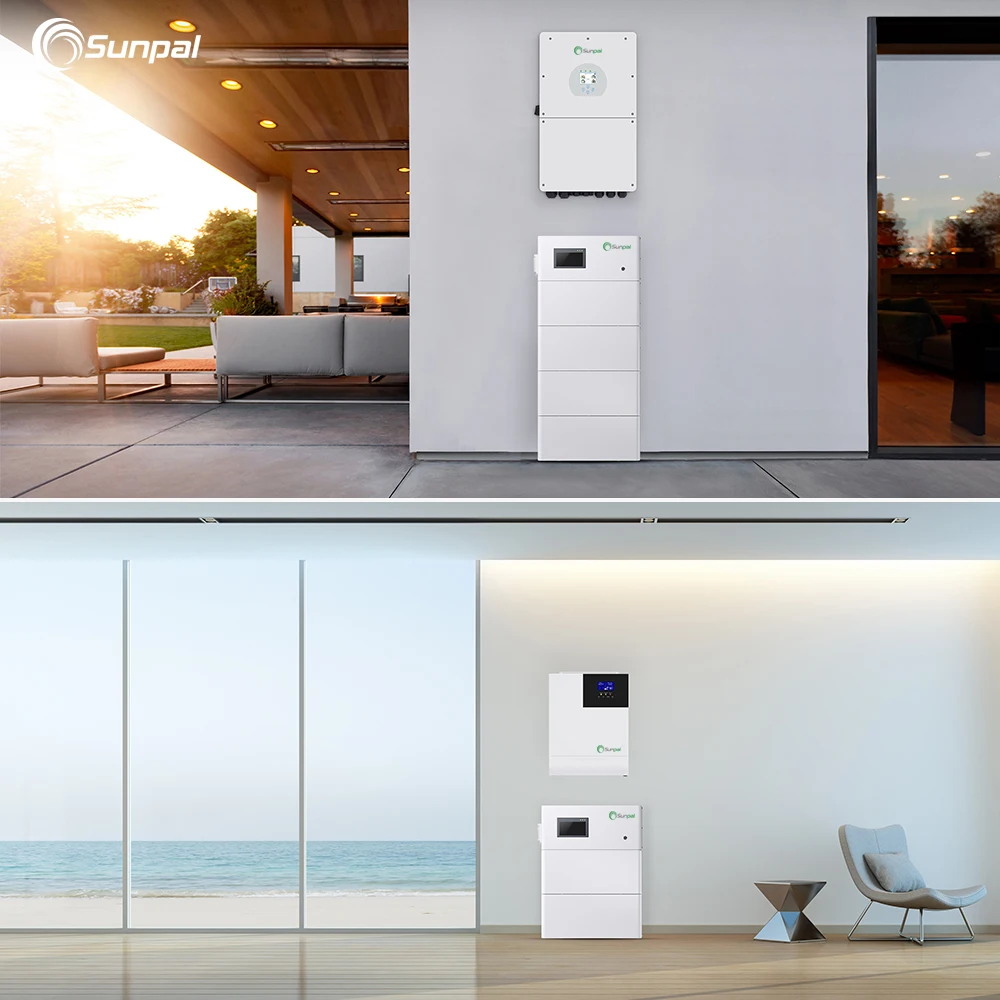

Application

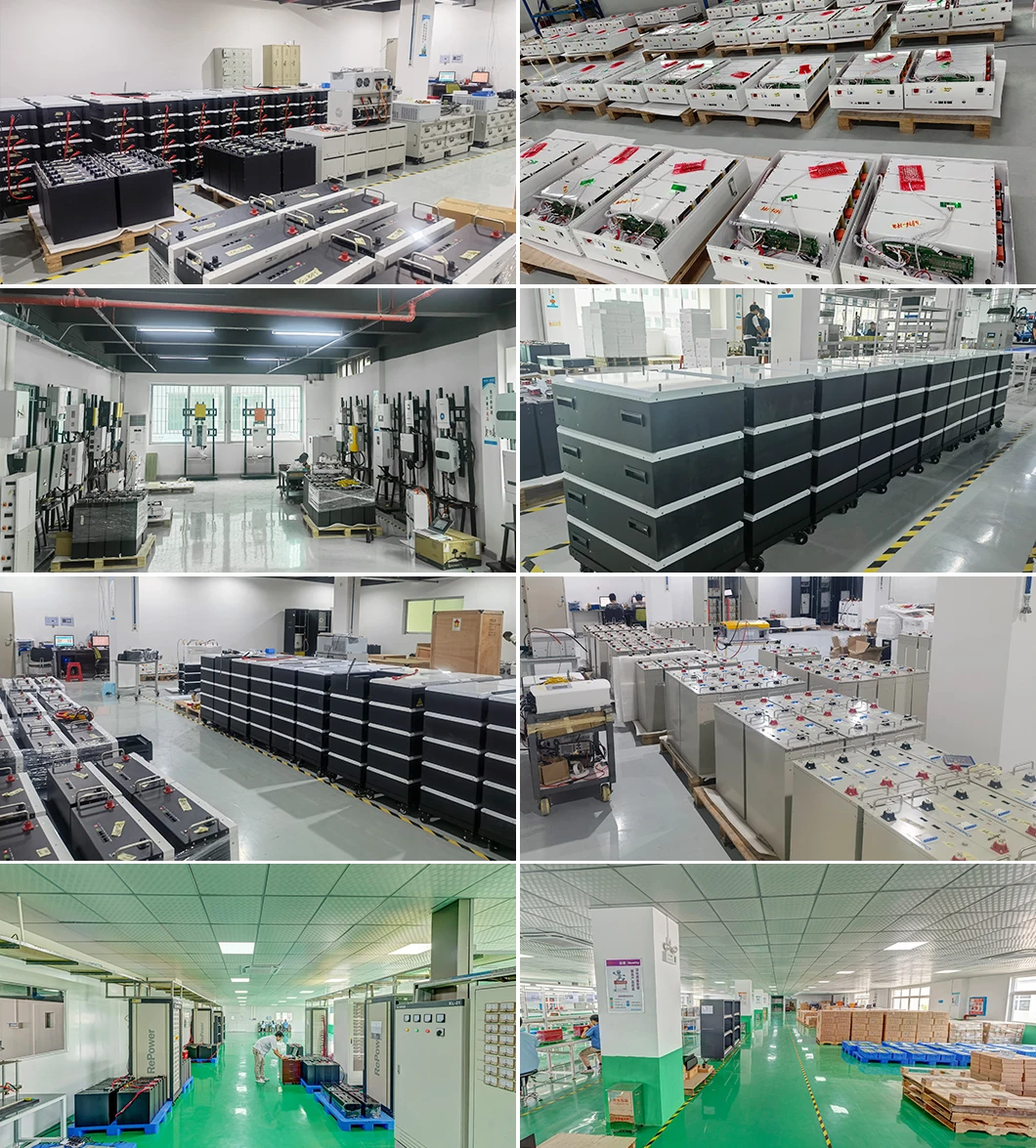

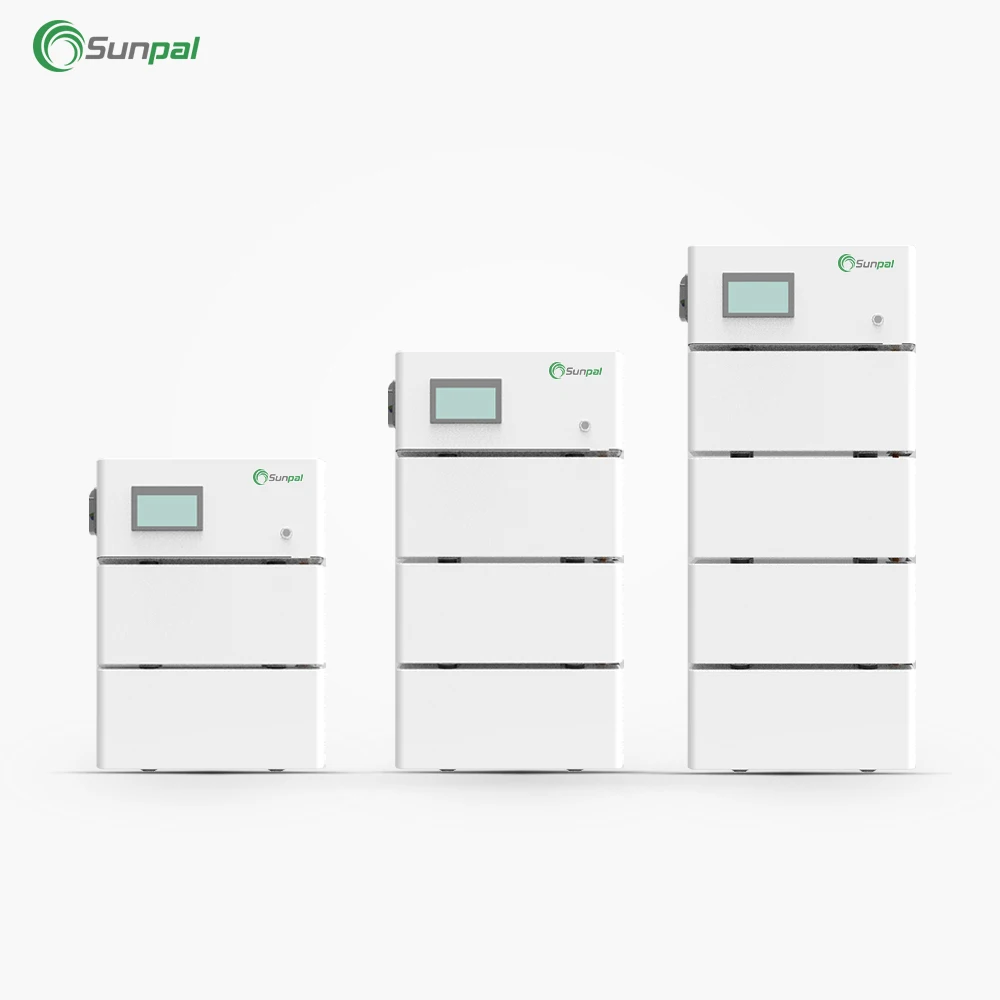

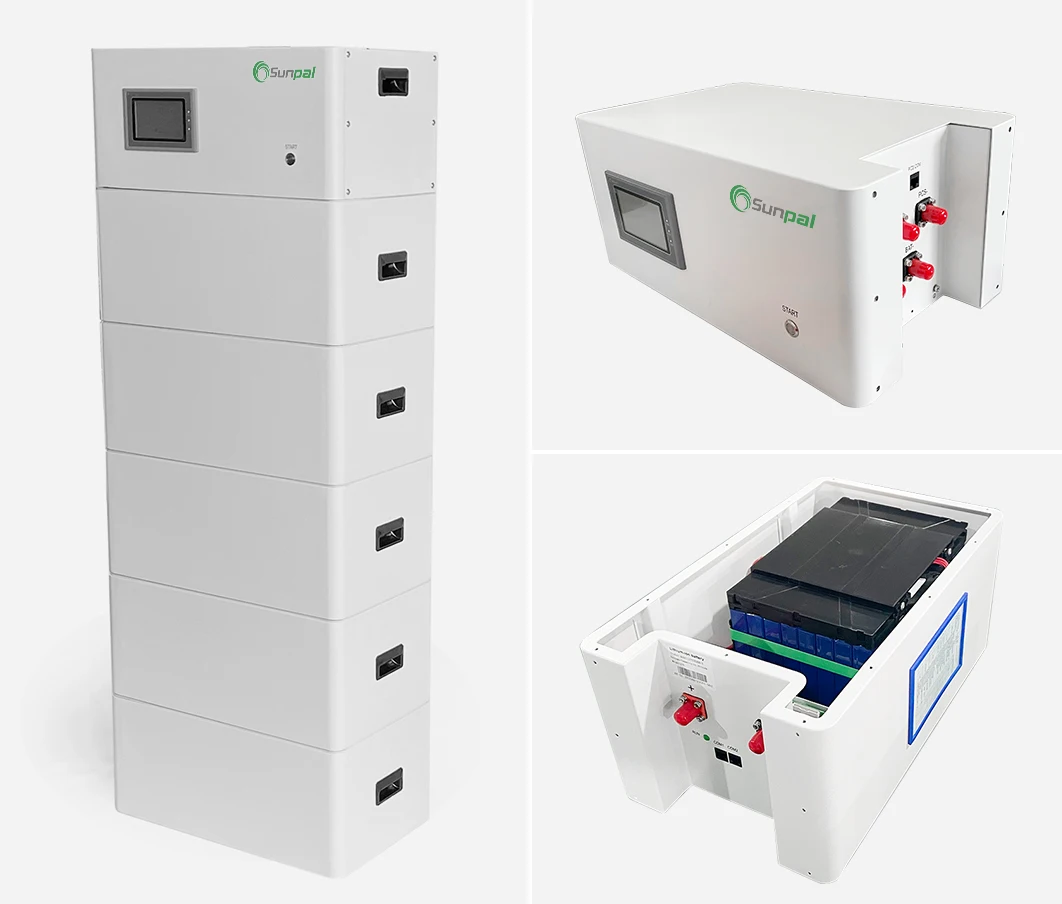

Production Images






Products Series

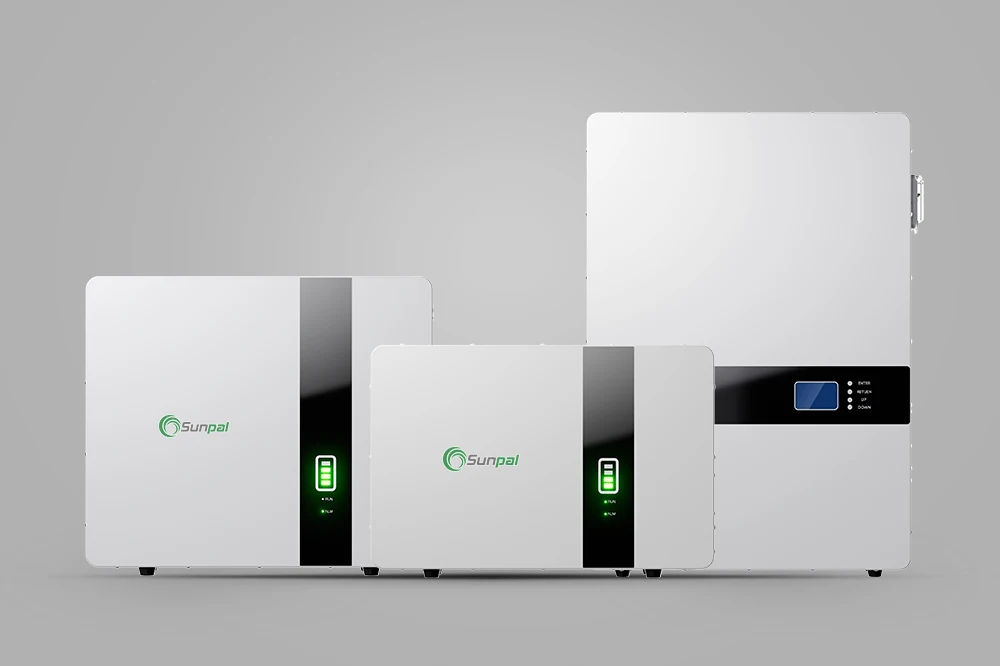

WallArk Series
Wall Mounted Battery Solution48V/51.2V 50-200AH
2.56-10.24KWH





GroundArk Series
Ground Mounted Battery Solution
Voltage 51.2V
2.6-10.4KWH

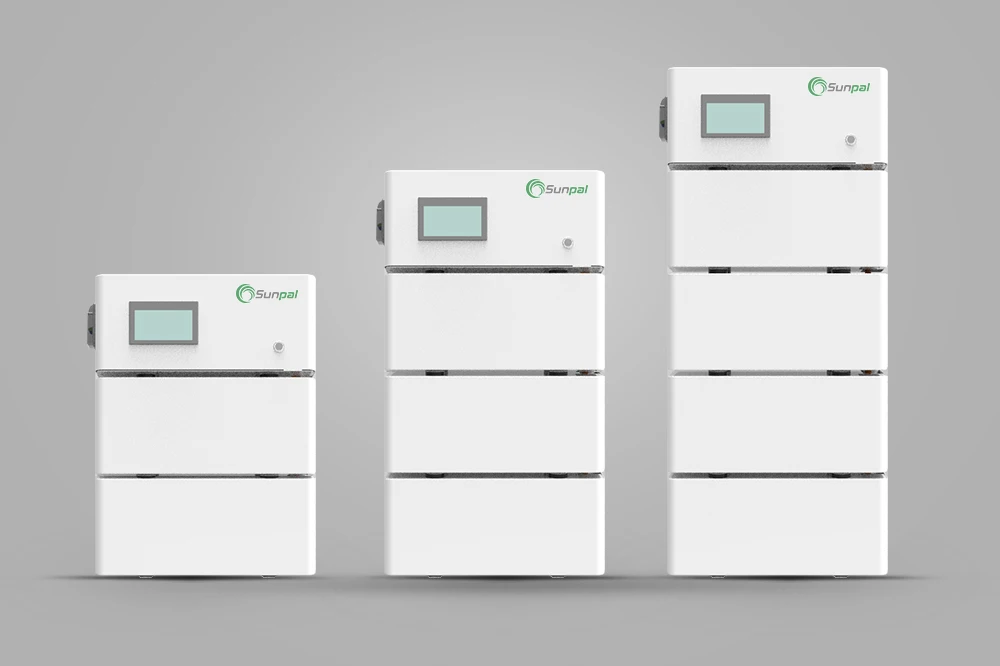

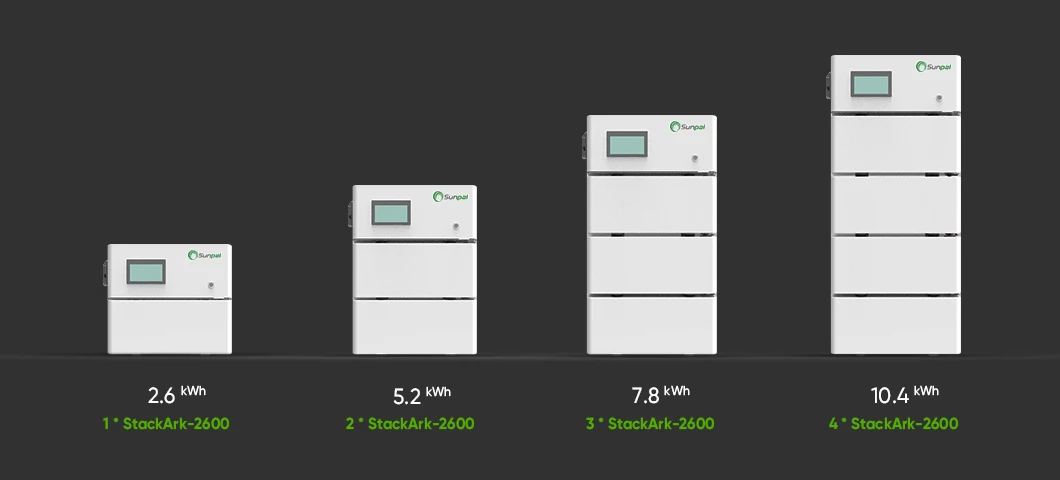

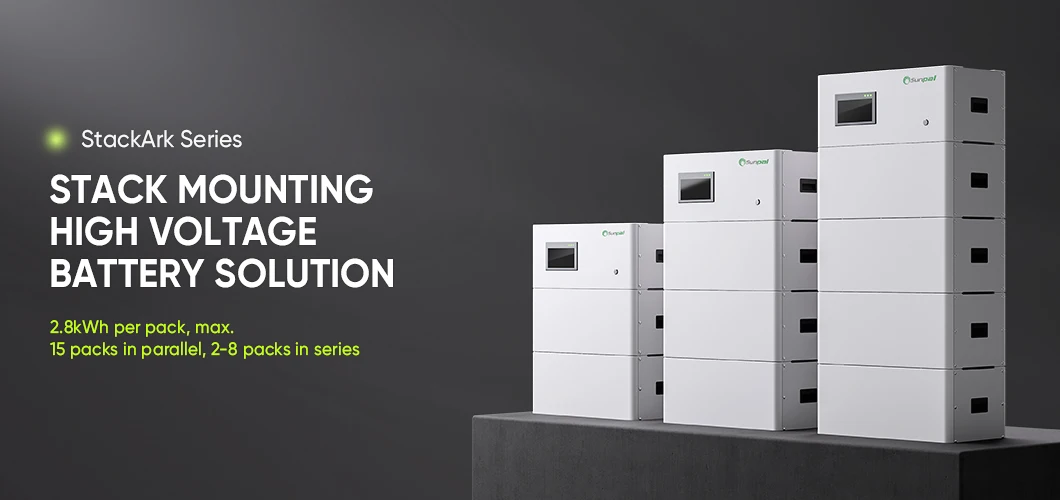

StackArk Series
Stack Mounted High Voltage Battery Solution
Voltage 260-350V
8KWH-20KWH

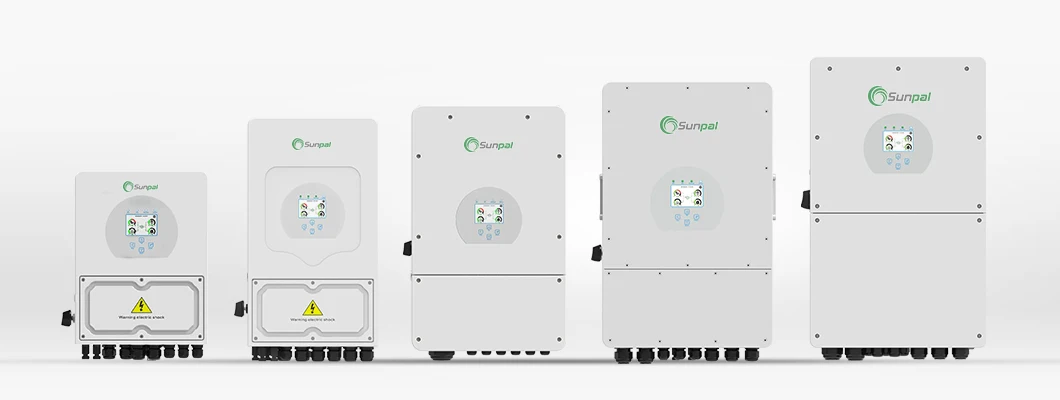

Compatiable Inverters






Type
Single Phase
3 Phase
Split Phase
Output Power
3-16KW
5-30KW
5-8KW
Output Voltage
220/230/240V
220/380V, 230/400
120/240V
Battery Type
Lead Acid or Lithium Ion 40-60V


Company Profile



Company Overview
As a world-class solar products manufacturer, Sunpal specializes in the research, development, production, and sales of solar PV products and solar panels.Sunpal focused on research and manufacture of all-black solar panels since the year 1998, we have exported our various kinds of full-black solar panels to 86 countries and won a good reputation in quality. With over 10 years of development, Sunpal now has factory area covering 150,000
square meters, with 600 experienced employees.
