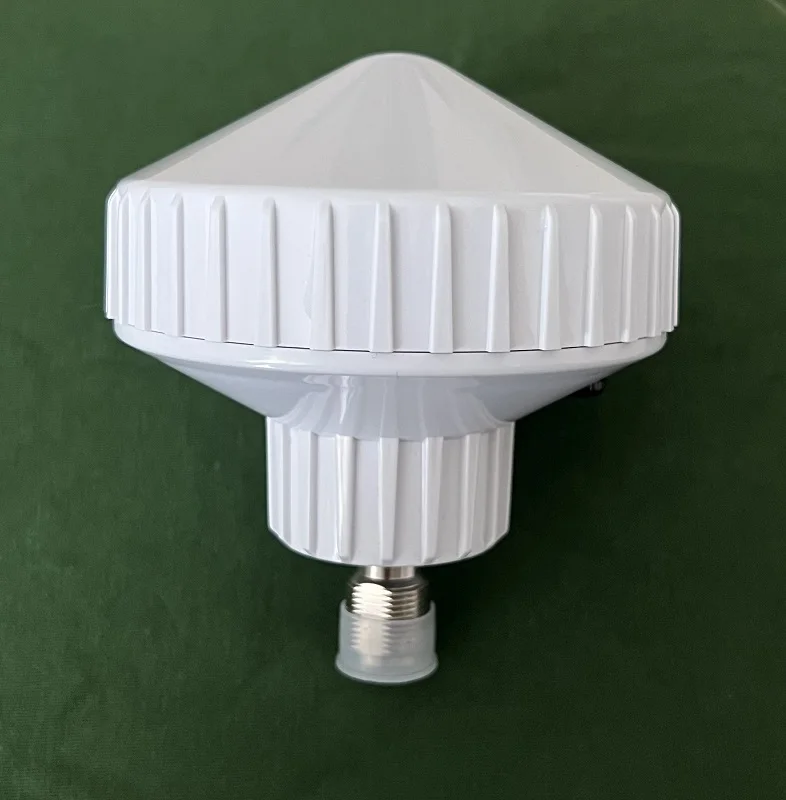

Salt mist 720 hours GPS/Galileo/ Glonass/ BeiDou/ QZSS/ NaVIC Antenna GNSS AT02
- Category: >>>
- Supplier: Shenzhen Ruisheng Technology Co. Ltd.
Share on (1600758085331):
Product Overview
Description
Product Description
Key features
*Superior reception of GPS, Galileo, GLONASS, Beidou, QZSS, and NavIC signals
* High precision of positioning, navigation and timing
* LNA gain: 40±3dBi
* Salt mist: 720 hours
* IP67-rated Anti-UV radome withstands extreme environments
*Antenna
Frequency (MHz) | 1164-1217/ 1559-1610 | |||||
Signals Tracked | GPS L1/L5 | Galileo E1/ E5 | Glonass G1 | BeiDou B1/B2 | QZSS L1/L5 | NavIC L5 |
Gain at Zenith (dBi) | 3 | |||||
V.S.W.R | ≤1.5 | |||||
Impedance (Ω) | 50 | |||||
Polarization | R.H.C.P | |||||
3dB beamwidth (°) | 100 ±10 | |||||
Front to Back Ratio | ≥10 | |||||
Axial Ratio (dB) | <3 | |||||
Horizontal beamwidth (°) | 360 | |||||
Phase Center Offset (mm) | ±1 | |||||
*LNA
Frequency (MHz) | 1164-1217/ 1559-1610 |
Gain (dBi) | 40±3 |
V.S.W.R | ≤1.8 |
Gain Flatness (dB) | <2 |
P1dB | >0dBm |
Noise Figure | ≤2 |
Out of Band Rejection (dBc) | 1166-1218MHz ≥70@100-960MHz ≥50@960-1115MHz ≥50@1270MHz-3GHz
1559-1606MHz ≥70@100-960MHz ≥50@960-1115MHz ≥50@1270MHz-3GHz
|
3dB beam width (°) | 110±10 |
Supply Voltage (V) | 2.7~12 |
Current Consumption (mA) | <45 |
Lightning Protection | 5kA, 8/20us |
*LNA
Frequency (MHz) | 1164-1217/ 1559-1610 |
Gain (dBi) | 40±3 |
V.S.W.R | ≤1.8 |
Gain Flatness (dB) | <2 |
P1dB | >0dBm |
Noise Figure | ≤2 |
Out of Band Rejection (dBc) | 1166-1218MHz ≥70@100-960MHz ≥50@960-1115MHz ≥50@1270MHz-3GHz
1559-1606MHz ≥70@100-960MHz ≥50@960-1115MHz ≥50@1270MHz-3GHz
|
3dB beam width (°) | 110±10 |
Supply Voltage (V) | 2.7~12 |
Current Consumption (mA) | <45 |
Lightning Protection | 5kA, 8/20us |
* Mechanical
Connector | N-F |
Cable | LMR-195/ RG58/ LMR-400 or others, 0/30/50M or others |
Dimensions (mm) | Φ97.5x 84 |
Weight (g) | 700 |
Radome Color | White |
Radome Material | UV Resistant ABS and PC |

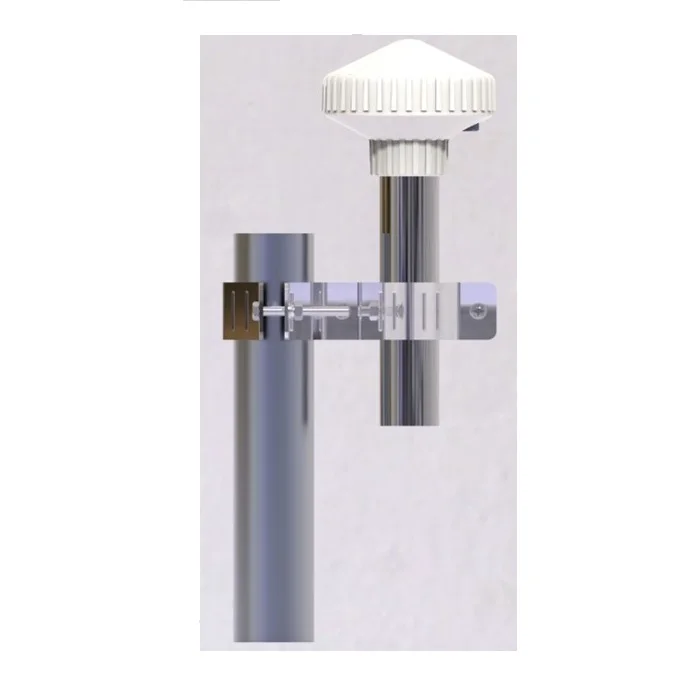

Mounting Method | Pole |
* Environmental
Operation Temperature (℃)
| -40~80 |
Storage Temperature (℃) | -40~85 |
Humidity | Up to 96% |
Ingress Protection | IP67, IK10 |
Shock | Vertical axis: 50G, other axes: 30G |
Salt Mist | 720hours |
ESD Protection (kV) | 15 |
Vibration | 3 axis, 10 to 200Hz sweep, 15min: 3G |
Our Services

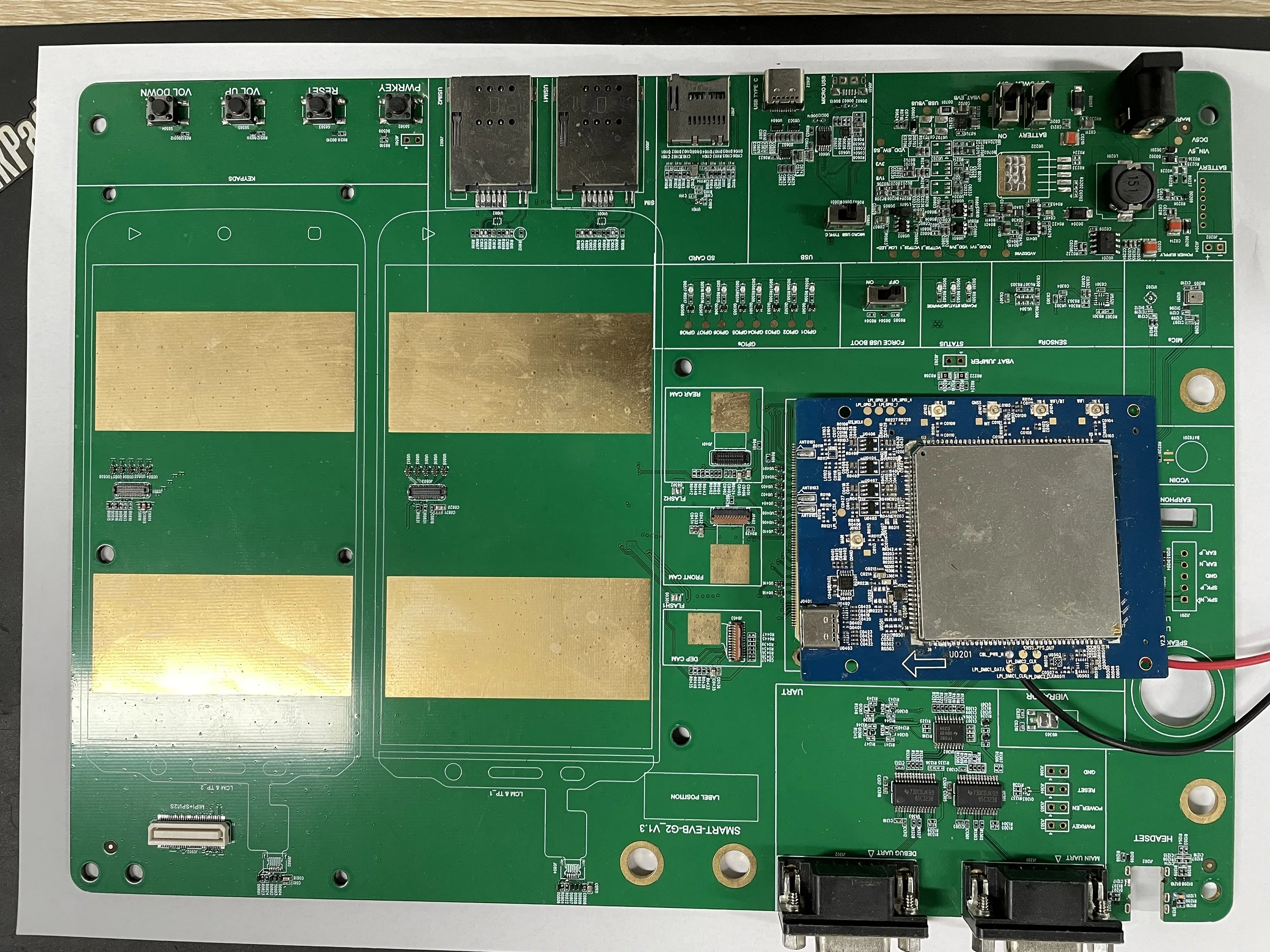

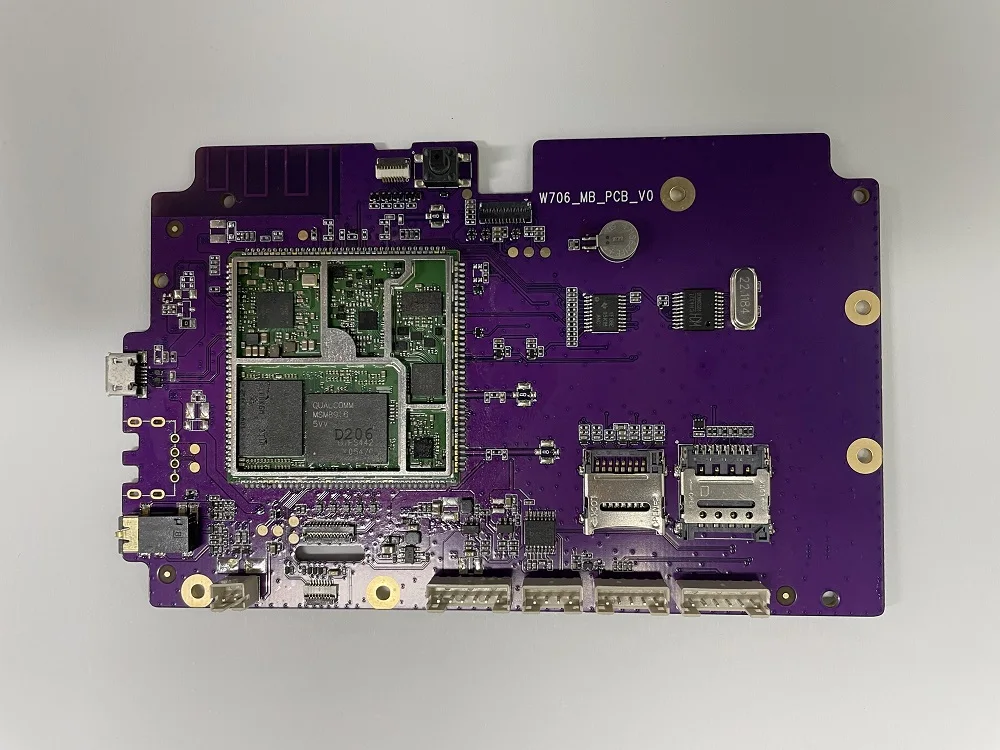

OEM/ ODM, PCB assembly, Components sourcing
Company Information
With the expertise of our experienced engineering team, we're competent to provide our

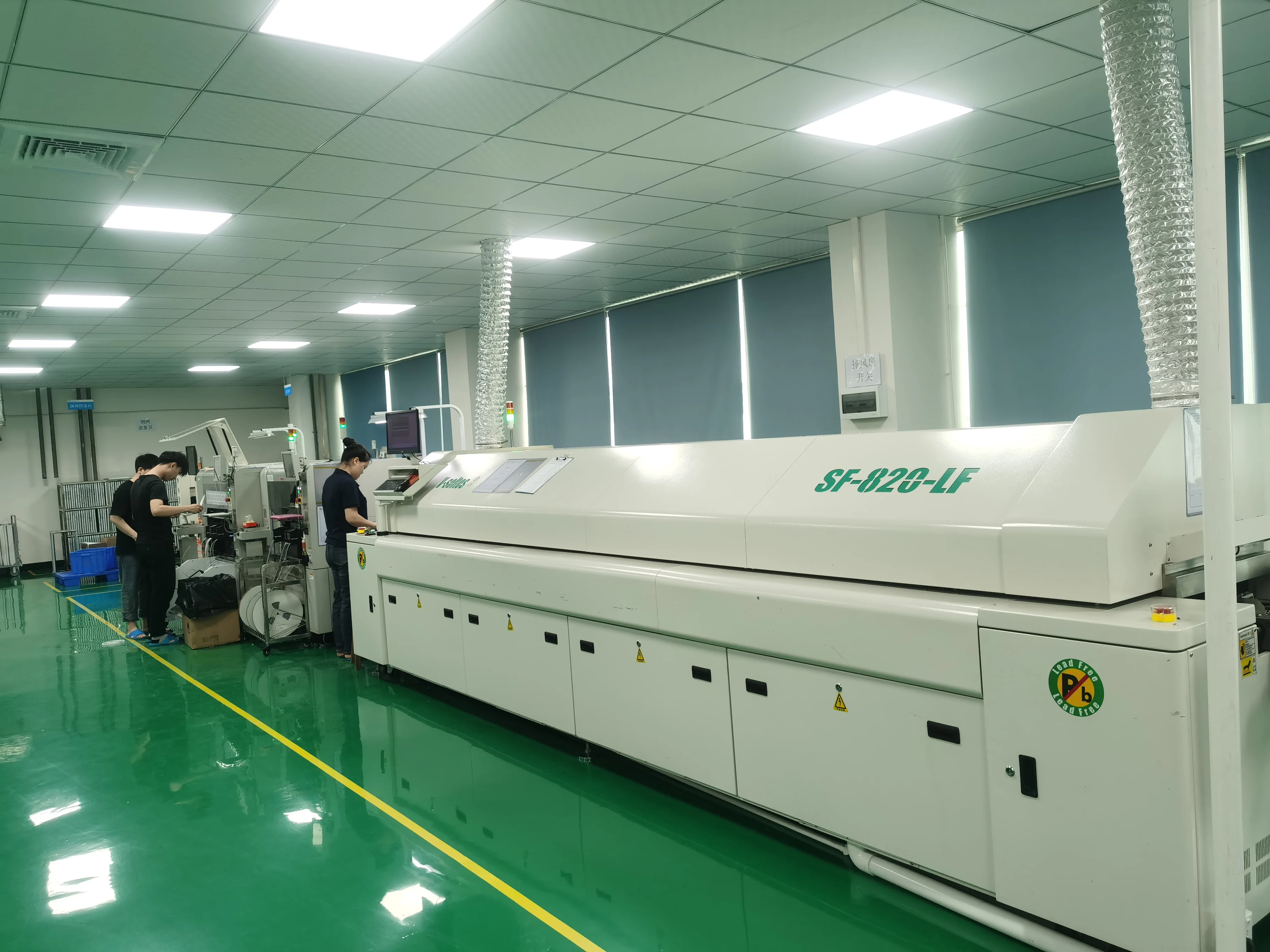

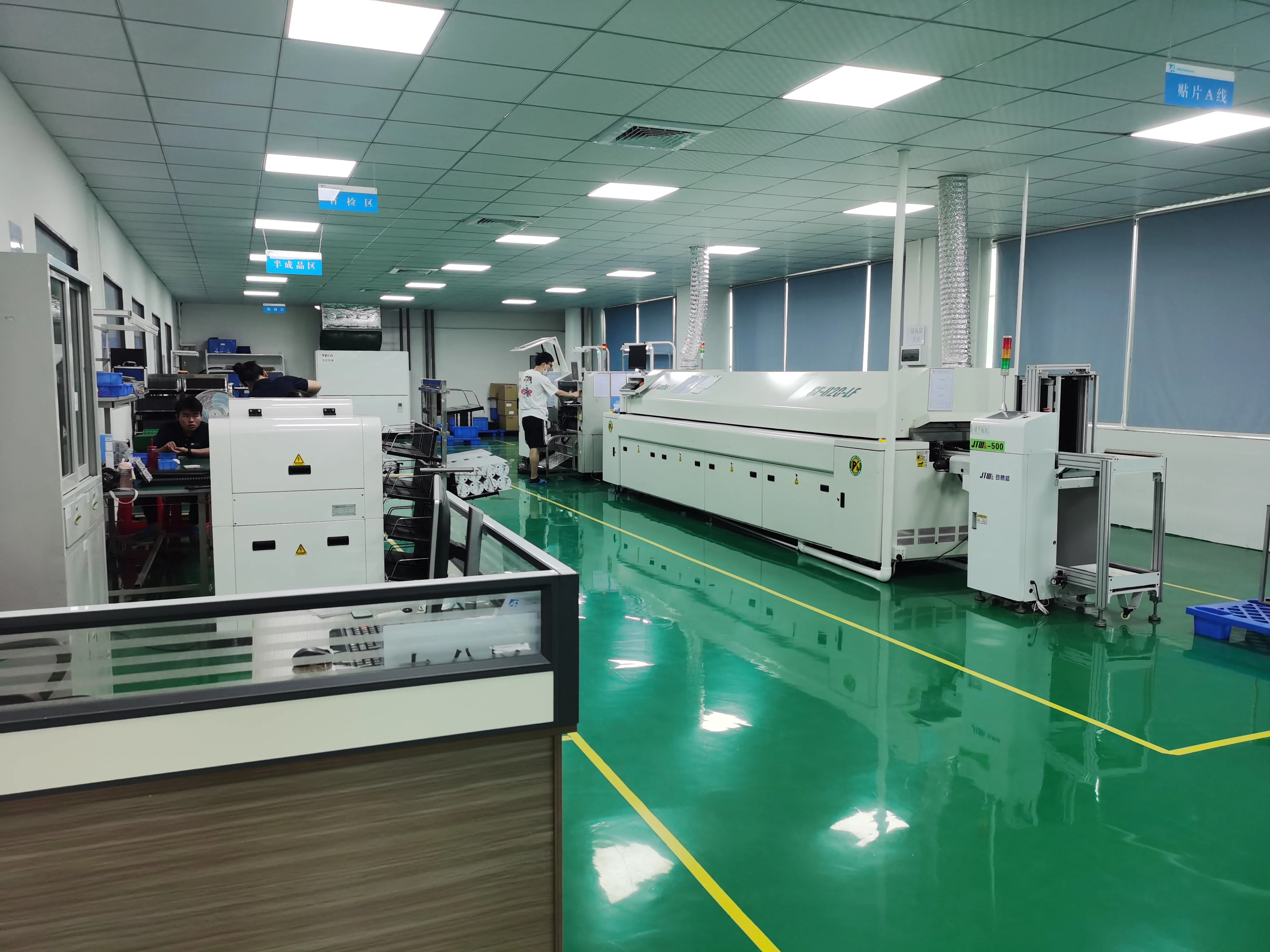

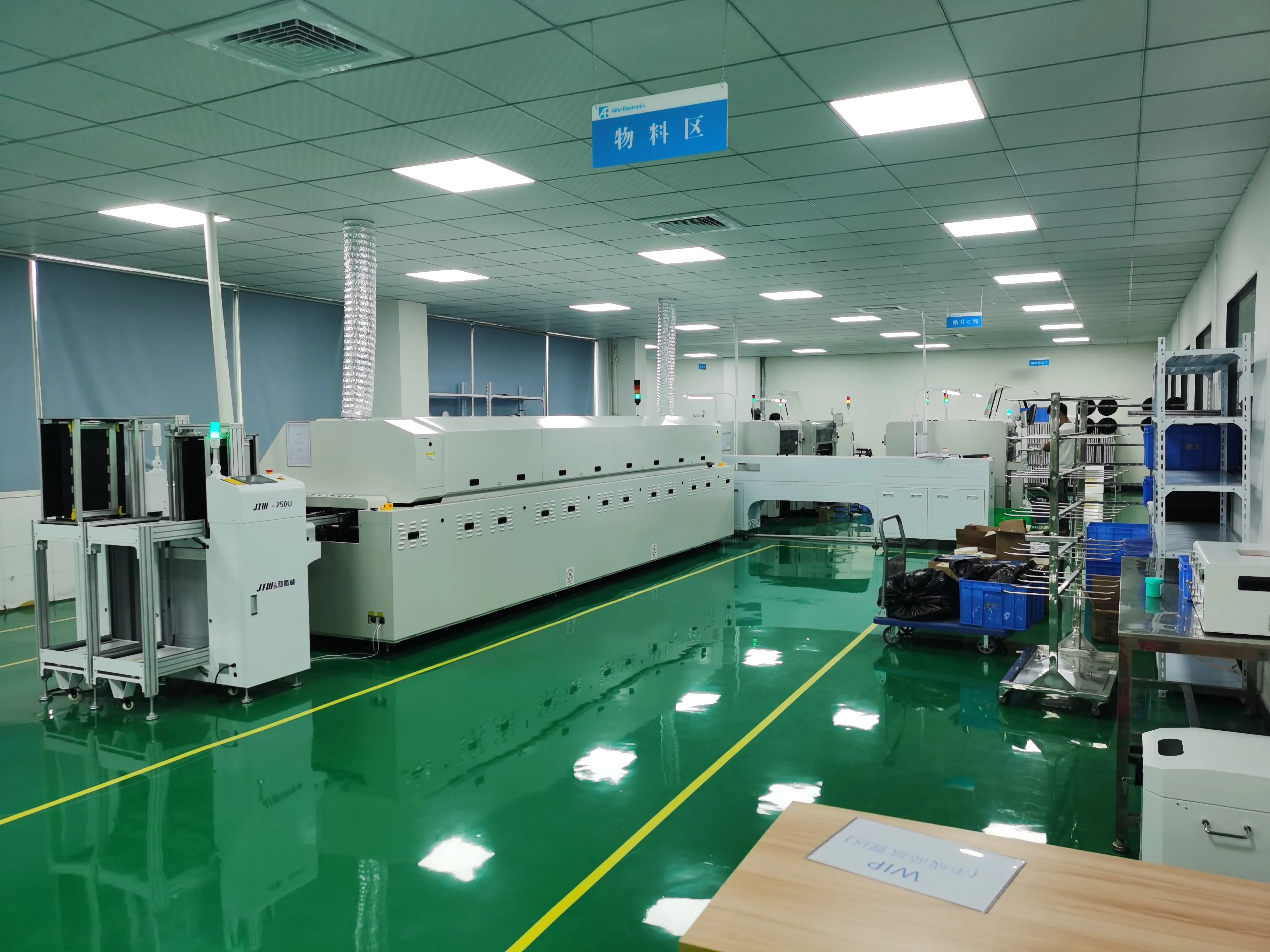

customers with the unique hardware and support solutions they require. Rui Sheng spent more than 10 years sourcing and creating direct relations with manufacturers both at home and abroad. Our own PCB factory and SMT lines ensure high quality one-stop service, proven to reduce cost and accelerate time to market.
