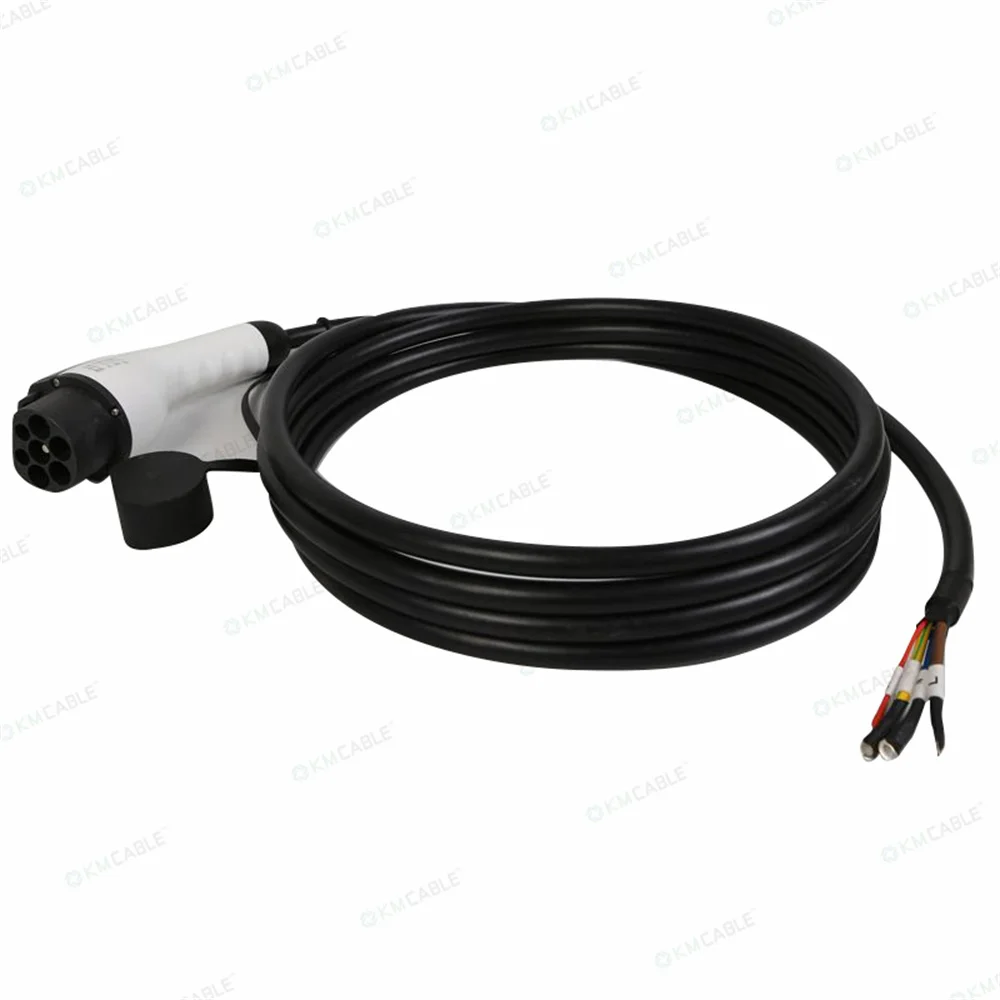

Black or Orange Color Tpe or Pvc Material Pure Copper Jcs 4522 Ev ooct Electric Car H05bz f Cable
- Category: >>>
- Supplier: Shanghai Kmcable Group Co. Ltd.
Share on (1600758354907):
Product Overview
Description
Products Description

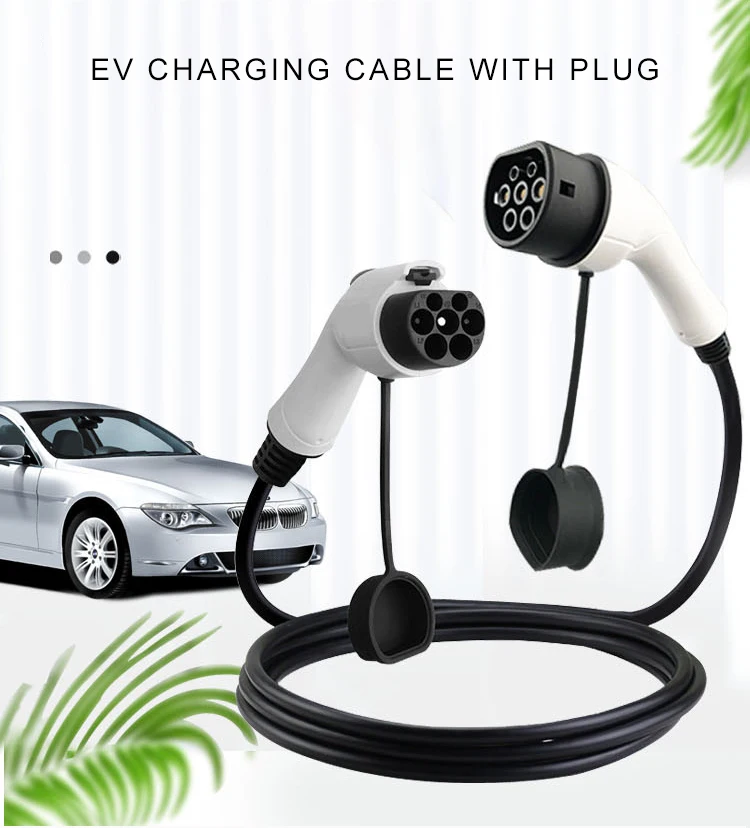

EV Charging Cable with Plug
Electric vehicle charging cables are used to connect electric vehicle charging devices and charging infrastructure, so as to transmit power to electric vehicles, and are equipped with a certain number of signal lines, control lines, power auxiliary lines, etc. to ensure accurate control of the entire charging process and safe operation. Charging cables are generally used in charging stations, parking lots, hotels, communities, garages and other areas, and portable charging cables can be placed in the car.
Main Feature:
1.The product is soft and has a bending radius of less than 5D;
2. High and low temperature resistance, oil resistance, acid and alkali resistance, water resistance, wear resistance, cracking resistance, UV resistance;
3. Good flame retardant performance; Good conductivity, small conductor temperature rise;
4. All materials comply with RoHS 2.0 environmental standards.
Specifications
Table 1 European standard | Cross area and core number | Max permit current | Cable diameter |
H05BZ-F | 3×1.5mm2+(0～2)×(0.5～0.75)mm2 | 14 A | 8.6~9.6 mm |
Conductor Type | 3×2.5mm2+(0～2)×(0.5～0.75)mm2 | 25 A | 9.8~10.8 mm |
H07BZ-F | 3×1.5mm2+(0～2)×(0.5～0.75)mm2 | 14 A | 8.8~9.6 mm |
Jacket(Sheath) | 3×2.5mm2+(0～2)×(0.5～0.75)mm2 | 25 A | 10~10.8 mm |
Standards | 3×6.0mm2+(0～2)×(0.5～0.75)mm2 | 44 A | 13.2 mm |
DC | 3×16mm2+(0～2)×(0.5～0.75)mm2 | 62 A | 16.3 mm |
AC | 5×4.0mm2+(0～2)×(0.5～0.75)mm2 | 30 A | 15.2 mm |
Nominal cross-sectional area of conductor(mm²) | 5×10.0mm2+(0～2)×(0.5～0.75)mm2 | 54 A | 18.9 mm |
Application | 5×16mm2+(0～2)×(0.5～0.75)mm2 | 71 A | 21.3 mm |
Colors | 5×25mm2+(0～2)×(0.5～0.75)mm2 | 94 A | 29.2 mm |
Ambient temperature | 5×35mm2+(0～2)×(0.5～0.75)mm2 | 117 A | 33.8 mm |
Table 2 UL standard | Cross area and core number | Max permit current | Cable diameter |
600 or 1000 V EVE(TPE) EVT(PVC) | 3×16 AWG | 12 A | 10.8 mm |
3×12 AWG | 23 A | 14.5 mm | |
2×6+8 AWG | 63 A | 23.5 mm | |
3×16+1×18 AWG | 12 A | 11.5 mm | |
3×10+1×18 AWG | 32 A | 13.5 mm | |
2×4+6+18 AWG | 75 A | 27.5 mm | |
3×10+2×18 AWG | 32 A | 16.5 mm | |
2×1/0+2 AWG | 200 A | 38.5 mm | |
2×3/0+1/0 AWG | 260 A | 46.2 mm |

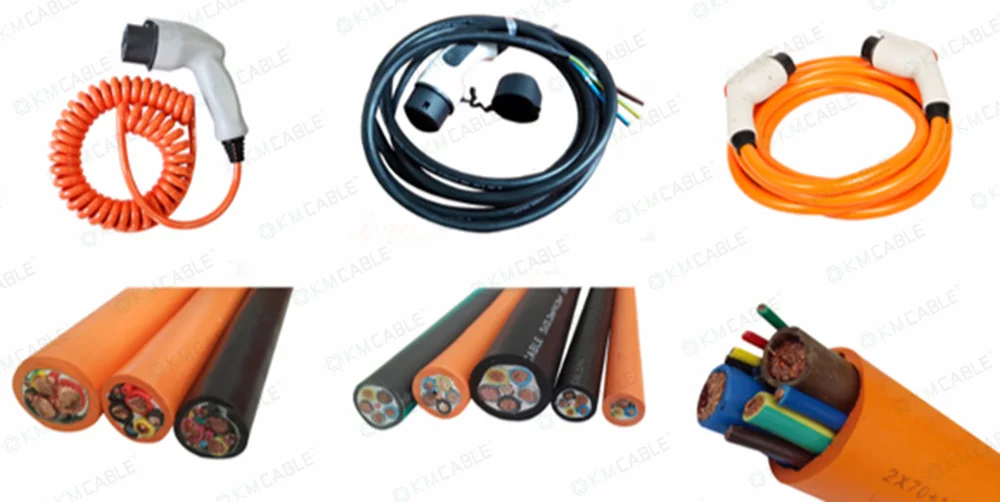

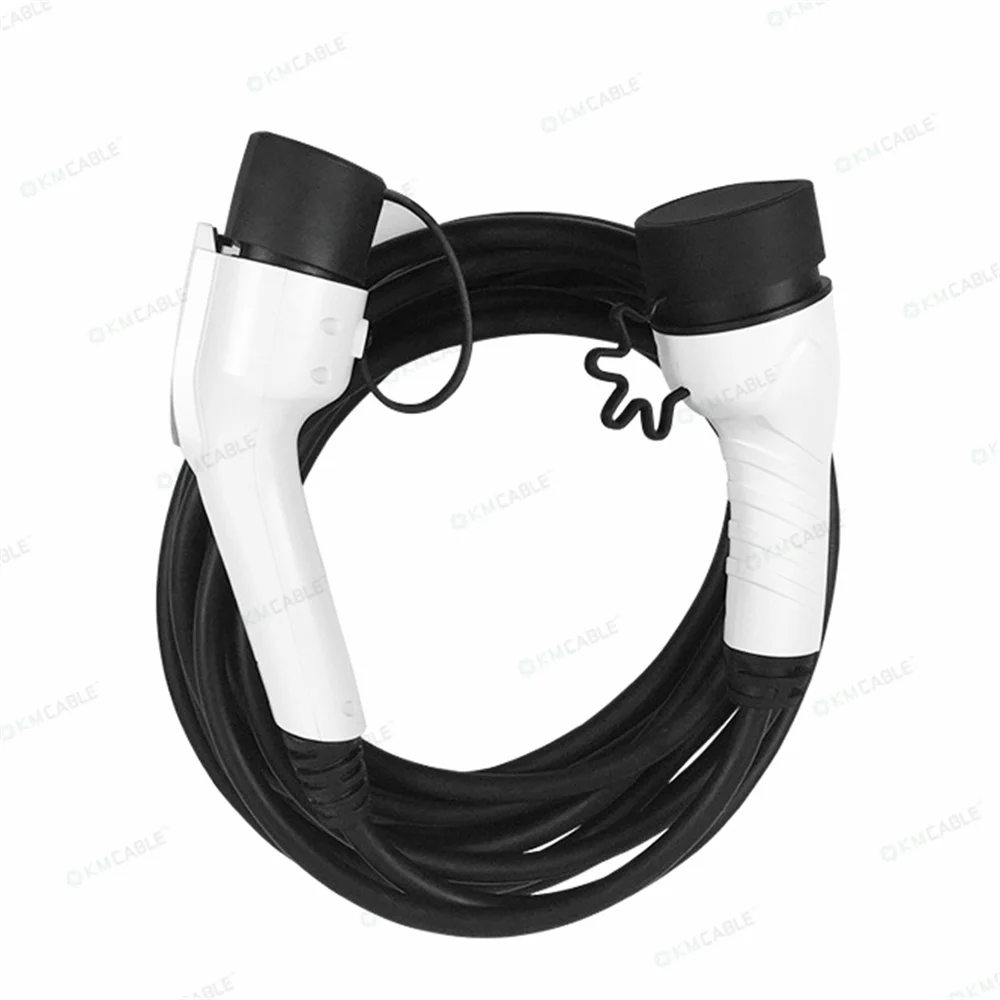

Details Images

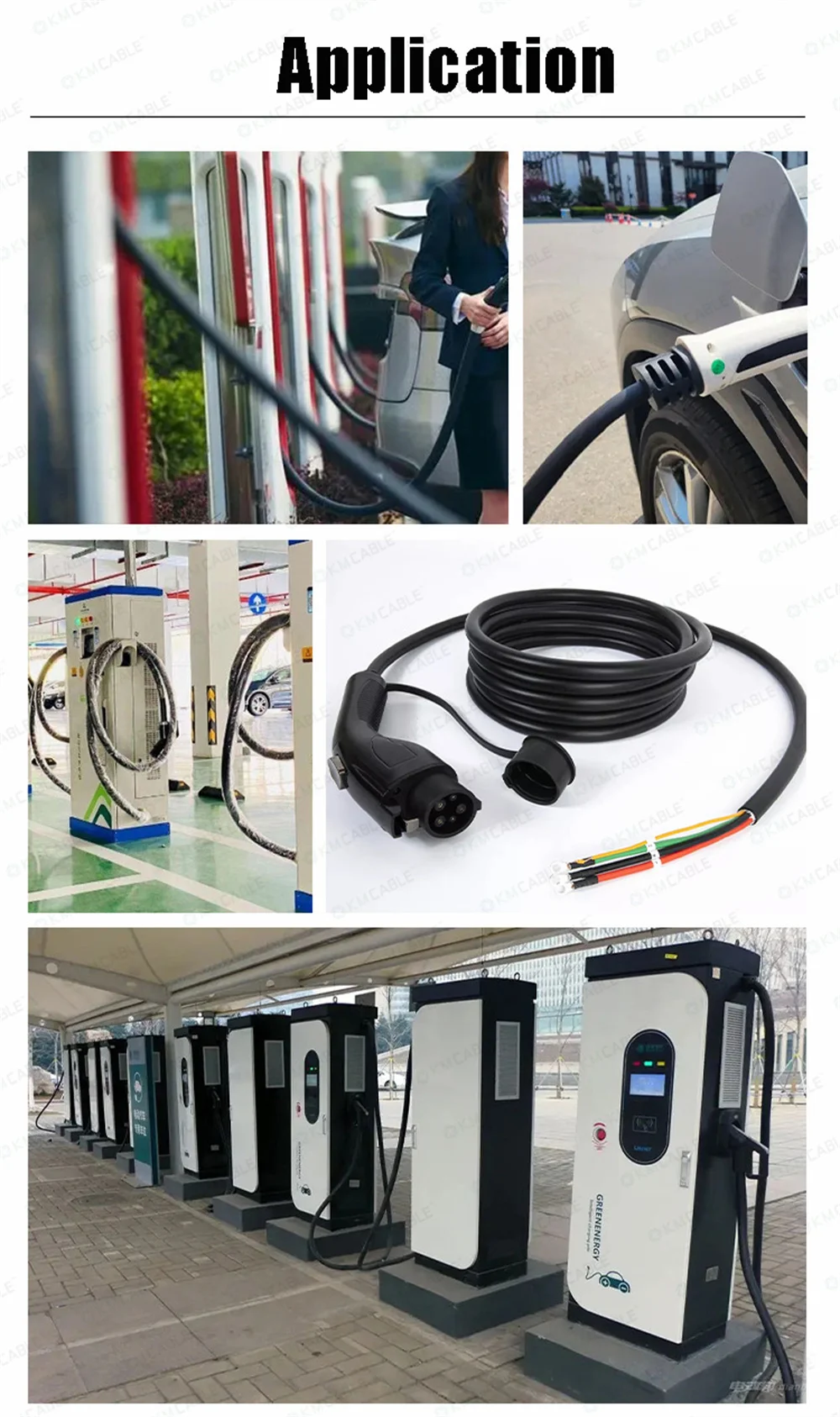

Application

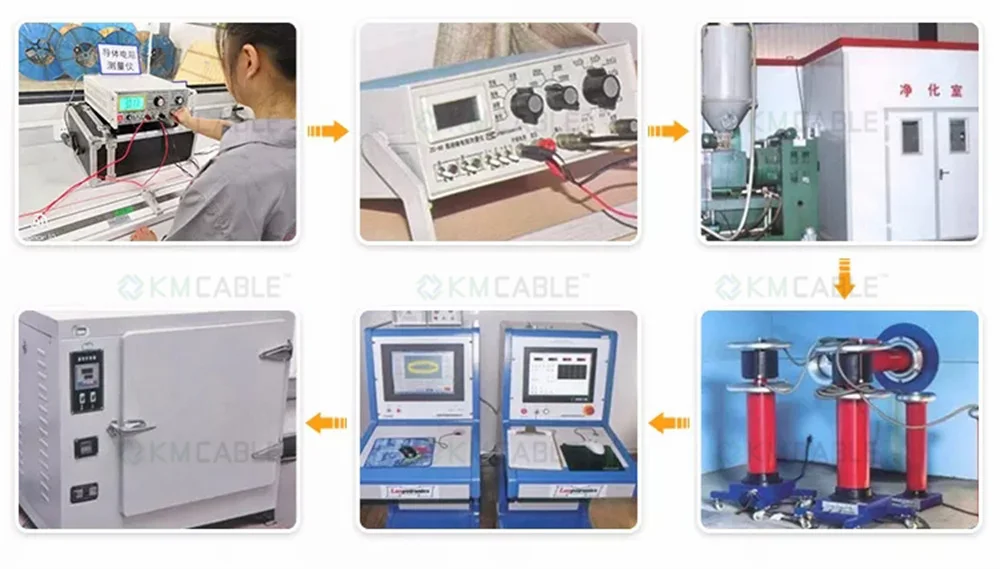

Company Profile
Packing and Delivery
FAQ
Q1:I didn't find my needed model in this page.
A1:We are factory. Ecatalog will emailed to you asap you contact us. Also, we supply customization service. So, contact us!
Q2:How long is your delivery time?
Q3:Can I see the sample before place the order ?
A3:Of course. We can offer little sample for testing quality and market.
Q4:How about MOQ ?
A4:Our company has MOQ requirement, but we also accept small quantity.
A1:We are factory. Ecatalog will emailed to you asap you contact us. Also, we supply customization service. So, contact us!
Q2:How long is your delivery time?
A2:Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q3:Can I see the sample before place the order ?
A3:Of course. We can offer little sample for testing quality and market.
Q4:How about MOQ ?
A4:Our company has MOQ requirement, but we also accept small quantity.
Q5:What is your terms of payment ?
A5:Payment<= 3000USD, 100% in advance. Payment>= 3000USD, 30%T/T in advance ,balance before shippment.
A5:Payment<= 3000USD, 100% in advance. Payment>= 3000USD, 30%T/T in advance ,balance before shippment.
