Lab Battery Grade Graphite Sheet Price
US $5.00-$15.00
High Electric Conductive Hot Press Graphite Transfer Carbon Paper Plastic Flexible Graphite Sheet
- Category: Graphite Sheets >>>
- Supplier: Suzhou,Dasen,Electronics,Material,Co.,Ltd.
Share on:
Product Overview
Description

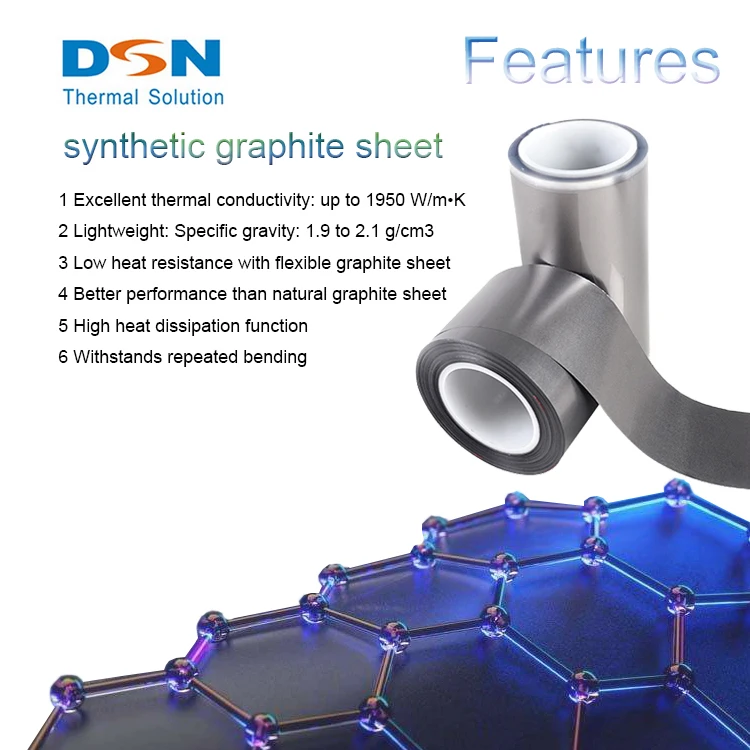

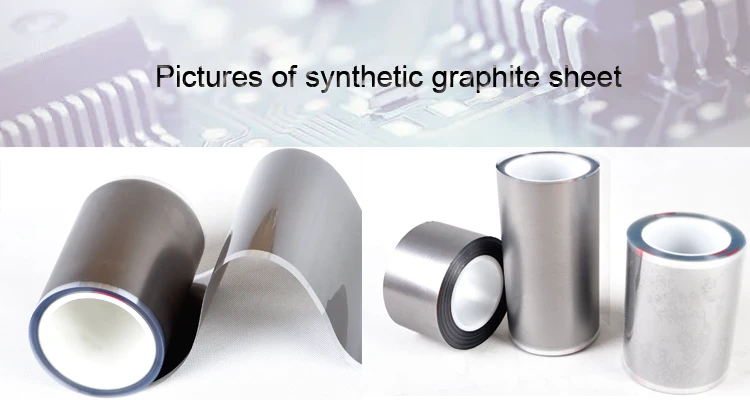

Synthetic graphite sheet
Synthetic graphite sheet, also called artificial graphite sheet, is a new film material made of Polyimide by sintering.
Synthetic graphite is available with an adhesive backing on one side, which can significantly improve the thermal resistance. A wide range of die-cut shapes & components are manufactured to customer specifications on request.
Synthetic graphite is available with an adhesive backing on one side, which can significantly improve the thermal resistance. A wide range of die-cut shapes & components are manufactured to customer specifications on request.
Product Paramenters
Thickness (mm) | DSN5017 | DSN5025 | DSN5032 | DSN5040 | DSN5050 | ||
0.017±0.003 | 0.025±0.003 | 0.032±0.004 | 0.04±0.005 | 0.05±0.005 | |||
Thermal conductivity | X-Y axis (w/m.k) | 1700~1900 | 1600~1800 | 1500~1700 | 1400~1600 | 1400~1600 | |
Z axis (w/m.k) | 10~15 | 12~18 | 12~18 | 13~19 | 15~22 | ||
Density (g/cm3) | 2.1±0.1 | 2.1±0.1 | 2.0±0.1 | 1.9±0.1 | 1.9±0.1 | ||
In-please thermal diffusivity (mm2/s) | 920~1040 | 930~1010 | 890~1010 | 880~1000 | 850~970 | ||
Heat capacity (J/g/K) | 0.87±0.01 | 0.87±0.01 | 0.87±0.01 | 0.87±0.01 | 0.87±0.01 | ||
Heat resistance temperature (℃) | -40~400 | -40~400 | -40~400 | -40~400 | -40~400 | ||
Thermal resistance (℃) | 0.15% | 0.15% | 0.15% | 0.15% | 0.15% | ||
Electric conductivity (s/cm) | 50000 | 50000 | 50000 | 50000 | 50000 | ||
Thickness (mm) | DSN5060 | DSN5070 | DSN5080 | DSN5090 | DSN5100 | ||
0.06±0.006 | 0.07±0.007 | 0.08±0.008 | 0.09±0.009 | 0.1±0.01 | |||
Thermal conductivity | X-Y axis (w/m.k) | 1350~1550 | 1200~1400 | 1200~1400 | 1100~1300 | 1000~1200 | |
Z axis (w/m.k) | 15~22 | 15~22 | 15~22 | 15~22 | 15~22 | ||
Density (g/cm3) | 1.85±0.1 | 1.7±0.1 | 1.7±0.1 | 1.6±0.5 | 1.5±0.1 | ||
In-please thermal diffusivity (mm2/s) | 840~960 | 830~970 | 810~950 | 790~930 | 770~920 | ||
Heat capacity (J/g/K) | 0.87±0.01 | 0.85±0.01 | 0.87±0.01 | 0.87±0.01 | 0.87±0.01 | ||
Heat resistance temperature (℃) | -40~400 | -40~400 | -40~400 | -40~400 | -40~400 | ||
Thermal resistance (℃) | 0.15% | 0.15% | 0.15% | 0.15% | 0.15% | ||
Electric conductivity (s/cm) | 50000 | 50000 | 50000 | 50000 | 50000 | ||
Production Process of Graphite Sheet

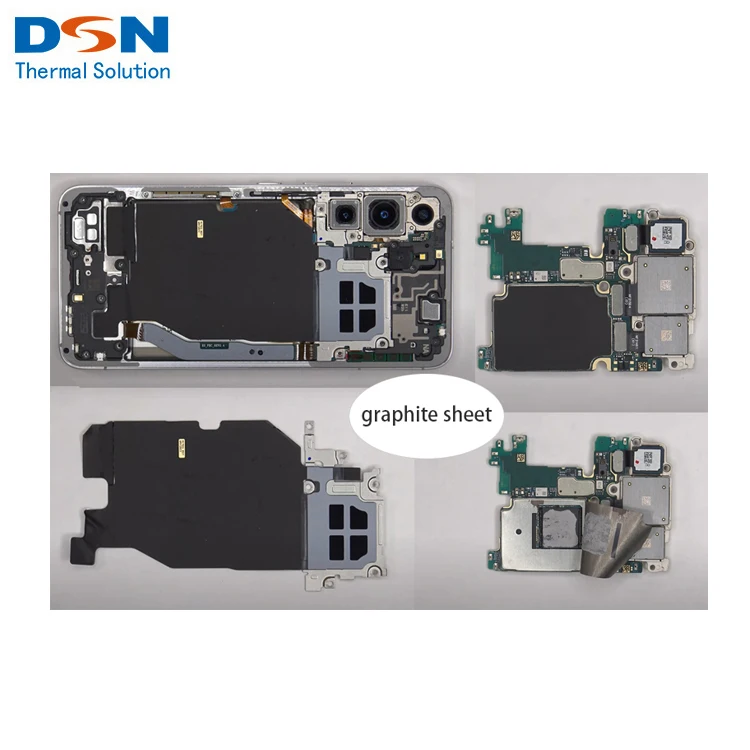

\t\t\t\t\t\t\t\t\tProduct Application \t\t\t\t\t\t\t
The graphite sheet with high thermal conductivity and light weight can provide the best thermal management solution. It is widely used in smartphones, PC, ultra HD TV, LED lamp, solar energy, battery, VR, new energy vehicles, wireless charging and other fields.
About Dasen
Professional manufacturer of graphite sheet, thermal pad, vapor chamber, die-cutting, graphite molds and ceramic filtration membrane.
www.thermalgraphite.com
* Services in telecommunications, industrial consumer electronics and medical, new energy vehicles, machinery, environmental
engineering.
* Used in soft circuit board, back light module, touch panel, mechanical hardware, finished product assembly and environmental
protection engineering industry
* Four factories: Jiangsu, Jiangxi, Anhui and Shandong.
* Certificates: ISO9001, IATF16949, ISO14001, UL...
engineering.
* Used in soft circuit board, back light module, touch panel, mechanical hardware, finished product assembly and environmental
protection engineering industry
* Four factories: Jiangsu, Jiangxi, Anhui and Shandong.
* Certificates: ISO9001, IATF16949, ISO14001, UL...
Other Products
\t\t\t\t\t\t\t\t\tQuality Control \t\t\t\t\t\t\t
* Quality policy - The policy aims at satisfying our customer by way of initializing an updated quality management and sticking to the top requirement of "quality first" in an attempt to achieve an elite project finally.
* Quality objective - Provide our customer with products in full line with relevant contract and standard by way of strictly conforming to quality control procedure and intensifying avoiding common quality faults to be sure of an effective operation of the quality assurance and quality control system, achieve a zero quality accident rate and realize good project construction quality.
* Quality Assurance System and Function - Establish quality assurance and effective quality control system before construction in order to ensure the realization of construction quality objective.
* Work - Post Responsibility - Responsibility of Project Manager
Laboratory and product inspection equipment

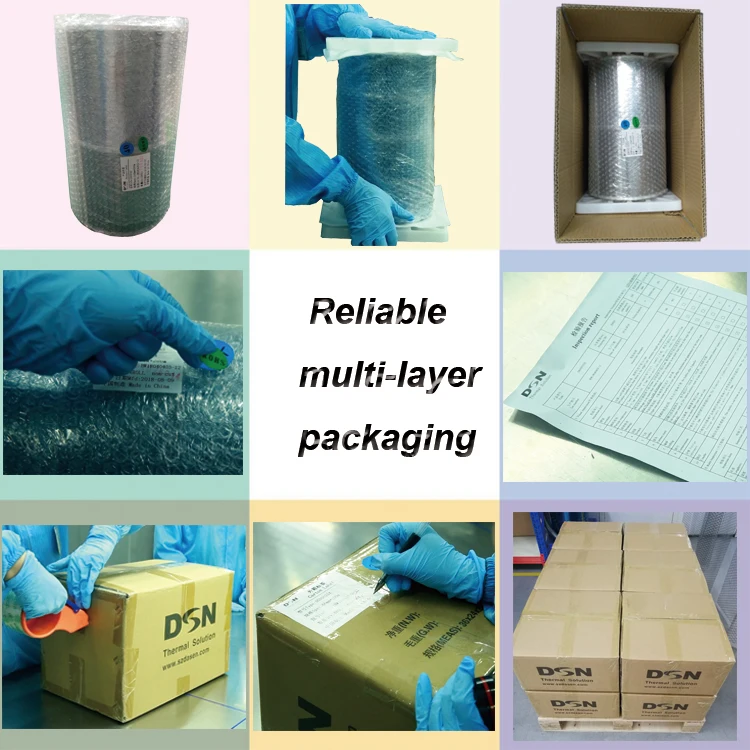

Product packaging
Delivery time:
1. 2-7 days after receiving the deposit.
2. Accurate delivery date depends on the quantity and season.
2. Accurate delivery date depends on the quantity and season.
Certificates
ISO9001-2015, ISO14001-2015, IATF16949-2016, UL
We obtained more than 30 invention patents and utility model patent and gained the honor: "scientific and technological innovation enterprises", "Jiangxi Province special new enterprises", "national high-tech enterprises".
