price customized industrial tubular type graphite heat exchanger manufacturer wholesale

Share on (1600758640932):


Price:$3,000.00

Quantity:


Product Overview

Description



Good News








Product Description

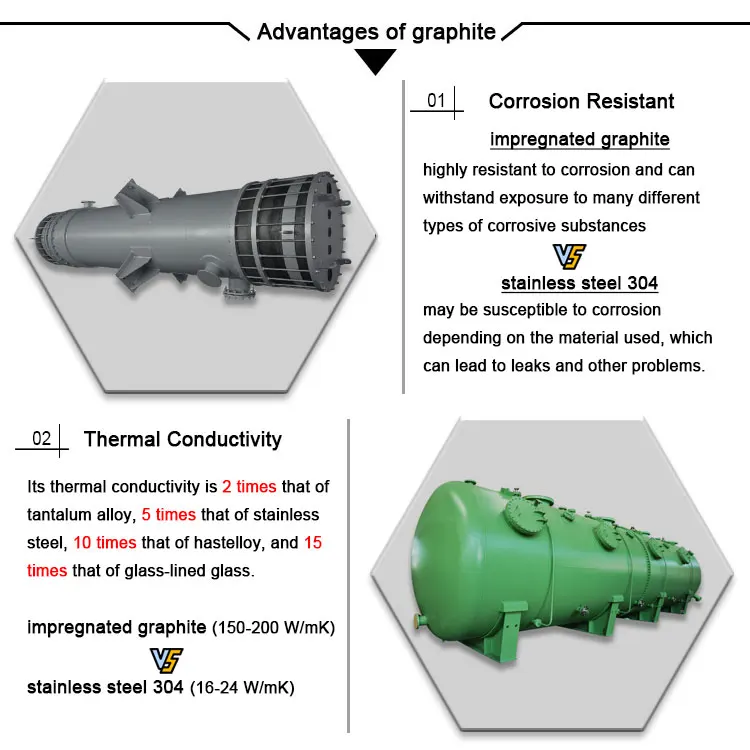

-01

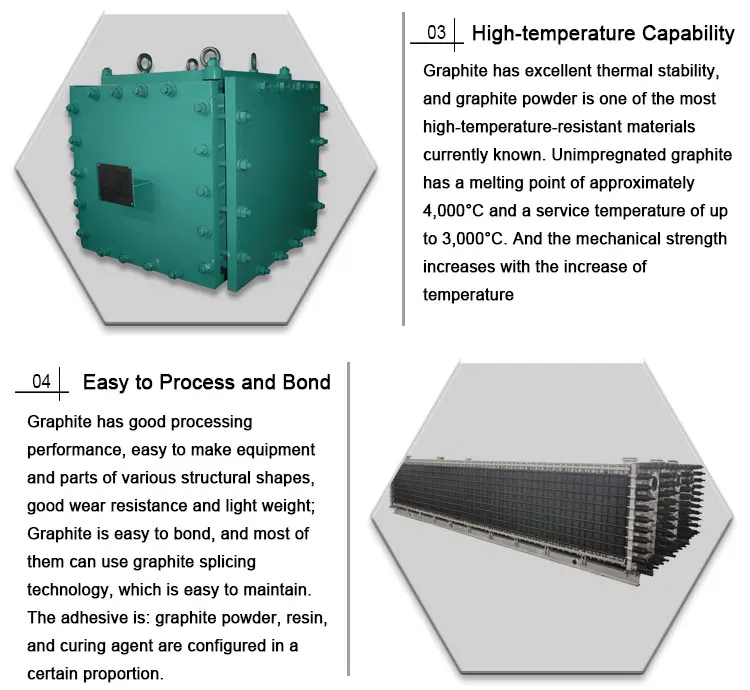

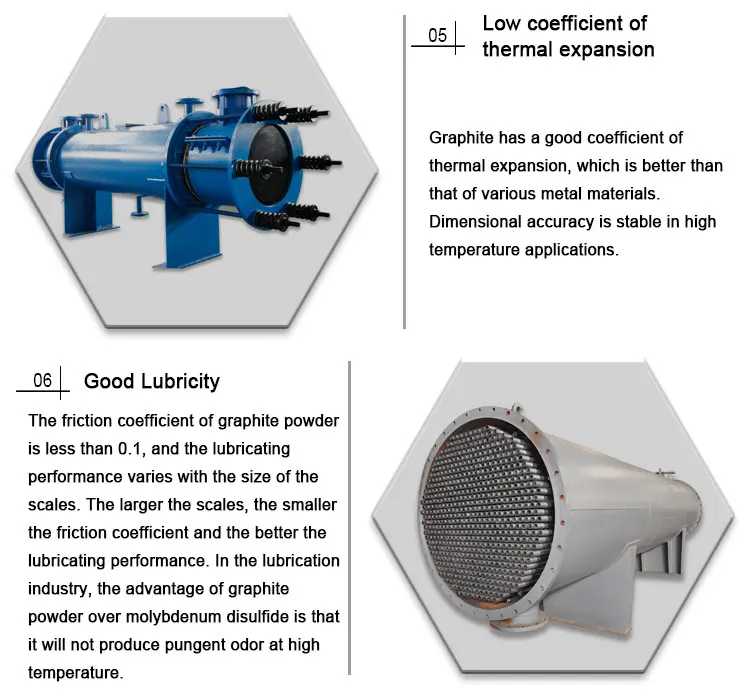

-02-03

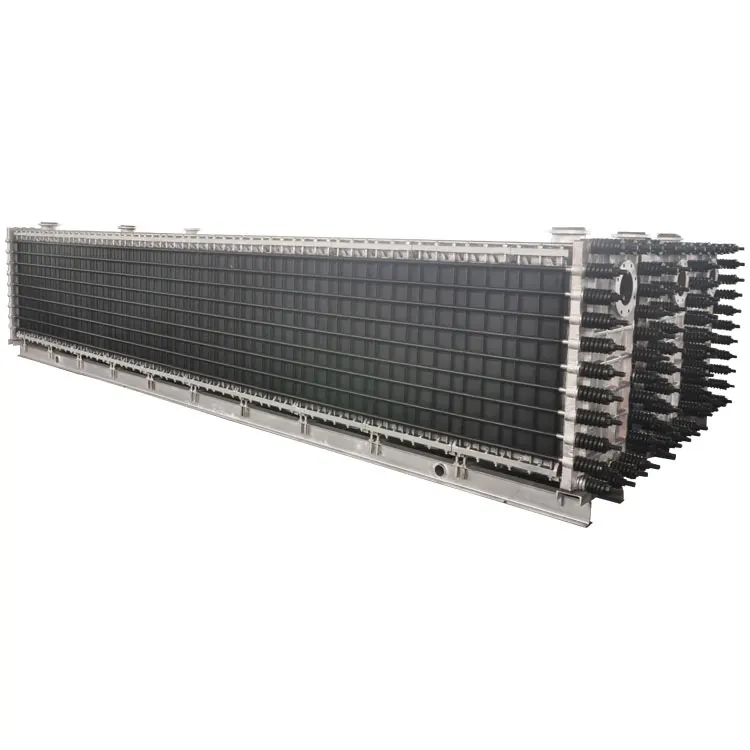

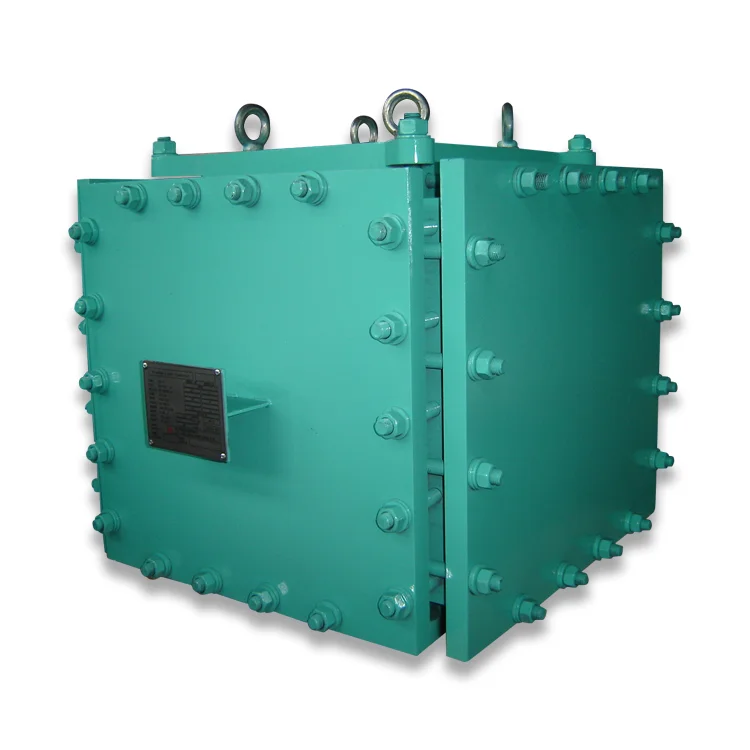

 XYK Graphite Heat Exchanger
Tube Side Pressure0.3 Mpa ( DN ≤ 900 )
0.2 Mpa ( DN > 900 )
Shell Side Pressure0.3 Mpa ( DN ≤ 1100 )
0.2 Mpa ( DN > 1100 )
Tube Side Temperature-20℃ ~ 130℃
Shell Side Temperature-20℃ ~ 120℃
 Specially Designed By Our Compay
Designed PressureMax 1.0 Mpa is available
Designed TemperatureMax 250℃ for the material
Type Of EquipmentsCooler,Condenser,Heater,Rising Film Evaporator ,Falling film Evaporator,Falling film Absorber,etc
Equipment ApplicationChlor-alkali industry,Phosphoric acid industry,Hydrofluroic  acid industry,Waste water,waste acid treatment,organic compounds,etc
Equipment Specification0.5-1500 m² / unit
Both vertical and horizontal types

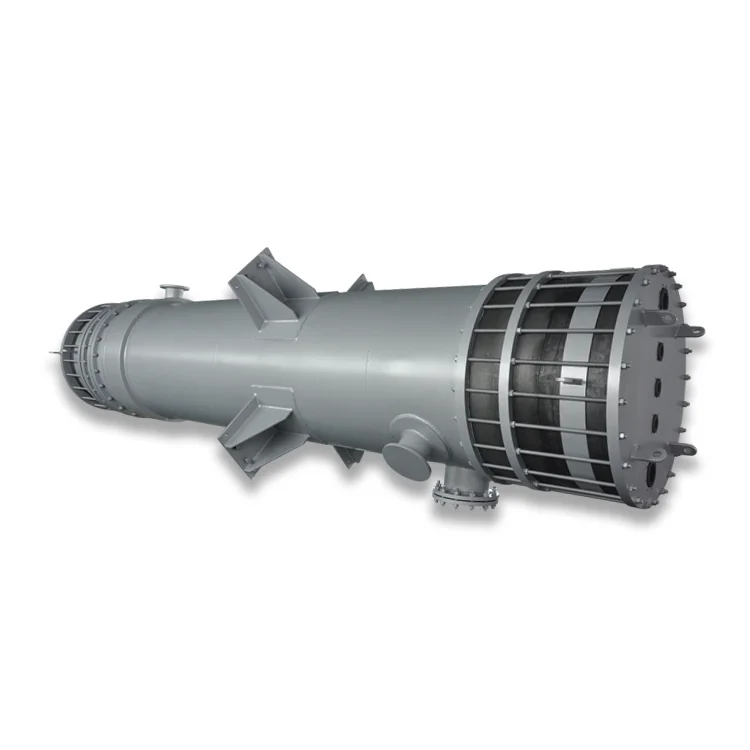

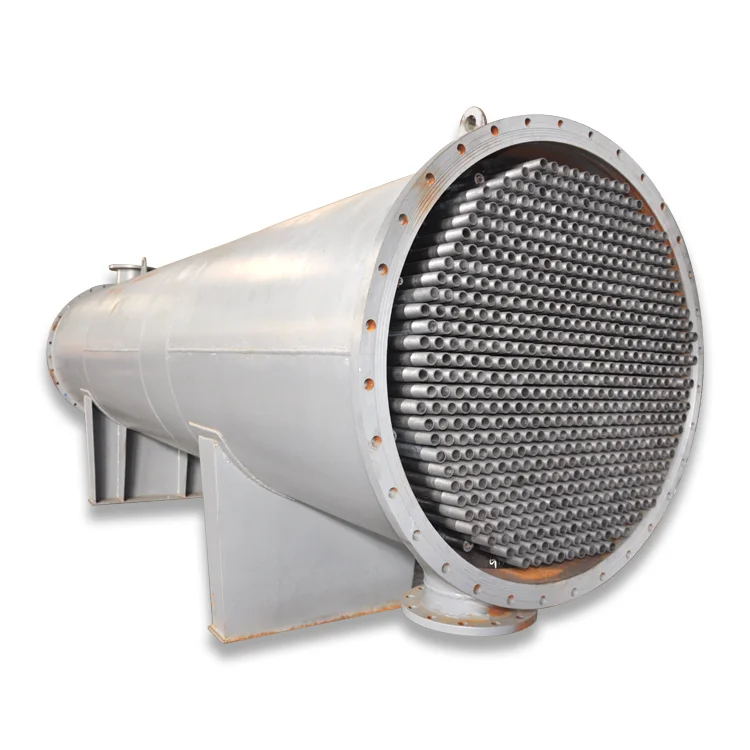

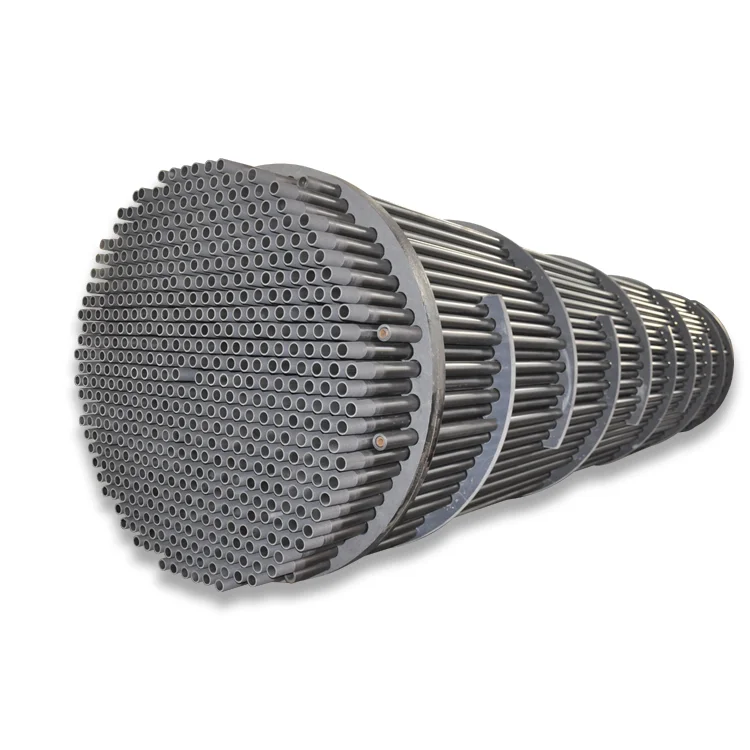

Tubular Graphite Heat Exchanger
Tube Side Pressure0.3 Mpa
Shell Side Pressure0.7 Mpa
Designed Temperature-20℃ ~ 170℃
 Specially Designed By Our Compay
Designed PressureMax 1.2 Mpa is available
Designed TemperatureMax 250℃ for the material
Type Of EquipmentsCooler,Condenser,Heater,Falling film Evaporator,Falling film Absorber,Recover,etc
Equipment ApplicationChlor-alkali industry,Phosphoric acid industry,Hydrofluroic  acid industry,Waste water,waste acid treatment,organic compounds,etc
Equipment Specification0.5-1500  m²/ unit
Both vertical and horizontal types




Company Information


our-Company



Nantong Sunshine Graphite Equipment Technology Co., Ltd. is one of the world’s majorsuppliers combined with the design and the manufacture of graphite equipment, silicon carbide heat exchanger and other non-metallic chemical equipment, and energy-saving chemical process including evaporation and crystallization.
Founded in 2001, Sunshine have provided equipment and system solutions for more than thousand enterprises around the world regarding with concentration, purification, rectification of waste or diluted sulfuric acid, hydrochloric acid, phosphoric acid in the industries of fine chemical industry, metallurgy, pesticide, pharmaceutical, chlor-alkali, steel pickling, phosphorus chemical industry, dye chemical industry, semiconductor and so on, and obtained more than one hundred national patents.


Sunshine owns the system certification of ISO 9001,14001 and 45001 certified by Intertek, and have supplied nearly 10 thousand sets of equipment designed as per China standard A4, AD 2000 code and ASME code which are capable to be approved by PED and U stamping to more than 20 countries and regions in North America, Europe, Middle East, and Southeast Asia. In Germany, Nantong Sunshine set up the R&D center and the sales office to provide more convenient service at abroad.


Besides the conventional equipment, Sunshine is capable to design and manufacture according to the customer’s process requirement and provide the technical solution which would be more economic and energy conservation.





Our Certifications

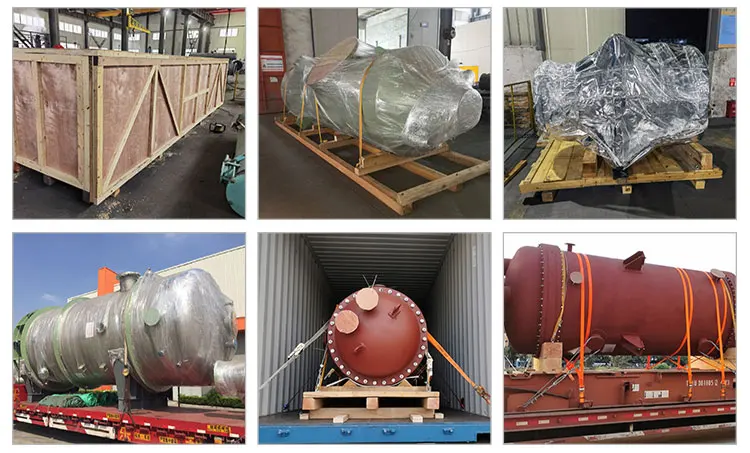

Packaging & Shipping
