Product Overview
Description
WG1608 quectel rm500q-ae 4g 5g LTE modem support n78 high-performance router
Hardware Feature:
* MTK7621 chipset, 880MHz main frequency
* 16MB Flash+256MB RAM
* Dual-band wireless rate, up to 1200Mbps
* 5 Gigabit ports, 1 WAN port + 4 LAN ports
* 1 USB 3.0 port + 1 TF / SD card slot +1 SIM Slot/Tray
* 1 M.2 Slot for 5G cellular modules (4G LTE-A modules will also work with included screw kit)
* 1 mini PCI-E Slot for 4G LTE cellular modules
* MTK7621 chipset, 880MHz main frequency
* 16MB Flash+256MB RAM
* Dual-band wireless rate, up to 1200Mbps
* 5 Gigabit ports, 1 WAN port + 4 LAN ports
* 1 USB 3.0 port + 1 TF / SD card slot +1 SIM Slot/Tray
* 1 M.2 Slot for 5G cellular modules (4G LTE-A modules will also work with included screw kit)
* 1 mini PCI-E Slot for 4G LTE cellular modules
Description
* WG1608 is a router that requires a modem for cellular internet. See below for different modem options. WG1608 5G is equipped
with dual modem slots, only a single M.2 or Mini PCI-E modem may be used at any one time.
The Quectel EM12G, EM20G, EM06-A, EM160R-GL, EM120R-GL, RM500Q, RM510Q, and the Sierra Wireless EM7455, EM7421, EM7511,
EM7411, EM7565, EM9190, EM9191, and EM7690 are all M.2 form factor modems and will fit in the WG1608 router. This also includes
the SIMCOM SIM8200G, FiboCOM FM150NA, and many others.
* FIRMWARE support:
Original SDK, OpenWRT, eCos, LEDE/ROOter Compatible
* EM160-GL /EM12-G/RM500Q-AE/RM502Q-AE Modem optional Hot sale in USA , please contact us for more detail
with dual modem slots, only a single M.2 or Mini PCI-E modem may be used at any one time.
The Quectel EM12G, EM20G, EM06-A, EM160R-GL, EM120R-GL, RM500Q, RM510Q, and the Sierra Wireless EM7455, EM7421, EM7511,
EM7411, EM7565, EM9190, EM9191, and EM7690 are all M.2 form factor modems and will fit in the WG1608 router. This also includes
the SIMCOM SIM8200G, FiboCOM FM150NA, and many others.
* FIRMWARE support:
Original SDK, OpenWRT, eCos, LEDE/ROOter Compatible
* EM160-GL /EM12-G/RM500Q-AE/RM502Q-AE Modem optional Hot sale in USA , please contact us for more detail
OEM Services
* Printing customer's logo
* Use customer's label
* Flash customer's firmware
* and so on. if you have more requirements, please feel free to contact us.
* Use customer's label
* Flash customer's firmware
* and so on. if you have more requirements, please feel free to contact us.
Products Description
Hardware specifications | MT7621A dual-core 880MHZ DDR2 256MB (up to DDR2 256MB) SPI 16MB (up to 32MB) | ||||||
WIFI chipset | 2.4G:MT7603EN;5.8G:MT7613AEN | ||||||
Protocol Standard | IEEE802.11n/g/b/a/ac,IEEE802.3/802.3u/802.3ab | ||||||
Wireless rate | Dual frequency concurrent up to 1200Mbps | ||||||
Antenna | 2.4GHz choose :1-13 | ||||||
Work Frequency | 2.4GHz 5.8GHz | ||||||
Antenna | 2 x 5dbi high-gain dual-band antennas; 4 x 5dbi high-gain 5G antennas | ||||||
LED | power/2.4G/5.8G/5G/Internet LAN1/LAN2/LAN3/LAN4/WAN | ||||||
One 1000M self-adaptive WAN port, support automatic flip (Auto MDI / MDIX); Four 1000M adaptive LAN ports, support automatic flip (Auto MDI / MDIX); 1 DC interface, 1 USB 3.0 interface, 1 TF card interface, 1 SIM card interface; Built-in one USB3.0 bus MINI-PCI-E seat, one USB3.0 bus + PCI-E bus M.2 seat, of which MINI-PCIE and M.2 seat can only choose one | |||||||
Button | 1x Reset Button | ||||||
Power adapter | DC 12/2000mA | ||||||
Dimension(L*W*H) | 240MM*136MM*25MM | ||||||
Maximum power consumption | < 20W | ||||||
Accessories and packaging | Power adapter 12V / 2A 1PCS Cat5e network cable 1PCS Product manual 1PCS Dual frequency WIFI antenna * 2PCS; 5G antenna 4PCS | ||||||
Authentication | FCC & CE certifications | ||||||
Certifications
Customer Reviews
Company Profile

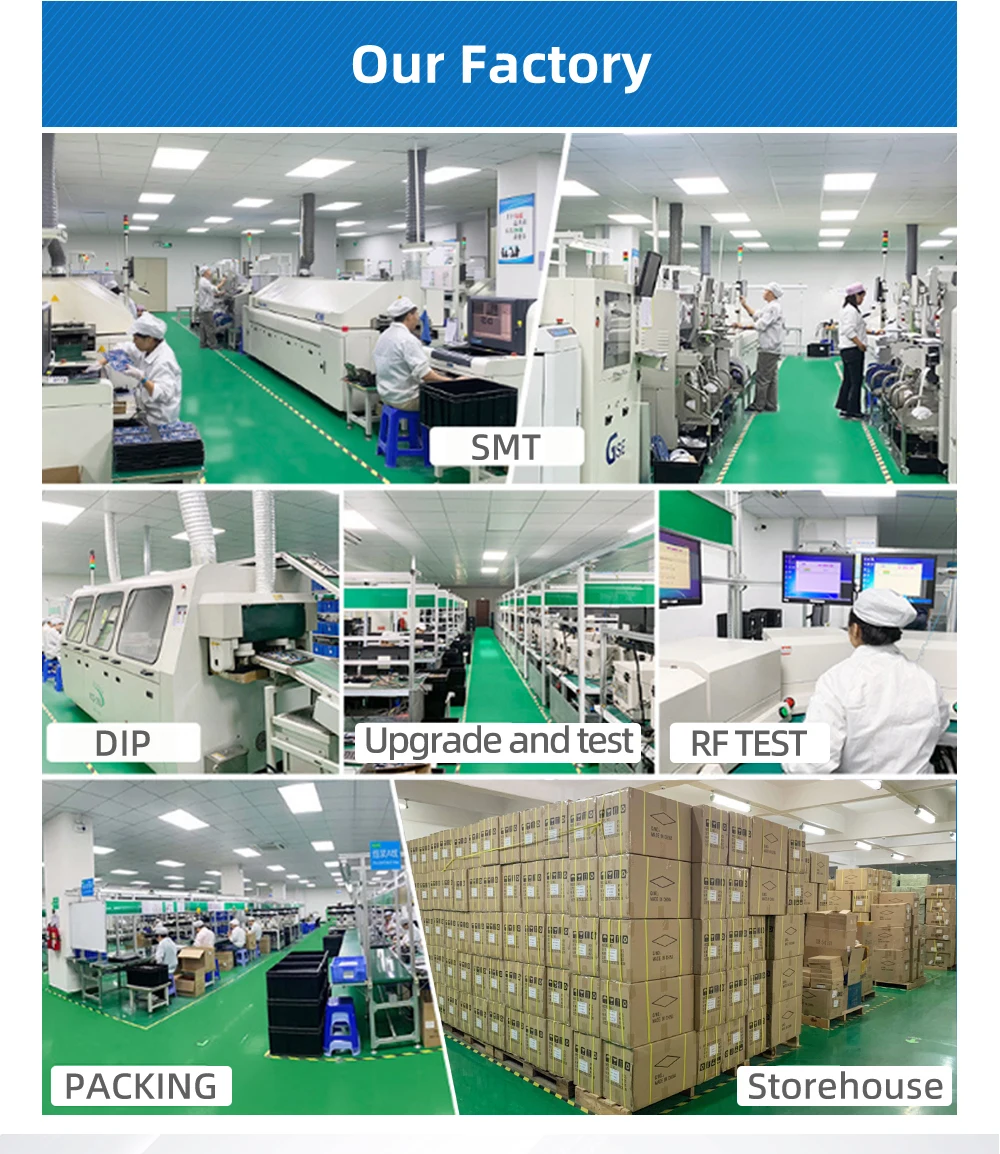

Factory Show
