Product Description

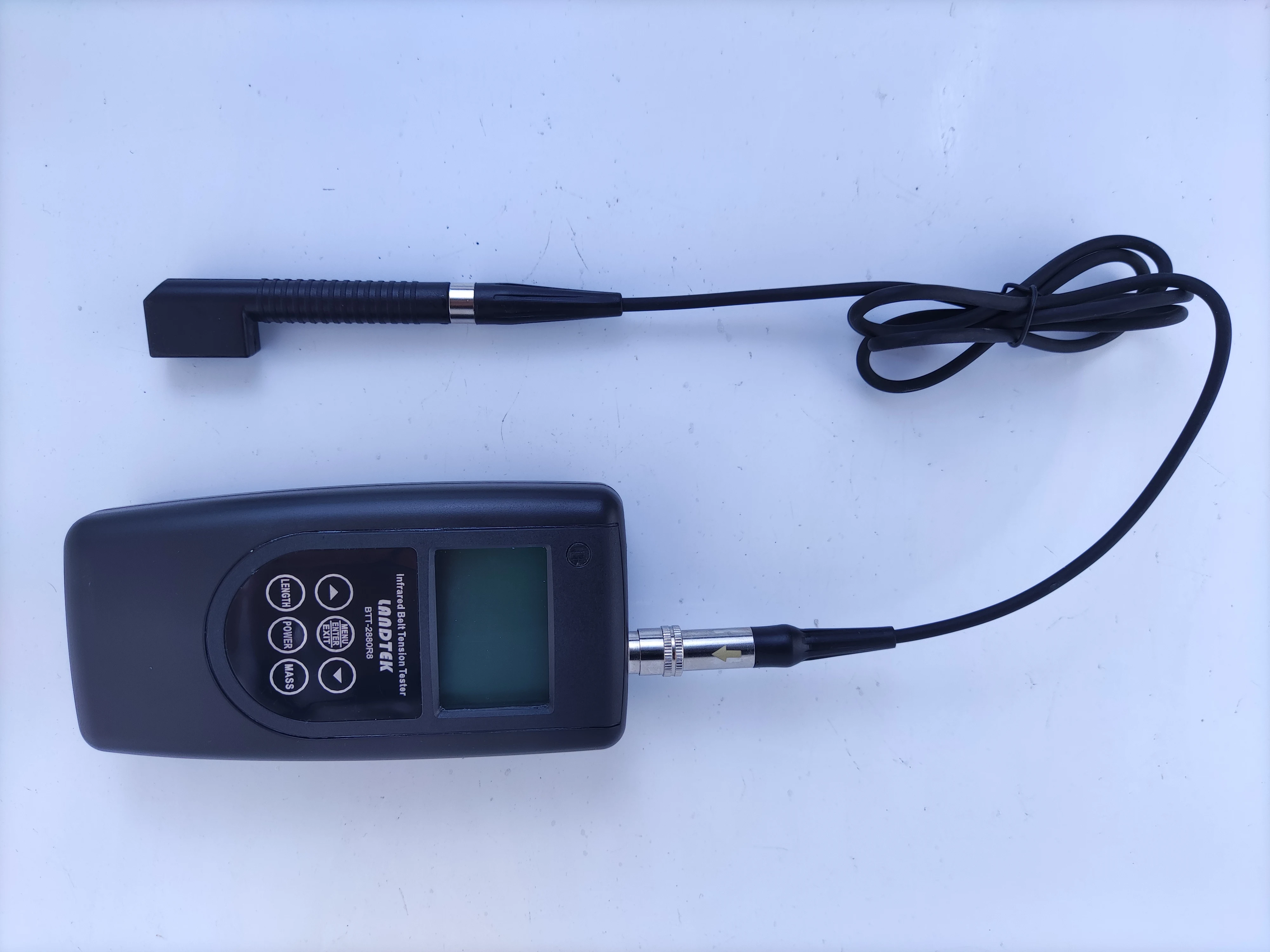

Infrared Belt Tension Tester BTT-2880R8
Applications:
The Infrared Belt Tension Meter can measure the belt tension of motor and other machines
quickly.

Features:
* Using laser sensor, direct measurement, more convenient than mechanical sensor.
* The size of the split sensor is small, which is suitable for measuring in a narrow space.
* Two kinds of sensors selectable, the integrated sensor and the split sensor.
* Metric or imperial units can be used to display readings.
* With automatic power off function.

Principle:
This tensiometer can measure the natural vibration frequency of the belt through the
emission and reception of the laser, and then calculate the tension value of the belt by
combining the input belt mass and the free belt length.

Details:

Measurement Range	10~800Hz
Input Range	Free Belt Length Max 99.99m
	Belt Mass Max 9.999kg/m
Digital Sampling Error	<1%
Display Error	±1Hz
Total Error	<5%
Operating Temperature Range	+10~50°C
Transportation Temperature Range	-5~70°C
Unit of Measurement	Metric: m, kg/m, N
	Imperial: Inch, lbs/foot, lbf
Optical Path Measurement Distance	3~20mm
Depth of Split Sensor	About 66mm

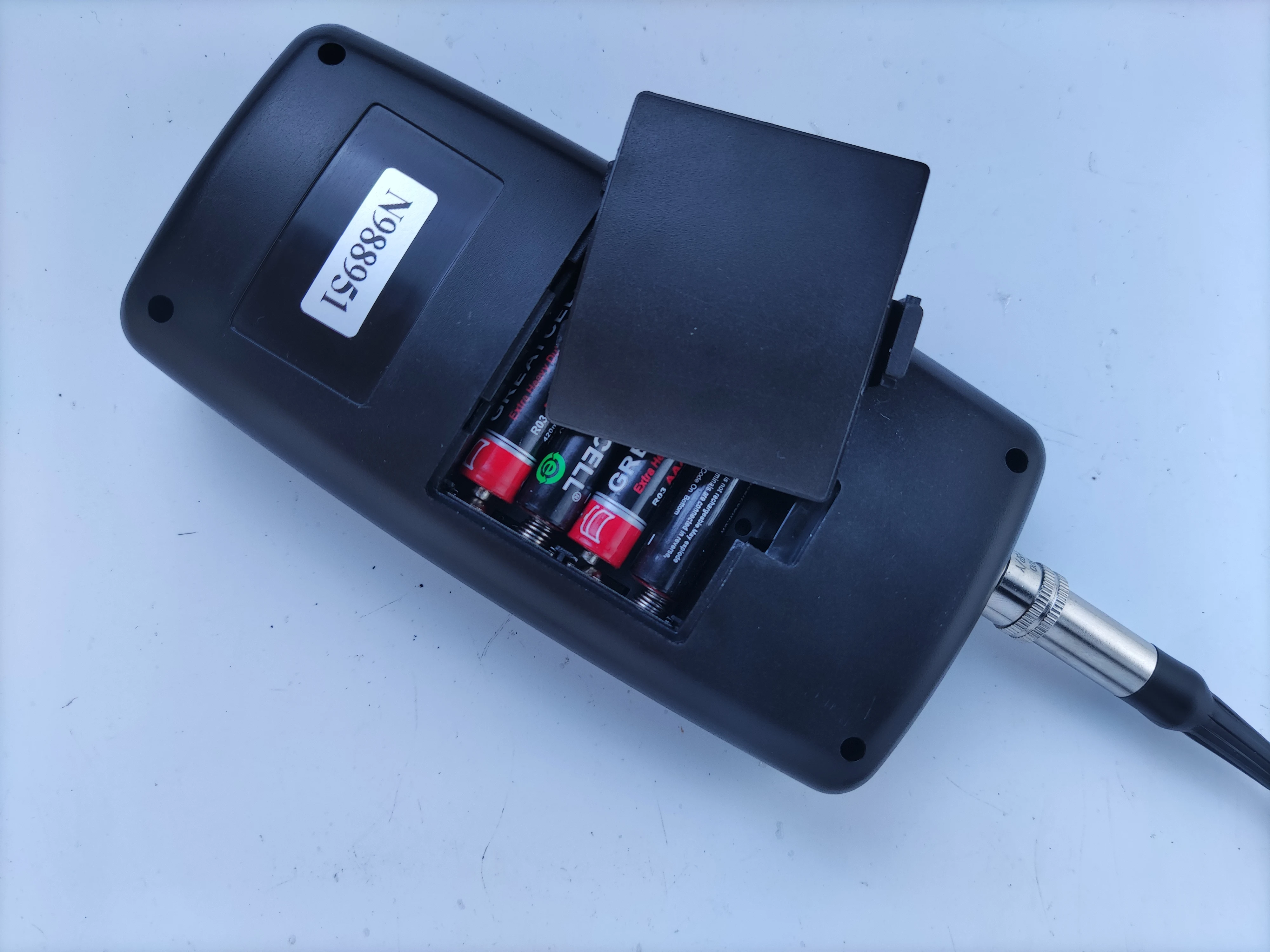

Power Supply	4x1.5V AAA (UM-4) Battery
Size	Main Unit: 178x72x34mm
	Sensor: 124x21x12mm
Weight	180g (Not Including Battery)
Standard Accessories	Main Unit
	Split Sensor
	Carrying Case (B04)
	Operation Manual

For more details, please feel free to contact Lisa. Thank you!

Packaging & Shipping

1 unit, the gross weight is 1.0kg. carton size: 27*23*8cm , the volume weight is 1.0kg.
10pcs, the gross weight is 8.0kg. carton size: 45*28*33cm , the volume weight is 9.0kg.
20pcs, the gross weight is 15.0kg. carton size: 45*28*58cm , the volume weight is 16.0kg.
ship by DHL, FEDEX , UPS, AIR, SEA,etc

Our Services

Quality assurance for one year,and forever maintainence.
