Product Overview

Description

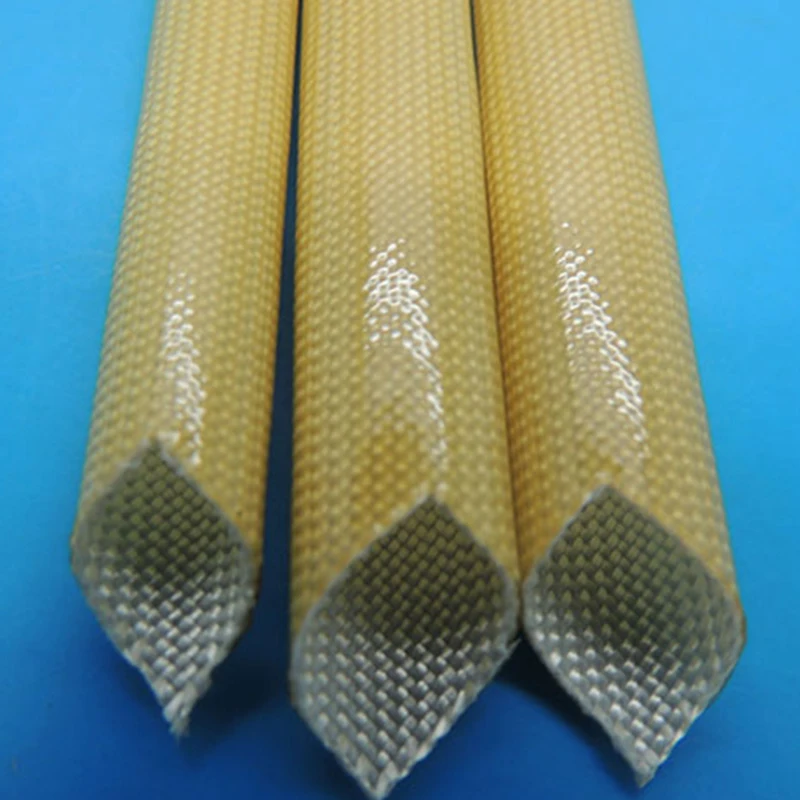

4KV Electric Motor Insulation PU Varnish Fiberglass Braided Glass Fiber Sleeve

Model Number: SB-PUGS



Working temperature: 155C



Structure

4KV Electric Motor Insulation PU Varnish Fiberglass Braided Glass Fiber Sleeve is non-alkali fiberglass braided, then coated with polyurethane resin and treated in high temperature.



Usage

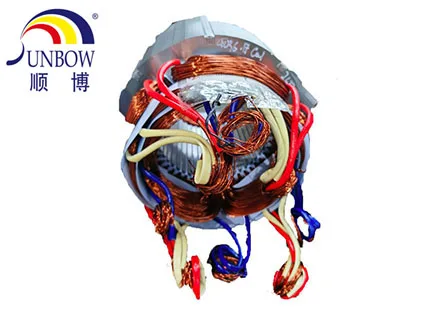

4KV Electric Motor Insulation PU Varnish Fiberglass Braided Glass Fiber Sleeve possesses reliable heat resistance and good electrical performance. 4KV Electric Motor Insulation PU Varnish Fiberglass Braided Glass Fiber Sleeve can be used for wiring insulation and mechanic protection for F grade electical machinery and electric appliances.



SPECIFICATION of 4KV Electric Motor Insulation PU Varnish Fiberglass Braided Glass Fiber Sleeve

Property	Standard
Heat resistance	170ºC*3 hours   No cracking on surface
Chemical resistance	Excellent oil resistance and benzene resistance
Electrical performance	Rated voltage 300V, 600V
Polyurethane fiberglass sleeving is manufactured based on European and American standard. It possesses excellent compatibility and adaptability in the applications of all kinds of electrical equipment and electrical machine. Many other good special performances are still under exploration.























DIMENSION of 4KV Electric Motor Insulation PU Varnish Fiberglass Braided Glass Fiber Sleeve

Inner Diameter (mm)	Tolerance (mm)	Wall thickness (mm)
		1.5KV	2.5KV	4.0KV	7.0KV
0.5 ~ 3.5	+0.3,-0.1	0.38±0.12	0.41±0.12	0.45±0.15	0.52±0.15
4.0 ~ 9.0	+0.3,-0.2	0.42±0.15	0.46±0.15	0.48±0.15	0.55±0.15
10 ~ 16	±0.5	0.50±0.20	0.52±0.20	0.58±0.20	0.65±0.20
18 ~ 35	±1.0	0.65±0.25	0.70±0.25	0.75±0.25	1.10±0.30

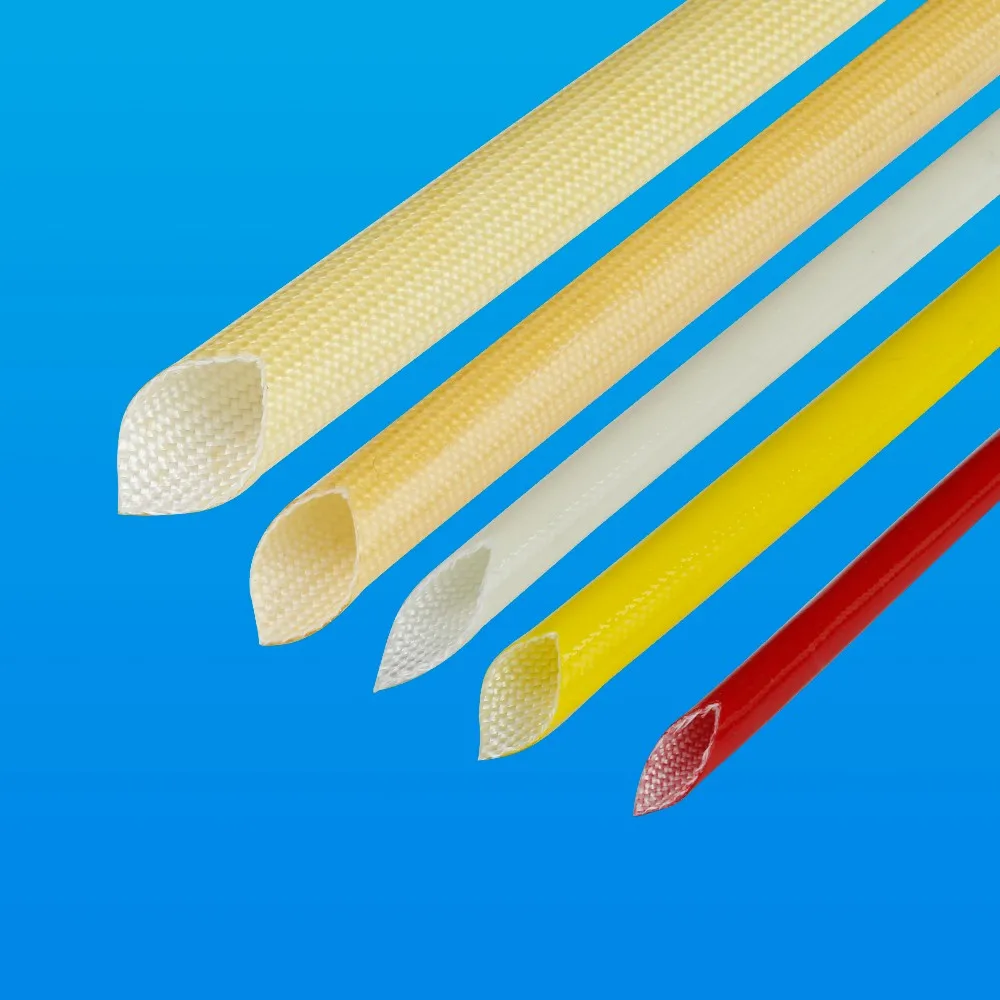

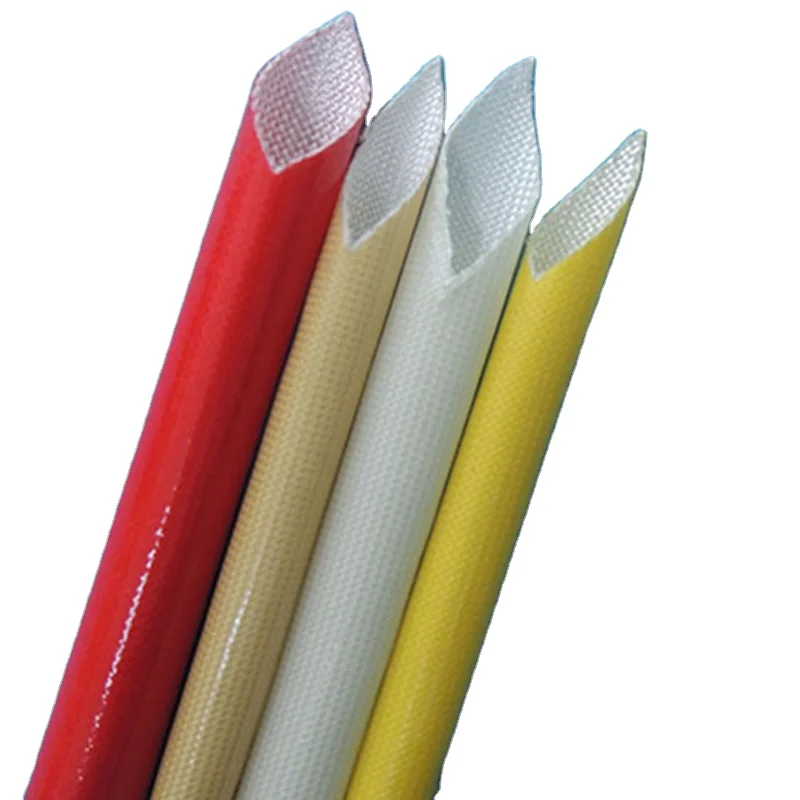

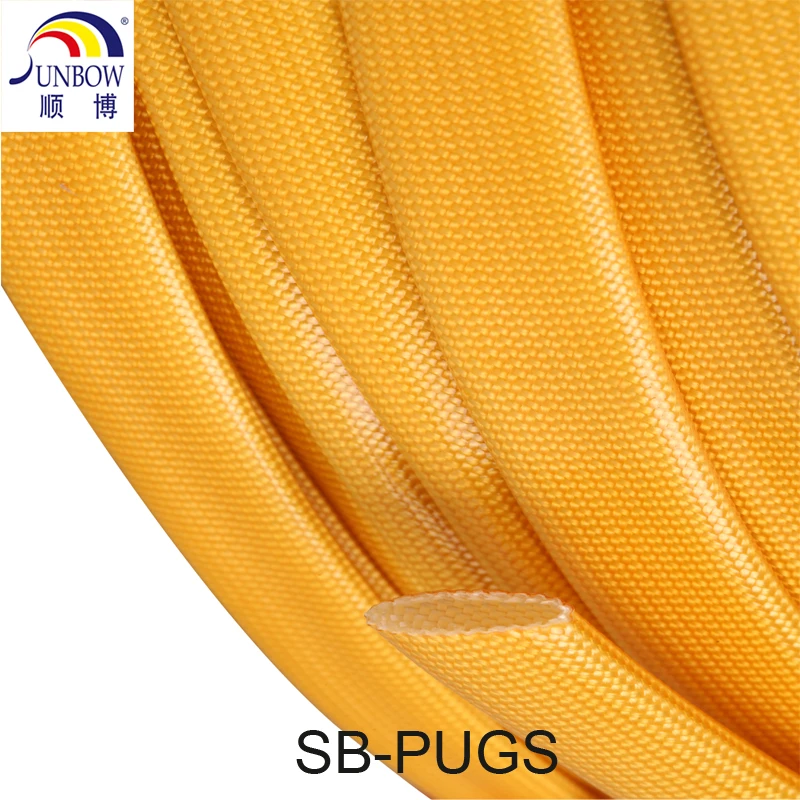

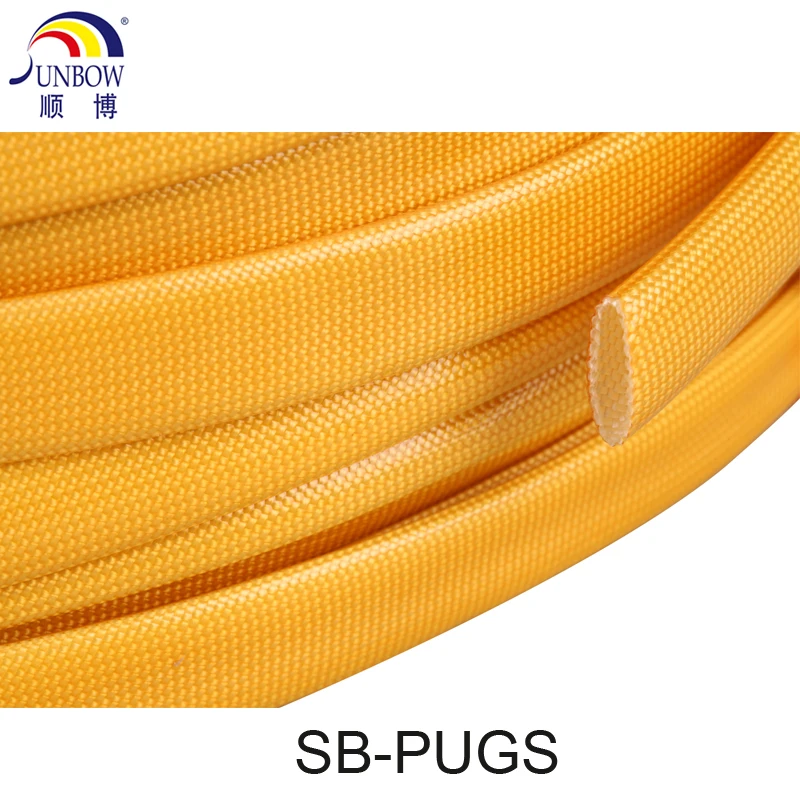

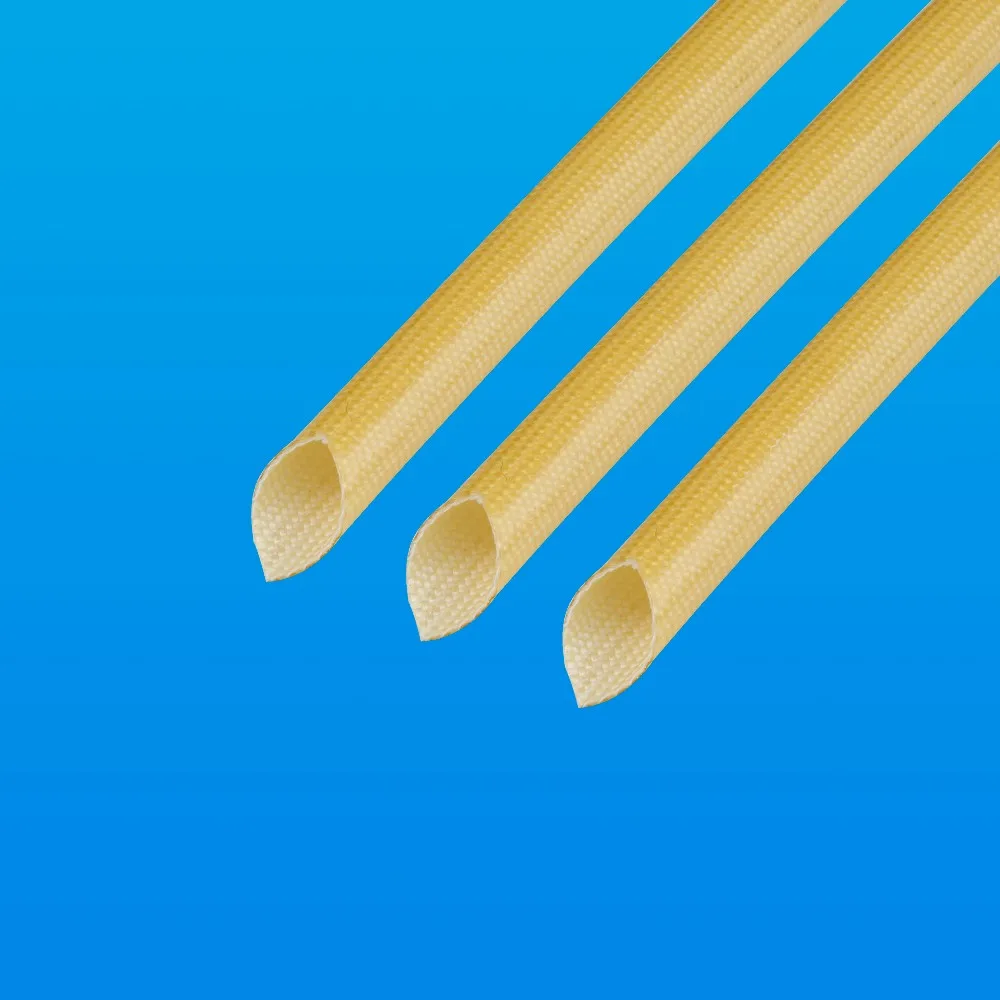

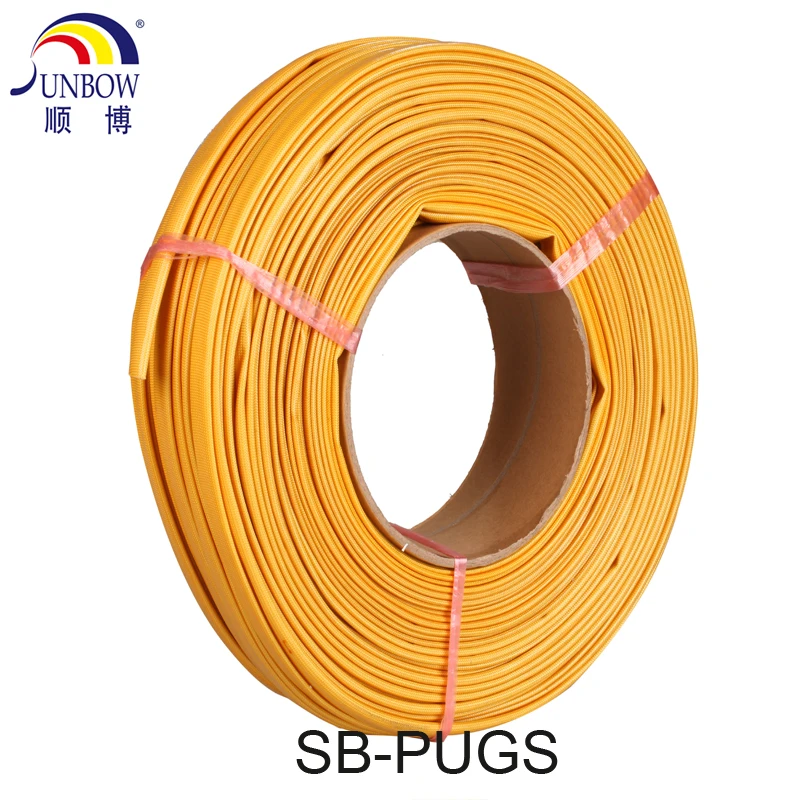

DETAILS IMAGE of 4KV Electric Motor Insulation PU Varnish Fiberglass Braided Glass Fiber Sleeve

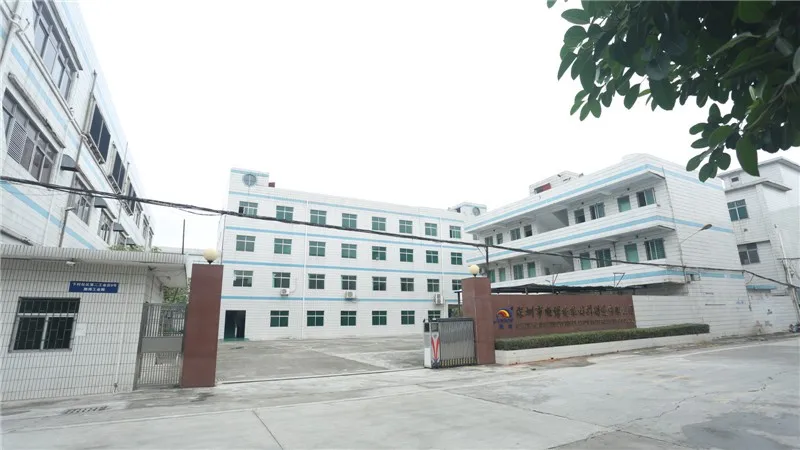

ABOUT SUNBOW

Shenzhen Sunbow insulation Materials MFG Co., Ltd,  established in 2003,mainly engaged in the research& development ,manufacture and sales of various insulation materials.

Our products are silicone fiberglass sleeving, PVC tubing, silicone Tubing, Heat shrinkable Tube, PET expandable sleeve, corrugated pipe.

We are a IATF16949 and ISO 9001 manufactuer of insulation materials. We supply to many big brands as as ABB, WHIRLPOOL, TOSHIBA, SIEMENS, TOYATA, VOLVO and son on.

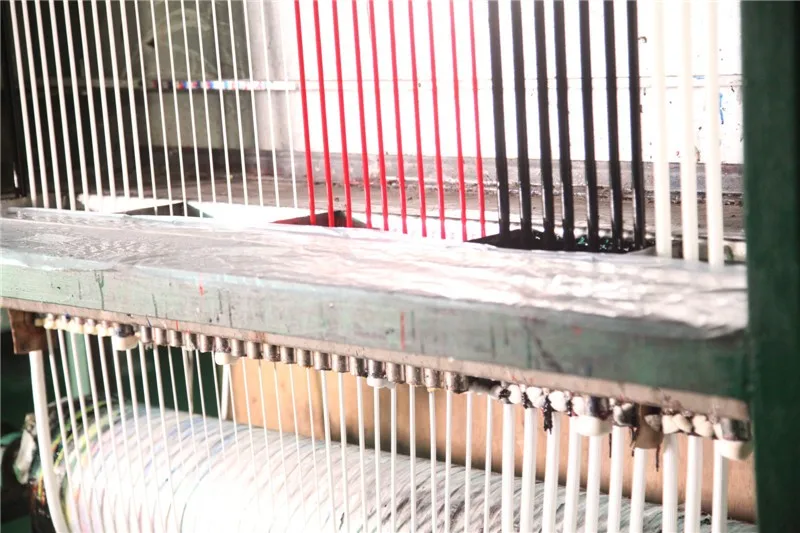

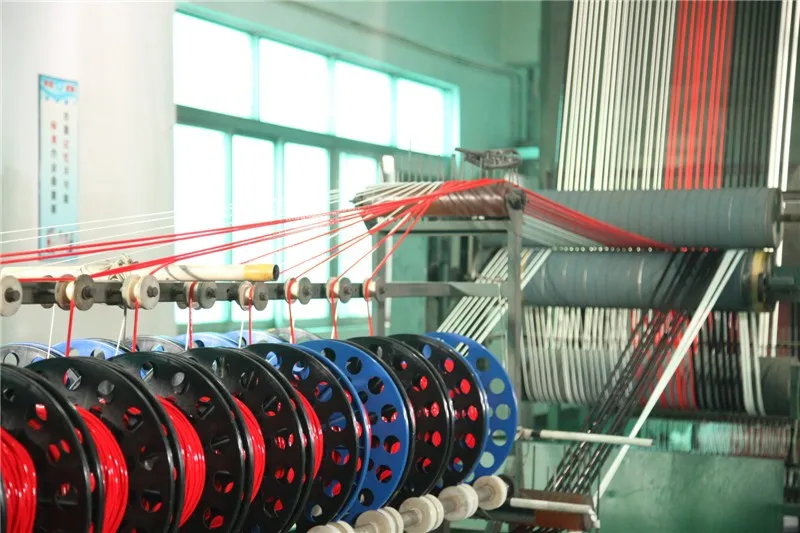

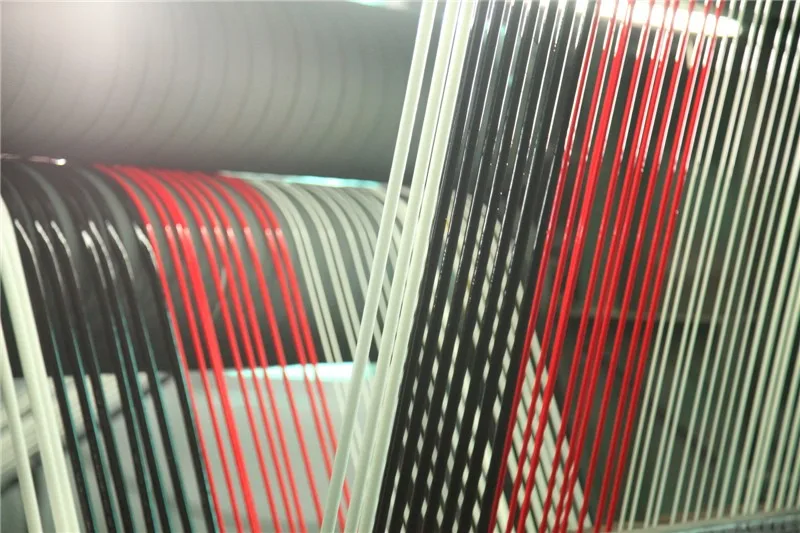

WORKSHOP of 4KV Electric Motor Insulation PU Varnish Fiberglass Braided Glass Fiber Sleeve


CERTIFICATION of 4KV Electric Motor Insulation PU Varnish Fiberglass Braided Glass Fiber Sleeve

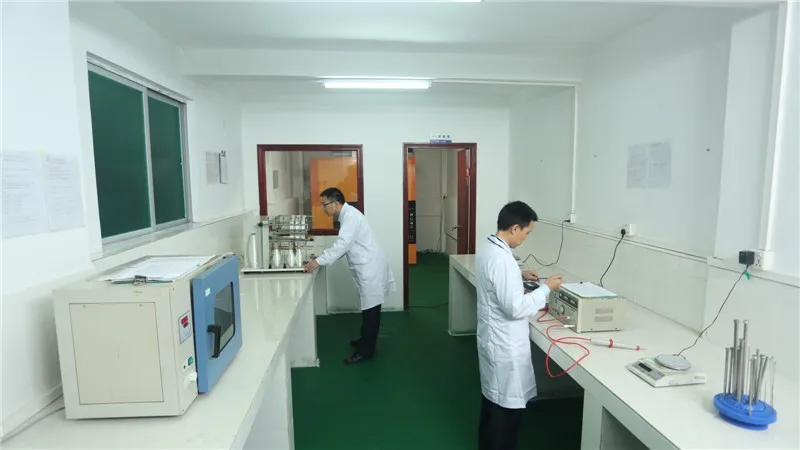

SUNBOW LAB



WHY SUNBOW

1. We are the china Top leading manufacture of fiberglass sleeving.

2. Good after sales service. we can promise one year quality gurantee.

3. Price is competitive.

4.We are IATF16949 and ISO 9001 manufactuer.

5. Our products are complied with UL, ROHS, REACH.

6. We are in Shenzhen, which is a trade and manufacturing city.
