Price:USD 16,100.00 - USD 16,120.00

Quantity:


Product Overview

Description



PRODUCTS DESCRIPTION

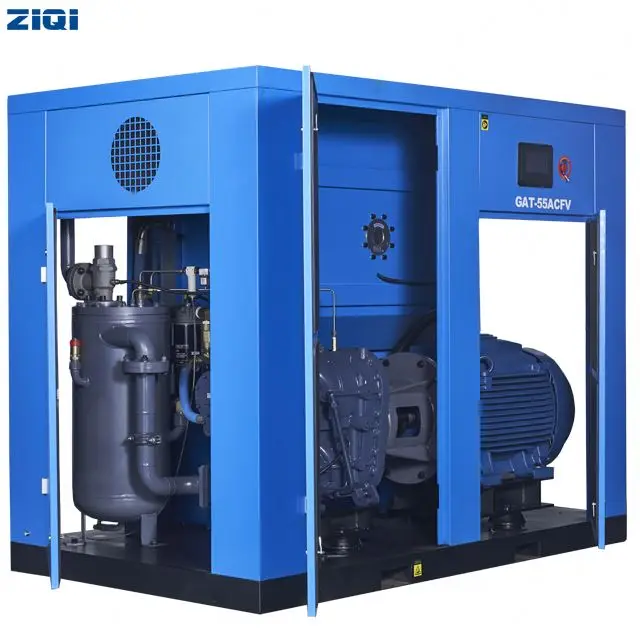

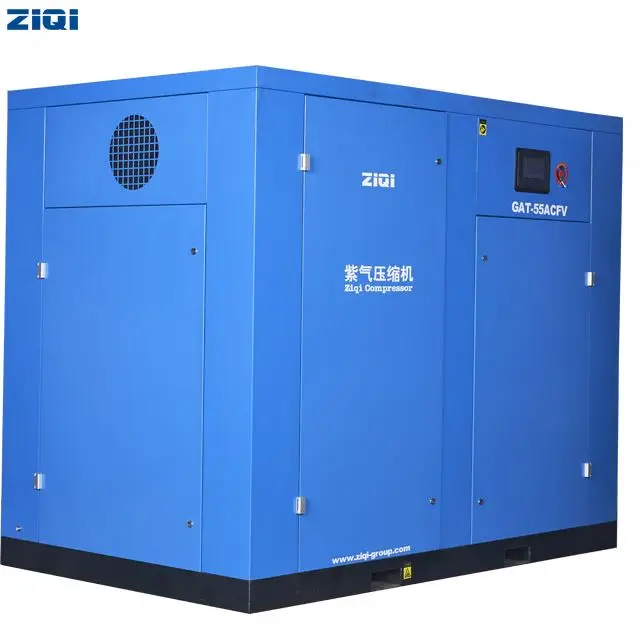

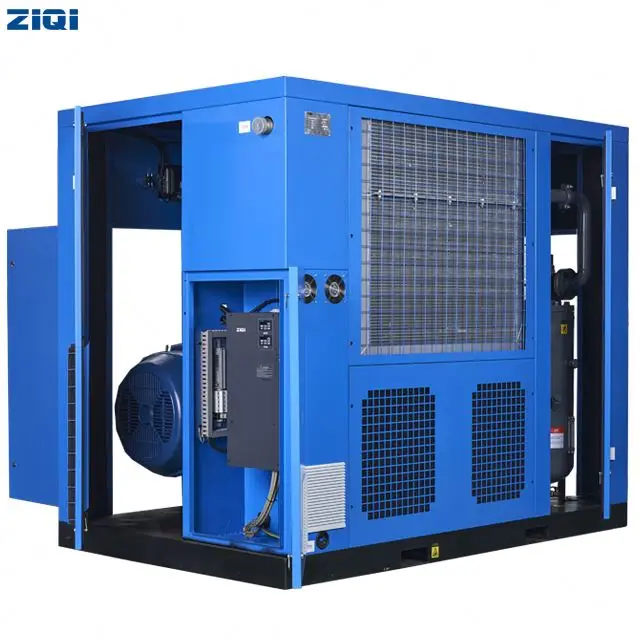

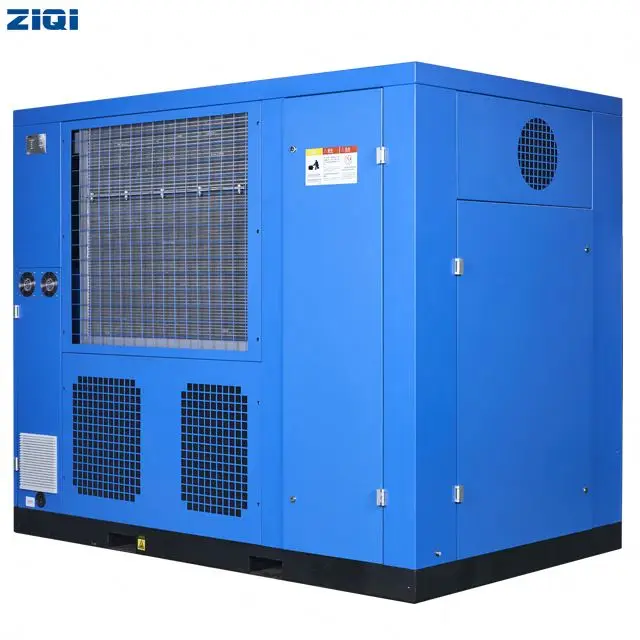

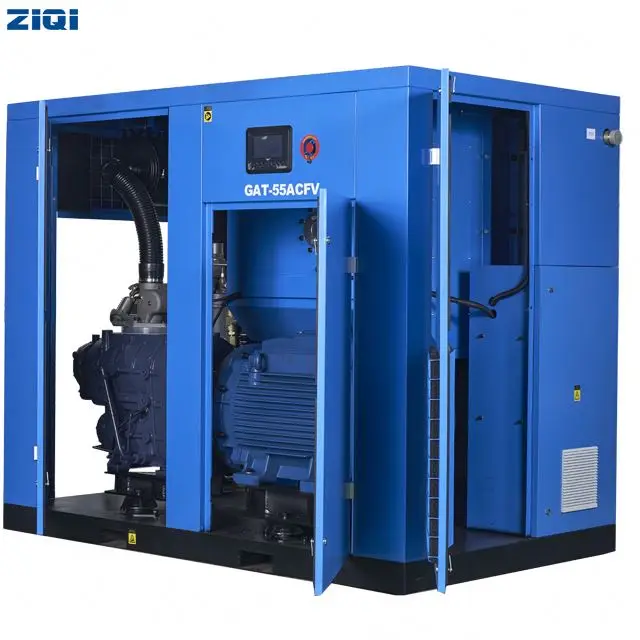

Two Stage Screw Air compressor
The GAT series we made not only provides multiple models with different powers and sizes, but also contains high quality componentsproduced by famous manufacturers, such as excellent performance air end, superior motor, advanced monitoring system, unique aircircuit system and stable transmission system.ZIQI screw compressor use ZIQI two-stage compressed air end, excellent design,accuracy and efficiency have been obtained most user's approval. We promise to provide the best products and services to customers.

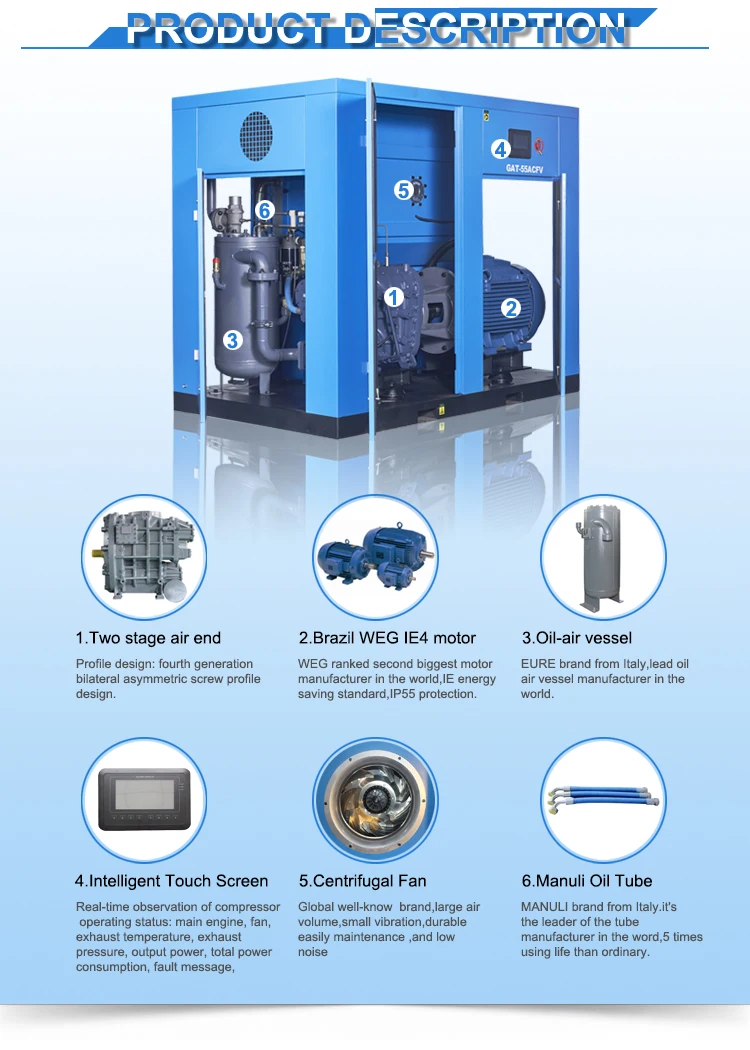

OUR ADVANTAGES




Two-Stage Screw Air End
Double- stage compression means that two airends are connected in series, and the compression ratio is changed to achieve compressed air.
Super High Efficiency Motor
Brazil WEG IE4 motor,three phase induction motor;Class F insulation ,class B temperature rise,,IP55 protection;
Variable Speed Drive
The pressure could be selected by
the strong smart controller of the frequency inverter continually ,to ensure that the actual air displacement
is consistent with the user’s air consumption


PRODUCT SPECIFICATIONS


Model
MAx air pressure
Max air flowing
Driving&cooling method

Dimension

Weight

Noise
mpa
bar
psi
m3/min
cfm



GAT-22A
0.6
6
87
4.2
148






























Direct driven&Air cooling




1450mm*950mm*1250mm




780




64±2
0.7
7
102
3.95
139
0.8
8
116
3.5
124
1
10
145
3.2
113
1.3
13
189
2.6
92


GAT-30A
0.6
6
87
6.2
219


1700mm*1100mm*1450mm


1085


65±2
0.7
7
102
6.03
213
0.8
8
116
5.4
191



GAT-37A
0.6
6
87
7.1
251




1700mm*1100mm*1450mm




1100




65±2

0.7
7
102
6.9
244

0.8
8
116
6.7
237

1
10
145
5.6
198

1.3
13
189
6.2
191




GAT-45A
0.6
6
87
8.3
293




1700mm*1100mm*1450mm




1250




68±2
0.7
7
102
8.01
283


0.8
8
116
7.8
275


1
10
145
6.5
230


1.3
13
189
6.2
219





GAT-55A
0.6
6
87
11.4
403



2150mm*1380mm*1780mm



2000



72±2
0.7
7
102
10.8
381
0.8
8
116
10.0
353
1
10
145
9.3
328




GAT-75A
0.6
6
87
16.0
565




2150mm*1380mm*1780mm




2250




72±2

0.7
7
102
14.2
501

0.8
8
116
14.0
494

1
10
145
13.0
459

1.3
13
189
9.5
335




GAT-90A
0.6
6
87
19
671




2800mm*1750mm*1900mm




2850




75±2
0.7
7
102
18
636

0.8
8
116
16.5
583

1
10
145
16
565

1.3
13
189
13
459





GAT-110A
0.6
6
87
24
847



2800mm*1750mm*1900mm




2950




76±2
0.7
7
102
22
777




























Direct driven&Air cooling
0.8
8
116
18.5
653
1
10
145
18
636
1.3
13
189
16
566




GAT-132A
0.6
6
87
26.5
936




2800mm*1750mm*1900mm




3200




77±2

0.7
7
102
26.0
918


0.8
8
116
23.0
812


1
10
145
22.0
777


1.3
13
189
18.0
636





GAT-160A
0.6
6
87
32.5
1148




3300mm*1800mm*2200mm




3850




77±2

0.7
7
102
32.0
1130


0.8
8
116
28.0
989


1
10
145
26.0
918


1.3
13
189
22.5
795





GAT-185A
0.6
6
87
41.0
1448




3300mm*1800mm*2200mm




4050




77±2

0.7
7
102
37.9
1339

0.8
8
116
32.5
1148

1
10
145
31.0
1095

1.3
13
189
26.0
918




GAT-200A
0.6
6
87
43.8
1547




3850mm*2250mm*2060mm




4500




80±2
0.7
7
102
40.5
1430
0.8
8
116
37.0
1306
1
10
145
32.5
1148
1.3
13
189
30.5
1077




GAT-220A
0.6
6
87
49.5
1748




3850mm*2250mm*2060mm




5300




80±2
0.7
7
102
49.0
1730
0.8
8
116
41.0
1448
1
10
145
36.5
1289
1.3
13
189
32.0
1130




GAT-250A
0.6
6
87
56.5
1996




3850mm*2250mm*2060mm




5600




80±2
0.7
7
102
54.0
1907
0.8
8
116
49.0
1731
1
10
145
40.5
1430
1.3
13
189
36.0
1272


*Other requirement,please contact the salesman


PACKING & SHIPPING




COMPANY PROFILE






CERTIFICATIONS






Are you manufacturer?
ZIQI: Yes, we are professional air compressor manufacturer over 10 years and our factory is located in Shanghai.
How long is your air compressor warranty?
ZIQI: Air end for 5 years,other for 1 year.
Do you provide After- sales service parts?
ZIQI: Of course, We could provide easy- consumable spares.
How long could your air compressor be used?
ZIQI: Generally, more than 20 years.
How about your price?
ZIQI: Based on high quality, Our price is very competitive in this market all over the world.
How about your customer service?
ZIQI: For email, we could reply our customers' emails within 2 hours.
Do you support OEM?
ZIQI: YES, and we also provide multiple models to select.
How to get quicker quotation?
When you send us inquiry, please confirm below information at the same time:
* What is the air displacement (m3/min,cfm/min)?
* What is the air pressure (mpa,bar,psi)?
* What is the voltage in your factory (v/p/Hz)?
* It is ok if you need air tank, air dryer and filters.

This information is helpful for us to check suitable equipment solution and quotation quickly.
