For sale stainless steel chili sauce grinding machine JTM-140F tahini paste processing machine cocoa bean sauce grinder
Working Principle:
Colloid mill principle basic function is shearing, grinding and high speed stirring. Grinding process happened in the relative movement between the two teeth with one revolving in high speed, which makes the material between the teeth receive strong shearing and abrasion in addition to high frequency vibration and high speed swirl, While the other stays still to make materials that passing between tooth-from slopes receive great shear force and friction, the above forces effectively evenly disperse, emulsify, smash the material, JM series is a new equipment that wet processes superfine grain, which is used emulsify, mix and blend and smash various semi-liquids, sauce, paste and latex emulsion.
Suitable Material
Application:
Widely used in food line: such as chili sauce, sesame paste, fruit tea, ice cream, moon cake stuffing, milk oil, fruit sauce, fruit juice, bean, bean sauce, sweetened bean paste, peanut milk, bean milk, protein milk, milk products, seasoning sauce, beverage etc.
Widely used in chemical line: such as pigment, oil paint, dye, lubricating oil, synthetic ester, emulsifying pitch, glass steel, cementing compound etc.
Widely used in cosmetics line: such as teeth paste, detergent liquid, air washing shampoo, shoes oil, shower gel, soap, cosmetics lotion etc.
Widely used in medicine line: such as syrup, Chinese patent medicine, paste medicine, oleum morrhuae, biological products, royal jelly and all kinds of oral liquid etc.
Widely used in other lines: such as plastic industry, spinning industry, paper-making industry.

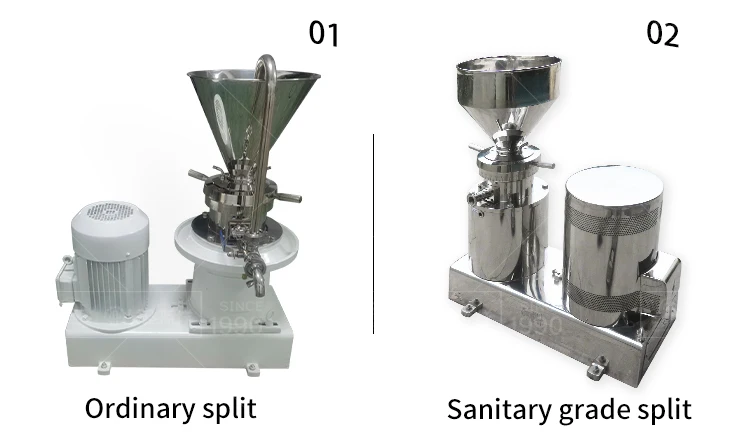

Classification & Parameter
Model | JMF-80 | JMF-100 | JMF-120 | JMF-140 | JMF-200 |
Fineness um | 3-40 | 2-40 | 2-40 | 2-40 | 2-40 |
Adjust range mm | 1-0.01 | 1-0.01 | 1-0.01 | 1-0.01 | 1-0.01 |
Output T/H | 0.3-1 | 0.52-2 | 0.7-3 | 1-4 | 2-7 |
Motor power KW | 4.0 | 5.5 | 7.5 | 11 | 15 |
Voltage V | 380 | 380 | 380 | 380 | 380 |
Speed r/min | 1800-3200 | ||||
Scafe diameter mm | Φ80 | Φ100 | Φ120 | Φ140 | Φ200 |
Outlet diameter mm | Φ25 | Φ32 | Φ40 | Φ40 | Φ65 |
Inlet diameter mm | Φ50 | Φ50 | Φ65 | Φ80 | Φ120 |
Cooling water diameter mm | Φ1/4“ | Φ1/4“ | Φ1/4“ | Φ1/4" | Φ1/4" |
Outsize mm (L*W*H) | 650*380*760 | 750*440*750 | 750*440*750 | 910*460*840 | 980*520*950 |
Net weight kg | 120/140 | 182/187 | 190/205 | 257/275 | 355 |
Gross weight kg | 130/150 | 192/200 | 200/223 | 270/288 | 380 |

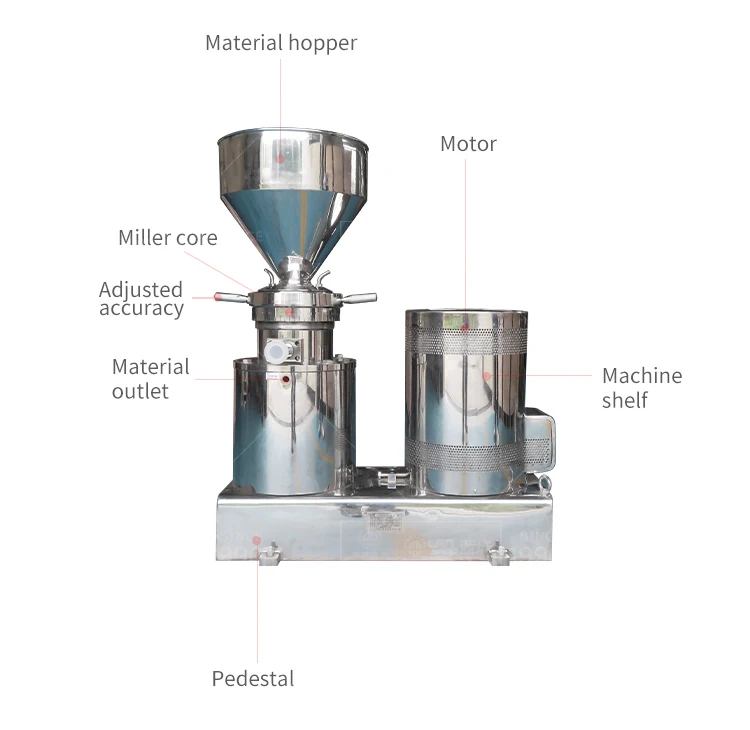

Details Show
Moving miller tray makes sure the material effectively mill and grind
Cutter feeder suitable for the liquidity material with little granule and solid
Miller tray outlet suitable for liquidity and lotion material with little granule
Material hopper made of SUS304, meet the food processing and sanitary

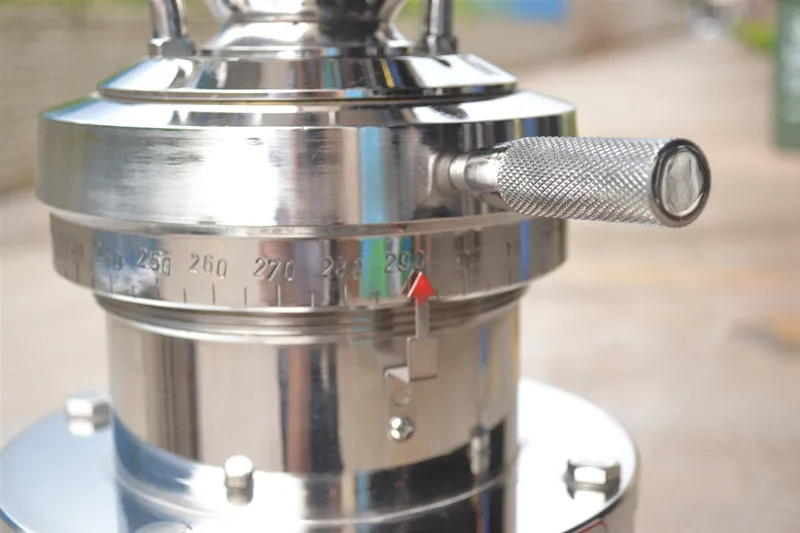

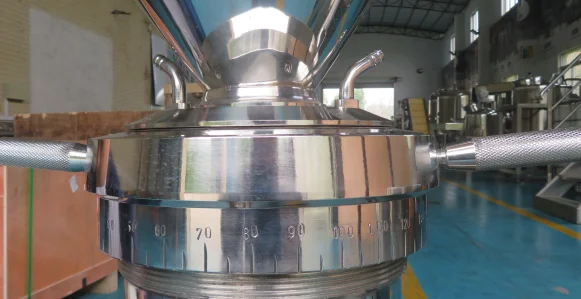

The grinding mesh can be adjusted by hand bar which operation is easy
Client miller tray makes sure the good shear and cutting via the gear and gap

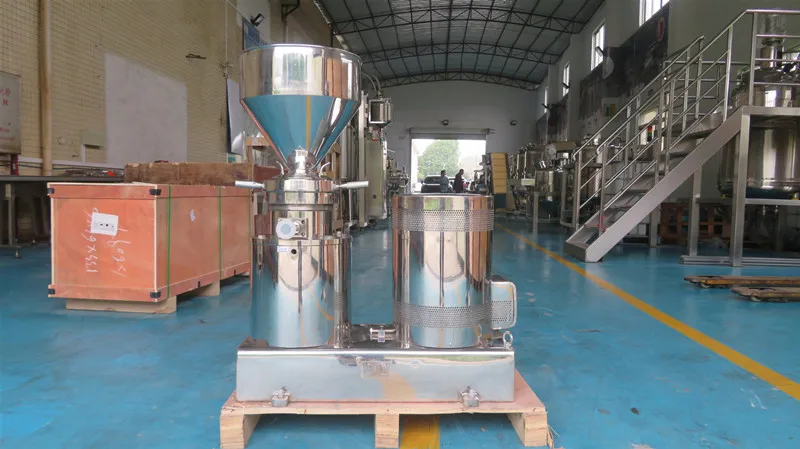

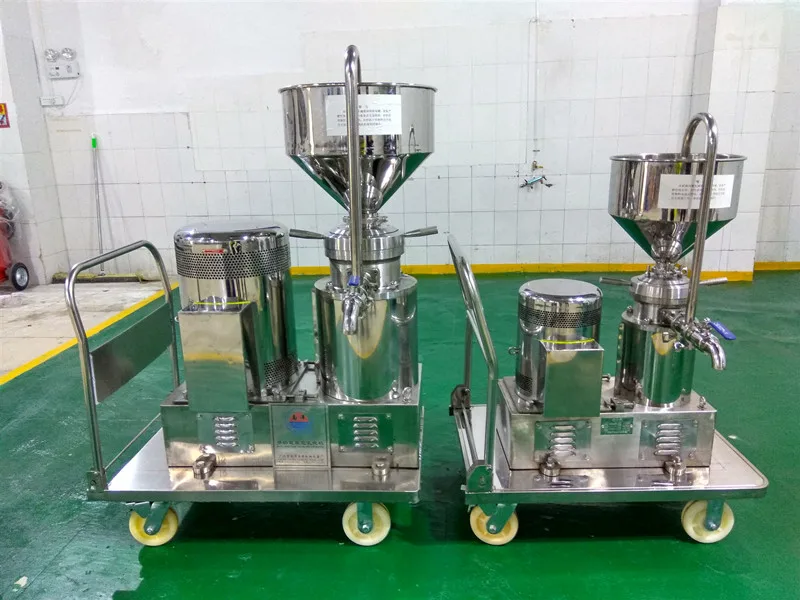

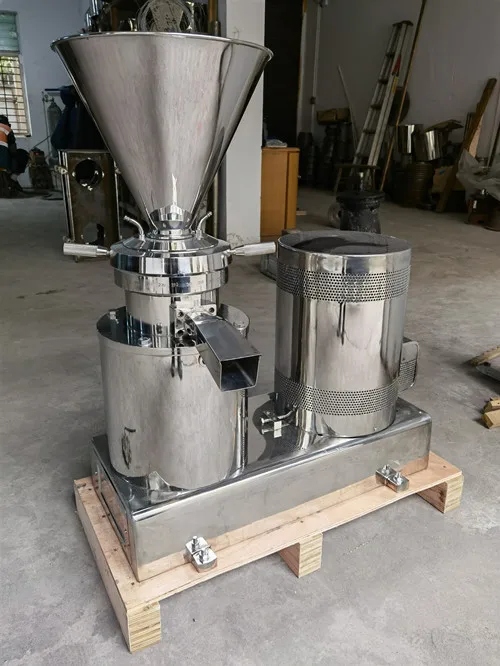

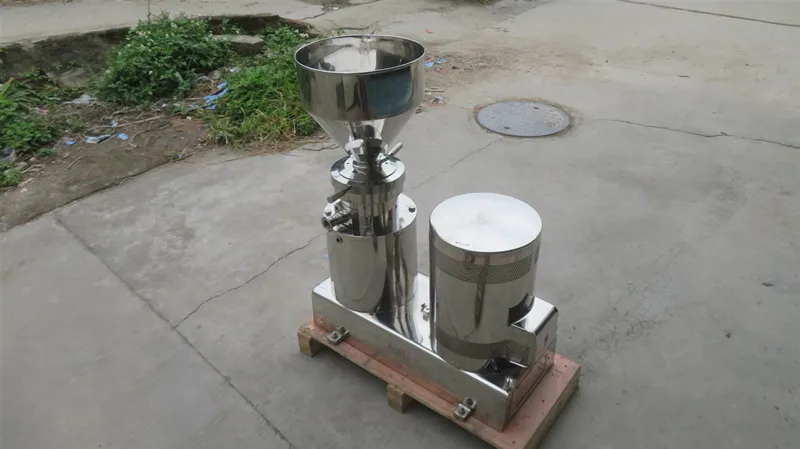

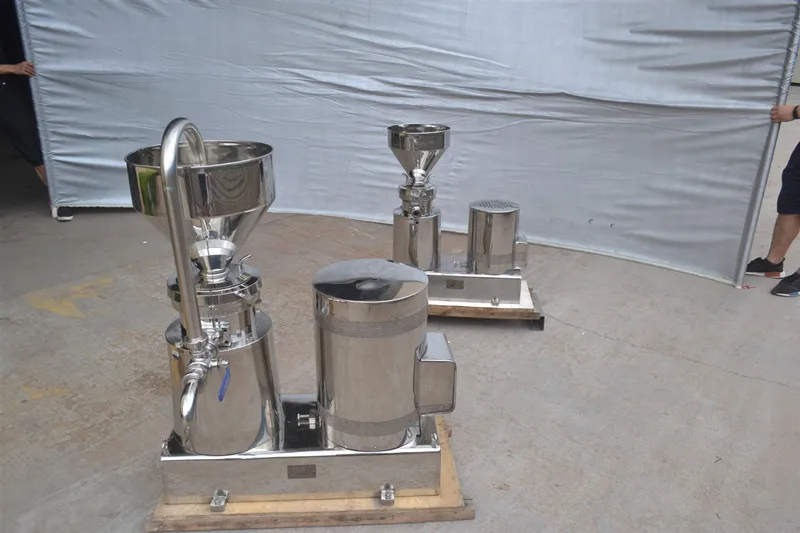

Machine Show
