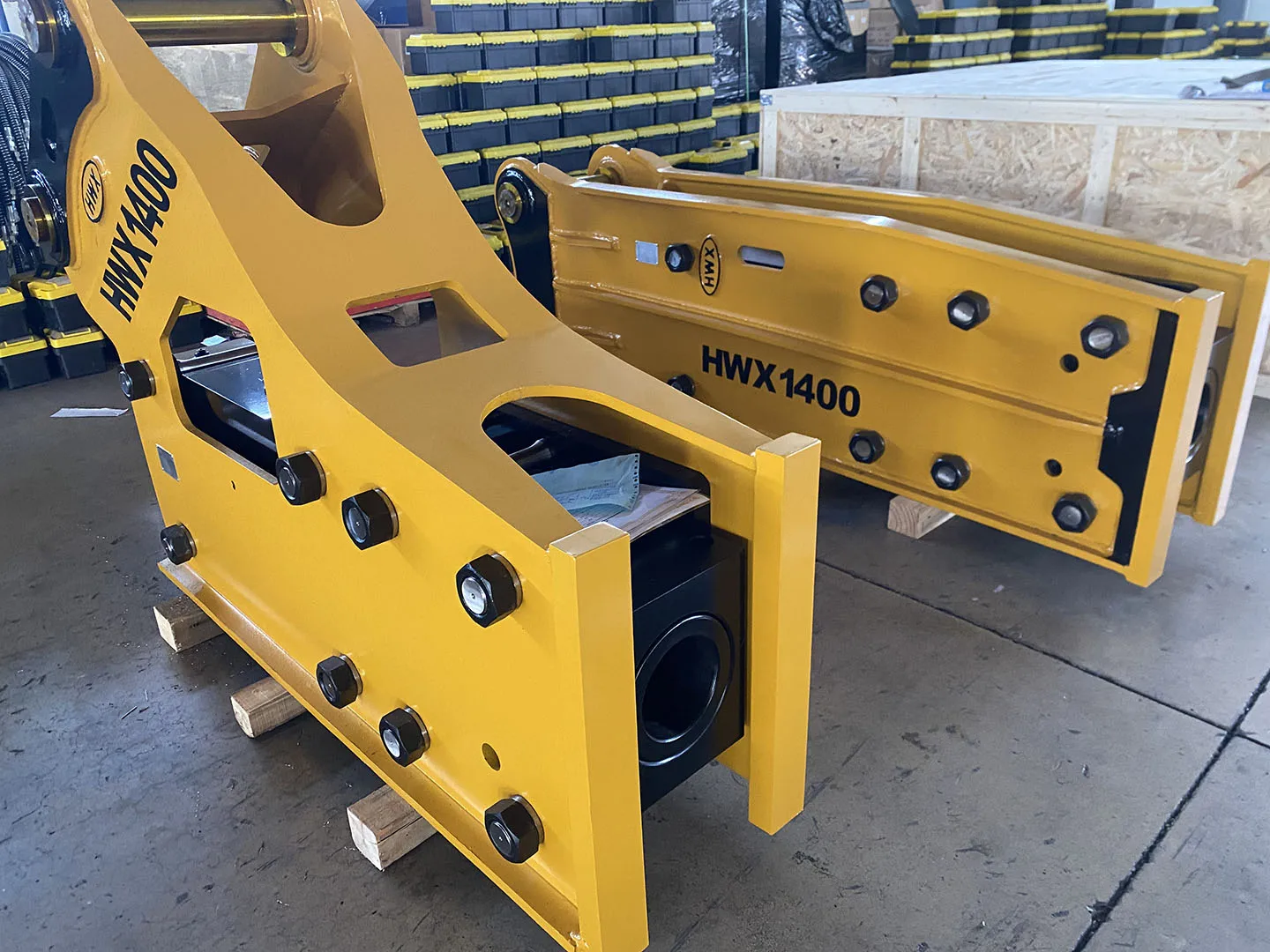

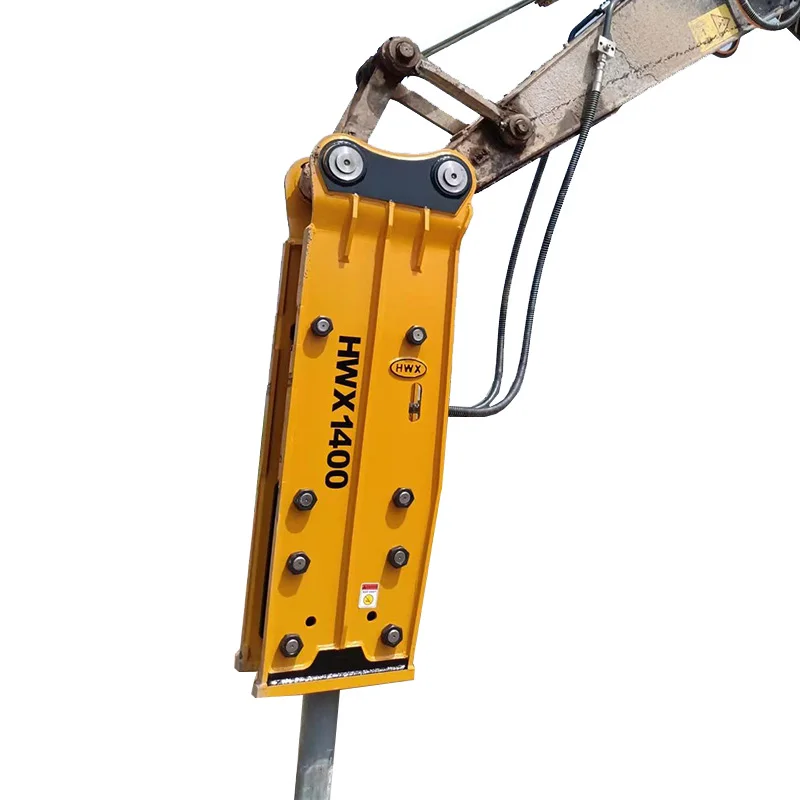

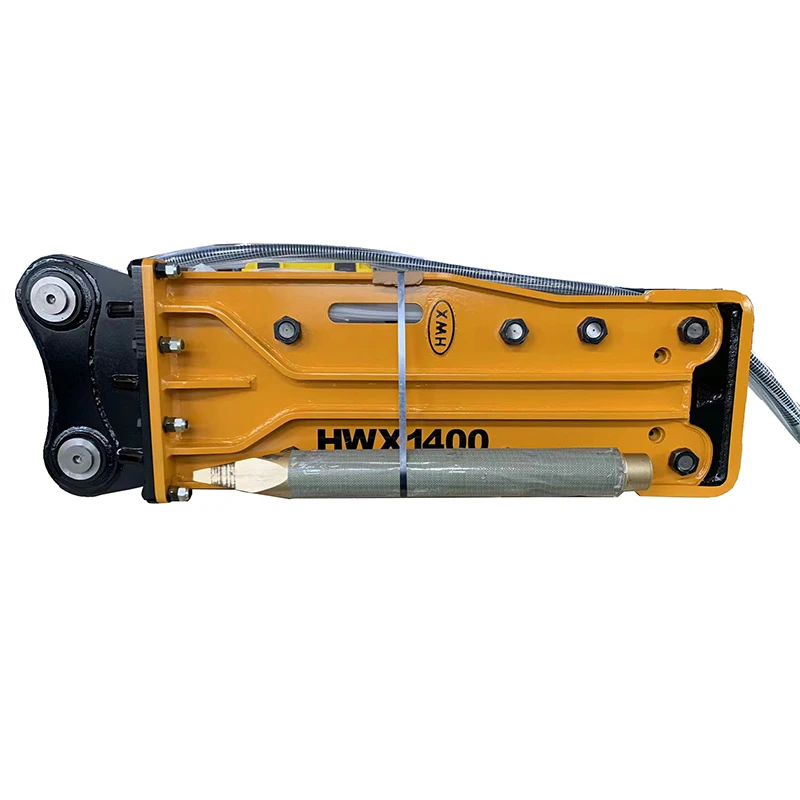

Side top type hydraulic breaker pc200 hydraulic hammer rock breaker for 20 ton excavator
- Category: Engineering & Construction Machinery >>>
- Supplier: Jinan,Changhao,Machinery,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
Details Images
Products Description
Hydraulic Breaker Hammer-Warranty 12 months
Hydraulic Breaker Hammer for 1~50 Ton Excavator
Q: Are you sure your hydraulic breakers will fit my excavator?
A: Yes, we sure. We have more than 20 years experience in manufacturing hydraulic breakers. Our hydraulic breakers are suitable for excavators of VOLVO, Hitachi，Komatsu，Doosan, Susitomo,SANY, Cat,KOBELCO,XCMG. Show us your excavator model, we'll confirm the solution.
Q: How about the delivery time?
A: Based on order quantity, normally it takes 7 days for production. Only 3 days if we have stock on your request size.
Q: How about your products warranty?
A:12 months warranty for hydraulic breaker, Free replacement will provide once the failure confirmed caused by our product quality. Beyond the warranty period,Our sales team and Technical Support will response for your question within 24 hours (Holidays Excluded).
Q: Can you produce according to customers' design?
A:Sure, OEM/ODM service available. We are professional in manufacturing and assembling hydraulic breakers.
A: Yes, we sure. We have more than 20 years experience in manufacturing hydraulic breakers. Our hydraulic breakers are suitable for excavators of VOLVO, Hitachi，Komatsu，Doosan, Susitomo,SANY, Cat,KOBELCO,XCMG. Show us your excavator model, we'll confirm the solution.
Q: How about the delivery time?
A: Based on order quantity, normally it takes 7 days for production. Only 3 days if we have stock on your request size.
Q: How about your products warranty?
A:12 months warranty for hydraulic breaker, Free replacement will provide once the failure confirmed caused by our product quality. Beyond the warranty period,Our sales team and Technical Support will response for your question within 24 hours (Holidays Excluded).
Q: Can you produce according to customers' design?
A:Sure, OEM/ODM service available. We are professional in manufacturing and assembling hydraulic breakers.
Model | UNIT | SB20 | SB30 | SB40 | SB43 | SB45 | SB50 |
Weight | Kg | 130 | 170 | 300 | 400 | 500 | 800 |
Length | mm | 900 | 1000 | 1100 | 1300 | 1450 | 1500 |
Working Pressure | kg/cm² | 110-140 | 110-140 | 110-160 | 110-160 | 120-170 | 150-170 |
Oil Flow | L/min | 25-40 | 25-45 | 30-45 | 35-65 | 45-85 | 80-120 |
Impact Rate | bpm | 550-1000 | 500-900 | 500-800 | 500-700 | 400-700 | 400-700 |
Oil hose dia. | inch | 1/2 | 1/2 | 1/2 | 1/2 | 3/4 | 3/4 |
Chisel Dia. | mm | 45 | 53 | 68 | 75 | 85 | 100 |
Excavator | ton | 1.5-2.5 | 2.5-3.5 | 3.0-7.0 | 6.0-8.0 | 7.0-14 | 11-16 |
Model | UNIT | SB70 | SB81 | SB100 | SB121 | SB131 | SB151 |
Weight | Kg | 1700 | 1800 | 2400 | 2600 | 3100 | 4100 |
Length | mm | 1600 | 1700 | 2800 | 3300 | 3500 | 3800 |
Working Pressure | kg/cm² | 180-200 | 180-200 | 180-200 | 180-200 | 200-220 | 200-220 |
Oil Flow | L/min | 120-160 | 130-170 | 150-190 | 170-220 | 120-160 | 120-160 |
Impact Rate | bpm | 400-700 | 400-600 | 350-500 | 250-400 | 400-700 | 400-700 |
Oil hose dia. | inch | 1 | 1 | 1 | 1 | 1 1/4 | 1 1/4 |
Chisel Dia. | mm | 135 | 140 | 150 | 155 | 165 | 175 |
Excavator | ton | 19-26 | 19-26 | 27-38 | 28-40 | 30-45 | 30-45 |
Why Choose Us
Cylinder Material
Choose the best Material 20 CrMo 40 CrMo 42Crmo, The material of the middle cylinder is made of 20crmo, and is processed by a high-precision CNC center; after the processing is completed, it undergoes three hot water treatments and three cold treatments; the matching tolerance of the piston and the middle cylinder is within 5-7 wires, and each middle cylinder Both the piston and the piston are cold treated with liquid nitrogen to prevent the cylinder from expanding due to excessive oil temperature and cannot be used normally.
Oil Seal Kits
The oil seal adopts Japanese NOK oil seal, which is resistant to high temperature and belongs to the best quality oil seal. To
ensure the normal operation period and prolong the service life of the hydraulic breaker, it is necessary to ensure the quality of
the oil seal of the breaker.
ensure the normal operation period and prolong the service life of the hydraulic breaker, it is necessary to ensure the quality of
the oil seal of the breaker.

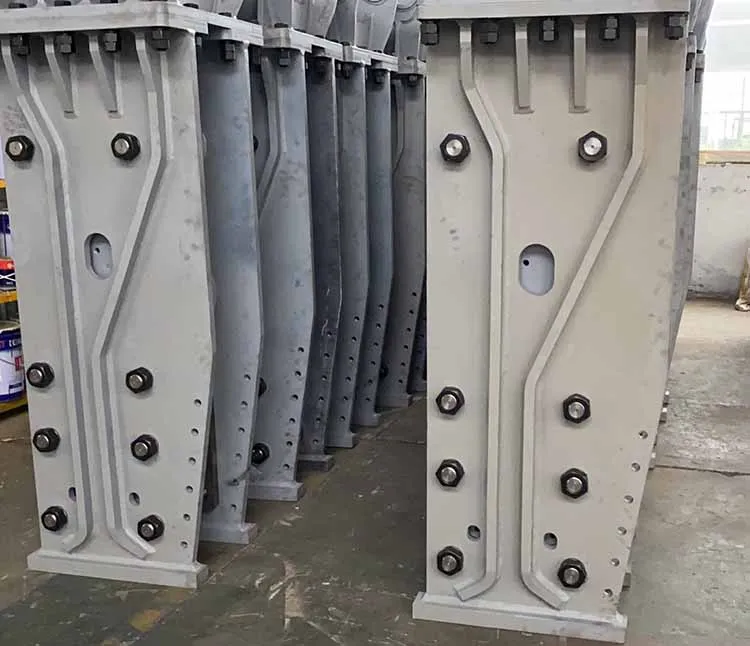

High quality hammer shell and splint
The material used for the hammer shell and splint is wear-resistant, manganese steel HARDOX material, which is welded by robots to ensure that it will not crack within one year.We use high-precision product matching, and the matching tolerance is within 1-5 wire, which fully guarantees the hammer's striking strength.The material of the whole body bolt and splint bolt is 42crmo, and each one is heat-treated to prevent each bolt from being elongated and deformed.
Application

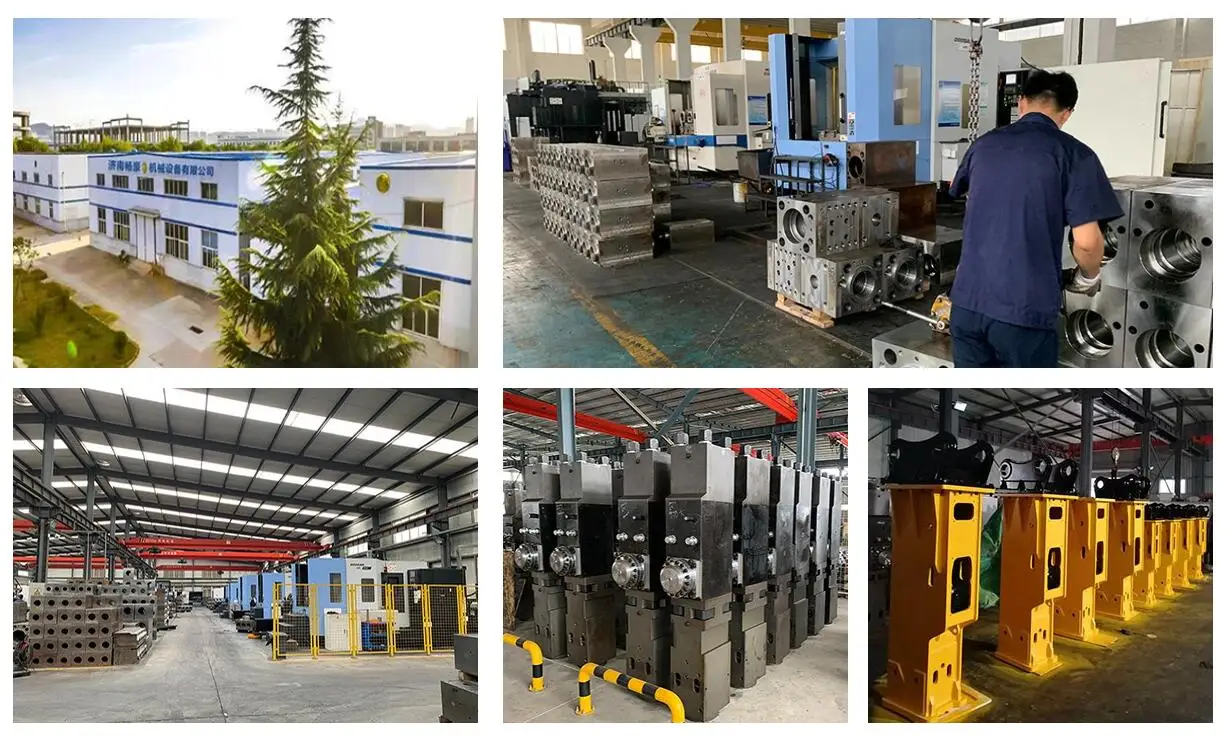

Company Profile
Jinan Changhao Machinery Equipment Co., Ltd. located in Workshop 24, East End of Gangyuan Second Road, No. 33688, Jingshi East Road, Jinan Area of China(Shandong ) Pilot Free Trade Zone, Jinan, Shang dong, China. The workshops occupy an area of 3,000 square meters. The bonded area is supported by national preferential policies and resources are inclined. There is superior terrain, beautiful environment and convenient transportation.
Our company specialized in manufacturing all kinds of hydraulic breaker hammer，breaker hammer pipeline and their accessories as well as excavator attachments, breaker parts has hydraulic breaker piston, Front & Back head, cylinder, Thrust & Outer bushings, Hammer drill rod and flat pin, Valve and valve, code Seal housing and so on. All the accessories of our pipeline, including clamps, ball valve, foot valve, wire plug, wire alignment, relief valve, lock valve, bracket, connector, hammer tube, arm iron pipe assembly, three-way iron pipe, are independently developed and manufactured by our factory to ensure product quality, safety and reliability.
We have perfect production equipments and test devices. Our company has various international certifications and adopts advanced technology to ensure product quality. We strictly control the material of our products, adopting unique heat treatment technology, special alloy materials, and the quality has reached international advanced level.
Our company specialized in manufacturing all kinds of hydraulic breaker hammer，breaker hammer pipeline and their accessories as well as excavator attachments, breaker parts has hydraulic breaker piston, Front & Back head, cylinder, Thrust & Outer bushings, Hammer drill rod and flat pin, Valve and valve, code Seal housing and so on. All the accessories of our pipeline, including clamps, ball valve, foot valve, wire plug, wire alignment, relief valve, lock valve, bracket, connector, hammer tube, arm iron pipe assembly, three-way iron pipe, are independently developed and manufactured by our factory to ensure product quality, safety and reliability.
We have perfect production equipments and test devices. Our company has various international certifications and adopts advanced technology to ensure product quality. We strictly control the material of our products, adopting unique heat treatment technology, special alloy materials, and the quality has reached international advanced level.
Certifications
Product packaging

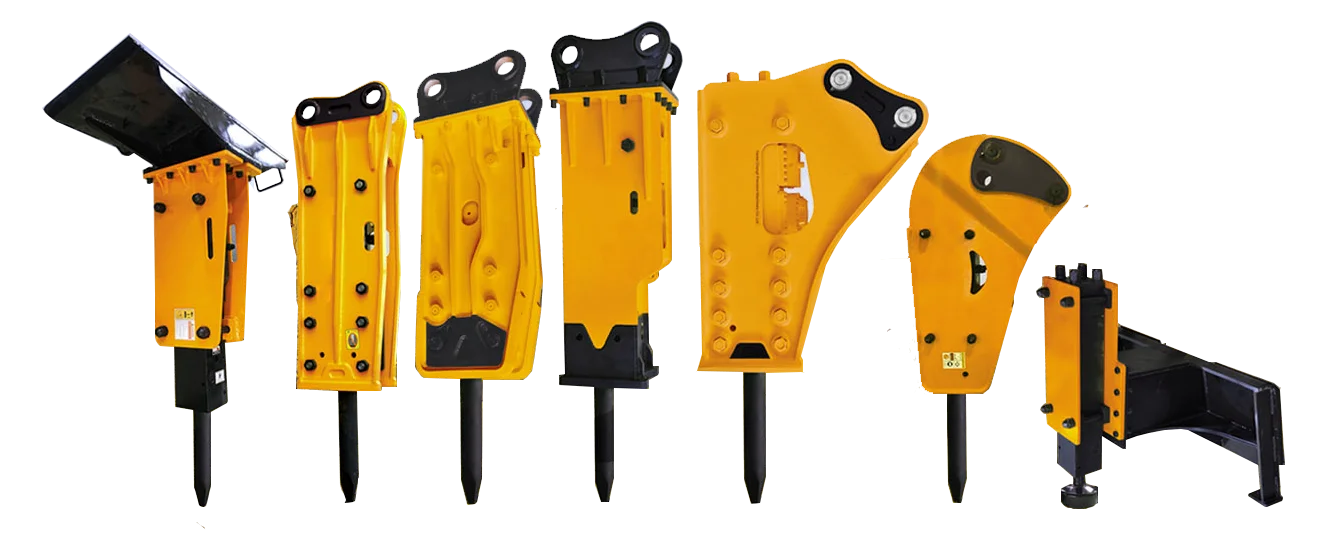

SIMILAR PRODUCTS
Besides hydraulic breaker hammer, we also provide hydraulic breaker parts.
