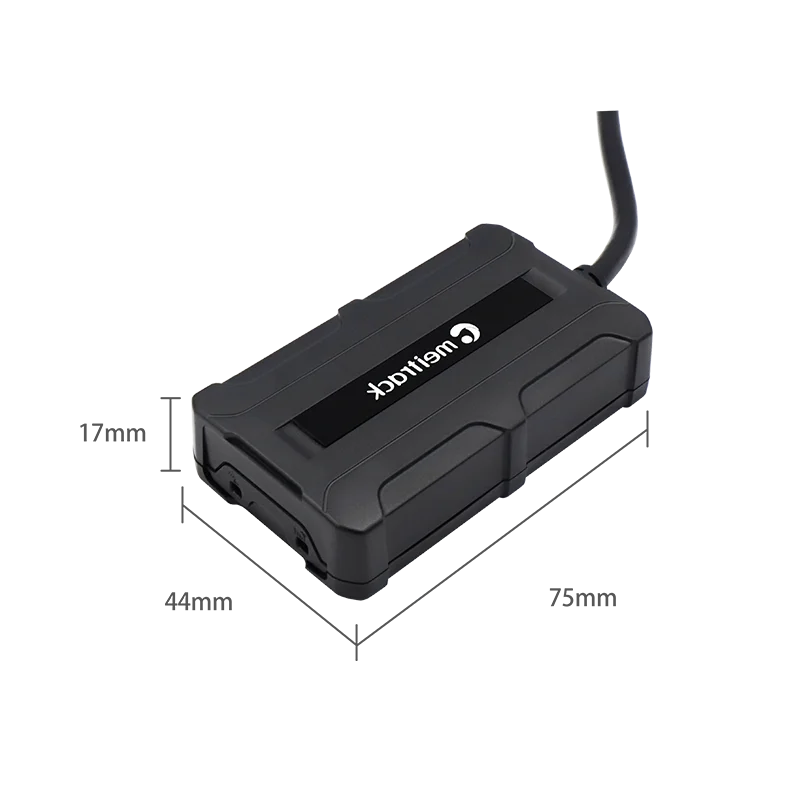

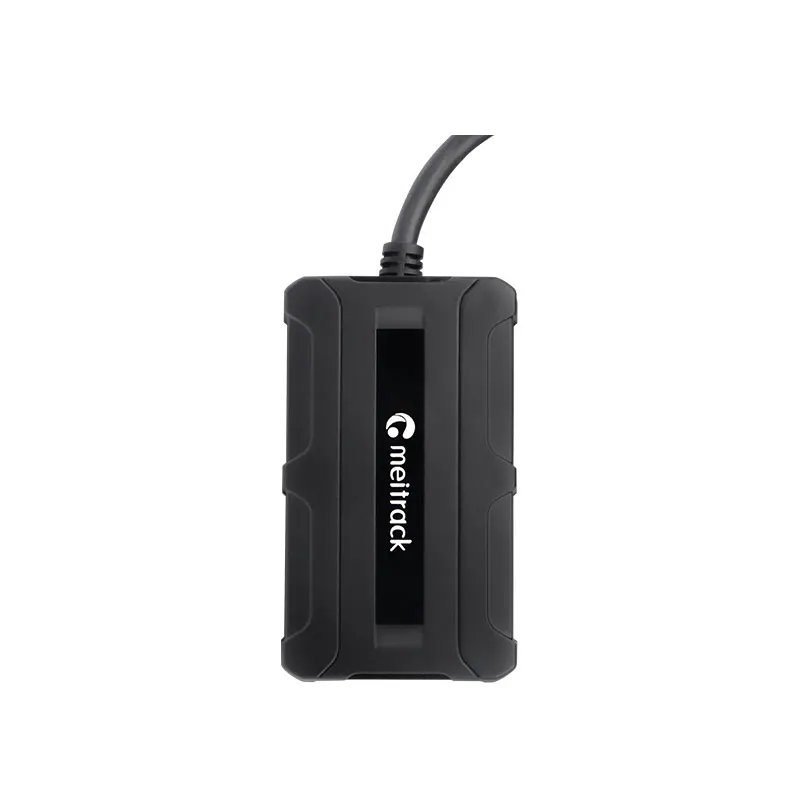

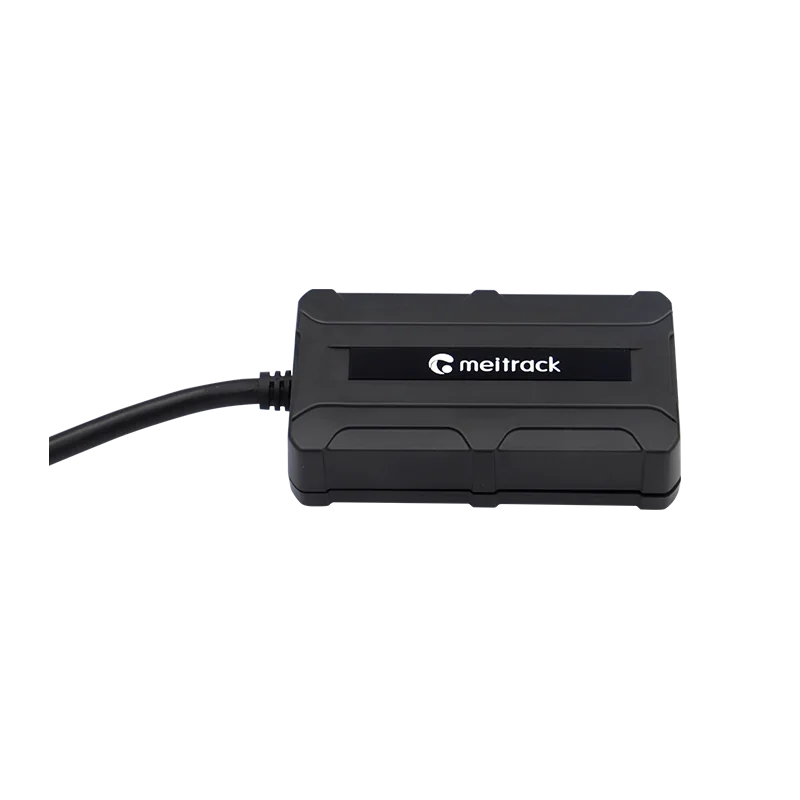

Wholesale Waterproof Mini Real Time Spy Wired Gps Tracker Automotive
- Category: Navigation & GPS >>>
- Supplier: Meitrack Group (Shenzhen)
Share on (1600758989727):
Product Overview
Description
Product Overview
Specifications
Dimension | 75 mm x 44 mm x 17 mm |
Weight | 77g |
I/O power cable length | 50cm |
Power supply | DC 11.4–90 V/1.5 A |
Power consumption | Current in standby mode: 65 mA |
High temperature resistant battery | 200mAh (Operating temperature: -5°C to 75°C) |
Operating temperature | -35°C to 80°C (for the device without a battery) |
Operating humidity | 5% to 95% |
LED indicator | Green indicator showing the network signal Blue indicator showing the GPS signal |
Button/Switch | 1 upgrade button (used to manually upgrade the firmware) 1 power button |
Memory | 8 MB buffer |
Sensor | 3-axis accelerometer |
BLE (optional) | BLE 2.4G, compatible with BLE 5.0 GHz |
Frequency band | T711L: LTE FDD: B1/B3/B5/B7/B8/B20/B28 LTE TDD: B38/B40/B41 GSM: 850/900/1800/1900 |
GNSS | Dual-mode positioning (GPS/BeiDou/GLONASS) |
Positioning accuracy | 2.5 meters |
I/O port | 1 positive input by default (ACC) 1 analog detection input (0–30 V) 1 open collector 1 1-Wire port 1 debug interface (Micro USB) |

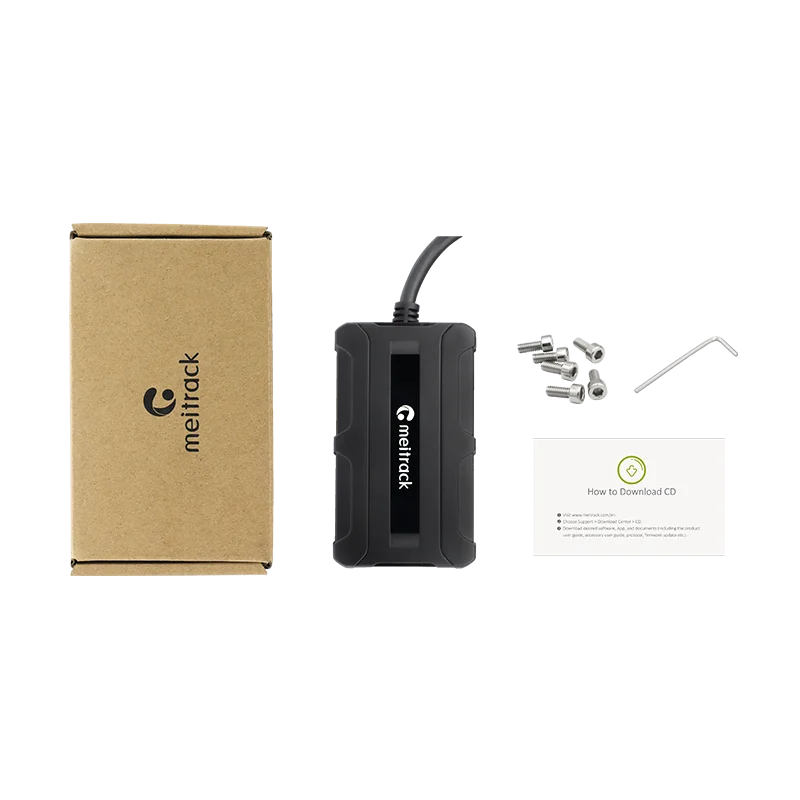

Accessories
T711L tracker | L wrench | Hexagon screw |
High temperature resistant battery (200 mAh) | CD download card |
Optional Accessories
Relay (12 V/24 V) | A52 digital temperature sensor | A53 fuel level sensor |
Buzzer | iButton reader | USB cable |
BLE temperature and humidity sensor | BLE beacon |
Certificates: CE, CITC, IP67

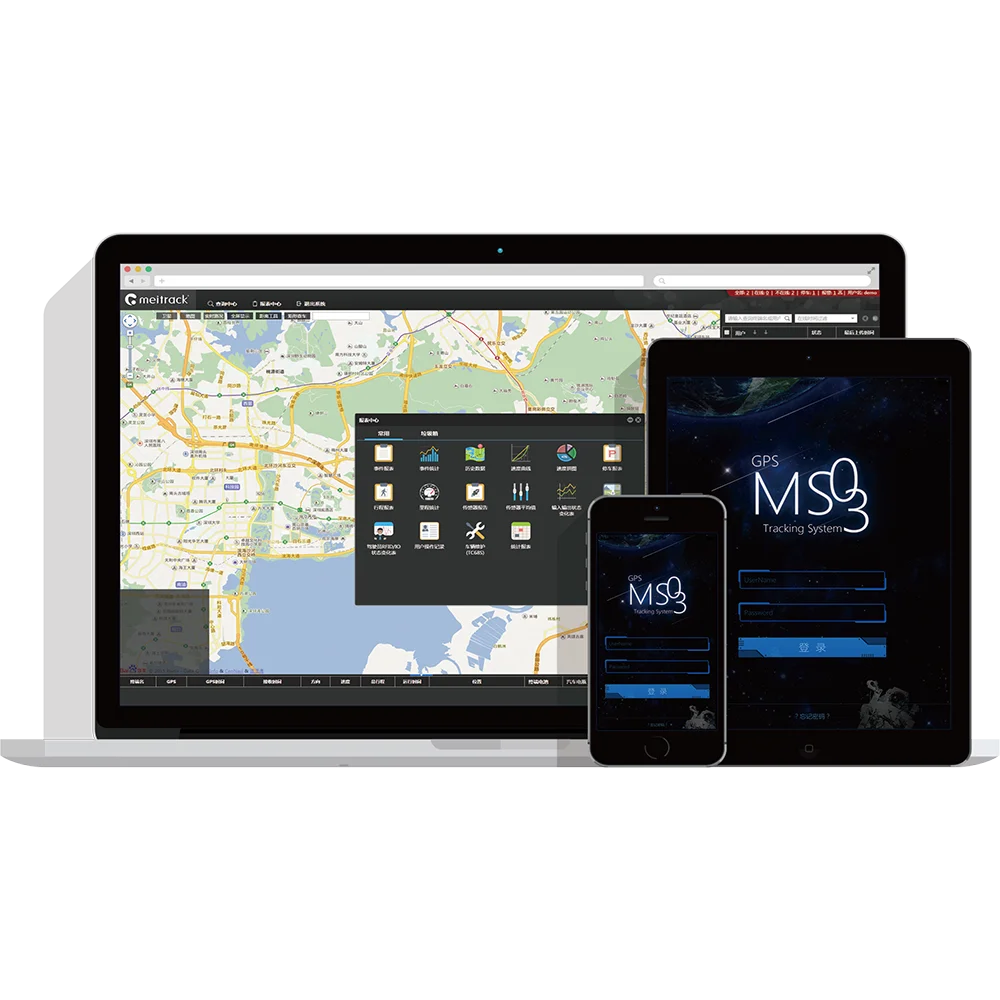

Meitrack MS03
Advanced GPS Tracking Software
MS03 is the newest GPS tracking innovation from Meitrack Group. Extensive programming combined with an esthetically designed user interface (UI), giving the MS03 platform a much more user friendly experience. The platform consists of an extendable database, which ultimately can meet various functional requirements and needs.
Contact us to get a free demo!
Case Study
TAXI GPS TRACKING FOR THAILAND GOVERNMENT
T333L | Thailand
Meitrack introduces the taxi GPS tracking solution to the Thailand government in order to enhance the safety of drivers and passengers while improving the taxi service. Taxies are equipped with the T333L tracker, magnetic card reader, taximeter, and camera. These taxies can only be driven by authorized drivers. In case of emergency, the government monitoring center can pinpoint the location quickly and efficiently, and take immediate action.
T366L | Singapore
The system connected to T366L is applied to record the status of garbage trucks: when and how the trucks move, how each vehicle travels, and when they arrive at destination. This information can be used to analyze time spent in relation to cost. Ultimately allowing the company to make any necessary modifications to their operation.
MD522S | Mexico
The Mexican government wants to find an optimal bus monitoring system solution to guarantee the safety of Mexican residents, ensure a safe bus travel, and prevent illegal activities inside buses. If something unexpected happens, the government can get effective video surveillance data as evidence as fast as possible. Meitrack introduces its MDVR solution to address the needs of the Mexican government.
MD511H | Malaysia
Inside an armored bank vehicle, a MD511H mobile DVR is connected to four cameras. The video surveillance solution only allows authorized staff to start the vehicle. If the vehicle door is opened without permission or the vehicle is hijacked, the monitoring center can quickly and efficiently keep track of what’s happening inside the vehicle, remotely cut off the engine to prevent the vehicle from moving, and take immediate action to minimize the loss.
Company Overview
Since 2002.
20,000m2 state of the art manufacturing facility based in Shenzhen, China.
Placed in-house R&D centers in Taiwan, Shenzhen and the United States.
Providing OEM&ODM service.
Providing software development service.
Global network covering Europe, USA, CIS, Middle East, and Asia Pacific Region.
R&D Center
3 R&D centers in Taiwan, USA and Shenzhen.
50+R&D professionals including advanced engineers, and supervisors.
Equipped with professional testing devices 50+intellectual properties, including industrial design patents and software copyrights.
More than 18% of sales revenues invested in research and development every year.
Manufaturing
Standardized Production Management
GPS signal generators MP9000 & MP9100 Agilent
GSM/GPRS integrated tester 8960 Reflow soldering,
SMT machine, solder paste printer, AOI tester...
Strict Quality Control
IATF16949:2016 Quality Management System
ISO9001:2015 Quality Management System
Certs: CE, FCC, RoHS,PAHs, etc.
